Commercial Electric AK366B-MBK User manual

THANK YOU
USE AND CARE GUIDE
6 ft. / 8 ft. / 10 ft. HIGH VELOCITY
INDOOR/COVERED OUTDOOR CEILING FAN
We appreciate the trust and condence you have placed in Commercial Electric through the purchase of this ceiling fan. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Commercial Electric!
1-833-HDFANS-1 / (1-833-433-2671)
HOMEDEPOT.COM
Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
call Commercial Electric Customer Service
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1009 847 953
1009 847 948
Model #AK366-MBK
AK366-TM
10 ft.
6 ft. 8 ft.
Item #1009 847 949
1009 847 952
Model #AK366B-MBK
AK366B-TM
Item #1009 847 950
1009 847 951
Model #AK366A-MBK
AK366A-TM

Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
14
16
16
READ AND SAVE THESE INSTRUCTIONS
Safety Information
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 50 lb (22.7 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All setscrews must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (JY1153H only for
AK366 & AK366A; JY1028 only for AK366B).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AK366B-MBK, AK366B-TM, AK366A-MBK, AK366A-TM
AK366-MBK, AK366-TM
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: [phone] Fax: [phone]
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
CAUTION: Use only with light kits marked suitable for use
in damp locations.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
NOTE: Suitable for use in damp locations.
NOTE: 96” & 120” items are suitable for industrial use only.

Pre-Installation
Warranty

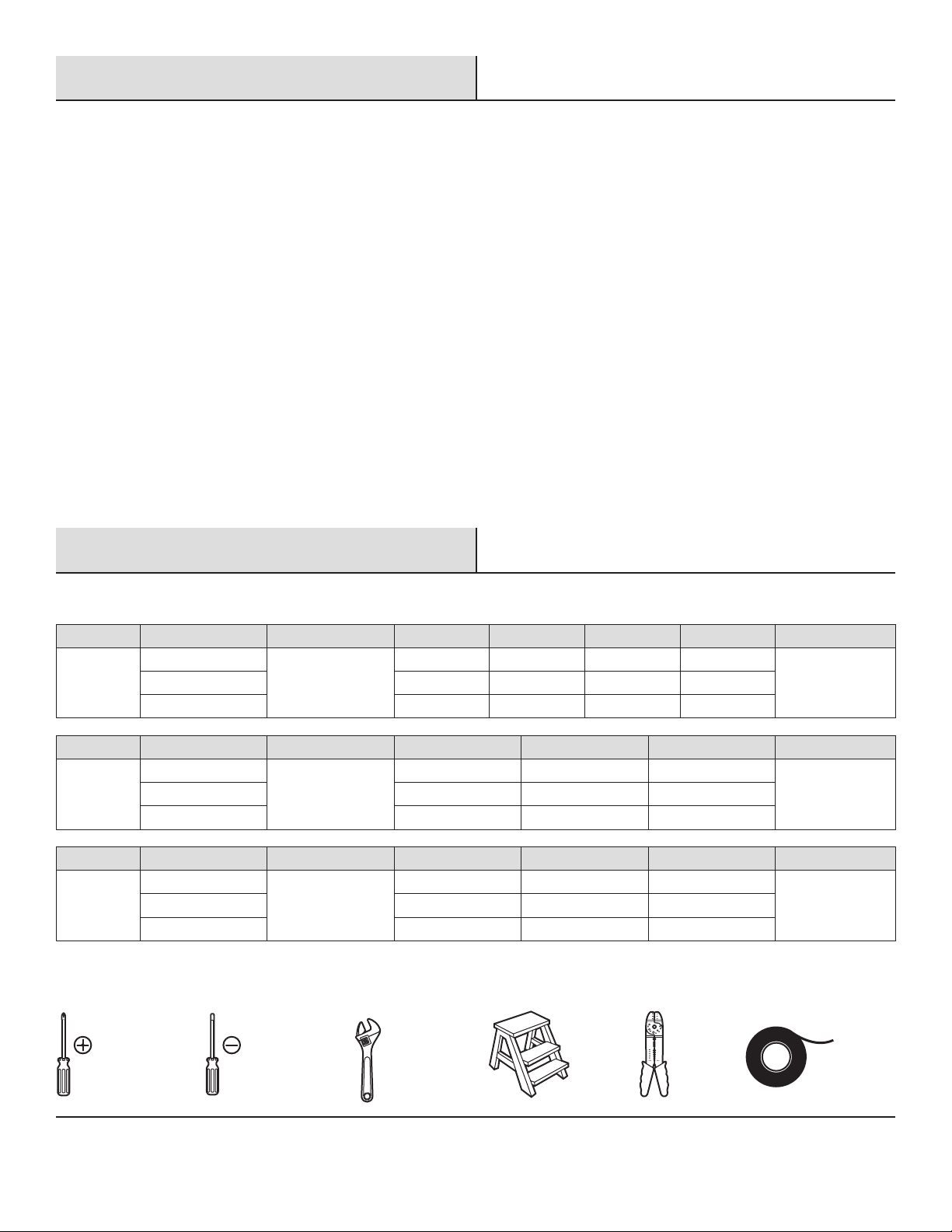

TOOLS REQUIRED
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
3
SPECIFICATIONS
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of 15 years after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding
any glass), wall control and motor controller to be free from defects in workmanship and material at the time of shipment from the factory
for a period of three years after the date of purchase by the original purchaser. The manufacturers also warrants that all other fan parts,
excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a
period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option
replace with a comparable or superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt
as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident,
misuse, improper installation or by afxing any accessories, is not covered by this warranty. A certain amount of “wobble” is normal and
should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other
express warranty. We hereby disclaim any and all warranties, including but not limited to those of merchantability and tness for a
particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time
period as specied in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above
limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in
connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights,
and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any
return of product as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-833-HDFANS-1 / (1-833-433-2671) or visit www.HOMEDEPOT.COM.
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.
10 ft.
Low (speed 1)
Medium (speed 4)
High (speed 6)
120
Fan size Watts RPMSpeed Volts Amps N.W.
0.10
0.44
1.12
3.79
26.10
76.50
17
46
69
15.8 kg
(34.76 lb)
6 ft.
Low (speed 1)
Medium (speed 4)
High (speed 6)
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.
0.09
0.23
0.64
2.84
13.16
40.95
29
87
125
2010
6286
9412
13.5 kg
(29.70 lb)
8 ft.
Low (speed 1)
Medium (speed 4)
High (speed 6)
120
Fan size Watts RPMSpeed Volts Amps N.W.
0.09
0.30
0.79
3.42
19.09
57.65
17
59
87
14.70 kg
(32.34 lb)

4
NOTE: Hardware not shown to actual size.
HARDWARE INCLUDED
Pre-Installation (continued)
AA
BB
CC
DD
EE
Plastic wire nut
Additional blade tip
Safety cable screw, lock washer and at washer
Hex wrench
Blade attachment screw with lock washer (additional)
Part Description
3
6
1
1
1
Quantity
AA
EE
BB CC DD

PACKAGE CONTENTS
Pre-Installation (continued)
Part
H
I
J
K
L
G
Description
Blade
Blade arm A with RED DOT label
Blade arm B
Light cover
Wall control
Blade support plate
(with screws and lock washers)
Quantity
6
3
3
1
1
6
Part
A
B
C
D
E
F
Quantity
1
1
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
5
G
H
L
J
C
B
D
E
F
K
Patent Pending
A
I
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.
CCT

6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 50 lb). Do not
use a plastic outlet box.
The illustrations below show two different ways to mount the
outlet box (not included).
Outlet Box
Outlet Box
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Hanger Bar
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
MOUNTING OPTIONS
Installation
CAUTION: The outlet box and support structure must be
securely mounted and capable of reliably supporting a minimum
of 50 lb (22.7 kg) or less. Use only UL Listed outlet boxes marked
“FOR FAN SUPPORT.”

Assembly
1Preparing the canopy
3Assembling the fan
WARNING: Failure to properly install the cotter pin (GG) could
result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (KK), lower the hanger ball
(KK) and remove the cross pin (LL). Remove all three pieces
from the downrod and assemble them onto the new longer
downrod before proceeding to the downrod installation.
Carefully feed the motor wires and safety cable (MM) up
through the downrod (NN). Thread the downrod (NN) into the
collar.
Align the holes and replace the clevis pin (HH) and cotter
pin (GG). Tighten the two collar set screws (II).
Slip coupling cover (E), canopy bottom cover (C), and canopy
(B) onto the downrod (NN).
Carefully reinstall the hanger ball (KK) onto the downrod (NN).
Tighten the set screws (JJ) by using the hex wrench (DD)
provided.
Make sure the cross pin (LL) is in the correct position, the
set screws (JJ) are tightened and wires are not twisted.
Preparing the motor
2
Remove the cotter pin (GG) and clevis pin (HH), and loosen
the two collar set screws (II) from the motor collar.
Loosen two set screws (JJ) located in the hanger ball (KK)
by using the hex wrench (DD) provided. Lower the hanger
ball (KK) and remove the cross pin (LL). Remove the hanger
ball (KK) from the hanger ball/downrod assembly (D).
Remove the canopy bottom cover (C) from the canopy (B) by
turning the canopy bottom cover (C) counterclockwise.
Remove the mounting bracket (A) from the canopy (B) by
removing the non-slotted canopy mounting screw (FF) from
the bottom of the canopy (B) and loosening the slotted canopy
mounting screw (FF) a half turn from the screw head. Next,
turn the canopy (B) counterclockwise to remove the mounting
bracket (A) from the canopy (B).
FF
A
B
C
FF
7
JJ
D
KK
GG
HH
II
II
LL
DD
JJ
C
F
E
B
II
II
HH
GG
JJ JJ
LL
DD
KK
MM
NN
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.

8

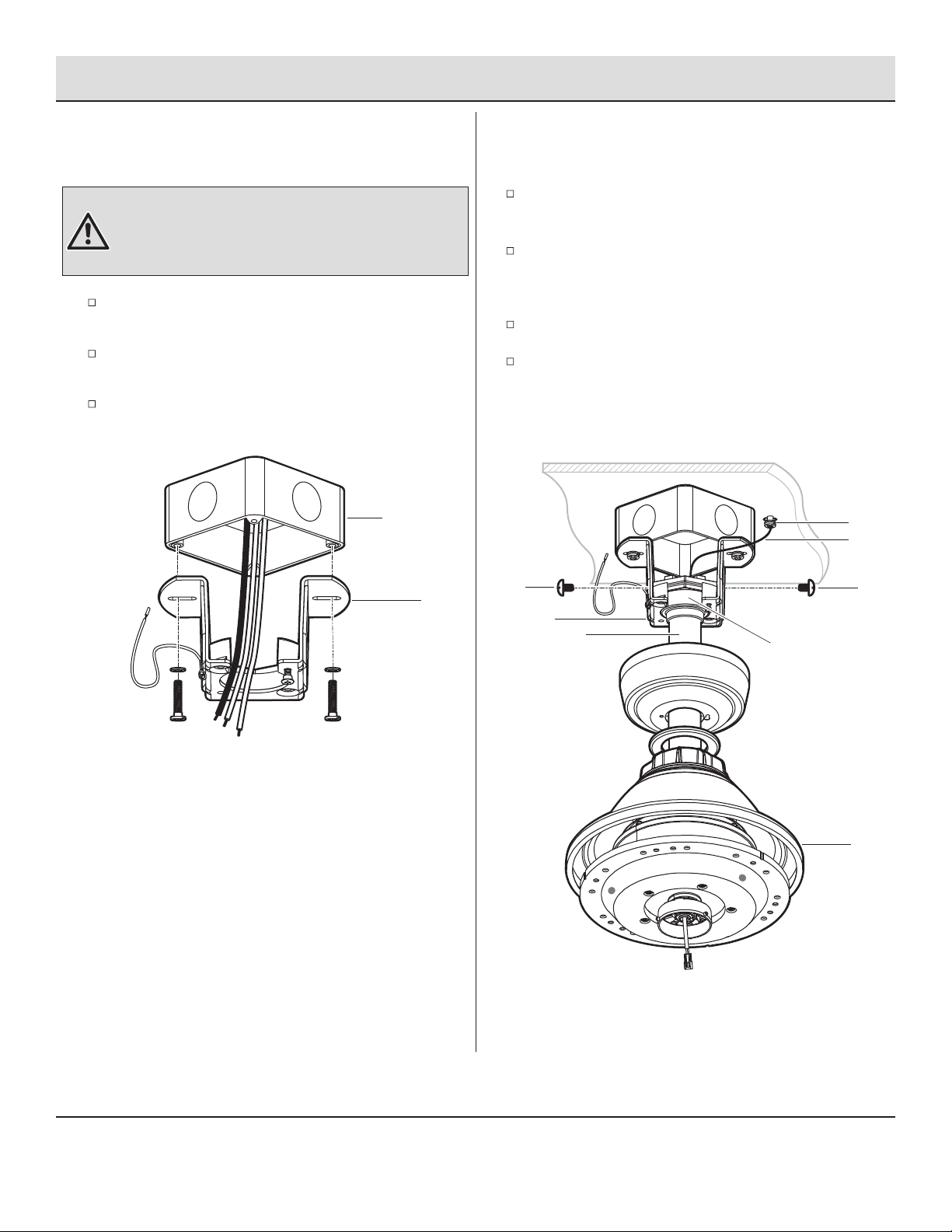

Assembly — Hanging the Fan
4 Attaching the mounting bracket to the
electrical box
WARNING: To reduce the risk of re, electric shock or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
Pass the 120 volt supply wires through the center hole in
the mounting bracket (A).
Install the mounting bracket (A) to the outlet box with the
screws and washers provided with your outlet box.
Securely tighten the two mounting screws.
Hanging the fan on the mounting
bracket
5
Remove two screws (OO) from two upper sides of hanger
ball (KK).
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket.
Securely tighten two screws (OO).
Secure the safety cable (PP) to the building structure that
independent to the outlet box using safety cable screw, lock
washer and at washer (CC) (included). The safety cable
should be in a stress-free state after installation.
CC
PP
OO
OO
D
KK
A
F
A
Outlet Box

NOTE: Installation of this fan requires that a three-conductor cable with ground wire be run between ceiling and wall outlet box (QQ), or the
oscillating feature will not work.
WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
Assembly — Hanging the Fan (continued)
6Making the electrical connections
9
If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household wiring. Use the plastic wire nuts (AA and RR) with your fan. Secure the
plastic wire nuts (AA and RR) with electrical tape. Make sure there are no loose strands or connections.
* There are two green grounding leads: one from the mounting bracket
(A) and one from the hanger ball/downrod assembly (D).
From Fan To Outlet Box
Black Wire -------------------- Black Wire
White Wire -------------------- White Wire
Green Wires* -----------------Green or Bare Wire (Ground)(Neutral)
AA
To Wall Outlet BoxFrom Wall Control
Black Wire (To Fan) -------------- Black Wire (To Ceiling Outlet Box)
Black Wire (To Power Supply)---- Black Wire (AC Supply)
White
Ground
conductorNeutral
RR QQ
L
Black
Black (AC)
Outlet Box
Black
Black
AC IN
Black
Black (AC)
WARNING: Incorrectly connecting the wires will cause the fan to not
work and may damage the switch.
Turn the wire nut connections upward, spreading them apart so the
green (ground) and white wires will be on one side of the outlet box
and the black wire will be on the other side. Carefully tuck the
connections up into the outlet box.
Make wire connections as follows, using the wire nuts (RR).
Make wire connections as follows, using the wire nuts (AA).
Green
White
Black
F
A
D
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.
CCT

10
Assembly — Hanging the Fan (continued)
7 Installing the wall control
WARNING: Hook up in "series only". Do not connect the hot
and neutral wires of the electric circuit to the wall control (L)
damage to the control and possible re could occur.
WARNING: Remember to shut the power off at the circuit
breaker or fuse box.
Carefully tuck the wire connections inside the junction box.
Secure the wall control (L) with the two wall control screws
(SS) provided.
Attach the wall plate (TT) over the wall control (L).
RR
SS
LTT
CCT

11
Assembly — Hanging the Fan (continued)
8 Installing the canopy
Make sure connections are neatly tucked into the ceiling
outlet box.
Slide the canopy (B) up to the mounting bracket (A) and
place the key hole on the canopy (B) over the loosened
canopy mounting screw (FF) on the mounting bracket (A).
Turn the canopy (B) clockwise until it locks in place at the
narrow section of the key holes.
Align the circular hole on the canopy (B) with the remaining
hole on the mounting bracket (A), secure the canopy
mounting screw (FF) previously removed in the hole, and
tighten the two canopy mounting screws (FF).
NOTE: Adjust the canopy mounting screws (FF) as necessary
until the canopy (B) and canopy bottom cover (C) are snug.
Attaching the canopy bottom cover
9
Attach the canopy bottom cover (C) to the canopy mounting
screws (FF) heads on the bottom of the canopy (B) by
inserting the screw heads into the key slots in the canopy
bottom cover (C) and rotating it clockwise.
B
FF
C
Outlet Box
A
B
C
FF
FF
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.

12

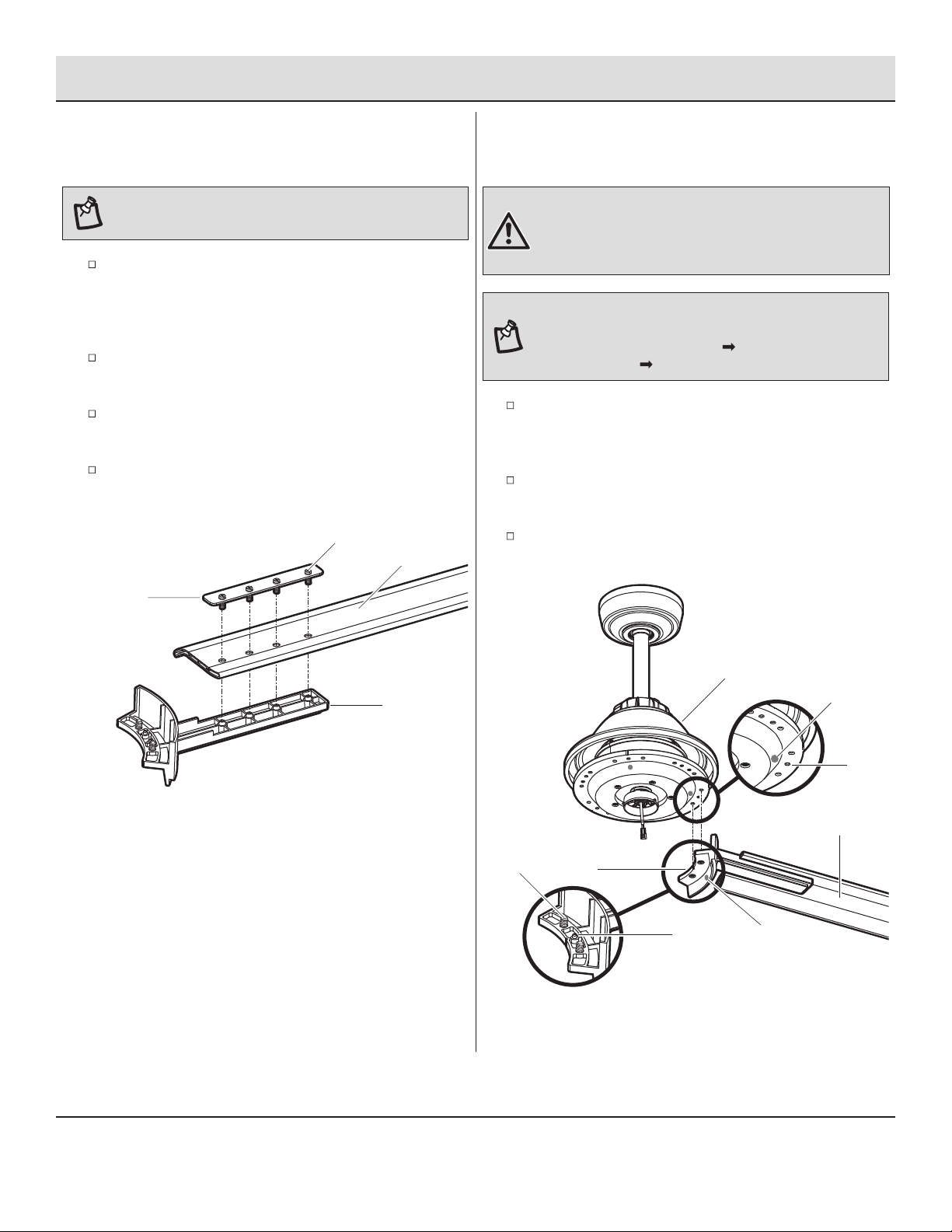

Assembly — Attaching the Fan Blades
10 Attaching the blades to the blade
arms
Attach the blades (H) to the blade arms (I and J) using the blade
support plate with screws and lock washers (G). Start a screw
with lock washer (UU) into the blade arm (I and J), but do not
tighten.
Repeat for the three remaining blade attachment screws with
lock washers (UU).
Tighten each screw securely starting with the center screw.
Make sure the blade (H) is straight.
Repeat these steps for the remaining blades (H).
WARNING: To reduce the risk of personal injury, do not bend
the blade arms while installing, balancing the blades (H), or
cleaning the fan. Do not insert foreign objects between rotating
fan blades (H).
11a Fastening the blade assemblies
to the motor
G
I
UU
H
Fasten the blade assemblies to the fan motor assembly (F)
by lining up the slot (VV) of the motor with RED DOT label
and the tab (WW) on the blade arms A (I) with RED DOT label.
Tighten the two blade arm screws with lock washers (XX)
already installed in the blade arms A (I).
Repeat this procedure for the remaining blade arms A (I).
NOTE: Additional blade tips (BB) in different color are included.
Replace blade tips according to your preference before installing.
XX I
WW
H
RED DOT label
VV
F
RED DOT label
NOTE: Two types of blade arms included must be mounted
with corresponding slots on the motor.
• Blade arm A (I) with RED DOT label Slot (VV) with RED DOT label
• Blade arm B (J) Slot (YY)

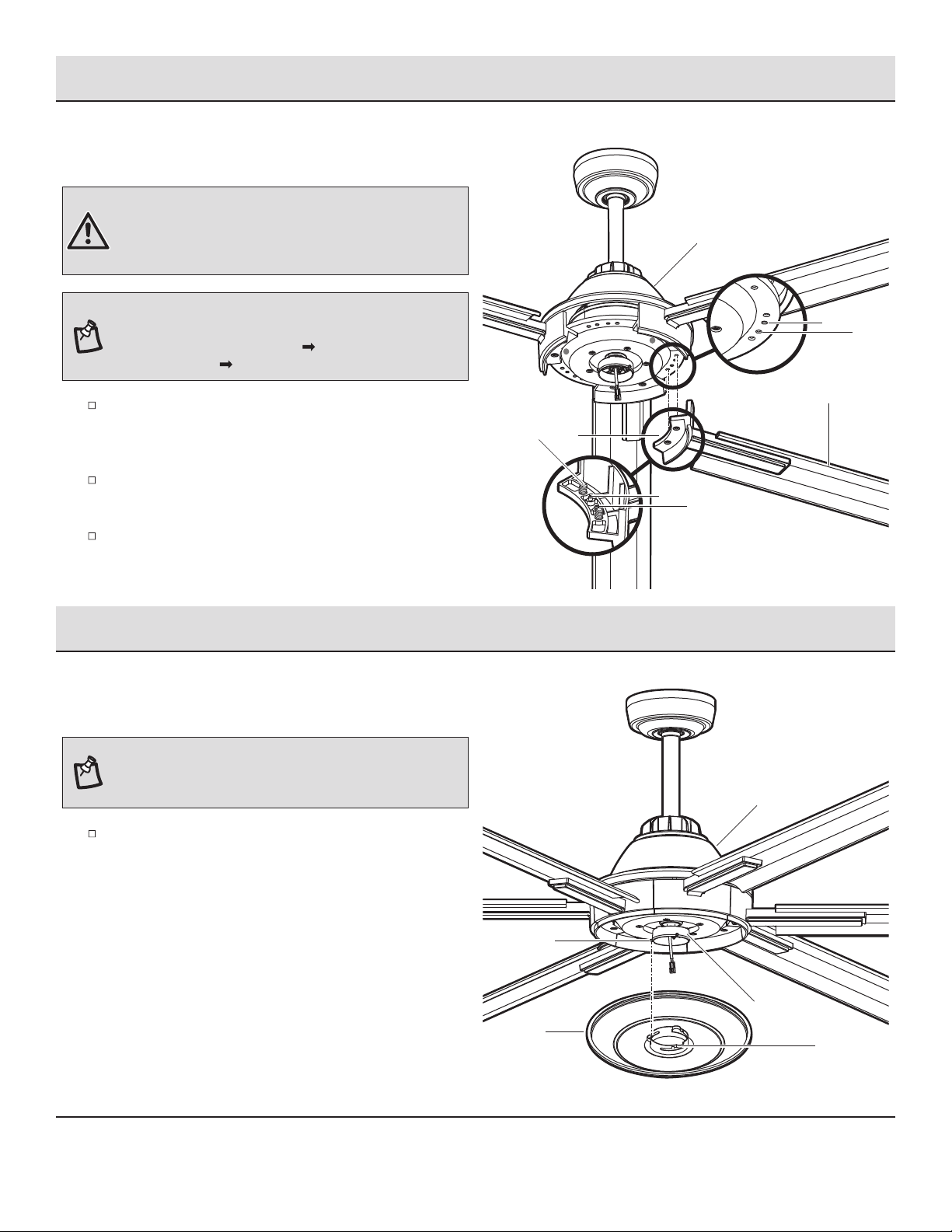

Assembly — Attaching the Fan Blades (continued)
Fasten the blade assemblies to the fan motor assembly (F) by
lining up the two slots (YY) of the motor with two tabs (ZZ)
on the blade arms B (J).
Tighten the two blade arm screws with lock washers (XX)
already installed in the blade arms B (J).
Repeat this procedure for the remaining blade arms B (J).
11b Fastening the blade assemblies
to the motor
Assembly — Installing the Light Cover
12 Attaching the light cover
Position the notches (AAA) in the outer rim of light cover (K)
so they line up with the tabs (BBB) on the outside of the rim
on the light kit mounting plate (CCC). Carefully lift the light
cover (K) up inside the light kit mounting plate (CCC) and
secure it to the fan by turning the light cover (K) clockwise
until snug. Make sure the light cover is secured tightly.
13
WARNING: To reduce the risk of personal injury, do not bend
the blade arms while installing, balancing the blades (H), or
cleaning the fan. Do not insert foreign objects between rotating
fan blades (H).
BBB
CCC
K
AAA
F
NOTE: If the light cover could be wobbled by hand, it means
the light cover is not twisted completely till the right position.
Keep twisting the light cover till it could not be wobbled by hand.
F
YY
YY
XX J
ZZ ZZ
H
NOTE: Two types of blade arms included must be mounted
with corresponding slots on the motor.
• Blade arm A (I) with RED DOT label Slot (VV) with RED DOT label
• Blade arm B (J) Slot (YY)
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.

14
Assembly — Installing the Light Kit (optional-sold seperately)
13 Attaching the LED light kit to the
light kit mounting plate
CAUTION: Before starting installation, disconnect the power
by turning off the circuit breaker or removing the fuse at the
fuse box. Turning power off using the fan switch is not sufcient
to prevent electric shock.
BBB
CCC
DDD
FFF
F
EEE
While holding the LED light kit (DDD) under the fan motor
assembly (F), snap together the wire connection plugs (EEE):
White to white
Black to black
Position the notches (FFF) on the inner edge of the LED light
kit (DDD) so they match the tabs (BBB) on the outside of the
rim on the light kit mounting plate (CCC). Carefully lift the
LED light kit (DDD) inside the light kit mounting plate (CCC)
and secure it to the fan by turning the LED light kit (DDD)
clockwise until snug.
NOTE: If the light kit could be wobbled by hand, it means the
light kit is not twisted completely till the right position. Keep
twisting the light kit till it could not be wobbled by hand.
CAUTION: Use only with light kits marked suitable for use
in damp locations.

1. 1, 2, 3, 4, 5 and 6 button - These six buttons are used to set the
fan speed as follows:
1 = minimum speed
2 = low speed
3 = medium low speed
4 = medium speed
5 = medium high speed
6 = high speed
2. Power on/off: This button will activate the fan and light when
the fan and light are both off.
3. Reverse button: This button is to control fan direction. This
button must be pressed while fan is running (suggested speed 4).
4. Press and release the button to cycle through three color
temperature options:
Option 1: 3000K (Soft White)
Option 2: 4000K (Bright White)
Option 3: 5000K (Day Light)
5. Light on/off and dimming button: Press and release this
button to turn the light on or off. Press and hold the button to
activate the dimming function.
6. AC Power On/Off tab: Pull up the tab to turn the AC power
off.
15
Operation
Signal light
AC Power On/Off
CCT

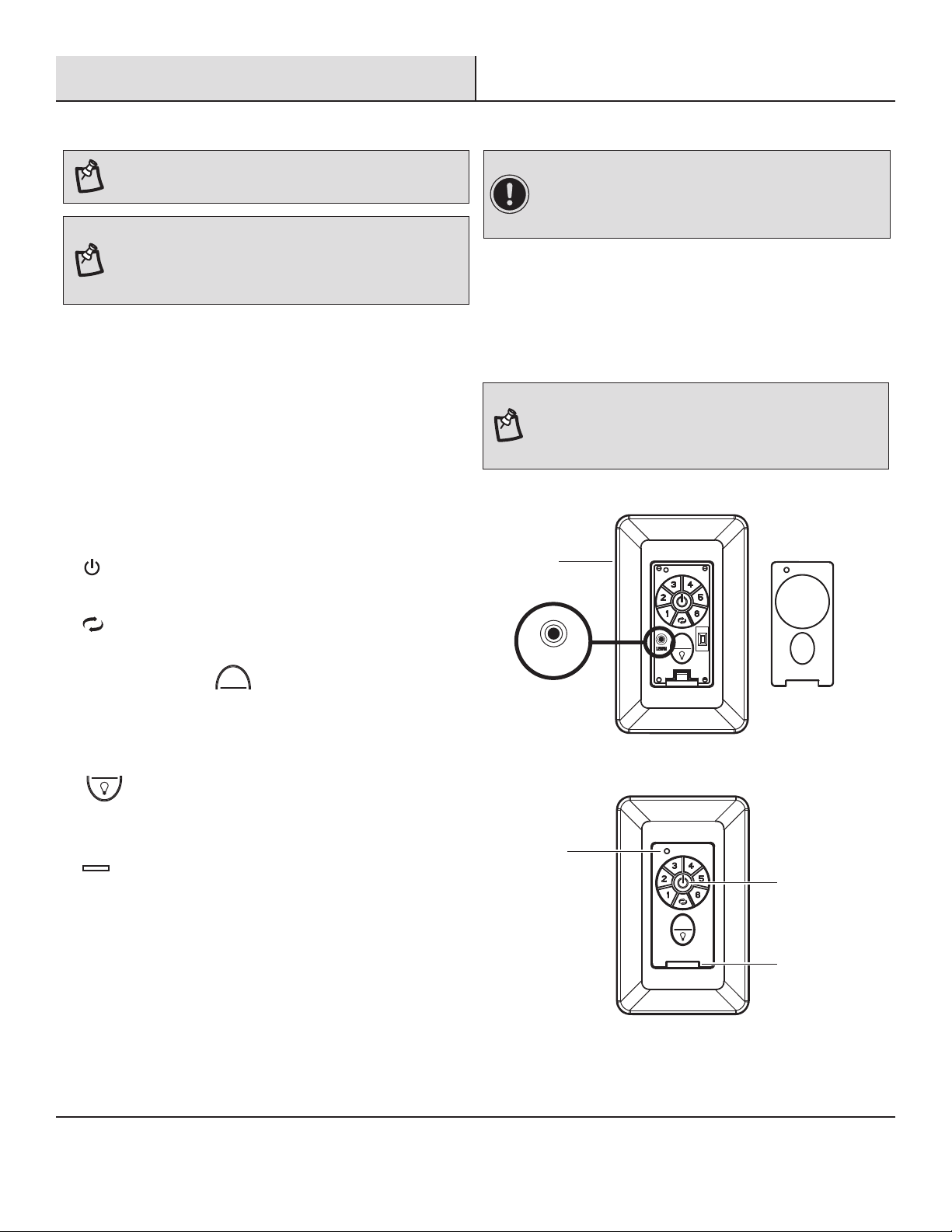

WALL CONTROL OPERATING INSTRUCTIONS
Power on/off
NOTE: The wall control has been pre-paired in the factory for
your convenience.
NOTE: On each start up of your ceiling fan, the fan blades will
oscillate back and forth. This is a NORMAL OPERATION for DC
motor ceiling fans as they go through a calibration cycle. The
fan is NOT DEFECTIVE.
Your DC brushless motor is equipped with an automatically learned
type wall control. There are no frequency switches on the receiver or
transmitter. The fan can start to use once the pairing process is done.
Within 30 seconds of turning AC power on, press and hold the
“LEARN” button for about 5 seconds and release. If optional light
kit is installed, the light kit will ash twice and the signal light on
the wall control will come on when the button is pressed. The fan
has completed the pairing process with the wall control and is
ready for use.
NOTE: A single fan can be controlled with as many as 3 wall
controls in one room. Every control will need to repeat the
pairing process based on instructions above and all controls
must be within 30 feet of the fan.
LEARNING PROCESS
IMPORTANT: If you have two or more fans, please follow
steps below to control each fan independently. Also follow
steps below to re-pair the wall control and the receiver when
needed.
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.
CCT
L
LEARN
CCT
CCT

16
Operation (continued)
WARM/COOL WEATHER OPERATING
INSTRUCTIONS
NOTE: The fan reverse buttons must be pressed while the
fan is running.
Speed settings for warm or cool weather depend on factors such as
the room size, ceiling height, numbers of fans.
Warm weather - (Counterclockwise Direction) A downward air ow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air ow moves warm
air off the ceiling. This allows you to set your heating unit on a cooler
setting without affecting your comfort.

Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose
parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
Select a point on the ceiling above the tip of one of the blades, then select any fan blade and measure
from the center of the selected blade to the point on the ceiling. Rotate the fan until the next blade is
positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in.
If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
1-833-HDFANS-1 / (1-833-433-2671) to order a complimentary blade balancing kit.
If deviation is greater than 1/8 in., please call Customer Service 1-833-HDFANS-1 / (1-833-433-2671)
to order complimentary replacements of your brackets.
17
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Care and Cleaning
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not
Troubleshooting
Problem Solution
The fan will not start.
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Turn the AC power off, and turn the AC power on after 10 seconds.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan sounds noisy.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The remote control is
not working.
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
Reset the transmitter by going through the transmitter “LEARNING PROCESS”.
The fan wobbles.
Fan moves backwards and
forwards when turned on.
This is normal start-up procedure for DC motor fans. The partial movement during start-up is the result
of the DC motor aligning the internal magnetic poles for proper motor operation. This design saves
electricity and allows the fan to operate much quieter than standard AC motor fans.
HOMEDEPOT.COM
Please contact 1-833-HDFANS-1 / (1-833-433-2671)
for further assistance.

Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-833-HDFANS-1 / (1-833-433-2671)
HOMEDEPOT.COM
Retain this manual for future use.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
