Commercial Electric MS8132A User manual

THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this digital multimeter. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Commercial Electric!
Item #826 403
Model #MS8132A
USE AND CARE GUIDE
DIGITAL MULTIMETER
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
DIGIT
ALMUL
TIMETER
MS8132A
300VCATIII
1.5V
9V
OFF
2K
CAT III
300V

2
Table of Contents
Safety Information.........................................................2
Precautions ..............................................................................3
Warranty.........................................................................3
Pre-Operation................................................................4
Product Description .................................................................4
LCD Display Definitions............................................................5
Accuracy ..................................................................................5
Product Specifications .............................................................6
Operation ....................................................................... 6
Maintenance.................................................................. 8
Replacing the Battery and Fuse...............................................8
Test Lead Replacement ...........................................................9
Care and Cleaning ........................................................ 9
Safety Information
Please read this manual carefully and pay attention to related
safe working standards before using this meter. Protection
provided by the instrument will be impaired if used in a manner
not specified by the manufacturer.
The digital multimeter is designed and manufactured according
to safety requirements of EN 61010-1:2010, EN 61010-2-030, EN
61010-2-033, on electronic measuring instruments and hand
held digital multipurpose meters. This multimeter also conforms
to UL STD.61010-1, 61010-2-030, 61010-2-033, Certified to CSA
STD.C22.2 NO.61010-1, 61010-2-030, and 61010-2-033. The
product meets with the requirements of 300V CAT III and
pollution degree 2. The meter can be used for measuring DC
voltage, AC voltage, resistance, diode and batteries.
Use the meter strictly according to the provisions of this manual.
Otherwise, the warranty for the meter may become invalid. The
warnings in the user manual are used to remind users of
possible danger or dangerous action. The notes in the user
manual are used to remind users of possible meter damage or a
condition or action of the measured object.
This device enters shutdown mode when the battery voltage is
lower than 2V.

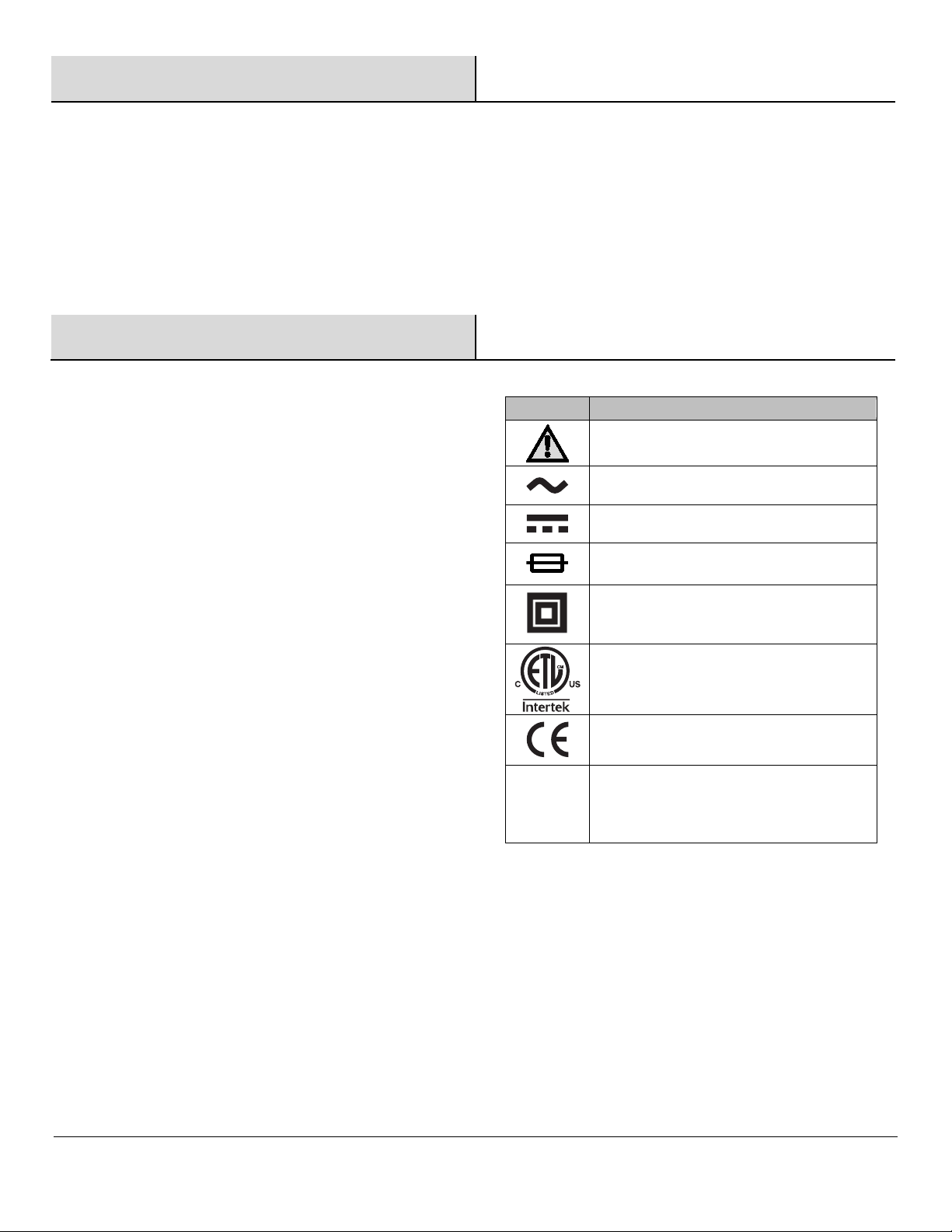

SAFETY SYMBOLS
Symbol
Definition
Indicates important safety information.
Alternating current (AC).
Direct current (DC).
The fuse must be replaced with the rating
specified in this manual.
Equipment protected throughout by DOUBLE
INSULATION or REINFORCED INSULATION.
Conforms to UL STD. 61010-1, 61010-2-030
and 61010-033. Certified to CSA STD C22.2
NO. 61010-1, 61010-2-030, and 61010-033.
Accord with the related EU laws and
regulations.
Measurement Category III is applicable to test
and measuring circuits connected to the
distribution part of the building’s low-voltage
MAINS installation.
CAT III

3 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Safety Information (continued)
PRECAUTIONS
WARNING: Measure known voltage with the meter to
verify that the meter is working properly. If the meter is
working abnormally, stop using it immediately. A protective
device may be damaged. If there is any doubt, have the
meter inspected by a qualified technician.
WARNING:Do not use the meter or test leads if they look
damaged. Check to see if the test wire has insulation
damage or bare metal. Check test wire continuity. If the
wire is damaged, replace it with a new one before using the
meter.
WARNING: When testing voltage that exceeds 30V AC or
60V DC, be particularly careful to avoid electric shock.
WARNING: When measuring, use the correct jack, and
select the proper function and measuring range.
WARNING: When making connections, connect the
common test lead before connecting the live test lead.
When disconnecting, disconnect the live test lead before
disconnecting the common test lead.
WARNING: Do not use under direct sunlight or high
temperatures.
WARNING: Disconnect power to the circuits and
discharge all high-voltage capacitors before testing
resistance, continuity, diodes, or capacitance.
WARNING:Before measuring current, check the meter’s
fuse and turn off power to the circuit before connecting the
meter to the circuit.
WARNING: Do not measure voltages exceeding the rated
voltage marked on the meter.
WARNING: Do not operate the meter with any part
removed or damaged.
WARNING: When the battery low voltage indicator
illuminates, replace the battery immediately. A low battery
will cause meter reading errors and may result in electric
shock or personal injury.
WARNING: Do not operate the meter around explosive
gas, vapor, or dust.
CAUTION: Pay attention to the battery polarity when
changing the battery.
CAUTION: When maintaining the meter, use replacement
parts specified by the factory.
CAUTION: To avoid damage to the meter, do not exceed
the maximum limits of the input values shown in the
Specification tables.
CAUTION: Before changing functions, disconnect the test
leads from the circuit under test.
NOTE: Keep your fingers behind the protection guards
while measuring.
Warranty
WARRANTY: 12 months
For one year from the date of purchase, this product is warranted against any defects in material or workmanship. This warranty is void if
this product is ever used while providing commercial services or if rented to another person.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com.

4
Pre-Operation
PRODUCT DESCRIPTION
Part
Name
Description
A
LCD display
Displays the measured readings.
B
Select switch
Rotate to select a measurement mode.
C
Common input jack
Connect to the black test lead.
D
Positive input jack
Connect to the red test lead to measure DC voltage, AC
voltage, resistance, diode and batteries.
E
Red test lead
F
Black test lead
DIGITAL MULTIMETER
MS8132A
300V CATIII
1.5V
9V
OFF
2K
F
D
B
C
A
E

5 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Operation (continued)
LCD DISPLAY DEFINITIONS
LCD Term
Description
1
High voltage indicator
2
Numerical value polarity indicator (negative sign)
3
Battery low voltage indicator
4
Measurement display value
ACCURACY
Function
Range
Accuracy
ACV
1V-300V
±(2.0% of reading +10 digits)
DCV
1V-300V
±(2.0% of reading +8 digits)
Resistance
2K
Ω
±(2.0% of reading +10 digits)
Diode
Displays the appropriate diode positive voltage
Battery test
1.5V
1.350 1.650V–
9V
8.450 – 9.550V
DIGITAL MULTIMETER
MS8132A
3
2
1 4
