CommScope MR418 User manual

mini Repeater
MR418
Single-Band
User's Manual
M0139AJH

Page 2 M0139AJH
User’s Manual for MR418
DISCLAIMER:
This document has been developed by CommScope, and is intended for the use of its
customers and customer support personnel. The information in this document is subject to
change without notice. While every effort has been made to eliminate errors, CommScope
disclaims liability for any difficulties arising from the interpretation of the information
contained herein. The information contained herein does not claim to cover all details or
variations in equipment, nor to provide for every possible incident to be met in connection
with installation, operation, or maintenance. This document describes the performance of the
product under the defined operational conditions and does not cover the performance under
adverse or disturbed conditions. Should further information be desired, or should particular
problems arise which are not covered sufficiently for the purchaser’s purposes, contact
CommScope.
CommScope reserves the right to change all hardware and software characteristics without
notice.
COPYRIGHT:
© Copyright 2018 CommScope Inc. All Rights Reserved.
This document is protected by copyright. No part of this document may be reproduced,
stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical photocopying, recording, or otherwise without the prior written permission of
CommScope.
TRADEMARKS
All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of
CommScope. Names of products mentioned herein are used for identification purposes only
and may be trademarks and / or registered trademarks of their respective companies.
Andrew Wireless Systems GmbH, 28-February-2018

Table of Contents
M0139AJH User’s Manual for MR418 Page 3
TABLE OF CONTENTS
1. GENERAL 6
1.1. ABBREVIATIONS 6
1.2. HEALTH AND SAFETY 7
1.3. PROPERTY DAMAGE WARNINGS 7
1.4. COMPLIANCE 8
1.5. ABOUT COMMSCOPE 9
1.6. INTERNATIONAL CONTACT ADDRESSES FOR CUSTOMER SUPPORT 10
2. INTRODUCTION 12
2.1. PURPOSE 12
2.2. THE MR418 REPEATER 12
3. FUNCTIONAL DESCRIPTION 14
3.1. GENERAL 14
3.2. DESIGN AND CONNECTORS 15
4. INSTALLATION AND COMMISSIONING 16
4.1. MECHANICAL INSTALLATION 16
4.1.1. Health and Safety for Mechanical Installation 16
4.1.2. Property Damage Warnings for Mechanical Installation 16
4.2. ELECTRICAL INSTALLATION 16
4.3. EXTERNAL-ALARM INPUTS AND SUMMARY-ALARM OUTPUT 20
4.3.1. External-Alarm Inputs 20
4.3.2. Summary-Alarm Output 22
5. SOFTWARE SETUP 23
5.1. LOGIN 23
5.2. MENU BAR – BUTTONS 24
5.3. STATUS BAR 24
5.4. STATUS 25

Table of Contents
Page 4 M0139AJH User’s Manual for MR418
5.5. SETTINGS 27
5.5.1. Settings – Radio Frequency 28
5.5.2. Settings – Alarms 30
5.5.3. Settings – Modem Control 30
5.5.4. Settings – LAN Connectivity 32
5.5.5. Settings – User Account 34
5.6. MAINTENANCE 35
5.7. LOGOUT 36
5.8. UPLOAD NEW SOFTWARE VERSION 37
6. OPTIONAL EQUIPMENT 38
6.1. EXTERNAL MODEM (KIT) 38
6.2. INTEGRATED MODEM 38
6.3. ANTENNA 39
6.4. ADAPTER CABLE 39
7. ALARMING AND SUPERVISION 40
7.1. ALARM LEDS 40
7.2. DISPLAY AND RESET & INSTALLATION ASSISTANCE BUTTON 41
7.3. SNMP POLLING 43
7.3.1. Requirements 43
7.3.2. MIB Tree 43
7.3.3. Examples 44
8. APPENDIX 45
8.1. ELECTRICAL SPECIFICATIONS 45
8.2. ENVIRONMENTAL AND SAFETY SPECIFICATIONS 45
8.3. MECHANICAL SPECIFICATIONS 46
8.4. SPARE PARTS LIST 47
9. INDEX 48
10. LIST OF CHANGES 49

Figures and Tables
M0139AJH User’s Manual for MR418 Page 5
FIGURES AND TABLES

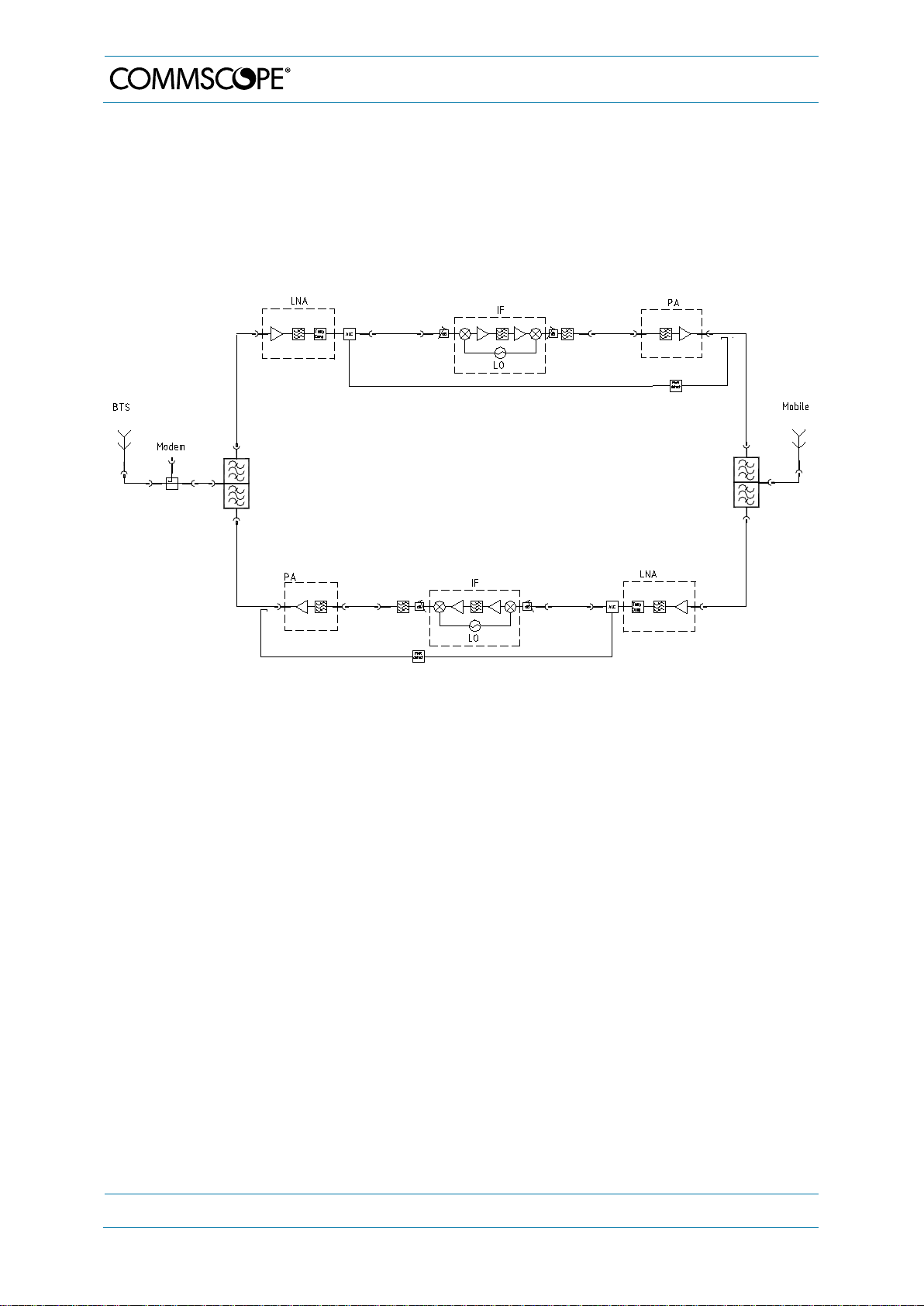

figure 3-1 Block diagram........................................................................................... 14
figure 3-2 Connectors of MR418............................................................................... 15
figure 4-1 MR418, position of screws for wall mounting ........................................... 16
figure 4-2 Power connection of DC connector with MR418...................................... 17
figure 4-3 External-alarm connector, inputs.............................................................. 20
figure 4-4 External-alarm inputs, PIN assignment & relay contacts.......................... 20
figure 4-5 External-alarm inputs, PIN assignment & potential-free relay contacts.... 21
figure 4-6 External-alarm inputs, PIN assignment & potential-free relay contacts.... 21
figure 4-7 Summary-alarm connector, PIN assignment............................................ 22
figure 4-8 Summary-alarm output, PIN assignment and relay contacts.................... 22
figure 4-9 Summary-alarm output, PIN assignment for relay contacts...................... 22
figure 5-1 Login page................................................................................................ 23
figure 5-2 Status – General & Alarms, “RSSI Based Power OFF” set to “active”...... 25
figure 5-3 Status – General & Alarms, high-contrast page ....................................... 25
figure 5-4 Settings – Radio Frequency, exemplary................................................... 28
figure 5-5 Settings – Alarms ..................................................................................... 30
figure 5-6 Settings – Modem Control........................................................................ 30
figure 5-7 Settings – LAN Connectivity..................................................................... 32
figure 5-8 Settings – User Account........................................................................... 34
figure 5-9 Maintenance............................................................................................. 35
figure 5-10 Logout .................................................................................................... 36
figure 5-11 Upload new software version ................................................................. 37
figure 6-1 Position of modem connector................................................................... 38
figure 6-2 SIM card opening and BTS connector...................................................... 39
figure 6-3 Coverage antenna for MR418, optional equipment.................................. 39
figure 7-1 Display and alarm LEDs, exemplary......................................................... 40
figure 7-2 Display with reset button and alarm LEDs , exemplary............................ 41
figure 7-3 Display – RSSI......................................................................................... 42
figure 7-4 Display – Gain UL and DL........................................................................ 42
figure 7-5 Display – Pout UL and DL.......................................................................... 42
figure 8-1 Cabinet drawing MR418........................................................................... 46
table 4-1 External-alarm inputs, PIN assignment for relay contacts ......................... 20
table 4-2 External-alarm inputs, PIN assignment for potential-free relay contacts.... 21
table 4-3 External-alarm inputs, PIN assignment for potential-free relay contacts.... 21
table 5-1 Status bar, description............................................................................... 24
table 5-2 Status page ............................................................................................... 27
table 5-3 Settings - Modem Control.......................................................................... 31
table 5-4 Settings – User Account page................................................................... 34
table 5-5 Maintenance page, description.................................................................. 36
table 7-1 Alarm LEDs ............................................................................................... 41

1. General
Page 6 M0139AJH User’s Manual for MR418
1.General
1.1.Abbreviations
ALC Automatic Level Control
AMPS American Mobile Phone
System or Advanced Mobile
Phone System
BCCH Broadcast Control Channel
BITE Built-In Test Equipment
BTS Base Transceiver Station
CEPT Conférénce Européenne
des Postes et
Télécommunications
CF Center Frequency
CFO Center Frequency Offset
CFR Code of Federal
Regulations
DL Downlink
DoC Declaration of Conformity
EDGE Enhanced Data Rates for
GSM Evolution
ESD Electrostatic Discharge
ETACS Enhanced TACS
ETS European
Telecommunication
Standard
ETSI European
Telecommunication
Standards Institute
FSK Frequency Shift Keying
GSM Global System for Mobile
Communication
GUI Graphical User Interface
I2C-Bus Inter-Integrated Circuit Bus
(Philips)
ID No Identification Number
IF Intermediate Frequency
MCC Mobile Country Code
MNC Mobile Network Code
MR Microwave Repeater
MS Mobile Station
MTBF Mean Time Between Failure
OMC Operation and Maintenance
Center
PCMCIA Personal Computer Modem
Communication
International Association
PCS Personal Communication
System
PSTN Public Switched Telephone
Network
RED Radio Equipment Directive
Rev Revision
RF Radio Frequency
RLP Radio Link Protocol
RSSI Receive Signal Strength
Indication
RTC Real-Time Clock
RX Receiver
RoHS Directive on Restriction of
certain Hazardous
Substances
RSSI Receive Signal Strength
Indication
RTC Real-Time Clock
RX Receiver
SCL Serial Clock
SDA Serial Data
TACS Total Access Communi-
cation System
TCH Traffic Channel
TDMA Time Division Multiple
Access
TX Transmitter
UL Uplink
UMTS Universal Mobile Telecom-
munications System
UPS Uninterruptable Power
Supply

1. General
M0139AJH User’s Manual for MR418 Page 7
1.2.Health and Safety
Caution: High frequency radiation in operation. Risk of health hazards associated
with radiation from the antenna(s) connected to the unit. Implement prevention
measures to avoid the possibility of very close proximity to the antenna(s) while in
operation.
1.3.Property Damage Warnings
1. Notice: Although the repeater is internally protected against overvoltage, it is
strongly recommended to ground (earth) the antenna cables close to the
repeater’s antenna connectors for protection against atmospheric discharge.
2. Notice: ESD precautions must be observed. Before commencing maintenance
work, use the available grounding (earthing) system to connect ESD protection
measures.
3. Notice:Only suitably qualified personnel are allowed to work on this unit and only
after becoming familiar with all safety notices, installation, operation and
maintenance procedures contained in this manual.
4. Notice: Keep operating instructions within easy reach and make them available
to all users.
5. Notice:Read and obey all the warning labels attached to the unit. Make sure that
all warning labels are kept in a legible condition. Replace any missing or damaged
labels.
6. Notice:Only license holders for the respective frequency range are allowed to
operate this unit.
7. Notice: Make sure the repeater settings are correct for the intended use (refer to
the manufacturer product information) and regulatory requirements are met. Do
not carry out any modifications or fit any spare parts, which are not sold or
recommended by the manufacturer.

1. General
Page 8 M0139AJH User’s Manual for MR418
1.4.Compliance
1. Notice:For installations which have to comply with European EN50385 exposure
compliance requirements, the following Power Density limits/guidelines (mW/cm²)
according to ICNIRP are valid:
o0.2 for frequencies from 10 MHz to 400 MHz
oF (MHz) / 2000 for frequencies from 400 MHz to 2 GHz
o1 for frequencies from 2 GHz to 300 GHz
2. Notice: Installation of this equipment is in full responsibility of the installer, who
has also the responsibility, that cables and couplers are calculated into the
maximum gain of the antennas, so that this value, which is filed in the FCC Grant
and can be requested from the FCC data base, is not exceeded. The industrial
boosters are shipped only as a naked booster without any installation devices or
antennas as it needs for professional installation.
3. Notice: Corresponding local particularities and regulations must be observed. For
national deviations, please refer to the respective documents that can be
downloaded as well.
4. Notice: The power supply of the unit complies with Overvoltage Category II. It
also complies with the surge requirement according to EN 61000-4-5 (fine
protection); however, installation of an additional medium (via local supply
connection) and/or coarse protection (external surge protection) is recommended
depending on the individual application in order to avoid damage caused by
overcurrent.
5. Note: This unit complies with European standard EN60950-1 / EN62368-1.
Equipment Symbols Used / Compliance
Please observe the meanings of the following symbols used in our equipment and
the compliance warnings:
Symbol
Compliance
Meaning / Warning
CE
To be sold exclusively to mobile operators or
authorized installers –no harmonized frequency
bands, operation requires license. Intended use: EU
and EFTA countries
Indicates conformity with the RED directive
2014/53/EU and/or RoHS directive 2011/65/EU.
CE
Indicates conformity with the RED directive
2014/53/EU and RoHS directive 2011/65/EU certified
by the notified body no. 0700.

1. General
M0139AJH User’s Manual for MR418 Page 9
1.5.About CommScope
CommScope is the foremost supplier of one-stop, end-to-end radio frequency (RF)
solutions. Part of the CommScope portfolio are complete solutions for wireless
infrastructure from top-of-the-tower base station antennas to cable systems and
cabinets, RF site solutions, signal distribution, and network optimization. For patents
see www.cs-pat.com.
CommScope has global engineering and manufacturing facilities. In addition, it
maintains field engineering offices throughout the world.
Andrew Wireless Systems GmbH based in Buchdorf/Germany, which is part of
CommScope, is a leading manufacturer of coverage equipment for mobile radio
networks, specializing in high performance, RF and optical repeaters. Our optical
distributed networks and RF repeater systems provide coverage and capacity
solution for wireless networks in both indoor installations and outdoor environments,
e.g. tunnels, subways, in-trains, airport buildings, stadiums, skyscrapers, shopping
malls, hotels and conference rooms.
Andrew Wireless Systems GmbH operates a quality management system in
compliance with the requirements of ISO 9001 and TL 9000. All equipment is
manufactured using highly reliable material. To maintain highest quality of the
products, comprehensive quality monitoring is conducted at all fabrication stages.
Finished products leave the factory only after a thorough final acceptance test,
accompanied by a test certificate guaranteeing optimal operation.
Hereby Andrew Wireless Systems declares that the radio equipment type Repeater
is in compliance with Directive 2014/53/EU.
The full text of the EU declaration is available at the following internet address:
www.commscope.com/collateral/Declarations_of_Conformity/.
According to the DoC, our “CE”-marked equipment can be used in all member
states of the European Union.
Note: Exceptions of and national deviations from this intended use may be
possible. To observe corresponding local particularities and regulations,
please refer to the respective documents (also in national language)
which can be downloaded as well.
To make the most of this product, we recommend you carefully read the instructions
in this manual and commission the system only according to these instructions.
For technical assistance and support, please also contact the local office or
CommScope directly at one of the addresses listed in the following chapter.

1. General
Page 10 M0139AJH User’s Manual for MR418
1.6.International Contact Addresses for Customer Support
Canada
A
M
E
R
I
C
A
S
United States
CommScope Canada
Andrew LLC, A CommScope Company
Mail
505 Consumers Road, Suite 803
Toronto M2J 4V8, Canada
Mail
620 North Greenfield Parkway
Garner, NC 27529, U.S.A.
Phon
e
[phone] (Office)
[phone] (Cell)
Phone [phone]
Fax
[phone]
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
Caribbean & South American Region
Caribbean & Central American Region
CommScope Cabos do Brasil Ltda.
CommScope Mexico S.A. de C.V.
Mail
CALA Tech Support for Distributed
Coverage & Capacity Solutions (DCCS)
products:
Rua Guaporanga, 49
Praça Seca – Rio de Janeiro – RJ
ZIP: 21320-180, Brazil
Mail
CALA Tech Support for Distributed
Coverage & Capacity Solutions
(DCCS) products:
Av. Insurgentes Sur 688, Piso 6
Col. Del Valle, CP: 03100
Mexico City, Mexico
Phone
[phone] (Cell)
[phone] (Office)
Phone [phone] (Office)
Fax
+ 55-15-2102-4001
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
China, India and Rest of Asia
A
P
A
C
Australia & New Zealand
Andrew International Corporation
Andrew Corporation (Australia) Pty Ltd.
Mail
Room 915, 9/F
Chevalier Commercial Centre
8 Wang Hoi Rd
Kowloon Bay, Hong Kong
Mail
Unit 1
153 Barry Road
Campbellfield
VIC 3061, Australia
Phone
[phone]
Phone
[phone]
Fax
[phone]
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
Middle East & North Africa
Africa
&
Middle
East
South Africa
CommScope Solutions International Inc.
(Branch)
Andrew Wireless Solutions Africa
(PTY) LTD
Mail
PO Box 48 78 22
Unit 3206, Floor 32,
Jumeirah Business Center 5,
Jumeirah Lakes Towers,
Dubai, United Arab Emirates
Mail
11 Commerce Crescent West
Eastgate, Sandton
PO Box 786117
Sandton 2146
South Africa
Phone
[phone]
Phone
+ 27 11-719-6000
Fax
[phone]
Fax
+ 27 11-444-5393
E-mail
[e-mail]
E-mail
[e-mail]

1. General
M0139AJH User’s Manual for MR418 Page 11
United Kingdom
E
U
R
O
P
E
Scandinavia
Andrew Wireless Systems UK Ltd
Andrew Norway (AMNW)
Mail
Unit 15, Ilex Building
Mulberry Business Park
Fishponds Road
Wokingham Berkshire
RG41 2GY, England
Mail
P.O. Box 3066
Osloveien 10
Hoenefoss 3501
Norway
Phone
[phone]
Phone
+ 47 32-12-3530
Fax
[phone]
Fax
+ 47 32-12-3531
E-mail
[e-mail]
E-mail
[e-mail]
Germany
France
Andrew Wireless Systems GmbH
CommScope France
Mail
Industriering 10
86675 Buchdorf
Germany
Mail
Immeuble Le Lavoisier
4, Place des Vosges
92052 Courbevoie, France
Phone
[phone]
Phone
[phone]
Fax
[phone]
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
Austria
Switzerland
Andrew Wireless Systems (Austria) GmbH
CommScope Wireless Systems AG
Mail
Weglgasse 10
2320 Wien-Schwechat
Austria
Mail
Tiergartenweg 1
CH-4710 Balsthal
Switzerland
Phone
[phone]
Phone
[phone]
Fax
[phone]
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
Italy
Iberia Region – Spain & Portugal
CommScope Italy S.r.l., Faenza, Italy
Andrew España S.A. A CommScope Company
Mail
Via Mengolina, 20
48018 Faenza (RA)
Italy
Mail
Avda. de Europa, 4 – 2ª pta.
Parque Empresarial de la Moraleja
Alcobendas, Madrid 28108, Spain
Phone
[phone]
Phone
[phone]
Fax
[phone]
Fax
[phone]
E-mail
[e-mail]
E-mail
[e-mail]
Czech Republic
CommScope Solutions Czech Republic
C-Com, spol. s r.o
Mail
U Moruší 888
53006 Pardubice, Czech Republic
Phone
[phone] (Office)
[phone] (Mobile)
Fax
[phone]
E-mail
[e-mail]

2. Introduction
Page 12 M0139AJH User’s Manual for MR418
2.Introduction
2.1.Purpose
The MR418 is a bi-directional amplifier used to enhance signals between a mobile
and a base station in a mobile network. It has been designed to increase signal
strength in small and medium sized areas such as offices, shops, and basements. By
boosting the signal level the MR418 increases indoor coverage and allows high data
rate connectivity.
If weak signal transmissions occur within the coverage area due to indoor
applications, topological conditions or distance from the transmitter, a repeater is
used to extend transmission range. In the downlink path, the repeater picks up the
signals from a donor antenna of a BTS, amplifies and re-transmits it into the required
dark spot. In the uplink path the repeater picks up the signals from a mobile and re-
transmits it to the BTS.
2.2.The MR418 Repeater
The MR418 repeater is a cost effective solution for enhancing indoor coverage for
400 MHz TETRA and Tetrapol applications. The MR418 gives designers a simple
tool to solve their small area 400 MHz TETRA and Tetrapol coverage and
performance issues.
Especially public safety services demand reliable coverage even in indoor areas. By
increasing the signal level the MR418 improves voice quality and allows high data
rate connectivity.
A web-based GUI (Graphical User Interface) simplifies to commission and configure
the equipment. The RF link (donor) towards the base station is typically fed from an
outdoor antenna while the coverage area is fed by an indoor antenna.
Auto Gain functionality enables automatic gain adjustment in order to maximize the
performance in changing RF environments; however, gain may be set manually if
desired. An alarm interface with LED’s and display indicates the status of the
equipment locally. Moreover the status and alarms of the MR418 can be queried in
the web-based GUI.
Optionally, a GSM modem is offered for monitoring the MR418 via SMS. I.e. a SMS
is sent to the common Andrew OMC or to a standard SMS receiver (even a mobile
phone) and any settings of the MR418 can be changed by a SMS launched from the
OMC or mobile. A heartbeat SMS notifies whether the system is in operation.
Moreover, the MR418 can be connected to LAN.

2. Introduction
M0139AJH User’s Manual for MR418 Page 13
Features:
•Easy to install due to light weight, small dimensions and Auto Gain
functionality
•Easy commissioning via web-based GUI
•Automatic level control (ALC)
•LEDs for local alarm indication
•RSSI and Status indication via display
•Meeting ETSI TS 101 789-1
•Optional remote control via SMS
•Optional with or w/o integrated GSM modem
•Upgrade with external GSM modem possible
•Connection to LAN
•Remote alarming via SNMP alarm traps
•2 external-alarm inputs
•Summary alarm relays contact

3. Functional Description
Page 14 M0139AJH User’s Manual for MR418
3. Functional Description
3.1.General
The MR418 amplifies a 5 MHz band occupied in the 400 MHz band. The operation
principle is depicted in the following block diagram:
figure 3-1 Block diagram
E0783BE

3. Functional Description
M0139AJH User’s Manual for MR418 Page 15
3.2.Design and Connectors
* will not be equipped for units without internal modem in future
figure 3-2 Connectors of MR418
Note: SMA connectors have a specified torque of 0.45 N-m. Use an appropriate
tool to fasten and unfasten these connectors. Do not over-tighten the
connectors or screws.
Reset and
installation assistance
switch
RF coverage antenna
connector, mobile, SMA
SIM card
drawer
RF donor antenna
connector, BTS, SMA
DC connector
DC + Data connector
for external modem
RF antenna connector for
internal modem, SMA *
Ethernet
connector
Connector for
external alarms &
summary-alarm

4. Installation and Commissioning
Page 16 M0139AJH User’s Manual for MR418
4. Installation and Commissioning
4.1.Mechanical Installation
4.1.1. Health and Safety for Mechanical Installation
1. Caution: Risk of serious personal injury by equipment falling due to improper
installation. The installer must verify that the supporting surface will safely
support the combined load of the electronic equipment and all attached hardware
and components. The screws and dowels (wall anchors) used should also be
appropriate for the structure of the supporting wall.
4.1.2. Property Damage Warnings for Mechanical Installation
1. Attention: Do not install the unit in a way or at a place where the specifications
outlined in the Environmental and Safety Specifications leaflet of the supplier are
not met.
2. Attention: It is the responsibility of the installer to verify that the supporting
surface will safely support the combined load of the electronic equipment and all
attached hardware and components and to ensure that the unit is safely and
securely mounted.
3. Notice: Use proper mounting hardware depending on the structure of e.g. the
wall where the unit will be installed.
Mount the MR418 to a wall with two screws (spacers not required).
figure 4-1 MR418, position of screws for wall mounting
4.2.Electrical Installation
1. Notice:The electrical installation has to be performed in accordance with the
safety regulations of the local authorities. Due to safety reasons, the electrical
installation must be performed by qualified personnel only. The repeater must not
be opened.
2. Notice:Observe the labels on the front panels before connecting or
disconnecting any cables.
Position of screws
TOP side
REAR side

4. Installation and Commissioning
M0139AJH User’s Manual for MR418 Page 17
Connect the antenna cables to the antenna connectors and the antennas.
Use only the power supply delivered with the unit. Do not modify the power
supply unit (PSU) and cable.
Do not mount the PSU to the ceiling.
Connect the DC connector of the power supply and provide mains to the power
supply. Ensure the DC connector is plugged in correctly as in the following
illustrations.
Plug in the male DC connector by
inserting the lug into the guide at
the DC connector with the arrow
-
moulded side on top
, see
illustrations.
The DC connector of the cable is
equipped with a locking mechanism.
The system of locking the plug is based
on a “push-
pull” mechanism. The
locking sleeve has to be pulled back to
free the connection.
figure 4-2 Power connection of DC connector with MR418
Align the donor antenna towards the BTS. The MR418 provides antenna
alignment assistance. Therefore, press the “Reset and installation assistance”
switch (see chapter 3.2 Design and Connectors) for at least four seconds after (!)
the boot process has been finished (i.e. red ALC LED is blinking for four
seconds). This will set the gain to max. value and disable Auto Gain for about four
minutes. The status LED will be blinking red/green. Align the donor antenna
towards the BTS tower to reach the highest RSSI level possible. Check the RSSI
level at the display (see chapter 7 Alarming and Supervision). After four minutes,
the gain and Auto Gain are adjusted to the same values prior to the activation of
the antenna alignment.
Align the coverage antenna.
Locking sleeve
Pull back
locking sleeve
to disconnect!
Lug
Guide of DC
connector
Lug
Insert lug into guide
Insert with
arrow-moulded
side on top

4. Installation and Commissioning
Page 18 M0139AJH User’s Manual for MR418
As the default settings of the repeater are set to ‘Auto Gain enabled’, only the
frequencies have to be adjusted. Additionally, the repeater can be customized with a
laptop or PC via Ethernet connector:
For local connection, connect the straight CAT 6 patch cable to the Ethernet
connector of the MR418 and the network connector of a laptop or PC. For MR418
connection to a LAN network connect the cross-over cable. (Note: The MR418
operates at 10 Mbps and full-duplex).
Start a browser (e.g. Internet Explorer recommended versions 10 or 11, or Mozilla
Firefox, recommended versions 29 up to 35) and enter URL: http://192.168.1.1.
For IE10/IE11 make sure the “Browser Mode” is set to Compatibility View as
explained at the end of this chapter.
Note: If the connection cannot be established, it might be necessary to
set the IP address of the computer or laptop (Start => Settings =>
Control Panel => Network Connections => Your Network-Connection
=> Properties => Internet Protocol (TCP/IP) => Properties => Enable
‘Use the following IP address’ and enter an IP address, e.g.
192.168.1.10). Do not use IP addresses 192.168.1.2 or 192.168.1.1!
Before changing the settings in the Internet Protocol (TCP/IP) =>
Properties, please write down the current settings. Ensure no proxy
server for internet access is activated any longer, either.
After having finished setting up the MR418, please change all the TCP/IP
settings to the original ones BEFORE re-connecting your computer to
any other network. Re-activate the proxy settings if necessary, too.
Enter User name: MRx18 and password: MRx18 (case-sensitive).
Commission the repeater according to the description in the following chapter
and save settings to the repeater.
Disconnect the CAT 6 patch cable and check LEDs and display of the repeater.
STOP

4. Installation and Commissioning
M0139AJH User’s Manual for MR418 Page 19
In case the Ethernet connection cannot be established due to wrong settings in the
Connectivity page (see chapter 5.5.4 Settings – LAN Connectivity) or if username or
password have been forgotten, these settings can be reset to the default factory
settings.
To reset Ethernet settings, username and password to the default factory settings,
press the “Reset and installation assistance switch” during the boot process (i.e. red
ALC LED is blinking for four seconds after power has been supplied) and keep the
switch pressed until the boot process starts again (Ethernet LED starts blinking). It is
not possible to execute a reset when a local connection is established.
Browser mode settings:
In IE10, just click „Compatibility View“:
In IE11, open the „Compatibility View Settings“ and mark all checkboxes:

4. Installation and Commissioning
Page 20 M0139AJH User’s Manual for MR418
4.3.External-Alarm Inputs and Summary-Alarm Output
4.3.1. External-Alarm Inputs
figure 4-3 External-alarm connector, inputs
Two external-alarm inputs are provided to monitor the status of external devices.
The external alarms are locally indicated via the web-based GUI or the display. The
alarms can be forwarded to A.I.M.O.S. or to an SMS receiver via modem.
Opto-coupled inputs monitor external devices providing 0 to 5 Vdc. Depending on the
logic of the alarm (active low / active high) an external alarm is generated at low or
high level. In case an external device shall be captured via an alarm-relay contact,
5 V and GND need to be linked by a wire jumper to the corresponding PINs.
External-Alarm Inputs
+
-
Ext. Alarm 1
PIN 6
PIN 5
Ext. Alarm 2
PIN 12
PIN 11
figure 4-4 External-alarm inputs, PIN
assignment & relay contacts table 4-1 External-alarm inputs, PIN assignment for relay contacts
External-alarm connector
PIN No. assignment
External-Alarm Inputs - Relay Contacts
