Comnet netwave NWKSP2 User manual

INSTALLATION AND OPERATION MANUAL
NWKSP2
COMNET SOLAR POWERED SYSTEM
Thank you for purchasing NetWave® from ComNet. This manual will cover how to
install hardware on your enclosure, Configure batteries, cabling and mounting of the
enclosure.
The NetWave® NWKSP2 Solar off the grid power system is designed for applications
where a remote camera or wireless repeater is needed but power is not available
or the cost to run power is too expensive. NetWave Solar is a complete system for
providing remote power to edge communications equipment. The kit includes
high quality photovoltaic solar panels, valve-regulated lead-acid battery, outdoor
enclosure, solar charge controller, PoE midspan injector and mounting hardware.
The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks
operated by a special key for high security. The enclosure can be mounted on a two
to four inch pole or wall mounted with the included mounting hardware. The Solar
Panels include a top of pole mount requiring a 4” diameter pole. A side of pole
mount is available as an optional accessory. The included 30A solar charge controller
supports an LCD screen for local diagnostics and system health monitoring,
Intelligent PWM charging mode and battery protection from overcharge and over
discharge while the battery provides outstanding deep cycle and cold weather
performance.

INS_NWKSP2_REV– 07/10/14 PAGE 2
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
About This Guide
This guide is intended for different users such as engineers, integrators, developers, and
technicians.
It assumes that users have knowledge of the following:
»Installation of electronic equipment
»Electrical regulations and guidelines
Related Documentation
The following documentation is also available:
»Solar Charge Controller User Manual
»Solar Panel mounting instructions (included with the mounting hardware)
Website
For information on ComNet’s entire product line, please visit the ComNet website at
http://www.comnet.net
Support
For any questions or technical assistance, please contact your sales person ([e-mail]) or
the customer service support center ([e-mail])
Safety
»Only ComNet service personnel can service the equipment. Please contact ComNet Technical
Support.
»The equipment should be installed in locations with controlled access, or other means of
security, and controlled by persons of authority.
»Do not install equipment on wet or windy days.
»Make sure you have assistance mounting the hardware.
»Complete as much of the setup as you can on the ground in a safe environment.

INS_NWKSP2_REV– 07/10/14 PAGE 3
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Contents
About This Guide 2
Related Documentation 2
Website 2
Support 2
Safety 2
Overview 4
Legal Information 4
Introduction 5
Pole Mounting Bracket Assembly 6
Preparing the Enclosure 8
Pole Mount 10
Solar Panel Electrical Wiring 11
Battery Installation 12
Agency Compliance 15
GPL (General Public License) Statement 17

INS_NWKSP2_REV– 07/10/14 PAGE 4
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Overview
Legal Information
No part of this document may be reproduced or transmitted in any form or by any means,
electronic and mechanical, for any purpose, without the express written permission of ComNet.
Copyright
Copyright © 2014 ComNet. All rights reserved.
Disclaimer
ComNet reserves the right to make changes in specifications at any time without notice. The
information furnished by ComNet in this material is believed to be accurate and reliable. However,
ComNet assumes no responsibility for its use.

INS_NWKSP2_REV– 07/10/14 PAGE 5
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Introduction
The NetWave® NWKSP2 Solar off the grid power system is designed for applications where
a remote camera or wireless repeater is needed but power is not available or the cost to run
power is too expensive. NetWave Solar is a complete system for providing remote power to
edge communications equipment. The kit includes high quality photovoltaic solar panels, valve-
regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector
and mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper
proof locks operated by a special key for high security. The enclosure can be mounted on a
two to four inch pole or wall mounted with the included mounting hardware. The Solar Panels
include a top of pole mount requiring a 4” diameter pole. A side of pole mount is available as an
optional accessory. The included 30A solar charge controller supports an LCD screen for local
diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection
from overcharge and over discharge while the battery provides outstanding deep cycle and cold
weather performance.
This manual contains detailed operational and configuration information.

INS_NWKSP2_REV– 07/10/14 PAGE 6
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427

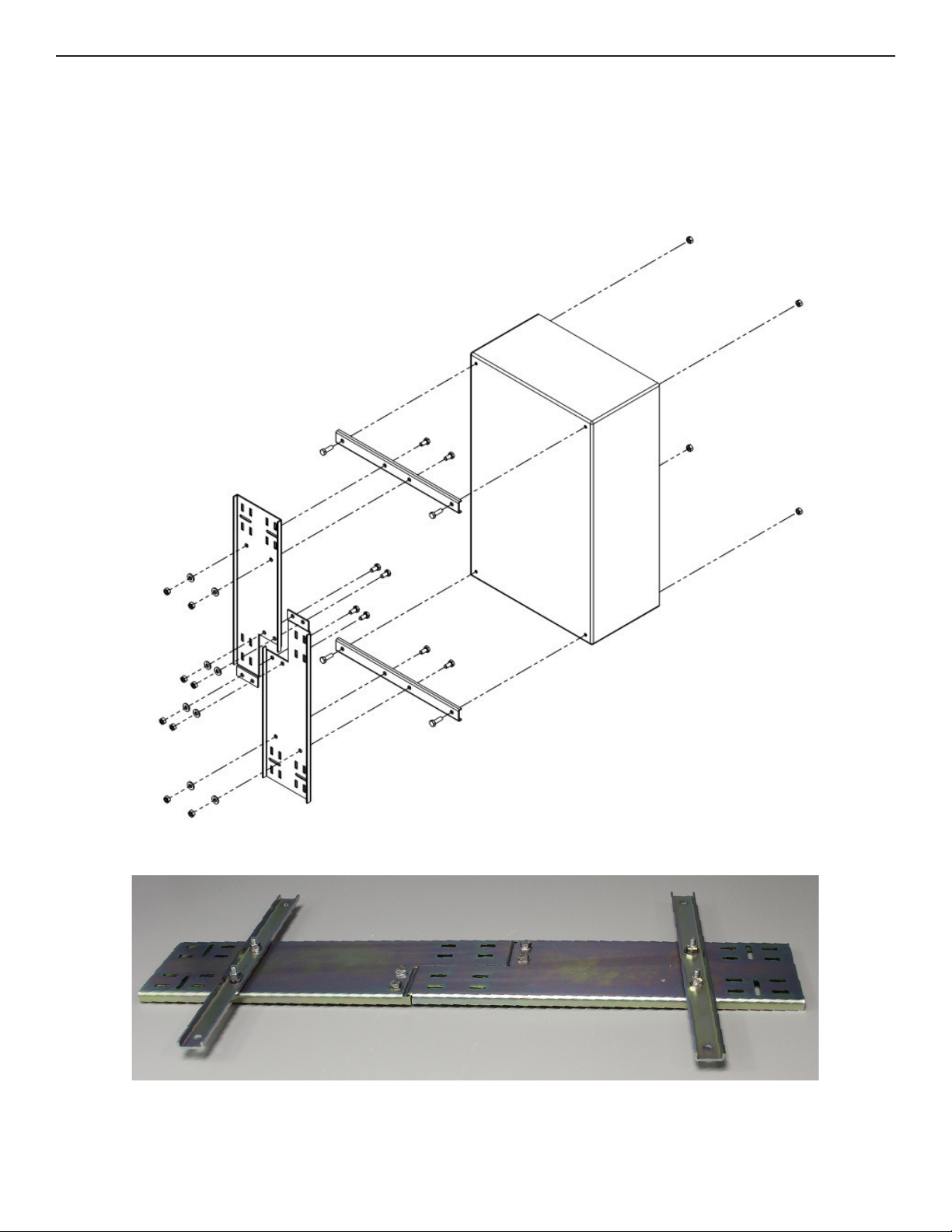

Pole Mounting Bracket Assembly
If mounting the enclosure to a wall, you can skip this step and mount the enclosure directly to a
wall using the 4 holes in the back of the enclosure.
Mounting Hardware

INS_NWKSP2_REV– 07/10/14 PAGE 7
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427

INS_NWKSP2_REV– 07/10/14 PAGE 8
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Preparing the Enclosure

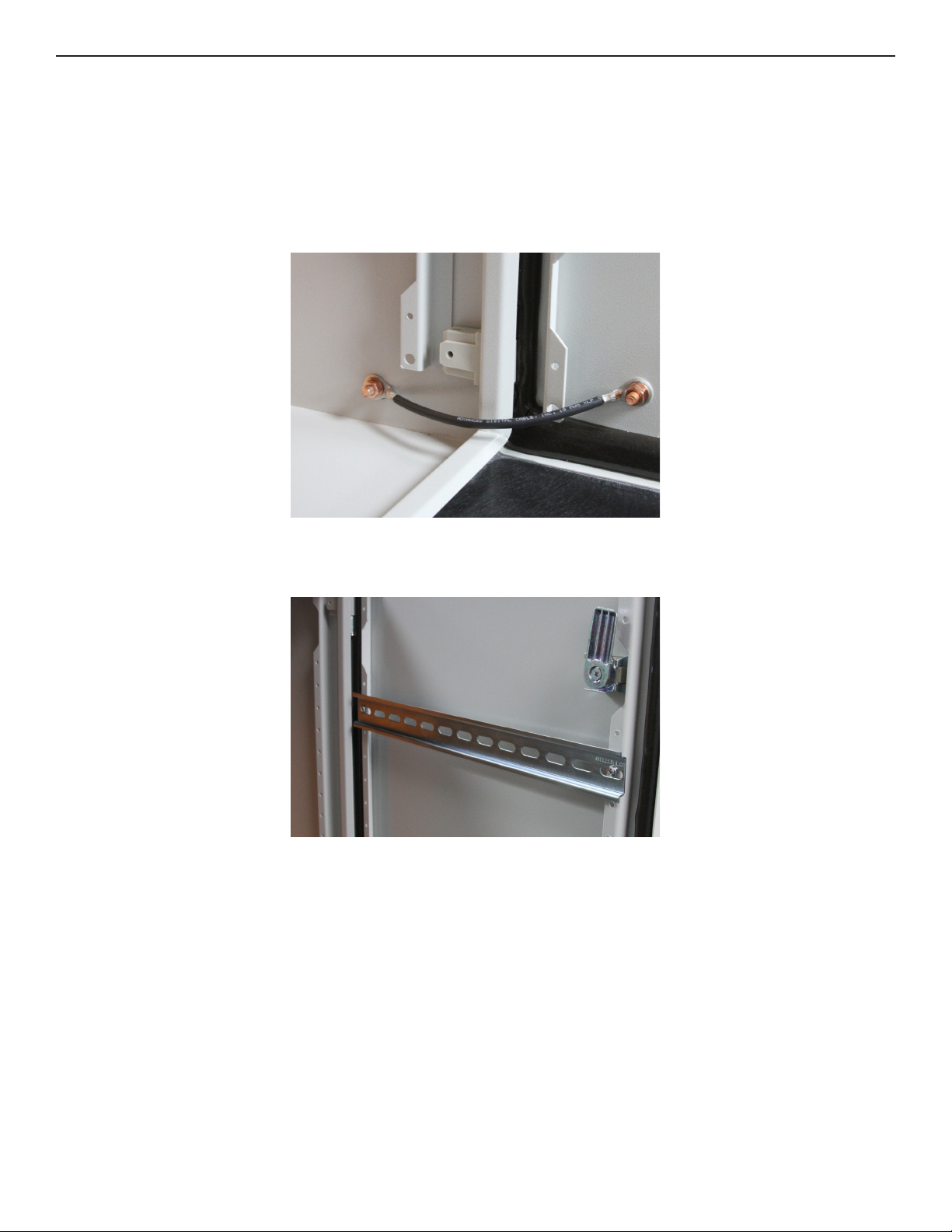

Attach grounding wire to the door and enclosure.
Remove plastic covers on copper studs. Add grounding cable to the two studs and use the
copper washers and nuts to secure.
Grounding Cable Installed
Mount the DIN Rail. The DIN Rail can be mounted to the door, backplate or sides of the enclosure.
DIN Rail installed on door

INS_NWKSP2_REV– 07/10/14 PAGE 9
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427

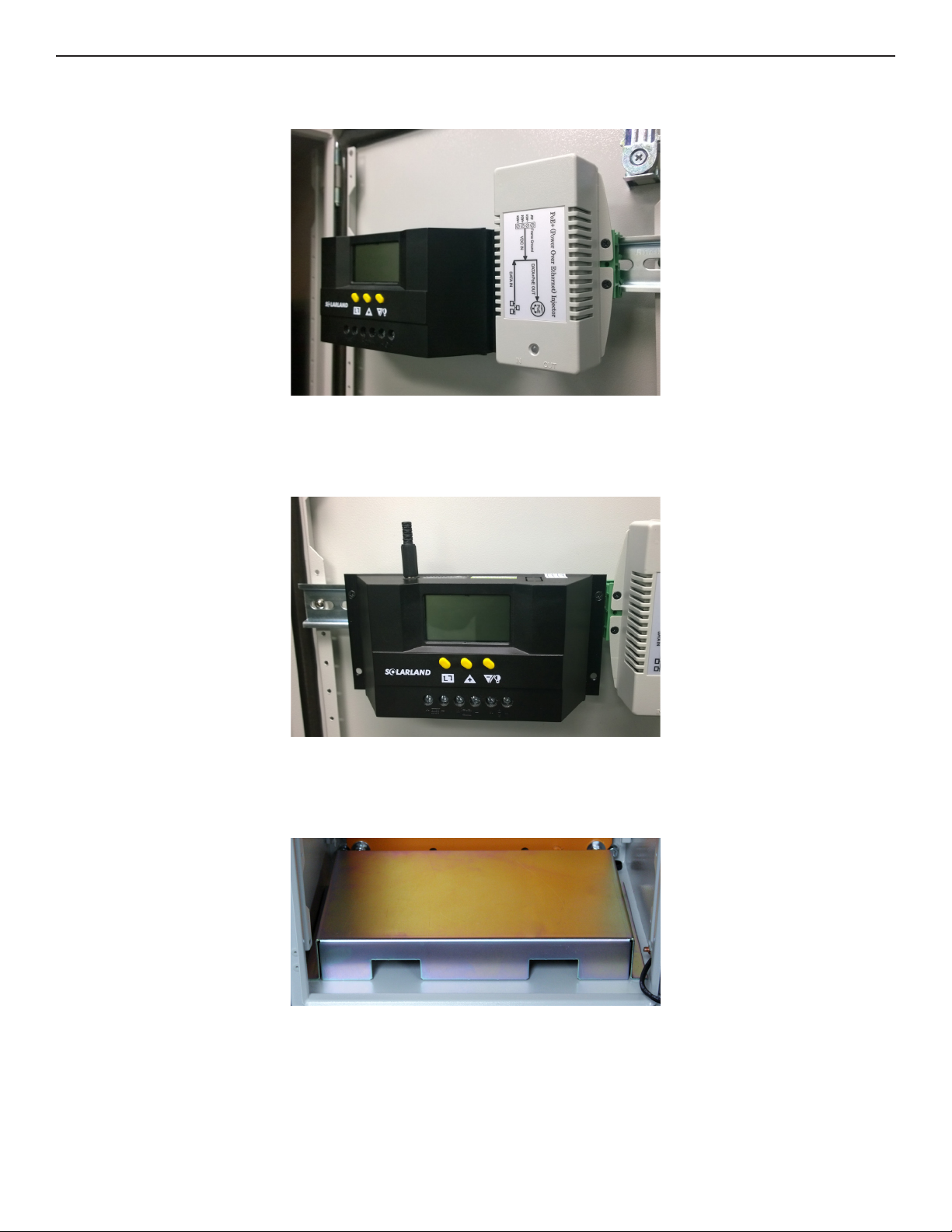

Attached the DIN Rail Adapters to the Controller and Power Injector then clip to the DIN Rail.
Controller and Power Injector Mounted on DIN Rail
Plug the external thermal sensor into the interface of the thermal-sensor on the left of the
controller.
Thermal Sensor Plugged into Controller
Insert battery platform in the enclosure. The cutouts in the platform are for routing cable under
the batteries.
Battery Platform on Floor of Enclosure

INS_NWKSP2_REV– 07/10/14 PAGE 10
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Pole Mount
If mounting to a pole, use the 6 included Stainless Hose clamps to secure the enclosure to a pole.
For your safety, we highly recommend mounting the enclosure before installing the batteries.

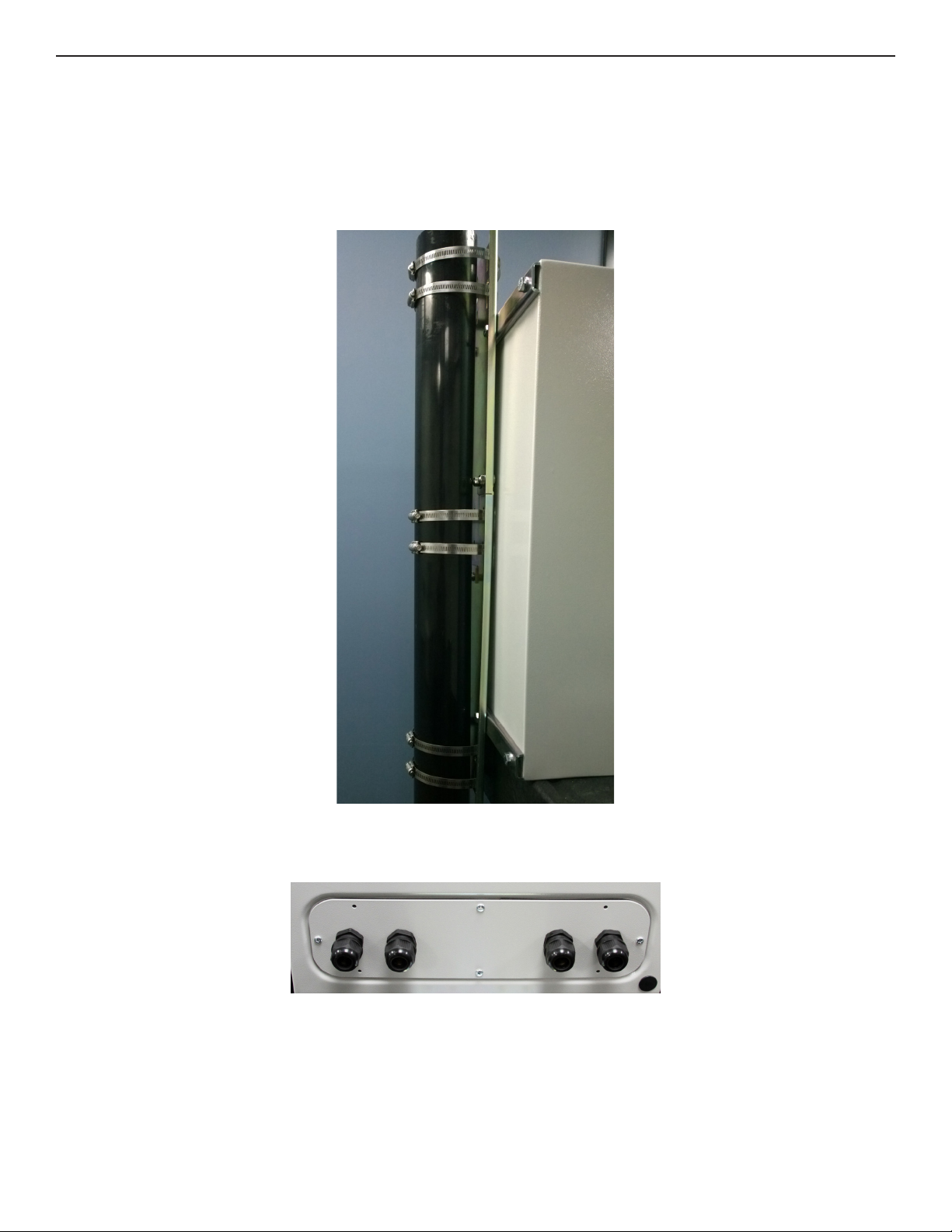

Enclosure Mounted to Pole with Clamps
Add the cable glands and drain plug to the bottom of the enclosure after mounting.
Battery Platform on Floor of Enclosure

INS_NWKSP2_REV– 07/10/14 PAGE 11
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Solar Panel Electrical Wiring
Assemble The Solar Panels and run cable thru the cable glands on the bottom of the enclosure.
Do not connect PV cables to the controller yet, it is recommended to connect the battery first.
Enclosure Mounted to Pole with Clamps
The NWKSP2 Kit Panels will need to be configured in parallel using the MMF (MaleMale to Female)
and FFM (FemaleFemale to Male) MC4 Connectors.
Connect the MC4 Male (Positive) Connectors from the solar panels to the MMF Connector then
connect the 15' Cable with MC4 Female Connector to the Male FFM Connector and run cable thru
a cable gland of the enclosure.
Connect the MC4 Female (Negative) Connectors from the solar panels to the FFM Connector then
connect the 15' Cable with MC4 Male Connector to the Female MMF Connector and run cable
thru a cable gland on the enclosure.
Note: The cables may ship as one 30' cable. If this is the case, you will need to cut the cable in
half creating two 15' cables.
Please reapply the Twist Nut to the open end of the cables to prevent a short.
15' MC4 Male and MC4 Female Cables

INS_NWKSP2_REV– 07/10/14 PAGE 12
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427

INS_NWKSP2_REV– 07/10/14 PAGE 13
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Battery Installation
Insert battery into the enclosure. The battery can be installed vertically or horizontally.
We recommend installing on its side for ease of access.
Enclosure Mounted to Pole with Clamps
Connect the 24" 10AWG cables to the positive and negative battery posts.
PV Cable Connecting Battery Terminals
NOTE: Please apply rubber insulator to the terminals to prevent contact with the door in case of
earthquake or vibration.

INS_NWKSP2_REV– 07/10/14 PAGE 14
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Rubber Insulator
Connect the Positive and Negative cables from the battery to the Controller battery terminals.
Battery Cables Connected to Controller Battery Terminals
Once batteries are connected to the controller, connect the PV cables from the solar panels to the
Solar Load terminals on the controller.
Solar Panel Cables Connected to Solar Load Terminals on Controller
Connect the 12" Bonded Red and Black cable to the green terminal adaptor then connect the
other end of the cable to the load terminals on the controller.

INS_NWKSP2_REV– 07/10/14 PAGE 15
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427

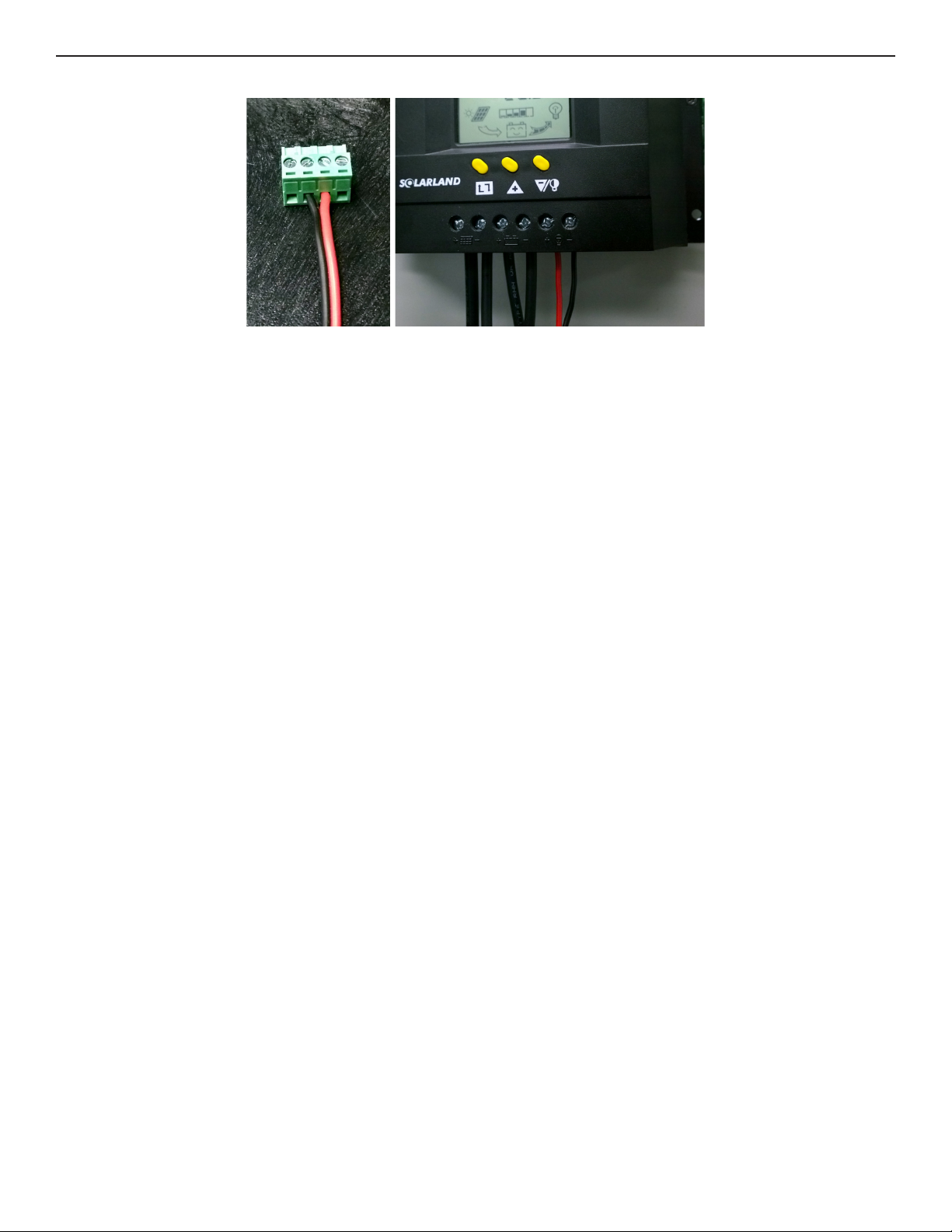

Red and Black Cable Connected Green Terminal Connector, left, and to Load Terminals on Controller, right.

INS_NWKSP2_REV– 07/10/14 PAGE 16
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Insert green terminal into the Power Injector.
Green Terminal Connector attached to Power Injector
See Solar Charge Controller User Manual for instructions on how to use the controller.
Solar Panel mounting instructions will be included with the mounting hardware.

INS_NWKSP2_REV– 07/10/14 PAGE 17
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
Agency Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment. This device complies with Part 15 of
the FCC Rules. Operation is subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a Industrial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operations of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003. To reduce potential radio
interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that permitted for successful
communication. This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
• This device may not cause interference, and
• This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil numérique de la classe A est confrome à la norme NMB-003 Canada. Pour réduire
le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être
choisies de façon que la puissance isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui
est nécessaire
pour une communication réussie. Cet appareil est conforme à la norme RSS Industrie Canada
exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes:
17 Compliance
• Cet appareil ne peut pas provoquer d’interférences et

INS_NWKSP2_REV– 07/10/14 PAGE 18
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
• Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement du dispositif.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a separation distance of at
least 2.52m from all persons and must not be located or operating in conjunction with any other
antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance
de séparation de toute personnes d'au moins 2.52m et ne doivent pas être localisé ou utilisé en
conflit avec tout autre antenne ou transmetteur.
CE Marking
CE marking on this product represents the product is in compliance with all directives that are
applicable to it.
This equipment may be operated in the following countries:
Great Britain and Northern Ireland, Austria, Belgium, Denmark, Finland, France, Germany,
Ireland, Italy, Netherlands, Norway, Portugal, Romania, Switzerland, Sweden
Installer Compliance Responsibility
Devices must be professionally installed and it is the professional installer's responsibility to
make sure the device is operated within local country regulatory requirements.
RoHS/WEEE Compliance Statement
European Directive 2002/96/EC requires that the equipment bearing this symbol on the
product and/or its packaging must not be disposed of with unsorted municipal waste. The
symbol indicates that this product should be disposed of separately from regular household
waste streams. It is your responsibility to dispose of this and other electric and electronic
equipment via designated collection facilities appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the
environment and human health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or the shop where you
purchased the product.

INS_NWKSP2_REV– 07/10/14 PAGE 19
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
GPL (General Public License) Statement
You may have received from ComNet products that contained – in part – free software (software
licensed in a way that ensures your freedom to run, copy, distribute, study, change and improve
the software). Such products include NetWave series of products.
As part of these products, ComNet may have distributed to you hardware and/or software that
contained a version of free software programs developed by the Free Software Foundation, a
separate not-for-profit organization without any affiliation to ComNet.
See http://www.gnu.org/philosophy/free-sw.html for more details. If ComNet distributed any
portions of these free software programs to you, you were granted a license to that software
under the terms of either the GNU General Public License or GNU Lesser General Public
License “License”, copies of which are available from http://www.gnu.org/licenses/licenses.html.
The Licenses allow you to freely copy, modify and redistribute that software without any other
statement or documentation from us.
ComNet will provide to anyone who contacts us at the contact provided below, for a charge of
no more than our cost of physically performing source code distribution, a complete machine-
readable copy of the complete corresponding source code for the free software programs used
in the version of the programs that we distribute to you. The cost will be free if the delivery
medium of the machine-readable copy is through the Internet.
Contact information:
Email: [e-mail]
Tel: [phone]
Address: 3 Corporate Drive, Danbury, CT 06810 USA
We will reply within 7 working days once the request has been made through email or telephone.

INS_NWKSP2_REV– 07/10/14 PAGE 20
INSTALLATION AND OPERATION MANUAL NWKSP2
TECH SUPPORT: 1.888.678.9427
© 2014 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
3 CORPORATE DRIVE | DANBURY, CT 06810 | USA
T: 203.796.5300 | F: 203.796.5303 | TECH SUPPORT: 1.888.678.9427 | [e-mail]
8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE
T: [phone] | F: [phone] | [e-mail]
ComNet Customer Service
Customer Care is ComNet Technology’s global service center, where
our professional staff is ready to answer your questions at any time.
Email ComNet Global Service Center: customercar[email protected]
Contact Information
ComNet – www.comnet.net
North America ComNet Corporate Headquarters
and Customer Support Center
Tel: [phone] - 53 0 0
Tel: [phone]
Email: [e-mail]
EMEA, PACRIM,
South America ComNet Europe Ltd, Leeds
Tel: [phone]
Tel: [phone]
Email: [e-mail]
