COMPANION COMP2100W User manual

User Manual
2100W INVERTER GENERATOR
Model: COMP2100W

- 1 -
CONTENT
1. SAFETY INFORMATION ..........................................................................- 6 -
1.1 OPERATOR ATTENTION ...............................................................- 6 -
1.2 EXHAUST FUMES HAZARDS .......................................................- 7 -
1.3 ELECTRIC SHOCK HAZARDS ......................................................- 8 -
1.4 FIRE AND BURN HAZARDS ..........................................................- 8 -
1.5 CONNECTION NOTES...................................................................- 9 -
2. IMPORTANT LABELS...............................................................................- 9 -
3. UNIT DESCRIPTION ..............................................................................- 11 -
3.1 COMPONENTS IDENTIFICATION...............................................- 11 -
3.2 CONTROL PANEL ........................................................................- 13 -
4. PREPARATION.......................................................................................- 14 -
4.1 ENGINE OIL..................................................................................- 14 -
4.2 FUEL .............................................................................................- 16 -
5. STARTING THE ENGINE .......................................................................- 17 -
5.1 CHECK ENGINE OIL....................................................................- 18 -
5.2 CHECK FUEL................................................................................- 19 -
5.3 OPEN THE FUEL CAP VENT LEVER..........................................- 20 -
5.4 OPEN THE FUEL TAP ..................................................................- 21 -
5.5 THE ENGINE SWITCH & ECO SWITCH......................................- 22 -
5.6 USE CHOKE.................................................................................- 23 -
5.7 START THE ENGINE....................................................................- 24 -
5.8 CLOSE CHOKE ............................................................................- 27 -
6. AC OPERATION......................................................................................- 28 -
6.1 USE THE GENERATOR:..............................................................- 28 -
6.2 SHUT DOWN THE GENERATOR: ...............................................- 30 -
7. DC OPERATION.....................................................................................- 32 -
7.1 CONNECTING THE BATTERY CHARGING CABLE: ..................- 33 -
7.2 DISCONNECTING THE BATTERY CHARGING CABLE:............- 34 -
8. AC PARALLELOPERATION ( optional ) ......................................................- 34 -
8.1 STARTAC PARALLEL..................................................................- 35 -
8.2 STOPAC PARALLEL....................................................................- 36 -

- 2 -
9. SPECIAL REQUIREMENTS...................................................................- 37 -
10. MAINTENANCE....................................................................................- 39 -
10.1 ENGINE OIL CHANGE ...............................................................- 40 -
10.2 AIR CLEANER SERVICE............................................................- 42 -
10.3 SPARK PLUG SERVICE.............................................................- 43 -
10.4 SPARK ARRESTER MAINTENANCE.........................................- 45 -
10.5 CLEANING FUEL TANK FILTER ................................................- 47 -
11. TRANSPORTATION AND STORAGE...................................................- 48 -
11.1 DRAIN THE FUEL FROM THE CARBURETOR.........................- 49 -
11.2 DRAIN THE FUEL FROM FUEL TANK.......................................- 50 -
11.3 DRAIN THE FUEL FROM THE CARBURETOR AGAIN.............- 51 -
11.4 ENGINE.......................................................................................- 52 -
12. TROUBLE SHOOTING.........................................................................- 52 -
13. SPECIFICATIONS.................................................................................- 59 -
14. WIRING DIAGRAM...............................................................................- 61 -
15. ENVIRONMENT CORRECTION ..........................................................- 63 -

- 3 -
Read this manual carefully before operating this generator. This
manual should stay with this generator if it is sold.
Exhaust contains poisonous carbon monoxide (CO) gas that can
build up to dangerous levels in closed areas.
Breathing CO can cause unconsciousness or death.
Never run the generator in a closed or even partially closed area
where people may be present.
The generator is a potential source of electrical shock if misused.
Do not expose the generator to moisture, rain or snow. Do not let
the generator get wet, and do not operate it with wet hands.
Keep this owner’s manual handy, so you can refer to it at any
t im e. We reserve the right to modify this product or manual at any
time without any notice.
The engine exhaust fumes from this product
contains poisonous carbon monoxide（CO）to
cause loss of consciousness and may lead to
death.

- 4 -
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY
BEFORE OPERATING THE GENERATOR.
This manual will provide you with a good basic understanding of
the operation and maintenance of this machine.
We continually seek advancements in product design and quality.
Therefore, while this manual is the newest, there may be slight
difference between your generator and this manual.

- 5 -
INTRODUCTION
Congratulations on your purchase.
This manual will provide you with a good basic understanding of
the operation and maintenance of this machine, please read it
carefully.
These signal words mean:
This manual is filled with important safety information －please
read it carefully.
If you have any questions, please consult an authorized dealer.
You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.

- 6 -
1. SAFETY INFORMATION
1.1 OPERATOR ATTENTION
Read and understand this manual before operating the
generator.
Place the generator in a place where pedestrians, children and
pets are not likely to touch. Do not let children operate the
generator.
Turn OFF the Fuel Tap before tilting the generator.
The generator is allowed to be
tilted down, but ONLY lay on the
Drawbar Side, and only after
stopping the engine. If lay down on
other side, OIL may leak and
damage the engine or your
property. Also FUEL may leak and
cause FIRE or an EXPLOSION.

- 7 -
DO NOT remove any cover of the generator
case when the engine is running.
1.2 EXHAUST FUMES HAZARDS
Exhaust fumes contains poisonous carbon monoxide（CO）, a
colorless and odorless gas. Breathing CO can cause loss of
consciousness and may lead to death.
Never run your generator inside a garage or house, even if
door or window is open. Operate the generator in a
well-ventilated area.

- 8 -
1.3 ELECTRIC SHOCK HAZARDS
Never operate the engine in rain, snow or wet locations.
Never touch the machine with wet hands.
Ground unit to avoid electrical hazards.
1.4 FIRE AND BURN HAZARDS
Petrol is extremely flammable and explosive under certain
conditions. Do not smoke or allow flames or sparks where the
generator is refueled or where petrol is stored. Refuel in a
well-ventilated area with the engine stopped and cooled.
The generator is allowed to be tilted down, but ONLY lay down
on the Drawbar Side. If lay down on the other side, OIL may

- 9 -
leak and damage the engine or your property. Also FUEL may
leak and cause FIRE or an EXPLOSION.
The exhaust becomes very hot during operation and remains
hot for a while after stopping the engine. Be careful not to
touch the exhaust while it is hot.
Avoid placing any flammable materials near the exhaust outlet
during operation.
Keep the generator at least 1 m from buildings or other
equipment, or the generator may overheat.
Let the engine cool before storing the generator indoors.

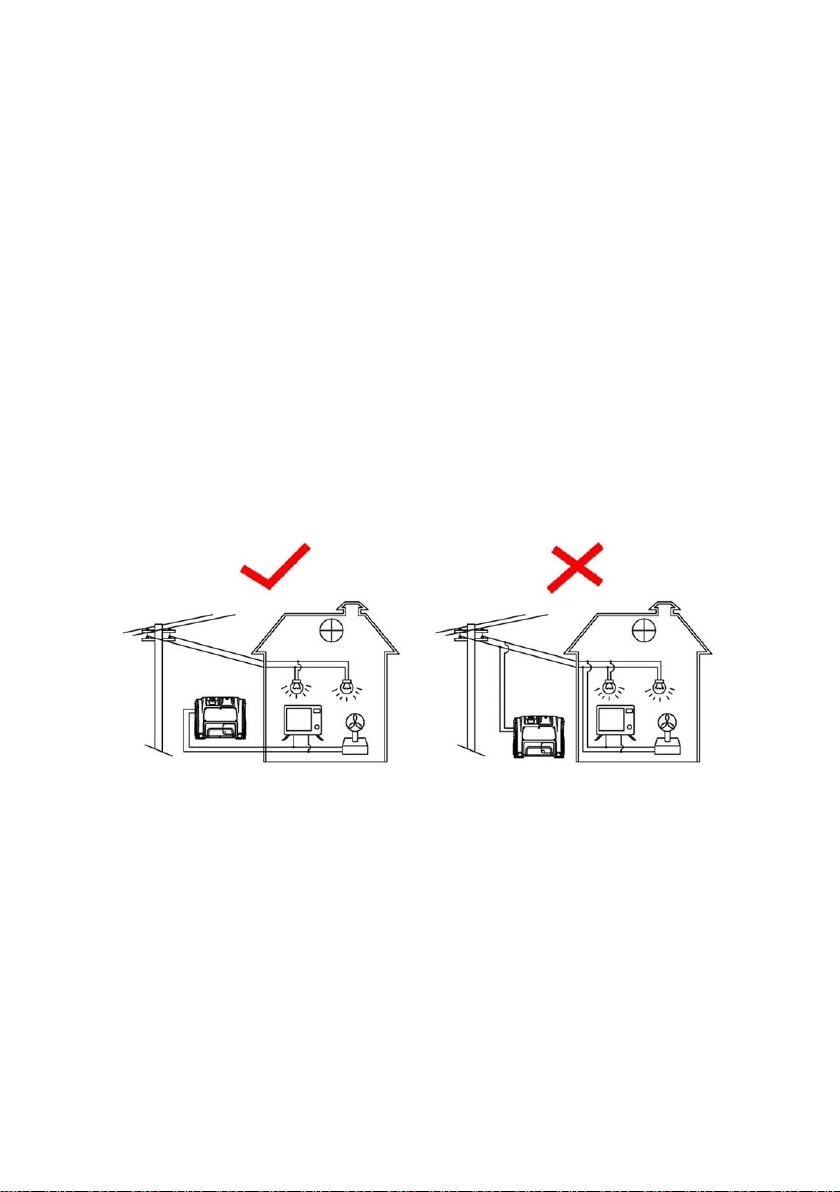

1.5 CONNECTION NOTES
Do not connect to a building electrical system. Seek advice or
consult a qualified electrician.
Avoid connecting the generator in parallel with any other
generator.
2. IMPORTANT LABELS
Please read the following labels carefully before operating this
generator.

- 10 -

- 11 -
3. UNIT DESCRIPTION

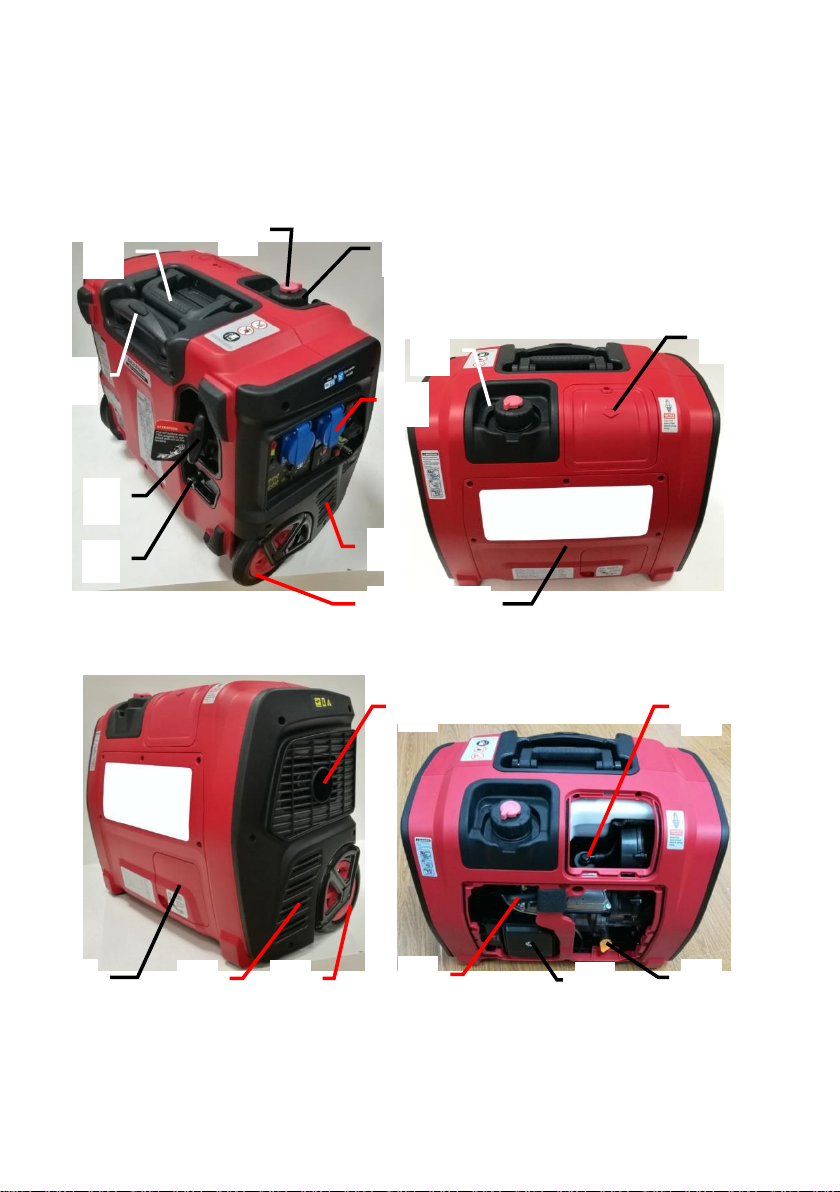

3.1 COMPONENTS IDENTIFICATION
(1). Control Panel: Location of generator controls and output
receptacles.
1
2
3
4
8
5
6
7
12
10
11
13
9
18
18
16
15
14
17
7

- 12 -
(2). Fuel Cap: Access to fuel tank for filling.
(3). Fuel Cap Vent Lever: Control valve between atmosphere and fuel
tank.
(4). Carrying Handle: Lift the generator by this handle only.
(5). Starter Pull starter cord for starting engine.
(6). Choke Knob: Cold engine starting aid.
(7). Wheels: Move the generator by the wheels.
(8). Draw Bar Handle: Pull the handle to drag this generator on the
ground.
(9). Maintenance Cover:Allows access to air filter, carburetor and
engine oil cap etc.
(10). Spark Plug Maintenance Cover: Allows access to engine spark
plug.
(11). Oil Maintenance Cover: Allows access to fill the engine oil.
(12). Fuel Gauge: Check fuel level in fuel tank.
(13). Exhaust: Lowers engine exhaust noise.
(14). Air Filter: Clean air for engine.
(15). Carburetor: Supply the fuel-air mixture to engine.
(16). Spark Plug: Ignites the fuel-air mixture when the engine piston
reaches the top of the cylinder.
(17). Oil Cap: Access to fill or drain engine oil.
(18). Air Intake Slats: Allow for cooling air to enter the housing.

- 13 -

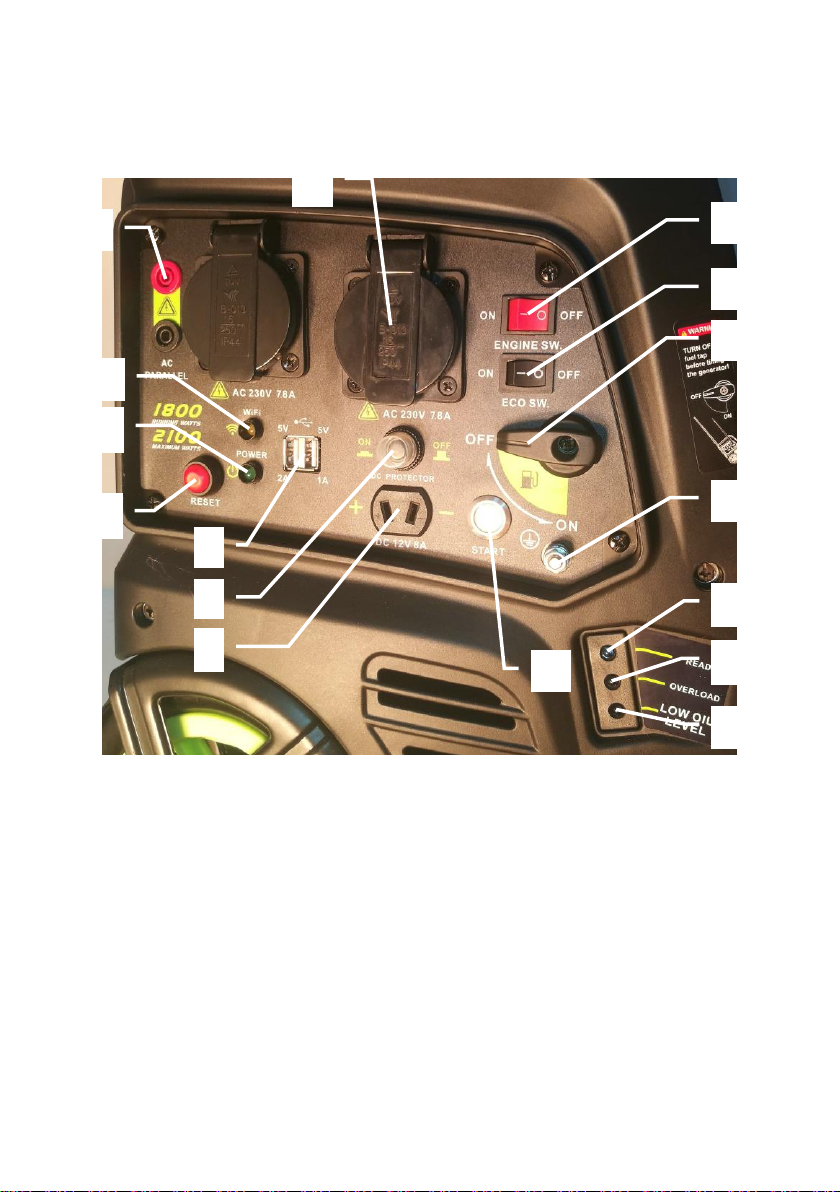

3.2 CONTROL PANEL
(1). Fuel Tap: Controls fuel supply to the carburetor.
(2). AC Sockets: AC Output Sockets for connecting AC devices.
(3). 12V DC Sockets: Connection for re-charging 12V DC
automotive-style batteries while generator is in operation.
(4). 12V DC Circuit Breaker: Overload protection for the 12VDC
charging system.
(5). USB Plug: USB Output Sockets for connecting 5VDC devices.
(6). Parallel Terminal (optional): AC Parallel operation outlets for the
same two generators.
(7). Ground (Earth) Terminal: Grounding point for the generator.
2
8
9
1
7
12
13
14
16
15
4
6
3
10
11
5

- 14 -
(8). Engine Switch: This switch turns ON or OFF engine ignition system.
(9). ECO Switch: Turning on this switch can slows the engine speed
when the load is reduced to save fuel, lessen noise and engine wear.
(10). Reset Button: This switch can be used to recover output of the
generator under the condition of overload protection, and unnecessary
to restart engine overall.
(11). Start Button (optional): This switch can be used to start the engine
equipped with electric starter (optional equipment).
(12). READY LED (green): READY LED light comes ON when the
generator is operating normally. It indicates that the generator is
producing electrical power at the receptacles.
(13). OVERLOAD LED (red): If the generator is overloaded, or if there is
a short circuit atAC Sockets, the overload LED light (red) will go ON,
and current to the connected appliance(s) will shut off in a few seconds.
(14). LOW OIL LEVEL LED (yellow): Lights up when oil level is below
safe operating level, and the engine shuts down automatically. Unless
you refill with oil, the engine will not start again.
(15). POWER LED (optional):
(16). Wi-Fi LED (optional): The light comes ON and will flash slowly
when the generator is connected to the Generator APP in Smartphone
by Wi-Fi.
4. PREPARATION
4.1 ENGINE OIL
NOTE
The engine has been shipped from our factory without oil. Put
oil before starting.
Recommended engine oil: 4-stroke engine oil, SAE 10W-40.
Engine oil quantity: 0.35L.

- 15 -
Add Engine Oil:
(1). Open the Oil Maintenance Cover 1, and remove the Oil Cap 2.
(2). Fill the specified amount of the recommended engine oil, and then
install and tighten the Oil Cap.
NOTE
Make certain the generator is on a flat, level surface.
Keep the engine oil level between LOWER LIMIT and UPPER
LIMIT. Too much or too little oil will shorten the service life of
the engine.
The engine is equipped with a low oil sensor that will prevent
the engine from running. If the oil level falls below a critical
threshold, the engine will stop automatically.
When the engine shuts down automatically by the low oil
protection, the LOW OIL LEVEL LED (yellow) will come on, and
unless you refill with oil, the engine will not start again.
1
2
2
UPPER LIMIT
LOWER LIMIT
Loosen

- 16 -
4.2 FUEL
Petrol is extremely flammable and explosive under certain
conditions. Do not smoke or allow flames or sparks where the
generator is refueled or where petrol is stored.
Refuel in a well-ventilated area with the engine stopped.
DO NOT fill above the Red Level , otherwise it may
overflow when the fuel warms up and expands.
Immediately wipe off spilled fuel with a clean, dry, soft cloth,
since fuel may deteriorate painted surfaces or plastic parts.
Add Fuel:
(1). Remove the Fuel Cap (1) and fill the fuel into the tank up to the Red
Level 2.
(2). The fuel level in the fuel tank can be checked through the Fuel
Gauge 3.
(3). After fill the fuel, make sure the Fuel Cap (1) is tightened securely.
NOTE
Use only unleaded petrol (91). The use of leaded petrol will
cause severe damage to internal engine parts.
Never use an oil/petrol mixture.
1
2
3
Loosen

- 17 -
Make certain the generator is on a flat, level surface.
Fuel tank capacity: 4.2L.
5. STARTING THE ENGINE

- 18 -
5.1 CHECK ENGINE OIL
Check the oil BEFORE EACH USE with the generator on a level
surface and with the engine stopped.
RECOMMENDED OIL:
4-stroke engine oil, SAE 10W-40.
(1). Open the Oil Maintenance Cover (1).
(2). Remove the Oil Cap (2) and wipe the Dipstick (3) clean.
(3). Check the oil level by inserting the Dipstick (3) into the filler neck
without screwing it in.
(4). If the wet line on the Dipstick (3) is between "L" position and "H"
position, the oil level is OK. If the oil cannot reach "L" position, the oil
level is too low. Fill to the upper limit of the oil filler neck with the
recommended oil.
(5). Tighten the Oil Cap (2) and reinstall the Oil Maintenance Cover (1).
(6). Check generator for oil leakage.
NOTE
Make certain the generator is on a flat, level surface when
check the engine oil.
Engine oil quantity: 0.35L.
The engine is equipped with a low oil sensor that will stop the
engine automatically when the oil level falls below a critical
threshold.
When the engine shuts down automatically by the low oil
protection, the LOW OIL LEVEL LED (yellow) will come on, and
unless you refill with oil, the engine will not start again.
1
2
3
L
H
Loosen

- 19 -
5.2 CHECK FUEL
Do not smoke or allow flames or sparks where the generator is
refueled or where petrol is stored.
Refuel in a well-ventilated area with the engine stopped.
DO NOT fill above the Red Level.
Check the fuel BEFORE EACH USE with the generator on a level
surface and the engine stopped.
(1). Checked the fuel level in the fuel tank through the Fuel Gauge (1). If
the red mark in the Fuel Gauge (1) is close to "E" position, means the
fuel level in the fuel tank is lower. If the red mark in the Fuel Gauge (1) is
close to "F" position, means the fuel level in the fuel tank is higher.
(2). Refuel if necessary.
(3). After fill the fuel, make sure the Fuel Cap is tightened securely.
(4). Check generator for fuel leakage.
NOTE
Use only unleaded petrol (91).
Never use an oil/Petrol mixture.
Fuel tank capacity: 4.2L.
Make certain the generator is on a flat, level surface when
check the fuel.
E
F
1
