Compaq Presario S7000 - Desktop PC User manual

Compaq Presario Desktop Products
upgrading and
servicing the pc

The information in this document is subject to change without notice.
Hewlett-Packard®Company makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
HP shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
HP assumes no responsibility for the use or reliability of its software on equipment that is not
furnished by HP.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated to another
language without the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
© 2001-2003 Hewlett-Packard Development Company, L.P. All rights reserved.
Hewlett-Packard is a registered trademark of Hewlett-Packard Company in the United States of
America and other countries/regions.
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection technology must be authorised by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for
limited viewing uses only.
Other brand or product names are trademarks of their respective holders.
HP supports lawful use of technology and does not endorse or encourage the use of our products for
purposes other than those permitted by national copyright law.

upgrading and servicing the pc iii
upgrading and servicing the pc ...................................................... 1
preparing the pc ............................................................................ 1
removing or upgrading a drive ...................................................... 3
locating drive positions..............................................................................3
removing a drive ......................................................................................3
replacing or adding a drive .......................................................................5
upgrading or replacing memory .................................................... 7
removing a memory module.......................................................................7
replacing or adding a memory module .......................................................8
removing or installing an expansion card ...................................... 9
reassembling the pc ..................................................................... 10
table of contents

iv upgrading and servicing the pc

upgrading and servicing the pc 1
upgrading and
servicing the pc
This guide describes procedures for accessing the
internal parts of the PC and installing components.
NOTE: The procedures for the S0000 and 8000 series
models are the same except where noted.
IN
8000 series model and S0000 series model
preparing the pc
Before you upgrade any component in your PC, you
need to prepare the PC so that you can safely handle
it and the components.
CAUTION: Static electricity can damage
the electronic components of the PC or
optional equipment. Ensure that you are
discharged of static electricity by briefly
touching a grounded metal object.
1 Remove any diskette or optical disc (CD or DVD)
from the PC.
2 Click the Start button, and then click Turn Off
Computer. Click Tu r n O f f to turn the PC off.
3 Disconnect the modem/telephone cable, if
present.
4 Disconnect the power cable from the electrical
outlet (1) and then from the PC (2).
disconnecting the power cable
WARNING: To reduce the risk of
personal injury from electrical shock
and hot surfaces, disconnect the power
cable from the wall outlet, and allow
the internal system components to cool
before touching.
5 Disconnect all external devices connected to
the PC.

2upgrading and servicing the pc

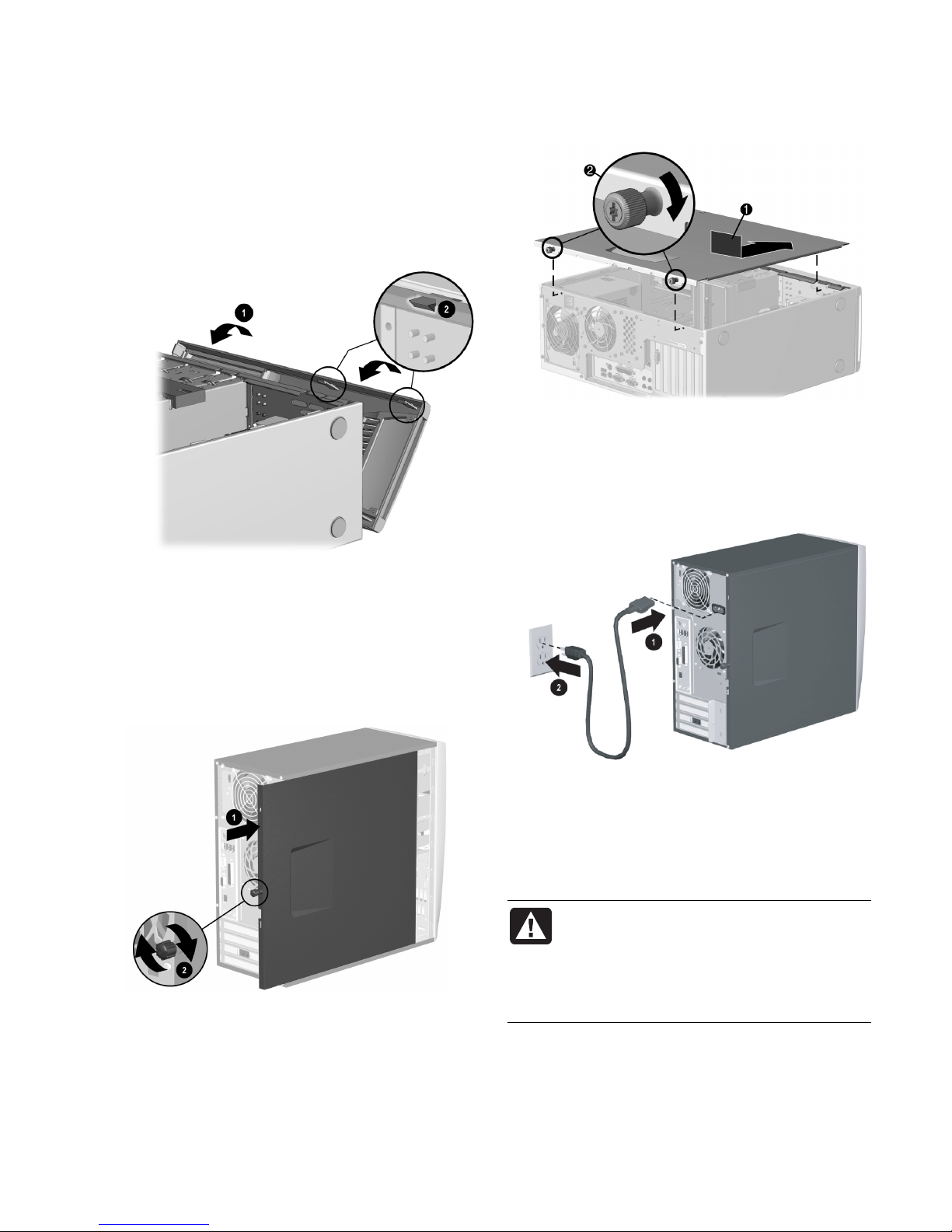

6 Lay the PC on its side with the access panel (the
side with the pull grip) facing up.
7 Remove the access panel by loosening the screw(s)
(1) that secure the access panel to the PC chassis.
Slide the access panel back (2) about 1 inch (2.5
cm), and then lift it up and off the unit.
removing the pc access panel on the
S0000 series model
WARNING: Beware of sharp edges
inside the chassis.
removing the pc access panel on the
8000 series
8 Remove the front bezel by following the
appropriate method for your PC model.
• To remove the front bezel from the S0000 series
model, gently pry the top section (1) of the
bezel away from the chassis. On the inside of
the front bezel, press the centre two tabs (not
the bottom tabs) to release the bezel, and then
pull it from the chassis (2).
removing the front bezel from the
S0000 series
• To remove the front bezel from the 8000 series,
push up on the two release tabs (1), and then
rotate the front bezel away from the chassis to
release it (2).
removing the front bezel from the
8000 series

upgrading and servicing the pc 3
removing or
upgrading a drive
Depending on your PC configuration, you may have
up to four of the following storage drives in your PC:
• CD-ROM or CD-RW drive
• DVD-ROM or DVD+RW/+R drive
• Hard disk drive
• Diskette drive
• 7-In-1 memory card reader (select models only)
You need a screwdriver to replace any of the drives.
CAUTION: Back up your personal files
on the hard disk drive to an external
storage device, such as a CD, before
removing the hard disk drive. Failure to
do so will result in data loss. After
replacing the hard disk drive, you need
to run System Recovery using the
recovery discs to load the factory-
installed files. See “using application
recovery and system recovery” for
details.

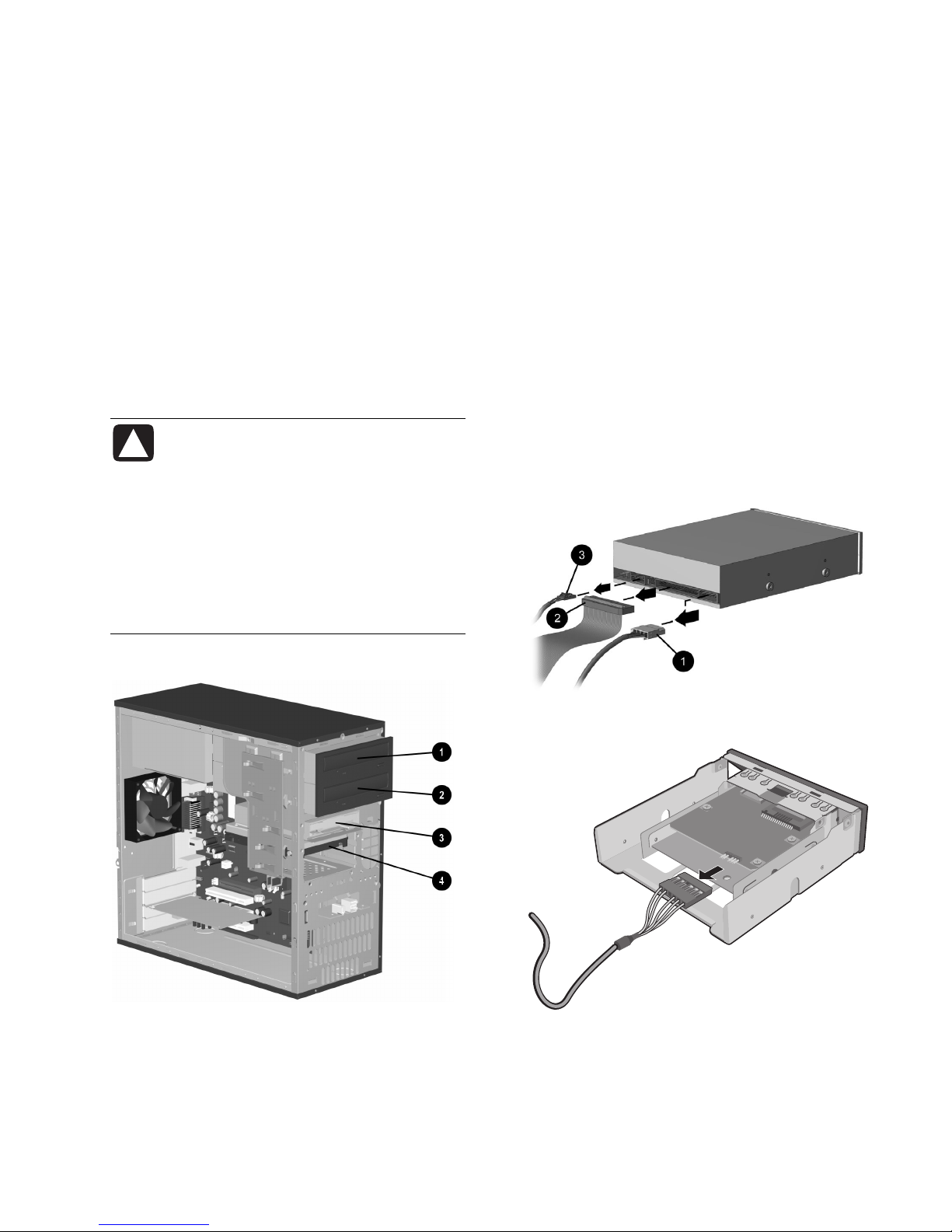

locating drive positions
drive positions on the S0000/8000 series (S0000
shown)
1 Optical drive, may be a CD-ROM, CD-RW,
DVD-ROM, or DVD+RW/+R drive
2 Second optical drive, may be a DVD-ROM,
DVD+RW/+R, CD-ROM, CD-RW drive, or
7-In-1 memory card reader (select models only)
3 Diskette (floppy) drive
4 Hard disk drive
removing a drive
1 Locate the drive you want to remove.
2 Complete the procedure described in “preparing
the pc” on page 1.
3 Disconnect the power cable (1) and data cable (2)
from the back of the drive you want to remove, as
indicated in the following illustrations. Use a
gentle rocking motion. Some units may have a
sound cable. If so, disconnect the sound cable (3).
disconnecting the optical drive cables
disconnecting the 7-In-1 memory card
reader cable

4upgrading and servicing the pc
disconnecting the diskette (floppy) drive cables
disconnecting the hard disk drive cables
4 Release the drive from the chassis by following the
method appropriate for your PC model:
• To release a drive from the chassis of the S0000
series, lift the release tab (1) on the latch drive
bracket of the drive you want to remove, and
then slide the drive from its drive bay (2). (The
latch drive bracket secures the drives in their
respective positions in the chassis.)
removing a drive from the S0000 series
• To release an optical drive or diskette drive
from the chassis of the 8000 series, slide the
drive lock mechanism (1) to unlock the drive in
the drive bay and pull the drive out of the drive
bay (2).
removing an optical or diskette drive
from the 8000 series
• To release a hard disk drive from the chassis of
the 8000 series, slide the drive lock mechanism
(1) to unlock the drive in the drive bay, remove
the metal drive shield (2) by pressing and lifting
the two tabs on one side of the shield, and then
pull the drive out of the drive bay (3).

upgrading and servicing the pc 5
3
1
4
2
removing a hard disk drive from the 8000 series
5 For both the S0000 and 8000 series, if you are
replacing the old drive with a new drive, remove
the four screws (4) (two on each side) from the old
drive. You need these screws to install the new
drive.
NOTE: If you have the S0000 series, and you
removed a 7-In-1 memory card reader, continue to
step 7; otherwise, you are finished with the task of
removing a drive from the chassis.
If you have the 8000 series, and you removed a
hard disk drive, a 7-In-1 memory card reader or an
optical drive, you are also finished with this
task. If you have the 8000 series, and you removed
a diskette drive, continue to step 6.
6 For an 8000 series diskette drive, squeeze inward
on both sides of the bracket brace, and lift the
brace up and out (1). Remove the two sets of
screws (2) (left and right sides) that secure the
drive to the drive adapter. Lift the diskette drive
out of the drive adapter (3) by sliding the drive
back and then up. Ensure that the guide screws (4)
(left and right sides) are left in the drive adapter.
You are finished with the task of removing the
drive.
2
23
1
2
4
removing a diskette drive from the drive
adapter on the 8000 series
7 For the S0000 series 7-In-1 memory card reader,
remove the reader from the drive bay adapter if
the adapter is not included with your replacement
reader. Remove the two screws (left and right
sides) that secure the reader to the adapter. Lift the
reader out of the adapter by sliding the reader
back and then up. You are finished with the task of
removing the reader.
removing a 7-In-1 memory card reader from the
drive bay adapter on the S0000 series
replacing or adding a drive
The steps to replace or add a drive are the same for
both the S0000 and 8000 series, except when you are
replacing a diskette drive on the 8000 series, or the
7-In-1 memory card reader on the S0000 series.

6upgrading and servicing the pc
If you are replacing a diskette drive on the 8000
series, before starting step 1 in the following
instructions, you need to fit the diskette drive in a
diskette drive adapter as described in “reassembling
the diskette adapter” on page 7.
If you are replacing a 7-In-1 memory card reader,
before starting step 1 in the following instructions,
reassemble the reader in the drive bay adapter as
described in step 7 of “removing a drive” on page 3.
If you are replacing or adding any other drive, begin
with step 1 in the following instructions.
to replace or add a drive
1 Insert four guide screws into the sides of the drive
(two on each side). The screws help guide the
drive into its proper position in the bay.
• When replacing a drive on the S0000 and 8000
series, place the screws, that you removed from
the old drive, into the new drive.
• When adding a second hard disk drive on the
8000 series, use the four extra guide screws that
are attached to the chassis under the front bezel.
2 Slide the drive into the drive bay (1), making sure
to align the guide screws with the guide slots,
until it snaps into place.

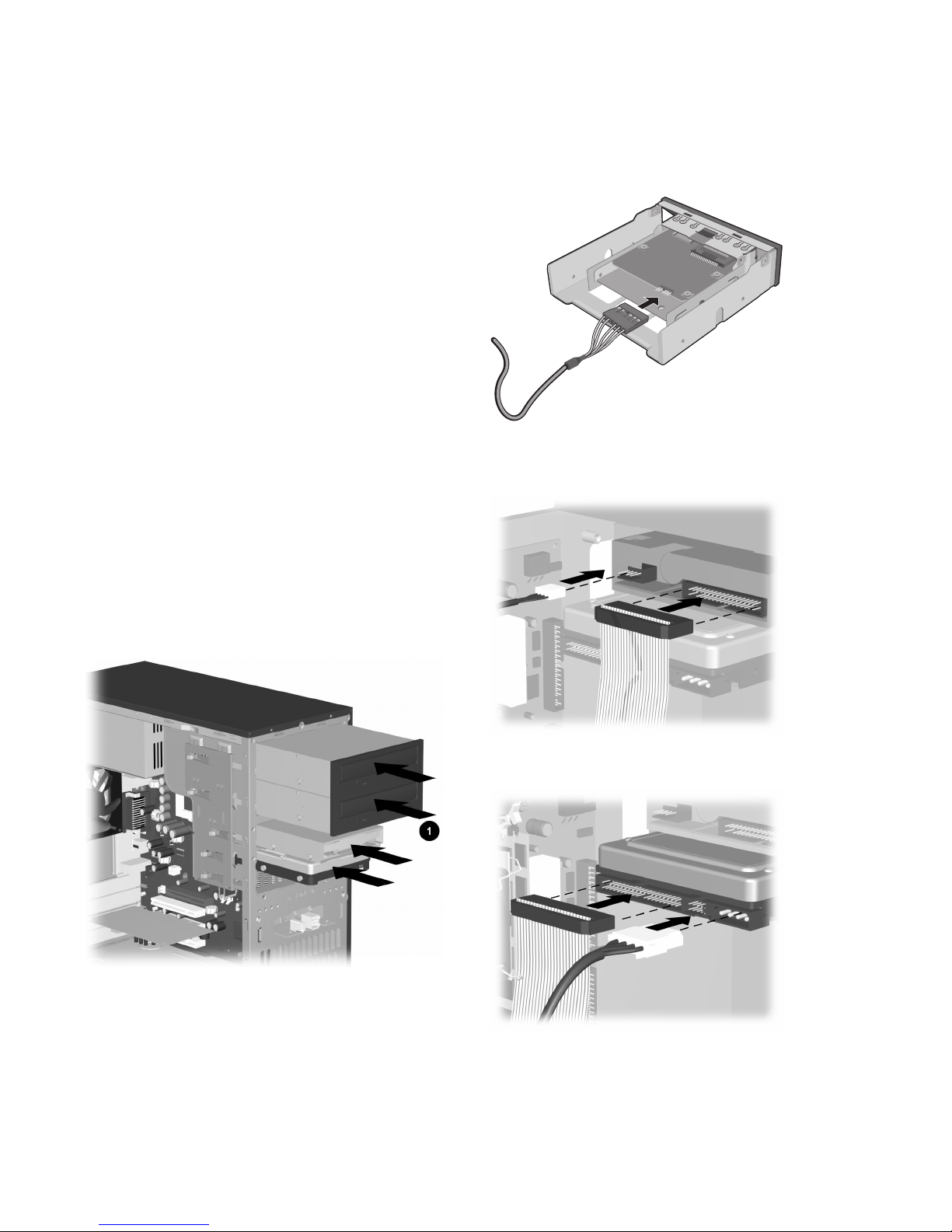

sliding the drive into the drive bay on the
S0000/8000 (S0000 shown)
3 Reconnect the power and data cables to your drive
as indicated in the following illustrations.
reconnecting the 7-In-1 memory card reader
cable on the S0000 series
reconnecting the diskette drive cables
reconnecting the hard disk drive cables

upgrading and servicing the pc 7
reconnecting the optical drive cables
NOTE: An optical drive for the 8000 series may
include a sound cable. Connect this cable also.
4 Complete the procedure described in
“reassembling the pc” on page 10.
5 Turn on the PC.
reassembling the diskette adapter
To replace or add a new diskette (floppy) drive on
the 8000 series, you need to reassemble the adapter
around the diskette drive. (The S0000 series does not
need an adapter.)
1 Lower the diskette drive into the adapter (1).
Ensure that the holes are aligned, and replace the
screws (2) that secure the diskette drive to the
adapter.
2 Press inward on each side of the bracket brace (3),
and lower the bracket until it snaps into place over
the diskette drive. Ensure that the guide screws (4)
are installed in the adapter.
3 Return to “replacing or adding a drive” on page 5,
and begin with step 1.
2
21
3
2
4
replacing the diskette drive adapter on
the 8000 series
upgrading or replacing
memory
Your PC comes with random access memory (RAM),
which temporarily stores data and instructions on
your PC. You can install memory expansion modules
in the memory expansion slots in the PC. The
procedures for upgrading or replacing these modules
are the same for the S0000 and 8000 series.
removing a memory module
CAUTION: When handling a memory
module, be careful not to touch any of
the contacts. Doing so may damage the
module.
1 Complete the procedure described in “preparing
the pc” on page 1, but do not remove the front
bezel.
2 Locate the memory module inside your PC. See
the following illustration for the location of the
memory modules (1), memory slots (2), and
release latches (3) on the system board.

8upgrading and servicing the pc
locating the memory module
NOTE: The location and number of memory
modules may vary slightly by model.
3 Open both latches of the memory module socket
(1) found at each end of the memory module. Lift
the memory module (2) from the memory slot.
removing a memory module
replacing or adding a memory
module
Upgrade the memory in your PC with memory of the
same type and speed as the memory originally
installed in your PC.
CAUTION: When handling a memory
module, be careful not to touch any of
the contacts. Doing so may damage the
module.
1 Open both latches of the memory module
socket (1).
opening the latches on the memory module
socket
• If you are replacing a memory module, put the
new memory module in the same memory slot
from which the old memory was removed.
• If you are adding a memory module, install the
new module into the socket nearest the
preinstalled module, and install additional
modules in the next available sockets.
2 The memory module can be installed in only one
way. Match the notch on the module (1) with the
tab on the memory socket. Push the module
carefully and firmly into the slot, ensuring that the
latches (2) on both ends snap into place.
installing a memory module

upgrading and servicing the pc 9
3 Complete the procedure described in
“reassembling the pc” on page 10.
NOTE: If a blank screen is displayed after replacing
or adding a memory module, the memory is installed
incorrectly or it is the wrong type of memory.
Remove and reinstall the memory module.
removing or installing an
expansion card
An expansion card is a circuit board that fits into a
PC expansion slot. Your PC contains several
expansion slots that can be used to add components
to your PC. Component configurations vary by
model.
Expansion cards you can replace or add to your PC
include:
• Modem
• Network Interface Card (NIC)
• Graphics Card
• Sound Card
• FireWire (IEEE 1394) Auxiliary Card
A Phillips screwdriver is needed to remove, replace
or add an expansion card.
to remove an expansion card
1 Complete the procedure described in “preparing
the pc” on page 1, but do not remove the front
bezel.
• To remove an expansion card from the S0000
series, continue to step 2.
• To remove an expansion card from the 8000
series, skip to step 3.
2 On the S0000 series, on the rear of the PC, remove
the expansion bracket covering the expansion slots
by removing the screw from the bracket cover (1),
and then remove the expansion bracket cover (2).
removing the screw and expansion bracket
cover on the S0000 series
3 Inside the PC on either the S0000 or 8000 series,
locate the expansion slots on the system board.
• If you have the 8000 series, continue to step 4.
• If you have the S0000 series, skip to step 5.
4 On the 8000 series, remove the screw that secures
the expansion card to the chassis.
5 Remove the expansion card from either an S0000
or 8000 series by holding the card at each end, and
carefully rocking it back and forth until the
connectors pull free from the socket. Be sure not to
scrape the card against the other components.
removing an expansion card on the
S0000/8000 (S0000 shown)
6 If you are not replacing the old expansion card
with a new expansion card, reinstall the expansion
slot cover to close the open slot. Insert the metal
slot cover into the opened slot, and screw a screw
into the top of the cover to secure it in place.

10 upgrading and servicing the pc
to install an expansion card
1 If you are replacing or adding a new expansion
card, in either the S0000 or 8000 series, align the
edge of the expansion card with the slot on the
chassis and gently, but firmly, press the card
straight down into the expansion slot. The whole
connector should be seated properly in the
expansion slot.
replacing or adding an expansion card on the
S0000/8000 (S0000 shown)
• If you have an 8000 series, continue to step 2.
• If you have an S0000 series, skip to step 3.
2 For the 8000 series, secure the expansion card to
the chassis with the slot cover screw.
3 For both the S0000 and 8000 series, if you have
replaced an expansion card, store the old card in
the anti-static packaging that contained your new
card.
• If you have an S0000 series, continue to step 4.
• If you have an 8000 series, skip to step 5.
4 For the S0000 series, replace the expansion cover
bracket (1) and screw (2).
replacing the expansion bracket cover on the
S0000 series
5 For both the S0000 and 8000 series, complete the
procedure described in “reassembling the pc” on
page 10.
reassembling the pc
1 Replace the front bezel by following the method
appropriate for your PC model.
• To replace the front bezel on the S0000 series,
position the chassis in the upright position. At
an angle, align the top of the front bezel with
the top slots of the chassis (1) so that the front
bezel hooks onto the chassis, and then press the
bottom end of the bezel to the chassis until it
snaps into place (2).
1
2
replacing the front bezel on the S0000 series

upgrading and servicing the pc 11
• To replace the front bezel on the 8000 series, lay
the chassis on the side with the open side up.
Place the front bezel in the correct position.
Ensure the slots (2) are aligned correctly, and
rotate the bezel toward the chassis (1) until it
snaps into place.
replacing the front bezel on the 8000 series
2 For either the S0000 or 8000 series, place the side
access panel in the proper position on the chassis
and slide it into place (1). Ensure that the hole for
the thumbscrew(s) align with the hole in the
chassis (2), and replace the thumbscrew(s).
replacing the side access panel on the
S0000 series
replacing the side access panel on the 8000
series
3 Reconnect the power cable (1) to the PC, and plug
the cable into an electrical outlet (2).
reconnecting the power cable on the
S0000/8000 (S0000 shown)
4 Reconnect the modem/telephone cable, if present.
5 Reconnect all peripheral devices to the PC.
W
ARNING: To reduce the risk of electrical
shock, fire, or damage to the equipment,
do not plug telecommunications or
telephone connectors into the network
interface card (NIC) (sometimes labelled
as an Ethernet connector).
6 Turn on the PC by pressing the On button.

Printed in
