QuickSpecs
Compaq iPAQ Pocket PC H3700 Series
DA-10973 World Wide — Version 2 — October 5, 2001 1

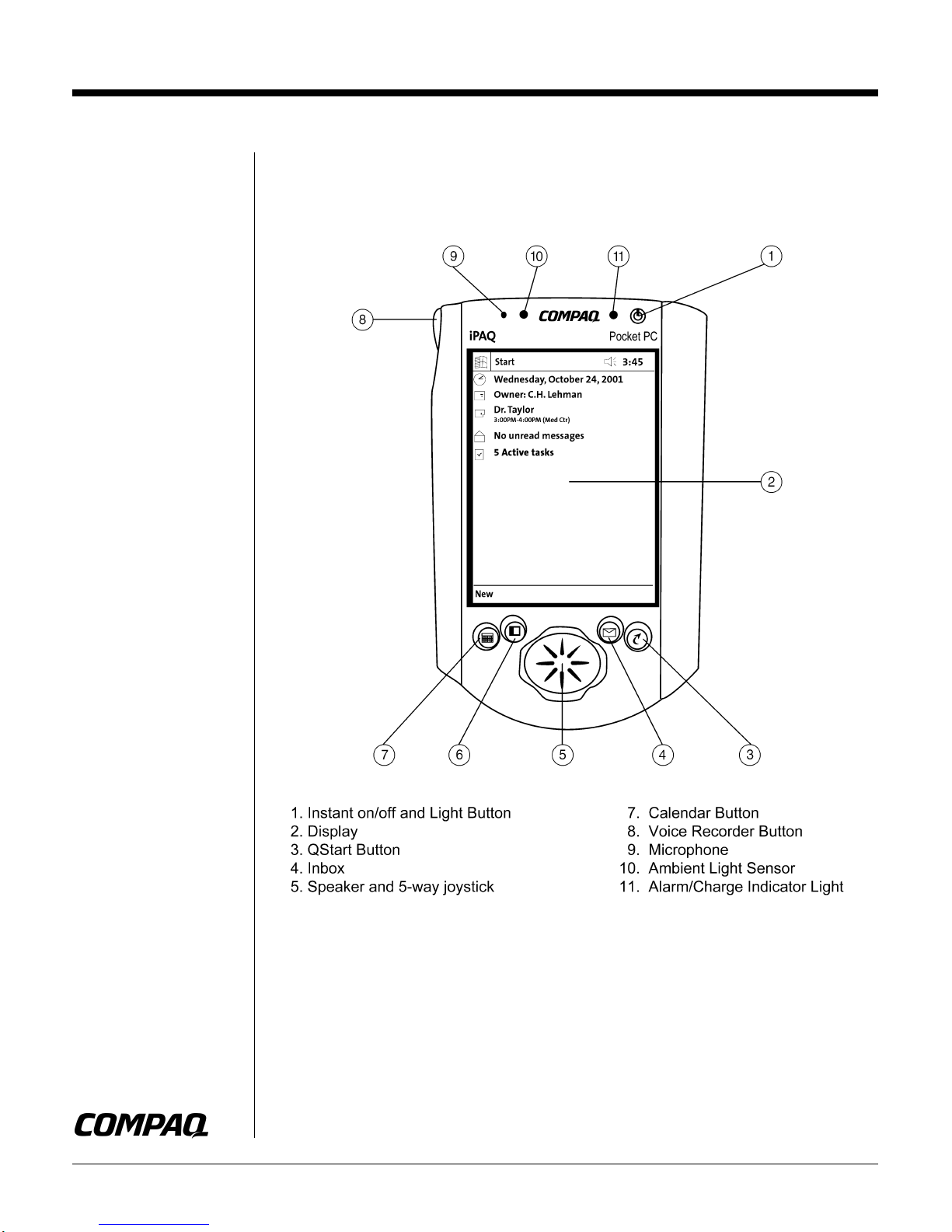

Overview
At A Glance
• Thin, lightweight, design with
brilliant color screen.
• Easy expansion and
customization through Compaq
Expansion PackSystem
• Base Memoryup to 64MB
• Microsoft Pocket PC 2002
• Audio record and playback –
audio programs from the Web,
MP3 music,a voice notations
• Rechargeable battery that gives
up to 12 hours of battery life.
• Protected by Compaq Services,
includinga one-yearwarranty –
certain restrictions and exclusions
apply; contact the Compaq
Customer Support Center for
details.

QuickSpecs
Compaq iPAQ Pocket PC H3700 Series
DA-10973 World Wide — Version 2 — October 5, 2001 2
Standard Features
Models
Compaq iPAQ Pocket PC H3765 with 64MB of SDRAM
252935-001 U.S. Retail
Compaq iPAQ Pocket PC H3760 with 64MB of SDRAM
252936-001 U.S. Commercial
252936-011 Australia, New Zealand
252936-021 Norway, Denmark, Sweden, Finland
252936-031 UK, Singapore
252936-041 Germany
252936-051 France
252936-061 Italy
252936-071 Spain
252936-161 Latin America
252936-201 Brazil
252936-AD1 Korea
Processor 206-MHz Intel StrongARM SA-1110 32-bit RISC Processor
Memory 64-MB or 32-MB SDRAM depending on model, 32-MB Flash ROM Memory
Interfaces Front Panel Buttons 5 buttons plus five-way joystick; (1 on/off and frontlight button
and (2-5) customizable application buttons)
Navigator Button 1 Five-way joystick – up, down left, right and push
Side Panel Recorder Button 1
Bottom Panel Reset Switch 1
Stylus Eject Button 1
Communications Port includes serial port
Infrared Port 1 (115 Kbps)
Speaker 1
Light Sensor 1
Microphone 1
Communications Port 1 (with USB/Serial connectivity)
Stereo Audio Output Jack 1 (standard 3.5 mm)
Cradle Interfaces Connector 1
Cable 1 USB or Serial cable connects to PC
DC Jack connector for AC Adapter 1
Stylus Holder 2 holes on left and right front
Stabilizing Arm Release Button 1 Arms engage sides of Pocket PC when no Expansion Pack is
in use
Display Color (4096 colors (12 bit) touch-sensitive reflective thin film transistor (TFT) liquid crystal display (LCD)

QuickSpecs
Compaq iPAQ Pocket PC H3700 Series
DA-10973 World Wide — Version 2 — October 5, 2001 3
Standard Features
Power Supply 950 mAh Lithium Polymer, rechargeable in docking cradle or with AC Adapter
Note: Battery life will vary based on an estimated typical use pattern of an average user, the configuration of the
computer and the usage pattern of the individual user. Use of some attachments may significantly decrease
battery life.
Audio Capabilities Audio record and playback (play MP3 music or audio programs from the Web)
One-touch instant-record button
AudiblePlayer link on Compaq CD
Integrated speaker, stereo headphone jack
Integrated microphone
Ergonomic Design Features Instant-on/off and frontlight
5-way joystick
Touch-sensitive display for stylus or fingertip
5 customizable application launch buttons – Calendar, Contacts, QStart, Qmenu, and Recorder buttons, which can
all be customized.
4 alarm settings
Speaker on front-side of unit
Compaq Software Bundle
These are all apps in the OS, not part of “Compaq Software Bundle”
Powered by Microsoft Windows for Pocket PC 2002 and Microsoft ActiveSync
®
3.5
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket Internet
Explorer, Windows Media Player 8 (MP3, audio and video streaming), Calculator, Solitaire, Inbox (with Spell Checker
for email), Microsoft Reader (ebooks), File Explorer, MSN Messenger, Terminal Services Client, VPN Client, Server
Sync client, Infrared Beaming.
Compaq Exclusive
Applications (on device) These are the extras that Compaq put in ROM
IPAQ Task Manager (utilities for Backup/Restore to Memory Card, Self Test, Auto Run, Align Screen, Clock,
Expansion pack, File Explorer, Microphone AGC, Power Status, Sounds Memory), IPAQ File Store
These are the extras on the Compaq CD-ROM
Dashboard (enhanced Today Screen application that shows 2 days appointments, program launcher, power status,
iPresenter PowerPoint converter for Pocket PC, StarTap (trial version), Xcellenet Device Management Agent,
Audible Player (link), Compaq Wireless LAN Drivers, iPAQ eBook Reference Guide, iPAQ Reference Guide on PDF
Callex Player Voice Messaging, Eletel Message
Peacemaker Software for 252935-001 Model
These are on the Microsoft CD-ROM
Microsoft ActiveSync 3.5 (Desktop device synchronization), Connection Wizard, MS Money for Pocket PC, Pocket
Streets, Outlook 2002, Internet Explorer 6.0 (for desktop), Windows Media Player 8.0 for Pocket PC and 7.1 for
desktop), Microsoft Reader (for the PC), Microsoft Reader Activation Pack (for free content), Microsoft Reader
eBooks, AvantGo, MSN Mobile
Operating System Microsoft

Pocket PC 2002
Service and Support One year limited warranty part and labor in all regions, with Next Business Day replacement CarePaq in NA

QuickSpecs
Compaq iPAQ Pocket PC H3700 Series
DA-10973 World Wide — Version 2 — October 5, 2001 4
Options
Expansion Packs CF Card Expansion Pack 170339-B21
PC Card Expansion Pack 170338-B21
Dual-Slot PC Card Expansion Pack 216198-B21
Wireless Pack forGSM/GPRS Networks 219926-B21
BluetoothWireless Pack with CF Card Slot 232568-B21
Style Packs Cover Pack 249707-B21
Color Style Pack with styli (Emerald Green, Sapphire Blue, Ruby Red) 224254-B21
Color Style Pack with styli (Amethyst Purple, Amber Orange, and Smoky Quartz) 224255-B21
Memory/Storage IBM Microdrivewith PC Card Adapter 217390-B25
64-MB SD Memory Card 253478-B21
128-MB SD Memory Card 25379-B21
CompactFlash (CF) 32-MB Memory Card 104703-004
CompactFlash (CF) 64-MB Memory Card 104703-003
Note: CF Card Expansion Pack required.
Power AC Adapter 253629-xxx
Auto Adapter 252508-B21
Note: Part numbers ending with xxx are specific to country.
Synchronization Serial Cradle 176482-B21
USB Cradle 176481-B21
USB Autosync Cable 191007-B21
Serial Autosync Cable 191008-B21
Communications WL110 Wireless PC Card (requires PC Card Expansion Pack) 191808-B21
56K V.90 CompactFlash Fax Modem (requires CF Card Expansion Pack) 148908-xxx
RS-232 Serial Cable 236251-B21
Note: Part numbers ending with xxx are specific to country.
iPAQnet Mobility Solutions
(U.S. only) One year iPAQnet airtime (CDPD use for iPAQnet Mobile Internet only) and
Sierra Wireless AirCard 300 for Windows CE, and PC Card Expansion Pack 238712-001
One year iPAQnet airtime (CDPD use for iPAQnet Mobile Internet only) and Sierra
Wireless AirCard 300 for Windows CE 238711-001
Sierra Wireless AirCard 300 for Windows CE 238113-001
One year iPAQnet airtime – (CDPD use for iPAQnet Mobile Internet only) 237424-001
One year iPAQnet airtime – unlimited CDPD use on iPAQ Pocket PC 224257-001
Cases Executive Leather Case 170340-B21
Expandable Case 217883-B21
Sport Case, Moss 227256-B21
Sport Case, Marine 227255-B21
Sport Case, Sunshine 227257-B21
Sport Case, Black 170341-B21
Other Stylus Three-Pack Replacement Kit 176184-B21
Targus Stowaway Portable Keyboard for Compaq iPAQ Pocket PCs (English) 227262-B21

QuickSpecs
Compaq iPAQ Pocket PC H3700 Series
DA-10973 World Wide — Version 2 — October 5, 2001 5
Technical Specifications
Dimensions (HxWxD) 5.1 x 3.3 x 0.62 in/130 x 84 x 16 mm
130 x 83.5 tapering to 77.5 x 15.9 mm
System Unit
Weight 6.3 oz/178 g (including battery)
Operating Temperature 32° to 104°F/0° to 40°C
Operating Humidity 10% to 90%
Regulatory Marks Electrical FCC Class B, VCCI, CE, C-Tick,
Safety CE Marking, C-UL, NOM
RAM 32 MB / 64 MB
ROM (Flash) 32 MB
Number of Colors 4096
TFT Color Display
Resolution (WxH) 240 x 320
Dot Pitch 0.24 mm
Viewable Image (WxH) 2.26 x 3.02 in (3.77 in diagonal)/57.6 x 76.82 cm (96 mm diagonal)
Display Type Color (4096 colors (12 bit) reflective thin film transistor (TFT) liquid crystal display
(LCD)
Rechargeable Battery Battery Life 32 MB up to 12 hours, 950 mAh Lithium Polymer rechargeable battery
64 MB up to 10 hours, 950 mAh Lithium Polymer rechargeable battery
AC Adapter Dimensions (HxWxD) 2.86 x 1.86 x 1.83 in/7.26 x 4.72 x 4.63 cm
Cord Length (approximate) 6 ft/1.83 m
Power Supply Ratings Voltage Range 100 to 240 V Switching
Input Current 0.3 A
Input Frequency 50 to 60 Hz
Output Voltage 5 VDC
Output Current 2 Amp
