QuickSpecs
Compaq iPAQ Pocket PC H3800 Series
DA-10977 NorthAmerica — Version 4 — October15,2001 1

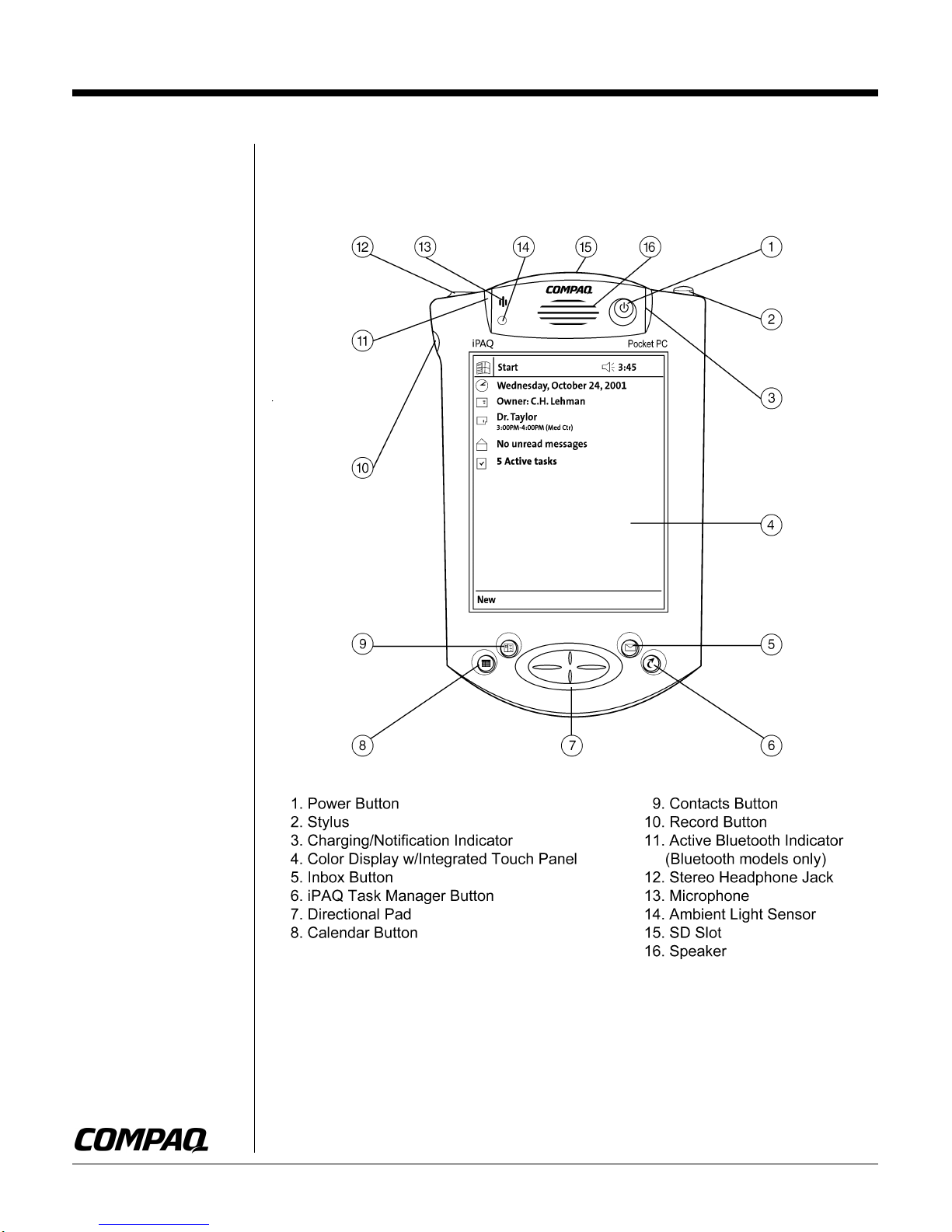

Overview
At A Glance
• Ultra thinand stylish profile
(small form factor)
• Easy expansion and
customization through Compaq
Expansion PackSystem
• 64K Color Reflective TFT display
• iPAQFile Store flash memoryfile
storage manager
• SD (Secure Digital) card slot
• Integrated Bluetooth to link
wirelessly with nearby Bluetooth
devices (Bluetooth models only)
• 206 MHz Intel StrongARM
processor
• Base Memory up to 64MB
• Microsoft Pocket PC 2002

QuickSpecs
Compaq iPAQ Pocket PC H3800 Series
DA-10977 NorthAmerica — Version 4 — October15,2001 2
Standard Features
Models
Compaq iPAQ Pocket PC H3870 - 64MB/BT (Includes SD card slot. Bluetooth integrated)
230398-001 - U.S. Commercial
Compaq iPAQ Pocket PC H3835 – 64 MB/SD (Includes SD card slot)
230397-002 - U.S. Retail
Compaq iPAQ Pocket PC H3850 – 64 MB/SD (Includes SD card slot)
230397-001 - U.S. Commercial
Processor 206-MHz Intel StrongARM SA-1110 32-bit RISC Processor
Memory 64-MB SDRAM, 32-MB Flash ROM Memory
Input Method Handwriting recognition, soft keyboard, character recognition, voice recorder, inking
Interfaces Front Panel Buttons 5 buttons plus five-way joystick; (1 on/off and frontlight button
and (2-5) customizable application buttons)
Navigator Button 1 Five-way joystick - up, down, left, right and push
Side Panel Recorder Button 1 – voice recorder
Stylus Eject Button 1
Active Bluetooth Indicator 1
Directional Pad 1
Infrared Port IrDA standard, 115 Kb per second
Speaker 1
Light Sensor 1
Microphone 1
Communications Port Interface with USB/serial connectivity that connects to cradle or
directly to PC via serial or USB cable
Stereo Audio Output Jack 1 (standard 3.5 mm)
Cradle Interfaces Connector 1
Cable 1 USB or Serial cable connects to PC
DC Jack connector for AC Adapter 1
Stylus Holder 2 holes on left and right front
Stabilizing Arm Release Button 1 Arms engage sides of Pocket PC when no Expansion Pack is
in use
Display 64K color (65,536 colors) 16 bit touch-sensitive reflective thin film transistor (TFT) liquid crystal display (LCD)
Viewable image size – 2.26 in wide x 3.02 in tall
Power Supply 1400 mAh Lithium Polymer rechargeable (in docking cradle or with AC Adapter)
Note: Battery life will vary based on an estimated typical use pattern of an average user, the configuration of the
computer and the usage pattern of the individual user. Use of some attachments may significantly decrease
battery life.

QuickSpecs
Compaq iPAQ Pocket PC H3800 Series
DA-10977 NorthAmerica — Version 4 — October15,2001 3
Standard Features
Audio Capabilities Audio record and playback (play MP3 music or audio programs from the Web, as well as records and plays back
voice notes or meeting notes.
One-touch instant-record button
AudiblePlayer link on Compaq CD
Integrated speaker, stereo headphone jack
Integrated microphone
Ergonomic Design Features Instant-on/off and frontlight
5-way joystick
Touch-sensitive display for stylus or fingertip
5 customizable application launch buttons – Calendar, Contacts, Inbox, iPAQ Tasks, and Recorder buttons, which
can all be customized.
4 alarm settings
Speaker on front-side of unit
Compaq Software Bundle These are all applications in the OS, not part of “Compaq Software Bundle”
Powered by Microsoft Windows for Pocket PC 2002 and Microsoft ActiveSync
®
3.5
Calendar, Contacts, Tasks, Voice Recorder, Notes, Pocket Word (with Spellchecker), Pocket Excel, Pocket Internet
Explorer, Windows Media Player 8 (MP3, audio and video streaming), Calculator, Solitaire, Inbox (with Spell Checker
for email), Microsoft Reader (ebooks), File Explorer, MSN Messenger, Terminal Services Client, VPN Client, Server
Sync client, Infrared Beaming.
Compaq Exclusive
Applications
(on device)
These are the extras that Compaq put in ROM
IPAQ Task Manager (utilities for Backup/Restore to Memory Card, Self Test, Auto Run, Align Screen, Clock,
Expansion pack, File Explorer, Microphone AGC, Power Status, Sounds Memory)
Application on companion
CD-ROM
(downloadable to device)
These are the extras on the Compaq CD-ROM
IBM Via Voice Voice Command and Control of PIM applications (Calendar, Contacts, Inbox), iPresenter PowerPoint
convertor for Pocket PC, Dashboard (enhanced Today Screen application that shows 2 days appointments, program
launcher, power status): Data Encryption Package, Jeode Java Virtual Machine, Quick View Plus, Audible Player
(link), eWallet, ListPro, Wordlogic Predictive Keyboard, StarTap (trial version), Xcellenet Device Management Agent,
Sega Game Pack, Vegas Game Pack, Compaq Wireless LAN Drivers, Eletel Messaging Software, iPAQ Reference
Guide on PDF and eBook. Interactive device demo.
Peacemaker Pro application on 230297-002 (NA Retail)
These are on the Microsoft CD-ROM
Microsoft ActiveSync 3.5 (Desktop device synchronization), Connection Wizard, MS Money for Pocket PC (Desktop
version required), Pocket Streets (Desktop version required), Outlook 2002, Internet Explorer 6.0 (for desktop),
Windows Media Player 8.0 for Pocket PC and 7.1 for desktop), Microsoft Reader (for the PC), Microsoft Reader
Activation Pack (for free content), Microsoft Reader eBooks, AvantGo, MSN Mobile
Operating System Microsoft

Pocket PC 2002
Service and Support One year limited warranty part and labor in all regions, with Next Business Day replacement CarePaq in NA

QuickSpecs
Compaq iPAQ Pocket PC H3800 Series
DA-10977 NorthAmerica — Version 4 — October15,2001 4
Options
Expansion Packs CF Card Expansion Pack 170339-B21
PC Card Expansion Pack 170338-B21
Dual-Slot PC Card Expansion Pack 216198-B21
Bluetooth Wireless Pack with CF Card Slot 232568-B21
Wireless Pack forGSM/GPRS Networks 219926-B21
Style Packs Cover Pack 249707-B21
Memory/Storage IBM Microdrive with PC Card Adapter 217390-B25
64-MB SD Memory Card 253478-B21
128-MB SD Memory Card 253479-B21
CompactFlash (CF) 32-MB Memory Card 104703-004
CompactFlash (CF) 64-MB Memory Card 104703-003
Note: CF Card Expansion Pack required.
Power AC Adapter 253629-xxx
Auto Adapter 253508-B21
Note: Part numbers ending with xxx are specific to country.
Synchronization Universal AutoSync Cable 250178-B21
Universal Desktop Cradle 250182-B21
Communications WL110 Wireless PC Card (requires PC Card Expansion Pack) 191808-B21
CompactFlash Modem 56K V.90 (requires CF Card Expansion Pack) 148908-xxx
Note: Part numbers ending with xxx are specific to country.
iPAQnet Mobility Solutions
(U.S. only) One year iPAQnet airtime (CDPD use for iPAQnet Mobile Internet only) and
Sierra Wireless AirCard 300 for Windows CE, and PC Card Expansion Pack 238712-001
One year iPAQnet airtime (CDPD use for iPAQnet Mobile Internet only) and
Sierra Wireless AirCard 300 for Windows CE 238711-001
Sierra Wireless AirCard 300 for Windows CE 238113-001
One year iPAQnet airtime – (CDPD use for iPAQnet Mobile Internet only) 237424-001
One year iPAQnet airtime – unlimited CDPD use on iPAQ Pocket PC 224257-001
Cases Expandable Case 217883-B21
Other Stylus Three-Pack Replacement Kit 253510-B21
Micro Keyboard 250111-xxx
Note: Part numbers ending with xxx are specific to country.

QuickSpecs
Compaq iPAQ Pocket PC H3800 Series
DA-10977 NorthAmerica — Version 4 — October15,2001 5
Technical Specifications
Dimensions (HxWxD) 5.3 x 3.3 x 0.62 in/ 133 x 84 x 16 mm
System Unit
Weight 6.7 oz/190 g (including battery)
Operating Temperature 32° to 104°F/0° to 40°C
Operating Humidity 10% to 90%
Regulatory Marks Electrical FCC Class B, VCCI, CE, C-Tick,
Safety CE Marking, C-UL, NOM
RAM 64 MB
ROM (Flash) 32 MB (Flash ROM)
Number of Colors 65,536 (64K)
TFT Color Display
Resolution (WxH) 240 x 320
Dot Pitch 0.24 mm
Viewable Image (WxH) 2.26 x 3.02 in (3.77 in diagonal)/57.6 x 76.82 cm (96 mm diagonal)
Display Type 65,536 colors (16 bit) reflective thin film transistor (TFT) liquid crystal display (LCD)
Rechargeable Battery Battery Life 64 MB up to 10 hours, 1400 mAh Lithium Polymer rechargeable battery
AC Adapter Dimensions (HxWxD) 3.0 x 1.9 x 1.75 in (including prongs)/76.2 x 48.2 x 44.44 mm
Cord Length (approximate) 6 ft/1.83 m
Power Supply Ratings Voltage Range 100 to 240 V Switching
Input Current 0.3 A
Input Frequency 50 to 60 Hz
Output Voltage 5 VDC
Output Current 2 Amp
Compaq PCs use genuine Microsoft

Windows

www.microsoft.com/piracy/howtotell
Microsoft, Windows the Windows logos, Windows media, Outlook, and ActiveSync are trademarks of Microsoft Corporation in
the U.S. and other countries.
