Comprehensive CHE-HDBT2020 User manual

CHE-HDBT2020
Pro AV/IT 4K 18G HDBaseT™ Extender
TX/RX Kit up to 330ft
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Comprehensive Connectivity
assumes no responsibility for any infringements of patents or
other rights of third parties which may result from its use.
Comprehensive Connectivity assumes no responsibility for any
inaccuracies that may be contained in this document.
Comprehensive also makes no commitment to update or to keep
current the information contained in this document.
Comprehensive reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any
means—electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise—without express written permission and
consent from Comprehensive Connectivity.
© Copyright 2018 by Comprehensive
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, installor
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to buildingsurfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO.
DATE
SUMMARY OF CHANGE
RDV1
26/12/17
Preliminary release
VS1
09/01/18
Final technical review
VS2
22/01/18
Updated package contents

CONTENTS
1. Introduction .................................................. 1
2. Applications ................................................. 1
3. Package Contents ....................................... 1
4. System Requirements .................................. 2
5. Features......................................................... 2
6. Operation Controls and Functions ................ 3
6.1 Transmitter's Front Panel ......................3
6.2 Transmitter's Rear Panel.......................4
6.3 Receiver's Front Panel..........................4
6.4 Receiver's Rear Panel ..........................5
6.5 IR Pin Assignment..................................6
6.6 RS-232 Protocol .....................................6
7. Connection Diagram................................... 7
8. Specifications ............................................... 8
8.1 Transmitter's Technical Specifications......8
8.2 Receiver's Technical Specifications.........9
8.3 Video Specifications ..........................10
8.4 Cable Specifications..........................12
9. Acronyms ...................................................... 13

1
1. INTRODUCTION
This transmitter and receiver set is a great solution for extending UHD
video and audio as well as Ethernet and control via a single run of
Cat.5e/6/7 cable over distances up to 100 meters. This extender
set complies with the advanced HDCP 2.2 and HDMI 2.0 standards,
as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.
Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video
sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-
bit sources with HDR, are able to be processed and extended by the
use of AVLC (Adaptive Visually Lossless Compression) when needed.
Multiple data and control interfaces are also provided, including IR,
RS-232 and LAN connections. The Receiver (PD) is powered by 48V
PoH (Power over HDBaseT) provided by the Transmitter (PSE), allowing
for greater flexibility within different installation scenarios.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
Transmitter
• 1×HDMI over HDBaseT Transmitter (with LAN, IR & RS-232)
• 1×48V/0.83A DC Power Adapter
• 1×Power Cord
• 1×3.5mm to IR Blaster Cable
• 1×Operation Manual
Receiver
• 1×HDMI over HDBaseT Receiver (with LAN, IR & RS-232)
• 1×3.5mm to IR Extender Cable
• 1×Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game
console or set-top box.
• HDMI receiving equipment such as an HDTV, monitor or audio
amplifier.
• The use of “Premium High Speed HDMI” cables, and industry
standard Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
• Supports output resolutions up to 4K@50/60Hz (4:4:4, 8-bit)
• Supports Deep Color input and output up to 12-bit
• Supports 10-bit and 12-bit HDR bypass
• Supports CEC bypass
• Simultaneous transmission of video, audio and data over a single
Cat.5e/6/7 cable up to 100m (328ft) at 1080p and 70m (246ft) at 4K
• Supported HDBaseT feature set: HD Video & Audio, 100BaseT
Ethernet, 48V PoH, and Control (Bidirectional IR/RS-232 pass-
through)
• Integrated AVLC (Adaptive Visually Lossless Compression) activates
when the bandwidth requirements of the source are beyond
10.2Gbps (340MHz) allowing for support of sources up to 18Gbps
(600MHz) with no loss of visual quality
• The AVLC function allows manual selection between High Quality
(Full bandwidth) mode and Standard mode (Lower bandwidth,
useful for longer cable runs with 4K sources)
• Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to
Receiver (PD) (compatible Receivers only)
Note: The 48V PoH function is designed for powering compatible
Receiver units only. Non-PoH Receivers will need their own power
supply. Receivers from other brands may not be compatible.

3
ST
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter's Front Panel

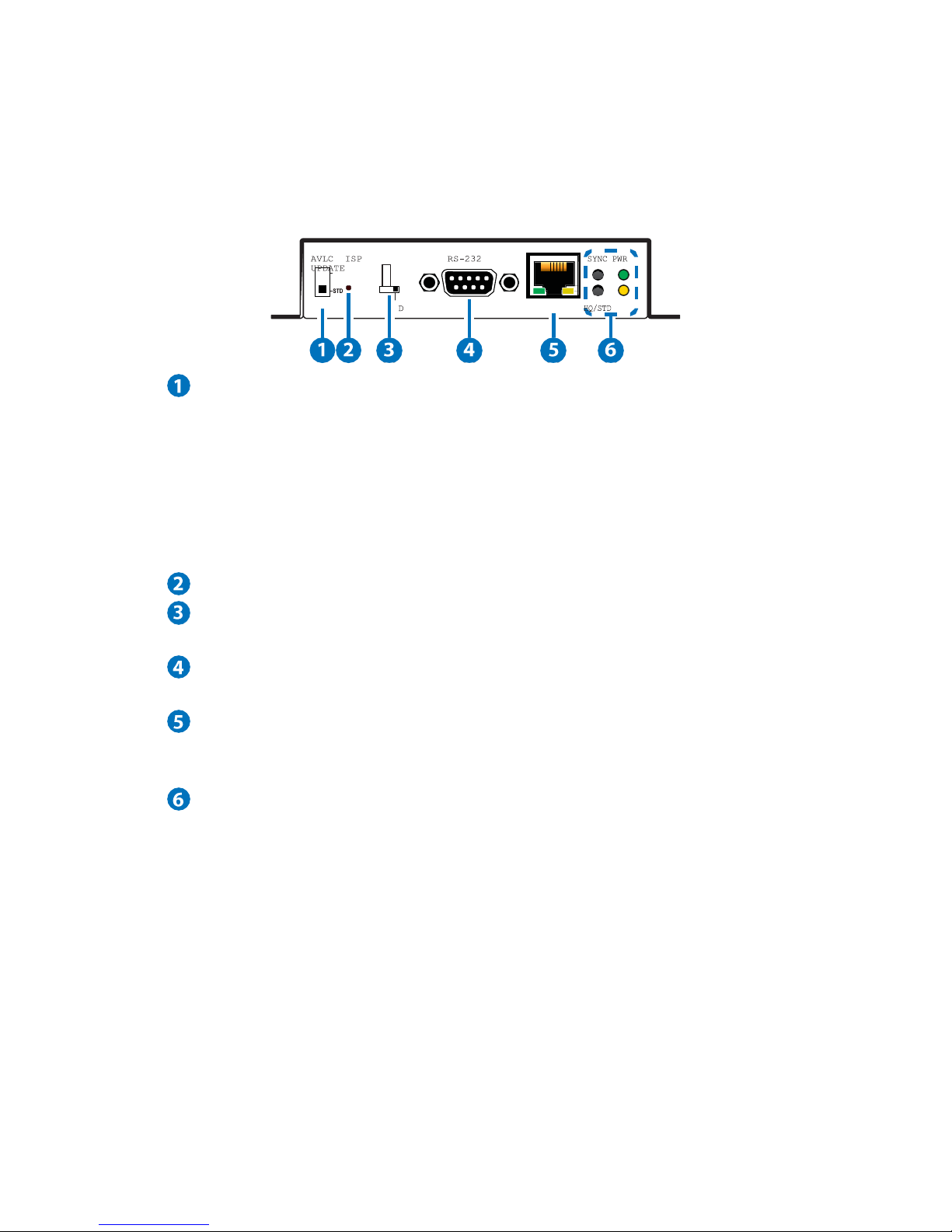

STD/HQ: This switch allows user to select which compression mode
to use when AVLC is active. HQ (High Quality) mode uses the
least amount of compression and provides the highest possible
visual quality (perceptually identical to the original). STD (Standard
Quality) mode applies additional signal reduction methods to
lower the bandwidth requirements of 4K sources further, improving
transmission reliability over longer cable runs at the cost of some
visual fidelity.
ISP: This button is reserved for factory use only.
STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
RS-232 IN: Connect to a PC, laptop or other serial control device
for the extension of RS-232 signals.
LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of
the HDBaseT connection.
SYNC LED: This LED will illuminate when a live input source is
detected.
HQ/STD LED: This LED will illuminate whenever the AVLC function
is active. A green LED indicates that AVLC is in HQ (High Quality)
mode. A red LED indicates that AVLC is in STD (Standard) mode.
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular
pattern if a Receiver is connected but there is not currently a live
signal. The LED will blink with an irregular pattern if a connection
error has occurred.
LAN

4
ST
6.2 Transmitter's Rear Panel
DC 48V: Plug the 48V DC power adapter into this port and connect
it to an AC wall outlet for power.
IR1 BLASTER: Connect to the provided IR Blaster to transmit IR
signals to devices within direct line-of-sight of the IR Blaster.
IR2 EXTENDER: Connect to the provided IR Extender to extend
the IR control range of remotely located devices. Ensure that the
remote being used is within direct line-of-sight of the IR Extender.
CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals.
HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box.
6.3 Receiver's Front Panel
ISP: This button is reserved for factory use only.
STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
RS-232 OUT: Connect to a serial controllable device for the
extension of RS-232 signals.
LAN: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of
the HDBaseT connection.
SYNC LED: This LED will illuminate when a live input source is
detected.
IR
1
IR
2
LAN HQ/STD
LINK

5
HQ/STD LED: This LED will illuminate whenever the AVLC function
is active. A green LED indicates that AVLC is in HQ (High Quality)
mode. A red LED indicates that AVLC is in STD (Standard) mode.
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular
pattern if a Receiver is connected but there is not currently a live
signal. The LED will blink with an irregular pattern if a connection
error has occurred.
6.4 Receiver's Rear Panel
IR2 BLASTER: Connect to the provided IR Blaster to transmit IR
signals to devices within direct line-of-sight of the IR Blaster.
IR1 EXTENDER: Connect to the provided IR Extender to extend
the IR control range of remotely located devices. Ensure that the
remote being used is within direct line-of-sight of the IR Extender.
CAT5e/6/7: Connect to a compatible HDBaseT Transmitter with a
single Cat.5e/6/7 cable for transmission of all data signals.
HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital
video and audio output.
IR
2
IR
1

6
6.5 IR Pin Assignment
Infrared
Power
Ground
Power
Infrared
NC
6.6 RS-232 Protocol
UNIT
TERMINAL
Pin
Pinout
Pin
Pinout
1
1
2
TxD
2
RxD
3
RxD
3
TxD
4
4
5
GND
5
GND
6
6
7
7
8
8
9
9
IR Extender
IR Blaster

7
7. CONNECTION DIAGRAM
Digital Media Player
UHDTV
Serial Equipped
Computer
Wireless
Router
HDMI
Input
IR
LAN
AVLC ISP
UPDATE
LAN HQ/STD
LINK
IR1 IR2
DC 48V BLASTER EXTENDER CAT5e/6/7 OUT
HDMI IN
Power Supply
Cat.5e/6/7
Cable
ISP
UPDATE
LAN HQ/STD
LINK
IR2 IR1
BLASTER EXTENDER CAT5e/6/7 IN
HDMI OUT
LAN
IR
Serial Controlled
Device
HDMI

8
8. SPECIFICATIONS
8.1 Transmitter's Technical Specifications
HDMI Bandwidth
600MHz/18Gbps
HDBaseT Bandwidth
340MHz/10.2Gbps
Input Ports
1×HDMI
Output Ports
1×Cat.5e/6/7
Pass-through Ports
1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
1×LAN [RJ-45]
IR Frequency
30 - 50kHz (30 - 60kHz under ideal
conditions)
Baud Rate
Up to 115200bps
Power Supply
48V/0.83A DC (US/EU standards, CE/
FCC/UL certified)
ESD Protection
Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions
128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117mm (W×H×D)
[All Inclusive]
Weight
385g
Chassis Material
Metal
Silkscreen Color
Black
Operating Temperature
0˚C - 40˚C/32˚F - 104˚F
Storage Temperature
−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity
20 - 90% RH (Non-condensing)
Power Consumption
8.69W

9
8.2 Receiver's Technical Specifications
HDMI Bandwidth
600MHz/18Gbps
HDBaseT Bandwidth
340MHz/10.2Gbps
Input Ports
1×Cat.5e/6/7
Output Ports
1×HDMI
Pass-through Ports
1×IR Extender [3.5mm]
1×IR Blaster [3.5mm]
1×RS-232 [9-pin D-sub]
1×LAN [RJ-45]
IR Frequency
30 - 50kHz (30 - 60kHz under ideal
conditions)
Baud Rate
Up to 115200bps
Power Supply
PoH
ESD Protection
Human Body Model:
±8kV (Air Discharge)
±4kV (Contact Discharge)
Dimensions
128mm×25mm×108mm (W×H×D)
[Case Only]
128mm×25mm×117mm (W×H×D)
[All Inclusive]
Weight
386g
Chassis Material
Metal
Silkscreen Color
Black
Operating Temperature
0˚C - 40˚C/32˚F - 104˚F
Storage Temperature
−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity
20 - 90% RH (Non-condensing)
Power Consumption
10W

10
8.3 Video Specifications
Supported PC Resolutions (Hz)
HDMI
Input
HDMI
Output
640×480
60, 72, 75, 85


720×400
70, 85


800×600
56, 60, 72, 75, 85


1024×768
60, 70, 75, 85


1152×864
75


1280×720
50, 60


1280×768
60, 75, 85


1280×800
60, 60 (RB)


1280×960
60


1280×1024
60


1360×768
60


1366×768
60


1400×1050
60, 60 (RB)


1440×900
60, 60 (RB)


1600×900
60


1600×1200
60


1680×1050
60, 60 (RB)


1920×1080
60


1920×1200
60



11
Supported TV Resolutions (Hz)
HDMI
Input
HDMI
Output
720×480i
59.94, 60


720×576i
50


720×480p
59.94, 60


720×576p
50


1280×720p
50, 59.94, 60


1920×1080i
50, 59.94, 60


1920×1080p
50, 59.94, 60


1920×1080p
23.97, 24, 25, 29.97, 30


3840×2160p
24, 25, 30


4096×2160p
24, 25, 30


3840×2160p (YUV 4:2:0)
50, 60


3840×2160p
50, 60



12
8.4 Cable Specifications
HDMI Cable
Length (meter)
1080p
4K
8-bit
12-bit
8-bit
Input
10
10
5
Output
10
5
5
Cat. Cable
Length (meter)
1080p
4K
Cat.5e
100
70
Cat.6
100
70
Cat.7
100
100
•Full HD Video (1080p)
- Up to 1080p@60Hz, 12-bit color
- Data rates lower than 5.3Gbps or below 225MHz TMDS clock
•Ultra HD Video (4K)
-4K@24/25/30Hz & 4K@50/60Hz (YUV 4:2:0), 8-bit color
- 4K@50/60Hz (4:4:4, 8-bit) with AVLC active
- Data rates higher than 5.3Gbps or above 225MHz TMDS clock

13
80 Little Falls Road, Fairfield, NJ 07004
[e-mail] l 800.526.0242 l www.ComprehensiveCo.com
9. ACRONYMS
ACRONYM
COMPLETE TERM
AVLC
Adaptive Visually Lossless Compression
Cat.5e
Category 5 (enhanced) Cable
Cat.6
Category 6 Cable
Cat.7
Category 7 Cable
CEC
Consumer Electronics Control
DVI
Digital Visual Interface
HD
High-Definition
HDCP
High-bandwidth Digital Content Protection
HDMI
High-Definition Multimedia Interface
HDR
High Dynamic Range
IR
Infrared
LAN
Local Area Network
LPCM
Linear Pulse-Code Modulation
PC
Personal Computer
PD
Powered Device
PoH
Power over HDBaseT
PSE
Power Sourcing Equipment
UHD
Ultra-High-Definition
