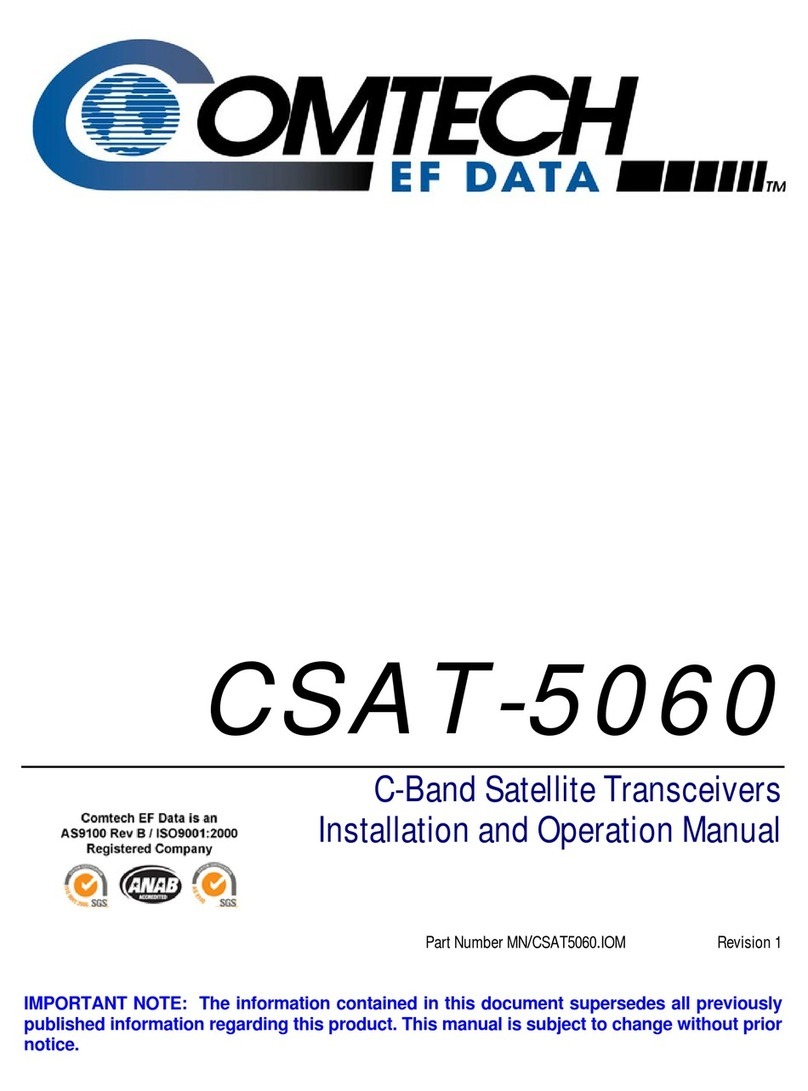

Comtech EF Data CSAT-5060 User manual

Part Number MN/CSAT506050.IOM Revision 0
CSAT
-
506
0
50 Wat
t
C-Band Transceive
r
Installation and Operation Manual

Filename: T_ERRATA 1
Errata A
Comtech EF Data Documentation Update
Subject: Revised format for Redundant Kits descriptions
Date: September 17, 2002
Document: CSAT5060 50Watt, C-Band Transceiver, Installation and
Operation Manual, Rev. 0, dated April 23, 2002
Part Number: MN/C506050.EA0
Collating Instructions: Attach this page to page 2-12
Comments:
Revised format for Redundant Kits descriptions
Change Specifics:
2.6 REDUNDANCY CONFIGURATION
2.6.1 MOUNTING KIT
Table 2-1. Final 1:1, C-Band Assembly (Switching), AS/0458
Part No. Description QTY
AS/0438 Kit, LNA Switching 1
AS/0440 Kit, Cable 1:1 1
AS/0460 Kit, Waveguide CRP137G 1
AS/0461 Kit, Waveguide CRP229 1
AS/0462 Switch, Waveguide, TX 1:1 1
AS/0490 Assy, Remote Switch Box 1
Table 2-2. 1:1 Mounting Assembly, AS/0597
Part No. Description QTY
*AS/0414 Redundancy Kit, Pole Mount 2
*AS/0415 Single-Thread Mounting Kit 2
AS/0437 Switch, Mount Kit TX 1
IMPORTANT
*Refer to Single-Thread Configuration.

Filename: T_ERRATA 2

Filename: T_ERRATA 1
Errata B
Comtech EF Data Documentation Update
Subject: Delete C-Band Filter from Mounting Kit AS/0438
Date: September 17, 2002
Document: CSAT5060 50Watt, C-Band Transceiver, Installation and
Operation Manual, Rev. 0, dated April 23, 2002
Part Number: MN/C506050.EB0
Collating Instructions: Attach this page to page 2-14
Comments: Deleted C-Band Filter P/N RF/TRF-CBND-WG from Mounting Kit
AS/0438. Filter to be ordered separately.
Change Specifics:
Item Part No. Nomenclature QTY
1 15D1002 Cover 2
2 FP/BR0076 Bracket, Switch 1
3 28P1084 Adapter 1
4 Not Used
5 SW/WG2AGSM Switch, CPR229 +24V, Sealed 1
6 Not Used
7 HW/M6X1X15MMHEX Bolt, Hex head 36
8 HW/M6LOCK Washer, Lock 36
9 HW/M6X1X15MMFLATSS Screw, Flat 4
10 CN/CX50NMALE CN – 5Ω, N Male Termination 1
11 GA/GSKTCPR229FULL Gasket, CPR229 4
12 HW/M6FLAT Washer, Flat 36
AS-0502 TX/RX Filter Support Bracket 1
Figure 2-1. Mounting LNA Switch Kit, AS/0438

Filename: T_ERRATA 2

Filename: T_ERRATA 1
Errata C
Comtech EF Data Documentation Update
Subject: Revised Assembly Procedures for TRF Filter
Date: September 17, 2002
Document: CSAT5060 50Watt, C-Band Transceiver, Installation and
Operation Manual, Rev. 0, dated April 23, 2002
Part Number: MN/C506050.EC0
Collating Instructions: Attach this page to page 2-23
Comments:
Revised Important Note and step 7 to read:
IMPORTANT
Ensure that the OUTPUT flange of the filter is against switch (5).
TRF Filter is Customer-Selectable at time of ordering.
7. Position TRF Filter (customer-selectable), gasket (Table 2-7, Item 11), and
Support Bracket (Table 2-8, Figure 2-12, AS/0502) on Port 4 of switch (Table 2-
7, Item 5) and secure with 8 bolts (Table 2-8, Item 3), lockwashers (Table 2-8,
Item 2), and flat washers (Table 2-8, Item 1) from AS/0502 kit, and use 2 bolts
(Table 2-7, Item 7, Figure 2-11), lockwashers (Table 2-7, Item 8), and flat
washers (Table 2-7, Item 12) from AS/438 kit.

Filename: T_ERRATA 2

Filename: T_ERRATA 1
Errata D
Comtech EF Data Documentation Update
Subject: Change Specification Temperatiures
Date: December 16, 2002
Document: CSAT5060 50Watt, C-Band Transceiver, Installation and
Operation Manual, Rev. 0, dated April 23, 2002
Part Number: MN/C506050.ED0
Collating Instructions: Attach this page following page 3
Comments:
Revised temperatures as specified in the Specification list. This information will be incorporatedf into the
next revision.
Change Specifics:
Revise temperatures as follows:
-50°C = -58°F
75°C = 167°F
55°C = 131°F

Filename: T_ERRATA 2
