Comtek RK7106 User manual

RK7106RK7106
Deluxe 3D Massage ChairDeluxe 3D Massage Chair
Please read “Safety Instructions”before using the chair.carefully
Users ManualUsers Manual

RK7106RK7106
1. RK7106 adopts unique armrest and footrest patented technology, accomplished the
perfect mix of massage chair and sofa.
2. The sofa 3D intelligent massage machine is adopted in this chair, massaging neck,
shoulder, and waist softly and comfortably in right places. The massage machine
imitates traditional Chinese medical science of massaging, making people to enjoy
the services from massagists.
3. It is equipped with body shape detecting function, it can provide precise massage to
people of different height and weight
4. Multifunctional and hidden footrest can hold leg, calf and do rolling massage on sole,
accomplishing Gua Sha treatment and several mixed massage method, getting you
feet relaxed totally
5. Footrest adopts multi-layer airbag, providing impulse massage to feet and leg
simulating blood circulation get feet relaxed and vital
6. Hidden armrest controlled by one button, when pop up, it can do air massage on the
arm, stimulating blood circulation, relieving numb on hands it looks similar as sofa
when hiding the armrest
7. Armrest and backrest move together, when reclining the chair, user can still enjoy
hand massage at right place
8. Several airbags in seat, eliminate the fatigue through alternative airbag press.
9. Voice Prompt on controller, make the operation easier. Equipped with Hi-Resolution
VFD controller, showing massage part, method, and status. Music decoder inside
support MP playing head phone optional.
10. Controller is with unique 2 parts rotating structure, setting the distance between user
and controller freely.
11. Controller is small and cute, adopt infrared tech, realizing position adjustment and
massage method choosing, more humanized.
12. Music-sync makes the massage going with music beat boosting the massage
effect and relieving pressure inside body.
13. Electrical adjustment on back and leg rest, user can adjust freely.
14. Leg rest can extend freely, to suit user of different height.
.
.
,
,.
,
.
.
,
,
,
3
Deluxe 3D Massage Chair
Function IntroductionFunction Introduction
Deluxe 3D Massage Chair
Note: We reserve the right for design modification. It is subject to change without notice.
The pictures in this manual are for reference. Please refer to the actual product.
1 Thanks for choosing RK7106.Deluxe 3D Massage Chair.
2. Please read the manual carefully before using in order to operate the massager in
correct way.
3. Keeping the manual in safe place for your reading in any time.
4. Please pay attention to Safety Instructions“ ” .
,
Keep this manual for future references .
contents
External structure parts
Internal structure parts
The adjustment before massage
Operation instruction and function illustration
Manual control
Clean and maintenance
Preparation
Safety instructions
Massageoperation
Malfunction analysis
After massage
Schematics of mechanical parts
Mechanical parts lists
Maintenance
Others
Technical data

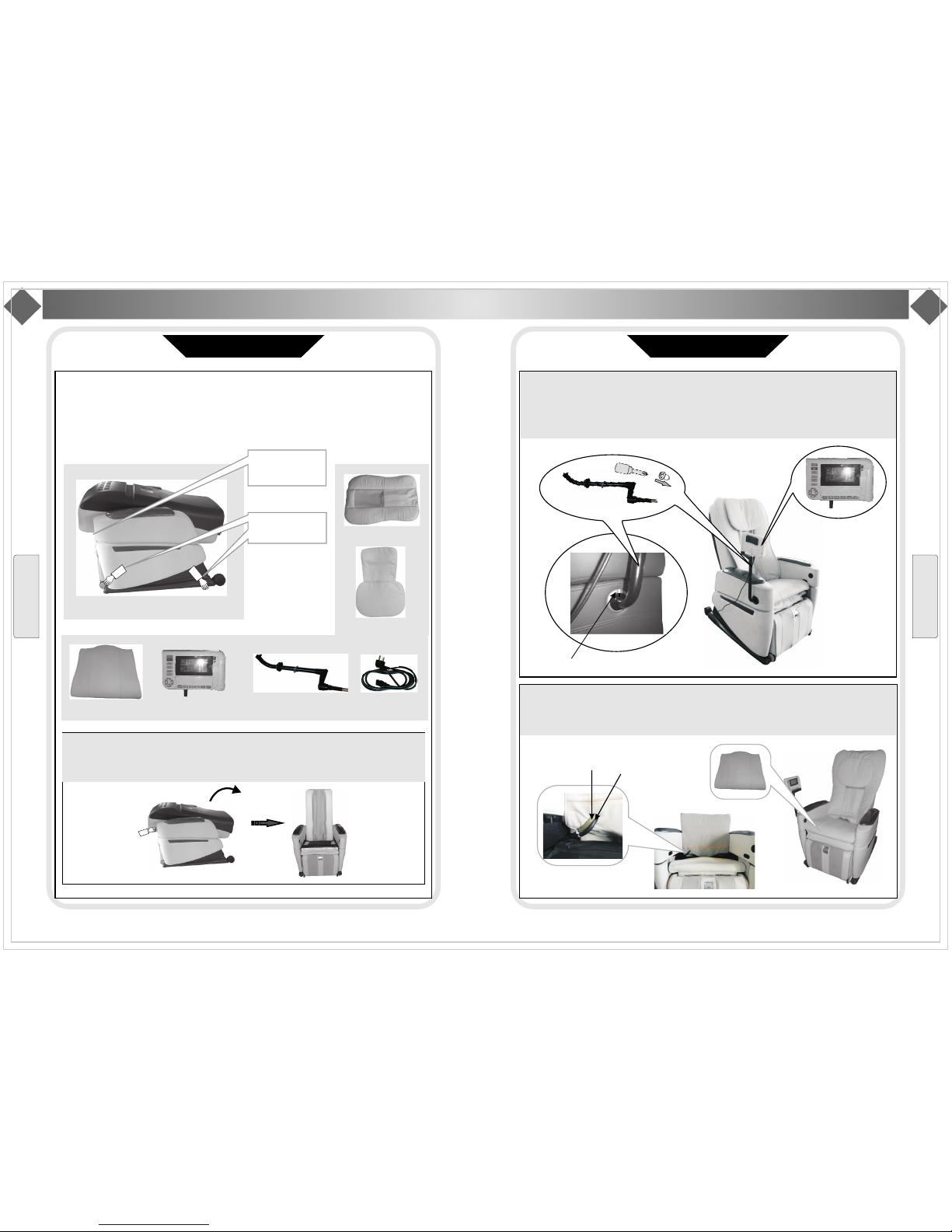

Installation
Installation
141 4
222 2
232 3
11
5
6
1212
181 8
202 0
212 1
77
8
99
242 4

1 2

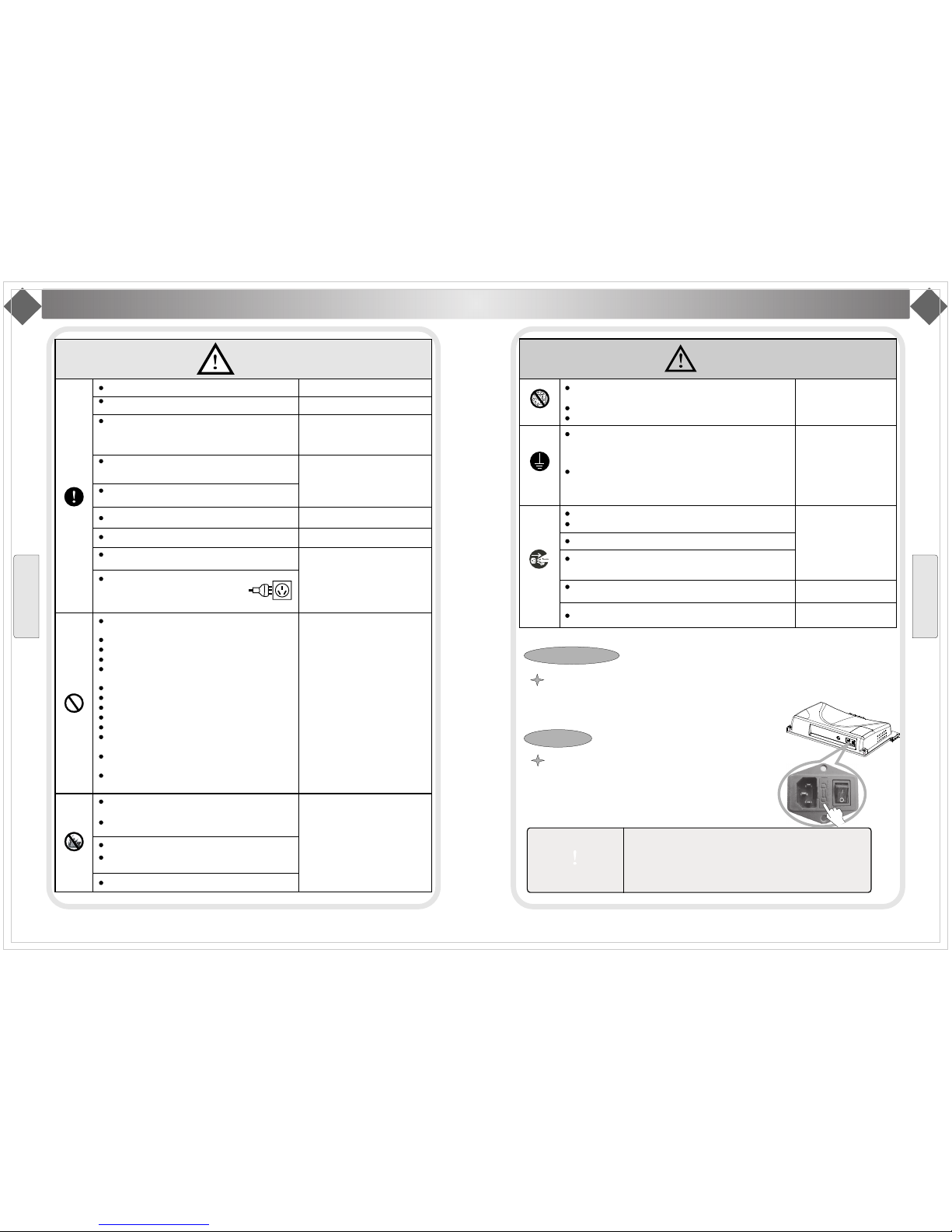

Warning
Power cord, plug, socket can't be used in broken or loose contact
condition.
Don't use other electric power except rated voltage in case of fire,
electric shock or any breakdown.
Any broken, re-process, knotted, twisted power cord or pressed
under heavy cargo is not allowed to use.
Please read this manual carefully to make sure the installation and operation of the
massage chair in correct
,
.
“”
.
Safety Instructions is provided in both warning and caution for important safety
information
Both warning and caution are important safety caution,pay much attention.
This sign indicates forbidden behavior“ ”
This sign indicates must follow
instruction to operate
“
”
This sign indicates self disassembly
is forbidden”
This sign indicates correct operation
of cable
“
”
Warning “”.This sign indicates warning of causing possible death, hurt to body
Caution “”This sign indicates caution of causing possible hurt, damage to things
▲
Symbol meaning
The following should be kept for any further references.
Osteoporosis patient
People with heart disease including embedded pacemaker or
other medical electronic device inside the body
For pregnant women or people not healthy please consult
doctor before use
Kids and the drunk people are not allowed to use the chair
Please don't sleep in the chair.
;
;
,
;
;
Insert the plug of the chair into correct and suitable power socket.
Make sure the plug is completely inserted into the socket to
reduce short circuit or fire risk.
Unplug the power when not in use stop all massage functions
and turn off on off key before unplugging
,
/.
Make sure there are no kids or pets or other objects around
under behind or in front of) the chair at the moment of backrest,
leg-rest up/down or leg-rest retraction/extension from reclining
position.
During operation, if you have body abnormal please stop the
operation and go to consult your physician.
Please do not take strong massage on the head.
Do not massage belly or knees be careful when massage neck
Children or pets are not allowed to play on the chair especially
during massage. Standing or sitting on the back or armrest is not
allowed either
Those who move around difficultly or can t express themselves
must be taken care of strictly and continuously during massage.
(,
,
,.
.
'
Massage cushions of the chair are not allowed to fold for storage.
If the chair works dysfunctional, or is broken, splashed with water or
falls into water, please have it repaired by professional repairman or
send the chair to assigned service agent Self-modification, disassembly
or maintenance is forbidden.
If power cord or plug is damaged, please don't replace it yourself, please
contact us or appointed dealer for replacement.
To avoid electric shock or body hurt, please don't open or disassemble
any part of the chair, there is not any attached part of the chair for
maintenance by customers.
Check leather or cloth material on the back and other areas is broken
or not. If broken, even though it is small please stop using the chair,
unplug the power and have it repaired
.
,
Disassembly
and
maintenance
Safety instructions Safety instructions
1
Preparation
Preparation
People who are
not suitable to
use the chair
Accident
Fire and electric
shock
Fire and electric
shock
Accident/injury

3 4
Position the chair 40cm from the wall to allow for
sufficient space to recline up and down.
Please operate the chair in a flat or level place
Installing earth wire in correct way.
The plug must be inserted into socket
with earth connect the earth connect
couldn't be bend or cut off.
,
Don't press with hands or step on the massage heads with
feet.
Don't put hands between the working massage heads.
Don't put hands or feet in the gap of mechanical parts.
Don't drop or embed anything into the slot of massage chair.
Don't stand or sit or put anything on the backrest, armrest or
leg-rest.
Don't stand on the chair during operation.
Don't move the chair during operation.
Don't pull out the plug or turn off the power during operation.
Don't put your hands or head between leg-rest or beneath
Don't use the massage chair while wearing hair ornaments
Don't put hard things in pocket when take buttocks and huckle
massage.
Don't sit or press on the backrest when the chair is in reclining
position.
Don't massage on exposed skin or with thin clothes.
It may cause skin ache.
.
.
Caution
▲Gas pipe: probably cause explosion or fire.
Phone wire and lightning rod: probably cause electric shock
and fire when thundering.
Water pipe: earth wire is useless where there are plastics
Don't use or store the chair in the wet environment like
nearing the swimming pool, or bathroom.
Keep the chair and remote control dry all the time.
Don't use the chair when your body is wet.
Keep the chair away from stove or other heating products.
Don't put the chair directly under the sun or other high
temperature places.
To use electric blanket or other heating products on
the chair is forbiden.
Earth wire is not allowed
to be in these places
Unplug the power when any damage on the power.
Caution
To avoid sudden falling.
The maximum suggested operating time is 20mins.
5mins for each position beginning with the slight- step
massage.Along continuous massage in the same
position may cause uncomfortable feeling.
Before sitting on the chair to avoid injury please
inspect everything to confirm that the massage heads
are in the correct position.
Too long time massage is bad for
your body.
To avoid electric shock in any
leakage or breakdown.
To avoid fade, discolor on upholstery
or hardened, deteriorated on PU.
Unplug the power before cleaning the chair.
Unplug the power after using the chair.
Don't use the chair outdoor.
Keep the chair away from heat, wet, sharp things and
corrosive, inflammable, explosive environment.
Make sure the plug completely insert into the socket.
To reduce short circuits and any
fire hazard.
To avoid the accident when turn on
the power.
Turn off all controls before removing plug from outlet.
Checking whether any damage on wire make sure no
water or rubbish on wire.
,
Please turn off the power switch and unplug the power after
massage.
Please make sure that the power switch is at the OFF
position before inserting the plug into the socket
“”
.
Unplug the power immediately when electricity goes off.
Make sure to install the earth wire in correct way(Incorrect
install way may cause electric shock. If you don't know how
to install, please find a professional electrician)
Don't use plug adapter (If the enclosed plug doesn't match
with socket, please don't change the plug by yourself and
find a professional electrician to install a matched
socket.)
Grounding instruction
Replace fuse
※The chair is equipped with a cord having an grounding conductor.The plug must be
plugged into an appropriate socket that is properly installed
and matched with the plug.
※When the fuse is burned out, please turn off the switch
and unplug the power. Opening the lid covered the fuse
which is located in the switch box. Using a same size
fuse to replace the old one, then cover the lid. Or you
can find an electrician to replace the fuse.
Hold the plug to unplug the power but not try to pull the wire
to unplug the power.
Safety instructions Safety instructions
Preparation
Preparation
To make sure the back lying.
To avoid accidental injury.
To avoid accidents or injury
To avoid leakage or
electric shock.
To avoid electric shock.
To avoid electric shock
or fire harzard.
To avoid accidents
To avoid damage or accidents
when power on again.

5 6

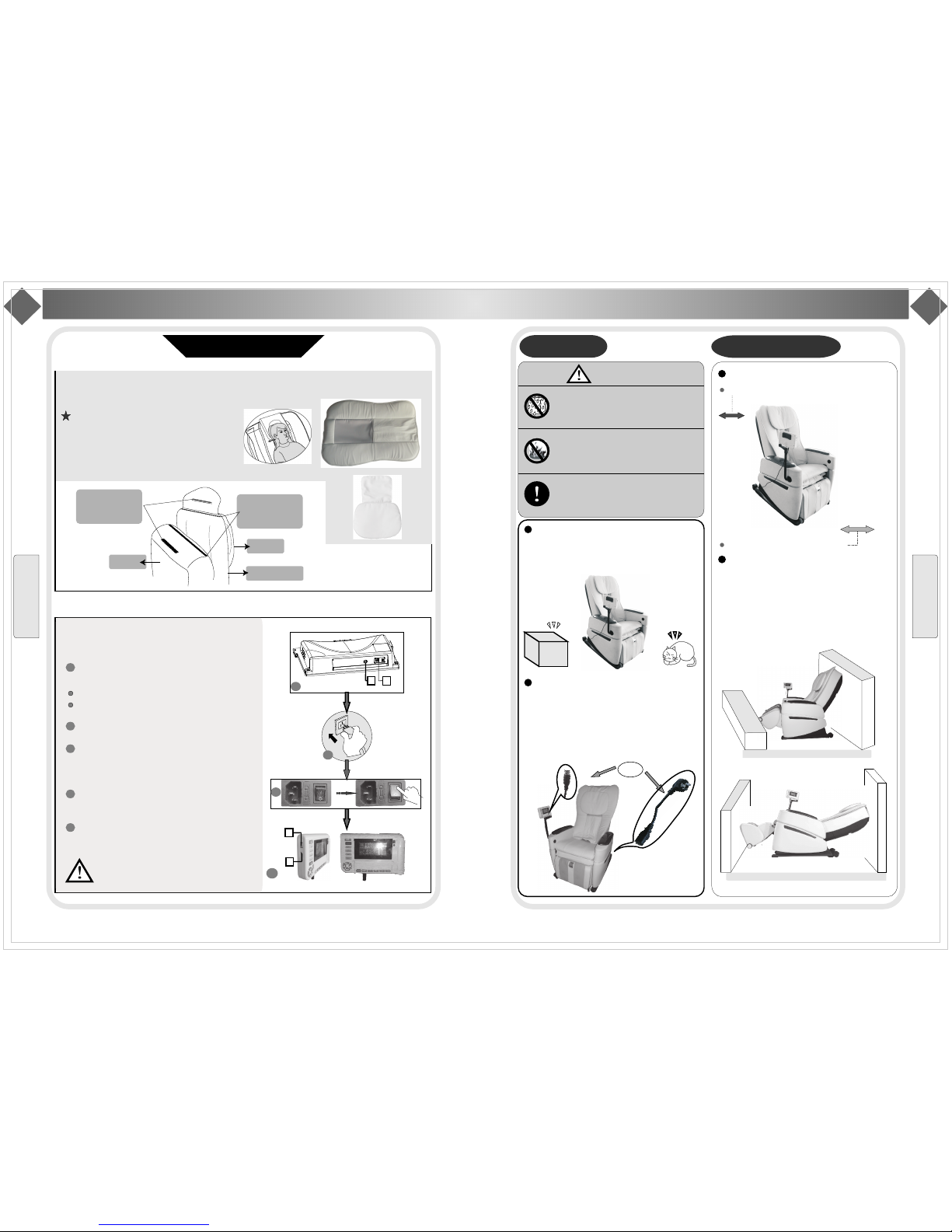

Seat side airbag
External structure
External structure parts Internal structure parts
Preparation
Preparation
Internal structure
Armrest airbag
Legrest airbag
Power switch
Power case
Manual control plug
Remote control
Footrest airbag
Sole rollers
Earphone
USB port
Fuse holder
Massage Head
Power plug
Seat cushion
Footrest handle
Right hidden armrest
VFD control
Control bracket
Right armrest
Pillow
Backrest
Back cushion
Left hidden armrest
Back wheel
Left armrest
Button
Footrest and legrest

81
1
1
1
1
1
14
1
1
1
1
11
12
13
14
15
16
17
19
18
20
21
23
122
2
3
4
7
6
1
3
2
1
1
2
Foot cover component (right)
Left hidden armrest
Back cushion sewing product
Pillow sewing products
Backrest assembly
Rotating frame assembly
Rubber wheel
Left armrest assembly
Foot cover assembly(left)
Power case assembly
Gas tank
Small pump
Circle transformer assembly
Footrest actuator
Two-link Electromagnetic valve
Power switch
Control assembly
Remote control
Elevating control assembly
Right armrest assembly
5Right hidden armrest
9Backrest actuator
10
Power case assembly
1
1
1
Back wheel assembly 2
24
13 14
!"#$
!"#$
!"#$
!"#$
7 8
2
2
1
Seat frame assembly
Seat frame front plate
Seat cushion
Leg rest
3-link electromagnetic valve
2
Foot lock assembly
Footrest assembly
Sole roller assembly
Sole handle assembly
25
26
27
28
29
30
31
32
33
1
1
1
1
1
1
1
1
Schematics of mechanical parts Mechanical parts lists
No.Qty
(PCS)
'
Name
Mechanical parts lists
Schematics of mechanical parts
Preparation
Preparation
No.Qty
(PCS)
'
Name

910
Step1 Take out the chair
Take out these pads from packing box, chair body, cushion, pillow, left/right armrests,
remote control holder, cables, etc. It needs 2 people to take the chair body out. Hold
the metal frame (Point out in below picture and take the main body out from
box slowly
)
.
Refer to pictures()
Step2 Set the main body
Raise the back to 120 degree until you hear a click sound“ ” .
Main body
▲
Step4 Connect seat air pipe
Connect the air pipes in seat and those insert frame as per color (black to black gray with
gray brown with brown Then stick the snap fastener together
,
,). .
Step3 Install manual control holder and insert manual control
Using three screws (M5*15) to fix the manual control to right upper arm, then insert the
manual control into the bracket and fix the manual control cables to the buckle at the end of arm.
Align control holder and marking line.
control
VFD control
Seat cushion Manual control holder
Cable
Back cushion
Pillow
Hold here to take out
Don t take this out
when you take out
the chair
'
Installation
Installation
Installation Installation
Installation（1）Installation（2）
Control holder
Seat cushion
Tawny air pipe Black air pipe

11 12
b
a
1
2
3
4
c
d
Installation
Installation
Installation（4）

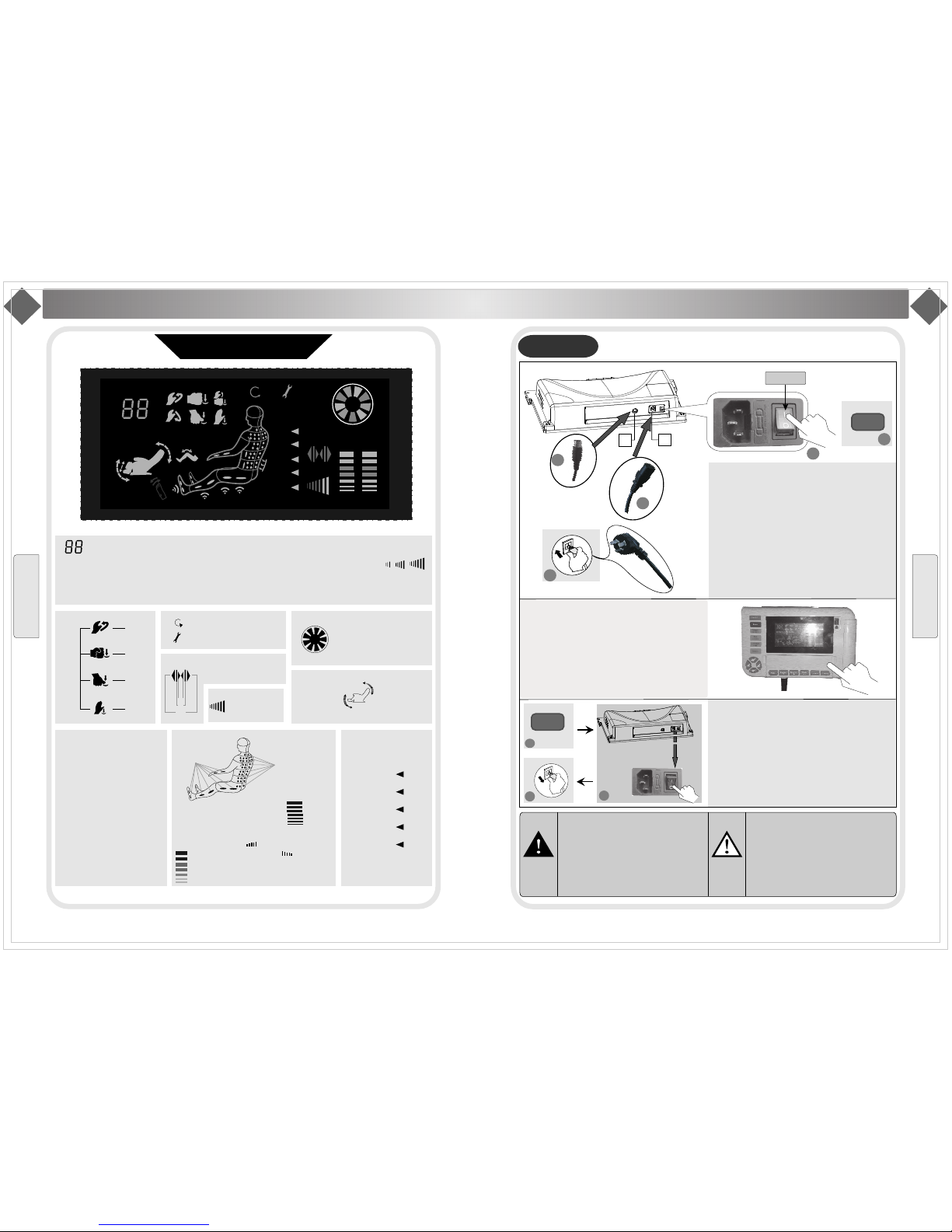

Step 6. After installation
After installation, please follow the steps below:
Insert the plug of remote control and power into
the power box in bottom (as picture)
Is for remote control
Is for power plug
a
b
Insert the other end of power plug into the outlet.
Turn on the power switch
Power switch means on
Press keys on remote control to choose massage
program to enjoy the massage.
（“ .）O/,“ ”
c Playing music,insert u disc with Mp3 in.
d Using earphone,insert plug in.
I”I
1
2
3
4
Step 5 Sorting out the zipper and snap fastener
Connect the back cushion, pillow with back.
Kind suggestion
Sitting on the chair, try to keep the bottom of
pillow and ear in the same line, then connect
it with back in this position. It will make body
detection more accurate and provide better
massage.
Connect back
and back cushion
with zipper
Connect pillow
and back with
snap fastener
Pillow
Back cushion
Back
5
Please make sure that the power switch is at
the OFF position before inserting the plug
into the socket
“”
.
The adjustment before massage
Caution
Environment
Check environment
Don’t use the chair in wet places liks near
swimming pool , bath room to avoid lea-
kage or electric shock.
Don’t use under sunlight or near stove
or other heating place to avoid upho-
lstery deteriorated.
Please use chair in flat place to avoid
chair falling or noise or other unexpected
trouble.
Check places in front
Check the areas when back and leg extending,
make sure no people, pets or other things
around.
Check power cable, plug
Space size for using the chair
At least 40cm from wall.
(1) Clean the dust on plug on time.
(using dry cloth).
(2) No damage, re-do, bend, stretch, tie or
press with heavy thing(especially can’t
be pressed by the chair) on power cable.
Check
At least 50cm in front of the leg.
Check surroundings
When the backrest or legrest reclines or
extends, please pay attention to:
(1) Check any person or things in every
direction.
(2) Check the space size.

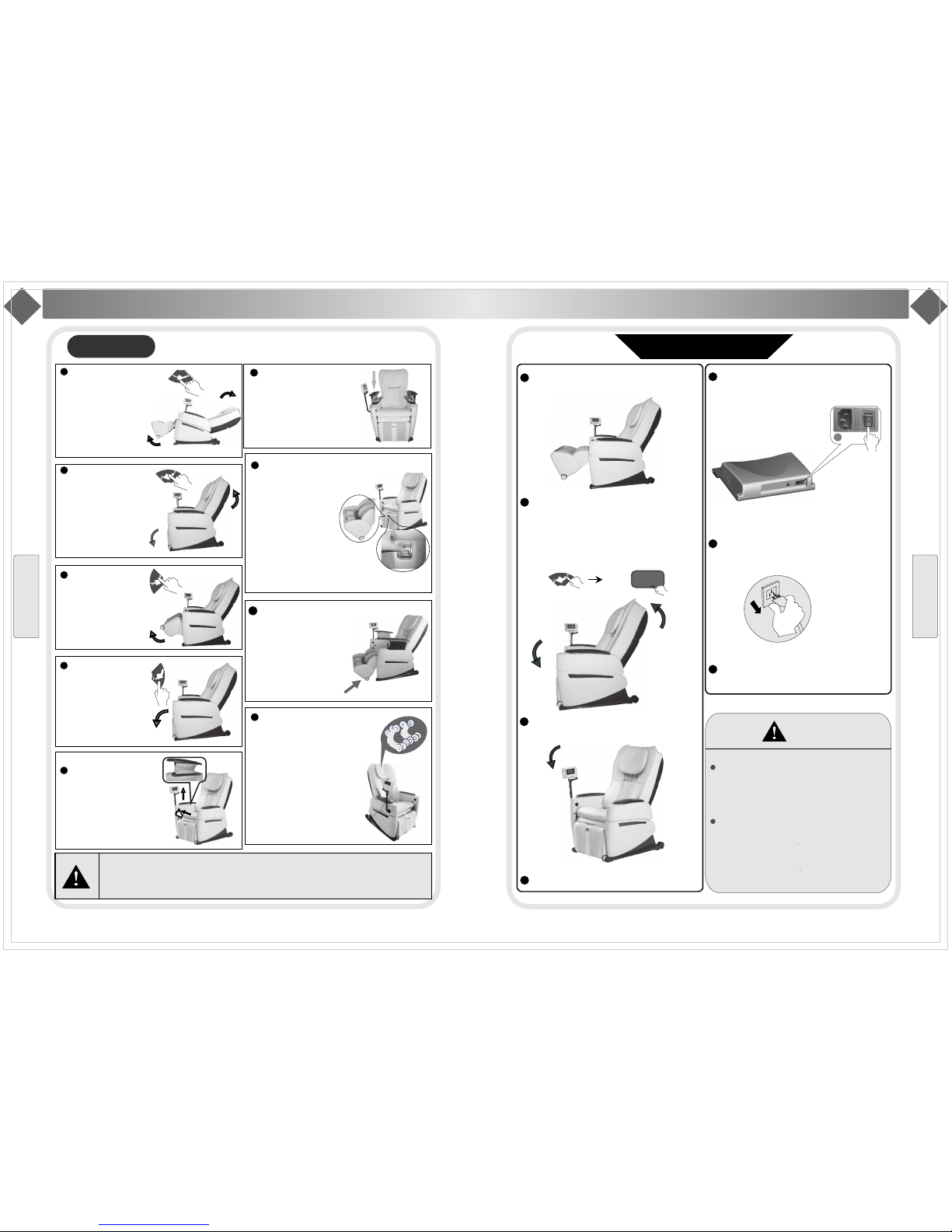

Massage operation

Two persons hold the two armrest lift
and move the chair to destination
,
.
▲▲
13 14
The adjustment before massage
How to move massage chair Adjustment before massage
Caution
Don’t move chair when it’s working in case of
accidents or damage
Bind the cables and put themin the seat to avoid
damage when moving.
If you plump the chair, it may damage the inner
parts of the chair may get damaged.
Don’t use the castor if the floor is wooden or
other easy damaged material. It will need 2
or more persons to lift the chair.
Don’t shake the leg, or it may cause damage
on the chair.
Make sure the power is off and the plug
doesn't touch the floor(It’s better to
let the chair in standing
status to avoid theback
crashing the floor)
Normally
Before adjustment
Please make sure the ma-
ssage head in right position
hitting your head)
before sitting on the chair
(to avoid massage roller
Shoulder testing
In shoulder testing, if the shoulder can't
be detected by the massage head, it
would be taken as the highest.
Right position: Your back
cling to the chair back, the
head clings to the pillow.
During testing, the massage
rollers first go downwards
till the bottom of the back
to do the pressing, and
then fully extend forward,
go up and position the
shoulder automatically.
Avoid the wrong testing of shoulder position,
otherwise you won't get good massage.
Massage operation
Kind suggestion
When you feel the
intensity isn’t strong
enough,take off the
pillow or cushion.
Because the chair is heavy, it may ruin
your floor in long time setting.
Please put a blanket or
other soft things to
protect your floor.
Please hold the footrest to move the
chair as shown in the picture in case
any scratches on the leatherette
How to move
Manual operation
program
811121314 15 16
Music controller
Auto massage program
Back/Leg reclining
!"#$
%&'(
)*+,
- .
/012
!"#$
%&'(
)*+,
- .
1
2
3
4
5
6
9
7
10
811121314 15 16
19 22 25 31 34 39 40
28
1
2
3
4
5
6
9
7
10
18
21 24
20
23
27
17 26
30
29
33
32
37
38
36
35
Manual operation
massage method
On/Off
Emergency
off
Fatigue
recovery
Pain
relieving
Comfortable
mood
Demo
Shoulder Shoulder Music
sync Stretch
Strength
Voice
On/Off
Emergency
off
Fatigue
recovery
Pain
relieving
Comfortable
mood
Demo
Timing
3D+
3D-
Kneading
Shiatsu
Speed
Tapping
Knocking
Width
Position
Upward
Downward
Seat
Foot
Stop
Arm
Leg
Music sync
Stretch
Strength
Rolling
Voice
Shoulder
Shoulder
Manual control
Manual control
Auto Custom
Returning...Body detecting...
Overall
Shoulder
Back
Waist
Point
Width
Speed
Strength
Volume
Massage operation
Auto Custom
Returning...Body detecting...
Overall
Shoulder
Back
Waist
Point
Width
Speed
Strength
Volume
Infrared signal receiving
Backrest
up
Backrest
down
Fatigue
recovery
Pain
relieving
Comfortable
mood
Legrest
up
Legrest
down

15 16
6. Press this Key to stop all the massage function, but the actuators of legrest and backrest
are available. Press ON OFF massage function rework”/”.
7. Press this key, legrest goes up, press again to stop, and keep this position.
8. Press this key, Legrest goes down, release the key, the legrest keep this position. If the
footrest is open , People still keep the footrest massage or footrest touch the ground, the
legrest will stop goes down.
9. ;Press this key, backrest goes up, legrest goes down release the key, backrest and
legrest keep this position. If the footrest in open, and people still keep the footrest
massage or footrest touch the ground, the legrest will stop goes down.
3D+
3D-
3. When the chair is working press this key to choose Fatigue recovery massage
Press again to stop it
,“”.
.
4. When the chair is working, press this key to choose Pain relieving massage Press
again to stop it
“”.
.
5. When the chair is working, press this key to choose Comfortable mood massage.
Press again to stop it.
“”
2. When the chair is working, press this key to experience each function for 8Mins, Press
again to stop it.
16. When the air pressure massage is working, Press this key to adjust the air pressure
massage strength.
1. When power is on, press this key to start the chair, but the back won t recline now. You
may choose auto massage or custom massage function manually. Pressing any massage
key, the back relines and does body detect. After testing, it starts massage. Pressing this
key again, the massage stops and massage head goes up.
In the shutdown state, all operation on the controller and IR remote controller is invalid.
'
10. Press this key the backrest goes down legrest goes up. Loose it, the back and
legrest stops at this position.
,,
14. In on status, Press this key to choose music and massage synchronization, press
this key again and the function will stop.
“”
15. Press this key, enter into auto air pressure massage, all the back massage will
continue. Press this key again, the air massage will be stopped.
17. Turn on power, the settled time is 20mins, press this key, the time becomes 30mins, one
more press, time becomes 10mins. The demo time is 8mins.
12. Shoulder position up, press this key, the massage position at shoulder could be
adjusted higher. When "operation is invalid", it can not go further more.
13. Shoulder position down, press this key, the massage position at shoulder could
be adjusted lower. When "operation is invalid", it can not go further more.
18. In manual operating status, Press this key to retract the massage machine.
19. In manual operating status, Press this key to extend the massage machine.
21. Turn on power, Press this key to choose Shiatsu massage Press again to stop it“ ” ..
22. In manual operating status and in kneading, pressing and tapping massage, Press this
key to adjust speed, there are three levels of speed.
20. Turn on power, Press this key to choose kneading massage Press again to stop
it Kneading can be mixed with other massage
“” ,
..
On/Off
Emergency
off
Fatigue
recovery
Pain
relieving
Comfortable
mood
Demo
Stretch
Strength
Shoulder
Shoulder
Timing
Kneading
Shiatsu
Speed
Manual control
Massage operation
Music sync
Voice
26. “ ” ,In ON status press this key to choose different massage point (for example,
whole body, shoulders, back, waist, fixed point)
27.
。
“ ” ,,In ON status press this key to choose fixed point and choose massage
point upwards.
28. In ON status press this key to choose fixed point, and choose massage point
downwards.
“ ” ,
33. In ON status press this key to start or stop leg air massage“ ” ,.
23. In ON status press this key to start knocking massage press it again to stop
knocking massage
“” ,,
.
24. In ON status press this key to start tapping massage, press it again to stop tapping
massage.
“” ,
25. In CUSTOM mode when you choose tapping, pressing, hitting function
press this key to adjust width between two sets of rollers
“”,“”,
.
35. In ON status press it to stop music playing“ ” ,.
36. In ON status press it to start music press it again to pause“ ” ,, .
37. In ON status press it to play previous song“ ” ,.
38. In ON status press it to play next song“ ” ,.
39. In ON status press it to lower the music volume“ ” ,.
32. “ ” ,.In ON status press this key to start or stop arm air massage
29. In On status press this key to start or stop seat air massage“ ” ,.
30. In On status press this key to start or stop feet air massage“ ” ,.
31. In On status press this key to stop mechanical and air massage.“ ” ,
Remote control usage
When power is on, press this key to start
machine, backrest won t recline. Now
you can choose custom orAuto operation.
Press any massage key, it will start body
detecting and reclining, after body
detecting finish, it start automatic
massage. Press again to return.
'
In ON status press it to choose
fatigue recovery. Press it again to
cancel
“” ,
.
In ON status press it to choose
pain relieving Press it again to
cancel
“” ,
.
.
In ON status press it to choose
comfort mood Press it again to
cancel
“” ,
.
.
Hold this key, legrest will go down,
release the key, legrest stops, and
remains in this position.
Hold this key, backrest will go up, legrest
goes down, release this key, backrest and
legrest stop, and remain in this position.
Hold this key, backrest will go down,legrest
goes up, release the key, backrest and
legrest stop, and remain in this position.
34. “ ” ,.In ON status press this key to start or stop feet sole rolling massage
The remote control infrared
signal launching aims at the
manual control signal receiv-
ing, it works within 2m.
Tapping
Knocking
Width
Position
Upward
Downward
Seat
Foot
Stop
Arm
Leg
Rolling
Manual control
Massage operation
Backrest
up
Backrest
down
Fatigue
recovery
Pain
relieving
Comfortable
mood
Legrest
down
Infrared signal launching
Backrest
up
Backrest
down
Fatigue
recovery
Pain
relieving
Comfortable
mood
Legrest
up
Legrest
down
Remind：
40. In “ON”status, press it to increase the music volume.
When music sync is off, volume showed on VFD is the music volume grade, when music
sync is on, the strength for kneading and knocking is changing according to volume
changing. Volume dynamic display according to volume level.
Press this key, Legrest goes up, press
again, legrest stop goes up and keep
this position.
Legrest
up
11. In system default, Voice is available, press this key to close voice, but with buzzer.

17 18
Digital display Standby is in status showing balance working time when the air
pressure is in ON mode press Intensity air pressure intensity shows
If there is error code, then it shows auto code, balance working time and error code in turn.
Auto code. A0, Demo. A1,fatigue recovery. A2.pain relieving.A3,comfort mood.
:“--”,
“” ,“”,:
Massage method
Legrest up and down illustration
Air pressure position
4-roller massage
machine position
In automatic mode it shows
orange green blue in turn
，
,, .
Backrest up and down illustration
Air massage
strength
The massage chair is turning
off. Do not press any key in
case of causingproblem..
It means the massage chair is
detecting your body before
massage start.
Auto Custom
Returning...Body detecting...
Overall
Shoulder
Back
Waist
Point
Width
Speed
Strength
Volume
Manual control
VFD display illustration
Massage operation
W
M
N
Kneading
Knocking
Shiatsu
Tapping
Auto Auto massage
Custom Manual massage
Massage width bar
Massage
barStrength
Width
Returning…
Body detecting…
Volume
Overall
Shoulder
Back
Waist
Point
To play music in Non-music sync mode,
press 4 times to increase grade. On
the contrary press 4 times to decrease
1 grade.In music sync mode, you can also
increase or lower the volume, though you
see the tone of music inthe display.
Music sync
Voice
1
Operation instruction and function illustration
Step2. Massage
1. Choose the relevant massage method according
to controller operation. Please refer to Controller
Instruction.
2. Massage time up, massage stops, and massage
chair return to normal position, controller shows
if there is no operation in minutes
display close and massage chair goes to
standby status
“==”,2,
,
.
Step3.Switch off.
1. In ON status, press On/Off key on the controller
to turn off the massage chair.
2. After the chair returns switch off the button
behind the power case
3. Unplug the power line.
,
.
3
3
Massage operation
Power on/off
2
On/Off
b
a
1
2
4
Step1. Switch On.
1 Put controller plug in socket a.
2. Put the power cable in socket b.
3. Put electricity plug in socket.
4. Switch on the button behind the power case,
the controller shows standby status
if you don t operate it in 2 minutes, it goes to
low power consumption. You can press ON to
start, the massage chair remains in standby.
5. Press ON button on the controller.
“--”,
'
1. Before use, remove the pillow and back
pad to make sure there is no damage
or breakage in material on the back or
other part., if there is any damage,
please stop operating and ask for
repairment.
2.Put the plug in proper socket.
Warning!
Attention!
1. Before use, make sure there is no stuff
pinched between armrest , legrest or
seat.
2. Make sure the massage chair is in
return status before sitting on it.
3. When using the massage chair, do
not stand on it.
5
On/Off
On/Off

19 20
Arm massage
Armrest with air press
massage Press armrest
on control start massage
,
.
Legrest extend retract&
Press Legrest up
when stopped pull
handle as picture
footrest will extend
Push footrest back
to legrest and then
press legrest down
Legrest will retract
And CM length is
available
“”
,
(),
.
,
””
.
17
.
Armrest up down&
Press inside button as
picture few second
armrest up
(
),
.
Closed the footrest, make backrest and
legrest restore the normal position by
control. (Follow the voice guide to move
out the footrest) (Or press On/Off key to
make backrest and legrest restore the
normal position.)
5
5
1
2
3
4
6
7
OrOr
Operation instruction and function illustration
Massage operation
Function Illustration
1. Please make sure there is no people, no pets or any stuff within range for backrest and legrest to avoid any unexpected hurt or
property loss.
2. When adjusting the backrest be careful the gap between the backrest and armrest.
3. When the legrest is moving, please do not stand on or leave from the seat, do not stop the legrest from moving in case of causing
damage to the chair.
4. Please refer to control instruction for more details.
,
Soft 3D massage
1. Open cover on the control,
press kneading , tapping,
knocking to enjoy corresp
-onding massage press
intensity to adjust strength
Press width to adjust
massage among narrow,
medium and wide.
2. Press 3D- or 3D+ to adjust
3D massage machine going
forward angle.
,
.
Backrest up
Press UP key on the
control, the backrest
will go up and legrest
will go down simultan-
eously. Release this
key, the backrest and
legrest will be fixed at
locked angle.
Legrest down
Press legrest DOWN
key on the control,
the legrest will go
down slowly.
Release this key,the
legrest will be fixed
at locked angle.
Make sure there is no people or pet or anything
within the range of backrest and legrest.
After restoring, put the controller back to
the controller holder.
Put the back mat and pillow away on the backrest.
Switch off the power.
Unplug the electricity from the socket.
(Attention: hold the right plug position)
Clean the chair if necessary.
Attention!
After using, press ON/OFF to end all the
massage method and wait for restoration.
Make sure to cut the electricity to avoid any
unexpected hurt to children or pets.
After using, turn off the power, unplug the
electricity. Avoid moisture, dirt and aging
of insulation in case of causing damage.
After massage
Restoration of massage chair
Massageoperation
On/off
Backrest down
Press DOWN key on
the control, the backrest
will go down and legrest
will go up simultaneously.
Release this key, the
backrest and legrest
will be fixed at locked
angle.
Press legrest up
key on the control,
the legrest goes up
slowly. Press again,
stop goes up and
keep the position.
Legrest up
Rolling massage
The sole part adopt rolling
massage, which can bring
guasha massage and
several different mixing
massage to ensure you
feel unprecedented
pleasure
,
.

21 22
Synthetic leather
●
Clean with tidy, soft and dry cloth slightly.
(
)
Chemical or medical
cleaning products are
forbidden
1
Dip soft cloth into 3-5% neutral detergent
solution, squeeze it then clean the stain on
the surface gently.
Wash cloth, squeeze it and wipe with
detergent.
●
2
General cleaning
If leather is dirty
Clean it softly with dry cloth.
allow to dry (air blower is prohibited)
●
3
●
1
Dip cloth into weak neutral
detergent, squeeze it and clean
the material surface.
Diluent gas alcohol
are prohibited
Brush the dirty parts with weak
neutral detergent. (avoid excessive
brushing)
Excessive cleaning may cause
damage to cloth material.
Wipe with water-dipped but
squeezed cloth.
Allow to dry.
(,,
)
●
2
●
3
●
4
●
4
●
1
Dip cloth into neutral detergent,
squeeze it and clean.
Wipe with water-dipped but
squeezed cloth.
Allow to dry.
●
2
●
3
●
1
Wipe with soft cloth after squeezing.
Allow to dry.
●
2

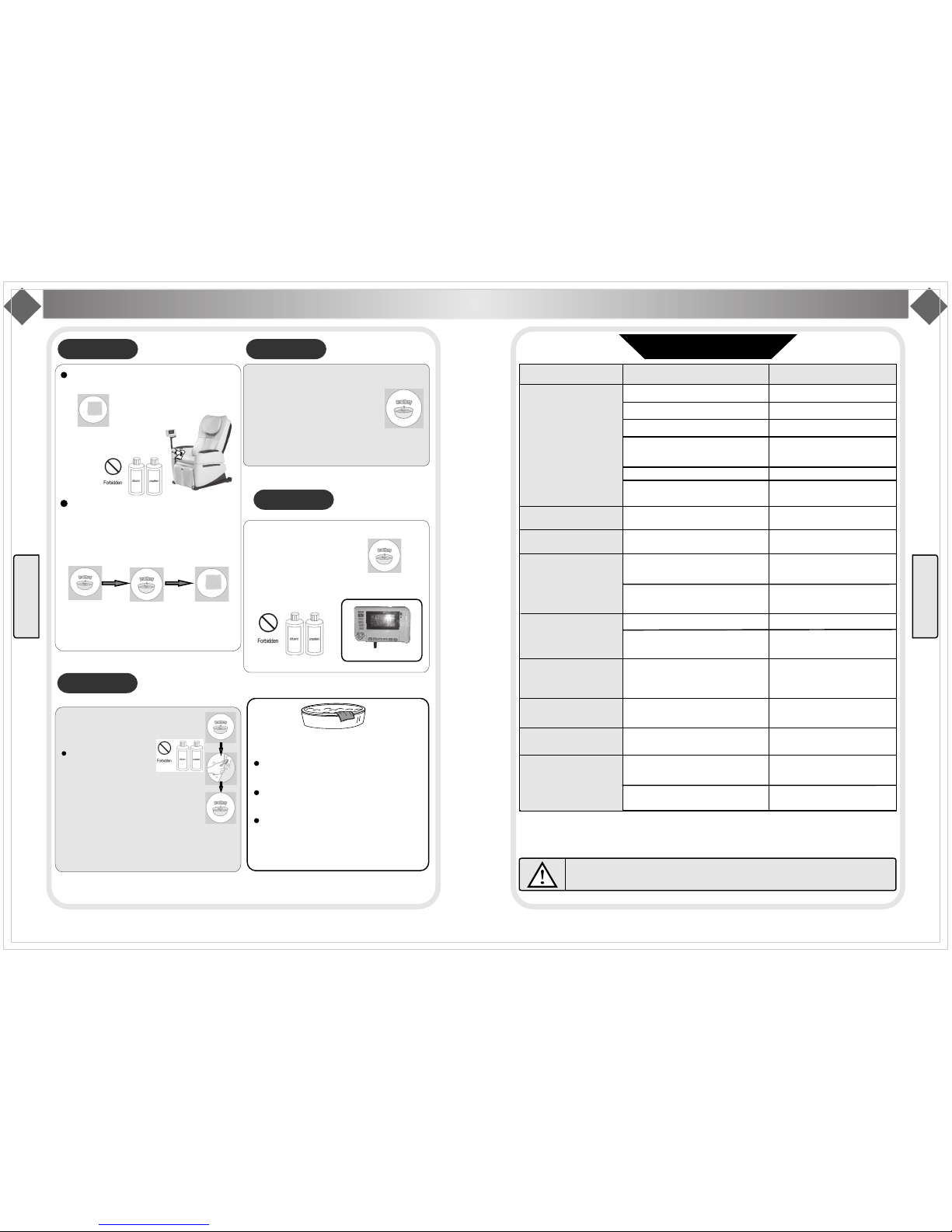

About cleaning
Clean and Maintenance
Clean the controller
Plastic parts
Cloth material
Maintenance
Before cleaning, unplug the electricity,
don t touch plug with wet hands.
Make sure hands are dry when plugging
to the socket.
If failed to follow the mentioned instruction,
user may get electric shock or burned.
'
Propellant, diluent or
alcohol are prohibited.
●
1
●
2
●
3
●
2
●
1
remote control
●
1
●
3
Malfunction analysis
malfunction analysis
Others
Note: If the troubles are not caused by above reasons, please turn off the power switch and
cut off the power, then contact the manufacturer or service agent to repair your chair.
Trouble Possible reason Troubleshooting
The massage chair can't
work after power is on.
Massage function suddenly
stops while working.
Check if the control is on or not.
Setting time is up.
Open control switch
Not choose massage function Choose massage function
Normal sound, no need to pay
attention to it.
Normal, no need to pay attention to it.
Turn off the power to have the
massager rest for over half an
hour before next turn working.
connect the electricity power again
Check whether the plug and socket
in poor contact.
It is sound of air pump, motor and
mechanical parts.
Inner parts fretted away due to long
time work. It’s normal
Sound suddenly becomes
much louder while working.
Remove the obstacles; turn off
the power to have the massager
rest for over half an hour before
next turn working.
Check if there are any obstacles; the
chair overloads; for the sake of safety,
sometimes the massage machine may
automatically stop working.
Neither the backrest nor the
legrest can be lay down.
Please ask manufacturer or appointed
or authorized maintenance man for
checking and replacement.
Excessive operation; setting time is up.
The chair can't return to its
original position.
Massage rollers work on shifts.
Different height of the left
roller and right roller.
Make sure plug and socket are connected.
Controller gives out heat
Stop using it,if it gives too much
heat. Turn to assigned repair
divison for help.
Caused by long time using
There is beep sound inside
the massager while working.
Check if it is due to long time working.
Please ask appointed or authorized
maintenance man for checking and
repairing.
Electric wire or plug
give out heat
Turn off the power to have the
massager rest for over half an
hour before next round working.
Wire or plug has damaged.
Please ask manufacturer or appointed
or authorized maintenance man for
checking and replacement.
The fuse burned out.
Replace fuse of same specification.
Something wrong with inner circuit
Please ask appointed or authorized
maintenance man for checking and
repairing.
Suddenly power-down
Turn off the power to have the
massager rest for over half an
hour before next turn working.
Stop using and ask appointed
maintenance man for help.
，
It may work overload
other abnormal case

23
RK7106
118X83X85cm
Technical data
Technical data
Ⅰ
210W
□
□
□
AC120V 60Hz
AC220V 50/60Hz
AC240V 50Hz
，
，
，
Name
Model
Input voltage
Safety design
Deluxe 3D Massage Chair
Class
Power
NW/GW
Packing size
96/108kg
Others
