Comtrol DeviceMaster Up Manual

Hardware Installation Guide

Trademark Notices
Comtrol, DeviceMaster, and PortVision are registered trademarks of Comtrol Corporation.
Ethernet is a registered trademark of Digital Equipment Corporation, Intel, and Xerox Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other
countries.
Modbus is a registered trademark of Schneider Electric.
PLC is a registered trademark of Allen-Bradley Company, Inc.
RedBoot is a trademark of Red Hat, Inc.
SIMATIC is a registered trademark of Siemens, AG.
Portions of SocketServer are copyrighted by GoAhead Software, Inc. Copyright © 2001. GoAhead Software,
Inc. All Rights Reserved.
Other product names mentioned herein may be trademarks and/or registered trademarks of their respective
owners.
Third Edition, November 20, 2006
Copyright © 2005 - 2006. Comtrol Corporation.
All Rights Reserved.
Comtrol Corporation makes no representations or warranties with regard to the contents of this document or
to the suitability of the Comtrol product for any particular purpose. Specifications subject to change without
notice. Some software or features may not be available at the time of publication. Contact your reseller for
current product information.
Document Number: 2000451 Rev C

Table of Contents DeviceMaster UP User Guide: 2000451 Rev. C - iii
Table of Contents
Getting Started .......................................................................................................................5
Protocols Supported ..................................................................................................................................... 5
Quick Start ...................................................................................................................................................... 5
Locating Software and Documentation ................................................................................................... 6
Hardware Installation...........................................................................................................9
Installation Overview ................................................................................................................................... 9
1-Port Installation ....................................................................................................................................... 10
1-Port Embedded Installation .................................................................................................................. 12
Building the Serial Ribbon Cable ............................................................................................................ 12
Mounting the Embedded 1-Port............................................................................................................... 13
Attaching the Network and Serial Cables............................................................................................... 14
Connecting the Power and Verifying Installation .................................................................................. 14
4-Port Installation ....................................................................................................................................... 16
Adding a Unit to an Existing Installation............................................................................................. 17
Replacing Hardware ................................................................................................................................... 17
Configuring the DeviceMaster UP ...................................................................................19
Installing and Upgrading PortVision Plus ............................................................................................ 19
Installing PortVision Plus ........................................................................................................................ 19
Upgrading PortVision Plus ...................................................................................................................... 19
Configuring the DeviceMaster UP Network Settings ......................................................................... 20
Uploading Protocol-Specific Firmware on the DeviceMaster UP ................................................... 22
Connecting Serial Devices .................................................................................................25
Connecting Devices..................................................................................................................................... 25
DB9 Serial Cables and Loopback Plugs ................................................................................................. 27
DB9 Loopback Plugs................................................................................................................................. 27
DB9 Null-Modem Cables (RS-232) .......................................................................................................... 28
DB9 Null-Modem Cables (RS-422) .......................................................................................................... 28
DB9 Straight-Through Cables (RS-232/485)........................................................................................... 28
RJ45 Serial Cables and Loopback Plugs................................................................................................ 29
RJ45 Null-Modem Cables (RS-232) ......................................................................................................... 29
RJ45 Null-Modem Cables (RS-422) ......................................................................................................... 30
Straight-Through Cables (RS-232/485) ................................................................................................... 30
RJ45 Loopback Plugs................................................................................................................................ 30
RS-485 Test Cable .................................................................................................................................... 30

iv - DeviceMaster UP User Guide: 2000451 Rev. C Table of Contents
Table of Contents
Hardware Specifications ....................................................................................................31
Electromagnetic Compliances.................................................................................................................. 31
External Power Supply Specifications................................................................................................... 32
Power Supply for the 1-Port..................................................................................................................... 32
Power Supply for the 4-Port..................................................................................................................... 32
Hardware Specifications ........................................................................................................................... 33
Environmental Specifications .................................................................................................................. 34
DeviceMaster UP Product Pictures ........................................................................................................ 35
1-Port (DB9) .............................................................................................................................................. 35
1-Port Embedded ...................................................................................................................................... 36
4-Port (DB9) .............................................................................................................................................. 36
Notices............................................................................................................................................................ 36
Radio Frequency Interference (RFI) (FCC 15.105).................................................................................36
Labeling Requirements (FCC 15.19) ....................................................................................................... 37
Modifications (FCC 15.21)........................................................................................................................ 37
Serial Cables (FCC 15.27) ........................................................................................................................ 37
Underwriters Laboratory ......................................................................................................................... 37
Important Safety Information.................................................................................................................. 37
RedBoot Procedures............................................................................................................39
Establishing a Serial Connection............................................................................................................. 39
Establishing a Telnet Connection............................................................................................................ 40
Determining the Network Settings ......................................................................................................... 41
Configuring the Network Settings .......................................................................................................... 41
Determining the Bootloader Version...................................................................................................... 42
Resetting the DeviceMaster UP ............................................................................................................... 42
Uploading Firmware................................................................................................................................... 43
Serial Method)........................................................................................................................................... 43
Telnet Method).......................................................................................................................................... 45
Configuring Passwords .............................................................................................................................. 46
Redboot Command Overview ................................................................................................................... 47
Troubleshooting and Technical Support........................................................................49
Troubleshooting Checklist ....................................................................................................................... 49
General Troubleshooting........................................................................................................................... 50
Daisy-Chaining DeviceMaster UP 4-Port Units.................................................................................... 51
Technical Support ....................................................................................................................................... 52
Index........................................................................................................................................53

Getting Started DeviceMaster UP User Guide: 2000451 Rev. C - 5
Getting Started
This guide discusses initial DeviceMaster UP installation, configuration, and
provides information on locating DeviceMaster UP protocol-specific software and
related installation documentation.
Protocols Supported
The DeviceMaster UP is a network attached, solid-state 1 or 4-port device server,
which hosts an Industrial Ethernet® engine and translates device
communications to a programmable logic controller (PLC) and any serial device.
After installing the appropriate firmware for your DeviceMaster UP, it enables
connectivity between any PLC® and any serial device. The DeviceMaster UP
supports the following protocols:
• EtherNet/IP
• Modbus/TCP
• PROFINET CbA
Note: This guide does not discuss configuring the port characteristics or protocol-
specific programming information. See Locating Software and
Documentation on Page 6 to locate the firmware and the appropriate
documentation for your environment.
Quick Start
Installation and configuration follows these steps.
1. Install the hardware (Page 9).
2. Install PortVision Plus (Page 19).
3. Configure the DeviceMaster UP network settings (Page 20).
4. Update the firmware on the DeviceMaster UP for your protocol (Page 22).
5. See Locating Software and Documentation on Page 6 to locate the appropriate
installation document for your protocol so that you can perform the following
procedures:
a. Configure port characteristics using the Server Configuration web page.
b. Program the PLCs.
6. Connect the serial device or devices (Page 25).

6 - DeviceMaster UP User Guide: 2000451 Rev. C Getting Started
Locating Software and Documentation
Locating Software and Documentation
You can access the appropriate firmware assembly, PortVision Plus, and the
DeviceMaster UP documentation from the CD shipped with the DeviceMaster UP
or you can download the latest files using these internet links.
PortVision Plus
PortVision Plus is the application that you use to configure network
settings and upload the firmware for your protocol.
DeviceMaster UP Firmware
EtherNet/IP (.msi) file contains the firmware and supporting files.
The firmware provides embedded configuration web pages.
Note: If you are currently running EtherNet/IP firmware V2.x
platform, you may want refer to the DeviceMaster UP
EtherNet/IP User Guide for architecture information before
upgrading.
Modbus/TCP (.msi) contains the firmware and supporting files.
The firmware provides embedded configuration web pages.
Note: If you are currently running Modbus/TCP firmware V2.x
platform, you may want refer to the DeviceMaster UP
Modbus/TCP User Guide for architecture information before
upgrading.
PROFINET CbA (.msi) contains the firmware and supporting files.
The firmware provides embedded configuration web pages.
Bootloader (.bin) is the operating system that runs on the
DeviceMaster UP hardware during the power on phase, which then
starts SocketServer. The bootloader can be disabled and you can
communicate to the device using Redboot.
SocketServer (.bin) is the DeviceMaster UP default application that
is loaded on the unit.
DeviceMaster UP Documentation
EtherNet/IP Quick Start is an outline of installation and
configuration procedures with links to the appropriate documents.
EtherNet/IP Interface Configuration Guide contains configuration
procedures for the DeviceMaster UP embedded web pages.
EtherNet/IP User Guide contains detailed protocol-specific
information about the DeviceMaster UP.
Modbus/TCP Quick Start is an outline of installation and
configuration procedures with links to the appropriate documents.
Modbus/TCP Interface Configuration Guide contains configuration
procedures for DeviceMaster UP embedded web pages.

Getting Started DeviceMaster UP User Guide: 2000451 Rev. C - 7
Locating Software and Documentation
Modbus/TCP User Guide contains detailed protocol-specific
information about the DeviceMaster UP.
PROFINET CbA Quick Start is an outline of the installation and
configuration procedures with links to the appropriate documents.
PROFINET CbA User Guide contains protocol-specific information
about configuring the DeviceMaster UP.
DeviceMaster UP Filtering and Data Extraction Reference Guide
describes the data extraction and filtering processes provided by the
DeviceMaster UP with EtherNet/IP or Modbus/TCP 3.x firmware or
higher.
DeviceMaster UP Hardware Installation Guide (this guide) contains
hardware installation, PortVision Plus installation, and firmware
updating procedures.
DeviceMaster UP Documentation (Continued)

8 - DeviceMaster UP User Guide: 2000451 Rev. C Getting Started
Locating Software and Documentation

Hardware Installation DeviceMaster UP User Guide: 2000451 Rev. C - 9
Hardware Installation
Installation Overview
The enables communications with serial devices over an Ethernet network. The
DeviceMaster UP provides for remote management, configuration, and
connectivity through its 10/100BASE–T Ethernet connection.
Use the links below to locate installation procedures for the following models:
Ports Model Description Installation Procedure
1† DB9 serial port with one
Ethernet port 1-Port Installation on Page 10
1 Embedded system 1-Port Embedded Installation on Page 12
4† DB9 serial ports with two
Ethernet†† ports 4-Port Installation on Page 16
†The DeviceMaster UP 4 -port models also include DB9 to RJ45 adapters.
†† One of the Ethernet ports on the DeviceMaster UP 4-port is a built-in
downstream port for daisy-chaining DeviceMaster UP systems or other
network-ready devices.
Default Network Settings
IP address:
192.168.250.250
Subnet mask:
255.255.0.0
Gateway address:
192.168.250.1

10 - DeviceMaster UP User Guide: 2000451 Rev. C Hardware Installation
1-Port Installation
1-Port Installation
Use the following procedure to install the DeviceMaster UP 1-Port.
1. Record the MAC address, model number, and serial number of the
DeviceMaster UP unit on the customer service label provided.
The serial number and MAC address are located on a label on the device. The
MAC address starts with 00 C0 4E.
2. Place the DeviceMaster UP 1-Port on a stable surface and skip to Step 3 or
optionally mount the DeviceMaster UP using the mounting flanges or DIN rail
adapters.
3. Connect the DeviceMaster UP port labeled 10/100 ETHERNET to the same
Ethernet network segment as the PLC using a standard network cable.
The default serial port setting on the DeviceMaster UP is RS-232. Do
not connect serial devices until you have configured the serial port
settings. You must first configure the network and then upload the
firmware before you can configure serial port settings.
4. Apply power to the DeviceMaster UP using the following procedure.
Note: See Power Supply for the 1-Port on Page 32, if you want to provide your
own power supply.
a. Pick up the DeviceMaster UP so that the front of the device is facing you.
b. Pick up a DIN rail clip. (The three tines should be on top
and the M4 label should face you.)
c. Slide the DIN rail clip behind the DeviceMaster UP and
line it up with one of the screw holes on the
DeviceMaster UP.
d. Insert a screw into the hole and tighten with a Phillips
screwdriver.
e. Repeat Steps b through d with the second DIN
rail clip. Make sure the screws on both DIN rail
clips line up.
Note: If you need to remove the DeviceMaster UP
from the DIN rail, exert pressure on the
backside of the tabs at the bottom of both
DIN rail clips.
f. Attach the DeviceMaster UP to the DIN rail.
Note: For optimal
operation, make
sure that the
device is mounted
in a vertical
orientation with a
minimum of 1.0”
space on either
side and a
minimum of 4.5”
clearance from the
center of the rail to
any device or wire trough above the unit and a minimum of 5.0” below.
M4
DIN Rail
Clip
Side View
Press here
4.5”
5.0”
1.0” 1.0”
Front View
DeviceMaster UP
Caution

Hardware Installation DeviceMaster UP User Guide: 2000451 Rev. C - 11
1-Port Installation
5. Verify that the network connection for the DeviceMaster UP is functioning
properly.
6. Go to Configuring the DeviceMaster UP on Page 19 to install PortVision,
configure the network settings, and upload the appropriate protocol firmware
on the DeviceMaster UP.
Observe proper ESD techniques when
connecting and disconnecting the
DeviceMaster UP.
a.Connect the screw terminal power
connector to the wires on the power supply as
displayed below. If you want to provide your
own power supply, see Power Supply for the 1-
Port on Page 32.
If you are using the power supply
(optionally) shipped with the
DeviceMaster UP:
• Red is 5-30VDC positive
• White is 5-30VDC return
• Black is earth ground
b. Use a small flat head screw to lock
the wires into place.
c. Plug the screw terminal power
connector into the DeviceMaster UP.
Note: Align the plug properly. The
scalloped side of the screw
terminal power connector
should be aligned with the scalloped side of the power jack on the
unit.
d. Connect the power supply to a power source.
e. Go to Step 5 to verify that the DeviceMaster UP is functioning properly.
LED Description
Status
The amber Status LED on the device is lit, indicating you
have power and it has completed the boot cycle.
Note: The Status LED flashes while booting and it takes
approximately 15 seconds for the bootloader to
complete the cycle.
Link Act If the red Link Act LED is lit, it indicates a working Ethernet
connection.
Duplex If the red Duplex LED is lit, it indicates full-duplex activity.
100 If the red 100 LED is lit, it indicates a working 100 MB
Ethernet connection (100 MB network, only).
Caution
Larger Picture, Page 35
Earth Gnd
Return
Positive
5-30VDC
+
-
Wire gauge:
AWG 12-22
Screw Terminal Power Connector

12 - DeviceMaster UP User Guide: 2000451 Rev. C Hardware Installation
1-Port Embedded Installation
1-Port Embedded Installation
Installing the DeviceMaster UP 1-Port Embedded system follows these basic
steps:
• Building the serial ribbon cable (below).
•Mounting the Embedded 1-Port on Page 13 and installing light pipes.
•Attaching the Network and Serial Cables on Page 14.
•Connecting the Power and Verifying Installation on Page 14.
Building the Serial
Ribbon Cable
Use the following information to build a DB9 serial ribbon cable to connect to the
DeviceMaster UP 1-Port Embedded IDC10 connector (J2).
J2 Header RS-232 RS-422 RS-485
1 CD Not used Not used
2 DSR Not used Not used
3 RxD RxD- Not used
4 RTS TxD+ TRX+
5TxDTxD-TRX-
6CTSRxD+Notused
7 DTR Not used Not used
8 RI Not used Not used
9 GND Not used Not used
10 Not connected
Pin 1 Pin 6
12
9 10
Ribbon Cable
10-Pin
Socket
Pin 5 Pin 9
DB9
Male
J2

Hardware Installation DeviceMaster UP User Guide: 2000451 Rev. C - 13
Mounting the Embedded 1-Port
Mounting the
Embedded 1-Port
Use the following procedure to mount the DeviceMaster UP 1-Port Embedded
with the 5-30VDC power supply.
Observe proper ESD techniques when handling the DeviceMaster UP.
1. Carefully remove the DeviceMaster UP from the anti-static bag, following
standard electrostatic device handling procedures.
Note: Write down the MAC address located on a label on the bottom (solder
side) center of the DeviceMaster UP because you may need it during
configuration.
2. Mount the DeviceMaster UP for your environment using 1/4” stand-offs to
separate the DeviceMaster UP from the base.
3. Use one of the following methods to ground the DeviceMaster UP.
• Through the power supply by connecting the ground wire on the power
cable using plastic or metal stand-offs.
• Through the chassis, using metal stand-offs. If plastic stand-offs are used
to mount the board, then you must ground the DeviceMaster UP using the
power cable.
Note: The maximum diameter of the metal stand-offs should be 0.175” with a
4-40 machine screw. Metal stand-offs are not provided with the
DeviceMaster UP.
Caution
Non-plated/non-grounded mounting holes 0.116” diameter (+/-0.003”).
WARNING: Holes in hatched area are not mounting holes.
Maximum component height above board is 0.55”.
Ethernet connection J1: J1 overhangs board edge by 0.14” and the height is 0.55”.
LED light pipe mounting holes. The LED light pipes are not provided.
Serial port connector J2: 0.1” pin spacing, 0.025” square pin diameter, and 0.230”
pin height.
Debug port connector J3: 0.1” pin spacing, 0.025” square pin diameter, and 0.230”
Power connector; the mating connector is Weidmuller P/N: 152651.
1
3
4
5
6
7
8
9
Plated/chassis grounded mounting hole 0.116” diameter (+/-0.003”).
2
pin height.
5-30VDC Model
Caution

14 - DeviceMaster UP User Guide: 2000451 Rev. C Hardware Installation
Attaching the Network and Serial Cables
4. Optionally, attach the light pipes. The following light pipes have been tested
and found to function; Bivar, Inc. (P/N:LP-230) and Ledtronics, Inc.
(P/N:LTP003-0CW-001).
After mounting the DeviceMaster UP, you are ready to connect the cables.
Attaching the
Network and Serial
Cables
Use the following procedure to attach the serial ribbon and Ethernet cables. For a
larger illustration of the system, see 1-Port Embedded on Page 36.
1. Attach the ribbon cable built in Building the Serial Ribbon Cable on Page 12
to the header labeled J2.
2. Connect a standard Ethernet cable from the RJ45 port on the DeviceMaster
UP to your Ethernet hub or a crossover cable to a server NIC.
The default port setting on the DeviceMaster UP is RS-232. Do not
connect the serial device until you have configured the serial port
settings. You must configure network settings and upload firmware
before configuring the serial port settings.
Use the next subsection to wire the power terminal connector and verify the
hardware installation.
Connecting the
Power and Verifying
Installation
Use the following procedure to wire the power
terminal connector and connect the
DeviceMaster UP to a power source.
1. Connect the screw terminal power
connector to the wires as displayed in the
image.
The locally-supplied power supply must
conform to the specifications provided in
Power Supply for the 1-Port on Page 32.
Observe proper ESD techniques when connecting and disconnecting
the DeviceMaster UP.
2. Use a small flat head screw to lock the wires into place.
Ethernet
10/100
Connector
J2
12
910
Caution
Earth Gnd
Return
Positive
5-30VDC
+
-
Wire gauge:
AWG 12-22
Screw Terminal Power Connector
Caution

Hardware Installation DeviceMaster UP User Guide: 2000451 Rev. C - 15
Connecting the Power and Verifying Installation
3. Plug the screw terminal power connector into JP1 on the DeviceMaster UP by
aligning the scalloped sides.
4. Apply power to the DeviceMaster UP.
5. Verify that the network connection for the DeviceMaster UP is functioning
properly.
The LEDs are located between the RJ45 connector and the power terminal
block.
6. Go to Configuring the DeviceMaster UP on Page 19 to install PortVision,
configure the network settings, and upload the appropriate protocol firmware
on the DeviceMaster UP.
LED Description
Status
When lit, the amber Status LED (D1) on the
DeviceMaster UP indicates the devices is fully powered
and has completed the boot cycle.
Note: The Status LED flashes for approximately 15
seconds while booting. When the bootloader
completes the cycle, the LED has a solid, steady
light.
Link/Act When lit, the red Link/Act LED (D2) indicates a
working Ethernet connection.
Duplex When lit, the red Duplex (D3) LED indicates full-duplex
activity.
100 When lit, the red 100 (D4) LED indicates a working 100
MB Ethernet connection (100 MB network, only).
LEDs
JP1

16 - DeviceMaster UP User Guide: 2000451 Rev. C Hardware Installation
4-Port Installation
4-Port Installation
Use the following procedure to install the DeviceMaster UP 4-port.
1. Record the MAC address, model number, and serial number of the
DeviceMaster UP unit on the customer service label provided.
You may need the MAC address during driver configuration. The serial
number and MAC address are located on a label on the device. The MAC
address starts with 00 C0 4E.
2. Optionally, attach the mounting brackets using the screws provided in the kit
(6-32 1/4” flathead machine) or place the DeviceMaster UP on a stable surface.
Failure to use the correct screws can damage the PCB and void the
warranty. Do NOT use screws that exceed the length of the screws
provided with the mounting bracket kit.
Note: If you ordered the DeviceMaster Rackmount Shelf Kit accessory, use the
document that accompanied that kit or download the document to
mount the DeviceMaster UP on the shelf.
3. Connect the DeviceMaster UP to the same Ethernet network segment as the
PLC using one of the following methods:
•Ethernet hub or switch (10/100Base-T): Connect to the port labeled UP
on the DeviceMaster UP using a standard Ethernet cable.
•Server NIC (10/100Base-T): Connect to the port labeled DOWN on the
DeviceMaster UP using a standard Ethernet cable.
•Daisy-chaining DeviceMaster UP units: Connect the port labeled
DOWN on the first DeviceMaster UP to the port labeled UP on the second
DeviceMaster UP or other device using a standard Ethernet cable. Refer to
Daisy-Chaining DeviceMaster UP 4-Port Units on Page 51 for more detailed
information.
Note: Do not connect multiple units until you have changed the default IP
address, see Configuring the DeviceMaster UP on Page 19.
The default serial port setting for the DeviceMaster UP is RS-232. Do
not connect any serial devices until you have configured the serial port
settings. You must first configure the network settings and upload the
firmware on the DeviceMaster UP before configuring the serial port
settings.
4. Apply power to the DeviceMaster UP by connecting the AC power adapter to
the DeviceMaster UP, the appropriate power cord for your location to the
power adapter, and plugging the power cord into a power source. If you want
to provide your own power supply, see Power Supply for the 4-Port on Page 32.
Larger Picture, Page 36
Caution
Caution

Hardware Installation DeviceMaster UP User Guide: 2000451 Rev. C - 17
Adding a Unit to an Existing Installation
5. Verify that the network connection for the DeviceMaster UP is functioning
properly.
6. Go to Configuring the DeviceMaster UP on Page 19 to install PortVision,
configure the network settings, and upload the appropriate protocol firmware
on the DeviceMaster UP.
Adding a Unit to an Existing Installation
Use this procedure to add another DeviceMaster UP to an existing configuration.
1. Install the DeviceMaster UP to an Ethernet hub or server NIC using the
appropriate subsection found in Installation Overview on Page 9.
Note: Technical support recommends installing one unit at a time and testing
that unit when installing multiple units. In the event troubleshooting
must be done, a single unit is much easier to resolve than several at
once.
2. Power-up the new DeviceMaster UP and verify that the PWR or Status LED
lights.
3. If required, program an IP address into the new DeviceMaster UP.
4. Configure the DeviceMaster UP ports to support the serial devices.
Replacing Hardware
Use this procedure to replace hardware.
1. Configure the IP address in the new DeviceMaster UP.
2. Remove the old unit and attach a new or spare DeviceMaster UP.
3. Connect the new DeviceMaster UP to the network hub or server NIC.
4. Apply power to the new DeviceMaster UP and verify that it passes the power
on self-test.
5. Program the IP address of the new DeviceMaster UP.
6. Configure any ports as necessary to match the previous unit.
7. Transfer all cabling from the old DeviceMaster UP to the new DeviceMaster
UP.
8. It is not necessary to shut down and restart the host PC.
LED Description
PWR
LED on the front panel of the DeviceMaster UP is lit, indicating you
have power and it has completed the boot cycle.
Note: The PWR LED flashes while booting and it takes approximately
15 seconds for the bootloader to complete the cycle.
LNK
ACT
The red LNK ACT LED is lit, indicating
that you have a working Ethernet
connection.
COL If the red COL LED is lit, there is a
network collision.
100
If the red 100 LED is lit, it indicates a
working 100 MB Ethernet connection (100
MB network, only).
LNK
ACT
COL
100
10/100 NETWORK
UP DOWN

18 - DeviceMaster UP User Guide: 2000451 Rev. C Hardware Installation
Replacing Hardware

Configuring the DeviceMaster UP DeviceMaster UP User Guide: 2000451 Rev. C - 19
Configuring the DeviceMaster UP
The DeviceMaster UP platform includes PortVision Plus, which is the
management application that you use to:
• Configure the DeviceMaster UP network settings
• Upload protocol-specific firmware for your environment
• Access the protocol-specific Server Configuration page for serial port
configuration
You can use PortVision Plus to monitor and manage devices from a centrally-
located personal computer. PortVision Plus detects and graphically displays, in
detail, every DeviceMaster UP server on the network. Network administrators
can see the real-time operating conditions for each device server at a glance.
Note: If PortVision Plus is already installed, go directly to Configuring the
DeviceMaster UP Network Settings on Page 20 to change the IP address on
the DeviceMaster UP.
Installing and Upgrading PortVision Plus
PortVision Plus requires a host system running Windows 2000, Windows XP, or
Windows Server 2003.
Before installing PortVision Plus, consider the following:
• Use PortVision Plus to upload firmware and apply changes to a DeviceMaster
UP that is on the same local network segment as the system on which
PortVision Plus is installed. You cannot apply changes through PortVision
Plus to a DeviceMaster UP that is not on the same local network segment.
• Use PortVision Plus to monitor any DeviceMaster UP on the network. The
DeviceMaster UP does not have to be on the same local network segment as
PortVision Plus for monitoring purposes.
You can install or upgrade PortVision Plus from the Software and Documentation
CD that came with your DeviceMaster UP or download the latest version.
• Install from the CD using the menu system or by executing the .msi file in the
/Dev_Mstr/PortVision_UP directory.
• Download the latest from http://support.comtrol.com/
download.asp?partnumber=1800294.
Note: See the PortVision Plus help system for information.
Installing
PortVision Plus
Use the following procedure to install PortVision Plus.
1. Execute the PVPlus.msi file, follow the Installation Wizard, and optionally
select Launch PortVision Plus at the last screen.
2. When you launch PortVision Plus, you are queried as to whether you want to
access to the COM port utilities (Test Terminal and Port Monitor), select No.
Upgrading
PortVision Plus
Use the following procedure to upgrade PortVision Plus.
1. Execute the PVPlus.msi file.
2. Select Next at the first screen.
3. Select Modify and follow the installation wizard.

20 - DeviceMaster UP User Guide: 2000451 Rev. C Configuring the DeviceMaster UP
Configuring the DeviceMaster UP Network Settings
Configuring the DeviceMaster UP Network Settings
Use the following procedure to change the DeviceMaster UP network settings.
Note: The DeviceMaster UP must be connected to the same local network segment
as the computer on which PortVision Plus is installed.
1. If you have not done so, install PortVision Plus (see Installing and Upgrading
PortVision Plus on Page 19).
2. If necessary, start PortVision Plus by double-clicking the PortVision Plus icon
or select Start > Programs > Comtrol > PortVision Plus.
3. If this is the first time PortVision Plus has been opened, select the Scan button
to locate DeviceMaster UP units on the network.

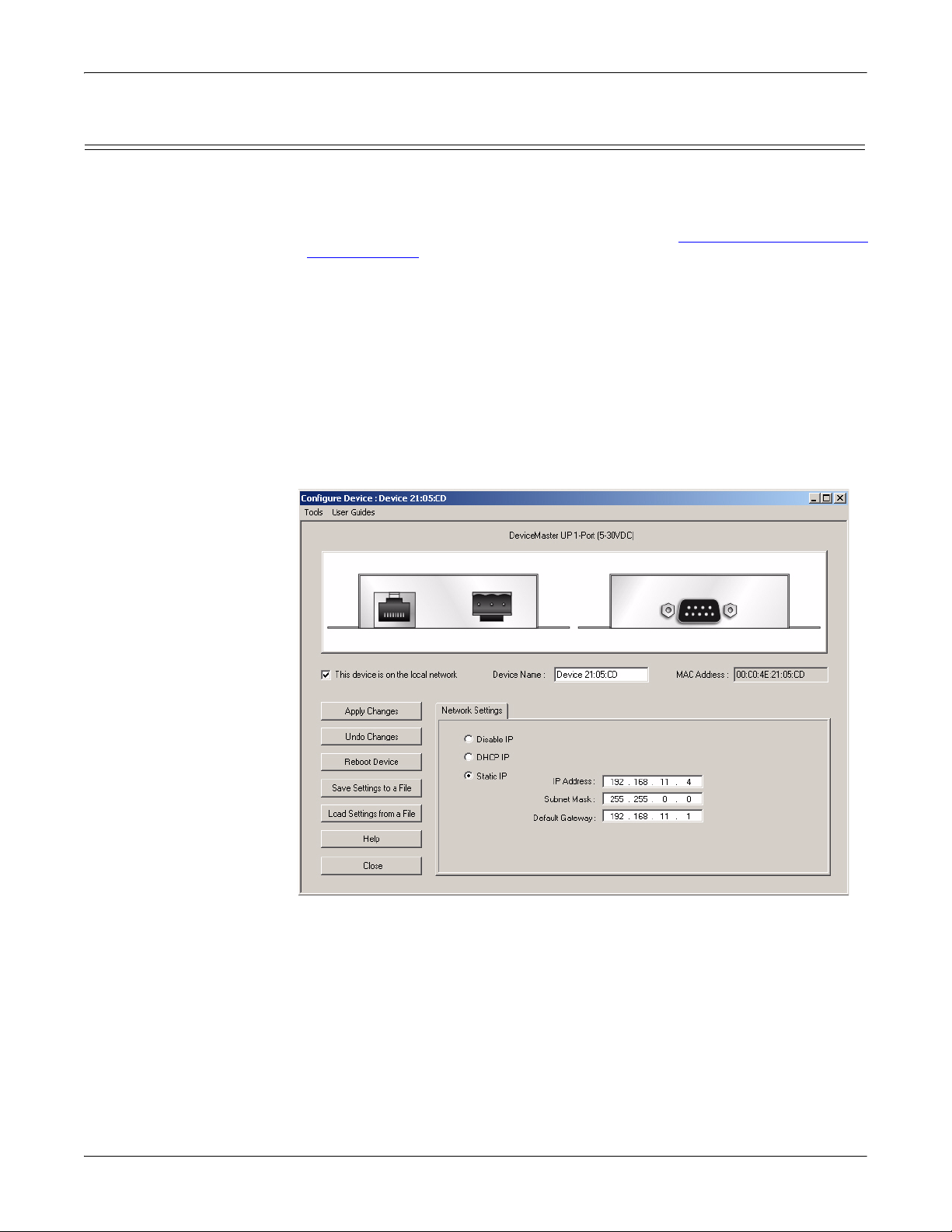

4. Highlight the DeviceMaster UP for which you want to program network
information and select the Config button.
Optionally, you can double-click on the DeviceMaster UP or right-click on the
DeviceMaster UP and select Configure Device.
Note: The Status column for the DeviceMaster UP must display ON-LINE
before you can go to the next step.
5. Optionally, rename the device in the Device Name box.
6. If necessary, select This device is on the local network.
Default Network Settings
IP address:
192.168.250.250
Subnet mask:
255.255.0.0
Gateway address:
192.168.250.1
