1. Product description
MT series turntable is a company and individual users of the Shenzhen Health Technology Co., Ltd.
launched a remote intelligent turntable, with infrared remote control, PC Windows software, Andriod mobile
phone App. The series turntable is widely used in the electric business and advertising industry, such as 360
degree object display, 360 panoramic shooting, 3D photography, 3D scanning, 3D holographic image, etc..
MT series of table type naming rules are as follows:
MT
370
BS
L100
H
Turntable Series
Turntable
Diameter ( mm )
B：With
Bluetooth
interface
S：With
Shutter
interface
Load ( Kg )
International
Version
Identification
H:
International
Version
2. Function Selection Table
Product
model
Diameter
(mm)
Flexibility
Load
(KG)¹
Speed
Range
(S/Ring)
Adjust
speed
Gear
Brake
Uniform
Speed
Remote
control
Angle
adjustment
Android,
Computer
Angle
adjustment
Control
camera
Automatic
shutter
Net
weight
（KG）
MT370L80x
370 .8
80
15~48
12
Level
Yes
Yes
No
No
No
5.5KG
MT370L100x
370 .8
100
30~70
12
Level
Yes
Yes
No
No
No
5.5KG
MT370L80
370.8
80
15~48
12
Level
Yes
Yes
Yes
No
No
5.5KG
MT370BL80
370.8
80
15~48
12
Level
Yes
Yes
Yes
Yes
No
5.5KG
MT370BSL80
370.8
80
15~48
12
Level
Yes
Yes
Yes
Yes
Yes
5.5KG
MT370L100
370.8
100
30~70
12
Level
Yes
Yes
Yes
No
No
5.5KG
MT370BL100
370.8
100
30~70
12
Yes
Yes
Yes
Yes
No
5.5KG

（MT series remote control intelligent turntable manual）3
2Shenzhen Comxim Technologies Co., Ltd. Copyright 2015
Level
MT370BSL100
370.8
100
30~70
12
Level
Yes
Yes
Yes
Yes
Yes
5.5KG
MT600L250
600.00
250
18~120
34
Level
Yes
Yes
Yes
28KG
MT600BL350
600.00
350
18~120
34Level
Yes
Yes
Yes
Yes
28KG
MT600BSL300
600.00
350
18~120
34
Level
Yes
Yes
Yes
Yes
Yes
28KG
Note：
1. "Yes" indicates support for this feature, "No" indicates that the feature is not supported.
2.The above form is unknown, before buying, welcome to consult us, lest cause misunderstanding.
3.If you need to change the turntable in accordance with their own ideas to go to some of the features, but also please contact us. (extra
charge)
4."1" column indicates the test conditions for flexible load test, such as the standing test, Bucket test Etc.
（On the rigid load, the starting load is less than that of the flexible load, the rotating load is equal to the flexible load, the rigid load such as
the metal, stone, etc.）.The load test is no more than the rotary table diameter.
5.The turntable uses a large range of frequency conversion speed regulation, the part of the low frequency (individual Gear) has a trace of
low frequency noise (very small, very small), is a normal phenomenon, does not affect the use, and does not affect health, please rest
assured that use.
3. Main Characteristics
3.1 TurnTable feature List(only MT370BSL* and MT600BSL* Support all
Spec.)
Diameter: 37.8cm.(MT370) or 60CM(MT600)
Height: 8cm(MT370) or 15cm(MT600)
Mark: the sign in the center (MT370)
Color: color support (porcelain white, black pearl, sky blue), default white. (MT370)
Load:MT370BSL100 maximum 100KG / MT600BSL300 maximum 300KG
Speed: remote control 12 gear , Equipped with 31 key remote control (MT370)
MT370BSL60 speed range:15 sec/loop ~ 48 sec/loop,3 sec a level.
MT370BSL100 speed range:30 sec/loop ~70 sec/loop.3.6 sec a level.
Speed: remote control 12 gear , Equipped with 31 key remote control (MT600)
MT600BSL300 speed range:18sec/loop ~120 sec/loop. 3 sec a level.

（MT series remote control intelligent turntable manual）5
Shenzhen ComximTechnologies Co., Ltd. Copyright 2015 3
Direction of rotation: remote adjustment direction (left and right)
Intelligence: support for setting the starting position and return to
the starting position, support for any rotation angle and stop.
Rotation mode: support continuous rotation and Step by step mode
(pause time can be set).
Computer control: computer control speed and angle and shooting
(Equipped with USB Bluetooth adapter)
Mobile control: mobile APP control speed and angle and shooting,
etc. (currently supports Android).
Synchronous shutter: support for the shutter output, and camera
linkage, support the timing shutter.
4. POST （Power-on Self-Test）
Turn on the power switch, the turntable automatically executes the self-test program, the success of the test
marks：" Beep, Beep, Beep," 3 sound or the indicator lights up red.（MT370Lxx series indicator light is always on，
MTXXXBLxxs or MTXXXBSLxxs indicator is flashing, when connected to a computer or mobile phone becomes
always lit）
5. Buzzer and Feedback
The MT series rotary table is used by the buzzer to sing, which is prompted by the turntable status or the
command feedback:
POST after the completion of the tweet.
When using the controller (infrared remote control, Andriod App, PC Windows software) on the
turntable, the turntable buzzer will do the corresponding tweet, prompting the user to receive the
control commands:
1) if the turntable is correctly received the key commands, the status of the buzzer is based on the
key before and after the buzzer sound 1 or 2;
2) if the button is pressed, the buzzer does not tweet, which indicates that the key information is
not properly received, or the model turntable does not support the function.
MTxxxBSL and above models, in each automatic send out the shutter signal before the buzzer short
sound 2.
6. Infrared remote controller
Remote control key instructions:
Note: the turntable received a key signal will be issued a tweet.
Remote control
appearance
Key
Key Name
Key Function
Alert Sounds

（MT series remote control intelligent turntable manual）3
4Shenzhen Comxim Technologies Co., Ltd. Copyright 2015
Remote
lock key
Function: reduce the interference between the
equipment when using multiple turntable.
-
If the remote control key is currently unlocked,
the remote control key lock（In addition to the key,
the other key is invalid）
2 beep
If the current state is locked, the remote
controlbutton to unlock.(Restore all key functions)
1 beep
Save Key
Function: Save current settings
The current configuration parameters
(including rotation angle, pause time, repeat
number, speed, rotation mode, rotation direction)
are stored in the internal storage. Once again, the
turntable rotates in accordance with the save
settings.
1 beep
Rotation
angle
shortcut key
Function : Press the key in this group, rotate
the rotary angle.
Press 0.5,the turntable is around 0.5
degrees.
Press 1/32, the turntable is around 360*1/32
(11.25 degrees)
1 beep
Set origin
Function：Press this key, the turntable stops and
Remember the current position is the origin.
2 beep
Back to the
origin
Function：Automatic return to the origin
of the setting.
If the turntable is not at the origin,
return to the origin of the setting,
For example: in the 360 degree camera
scene, through the "set origin " and "back to
the origin", do not need to manually adjust the
shooting objects in the turntable position.
1 beep
If the turntable is currently doing the
back action, the key is ignored.
2 beep
If the turntable at the origin, the key is
ignored.
2 beep

（MT series remote control intelligent turntable manual）5
Shenzhen ComximTechnologies Co., Ltd. Copyright 2015 5
Start /
stop
If the current state of the turntable is
stopped, the turntable rotation is started.
1 beep
If the current state of the turntable is
rotated, the turntable is stopped.
2 beep
Speed
improvemen
t
If the speed of the turntable has not
fastest speed gear, plus 1 level.
1 beep
If the speed of the turntable is the
fastest, the key is ignored.
2 beep
Speed
reduction
If the rotation speed of the turntable has
not reached the slowest speed, the speed will
Speed decrease 1 level.
1 beep
If the speed of the turntable is the
slowest, the key is ignored.
2 beep
Rotate
left
key
If the current state of the turntable is not
left, then set the turntable to the left, and
start the turntable rotation.
1 beep
If the current state of the turntable has
been turn to left, start the turntable
rotation.
2 beep
Rotate
Right
key
If the current state of the turntable is not
right, then set the turntable to the right, and
start the turntable rotation.
1 beep
If the current state of the turntable has
been turn to right, start the turntable
rotation.
2 beep
Continuous
rotation
key
Function: start the turntable unlimited
continuous rotation.
2 beep
Intermitte
nt
rotation
key
Function:start the turntable intermittent
rotation
Press this key to Start the turntable
intermittent rotation the angle of rotation by
the recent rotation angle shortcut key decision,
can also be determined by the number of recent
photo(Equal circle shortcut key), the angle of
the rotation set, suspended for 4 seconds,
1 beep

（MT series remote control intelligent turntable manual）3
6Shenzhen Comxim Technologies Co., Ltd. Copyright 2015
unlimited repeat.
Multi angle
shooting
shortcut
keys
(Equal
circle
shortcut
key)
Function: Press this key to control the turntable to
suspend n times Within a circle. (n= 2, n= 4, n=
8 „„)
For example: press the key in this group (e.g. 8
keys), the turntable rotates every time 1/8
circle, 45 degrees (=360 *1/8), Suspended one
time , Suspended time 4 seconds (MT370BSLxx
series is automatically sent out the shutter
signal to take a photo), repeat 8 times that a
circle automatically back to the starting
position.
1 beep
Focus key
Function: Press this key to send out the focus
signal (MT370BSLxx version support).
1 beep
Photo key
Function: Press this key to send take a photo
signal (MT370BSLxx version support).
1 beep
Focus
+ Photo Key
Function: Press this key to send focus + take a
photo signal (MT370BSLxx version support).
2 beep
Note : Press the "rotation angle shortcut key" to rotate the turntable immediately; Press " Multi angle
shooting shortcut keys ", the buzzer 1 beep, but the turntable does not immediately turn, but suspended for
4 seconds, after the suspension of rotation;
If you press "start / stop button", "turn left", "turn right" may be immediately rotating, it is possible
to pause for 4 seconds and then rotate, How the turntable rotates, it is decided by the last state (such
as the most recent press " Multi angle shooting shortcut keys ", then suspended 4 seconds to send the shutter
signal, otherwise the turntable is not suspended but immediately rotating).
-- Shenzhen ComXim Technologies Co., Ltd. reserve the right to explain the above specifications.--

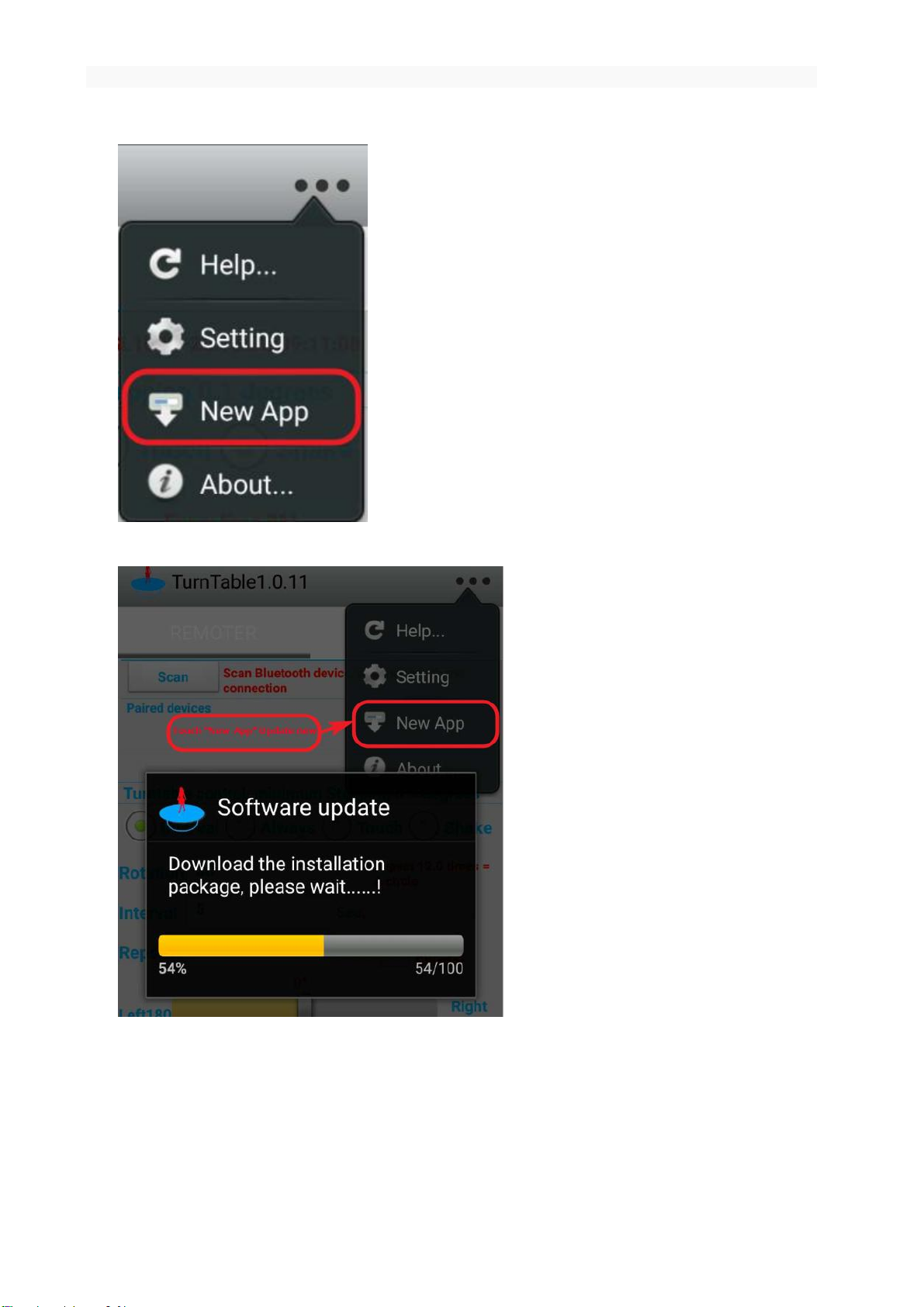

7. Andriod App（MTxxxBLXXX and MTxxxBSLXXX）
7.1 Connected to MT series turntable

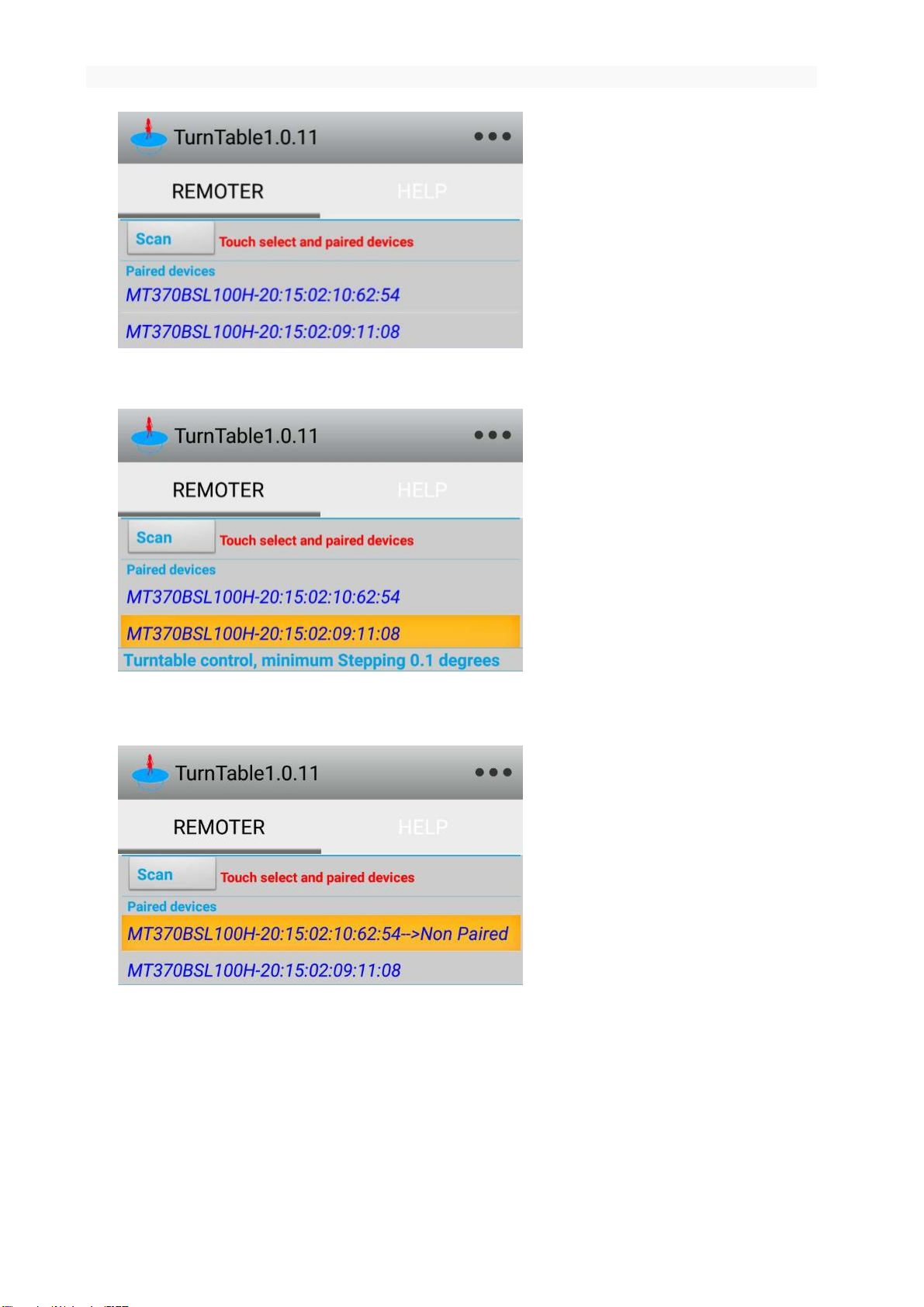

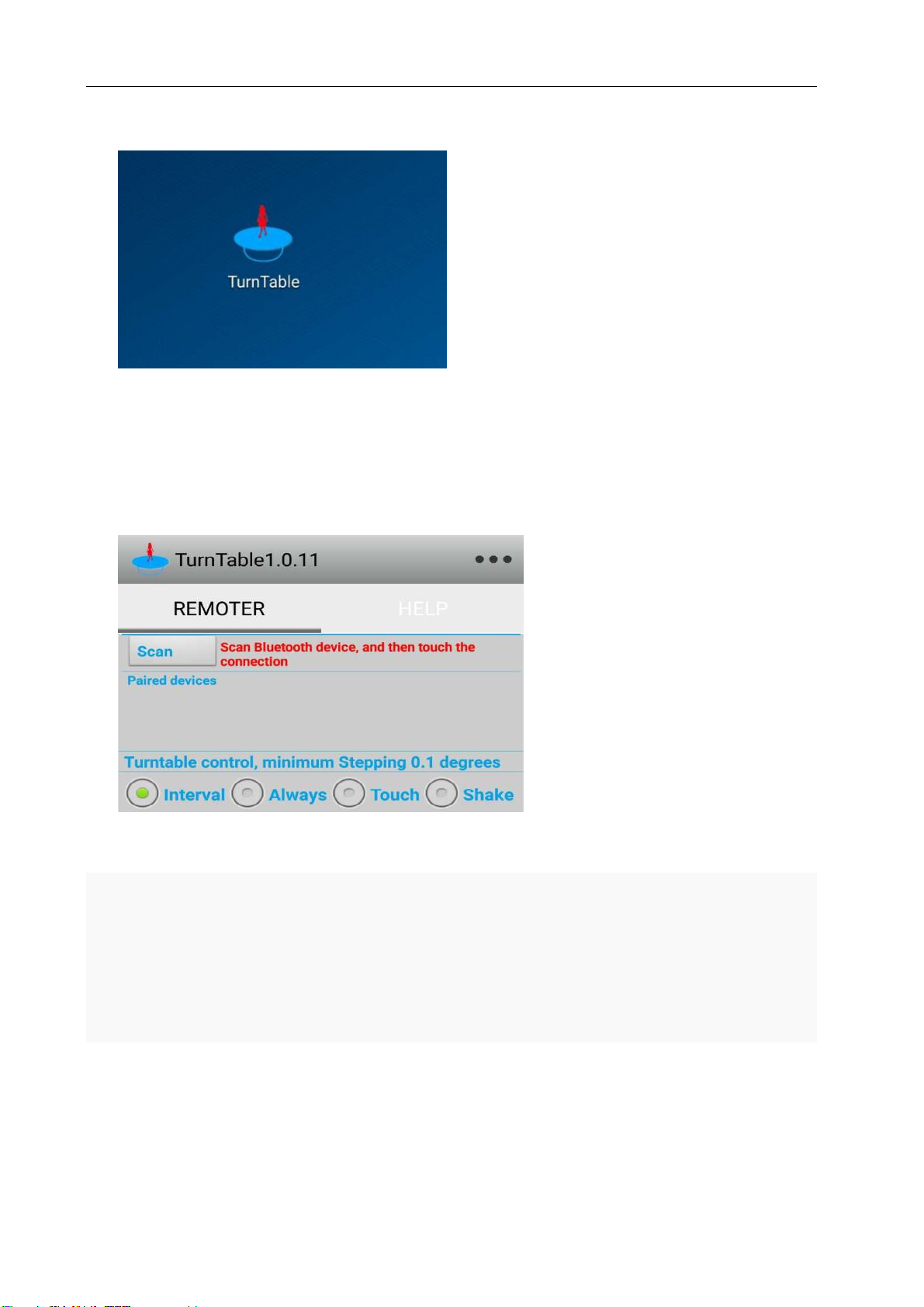

Step 1 ：Turn on the MT series product power switch, the device with the function of the Bluetooth will have
the light flashing, and the representative can
be connected with the control end.
