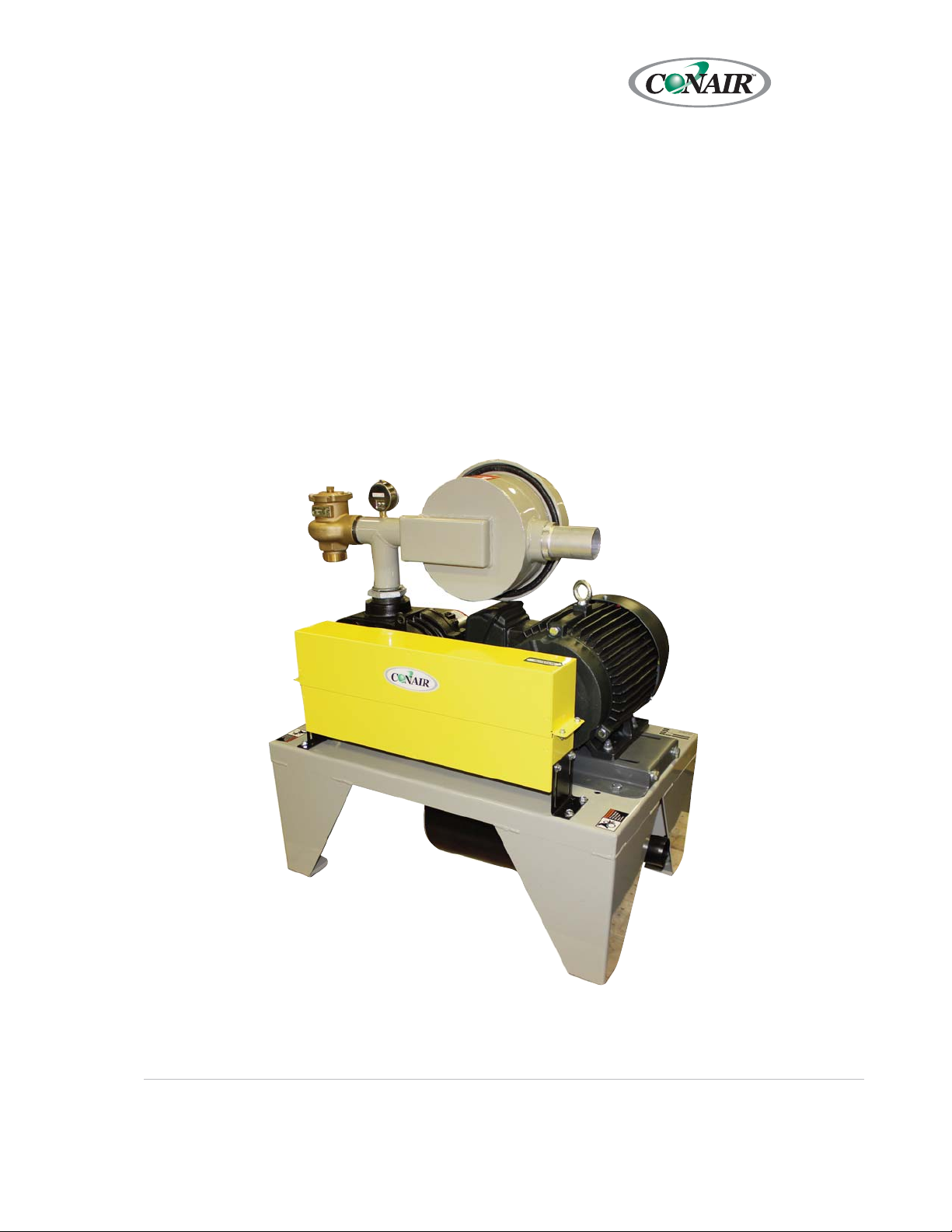

Conair PD Series User manual

PD Series
Positive Displacement Pump
Models PD 3, 5, 7.5, 10, 15 and 25
Corporate Office: 724.584.5500 lInstant Access 24/7 (Parts and Service): 800.458.1960 l Parts and Service: 814.437.6861
USER GUIDE
UGC028-1014
www.conairgroup.com

Please record your equipment’s
model and serial number(s) and
the date you received it in the
spaces provided.
It’s a good idea to record the model and serial number(s) of your equipment and
the date you received it in the User Guide. Our service department uses this infor-
mation, along with the manual number, to provide help for the specific equipment
you installed.
Please keep this User Guide and all manuals, engineering prints and parts lists
together for documentation of your equipment.
Date:
Manual Number: UGC028-1014
Serial Number(s):
Model Number(s):
DISCLAIMER: Conair shall not be liable for errors contained in this User Guide or for incidental,
consequential damages in connection with the furnishing, performance or use of this information.
Conair makes no warranty of any kind with regard to this information, including, but not limited
to the implied warranties of merchantability and fitness for a particular purpose.
Copyright 2014 l Conair l All rights reserved

Table of Contents l i
Table of Contents
1Introduction
ATTENTION: Read this so no one gets hurt . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Optional Sound Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2Technical Specifications
Positive displacement pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Pumps with sound enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3Installation
Installing the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation and operation note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4Maintenance
Preventative maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Inspect the vacuum relief valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Clean the vacuum relief valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Readjusting the vacuum relief valve . . . . . . . . . . . . . . . . . . . . . . . . . . 5
AAppendix
We’re here to help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
How to contact customer service . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Before you call... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Equipment guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Performance warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

ATTENTION:
Read this so no one gets hurt
We design equipment with the user’s safety in mind. You can avoid the potential hazards
identified on this machine by following the procedures outlined below and elsewhere in the
User Guide.
WARNING: Improper installation, operation or servicing
may result in equipment damage or personal injury.
This equipment should be installed, adjusted, and serviced by qualified
technical personnel who are familiar with the construction, operation and
potential hazards of this type of machine.
All wiring, disconnects and fuses should be installed by qualified electri-
cal technicians in accordance with electrical codes in your region.
Always maintain a safe ground. Do not operate the equipment at power
levels other than what is specified on the the machine serial tag and
data plate.
WARNING: Voltage hazard
This equipment is powered by three-phase alternating current, as speci-
fied on the machine serial tag and data plate.
Always disconnect and lock out the incoming main power source before
performing non-standard operating procedures, such as routine mainte-
nance. Only qualified personnel should perform troubleshooting proce-
dures that require access to the electrical enclosure while power is on.
1l Introduction

Description
Conair Positive Displacement Vacuum Pumps are designed for long distance, high-volume material
conveying applications.
Each model has a powerful, rotating lobe-type blower, protected by a vacuum relief valve (factory-
set to 12 in. Hg) and belt driven by a three-phase motor with magnetic starter and overload protec-
tion. An integrated pump protection filter is included and all components are mounted on a rugged
frame, housing an integrated exhaust muffler.
An optional sound enclosure may be added to reduce noise when installed near plant personnel.
Optional sound enclosures
Positive Displacement Pumps provide the strongest vacuum power available, but when operated for
long periods at high performance levels, noise should be abated if the pump is located near person-
nel. Sound Enclosures are available for all pump models and provide maximum noise control with
minimal space and allows easy access to pump maintenance areas.
Sound enclosures include externally mounted protection filter, vacuum gauge and filter gauge; 8 ft
exhaust stack (for noise); and easy access, tool-free front door.

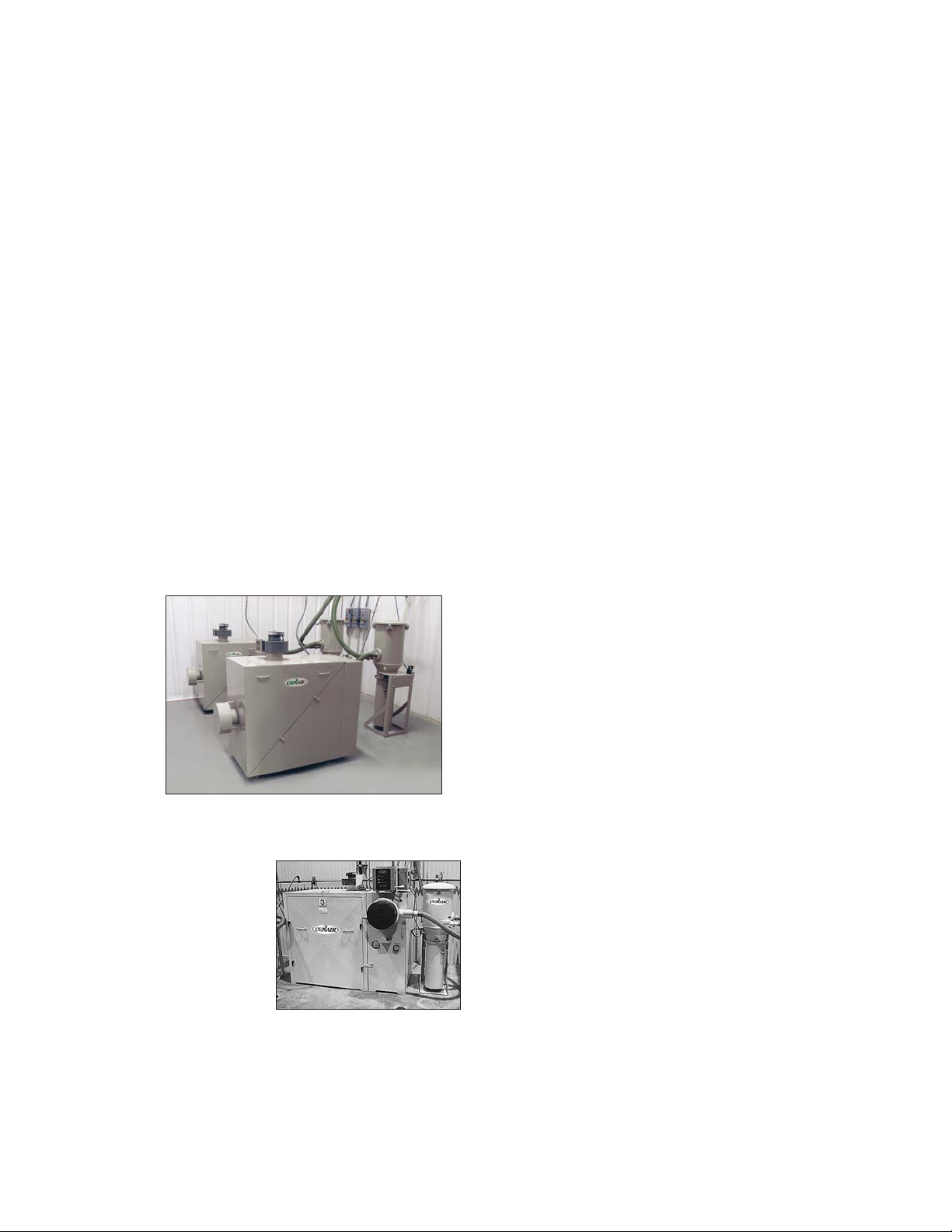

5 HP Pumps in
Sound Enclosures
(with dust collectors)
Super Quiet Sound
Enclosure (with
Dust Collector)
Introduction l 2

3l Technical Specifications
SPECIFICATIONS
TPCX026-0214
MODEL PD5 PD7.5 PD10 PD15 PD25
Motor Type* TEFC TEFC TEFC TEFC TEFC
PERFORMANCE
Horsepower 5 7.5 10 15 25
Standard CFM at Material
Pickup Point @ 10" Hg 76.6 121.2 154.5 201.1 346.2
Average Sound Level (dbA)
@ 8", 10" and 12" Hg 86.3 86 85.8 88.8 93
DIMENSIONS inches and millimeters {mm}
Standard Inlet Size (OD) 1.75 {44} 2.25 {57} 2.5 {64} 3.0 {76} 4.0 {102}
Exhaust Line Size (OD) 2.5 {64} 2.5 {64} 4.0 {102} 4.0 {102} 4.0 {102}
A - Height (H) 37 {940} 41 {1041} 51 {1295} 51 {1295} 52 {1321}
B - Width (W) 35 {889} 35 {889} 39.5 {1003} 39.5 {1003} 39.5 {1003}
C - Depth (D) 27 {686} 27 {686} 33 {838} 33 {838} 34 {864}
Installed Weight / lb {kg} 325 {147} 370 {168} 625 {283} 640 {290} 960 {435}
VOLTAGE / Amps
240 12.0 18.8 28.0 39.0 59.0
480 6.0 9.4 14.0 19.5 29.5
575 4.8 7.5 10.7 16.0 27.0
MODEL PD5 PD7.5 PD10 PD15 PD25 SUPER (ANY MODEL)
PERFORMANCE
Average Sound Level (dbA)
@ 8", 10" and 12" Hg 69.8 76.2 79.3 86.0 90.0 Under 60 dbA
Enclosure Construction Painted Steel Natural Aluminum Painted Steel
Allowance Space for 48 36 36
Service Access / inches (Opposite Vacuum Inlet) (Opposite Vacuum Inlet) (Front, Next to Filter)
DIMENSIONS inches and millimeters {mm}
A - Height 49 {1245} 64 {1626} 96 {2438}
B - Width 54 {1372} 55 {1397} 70 {1778}
C - Depth 32 {813} 36 {914} 50 {1270}
5 HP Pumps in Sound Enclosures Super Quiet Sound Enclosure (with
Dust Collector)
SPECIFICATIONS FOR PUMPS WITH SOUND ENCLOSURES
Specifications not listed below are the same as those listed above. All Sound Enclosures include a cooling fan 115 VAC @ 2 amps.
10, 15, 25 HP
V
Starter
Service Access
Vacuum Inlet
Vacuum Gauge
V
Super Quiet
V
Positive Displacement Pumps provide the strongest vacuum
power available, but when operated for long periods at high
performance levels, noise should be abated if the pump is
located near personnel. Sound Enclosures are available for all
pump models and provide maximum noise control with mini-
mal space and easy access to pump maintenance areas.
Super Quiet Sound Enclosures include externally mounted
protection filter, vacuum gauge and filter gauge; 8 ft exhaust
stack (for noise); and easy access, tool-free front door.
5, 7.5 HP
V
* Energy-saving, high efficiency motors
are also available.
SPECIFICATION NOTE:
Specifications can change
without notice. Contact your
Conair representative for the
most current information.
OPTIONAL SOUND ENCLOSURES
Vacuum Inlet
Exhaust
A
BC

INSTALLATION AND OPERATION NOTE:
The pump inlet is equipped with a vacuum relief valve to prevent the
vacuum from exceeding 12 in. Hg. Excessive vacuum will reduce the
life of the pump and can destroy it.
For special applications requiring a higher vacuum level, consult
Conair service.
Positive
Displacement
Vacuum Pump
Central
Vacuum Line
Material
Inlet
Material
Receivers
Receiving
Hoppers
C
entral Dust
C
ollector
Central Dust Collector
Optional
Idle Mode
Valve
Installation l 4
Installing the pump
1Set or mount the vacuum pump in any convenient location.
2Connect power. Refer to the accompanying wiring diagram for connection of the main power
supply and the conveying control circuit. IMPORTANT: You must provide a wall-mounted
disconnect for three-phase electrical connection. Incoming voltage and current must match
the electrical specifications on the pump data plate and serial tag.
WARNING: This equipment should be installed, adjusted, and serviced by qualified tech-
nical personnel who are familiar with the construction, operation and potential hazards of
this type of machine. All wiring, disconnects and fuses should be installed by qualified
electrical technicians in accordance with electrical codes in your region. Always maintain
a safe ground. Do not operate the equipment at power levels other than what is specified
on the the machine serial tag and data plate.
3Check for proper rotation of the pump after power has been connected and before
operation.
4Install vacuum lines to loader stations and the dust collector.
5Connect the dust collector vacuum outlet to the pump inlet.

Preventative Maintenance Schedule
To maintain the best performance, you should follow the maintenance recommendations outlined here
and in any included manuals from component manufacturers.
●Weekly, or as often as needed
❒ Visually inspect the oil level.
A sign glass window on the pump makes visual inspection simple. Regularly check to make
sure that the pump has the appropriate oil level.
❒ Check and clean the pump inlet filter.
An inlet filter has been provided to protect the pump from solid material that can enter and
damage the pump impellers. Material can enter the vacuum line if a loader filter is improperly
installed or if if has a hole in it. Replace the pump inlet filter if it is torn or worn.
❒ Check all V/belts.
The V/belts have a tendency to stretch, so an adjustable motor base is provided. Keep belts tight to prevent
slippage and wear. Do not use belt dressings.
●Every 500 hours of operation
❒ Grease the pump.
Use No. 2 bearing grease or the equivalent. Refer to manuals from the component manufacturer
for additional information and instructions.
●Every 1500 hours of operation (if using SAE oil)
❒ Change the SAE oil. Conair recommends the use of Synthetic oil.
The vacuum pump has been filled with the proper oil and tested by Conair before shipment.
This oil should be changed periodically. Use SAE 40 regular or a synthetic oil.
●Every 6000 hours of operation (if using Synthetic oil)
❒ Change the Synthetic oil. Conair recommends the use of Synthetic oil, which extends the
oil change regularity.
Extended oil change periods are accomplished by using the Conair recommended synthetic oils.
●Every three months
❒ Check motor bearings and grease, if necessary.
The motor is equipped with double-shielded ball bearings having sufficient grease to last indefinitely under
normal service. But if the motor is used constantly in dirty, wet or corrosive atmospheres, you should add
1/4 oz. of grease per bearing every three months. Use a quality, rust-inhibiting, polyure-based grease such
as Chevron SRI. Refer to the motor manual for additional instructions.
●Every six months
❒ Check the vacuum relief valve for proper operation.
The vacuum relief valve is designed to protect the pump from damage if the conveying line becomes
clogged or obstructed.
5l Maintenance
Note: The PD Pump ships
from the factory with SAE
oil. Conair recommends
switching to a synthetic oil
after the first oil change.
✐

Inspect the vacuum relief valve
The vacuum relief valve is designed to protect the pump from damage if the conveying line
becomes clogged or obstructed. To check the valve:
1Remove the inlet hose on the inlet filter housing.
2Partially obstruct the inlet by using a rigid flat plate and slide it across the opening until 12
inches Hg registers on the gauge. Do NOT completely block the inlet. The relief valve should
open at approximately 12 inches Hg. Do not exceed 15 inches Hg. If the valve does not
release at or below 15 inches Hg, replace the valve.
3Reconnect the hose to the inlet of the pump.
Clean the vacuum relief valve
1Stop the vacuum pump, disconnect and lockout the main power to the pump.
WARNING: High voltage. Always stop the Positive Displacement Pump,
disconnect and lock out the main power source before troubleshooting
or performing repairs.
2Thoroughly inspect the vacuum relief valve. Check inside and out for any signs of contami-
nation, residue or other foreign substances that may potentially block the motion of the internal,
spring loaded diaphragm.
3Clean the inner components of the valve. Use a cleaning agent that will dissolve any plasti-
cizer or oily build-up on the surfaces of the vacuum relief valve. Be sure to clean between the
vacuum relief diaphragm and its seat. Spray the cleaning agent into the valve opening and then
flush out. The valve may require disassembly to reach critical areas.
IMPORTANT: If a valve can not be cleaned adequately it should be replaced to prevent malfunction or a
potentially hazardous condition due to inadequate vacuum relief.
4Reassemble the valve and re-adjust to the proper vacuum setting (see instructions for
adjusting the vacuum relief valve on the next page. )
Note: Gauges should be checked/calibrated every 12 months (if applicable).
✐
CAUTION: Wear eye protection. If you use compressed air to clean the equipment, you
must wear eye protection and observe all OSHA and other safety regulations pertaining
to the use of compressed air.
Maintenance l 6

Readjusting the vacuum relief valve
1Prior to checking the vacuum relief valve operation, confirm the operation of the vacuum
gauge on the pump. With the pump off, the gauge should read "0" inches of mercury (Hg).
The gauge should rise to a range between 5 and 15 inches of Hg as the pump runs. If it does not
operate accordingly, replace the gauge. Vacuum gauges are not repairable.
2Disconnect the flex hose from the inlet of pump protection filter.
3Access the vacuum adjustment screw. Remove the threaded cap from the vacuum relief valve
to allow to access the vacuum adjustment screw.
4Start the vacuum pump.
5Open the relief valve. Position a rigid flat plate partially over the pump's air inlet with the pump
running until the relief valve opens as indicated by an inrush of air into the valve. Note the read-
ing on the vacuum gauge. The exact point at which the valve opens to allow air to be sucked
into the pump should be 12 inches Hg.
6Establish the proper vacuum relief point. With a screw driver, turn the adjustment screw to
establish the proper vacuum relief point while restricting the opening at the vacuum inlet of the
pump. Repeat the procedure until you feel air entering the relief valve and vacuum reading is 12-
inch Hg on the vacuum gauge - max vacuum limit is 15 inch Hg.
7Replace the adjustment screw cap and reconnect the flex hose to the inlet of pump.
7l Maintenance

Maintenance l 8
Primary Filter Cleaning Instructions
Filter cleaning procedure for primary filter:
1Take care not to lose any fasteners.
2With the pump turned off, unscrew the black
hand knob on the filter housing and slide the fil-
ter cover away from the filter housing.
3Remove the wing nut and cartridge filter from
the threaded rod mounting and clean thoroughly
with a vacuum cleaner, applied to the outside of the
filter. If using compressed air to clean, be sure to
wear eye protection and blow from the inside of the
cartridge out. The filter cannot be washed.
Inspect the filter for tears, leaks, blinded filter
media, and a bent or distorted filter base. Do not
attempt to patch or repair a damaged filter, but
replace it with a new filter cartridge.
4Replace the filter after cleaning and assure that a firm and continuous seal is
made around the base of the filter while tightening the securing nut accordingly.
Do not crush the filter by over-tightening.
5Replace the filter cover and tighten the black hand knob.
Idle Mode Valve Filter Cleaning
Instructions
Filter cleaning procedure for idle mode valve filter:
1The filter may be cleaned thoroughly with a vacuum cleaner, applied to the
outside of the filter, without removing the filter.
If using compressed air to clean the filter it must be removed from the assembly.
1The filter is secured to its base by a hose clamp. Loosen the hose clamp enough
to slide the filter off the base.
2Be sure to wear eye protection and blow from the inside of the cartridge out.
3The filter cannot be washed.
4Inspect the filter for tears, leaks, blinded filter media, and a damaged filter
base. Do not attempt to patch or repair a damaged filter, but replace it with
a new filter cartridge.
5Reinstall the filter after cleaning and assure that a firm and continuous seal is
made around the base of the filter while tightening the hose clamp.
NOTE: Excessive dust here will
mean additional attention to
cleaning the pump housing is
probably required.
✐

9l Maintenance

Additional manuals and
prints for your Conair
equipment may be
ordered through the
Customer Service or
Parts Department for a
nominal fee.
Appendix l A-1
We’re Here to Help
Conair has made the largest investment in customer support in the plastics industry. Our service
experts are available to help with any problem you might have installing and operating your equip-
ment. Your Conair sales representative also can help analyze the nature of your problem, assuring
that it did not result from misapplication or improper use.
How to Contact Customer Service
To contact Customer Service personnel, call:
From outside the United States, call: 814-437-6861
You can commission Conair service personnel to provide on-site service by contacting the
Customer Service Department. Standard rates include an on-site hourly rate, with a one-
day minimum plus expenses.
Before You Call...
If you do have a problem, please complete the following checklist before
calling Conair:
❒Make sure you have all model, control type from the serial tag, and parts list numbers for your
particular equipment. Service personnel will need this information to assist you.
❒Make sure power is supplied to the equipment.
❒Make sure that all connectors and wires within and between control systems and related compo-
nents have been installed correctly.
❒Check the troubleshooting guide of this manual for a solution.
❒Thoroughly examine the instruction manual(s) for associated equipment, especially controls. Each
manual may have its own troubleshooting guide to help you.
❒Check that the equipment has been operated as described in this manual.
❒Check accompanying schematic drawings for information on special considerations.
NOTE: Normal operating hours are 8:00 am - 5:00 pm EST. After hours emergency service is avail-
able at the same phone number.
✐

Equipment Guarantee
Conair guarantees the machinery and equipment on this order, for a period as
defined in the quotation from date of shipment, against defects in material and
workmanship under the normal use and service for which it was recommended
(except for parts that are typically replaced after normal usage, such as filters,
liner plates, etc.). Conair’s guarantee is limited to replacing, at our option, the part
or parts determined by us to be defective after examination. The customer assumes
the cost of transportation of the part or parts to and from the factory.
Performance Warranty
Conair warrants that this equipment will perform at or above the ratings stated in
specific quotations covering the equipment or as detailed in engineering specifica-
tions, provided the equipment is applied, installed, operated and maintained in the
recommended manner as outlined in our quotation or specifications.
Should performance not meet warranted levels, Conair at its discretion will
exercise one of the following options:
•Inspect the equipment and perform alterations or adjustments to satisfy
performance claims. (Charges for such inspections and corrections will be
waived unless failure to meet warranty is due to misapplication, improper
installation, poor maintenance practices or improper operation.)
•Replace the original equipment with other Conair equipment that will meet
original performance claims at no extra cost to the customer.
•Refund the invoiced cost to the customer. Credit is subject to prior notice by the
customer at which time a Return Goods Authorization Number (RGA) will be
issued by Conair’s Service Department. Returned equipment must be well crated
and in proper operating condition, including all parts. Returns must be prepaid.
Purchaser must notify Conair in writing of any claim and provide a customer receipt
and other evidence that a claim is being made.
Warranty Limitations
Except for the Equipment Guarantee and Performance Warranty stated
above, Conair disclaims all other warranties with respect to the equipment,
express or implied, arising by operation of law, course of dealing, usage of
trade or otherwise, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
A-2 l Appendix
