DESCRIPTION OF PRODUCT
The Single Station Remote Alarm is capable of operating at either 120VAC or 220VAC depending on which
wall mount power supply it was ordered with. It is capable of providing operating status for the left and right
banks of one CONCOA Autoswitch/Switchover system. The Single Station Remote Alarm provides power to
the Autoswitch/Switchover to operate the status indicator lights and the pressure switches.
An Autoswitch product that is congured with the alarm option is equipped with two pressure switch gauges,
two sets of status indicators, and a power status indicator. A pressure switch gauge and one set of status indicators
are used to monitor and report the state of the pressure for each side of the Autoswitch. A Switchover system
has only the pressure switch gauges.
The front panel of the Remote Alarm consists of four (4) status indicator lights, an “Alarm Silence” button, and
an audible Alarm. See Figure 1. In addition to the front panel, the left side of the Remote Alarm has a power
jack connector where the power supply cable is connected. At the bottom of the Alarm are two (2) connectors
where the Autoswtich/Switchover and Output Devices are connected.
The Single Station Remote Alarm controls one (1) set of relay contacts that are brought to the Output Connector
so they may be used to control an external device.
The status indicator lights are organized into paris representing the Left Bank and Right Bank of an Autoswitch/
Switchover System. When a system is operating normally the status indicator light will be green. If the pressure
should drop below the preset value of the Autoswitch/Switchover, the audible alarm will sound and the light
corresponding to the specic Bank will turn from green to red. When this happens, the output relays will activate.
It is sometimes desirable to silence the audible alarm prior to the alarm condition being xed. Pressing the
“Silence” button will accomplish this. The status indicator lights and the relays will remain activated until the
alarm condition is corrected. If the second bank on the same Autoswitch/Switchover generates an alarm while
the rst Bank is still in an alarm condition the other status indicator light in that system will turn from green to
red and the audible alarm that was previously silenced will sound again.
Correcting the low pressure condition will return the status lights back to green, and deactivate the relay.

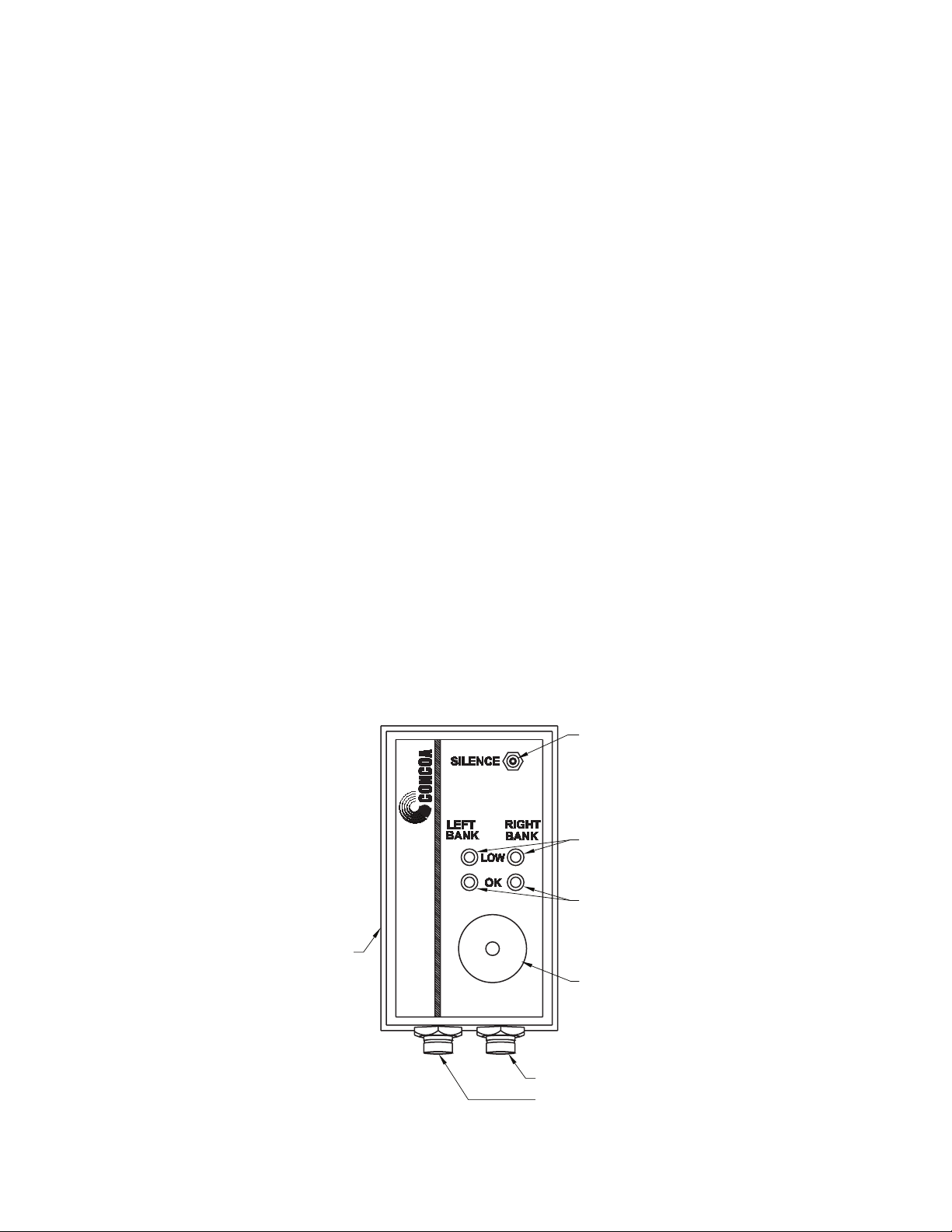

Audible Alarm Silence
Audible Alarm
Power Jack
Red “Alarm” Indicators
Green “Normal” Indicators
Figure 1
Relay Contact Output
Autoswitch/Switchover
connector

-4-
INTENDED USE OF PRODUCT
The Single Station Remote Alarm is used to monitor and report the status of inlet pressure on Switchover Systems
and Autoswitch Systems. The Alarm can be congured to operate with either normally open or normally closed
pressure switch contacts. The Alarm contains a set of relay contacts that can be used to control any device that
can be activated using a normally open or normally closed switch. One example of such a device would be the
CONCOA telephone dialer (PN 5295306).
Connections to the Alarm are made through input and output connectors. Customer supplied cables are easily
soldered to the connectors prior to plugging the connectors into the Alarm. For connector pin assignments
please refer to the “CONNECTING THE ALARM” section of this manual.
USER RESPONSIBILITY
Service to this product should only be performed by CONCOA or an authorized CONCOA agent. Requests for
service may be made through CONCOA CUSTOMER SERVICE at 1-800-225-0473. Written requests may
be made using CONCOA’s FAX number at 1-757-422-3125 or CONCOA’s E-MAIL at [email protected].
CONCOA accepts no responsibility for damage or injury if this product is modied in any way.
CONCOA assumes/accepts no liability or responsibility for damage to individuals or equipment that may occur
when using this product.
GENERAL SAFETY PRACTICES
Basic safety precautions must be followed to reduce the risk of re, electrical shock or injury.
a. Connect the Alarm to the correct line voltage. The product is supplied with either a 120 VAC or
220VAC wall mount power supply.
b. While the Alarm is dust and moisture resistant, it should be installed in a location where it will not
be subjected to rain or high concentrations of dust. Never pour or spray liquids directly onto the
product.
c. Install the Alarm where the ambient temperature range while operating is between 0°F and 140°F.
d. Do not install the product in hazardous locations.
e. If product appears damaged in any way, do not use and request service from CONCOA.
f. Do not attempt to operate the Alarm with the cover off.
CONNECTING THE ALARM
To connect the Single Station Remote Alarm to a Switchover or Autoswitch system, an interface cable must
be made. The Autoswitch/Switchover systems are shipped with a connector that is used for this cable. Two
connectors are provided with the alarm. One is used to connect to the Autoswitch/Switchover and the other is
to connect to the output relay contacts.
To perform the assembly task you will need a soldering station or pencil, rosin core solder, and a wire stripper.
It would also be helpful to have a vise to hold a connector while soldering the wires to it.
OPTION 1: For Switchover Systems that have a 4 pin circular connector.
It will be necessary to obtain a 4 conductor cable. The length of the cable is determined by the application
but should be limited to no longer than 1500 feet. It is recommended that 22 AWG stranded wire be
used. (Alpha #5004C or Belden #8444 are acceptable types.)

-5-
OPTION 1 (continued)
Cut the 4 conductor cable to length. Remove the outer jacket of the cable to expose approximately 1
inches of the internal conductors. Strip away  inch of the insulation on each of the 4 conductors. Tin
the leads of the conductors. Slide the protective cover, cable retainer, and locking nut for the circular

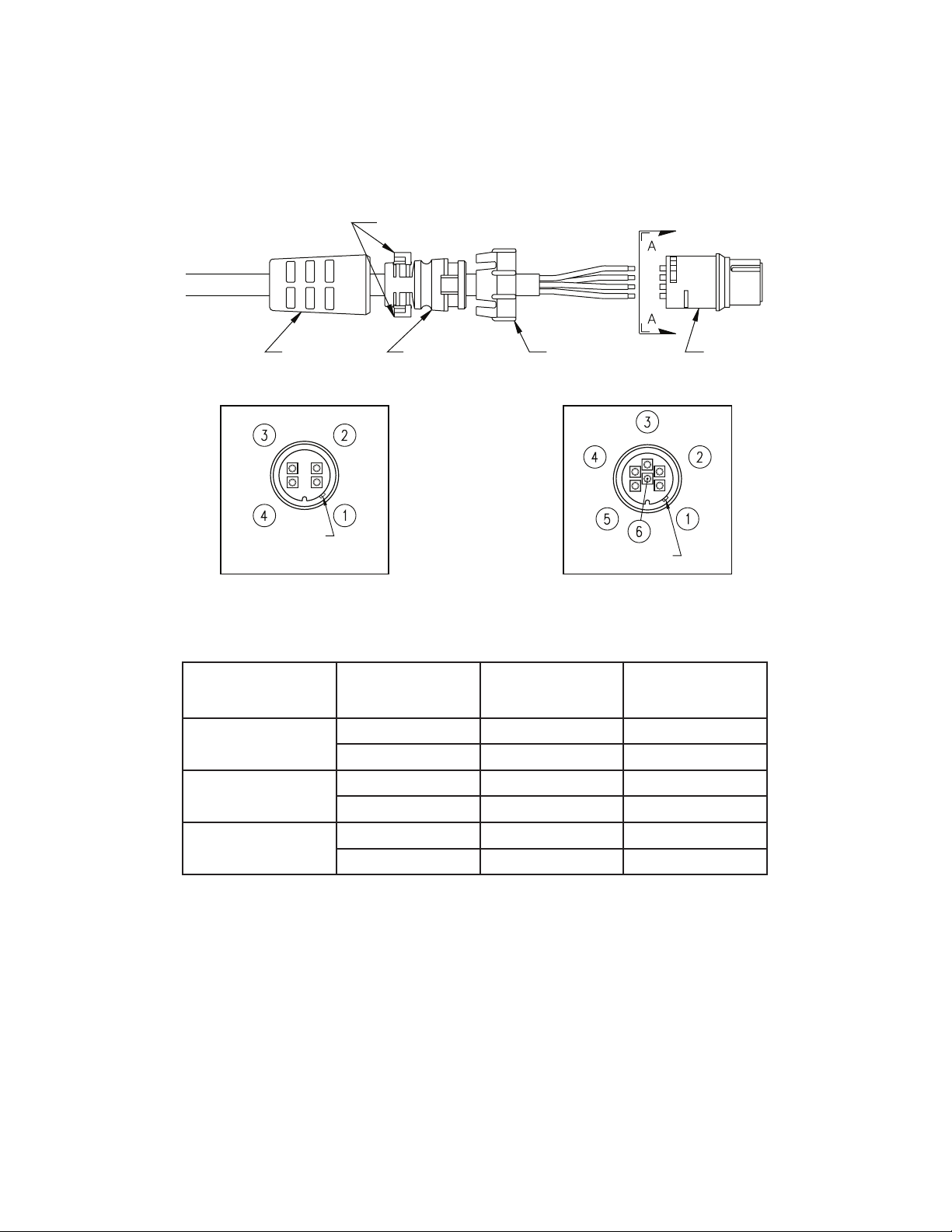

connector over one end of the cable as shown in Figure 2.
notch
notch
Figure 2
Cable Retainer Tabs
Cable Cover Cable Retainer Locking Nut Plug
Figure 3 Figure 4
SYSTEM Switchover
Connector Pin #
Remote Alarm
Connector Pin # Function
LEFT BANK 2 1 LBSW status
--- --- alarm
RIGHT BANK 3 4 RBSW status
--- --- alarm
1 3 +12
4 6 Gnd
Table 1
Using the pin assignments shown in Table 1 and the connector views in Figure 3 and Figure 4, solder
the wires to the appropriate pins. After soldering is complete attach the cable cover, cable retainer, and
locking nut to each of the circular connector plugs.
Plug the Input Connector side of the cable (6 pin connector) into the Remote Alarm and secure it by
turning the locking nut until it locks. Plug the 4 pin circular connector into the Switchover securing it
by turning the locking nut until it locks.
OPTION 2: For Autoswitch Systems that have a 6 pin circular connector.
It will be necessary to obtain a 6 conductor cable. The length of the cable is etermined by the application,
but should be limited to no longer than 1500 feet. It is recommended that 22 AWG stranded wire be
used. (Alpha #5006C or Belden #8446 are acceptable types.)

-6-
OPTION 2 (continued)
Cut the 6 conductor cable to length. Remove the outer jacket of the cable to expose approximately 1
inches of the internal conductors. Strip away  inch of the insulation on each of the 6 conductors. Tin
the leads of the conductors. Slide the protective cover, cable retainer, and locking nut for the circular
connector over one end of the cable as shown in Figure 5.
Figure 5
Cable Retainer
Cable Retainer Tabs
Cable Cover Plug
Locking Nut
Table 2
SYSTEM
AutoSwitch
Connector
Pin #
Remote Alarm
Connector
Pin #
Function
LEFT BANK 1 1 LBSW status
2 2 alarm
RIGHT BANK 4 4 RBSW status
5 5 alarm
3 3 +12
6 6 Gnd
Figure 6
notch
Using the pin assignments shown in Table 2 and the connector view in Figure 6, solder the wires to the
appropriate pins. After soldering is complete attache the cable cover, cable retainer, and locking nut to
each of the circular connector plugs.
Plug the one side of the cable into the Remote Alarm and secure it by turning the locking nut until it
locks. Plug the other circular connector into the Autoswith securing it by turning the locking nut until
it locks.

-7-
CONNECTING THE OUTPUT
The Single Station Remote Alarm activates a set of relay contacts in response to an alarm condition. This set
of relay contacts can be connected to any external device that is activated by the opening or closing of a switch.
Examples would be CONCOA’s telephone dialer, a Warning Light, an external buzzer, or another monitoring
or alarm system. Whatever the connecting device, care must be taken not exceed the rating of the relay contacts
(Table 3). Refer to Table 4 for the pin assignments for the Output Connector.
Relay Contact Rating
24 VDC 1 amp Resistive Load
115 VAC 0.5 amp Resistive Load
Table 3

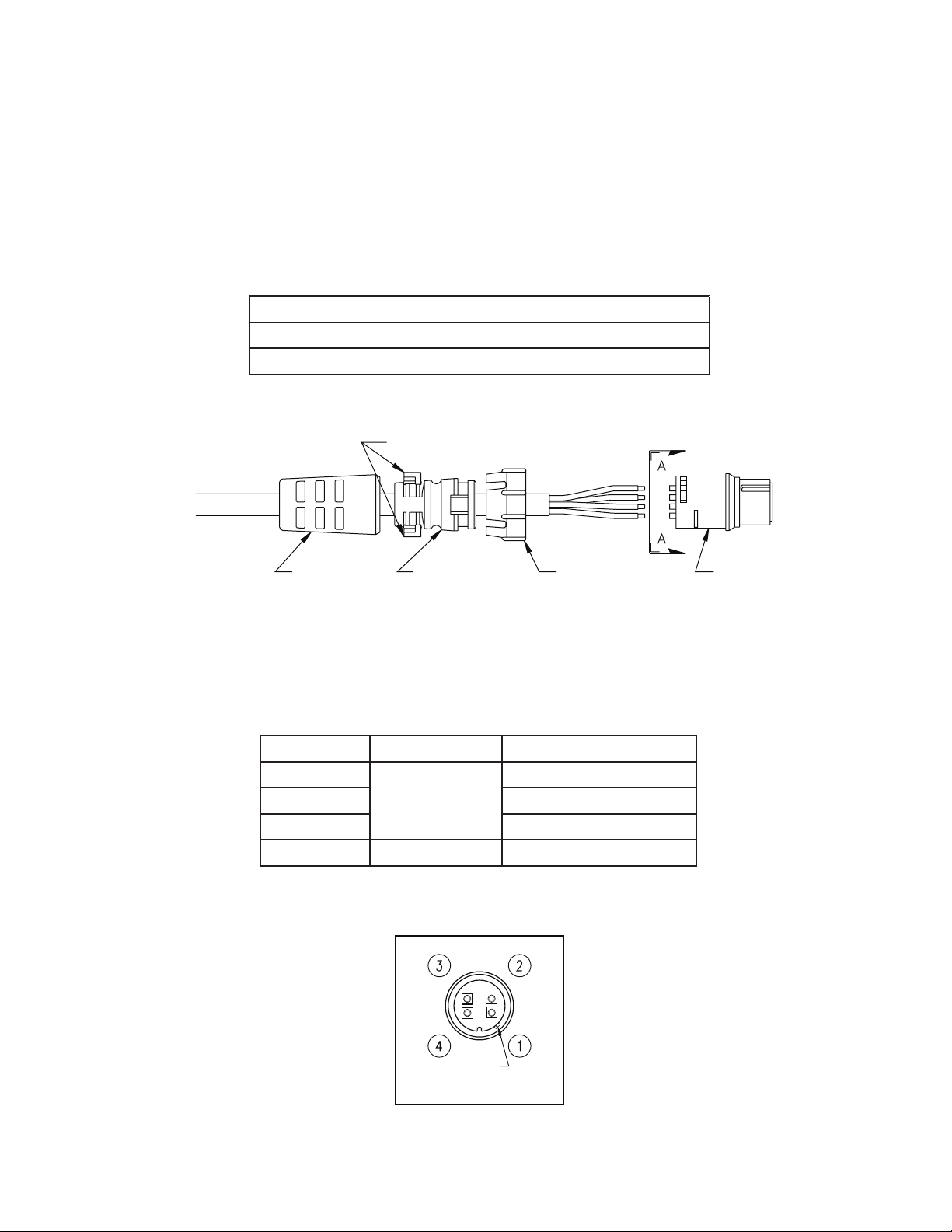

Figure 7
Pin Number Function Contact
1
Relay Output
Common (C)
2 Normally Closed (N.C.)
3 Normally Open (N.O.)
4 Unused
Table 4
notch
Figure 8
Cable Retainer Tabs
Cable Cover Cable Retainer Locking Nut Plug

-8-
CONFIGURING THE REMOTE ALARM
The Single Station Remote Alarm can be congured to allow connection to either Normally Open (N.O.) or
Normally Closed (N.C.) pressure switches.
Setting the Alarm for Normally Open or Normally Closed Pressure Switches
The Single Station Remote Alarm is factory set to operate with Normally Closed (N.C.) pressure switches. To
congure the alarm to operate with Normally Open (N.O.) pressure switches perform the following steps:
1. Unplug the power plug from the Remote Alarm power jack.
2. It is best to set the unit on a at surface face down. Remove the four (4) screws that hold the back cover
on and set the cover aside.
3. Locate the 4 position DIP switch array and then using a stylus or small screwdriver open and close the
DIP switches according to Table 9A, 9B and Figure 9.
5. Place the back cover back onto the base and tighten the screws.
6. Reconnect the power plug into the power jack and plug the unit in.
Table 9A
Settings for Normally Open (N.O.) Operation
DIP Switch Factory Default Settings
1 Open
2 Close
3 Close
4 Close
5 Open
6 Close
7 Close
8 Close
*OFF = Open, ON = Closed
Table 9B
Settings for Normally Closed (N.C.) Operation
DIP Switch Factory Default Settings
1 Close
2 Open
3 Open
4 Open
5 Close
6 Open
7 Open
8 Open
*OFF = Open, ON = Closed
Figure 9

-9-
TROUBLESHOOTING
Symptom Cause
Unit is plugged in but no lights are lighting on the
Alarm
1. Check to see that there is power at the source.
2. Check that cable to Autoswitch/Switchover is
plugged in.
3. If the Alarm has been re-congured from the
factory settings, check that the DIP switches
were properly set. Refer to "Conguring the
Remote Alarm" section of the manual.
Unit is plugged in, red alarm light(s) are ON but the
gauge(s) on the Autoswitch/Switchover is above the
alarm pressure.
1. Check to see that the cable running between the
alarm and the Autoswitch/Switchover is properly
wired.
Audible Alarm begins to sound as soon as power is
turned ON.
1. Check that the Autoswitch/Switchover
Connector is plugged in properly.
2. Check that the cable between the Autoswitch
and Alarm is not cut or pinched somewhere.
3. Check to see that all the wires in the cable are
properly soldered to the connectors.
Output does not appear to be functioning. 1. Check the cable to the output device to be sure
it is properly connected.
2. Check the Output Connector to be sure it is
properly plugged into the Alarm.
3. Check the external output device to make sure it
is functioning properly.
SERVICE
Service by a factory authorized facility should be done if an Alarm becomes inoperative and troubleshooting has
not isolated the problem. Contact CONCOA Customer Service at 1-800-225-0473 for assistance.
If advised to return the unit for service you should:
1. Package the Alarm to prevent damage in shipping. If possible, use the original shipping materials.
2. Ship the unit back pre-paid.
3. Make sure the RMA number appears on the packaging and inside the package.
4. Include an explanation of the problem you encountered.

-10-

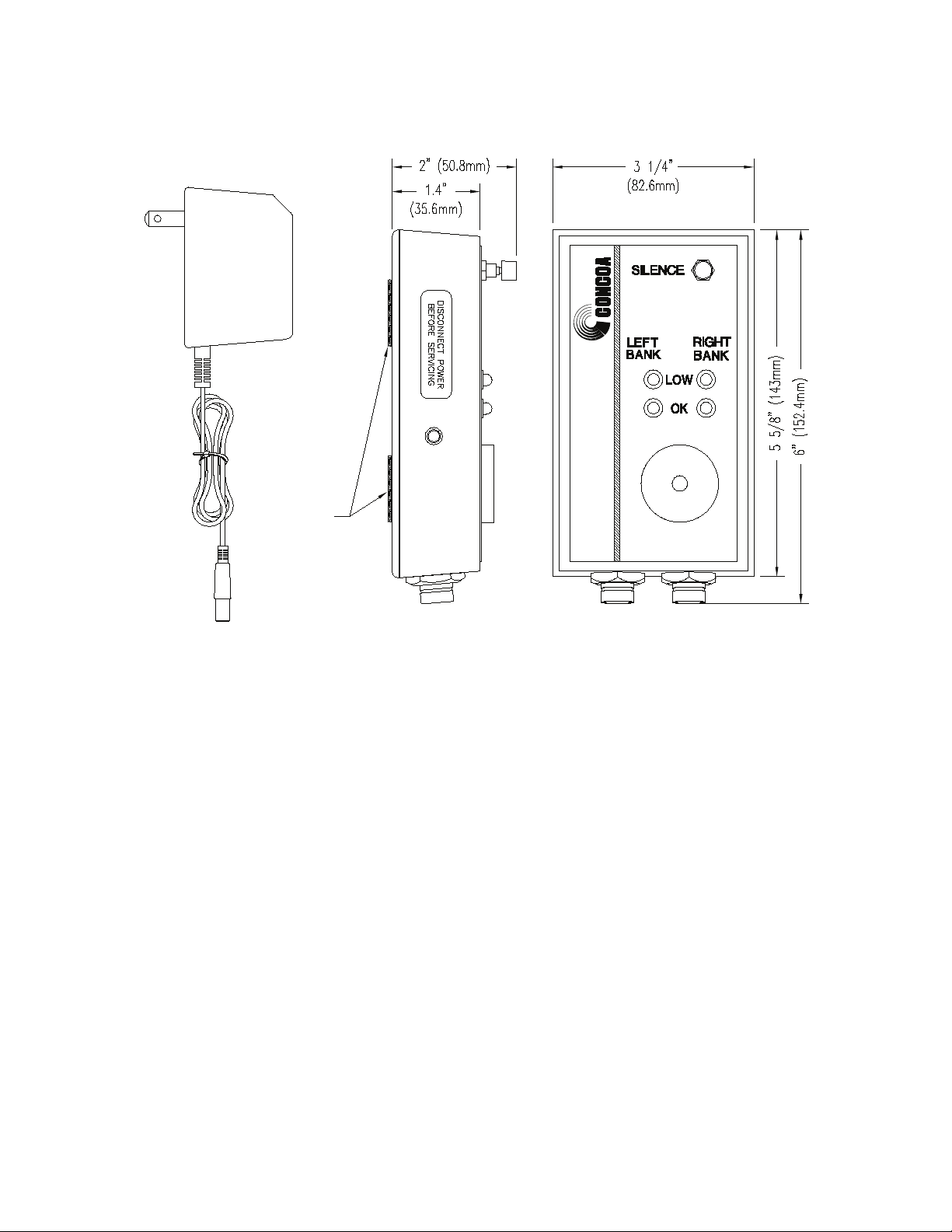

MOUNTING DETAIL
Velcro
Mounting Strips
ELECTRICAL SPECIFICATIONS
Protocol Station Remote Alarm:
120 Volt Version 120 Volts ±10%, 50-60 hz., 6VA
220 Volt Version 220 Volts ±10%, 50-60 hz., 6VA
Fuses:
Internal - Resettable Polyfuse
Figure 10

-11-
Warranty Information
This equipment is sold by CONTROLS CORPORATION OF AMERICA under the warranties set forth in
the following paragraphs. Such warranties are extended only with respect to the purchase of this equipment
directly from CONTROLS CORPORATION OF AMERICA or its Authorized Distributors as new merchan-
dise and are extended to the rst Buyer thereof other than for the purpose of resale.
For a period of one (1) year from the date of original delivery (90 days in corrosive service) to Buyer or to
Buyer’s order, this equipment is warrantied to be free from functional defects in materials and workman-
ship and to conform to the description of this equipment contained in this manual and any accompanying
labels and/or inserts, provided that the same is properly operated under conditions of normal use and that
regular periodic maintenance and service is performed or replacements made in accordance with the in-
structions provided. The foregoing warranties shall not apply if the equipment has been repaired: other than
by CONTROLS CORPORATION OF AMERICA or a designated service facility or in accordance with
written instructions provided by CONTROLS CORPORATION OF AMERICA, or altered by anyone other
than CONTROLS CORPORATION OF AMERICA, or if the equipment has been subject to abuse, misuse,
negligence or accident.
CONTROLS CORPORATION OF AMERICA’s sole and exclusive obligation and Buyer’s sole and exclusive
remedy under the above warranties is limited to repairing or replacing, free of charge, at CONTROLS COR-
PORATION OF AMERICA’s option, the equipment or part, which is reported to its Authorized Distributor
from whom purchased, and which if so advised, is returned with a statement of the observed deciency,
and proof of purchase of equipment or part not later than seven (7) days after the expiration date of the
applicable warranty, to the nearest designated service facility during normal business hours, transportation
charges prepaid, and which upon examination, is found not to comply with the above warranties. Return
trip transportation charges for the equipment or part shall be paid by Buyer.
CONTROLS CORPORATION OF AMERICA SHALL NOT BE OTHERWISE LIABLE FOR ANY
DAMAGES INCLUDING BUT NOT LIMITED TO: INCIDENTAL DAMAGES, CONSEQUENTIAL
DAMAGES, OR SPECIAL DAMAGES, WHETHER SUCH DAMAGES RESULT FROM NEGLI-
GENCE, BREACH OF WARRANTY OR OTHERWISE.
THERE ARE NO EXPRESS OR IMPLIED WARRANTIES WHICH EXTEND BEYOND THE WAR-
RANTIES HEREINABOVE SET FORTH. CONTROLS CORPORATION OF AMERICA MAKES
NO WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH
RESPECT TO THE EQUIPMENT OR PARTS THEREOF.

PACKING LIST
Qty Part Number Description
1 . . . . 5295106-01-120 . . . 120 VAC SINGLE STATION REMOTE ALARM
1 . . . . 5295106-01-220 . . . 220 VAC SINGLE STATION REMOTE ALARM
INCLUDES:
1 . . . . 5295106 . . . . . . . . . SINGLE STATION REMOTE ALARM
1 . . . . 8309210-3. . . . . . . . POWER SUPPLY, 120 VAC
1 . . . . 8309210-2. . . . . . . . POWER SUPPLY, 220 VAC
1 . . . . 8309170-22. . . . . . . CONN, 4 PIN SOC FEMALE (OUTPUT)
1 . . . . 8309170-17. . . . . . . CONN, 6 PIN SOC FEMALE (INPUT)
1 . . . . 99065106 . . . . . . . . INSTRUCTION MANUAL, REMOTE ALARM
Product Serial Number:
ADI 5106-B
Certied ISO 9001
Controls Corporation of America
1501 Harpers Road Virginia Beach, VA 23454
To Order Call 1-800-225-0473 or 757-422-8330 • Fax [phone]
www.concoa.com
