Concorde C-1020 User manual

1

2
ATA Configuration
1. Features ......................................................................................................................................................................5
1.1 VOIP SIP Protocols (RFC3261)/Interfaces......................................................................................................5
1.2 LAN Protocols /Interfaces................................................................................................................................6
1.3 Soft Switch Interoperability.............................................................................................................................6
2. ATA Overview............................................................................................................................................................7
2.1 Ports and Buttons .............................................................................................................................................7
2.2 LED Description ..............................................................................................................................................8
3. Installing ATA.............................................................................................................................................................9
3.1 Configure the Obtain and IPAddress automatically for LAN Card ..............................................................10
3.2 Easy Setup......................................................................................................................................................16
3.2.1 DHCP Client Mode.............................................................................................................................17
3.2.2 PPPoE Client Mode.............................................................................................................................19
3.2.3 Static IP Settings Mode.......................................................................................................................21
3.3 Basic VoIP Configuration...............................................................................................................................23
3.3.1 Access to the web configuration of ATA.............................................................................................23
3.3.2 VoIP Configuration..............................................................................................................................25
3.3.3 WAN Configuration ............................................................................................................................33
3.3.3.1 Static IP Configuration.............................................................................................................33
3.3.3.2 DHCP Client Mode Configuration...........................................................................................39
3.3.3.3 PPPoE Client Mode Configuration..........................................................................................44
4. Advanced VoIP Configuration .............................................................................................................................49
4.1 ATA Configuration Page ......................................................................................................................51
4.1.1 Country Specific Ring & Tones Configuration...................................................................................55
4.1.2 General Configuration Page................................................................................................................58
4.1.3 SIP Service Provider Configuration Page....................................................................................62
4.1.4 User Login Account Configuration Page.....................................................................................65
4.1.5 Timer Parameters Configuration Page.........................................................................................67
4.1.6 Call Feature Configuration Page..................................................................................................69
4.1.7 Address Book Configuration Page...............................................................................................71
4.1.8 Advanced Telephony Settings Page .............................................................................................73
4.1.9 Advanced System Telephony Parameters Page............................................................................77
4.1.10 FXO Configuration Parameters Page...........................................................................................79
4.2 Building Dial Plan String.....................................................................................................................81
4.2.1 Syntactic Format for Dial Plan Strings.........................................................................................81
4.2.2 Dial Plan String and Serial Codes................................................................................................82
4.2.3 Framing Dial Plan Rules.....................................................................................................................83
4.2.4 Default Dial Plan String......................................................................................................................84
4.2.4.1 Default Dial Plan Rule 0>#t4...................................................................................................85

3
4.2.4.2 Default Dial Plan Rule Nx.5t8xt2>#........................................................................................85
4.2.4.3 Default Dial Plan Rule 1Nx.2Nx.5tfxt2>#...............................................................................86
4.2.4.4 Default Dial Plan Rule 011x>#x.et8xt2...................................................................................86
4.2.4.5 Default Dial Plan Rule 1:*72;>#x.etfxt2 .................................................................................87
4.2.4.6 Default Dial Plan Rule 3:*74;>#x.etfxt2 .................................................................................88
4.2.4.7 Default Dial Plan Rule 4:*75;>#x.etfxt2 .................................................................................89
4.2.4.8 Default Dial Plan Rule 2:*73;>#t4...........................................................................................89
4.2.4.9 Default Dial Plan Rule 11:*70;>#t4.........................................................................................90
4.2.4.10 Default Dial Plan Rule 12:*69;>#t4.......................................................................................90
4.2.4.11 Default Dial Plan Rule 16:*90;x>#x.dtfxt2 ...........................................................................91
4.2.4.12 Default Dial Plan Rule 18:*47;x>#[0-9*].f[0-9*].ft8[0-9*].ft4.............................................91
4.2.4.13 Default Dial Plan Rule 19:*78;x>#t4.....................................................................................92
4.2.4.14 Default Dial Plan Rule 20:#;x.3tf>#x.atfxt2..........................................................................92
4.2.4.15 Default Dial Plan Rule 22:*83;>#t4.......................................................................................93
4.2.4.16 Default Dial Plan Rule 23:*76;>#t4.......................................................................................93
4.2.4.17 Default Dial Plan Rule 24:*77;>#t4.......................................................................................94
4.2.4.18 Default Dial Plan Rule 25:N1t41;>#......................................................................................95
4.2.4.19 Default Dial Plan Rule 26:*67;>#t4.......................................................................................96
4.2.4.20 Default Dial Plan Rule [0-9*]>#[0-9*].e[0-9*].ft4................................................................96
4.2.5 Empty Dial Plan String .......................................................................................................................97
4.2.6 Incorrect Dial Plan Rule......................................................................................................................97
5. Using Conexant ATA................................................................................................................................................98
5.1 Setting up ATA for VoIP Calls........................................................................................................................98
5.2 Making Basic Calls ........................................................................................................................................98
5.3 Advanced Call Features..................................................................................................................................99
5.3.1 Caller ID..............................................................................................................................................99
5.3.2 Call-Waiting Caller ID ......................................................................................................................100
5.3.3 Consultation Hold .............................................................................................................................100
5.3.4 Blind Transfer....................................................................................................................................100
5.3.5 Attended Transfer..............................................................................................................................101
5.3.6 3-Way Conferencing..........................................................................................................................101
5.3.7 Call Waiting in USA..........................................................................................................................102
5.3.8 Call Forwarding in USA ...................................................................................................................103
5.3.8.1 Call Forwarding Unconditionally...........................................................................................103
5.3.8.2 Call Forwarding On Busy ......................................................................................................103
5.3.8.3 Call Forwarding On No Answer.............................................................................................104
5.3.8.4 Canceling Call Forwarding ....................................................................................................104
5.3.9 Call Return in USA...........................................................................................................................105
5.3.10 IP Dialing ........................................................................................................................................105
5.3.11 Speed Dialing for Address Book Entries.........................................................................................106
5.3.12 Caller ID Transmission Block.........................................................................................................106
5.4 PSTN Backup (Failsafe Relay Mode)..........................................................................................................107

4
5.5 FXO Support................................................................................................................................................107
5.5.1 Incoming PSTN Call:........................................................................................................................108
5.5.2 Initiate PSTN Call:............................................................................................................................108
5.5.3 Call Waiting - Receiving a Second Call:...........................................................................................108
6. Admin Privilege......................................................................................................................................................109
6.1 Miscellaneous Configuration .............................................................................................................109
6.2 System Log......................................................................................................................................... 111
6.3 Admin Level Username / Password Configuration............................................................................112
6.4 Local Code Image Update.................................................................................................................. 113
Appendix A Glossary ................................................................................................................................................. 114
A.1 Acronyms..................................................................................................................................................... 114
A.2 Keyword and Definitions ............................................................................................................................ 114
Appendix B Dial Plan for Pulver Service Provider.................................................................................................... 115
B.1 Basic Dial Plan ............................................................................................................................................ 115
B.1.1 Pulver - USA Dial Plan..................................................................................................................... 115
B.1.2 Explanation of the Rules................................................................................................................... 116
B.2 Calling Other Service Provider Numbers through Pulver........................................................................... 117
Appendix C Configuring *.ini Files........................................................................................................................... 118
C.1 vophwcfg.ini - Configuring PSTN Backup Support ................................................................................... 118
C.1.1 Configuration for CX82310 Based System...................................................................................... 118
C.1.2 Configuration for 1-Line Reference Hardware ................................................................................119
C.1.3 Configuration (2FXS-1FXO) Based Reference Hardware...............................................................120
Appendix D Ring Tone Descriptions .........................................................................................................................121
For Hungarian user manual please visit our website:
www.concorde.hu/drvpdf/02-05-405.pdf

5
1. Features
1.1 VOIP SIP Protocols (RFC3261)/Interfaces
· Single voice port that supports legacy (analog) touch-tone telephones
· Connects legacy telephones to IP-based networks
· Advanced pre-processing to optimize full-duplex voice compression
· High performance line-echo cancellation eliminates noise and echo
· Dynamic network monitoring to reduce jitter artifacts such as packet loss
· Clear, natural-sounding voice quality VoIP Specifications
· Radvision Sip stack version 3.1.1.30
· Digest Authentication MD5
· Record-Route Headers
Voice codecs
· G.729A
· G.726
· G.711 A-Law
· G.711 U-Law
Voice QoS
. Diff serv
. VLAN tags
STUN (Simple Traversal UDP Through NAT)
. RFC3489
Dual-tone multi-frequency (DTMF)
· DTMF tone detection and generation
· Mid-Call DTMF for IVR support
· RFC 2833 AVT tones
· Configurable for two sets of frequencies and single set of on/off cadence (US, UK)
Line-echo cancellation
· G.165, G.168 compliant
· Echo canceller for each port
· 8 to128 msec configurable echo length
· Nonlinear echo suppression
· Convergence time = 250 ms
· ERLE = 10 to 20 dB
· 1 PSTN port interface (FXO) (Optional)
· 1 VOIP port interface (FXS)
· 2 VOIP port interface (FXS) (Optional)

6
Modem & Fax modes
· G.711 fax/modem pass-through with fax/modem detection
· T.38 support
1.2 LAN Protocols /Interfaces
. Ethernet interface
. Support Ethernet Interface (10/100Mbps) which compliant with IEEE 802.3x
standards.
. 10/100 Mbps auto selection
. Ethernet ports support Automatic MDI/MDI-X configuration transceiver.
1.3 Soft Switch Interoperability
. Cisco Proxy/Gateway
. Nortel Proxy/Gateway
. Nokia Proxy/UA
. Avaya Proxy/UA
. Mitel UA
. GL Communications UA/Proxy Simulator
. Marconi Proxy/UA
. Naveltel Proxy/UA
. Texas Instruments UA
. Metaswitch Proxy/Gateway
. BATM UA
. Alcatel B2BUA
. CCL/ITRI Proxy/UA
. 3COM Proxy/SIP IP Phone
. BroadSoft

7
2. ATA Overview
ATA has many ports, switches and LEDs. ATA may have some or all of the features listed
below
2.1 Ports and Buttons
1WAN + 4 LAN + 2 FXS+1 FXO
POWER: Connect the power adapter that came with the ATA. Using a power supply with a
different voltage rating will damage this product. Make sure to observe the proper power
requirements. The power requirement is 12 volts.
WAN port: Connect to Broadband devices , such as a ADSL or Cable modem.
ETH port: Connect to Ethernet network devices, such as a PC, hub, switch, or router.
Depending on the connection, you may need a cross over cable or a strait through cable.
RESET: The RESET button will set the ATA to its factory default setting and reset the ATA.
You may need to place the ATA into its factory defaults if the configuration is changed, you
loose the ability to enter the ATA via the web interface, or following a software upgrade, and
you loose the ability to enter the ATA. To reset the ATA, simply press the reset button for
more than 10 seconds. The ATA will be reset to its factory defaults and after about 30
seconds the ATA will become operational again.
PSTN Jack: Connect a telephone cable between the ATA line jack and a wall jack.
PHONE 1/PHONE 2 Jack: Connect a standard telephone handset to the ATA phone jack
using a telephone cable.

8
2.2 LED Description
Power LED: The LED stays lighted to indicate the system is power on properly.
SIP1/SIP2 LED: This LED is lighted when the ATA is REGISTERED successfully to the SIP
Server.
WAN LED: The LED is lighted when a connection is established to WAN port and flashes
when WAN port is sending/receiving data.
LAN LED: The LED is lighted when a connection is established to LAN port and flashes
when LAN port is sending/receiving data.

9
3. Installing ATA
1. Locate an optimum location for the ATA.
2. For connections to the Ethernet interfaces, refer to figure below.
3. Connect the AC Power Adapter. Depending upon the type of network, you may want to
put the power supply on an uninterruptible supply. Only use the power adapter supplied
with the ATA. A different adapter may damage the product.
Now that the hardware installation is complete, proceed to reset Chapters to set up ATA

10

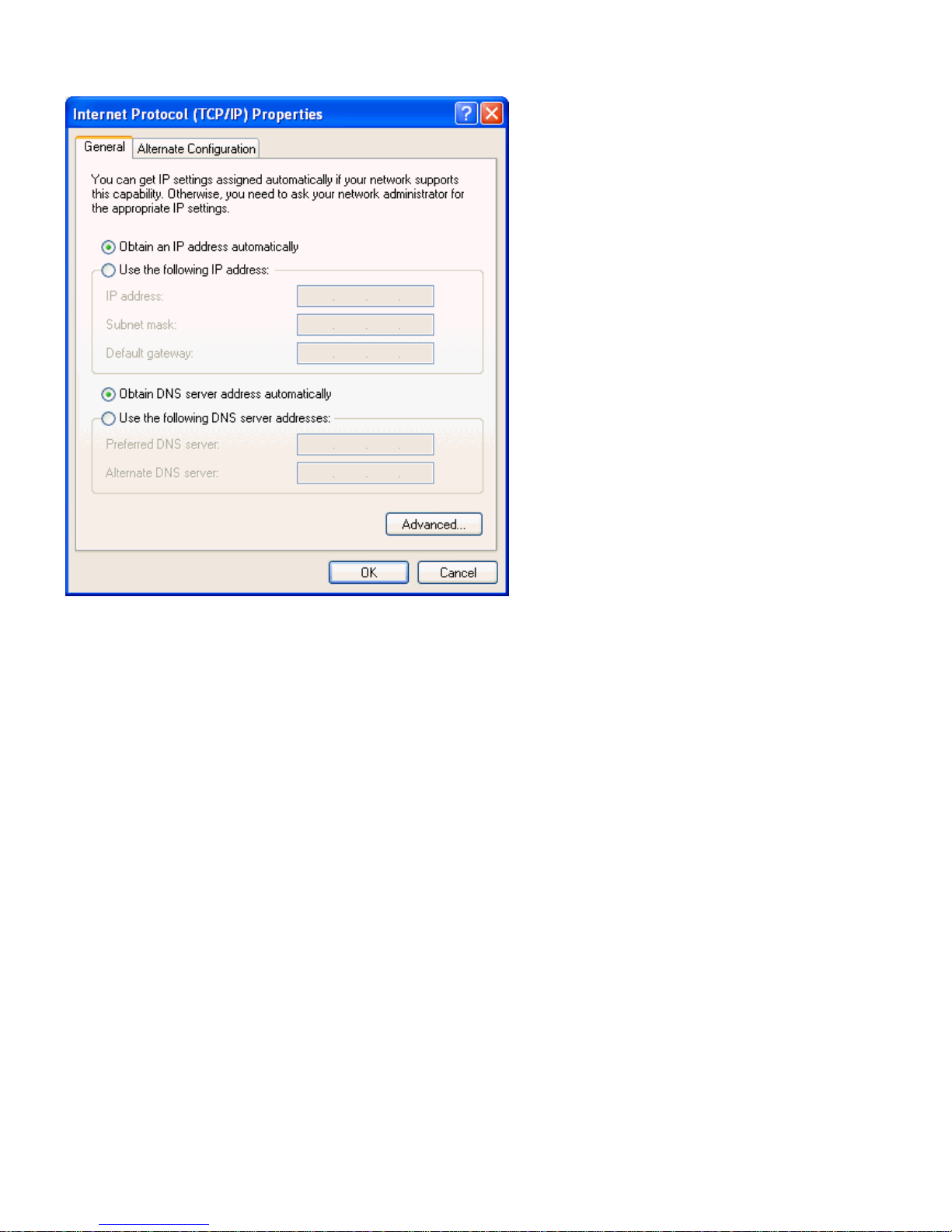

3.1 Configure the Obtain and IP Address
automatically for LAN Card
Step 1:
Click " Start -> Control Panel "

11
Step 2:
Double click " Network Connections "

12
Step 3:
Right click " Local Area Connection " and then click " Properties "

13
Step 4:
Click " Internet Protocol [TCP/IP] " and then click " Properties "

14
Step 5:
Select " Obtain and IP Address automatically " and then click " OK "

15
Step 6:
Click " Close "

16
3.2 Easy Setup
For easy advanced configuration, insert the CD into your CD-ROM drive.
The CD should auto-start and then click “Easy Setup”. If it does not start, click on Start ->
Run and type in CD:\Easysetup\vbpES.exe (where CD is the drive letter of your CD-ROM
drive.)
There are Three options of Protocol Modes: DHCP Client, PPPoE Client and Static IP
Setting Mode.

17
3.2.1 DHCP Client Mode
1. After selecting the Protocol mode: DHCP Client Mode
2. Enter Registrar Address and Port / Proxy Address and Port / Outbound Proxy
Address and Port / Auth User ID / Password in VoIP Line 0 and VoIP Line 1 which was
given by Telecom or by your Internet Service Provider (ISP).
3. Click Setup, it will start to configure the ATA for a while. Follow the instructions of the
Easy Setup utility which will guide you to complete the configuration.
4. Easy setup configuration completed.
5. Please connect the Ethernet cable between the ATA and Broadband Device.
6. Please check the SIP LED is lighted or not. If the SIP LED is lighted, the ATA is

18
REGISTERED successfully to the SIP Server. If not, please press reset button and
reconfigure configuration again.
7. Now you are ready to use the ATA !!!

19
3.2.2 PPPoE Client Mode
1. After selecting the Protocol mode: PPPoE Client Mode
2. Enter Username / Password / Registrar Address and Port / Proxy Address and Port
/ Outbound Proxy Address and Port / Auth User ID / Password in VoIP Line 0 and VoIP
Line 1 which was given by Telecom or by your Internet Service Provider (ISP).
3. Click Setup, it will start to configure the ATA for a while. Follow the instructions of the
Easy Setup utility which will guide you to complete the configuration.
4. Easy setup configuration completed.
5. Please connect the Ethernet cable between the ATA and Broadband Device.
6. Please check the SIP LED is lighted or not. If the SIP LED is lighted, the ATA is

20
REGISTERED successfully to the SIP Server. If not, please press reset button and
reconfigure again.
7. Now you are ready to use the ATA !!!
