CONIC BEEZOOM1940 User manual

BEEZOOM1940
40W RGBW 4-in-1 LED Moving Head
USER MANUAL

2 / 15
1. Unpacking
Thank you for choosing our fixture. For your own safety, please read this manual
before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
This fixture is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each other
for operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
4-IN-1 LEDs(RGBW) which features high brightness and stability. Please
carefully unpack it when you receive the fixture and check whether it is damaged
during the transportation. And please check whether the following items are included
inside the box:
Moving Head---------One Signal Cable----One
Hanging Bracket-----Two Power Cable----One
Safety Cable---------one User Manual----One

3 / 15
2. Product dimension

4 / 15
3. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage the
device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.

5 / 15
4. Operation Instructions
-The fixture is for beam wash and effect use.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
5. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety
cable.

6 / 15
Never stand directly below the device when mounting, removing, or servicing the
fixture from a
periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting: The product provides a unique mounting bracket assembly that
integrates the bottom of the base, the included “Omega Bracket,” and the safety cable
rigging point in one unit (see the illustration below). When mounting this fixture to truss
be sure to secure an appropriately rated clamp to the included omega bracket using a
M10 screw fitted through the center hole of the “omega bracket”. As an added safety
measure be sure to attached at least one properly rated safety cable to the fixture
using on of the safety cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for our fixture, always be sure to secure
your fixture with a safety cable. The fixture provides a built-in rigging point for a safety
cable on the hanging bracket as illustrated above. Be sure to only use the designated
rigging point for the safety cable and never secure a safety cable to a carrying handle.

7 / 15
6. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed should be
two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
1
2
3
PIN 3
PIN 2
120
Ω

8 / 15
7. DMX Channels
22 channels mode
CH Function DMX
Value
Details
1 Pan 0-255 Pan movement control
2 Pan fine 0-255 Pan fine control
3 Tilt 0-255 Tilt movement control
4 Tilt fine 0-255 Pan fine control
5 Pan/Tilt speed 0-255 Speed from fast to slow
6 ZOOM 0-255 Zoom
7 LENS rotation
0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
8 Dimmer 0-255 0-100 linear dimmer from dark to bright
9 Strobe
0-3 No function, Light off
4-200 Strobe with the same step from slow to fast
201-255 Random strobe from slow to fast
10 R 0-255 1-100% Red linear dimmer from dark to bright
11 G 0-255 1-100% Green linear dimmer from dark to bright
12 B 0-255 1-100% Blue linear dimmer from dark to bright
13 W 0-255 1-100% White linear dimmer from dark to bright
14 Color
temperature
0-255 Linear color temperature control
15 Marco 0-255 Marco color change
16 Static effect
0-9 No function
10-84 Each 5 DMX value is a kind of static effect(15 kinds)
85-255 16th kind of effect
17 Dynamic effect
0-9 No function
10-199 Each 5 DMX value is a kind of dynamic effect(38 kinds)
200-255 39th kind of effect
18 Dynamic effect
speed
0-127 Anti-clockwise rotate from fast to slow, operate against 17 CH
128-255 Clockwise rotate from slow to fast, operate against 17 CH
19 LED ring strobe
0-3 No function, Light off
4-250 LED ring strobe
251-255 No function, Light on
20 LED ring macro
0-51 Macro color
52-255 Dynamic effect, every 4 DMX channel is one kind of effect,
totally 51 kinds
21 Macro speed 0-255 LED ring macro effect from slow to fast
22 Reset 0-239 No function
240-255 Reset with 5 seconds

9 / 15
26 channels mode
CH Function DMX
Value
Details
1 Pan 0-255 Pan movement control
2 Pan fine 0-255 Pan fine control
3 Tilt 0-255 Tilt movement control
4 Tilt fine 0-255 Pan fine control
5 Pan/Tilt speed 0-255 Speed from fast to slow
6 ZOOM 0-255 Zoom
7 LENS rotation
0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
8 Dimmer 0-255 0-100 linear dimmer from dark to bright
9 Strobe
0-3 No function, Light off
4-200 Strobe with the same step from slow to fast
201-255 Random strobe from slow to fast
10 R 0-255 1-100% Red linear dimmer from dark to bright
11 G 0-255 1-100% Green linear dimmer from dark to bright
12 B 0-255 1-100% Blue linear dimmer from dark to bright
13 W 0-255 1-100% White linear dimmer from dark to bright
14 Color
temperature
0-255 Linear color temperature control
15 Marco Color 0-255 Marco color change
16 Static effect
0-9 No function
10-84 Each 5 DMX value is a kind of static effect(15 kinds)
85-255 16th kind of effect
17 Dynamic effect
0-9 No function
10-199 Each 5 DMX value is a kind of dynamic effect(38 kinds)
200-255 39th kind of effect
18 Dynamic effect
speed
0-127 Anti-clockwise rotate from fast to slow, operate against 17 CH
128-255 Clockwise rotate from slow to fast, operate against 17 CH
19 Background R 0-255 Background color Red dimmer
20 Background G 0-255 Background color Green dimmer
21 Background B 0-255 Background color Blue dimmer
22 Background W 0-255 Background color White dimmer
23 LED ring strobe
0-3 No function, Light off
4-250 LED ring strobe
251-255 No function, Light on
24 LED ring macro 0-51 Macro color
52-255 Dynamic effect, every 4 DMX channel is one kind of effect,
totally 51 kinds
25 Macro speed 0-255 LED ring macro effect from slow to fast
26 Reset 0-239 No function
240-255 Reset with 5 seconds

10 / 15
36 Channels mode
CH Function DMX
Value
Details
1 Red 0-255 Red dimmer
2 Red Fine 0-255 Red fine control
3 Green 0-255 Green dimmer
4 Green Fine 0-255 Green fine control
5 Blue 0-255 Blue dimmer
6 Blue Fine 0-255 Blue fine control
7 White 0-255 White dimmer
8 White Fine 0-255 White fine control
9 CTO 0-255 Color temperature linear control
10 Macro color 0-255 Marco color effect
11 strobe
0-3 No function, Light off
4-103 Strobe with the same step from slow to fast
104-107 No function, light up
108-207 Pulse strobe from slow to fast
208-212 No function, light up
213-251 Random strobe from slow to fast
252-255 No function, light up
12 Dimmer 0-255 0-100 linear dimmer from dark to bright
13 Dimmer Fine 0-255 Dimmer fine control
14 Pan 0-255 Pan movement control
15 Pan Fine 0-255 Pan fine control
16 Tilt 0-255 Tilt movement control
17 Tilt Fine 0-255 Pan fine control
18 Function 0-255
19 Reset 0-250 No function
251-255 Reset with 5 seconds
20 Zoom 0-255 ZOOM
21 LENS Rotation 0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
22 Shape Selection 0-255 Selecting shape(0-70 workable)
23 Shape Speed 0-255 Shape speed control
24 Shape Fade 0-255 Shape fade
25 Shape R 0-255 Shape in Red color
26 Shape G 0-255 Shape in Green color
27 Shape B 0-255 Shape in Blue color
28 Shape W 0-255 Shape in White color
29 Shape Dimmer 0-255 Shape dimmer 0-100%
30 Background Dimmer 0-255 Background dimmer 0-100%
31 Shape Transition 0-255 Shape change
32 Shape Offset 0-255 Shape offset
33 Foreground strobe 0-255 Foreground strobe control
34 Background strobe 0-255 Background strobe control
35 Background selection 0-255 Background selection
36 Frequency 0-255 Shape and frequency selectable
s

11 / 15

12 / 15
78Channels mode
CH Function DMX
Value
Details
1 Red 0-255 Red dimmer
2 Red Fine 0-255 Red fine control
3 Green 0-255 Green dimmer
4 Green Fine 0-255 Green fine control
5 Blue 0-255 Blue dimmer
6 Blue Fine 0-255 Blue fine control
7 White 0-255 White dimmer
8 White Fine 0-255 White fine control
9 CTO 0-255 Color temperature linear control
10 Macro Color 0-255 Marco color
11 strobe
0-3 No function, Light off
4-103 Strobe with the same step from slow to fast
104-107 No function, light up
108-207 Pulse strobe from slow to fast
208-212 No function, light up
213-251 Random strobe from slow to fast
252-255 No function, light up
12 Dimmer 0-255 0-100 linear dimmer from dark to bright
13 Dimmer Fine 0-255 Dimmer fine control
14 Pan 0-255 Pan movement control
15 Pan Fine 0-255 Pan fine control
16 Tilt 0-255 Tilt movement control
17 Tilt Fine 0-255 Pan fine control
18 Function 0-255 Revered channel, no function at this moment
19 Reset 0-250 No function
251-255 Reset with 5 seconds
20 Zoom 0-255 Zoom
21 Zoom Rotation
0-127 0 to 60 degree
128-191 Unlimited clockwise rotation from fast to slow
192-255 Unlimited anticlockwise rotation from fast to slow
22 Red dimmer 1 0-255 LED 1 red dimmer
23 Green dimmer 1 0-255 LED 1 green dimmer
24 Blue dimmer 1 0-255 LED 1 blue dimmer
25 Red dimmer 2 0-255 LED 2 red dimmer
26 Green dimmer 2 0-255 LED 2 green dimmer
27 Blue dimmer 2 0-255 LED 2 blue dimmer
… ……… ……… ………
76 Red dimmer 19 0-255 LED 19 red dimmer
77 Green dimmer 19 0-255 LED 19 green dimmer
78 Blue dimmer 19 0-255 LED 19 blue dimmer

13 / 15

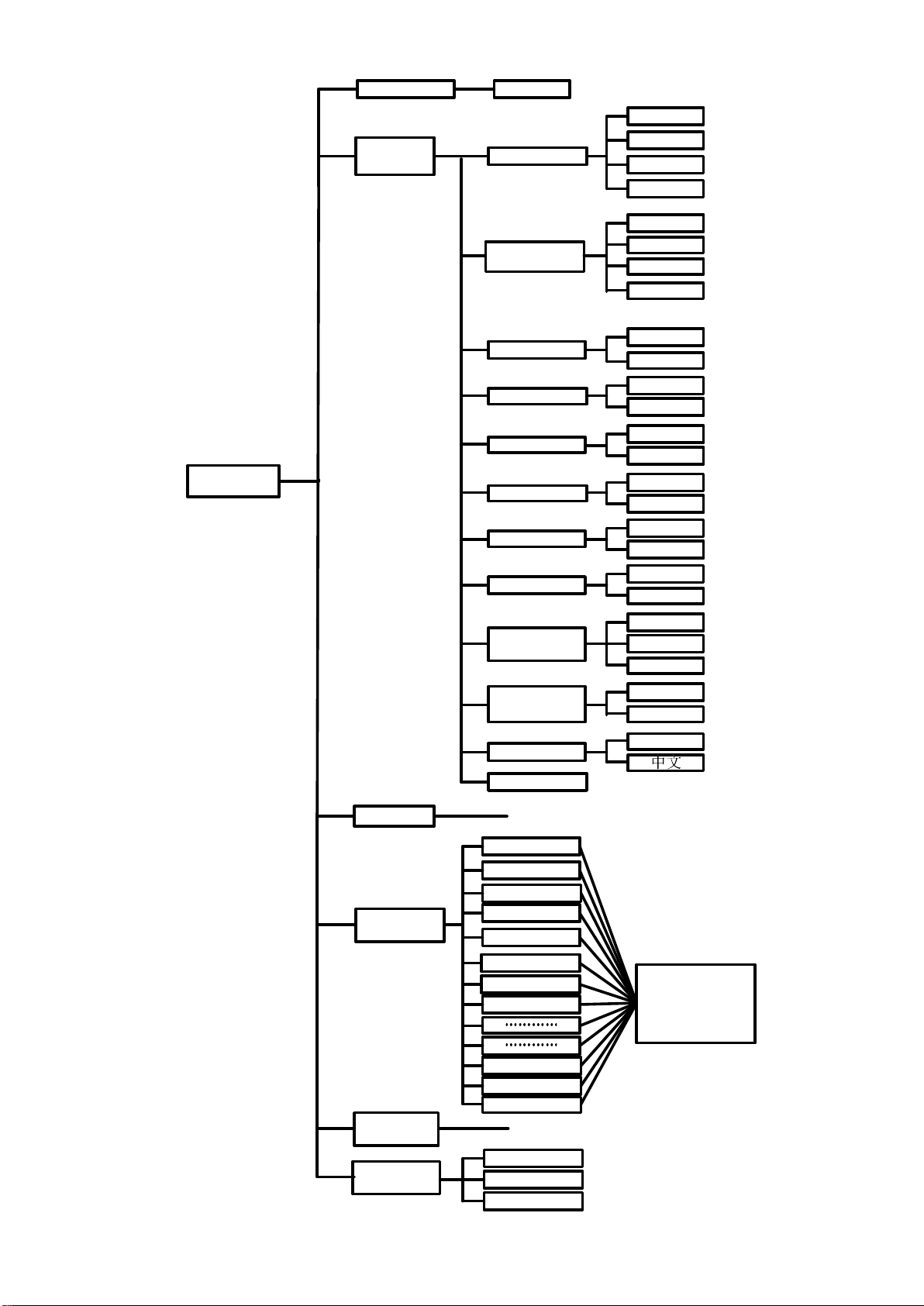

8. Display instruction
MENU
System
Setup Run Mode
Channel
mode
Invert Pan
Invert Tilt
Motor
Calibration
DMX
Sound
Auto 1
Auto 2
001-512
22CH
26CH
ON
OFF
ON
OFF
Hall Croct OFF
ON
Encoder Crct ON
OFF
Signal keep ON
OFF
Screen Saver On
Off
Language EN
Load Default
Manual
PAN
TILT
Focus
ROTATION
Note
Reset
Don’t change
the data unless
it’s necessary
36CH
Addre
Invert
Screen
Auto
ON
OFF
Update
Slave
ON
Off
Balance-Red
Balance-Green
Balance-Blue
Balance-White
Power
MIC
Change passport
Manual control each channel
Reset effect
Reset Scan
Reset All
System information
78CH

14 / 15
9. Key Features
Voltage: AC100V～240V 50-60HZ
Rated Power: 760W
LED Source: 19x40W high power RGBW 4 in 1 LEDs
Zoom: 7°-50°
Strobe: 0-25Hz
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels: 22/26/36/78 four channel mode
Dimmer: 0-100% linear dimmer
Pan: 540°+16 bit fine
Tilt: 220°+16 bit fine
Display: LCD colorful display
IP: IP20
Fixture dimension: 405*234*440mm
N.W:15.2 Kg
G.W: 18.7 Kg
Package dimension: 62*39*51 CM (1pc/ctn)
Special Points.
1. Each LED can be controlled individually. With unique honeycomb
designed lens.
2. The front lens can rotate without limitation in forward and reverse
direction to create amazing effects.
3. Can be used as beam, wash or effect light use (Kaleido effects).
4. With a extra LED ring for eye-candy effect, LED ring with macro effect.

15 / 15
10. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations
and installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must
not
rotate with unbalances.
4. The electric power supply cables must not show any damage, material
fatigue or sediments.
Further instructions depending on the installation spot and usage have to be
adhered
by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we
suggest a regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the
lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three
month,
make sure that the circuit contacts are in good condition, prevent the poor
contact
of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-
free cloth. Never use alcohol or solvents.There are no serviceable parts inside
the device.
Please refer to the instructions under “Installation instructions”.Should you
need any spare parts, please order genuine parts from your local dealer.
