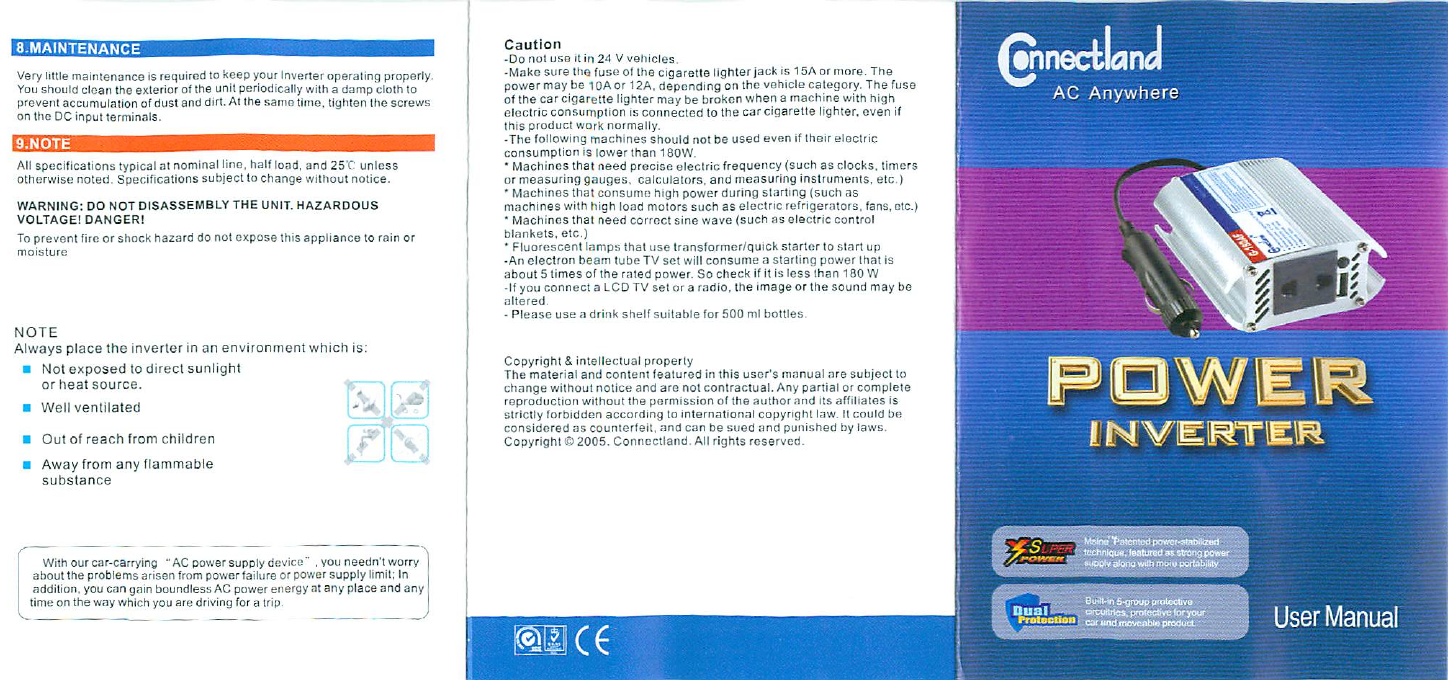

Connectland G-180AF User manual

8.MAINTENANCE
Very little maintenance is requirnd to keep your Inverter nperaling properly.
You shouia clean the exterior of the unit periodically with a damp cloth to
prevent accumulation oTdust and dirt. At the same time, tighten the screws
on the DC input terminals.
All specifications typical al nominal line, half load, and 25V' unless
otherwise noted Specifications subject lo change without notice.
WARNING: DO NOT DISASSEMBLY THE UNIT. HAZARDOUS
VOLTAGE! DANGER!
To prevent Tiro or shock hazard do not expose this appliance lo rain or
moisture
NOTE
Always place the inverter in an environment which is:
■ Not exposed lo direct sunlight
or heat source.
-
Well ventilated
Out of reach from children
Away from any flammable
substance
With our car-carrying "AC power supply device" , you needn't worry
about the problems arisen from power failure or power supply limii; In
addition, you can gain boundless AC power energy nt any place and any
lime on the way which you arc driving for a [rip.
Caution
-Do not use it in 24 V vehicles
-Make sure lha fuse of the cigarette lighter jack is 15A or more. The
power may be lOAor 12 A, depending on the vehicle category. The fuse
of the car cigarette lighter may be broken when a machine with high
electric consumption is connected to the car cigarette lighter, oven if
Ihis product work normally.
•The following machines should not be used even if their electric
consumption is lower than 180W,
" Machines that need prectsfl electric frequency (such as clocks, timers
ormeasuring gauges, calculators, and measuring inslruments. etc )
" Machines that consume high power during starting (such as
machines with high load molors such as electric refrigerators, fans, etc.}
" Machines that need correct sine wave (such as olectnc control
blankets, etc.)
' Fluorescent lamps that use transformer/quick starter to start up
-An electron beam lube TV set will consume a starting power that is
jibout 5 times of the ruled power. So check if it is less than 1 BO W
-If you connect a LCD TV set or a radio, the image or the sound may be
altered.
- Please use a drink shelf suitable for 500 nil bottles
Copyright & intellectual property
The material and content featured in this user's manual are subject to
change vyithout notice and are not contractual. Any partial or complete
reproduction without the permission of the author rind its affiliates is
strictly torbidden according lo international copyright law It cnuld be
considered as counterfeit, and can be sued und punished by laws.
Copyright £> 2005. Connectland. All rights reserved.
AC Anywhere
i==i
INVERTER
User Manual

1. INTRODUCTION
Thanks for your purchasing the power inverter.
The power inverter With outstanding quality nnd portability you expect,
the adoption of M sine patent pressure stabilization technology achieves
more stable performance and smaller volume.
1.1FUNCTIONAND FEATURES:
♦ It can be used for portable computer, mobile phone, video camera,
mini acoustics, fluorescent lamp and other electric appliances.
♦ It features plug and play and can be used when auto generator is in
running or liameaul conditions.
♦ The built-in detecting chip and automatic heaE dispersion system can
provide accumulator under voltage, ou Iput overload and overheat protection.
♦ Palmtop computer,Mp3.mobile phone and other little power electric
appliances can be directly inserted into tho USB interface for power charging.
2.APPL CATION METHOD
♦ Insert the plug of electric appliance into the cigar lighting sockel
firmly and keep in good conlact, the blue LEO indicatory/ill lightup.
♦ Insert the power plug into Ihe AC socket of power supply unit for
normal power supply.
Intelligent fan hfint
G-180AF
AC power socket
(ROM IKWCf ini)W]
nserl thi socket csf cigyr lighter of the car
3. OPERATION
A) When connectod to an appliances remember to turn on the inverter
before turning on the appliance. If thrc buzzer sounds during operation,
this indicates that the battery voltage Is very low and the inverter will
be disconnected in 5 minutes.
B) When connect the electrical appliance that with CRT, such as TV sot.
computer and so on to the Power Inverter which below SOOW. the electrical
appliance may be started forseveral times before it can work smoothly. Don't
star! the power inverter when it is v/rth loaded, otherwise tho power inverter
will be damaged.
C) When connect the electrical appliance that with motor or compressor
such as drill, air-condition and so on to the power inverter, please make sure
that the power rating of the power inverter is at If;ast 3 times of the power
rating of the electrical appJiiincc-, so that it can work smoothly, because the
starting up power is much beyond of the power rating ot tho electrical
appliance.
4.OUTPUT CAPACITY
The inverter will switch oft automatically ir the total wattage of Ihe electrical
appliances exceeds the inverter's output capacity. This will also happen
if tho temperature of trie inverter exceeds 60 C due to prolonged use.
S. SPECIAL RECOMMENDATION
Unplug tho AC inverter when not in use.
Unplug the AC inverter when starting the vehicle's motor.
If the AC inverter makes a beeping sound: switch off your applfance.
unplug the inverter and restart your vehicle's the engine. The beeping
scund is simply the low-battery warning whrch indicates that the voltage
of your battery is getting low. Your inverter will shut down nutomolically
if you do not restart your engine and continue the useof your invcrler.
This will leave your vehicle's battery at about 10.5VDC (24VDC when
using4SV inverter), enabling you tcj start your engine and resume operation
of the inverter. It also eliminates the possibility of being stranded wilh a
dead battery. To avoid over-discharging the battery, it is advisable to let
your engine run for 10 to 20 minutes after every 2-3 hours of using the AC
inverter. This allows your vehicle's battery to recharge.
6. VENTILATION
sure the fan is not blocked in order to avoid poorventilation.
i
BAD
GOOD
7.CAUTION
In case of trouble with the AC ouput, e.g.short-circuit,
overload.
elc—the protection circuit will automatically cut off the output.
In such casDs:
A. switch off the power at once
B. disconnect ail unifs
C. check the connected devices
D. use the units again as soon as any problems concerning
the
connected devices have been solved
When in use for a prolonged period of time, the AC output may
suddenly be cut off although the battery voltage is still very
strong.
This may be caused by excessive temperatures. If this
happens.
Please proceed as follows:
A. Switch off the inverter at once
B.Disconnect some of the appliances or wait until the inverter
cools off
C.Switch the inverter back on
Always keep the inverter in an environment which is:
A,Well-ventilated
B.Not exposed to direct sunlight or any other heat source
C.Inaccessible lo children
D.Safe from water/moisture, oil or grease
E.Safe from any flammable substance
If the inverter is connected in the wrong way, this will void the
warranty.
