Consilium Salwico SE3000+ User manual

Test device
Salwico SE3000+
User’s guide
çConsilium

The contents of this document are subject to revision without notice due to continued progress in methodology,
design and manufacturing. Consilium Marine assumes no legal responsibility for any error or damage resulting
from the usage of this document.
Third Edition, August 2003
Document number S-4-007.014 Version 2
© 1996-2003, Consilium Marine AB
S-402 76 Göteborg, Sweden

User’s Guide Contents i
Salwico SE3000
Contents
Contents........................................................................................i
Chapter 1: General ......................................................................2
Front view............................................................................................ 3
Side view (right)................................................................................... 3
Chapter 2: Functions...................................................................4
Power time-out .................................................................................... 4
Powered loop....................................................................................... 4
Short-circuit loop.................................................................................. 4
Battery and power supply supervision.................................................. 4
Loop test.............................................................................................. 4
Loop unit test....................................................................................... 4
Chapter 3: Menus ........................................................................5
General................................................................................................ 5
Power on ............................................................................................. 5
Battery................................................................................................. 5
Error messages................................................................................... 5
Chapter 4: Tests ..........................................................................6
Loop test.............................................................................................. 6
Loop unit test....................................................................................... 8
Technical data............................................................................10
Weight............................................................................................... 10
Dimension.......................................................................................... 10
Adapter requirements........................................................................ 10
Battery............................................................................................... 10

User’s Guide Chapter 1: General 2
Salwico SE3000
Chapter 1: General
In your hand you now have a small hand hold test device for Salwico Fire
Alarm Systems, the SE3000. With SE3000 you may execute two different
tests, a loop test and a loop unit test. Before you make a test connect the test
probes to the loop, the SE3000 thereafter checks the loop to see if it is under
power. If this is not the case SE3000 connects itself to the loop and starts
testing.
If the loop is under power an error message is displayed and the SE3000 does
not connect itself to the loop.
The loop test automatically boots the complete loop and searches all addresses
on the loop. All the information found about the addresses are saved in a list,
which you can print out or scroll through on the display.
The loop unit test searches for the manually requested address and
immediately displays all information found about the unit.

User’s Guide Chapter 1: General 3
Salwico SE3000

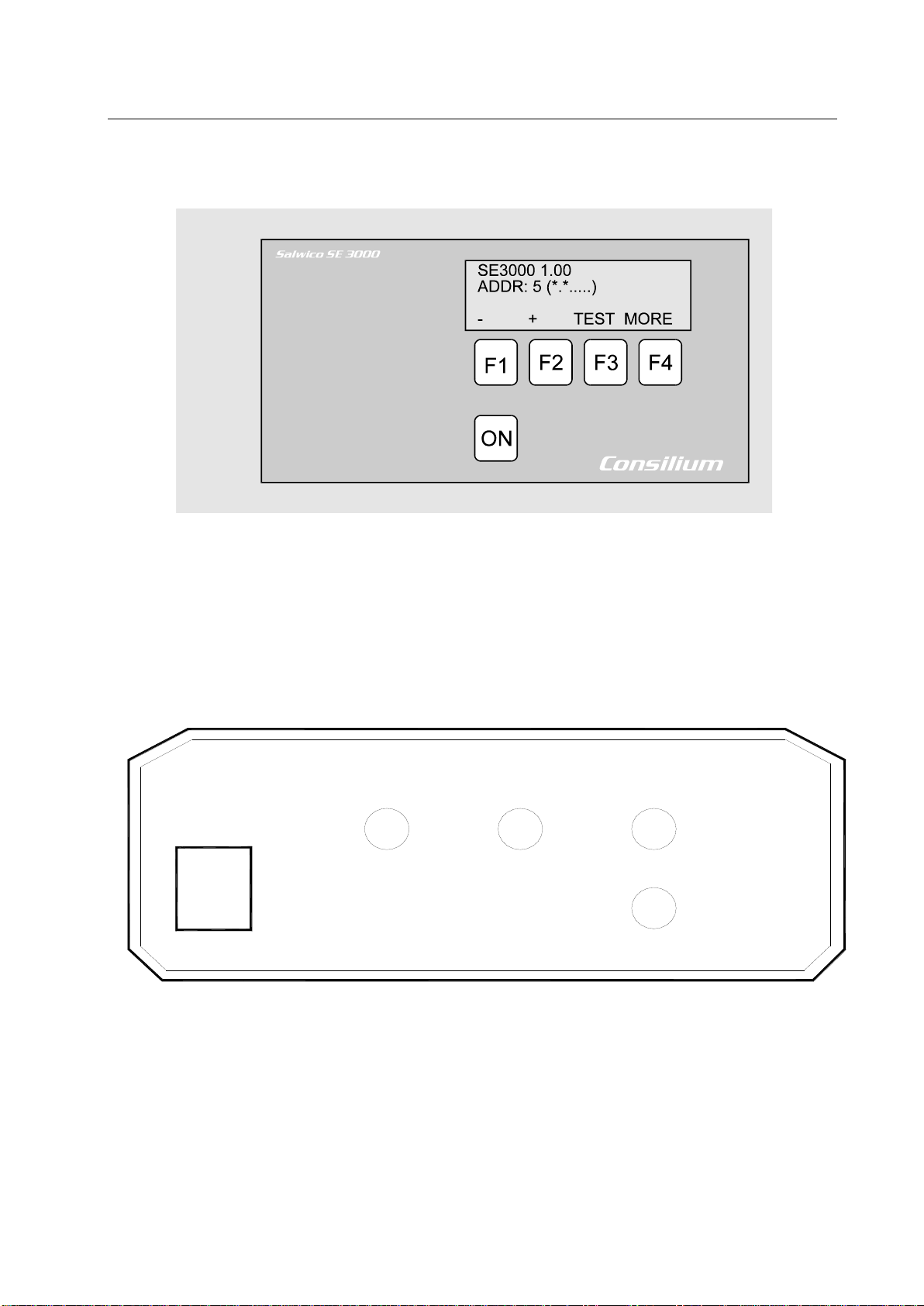

Front view
Side view (right)
12 3 4
5
1. +24VDC Adapter
2. Earth
3 Loop -
4 Loop +
5 RS232

User’s Guide Chapter 2: Functions 4
Salwico SE3000
Chapter 2: Functions
Power time-out SE3000 is shut down 3 minutes after the last key is pressed or the last test is
executed.
Powered loop SE3000 can not execute a test on a loop if it is under power. Therefore
SE3000 always starts with a check of the loop to see if it is under power. The
test is not executed if this is the case. An error message is displayed and it
remains displayed until the error has disappeared.
Short-circuit loop The communication test is interrupted when SE3000 detects a short-circuit
and an error message is displayed. The error message remains displayed until
the next communication test is executed.
Battery and power supply supervision
The battery and power supply of the test device are continuously supervised.
An error message is displayed when the battery passes a not acceptable power
level.
Loop test When a loop test is performed SE3000 starts at address 1 and searches the
complete loop for all the loop units and their IDs. If a loop unit does not
answer SE3000 tries to recommunicate with it several times.
Each time the test device detects a short-circuit isolator it restarts the loop test
from address 1. The loop test continues until all short circuit isolators have
been activated. If a short circuit is caused by the activation of a short circuit
isolator SE3000 can keep track of all answering addresses by using this
method. An error message is displayed.
When the loop test is finished you may look at a list or a printout including all
the answering loop units and their IDs. You may at any time interrupt the loop
test by pressing the EXIT key (F4).
Loop unit test The loop unit test searches the loop for the specified loop unit. The address
must be in the interval 0 - 255. When it has found the loop unit, it first tries to
get answer from the loop unit. Thereafter it asks for the loop unit ID and it
also checks the address, since each loop unit must have a unique address.
Instead of displaying the ID number SE3000 displays the name of the loop
unit type. A short circuit isolator may be manually activated and its real status
is then displayed in the menu, active or not active. The LED of an answering
unit is flashing.
SE3000 continuously supervise the loop for short circuits.

User’s Guide Chapter 4: Tests 5
Salwico SE3000
Chapter 3: Menus
General The SE3000 has two main menus, one for loop test and one for loop unit test.
You select the appropriate menu by pressing MORE (F4) repeatedly. All
messages are displayed on line one and each message remains displayed until
the error is not present in the system anymore. If there are more than one error
message the SE3000 alternatively displays each error message for 2 seconds.
Power on
At power the program name and version are displayed on line 1 for
a few seconds.
SE3000 1.00
Battery
The remaining capacity of the battery is displayed in percent. (In
this example the capacity is 60% of full capacity.) This message is
alternatively displayed with the error message.
60%
The remaining charging time is displayed if an adapter is
connected to the SE3000. In this example the battery will be fully
charged in 2 hours.
BATTERY CHARGE 2H
Error messages
The loop is already under power.
LOOP IS POWERED
The battery voltage is to low. Charge the battery.
LOW BATTERY
The battery voltage is to low. Charge the battery. No tests can be
started and the keys are locked.
BATTERY DISCHARGED
This message is displayed the last 30 seconds before the SE3000 is
running out of power.
POWER TIMEOUT 24

User’s Guide Chapter 4: Tests 6
Salwico SE3000
Chapter 4: Tests
Loop test
Loop test menu
CHECK LOOP
CHECK MORE
Start the loop test
Press CHECK (F3) to start the loop test. The SE3000 is connecting
itself to the loop and starts searching for connected units.
CHECK LOOP
CHECK MORE
Note. Before starting this test make sure that the loop is not under
power. If this is the case an error message is displayed on line one.
Checking the loop
SE3000 displays each address it is communicating with for the
moment. If a unit is answering, an asterix (*) is displayed after the
address.
CHECKING LOOP 123*
EXIT
When the complete loop is tested SE3000 disconnects itself from
the loop. The EXIT text on line four is changed to OK.
No units found
SE3000 can not find any units, all address have been searched.
NO UNITS FOUND
OK
One or more units found
All information about the answering units is put in a list. The
information about the first unit is displayed. The first unit in the
list in this example is ADDR 2 (address 2), type RDJ-2. 1(5)
ADDR:2 1(5)
RDJ-2
-+ PRINT OK
indicates that you are looking at the first found unit of a total of
five units. You select a position in the list by using the - and +
keys.
Address error
The communication is bad or two units have the same address.
ADDR:3 2(5)
ADDRESS ERROR
-+ PRINT OK
Unknown ID
SE3000 has found a unit with an unknown ID (for instance 110).
ADDR:5 4(5)
UNKNOWN TYPE 110
-+ PRINT OK

User’s Guide Chapter 4: Tests 7
Salwico SE3000
Loop test interrupted
A short circuit, caused by the activation of a short circuit isolator,
has interrupted the loop test. An error message is displayed on line
one and the status of the unit on line three.
LOOP SHORT CIRCUIT
ADDR:4 3(5)
KS2 LOOP SHORT
-+ PRINT OK
Wrong address
SE3000 tests for wrong addresses after it has searched the loop
and all short-circuit isolators have been activated. The wrong
addresses are address 0 and 151 - 255. If a wrong address is found
it is displayed.
ADDR:255 5(5)
WRONG ADDRESS
-+ PRINT OK
Printout
You can make a printout of the list if you have a printer or a
computer connected to SE3000. Press PRINT.
NUMBER OF UNITS FOUND: 5
ADDR:2 (.1......) RDJ-2
ADDR:3 (11......) ADDRESS ERROR
ADDR:4 (..1.....) KS 2 LOOP SHORT
ADDR:5 (1.1.....) UNKNOWN TYPE 110
ADDR:255 (11111111) WRONG ADDRESS
An example of a printout from SE3000
To end the loop test
Press EXIT. The loop test menu is displayed.
CHECK LOOP
CHECK MORE

User’s Guide Chapter 4: Loop unit test 8
Salwico SE3000
Loop unit test
Loop unit test menu
Enter the address you want to test by using the - (F1) and+ (F2)
keys. The brackets shows the address set on the loop unit DIP-
switch, bit 1 to the left and ON in the UP position.
ADDR:1 (º.......)
-+ TEST MORE
Start the test
Press TEST (F3) to start the test. SE3000 is connecting itself to the
loop and starts searching for the selected unit. Note. Before
starting this test make sure that the loop is not under power. If this
is the case an error message is displayed on line one and the TEST
key is locked.
SE3000 remains connected to the loop until you end this test by
using the EXIT key.
The loop unit is answering
ADDR:2(.º......)
RDJ-2
-+ EXIT
The loop unit is answering but its ID is unknown
The ID number is displayed instead.
ADDR:5(º.º.....)
UNKNOWN TYPE 110
-+ EXIT
No loop unit is answering
ADDR:1(º.......)
NO ANSWER
-+ EXIT
The loop unit is answering but there is an address error
An error message is displayed if the communication is bad or if the
unit has two addresses.
ADDR:3(ºº......)
ADDRESS ERROR
-+ EXIT
Next unit
When you want to go to the next unit, use the - and + keys.

User’s Guide Chapter 4: Loop unit test 9
Salwico SE3000
Short-circuit isolator
When SE3000 detects a short-circuit isolator the menu on line four
is changed. You may now control the short-circuit isolator by
using the SET/RES key (F3). The key has a toggling function.
ADDR:4(..º.....)
KS 2 NOT ACTIVE
-+ SET EXIT
The SET function tries to connect the short-circuit isolator with
the remaining loop and the RES function disconnects the unit. The
status of the unit is displayed on line three.
If the short-circuit isolator is connected, the text on line three is
changed to ACTIVE.
ADDR:4(..º.....)
KS 2 ACTIVE
-+ RES EXIT
Short circuit detected
If the status of the unit remains NOT ACTIVE after you have
depressed SET, a short-circuit is detected.
ADDR:4(..º.....)
KS 2 NOT ACTIVE
-+ RES EXIT
To end the loop unit test
Press EXIT. The loop test menu is displayed and SE3000 is
disconnected from the loop.
CHECK LOOP
CHECK MORE

User’s Guide Technical data 10
Salwico SE3000
Technical data
Weight 1.1 kg (including adapter and test cables)
Dimension 196 x 100 x 40 mm
Adapter requirements
Power 24 VDC 1A ( 25 W )
Plug dimension 2.1 mm
Polarity Of no importance
Battery Size: 12V/1900 mAh
Charging time: 3 hours (automatically)
