Contacta STS-K072 Operation manual

Installation &
User Guide
December 2020
Window Intercom System
Speaker Pod and Screen Mounted
Microphone - STS-K072

2
Contents
Product Overview
Components
Connections
Installation Instructions
Speaker & Microphone Kit Installation
  StaSideInstallation
Customer/Visitor Installation
Hearing Loop Installation
 AmplierSetup
Troubleshooting
Engineer’s Mode
3
3
4
5
6
6
7
9
10
12
13
Contactahasapolicyofcontinuousproductdevelopment,andthereforesmallspecication
changesmaynotbereectedinthismanual.Images,labels,packaging,accessoriesandproduct
coloursaresubjecttochangewithoutnotice.

3
Speaker & Microphone Components
Product Overview
Window intercom systems provide assistance for clear communication where
normal speech is impaired by use of glass, a security screen or other similar
barriers.
There is an optional hearing loop facility, providing additional assistance for
hearingdevicewearers.
1. Installation and User Manual
2. Amplier
3. IEC Lead
4. Power Supply
5. HearingLoopAerial
(optional)
Fixing Kit:
• Adhesive Clip x 10
• No.6x1/2”CountersunkScrewsx15
• P-Clips x 6
5
General Components
1. Speaker Pod
2. StaPod
3. Screen Mounted Microphone
with Bent Stem
4
3
2
1
1
3
24

4

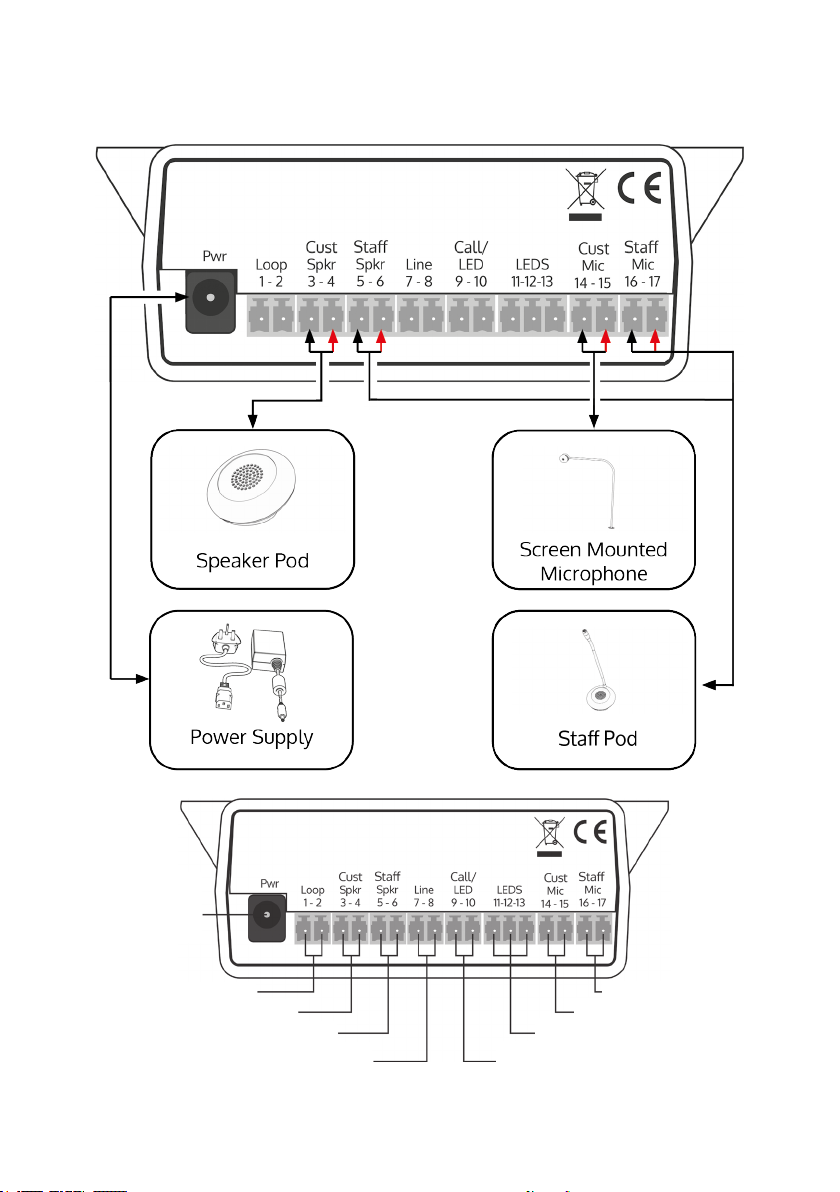

Connections
LED connection or alert tone (if required)
CondenceLEDtoconrmthesystemispowered
oranalerttonefortheattentionofsta
Stamicrophone
Customer/visitor microphone
CondenceLED(ifrequired)forstatusalerts
and fault detection
Hearing loop aerial
Line in connection for
external audio source
Staspeaker
Customer/visitor speaker
Power input
connection
Use power supply
through ground
supply only

5
Werecommendthatinstallationiscarriedoutbyaqualiedengineer,
adheringtorelevantstandards.
Checkthecontentsoftheboxtofamiliariseyourselfwiththecomponents.
Installation Instructions
A basic toolkit recommended to install the system will include:
Trim cables if necessary (excluding the power supply)
to the required length to connect to the back of the
amplier.Bareapproximately6mmofthecableendsto
connecttothe2pinplugs.
• Wire Cutters/Strippers
• Tape Measure
• Pencil or Marker Pen
• Cable Ties
• Trunking
• Screwdrivers(FlatorBlade2.5mm
and Phillips Head PH2)
• Battery or Mains Drill
• Drillbits: 2mm, 3mm, 5mm and 7mm
• Cable Tacking Gun (10mm)
Recommended Tools
Staff Counter Side
Customer / Visitor
Counter Side
StaPod
Screen Mounted
Microphone
Speaker Pod
Negative -
or screened cable
Positive +

6

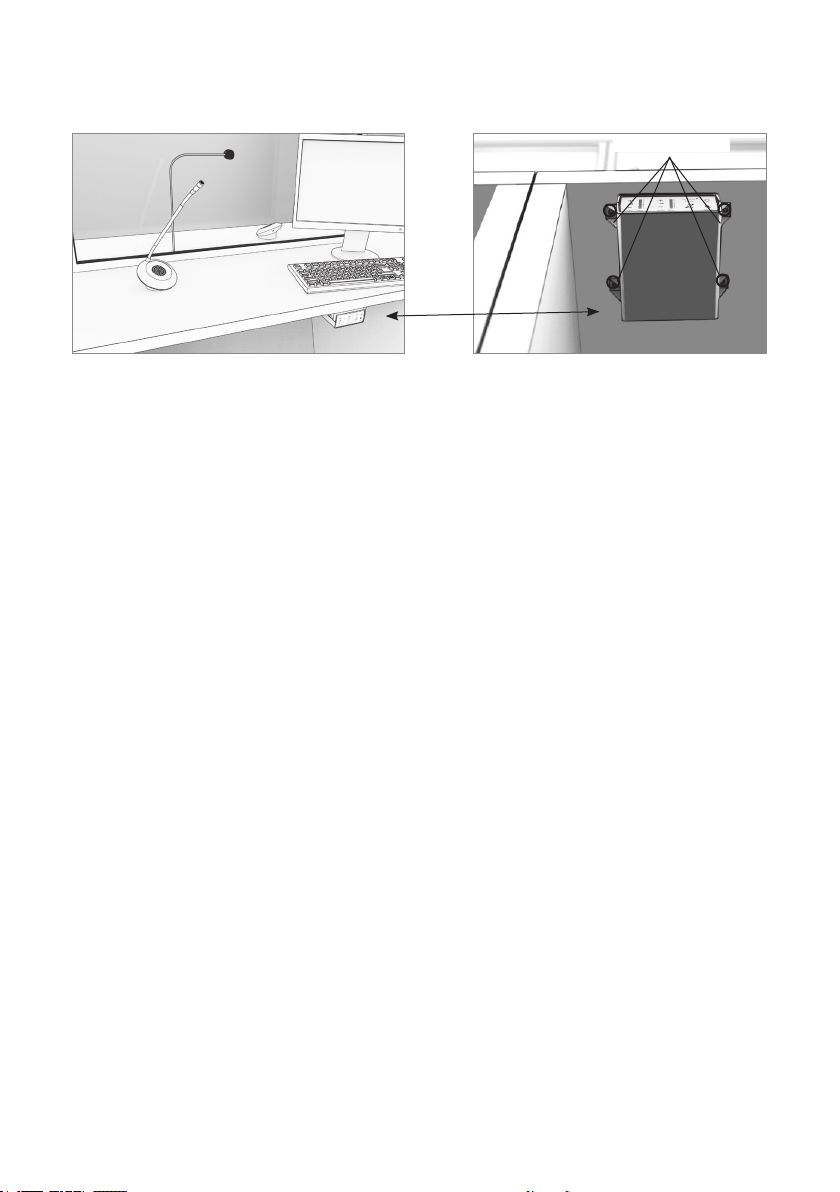

1. Placetheamplierunderthestacounter,ensuringthatitwillnot
obstructstawhentheyaresitting.
2. Markthefourxingpointsfortheamplierunderthecounter.
4. Drillandxtheamplierinplaceusingthesuppliedscrews.
6. Installtheamplier’spowersupplyclosetoapowersocketoutletusing
thesuppliedmountingbracketandxingscrews.
Fixing points
AmplierInstallation

7
Microphone & Speaker Installation
1. Position the screen mounted microphone stem’s on the customer side of
thecountertop.
2. Markthe2xingpointsand1cableroutereadyfordrilling(seethe
diagrambelow).
3. Drillpilotholesforthexingsandacableholeifneccesary.
4. Feedwiringthroughthecableholebacktotheamplierandxthe
microphoneinplaceusingthesuppliedscrews.
5. Fix the microphone head to the screen using the double-sided pad
supplied.
6. Placethestapodonthestasideofthecountertop,ensuringit
doesnotcauseanobstructionandisasclosetostaaspossible.The
recommended minimum distance between this pod and the screen
mountedmicrophoneis300mm.
Staff Counter Side
Customer / Visitor
Counter Side
StaPod
Screen Mounted
Microphone
Speaker Pod

8
7. Place the speaker pod on the customer side of the counter top, ensuring it
doesnotcauseanobstruction.
8. Speakerpodsandstapodscanbeeitherfreestandingorxed.Moveto
step14ifyoudonotwishtoxthepodstothecounter.
9. Usecablemanagementholesinthecountertorunthestapodand
speakerpodcablestotheamplier.Iftherearenotalreadycable
managementholes,drillsuitablelocationsneartherearofboththesta
andcustomersidesofthecounter.
10. Removethetopofthepodstogainaccesstothexingpoints.
11. Markthetwoxingpointsonthebottomofbothpods.Thenmarktwo
cable holes to be drilled, one for both the customer/visitor side and the
staside.
12. Ensuretherewillbeaccesstoretrievethecablesthendrilltheholes.
13. Fixthepodstotheirrespectivecounters.
14. Feedthepods’wiresthroughthecablemanagementholes.
15. Routeallcablingneatlytotheamplierlocationonthestaside.

9

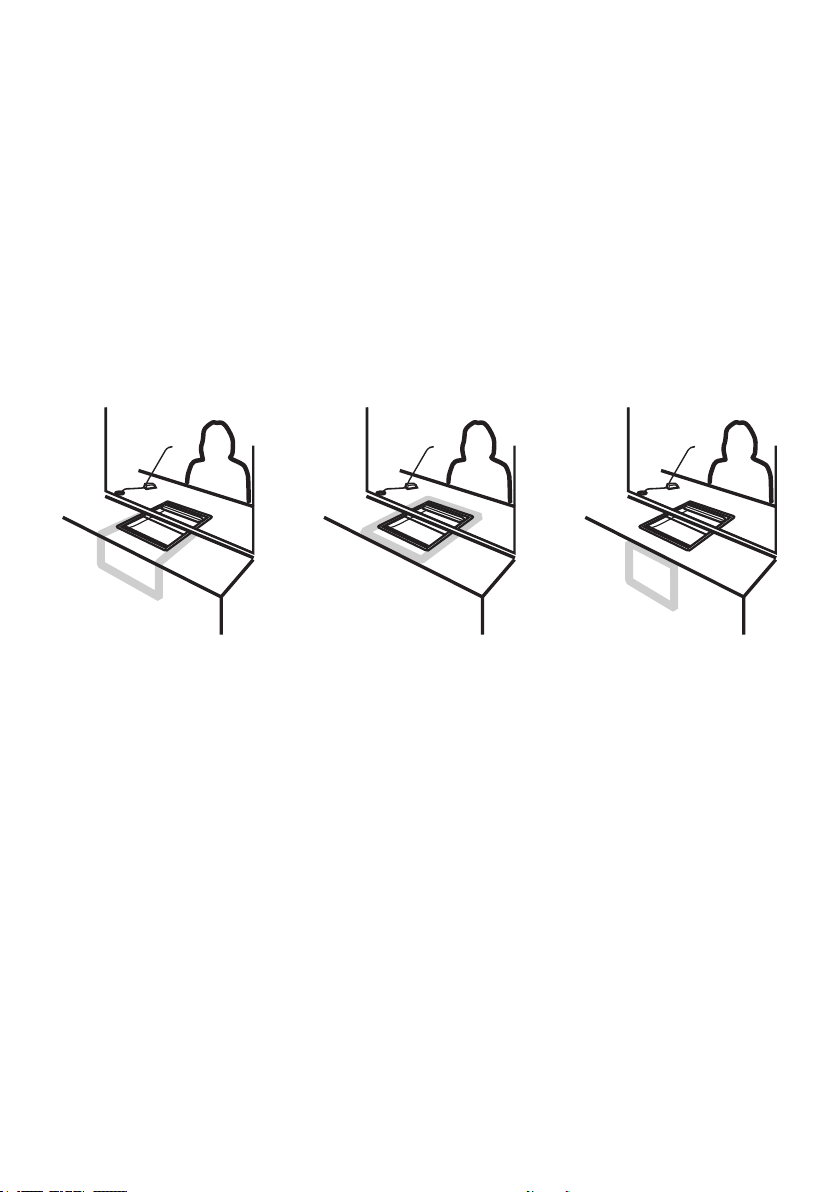

Theaerialshouldbexedunderthedesk-toporcountercentrallyonthe
customer or visitor side, one half mounted horizontally under the counter and
theotherhalfmountedvertically,facingthecustomer/visitor(asintherst
scenariobelow).
Position the aerial under the counter using either the provided P-clips
oranotherxingmethodofyourchoice.Seethediagrambelowfor
recommendedpositioning.
Aistheoptimumlayoutforacounterhearingloop.
B and C are acceptable only if A is not possible and the layout is aligned so
thatthemagneticeldwillbedirectedtowardsuser’sheadheights.
Ensureallhearingloopsignageisdisplayedclearly.
X
X
Hearing Loop Installation
(Optional)
A B C

10
AmplierSetup
1. Connectallgreenplugstothebackoftheamplier,followingthe
locationsprintedabovethesockets(seepage4).
2. PowerontheamplierbypressingtheOn/Obutton.
3. Whenpoweredandinnormaloperationalmodetheamplierwilldisplay
VolumeInLED1andVolumeOutLED1assteadygreen.
4. Whentheamplierisswitchedo,allaudioismutedandnoneofthe
LEDsareilluminated.Pressinganybuttonwillturntheamplieronagain.
5. AdjustVolumeInandVolumeOuttoacomfortablelevel.
6. Press and hold the Volume In (+) or (-) buttons to increase or decrease the
level.ThecorrespondingLEDbarwillshowthevolumesetting.
6. Ensure the mouse microphones are placed as close to their intended
usersaspossible.
7. Checktheamplierisfullyfunctionalbyensuringthered‘fault’lightis
NOTshowingonthefront.
8. The Amplifier is now set up.
OurWindowIntercomSystemampliersarepre-settovolumelevels
suitablefornearlyallusers.ShouldyouneedtoadjusttheMaximum
Volume,DuckingorHearingLooplevelsoutsideofthepre-setamplier
parameters,useEngineer’sMode(seepage13).
Overview of Front Panel Buttons
Volume In (Customer/Visitor to Staff)
Increase and decrease
Volume Out (Staff to Customer/Visitor)
Increase and decrease
Settings
On/O
Setup

11
Factory Default Settings
Toreturntheamplierthefactorydefaultsettings:
1. Unplugthepowersupplyandthenreconnectit.
2. PresstheOn/ObuttonandVolumeIn(-)buttontogether,thenrelease.
3. The Volume In LED bar will have all LEDs illuminated, while the Volume
OutLEDbarwilldisplaythermwarerevisionnumberinaxedpattern
ofLEDs.Thisindicatesthatdefaultsettingshavebeenrestored.
Fault Diagnosis LEDs
• Volume In LED 8 will stay red if there is a
faultwiththestamicrophone.
• Volume Out LED 8 will stay red if there is a
faultwiththecustomer/visitormicrophone.
• VolumeInLED8willashredifthereisa
faultwiththeloop(e.g.abrokenaerial).

12
Symptom Possible Fault Action
There is no
power
detected
through the
amplifier (and
there is power
at the socket).
1) Power jack not plugged in or
faulty.
2)Plugfusehasblown.
3) Faultypowersupplyunit.
4)Faultyamplier.
1)Checkpowerjackisrmlyplugged
in.
2)Replacefuse.Ifitblowsagain,
replacethepowersupplyunit.
3)Replacethepowersupplyunit.
4)Replaceamplier.
The red LED is
illuminated on
front panel.
1) Constant red LED:
Staorcustomer/visitor
microphonefault.
2) Red LED comes on after speech:
Inductionloopfault.
1) Ensure microphone is wired
correctlyandrmlypluggedin. Try
alternative microphone to ensure
portisworking.
2) Ensure induction loop connector is
wiredcorrectlyandrmlypluggedin.
I can’t hear
audio through
the induction
loop.
1) Induction loop or microphone is
disconnected.
2)Looptesterhasafault.
1 ) Check instructions for correct
connections and, if possible, check
the hearing device with a known
workinghearingloop.
2) Ensure loop tester has a new set
ofbatteries.
I can hear
interference
through
speakers
(buzzing /
whistling /
hissing).
1) Unscreened or poorly earthed
third party equipment is being used
incloseproximity.
2)Internalvolumegainsettohigh.
3) Incorrect power supply being
used.
1)Switchoanythirdparty
equipment to identify the source of
interference.
2)AccesstheamplierEngineer’s
Modetoadjusttheinternalsettings.
3) Ensure that our grounded power
supplyunitisconnected.
Amplifier goes
into feedback.
1)Internalvolumegainsettoohigh.
2) Microphone positioned too close
tospeaker.
1)AccesstheamplierEngineer’s
Modetoadjusttheinternalsettings.
2) Move the microphone to a
locationfurtherfromthespeaker.
Unit does not
go into power
saving mode.
1)Ambientnoiseinareaistoohigh. 1)Switchoanyairconsystems,
desktop fans and/or computers to
reduceambientnoise.
Troubleshooting
If no action is successful please seek assistance from
yourdistributororaContactainstaller.

13
Engineer’s Mode
BeforeenteringEngineer’sMode,cyclethepower.Todothiseither:
• Switchthepoweroatthemainssocketandbackonagain
• Remove the power connector and re-insert it
To enter Engineer’s Mode, simultaneously press and release the following
buttons within 20 seconds of cycling the power:
• Settings button
• Volume In increase button
• Volume Out increase button
Number1LEDontheVolumeInwillashgreentoindicatethatyouarein
Engineer’sMode.
Theon/oandsettingsbuttonsinEngineer’sModeoperateasfollows:
TheamplierwillautomaticallyexitEngineer’sModeifnobuttonsare
pressedfor2minutes.
Thereare3editablesetupareasinEngineer’sMode.Youwillalwaysenter
setuparea1rst.ThegreenVolumeInLEDbarwillashtoindicatewhich
setupareayouarein.
Setup Area 1:
Maximum Volume Adjustment (LED 1 flashes)
Setup Area 1 allows you to adjust the Volume In and Volume Out levels to
furtheroptimisethesystemfortheenvironmentinwhichitisinstalled.
Engineer’s Mode allows you to adjust the Volume In and Out levels, Ducking
levels and Hearing Loop levels to better suit your environment and achieve
thebestpossibleperformance.
Increase maximum
stavolumelevel
Decrease maximum
stavolumelevel
Increase maximum
customer volume level
Decrease maximum
customer volume level
Save and exit Engineer’s Mode
Move to the next setup area

14
1. Ensurethecustomerandstavolumesareturnedcompletelydown.
2. Adjuststa(VolumeIn)volumetoacomfortablelevel.Pressandhold
theVolumeIn(+)or(-)buttonstoincreaseordecreasethelevel.The
correspondingLEDbarwillshowthevolumesetting.
3. Increasecustomer(VolumeOut)volumeuntilfeedbackisheard.Press
and hold the Volume Out (+) or (-) buttons to increase or decrease the
level.ThecorrespondingLEDbarwillshowthevolumesetting.
4. Decreasecustomer(VolumeOut)volumeuntilfeedbackiseliminated.
Setup Area 2:
Ducking Adjustment (LED 2 flashes)
SetupArea2allowsyoutoadjusttheDuckinglevelortoturniton/o.
The ducking function is provided to reduce feedback on a window intercom
system.Feedbackoccurswhentheoverallsettingofbothvolumecontrols
istoohigh.Theduckingsystemworksbydetectingwhichmicrophoneinthe
conversationisbeingused,andtemporarilyreducingthevolumesetting.
Increase
ducking level
Decrease
ducking level
Ducking on
Duckingo
Increase drive
Decrease drive
The drive levels should be adjusted so the red LED 8 is illuminated only when
therearepeaksinthespeechvolume.
Iftheamplierdoesnothavealoopattached,turntheHearingLoopDriveo
asindicatedinthediagramabove.
Setup Area 3:
Hearing Loop Drive Adjustment (LED 3 flashes)
SetupArea3allowsyoutoadjusttheHearingLoopDriveortoturniton/o.
Hearing loops improve communication by enabling hearing device users to
hearsoundsourcesdirectly,cuttingoutbackgroundnoise.
Hearing Loop Drive on
HearingLoopDriveo

www.contacta.co.uk
[email protected].uk
[phone]
Technical Support - Ext 5
Further information is available on our website and our YouTube channel.
WindowIntercomSTS-A31HAmplier
Setup Video
Window Intercom Unboxing &
Positioning Guide Video
