Contec CONPROSYS CPS-CNT-3202I User manual

Reference Manual
(Hardware)
CONTENTS
Counter Module
CPS-CNT-3202I
Introduction.................................................................. 4
Safety Precautions....................................................11
Product Nomenclature and Function................19
Installation...................................................................32
Appendix......................................................................46
Optional Products ....................................................52
Customer Support and Inquiry ...........................54
Index..............................................................................56

—2 —
Table of Contents
Introduction ....................................................................... 4
1. Related Manuals......................................................................................................................................................5
2. Check the Firmware Version...............................................................................................................................6
3. About the Product..................................................................................................................................................7
4. Features ......................................................................................................................................................................8
1. Hardware features............................................................................................................................................8
5. Product Configuration List...............................................................................................................................10
Safety Precautions........................................................... 11
1. Safety Information...............................................................................................................................................12
2. Handling Precautions.........................................................................................................................................13
1. Regarding “CE EMC Directive Notice”...................................................................................................18
2. FCC PART15 Class A Notice.......................................................................................................................18
3. EN55032Class A Notice..............................................................................................................................18
Product Nomenclature and Function............................ 19
1. Nomenclature of Product Components.....................................................................................................20
2. Description of Product Components...........................................................................................................21
1. Stack Bus...........................................................................................................................................................21
2. LED Indicator...................................................................................................................................................21
3. Counter Input Connector...........................................................................................................................22
4. DIP Switch ........................................................................................................................................................23
3. Types and Operations of Pulse Signals.......................................................................................................24
1. Types of Pulse Signals .................................................................................................................................24
2. Pulse Input.......................................................................................................................................................24
3. Multiplication of Count Input...................................................................................................................26
4. Count Clear......................................................................................................................................................27
4. Other Function......................................................................................................................................................29
1. Compare Register..........................................................................................................................................29
2. Digital Filter.....................................................................................................................................................29
3. Programmable Timer...................................................................................................................................30
4. One-shot Pulse...............................................................................................................................................30
Installation........................................................................ 32
1. Install the Product...............................................................................................................................................33
1. Installation Conditions................................................................................................................................33
2. Setting the Configurable Type Module................................................................................................36
2. Connecting to an External Device.................................................................................................................41
3. Cable Connection................................................................................................................................................43
1. Counter Input.................................................................................................................................................43

—3 —
Table of Contents
Appendix .......................................................................... 46
1. Specifications ........................................................................................................................................................47
1. Specifications..................................................................................................................................................47
2. Physical Dimensions...........................................................................................................................................50
3. The Details of Model Name.............................................................................................................................51
Optional Products............................................................ 52
1. Optional Products ...............................................................................................................................................53
Customer Support and Inquiry...................................... 54
1. Services....................................................................................................................................................................55
Index.................................................................................. 56

—4 —
Introduction
This section provides necessary information of the product
such as the outline, bundled items and manuals before
actual use.

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—5 —
1.Related Manuals
The manuals related to the product are listed below.
Read them as necessary along with this document.
Must Read the Followings.
Name
Purpose
Contents
How to get
Product Guide
Must read this after opening the
package.
This lists the product configuration
and describes the precautions.
Included in the package
(Printed matter)
Setup Manual
Read this when setting up the
product.
This describes the required items for
setup and configuration procedure.
Download from
the Contec
website (PDF)
Reference Manual
(Hardware)
Read this when operating the
product.
This describes the hardware aspects
such as functions and settings.
Download from
the Contec
website (PDF)
Reference Manual
(Software)
Read this when setting up the
"CONPROSYS WEB Setting"
This describes how to set each
function of "CONPROSYS WEB
Setting".
Download from
the Contec
website (PDF)
Download Manuals
Download the manuals accordingly from the following URL.
Download
https://www.contec.com/download/

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—6 —
2.Check the Firmware Version
Before start using the product, visit our website to check the firmware version and update to the
latest one if necessary.
Updating firmware to the latest version will resolve troubles and stabilize the operation.
Download
https://www.contec.com/download/
Refer to the "Reference Manual (Software)" for the details of the firmware updating.

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—7 —
3.About the Product
This product is a configurable module that adds the interface, which counts input pulse signals from
external devices, to the configurable controller of our CONPROSYS series.
It has two channels of 32-bit up/down counters, allowing external devices such as a rotary encoder
and a linear scale to be connected.
Examples are given for “detecting a position of the table of a machine tool” and “detecting a change
in weight”.

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—8 —
4.Features
1. Hardware features
Count two-phase signals
This product can count two-phase and single-phase signals including encoders, and linear scales. It is equipped with two channels of 32-
bit up/down counters.
Opto-coupler isolated input
Opto-coupler isolated input of 500 kHz response frequency within.
Interrupt, Output signal
Generate an interrupt or output one-pulse signal when the count data of each channel match a specified value.
Digital filter to prevent input signals from carrying
noise or a chattering
This product has a digital filter to prevent input signals from carrying noise or a chattering.
All input terminals can be added a digital filter, and the setting can be performed by software.
Output circuits include zener diodes for surge voltage
protection
Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 50mA to the maximum
per channel.
Compact design
Compact design, 25.2 (W)×94.7(D)×124.8 (H), features flexibility in installation.
Adaptable to a temperature range between -20 and
+60°C
The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
Installation easy with two pieces of terminal support
and DIN rail
You can install and remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product
can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—9 —
Equipped with LED for an operation check
The product has LED for an operation check, which helps you visually confirm the communication status of each interface.
No electrolytic capacitor battery
No electrolytic capacitor is used. The Contec is creating the product with a longer life.

—
Introduction
—
CPS-CNT-3202I Reference Manual (Hardware)
—10 —

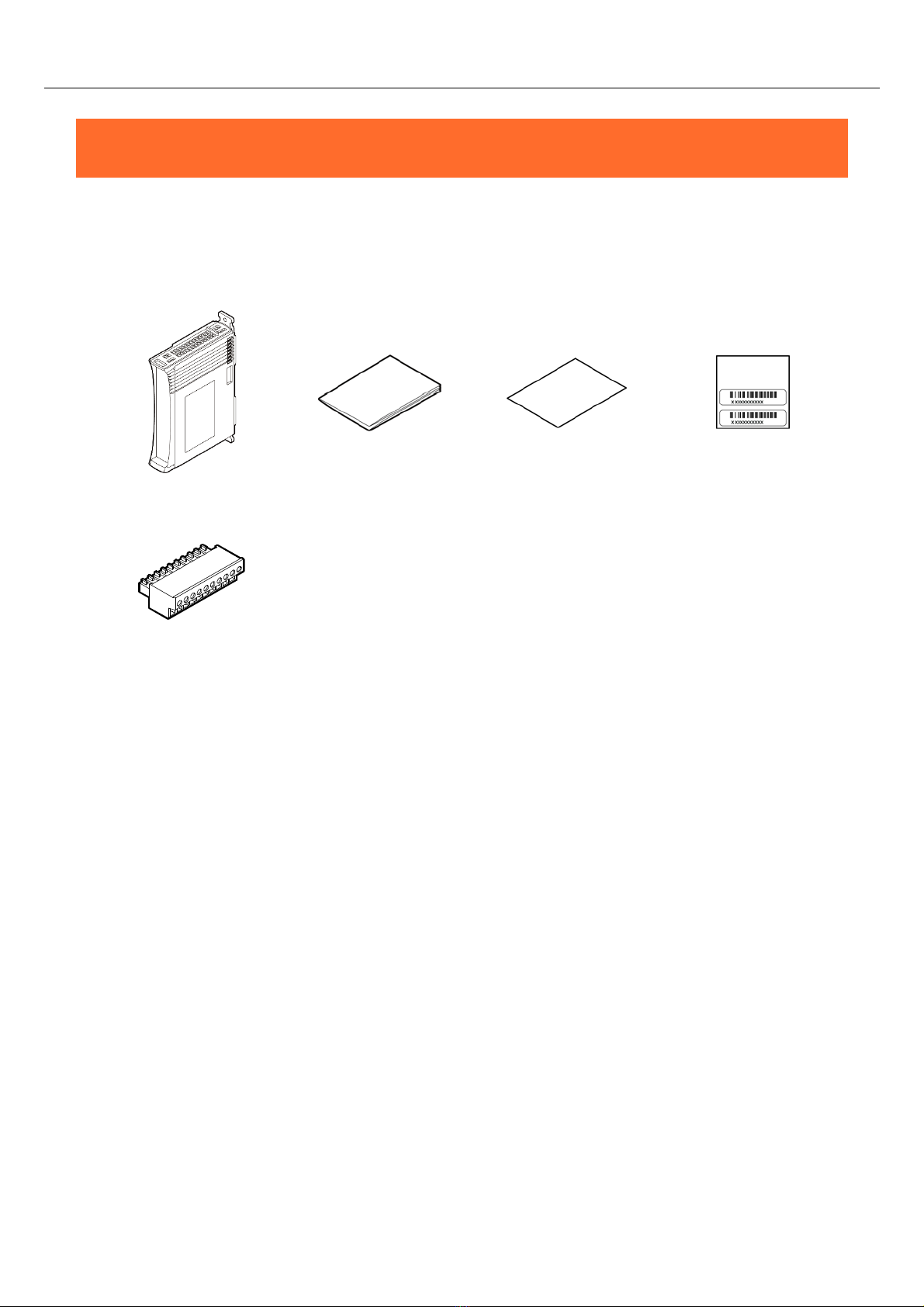

5.Product Configuration List
The product consists of the items listed below.
Check, with the following list, that your package is complete.
If you discover damaged or missing items, contact your retailer.
Product…1
Product Guide…1
Warranty Certificate…1
Serial Number Label…1
10-pin Connector…2
