Contec CPS-MG341G-ADSC1-930 User manual

Reference Manual
(Hardware)
CONTENTS
M2M Gateway for PLC Multi-Function 3G OPC UA
CPS-MG341G-ADSC1-930
Introduction.................................................................. 5
Safety Precautions....................................................14
Product Nomenclature and Function ...............23
Setup.............................................................................40
Installation...................................................................49
Appendix......................................................................75
Optional Products ....................................................87
Customer Support and Inquiry............................89
Index..............................................................................91

—2 —
Table of Contents
Introduction ....................................................................... 5
1. Related Manuals......................................................................................................................................................6
2. Check the Firmware Version...............................................................................................................................7
3. About the Product..................................................................................................................................................8
4. Interface Within.......................................................................................................................................................9
5. Features...................................................................................................................................................................10
1. Hardware features ........................................................................................................................................10
2. Software Features .........................................................................................................................................11

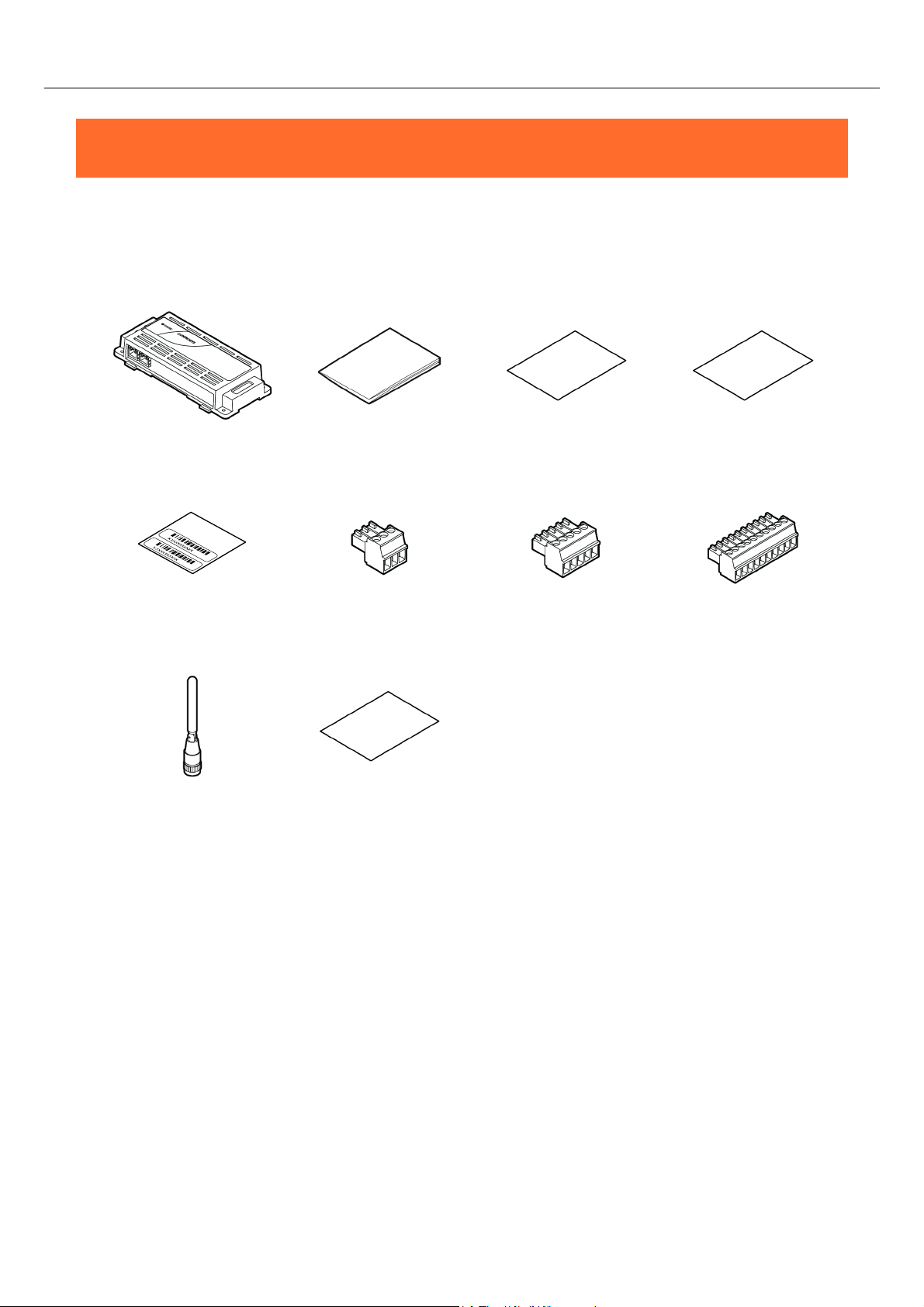

6. Product Configuration List...............................................................................................................................13
Safety Precautions........................................................... 14
1. Safety Information...............................................................................................................................................15
2. Handling Precautions.........................................................................................................................................16
1. FCC PART15 Subpart B Class A ................................................................................................................21
2. FCC PART 22/24.............................................................................................................................................21
3. Display marking.............................................................................................................................................21
3. Battery handling and the storage in EU signatory.................................................................................22
Product Nomenclature and Function............................ 23
1. Nomenclature of Product Components.....................................................................................................24
2. Description of Product Components...........................................................................................................26
1. Power Connector...........................................................................................................................................26
2. Antenna Connector......................................................................................................................................26
3. SIM Card Slot..................................................................................................................................................27
4. 3G LED...............................................................................................................................................................27
5. Debug Connector..........................................................................................................................................27
6. SD Card Slot....................................................................................................................................................27
7. USB Port............................................................................................................................................................28
8. RS-232C Serial Port ......................................................................................................................................29
9. LED Indicator...................................................................................................................................................30
10.Resets switch...................................................................................................................................................30
11.Shutdown switch...........................................................................................................................................30
12.DIP switch.........................................................................................................................................................31
13.LAN Port ...........................................................................................................................................................32
14.Digital Input / Counter Input / Digital Output Connecter............................................................34
15.Analog Input Connecter.............................................................................................................................35
16.RS-422A/485 Connector ............................................................................................................................36
3. Other Functions....................................................................................................................................................37
1. Counter function...........................................................................................................................................37
2. Digital Filter.....................................................................................................................................................37
Setup ................................................................................. 40

—3 —
Table of Contents
1. Set Data Transfer Mode ....................................................................................................................................41
1. RS-422A/485...................................................................................................................................................41
2. Set Antenna ...........................................................................................................................................................44
3. Insert SD Card.......................................................................................................................................................45
4. Inset SIM Card.......................................................................................................................................................47
Installation........................................................................ 49
1. Install the Product...............................................................................................................................................50
1. Installation Conditions................................................................................................................................50
2. Mounting on/Removing from a DIN Rail............................................................................................53
3. Mounting on the Wall.................................................................................................................................55
2. Connecting to an External Device.................................................................................................................56
3. Cable Connection................................................................................................................................................58
1. Power .................................................................................................................................................................58
2. LAN.....................................................................................................................................................................59
3. RS-422A/485...................................................................................................................................................60
4. RS-232C............................................................................................................................................................65
5. Analog Input...................................................................................................................................................67
6. Digital Input/Counter Input......................................................................................................................69
7. Digital Output.................................................................................................................................................72
Appendix .......................................................................... 75
1. Specifications ........................................................................................................................................................76
1. Specifications..................................................................................................................................................76
2. Power Requirements....................................................................................................................................80
2. Physical Dimensions...........................................................................................................................................81
1. Product..............................................................................................................................................................81
2. Physical Dimensions (Antenna)...............................................................................................................81
3. Antenna Steerable Range..........................................................................................................................81
4. Standard SIM size..........................................................................................................................................82
3. The Details of Model Name ............................................................................................................................83
4. Connector Check .................................................................................................................................................84
5. Battery Disposal ...................................................................................................................................................86
1. Battery Specification....................................................................................................................................86
2. How to remove the battery.......................................................................................................................86
Optional Products............................................................ 87
1. Optional Products ...............................................................................................................................................88
Customer Support and Inquiry...................................... 89
1. Services....................................................................................................................................................................90

—4 —
Table of Contents
Index.................................................................................. 91

—5 —
Introduction
This section provides necessary information of the product
such as the outline, bundled items and manuals before
actual use.

—
Introduction
—
CPS-MG341G-ADSC1-930 Reference Manual (Hardware)
—6 —
1.Related Manuals
The manuals related to the product are listed below.
Read them as necessary along with this document.
Must Read the Following Manuals.
Name
Purpose
Contents
How to get
Product Guide
Must read this after opening the
package.
This lists the product configuration
and describes the precautions.
Included in the package
(Printed matter)
Setup Manual
Read this when setting up the
product.
This describes the required items for
setup and configuration procedure.
Download from
the Contec
website (PDF)
Reference Manual
(Hardware)
Read this when operating the
product.
This describes the hardware aspects
such as functions and settings.
Download from
the Contec
website (PDF)
Reference Manual
(Software)
Read this when setting up the
"CONPROSYS WEB Setting"
This describes how to set each
function of "CONPROSYS WEB
Setting".
Download from
the Contec
website (PDF)
Read the Following Manuals as Necessary.
Name
Purpose
Contents
How to get
CONPROSYS Cloud Data
Service 2 (CDS2) Manual
Read this to understand the
outline of the CONPROSYS
Cloud Data Service 2.
This describes the outline and
specification of the CONPROSYS Cloud
Data Service 2 as well as how to
operate the product.
Download from
the Contec
website (PDF)
CONPROSYS Cloud Data
Service 2 Concise Manual
Read this when using the
CONPROSYS Cloud Data Service
2.
This describes the procedure to start
monitoring measured data in Cloud
Data Service 2.
Download from
the Contec
website (PDF)
CONPROSYS Java Applet
Application Guide
(For firmware version 2.00 or
earlier)
Read this when using the
system setting function of Java
Applet application version.
This describes how to create a
monitoring page and processing task
with the system setting function in
Java Applet application version.
Download from
the Contec
website (PDF)
SIM Card Manual
Read this when using the
product with SIM card.
This describes the procedure to start
sending data to Cloud server from
M2M controller.
Download from
the Contec
website (PDF)
Download Manuals
Download the manuals accordingly from the following URL.
Download
https://www.contec.com/download/

—
Introduction
—
CPS-MG341G-ADSC1-930 Reference Manual (Hardware)
—7 —
2.Check the Firmware Version
Before start using the product, visit our website to check the firmware version and update to the
latest one if necessary.
Updating firmware to the latest version will resolve troubles and stabilize the operation.
Download
https://www.contec.com/download/
Refer to the "Reference Manual (Software)" for the details of the firmware updating.

—
Introduction
—
CPS-MG341G-ADSC1-930 Reference Manual (Hardware)
—8 —
3.About the Product
This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated
input counter, inter-channel isolated analog input, RS-232C, LAN interface, and 3G network
communication module.
It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system
memory. On-board NOR-FLASH is utilized for a booting device.
CPS-MG341G-ADSC1-930 contains OPC UA server function within and can communicate directly
with HMI and SCADA software that support OPC UA clients from various makers.
The product is the data collector “M2M Gateway for PLC” that supports respective PLCs as well as
various Modbus devices. For equipment with PLC control, data will be collected by “M2M Gateway
for PLC”. For the one without PLC control, data can be collected by “M2M controller” that supports
sensor input.
M2M Gateway for PLC” can connect up to 10 Ethernet/calculating links with differing makers PLCs
simultaneously.
You can perform all processes on a web browser from the development to the operation. The
functions such as Web monitoring of I/O information, alarm processing by I/O information, task
divergence enable you to create a Cloud System at low cost and in a short time.

—
Introduction
—
CPS-MG341G-ADSC1-930 Reference Manual (Hardware)
—9 —
4.Interface Within
This product is a M2M controller with the following interfaces.
With the CONPROSYS series, data collected from various types of facilities can be managed centrally.
LAN
SD Card
Slot
USB
Digital Input
Digital Output
Analog Input
［Current］
Analog Output
［Current］
Counter
RS-422A/485
RS-232C
3GSIM
(Standard SIM)
CAN
Analog Input
［Voltage］
Analog Output
［Voltage］
：Interface within / ：Non-interface within

—
Introduction
—
CPS-MG341G-ADSC1-930 Reference Manual (Hardware)
—10 —
5.Features
1. Hardware features
The product contains I/O interface such as digital I/O,
analog input, counter, and serial communication.
RS-232C: 1-channel, RS-422A/485: 1-channel, Opto-coupler isolation input (compatible with current sink output): 4-channel,
Semiconductor relay output: 2-channel, Bus isolation analog input (current input): 2-channel. Counter input performs up-counting:
equipped with two channels of up counters.
* Two of four digital-input can be used as the counter-input.
Adaptable to a temperature range between -20 and
+60°C
The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
Compact design
Compact design, 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.
Capable of adapting a wide-range power (12- 24VDC)
The product is capable of dealing with a wide range of power in the differing environments.
Power connector also has a FG terminal.
Easy installation with screws or on DIN rail
This product can be installed on the wall with screws or on DIN rail with simple mounting.
Installation with two pieces of terminal support
The terminal connector can be removed without a screwdriver. Even when a malfunction occurs, this product can be replaced in a short
length of time.
A powerful running platform without fan
The product contains the ARM®Cortex®-A8 processor (600MHz) and the DDR3 512MB system memory.
