Contec FPD-M21VT-AC User manual

IPC Series
FLAT PANEL DISPLAY
Aluminium-Face Type
(AC Wide,10.4"-TFT,Analog)
FPD-M21VT-AC
(AC Wide,12.1"-TFT,Analog)
FPD-L21ST-AC
(AC Wide,15.0"-TFT,Analog)
FPD-H21XT-AC
User’s Manual
CONTEC CO.,LTD.

ユーザーズマニュアル i

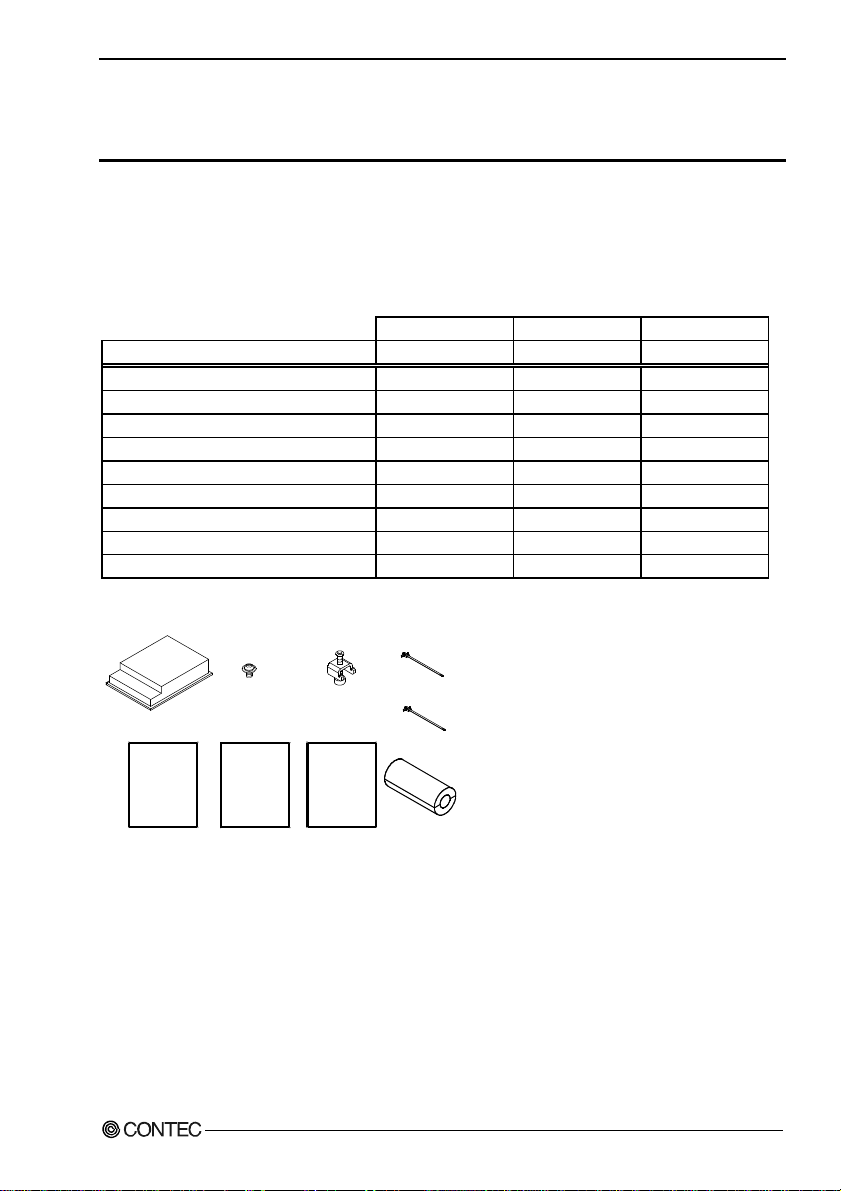

Check Your Package
Thank you for purchasing the CONTEC product.
The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items,
contact your retailer.
Product Configuration List
FPD-M21VT-AC FPD-L21ST-AC FPD-H21XT-AC
Name Pcs. Pcs. Pcs.
Flat panel display 1 1 1
Three-point sems screws (M3 x 6) 1 1 1
Cable fixed clamp 3 3 3
The attachment fittings 6 6 8
EU Declaration of Conformity 1 1 1
IPC Precaution List 1 1 1
Ferrite Core 1 1 3
Ferrite Core fixed clamp 0 0 2
Product guide (this sheet) 1 1 1
*1 Purchase user’s manual and individual connection cables as they are not bundled with this equipment.
For more details on the latest information of user’s manual, refer to the CONTEC’s Web site.
Flat panel display
EU Declaratin
of Conformity
EU Declaratin
of Conformity
Three-point
sems screws
(M3 x 6)
Cable
fixed clamp
The attachment
fittings
Product guide IPC Precaution
List
Ferrite Core
Ferrite Core fixed clamp
Product guide IPC Precaution
List
Ferrite core
fixed clamp

ii ユーザーズマニュアル
Copyright
Copyright 2007 CONTEC CO., LTD. ALL RIGHTS RESERVED.
No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this
document.
The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for results obtained by the user as a result of using this product.
Trademarks
Intel and Celeron are registered trademarks of Intel Corporation. MS, Microsoft and Windows are
trademarks of Microsoft Corporation. Other brand and product names are trademarks of their respective
holder.

ユーザーズマニュアル iii
Table of Contents
Check Your Package............................................................................................................................ i
Copyright ............................................................................................................................................ii
Trademarks .........................................................................................................................................ii
Table of Contents...............................................................................................................................iii
1. INTRODUCTION 1
About the Product............................................................................................................................... 1
Features........................................................................................................................................ 1
Customer Support ............................................................................................................................... 2
Web Site....................................................................................................................................... 2
Limited One-Year Warranty............................................................................................................... 2
How to Obtain Service ....................................................................................................................... 2
Liability............................................................................................................................................... 2
Safety Precautions .............................................................................................................................. 3
Safety Information....................................................................................................................... 3
Handling Precautions................................................................................................................... 3
2. SPECIFICATIONS 7
Function Specifications ...................................................................................................................... 7
General Specifications........................................................................................................................ 8
Optical Display Specifications........................................................................................................... 9
3. OUTSIDE DIMENSIONS AND PART NAMES 11
Outside Dimensions.......................................................................................................................... 11
Part Names........................................................................................................................................ 13
Analog RGB Connector............................................................................................................. 14
RS Touch Panel Connector........................................................................................................ 14
USB Touch Panel Connector..................................................................................................... 15
Dip Switch ................................................................................................................................. 16
Backlight ON/OFF Connector................................................................................................... 17
4. SETTING THE DISPLAY 19
Installation Requirements................................................................................................................. 19
Panel Cut........................................................................................................................................... 20
Attaching the Fitting Used to Attach to the Main Unit.................................................................... 21
How to Mount the Attachment Fittings............................................................................................ 22

iv ユーザーズマニュアル
5. CONNECTION TO THE HOST COMPUTER 23
Analog RGB Connection.................................................................................................................. 23
Touch Panel Data Communications ................................................................................................. 24
6. POWER SUPPLY CONNECTION 25
Power Supply Connector..................................................................................................................25
7. SCREEN ADJUSTMENT AND A SETUP 27
Menu Screen .....................................................................................................................................27
Direct Key......................................................................................................................................... 30
Memory of a Setting Value............................................................................................................... 30
8. LED INDICATORS 31
9. TOUCH PANEL 33
USB Multi-Touch Panel ................................................................................................................... 34
10. DISPLAY MODE 35
11. OPTIONS 37

1. Introduction
ユーザーズマニュアル 1
1. Introduction
About the Product
This product is a panel-mounted, analog RGB input type flat panel display for use with host computers such
as the CONTEC IPC series and SBCs (single board computers).
Uses a high-intensity LCD with a wide viewing field and touch panel operation via either RS-232C or
USB.
Features include an auto-scaling function and on-screen display setup screen. Front structure with
IP65-compliant ingress protection
As there is compatibility in terms of panel mounting with the existing IPC-DT/x6x series, allowing an
easy changeover of the existing system.
Features
- Standard analog RGB input for screen. RS-232C and USB interfaces for touch panel
Supports standard analog RGB input and touch panel operation via either RS-232C or USB. The LCD is
high-intensity with a wide field of view and can display either 16,777,216 colors (15 inch model) or
262,144 colors (10.4 inch and 12.1 inch models). The front on the display is made from lightweight
aluminum. The display features an analog touch panel that can emulate mouse operation via the driver
software.
- Auto-scaling feature that resizes the input screen to the LCD dot configuration
Auto-scaling feature that resizes the input screen to the LCD dot configuration
- On-screen display setup menu facilitating screen adjustment
The on-screen display setup screen can be used to set parameters such as the brightness, contrast, and
display position adjustment.
- Front structure with IP65-compliant ingress protection
Front structure with IP65-compliant ingress protection
- Panel attachment dimensions are compatible with the IPC-DT/x6x series.
The compatibility of the panel attachment fitting with the previous IPC-DT/x6x model facilitates
replacement.
- USB multiple touch panel
This function can be used in the case when the RGB signal from the host computer is split for connecting
to multiple displays via a splitter. The function permits touch panel operation to be used at all the
displays. A maximum of eight touch panel displays can be connected.
- Input connector allows the backlight to be switched on or off externally.
The unit features an input connector that allows the backlight to be switched on or off externally.
* Fore more details on the host computer and option of this product, please contact your retailer.

1. Introduction
2ユーザーズマニュアル
Customer Support
CONTEC provides the following support services for you to use CONTEC products more efficiently and
comfortably.
Web Site
Japanese http://www.contec.co.jp/
English http://www.contec.com/
Chinese http://www.contec.com.cn/
Latest product information
CONTEC provides up-to-date information on products.
CONTEC also provides product manuals and various technical documents in the PDF.
Free download
You can download updated driver software and differential files as well as sample programs available in
several languages.
Note! For product information
Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.
Limited One-Year Warranty
CONTEC Products are warranted by CONTEC CO., LTD. to be free from defects in material and
workmanship for up to one year from the date of purchase by the original purchaser.
Repair will be free of charge only when this device is returned freight prepaid with a copy of the original
invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from
which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and
original products. The warranty is not applicable if the device has been tampered with or damaged
through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in
which case repairs will be considered beyond the warranty policy.
How to Obtain Service
For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please
obtain a Return Merchandise Authorization Number (RMA) from the CONTEC group office where you
purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.
Liability
The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor
be liable for any incidental or consequential damages due to such defect or consequences that arise from
Safety Precautions. Understand the following definitions and precautions to use the product safely.

1. Introduction
ユーザーズマニュアル 3
Safety Precautions
Understand the following definitions and precautions to use the product safely.
Safety Information
This document provides safety information using the following symbols to prevent accidents resulting in
injury or death and the destruction of equipment and resources. Understand the meanings of these labels
to operate the equipment safely.
DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or in property damage.
Handling Precautions
CAUTION
- As this product contains precision electronic components, do not use or store in environments
subject to shock or vibration.
- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other
applications that require a very high level of reliability. Do not use the product in such applications.
- If you utilize this product in such usages where high reliability and safety are required as on the
trains, vessels, automotives or crime- or disaster-prevention devices, contact your retailer.
- Do not use or store the product in a location such as extremely high or low temperature, rapid
temperature changes, and the place which receives a strong ultraviolet ray.
Example: - Exposure to direct sun
- In the vicinity of a heat source
- Do not use or store the equipment in a dusty or humid place.
- Do not perform key operations with the touch panel to implement a process that might endanger life
or result in serious damages. Design a system that can cope with incorrect key input operations.
- Do not use a sharp-edged object, such as a mechanical pencil, to operate the touch panel in order to
prevent scratching or malfunctions.
- Protect the touch panel against shock to prevent damage.
- CONTEC is not liable for a product that has been modified by the user.
- When the surface or frame of the touch panel has become dirty, wipe it with neutral detergent. Do
not wipe the touch panel with thinner, alcohol, ammonia, or a strong chlorinated solvent.
- Do not plug or unplug the connector with the equipment powered on. as doing so may result in a
malfunction or fault.
- Some products require configuration settings. Always check these requirements before use. Also,
never set switches or jumpers to other than the specified settings as this may cause a fault.

1. Introduction
4ユーザーズマニュアル
- A characteristic of analog touch panels is that the detected position may vary due to changes in the
ambient environment (temperature and humidity) and changes in resistance values over time. In
such cases, the touch panel should be recalibrated and the calibration data updated.
- Regular maintenance is necessary for the backlight on the touch panel and the display for the
longevity parts.
- If you discover damaged or missing items, contact your retailer.
- The socket-outlet shall be installed near the equipment and shall be easily accessible.
- Regarding “FCC PART 15 Class A Notice”
(excluding FPD-H21XT-AC)
These product has acquired the above-mentioned
standard.
However, a sufficient margin may not be secured
for the standard. In this case, use a ferrite core
(SEIWA E04SR200935A or a compatible product)
for the AC power cable.
When attaching the ferrite core, coil it near the
connector while leaving it open, and then close it.
- VCCI Class A, EMC Instruction Class A Notice (only FPD-H21XT-AC）
To ensure that the FPD-H21XT-AC complies with the above standard, fit the supplied ferrite cores
to the AC power supply cable, RGB display cable, and RS-232C cable (or USB cable) (use the
SEIWA E04SR200935A or equivalent for the AC power cable and the SEIWA E04SR301334 or
equivalent for the RGB display cable and RS-232C cable).
When attaching the ferrite core, coil it near the connector while leaving it open, and then close it.
(When attaching the RS-232C cable (or USB cable), coil it around once near the connector while
leaving it open, and then close it.)
Ferrite core
Power cable
Ferrite core
Ferrite core fixed
clamp
RGB display cable
Ferrite core
RS-232C cable (or USB
cable)
Ferrite core
Power cable

1. Introduction
ユーザーズマニュアル 5
Use environment
This product operates under the following operating systems:
Windows XP/2000/NT 4.0/98SE/95OSR2
* The touch panel USB interface is only supported on Windows XP/2000/98SE.
Life expectancy of components
(1) Backlight--- Display brightness decreases over time with use. The operating life of the
backlight (brightness reduced to 50% of original) is 50,000 hours for all
models. (Assuming continuous operation at 25 degrees centigrade.)
(2) Touch panel--- The operating lifetime of the touch panel is at least 1 million touches
(as tested by mechanical touching under 300g of force at a rate of two presses
per second).
(3) Power supply--- Expected life is six years for continuous operation at 40°C (when mounted
horizontally). However, this life may be reduced depending on the operating
temperature (in the case of higher temperatures).
* CONTEC accepts your request for replacing each consumable in the PANECON-PC as a requestfor
repair (at an additional cost). Contact your local retailer or CONTEC sales office.
LCD Display Pixel Drop
LCDdisplay may have some pixels being dropped (bright and black spots) below a certain threshold.
Note that this is not a failure or a defect.
Burn-in on TFT Display
"Burn-in" may occur if the same display is retained for a long time. Avoid this by periodically
switching the display so that the same display is not maintained for a long time.
* Burn-In: Phenomenon characterized by a TFT display as a result of long-time display of the same
screen where a shadow-like trace persists because electric charge remains in the LCD element even
after the patterns are changed.
Connecting to a host with an existing touch panel function such as a CONTEC panel computer.
This touch panel cannot be used with a touch panel mounted in the host computer. In this case, the
touch panel function will be unavailable but screen display will still work normally.
However, on the following CONTEC panel computers, multiple touch panels can be used together
when connected via the USB interface.
- IPC-PT/6x0 Series : IPC-PT/x6x0x(PCW)x
- IPC-PT700 Series : IPC-PT700xx-xxAC

1. Introduction
6ユーザーズマニュアル
FCC PART 15 Class A Notice (Excluding the FPD-H21XT-AC)
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference at his own expense.
NOTE
Change or modifications not expressly approved the manufacturer can void the user's authority to
operate this equipment.
WARNING TO USER

2. Specifications
ユーザーズマニュアル 7
2. Specifications
Function Specifications
Table 2.1. Function Specifications
Specification
Item FPD-M21VT-AC FPD-L21ST-AC FPD-H21XT-AC
Screen
Assembly type Panel mounted
Screen size 10.4 inches 12.1 inches 15 inches
Number of pixels 640 x 480 dots 800 x 600 dots 1024 x 768 dots
Display type TFT Color LCD
Number of colors 262,144 colors 262,144 colors 16,777,216 colors
Screen adjustment Automatic adjustment (display positioning and scaling) and manual adjustment
using the front switches
Brightness control Adjustment using the front switch or software control from the host computer
Backlight control Can be turned ON/OFF by front panel switch, software control from host
computer, or rear connector input.
Display interface Analog RGB input HD-SUB 15 pin (Female) connector
Cable length which recommends 5mm or less *1
Image signal Separate RGB, analog, positive polarity 0.7Vp-p/75Ω
Sync signal Separate V/H, TTL, positive/negative polarity
Horizontal scan
frequency
31 - 38kHz 31 - 48kHz 31 - 60kHz
Incoming
signal
specification
Vertical scan
frequency
60 - 72Hz 56 - 72Hz 56 - 75Hz
Touch panel
Resolution 4096 x 4096
Detection method Resistive-layer analog method
Touch life expectancy One million repeated touches
(as tested by mechanical touching under 300g of force at a rate of two presses per
second)
Touch panel interface Connect to the host computer using either USB *2 or RS-232C.
USB: USB1.1-compliant, TypeB Connector
RS-232C: 9pin D-SUB (Male) Connector
Touch panel driver
(option)
For Windows: IPC-SLIB-01
Power supply input part
Power supply connector 3-pin terminal for AC power supply
Input power supply voltage 85 - 132VAC/170 - 265VAC(47 - 63Hz) Input automatic operation switch
Consumption current 32VA(Max.) 35VA(Max.) 40VA(Max.)
Consumption current
(power save mode) 14VA (Max.)
*1 Using a cable longer than 5 m may reduce the image quality. The cable should be as short as possible as
degradation. in image quality may result even when the cable is 5 m or shorter depending on the type of host
computer or cable.
*2 The touch panel USB interface is only supported on Windows XP/2000/98SE.

2. Specifications
8ユーザーズマニュアル
General Specifications
Table 2.2. General Specifications
Specification
Item
FPD-M21VT-AC FPD-L21ST-AC FPD-H21XT-AC
Environment
Operating
temperature 0 - 50ºC
Storage
temperature -10 - 60ºC
Operating humidity 10 - 90%RH (No condensation)
Floating dust Normal
Corrosive gas None
Line noise
AC line: 2 kV, Signal line: 1 kV
(IEC1000-4-4Level3, EN61000-4-4Level3)
(HOST : When using the IPC-BX700-AC4)
Noise
resistance Electrostatic
withstanding
voltages
Contact/4kV (IEC1000-4-2Level2, EN61000-4-2Level2)
Airborne/8kV (IEC1000-4-2Level3, EN61000-4-2Level3)
(HOST : When using the IPC-BX700-AC4)
Vibration
resistance
Sweep
durability
10 - 57 Hz/Single-side amplitude or 0.075mm
57 - 150 Hz/1.0 G in the X/Y/Z directions for 40 minutes each
(Conforming to JIS C0040 and IEC68-2-6)
Shock resistance 10G in the X/Y/Z directions for 11 ms; Half-sine wave
(Conforming to JIS C0041 and IEC68-2-27)
Structure
Major dimension (mm) 305(W) x 51.5(D) x 240(H) 316(W) x 54.5(D) x 256(H) 373(W) x 54(D) x 304(H)
Panel cut dimensions (mm) 292.0(W) x 227.0(H) 303.0(W) x 243.0(H) 358.0(W) x 289.0(H)
Mountable panel
thickness 1.6mm - 7mm
Weight 3.0kg 3.2kg 4.5kg
Ingress protection Front part conforming to IP65

2. Specifications
ユーザーズマニュアル 9

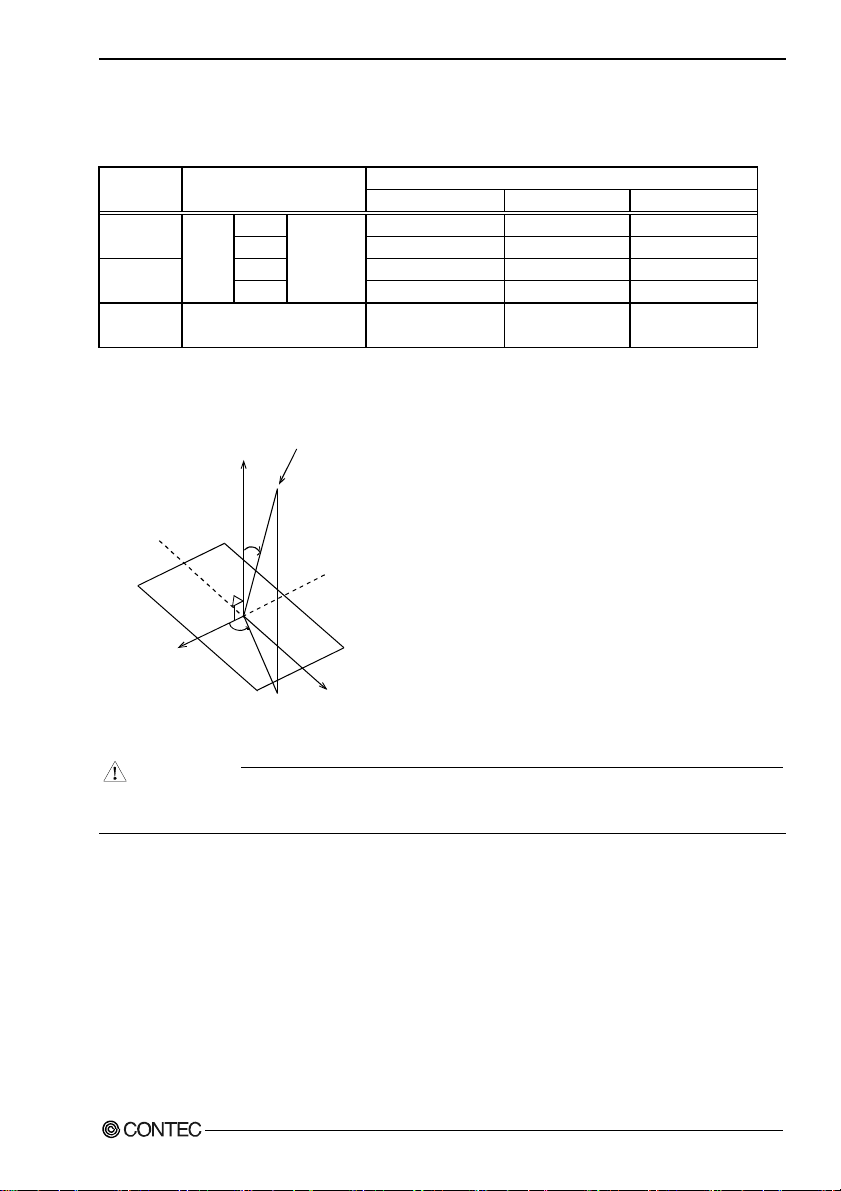

Optical Display Specifications
Table 2.3. Optical Display Specifications
Specifications (25ºC Typ. Value)
Item Condition
FPD-M21VT-AC FPD-L21ST-AC FPD-H21XT-AC
φ=180° 50deg 50deg 50deg
Visual angle
(vertical)
φ=0° 70deg 70deg 70deg
φ=+90° 70deg 70deg 70deg
Visual angle
(horizontal)
CR≥10
φ=-90°
Display in
monochrome
70deg 70deg 70deg
Surface
brightness
(at center) Display in white 400cd/m2350cd/m2250cd/m2
*1 Surface brightness is a numerical value in a display simple substance.
The brightness that let the touch panel pass serves as about 77% of the above-mentioned numerical value.
Left
( φ=
- 90o )
Z
Y
X
Top
( φ= 180o )
Right
( φ= 90o )
Bottom
( φ = 0o )
( θ= 0o )
Measurement direction
θ
Module
φ
Figure 2.1. Viewing Range Definition
CAUTION
The above optical specification data shows optical characteristics of the liquid crystal in the display;
the data does not represent the actual view on the display or its viewing angles.

3. Outside Dimensions and Part Names
10 ユーザーズマニュアル

3. Outside Dimensions and Part Names
ユーザーズマニュアル 11
3. Outside Dimensions and Part Names
Outside Dimensions
FPD-M21VT-AC
[mm]
CAUTION!
*************
The screwbolting torque ofattachment
****** 0.6N*m***
must be 0.6N-m*MAX*.
INPU T : XX XXX XXX XX X XXXX XXX XXX X
MADEIN # #####CONTEC CO., LTD.
MODEL:
SERI AL No . : XXXXXX XXX XXX X
XXXXXXXXXXXXXXXXXX
CN1SW1 RGB
TPI/F
USBSERIAL
NL
8-M4 TAP
(Maximum
tapping length : 5mm)
2-M3 TAP
230
6
575
100
75
100
226
(87.7)
MENU
-+
(163.4)
240
305
(216.2)
49
291
18.5
46.5
5
10
(Maximum
tapping length
: 5mm)
Figure 3.1. Outside Dimensions of Main Unit (FPD-M21VT-AC)
FPD-L21ST-AC
CAUTION!
*************
Thescrewboltingtorque ofattachment
****** 0.6N*m** *
mustbe 0.6N-m*MAX*.
INPUT : XXXXXX XXX XXX XXX XXX XXX X
MADEIN ######
CONTEC CO ., LTD.
MODEL:
SERIA L No . : XXX XXX XXX XXX X
XXXXXXXXXXXXXXXXXX
CN1SW1 RGB
TP I/F
USBSERIAL
NL
8-M4 TAP
2-M3 TAP
100
75
100
75
235.5
302 54.5
21.5
49.5
5
242
6
5
MENU
-+
12
(191.5)
316
(252)
(97.8)
256
[mm]
(Maximum tapping
length : 5mm)
(Maximum
tapping length
: 5mm)
Figure 3.2. Outside Dimensions of Main Unit (FPD-L21ST-AC)

3. Outside Dimensions and Part Names
12 ユーザーズマニュアル
FPD-H21XT-AC
15
(236.7)
(124.85)
304
75
100
5
(310)
373
75
100
8-M4 TAP
208
357 68.5
2-M3 TAP
(Maximum tapping
length : 5mm)
21
49
288
[mm]
CAUTION!
*************
Thescrew bolting torque of attachment
******0.6N*m***
must b e 0. 6N- m* MA X*.
INPUT: XXXXXXXXXXXXXXXXXXXXXX
MADE IN # ##### CO N TE C C O., LTD .
MODEL:
SERIALNo.: XXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXX
CN1SW1 RGB
TP I/F
USBSERIAL
NL
MENU
-+
5
(Maximum
tapping
length
: 5mm)
Figure 3.3. Outside Dimensions of Main Unit (FPD-H21XT-AC)

3. Outside Dimensions and Part Names
ユーザーズマニュアル 13
Part Names
MENU
-+ Power LED
CAUTION!
****** ** ** ***
Thescrewboltingtorqueof attachment
******0.6N*m***
mus t b e 0.6 N- m* MAX * .
INPUT: XXX XXXXXXXXX XXXXXX XXXX
MADE IN ###### CONTEC CO.,LTD.
MODE L :
SERIALN o. : XX XXXXXXXXX XX
XXXXXXXXXXXXXXXXXX
CN1SW1 RGB
TPI /F
USBSERIAL
NL
Power connector
Screen & Touch panel
Screen adjustment switch
BackRight side Left side
Analog RGB connector
USB touch panel connector
RS touch panel connector
Backlight ON/OFF connector
Dip switch
Figure 3.4. Part Names
Figure 3.5. Screen Adjustment Switch

3. Outside Dimensions and Part Names
14 ユーザーズマニュアル
Analog RGB Connector
Table 3.1. Analog RGB Connector
Connector type 15 pin HD-SUB (FEMALE)
Pin No. Signal name Pin No. Signal name
1 RED 9 N.C.
2 GREEN 10 GND
3 BLUE 11 N.C.
4 N.C. 12 DDC DATA
5 GND 13 HSYNC
6 R-GND 14 VSYNC
7 G-GND 15 DDC CLK
8 B-GND
RS Touch Panel Connector
This connector is RS-232C compliant to be used for touch panel data communication with the host
computer.
Table 3.2. RS Touch Panel Connector
Connector type 9 pin D-SUB (MALE)
Pin No. Signal name Pin No. Signal name
1 N.C. 6 Reserved
2 TxD 7 N.C.
3 RxD 8 N.C.
4 Reserved 9 N.C.
5 GND

3. Outside Dimensions and Part Names
ユーザーズマニュアル 15
USB Touch Panel Connector
The USB connector for communication between the host computer and touch panel.
Table 3.3. USB Touch Panel Connector
Connector type USB Type B(Receptacle)
Pin No. Signal name Pin No. Signal name
1 +5V 3 DATA+
2 DATA- 4 GND
