Contemporary Research ICC1-232 User manual

Product Manual
ICC1-232
RS-232 Display Controller, 1-way Control
Ver. 2.5 February 09, 2009

Contemporary Research 2 ICC1-232 Manual
Table of Contents
Overview.............................................................................................................................................3
Specifications......................................................................................................................................2
Physical.................................................................................................................................................2
Rear Panel.............................................................................................................................................2
iCC-Net..................................................................................................................................................2
Includes ................................................................................................................................................2
Options .................................................................................................................................................2
Installation .........................................................................................................................................3
AC Power Test .......................................................................................................................................3
RS-232 Control Wiring ............................................................................................................................3
RF Coax and iCC-Net Operation...............................................................................................................3
Setting RS-232 Control Codes..................................................................................................................4
RS-232 Control Codes.............................................................................................................................4
Setting Device Number and Parameters (Device Mode)..............................................................................5
Zone Switch Settings ..............................................................................................................................5
Unit Address Switch Settings...................................................................................................................6
Installation Process and Documentation...................................................................................................6
RS-232 Control Wiring ............................................................................................................................6
RS-232 Control Protocol.....................................................................................................................7
Overview...............................................................................................................................................7
Command String Structure......................................................................................................................7
RS-232 Commands .............................................................................................................................8
iC-Net Zones .....................................................................................................................................10
System Map ......................................................................................................................................11

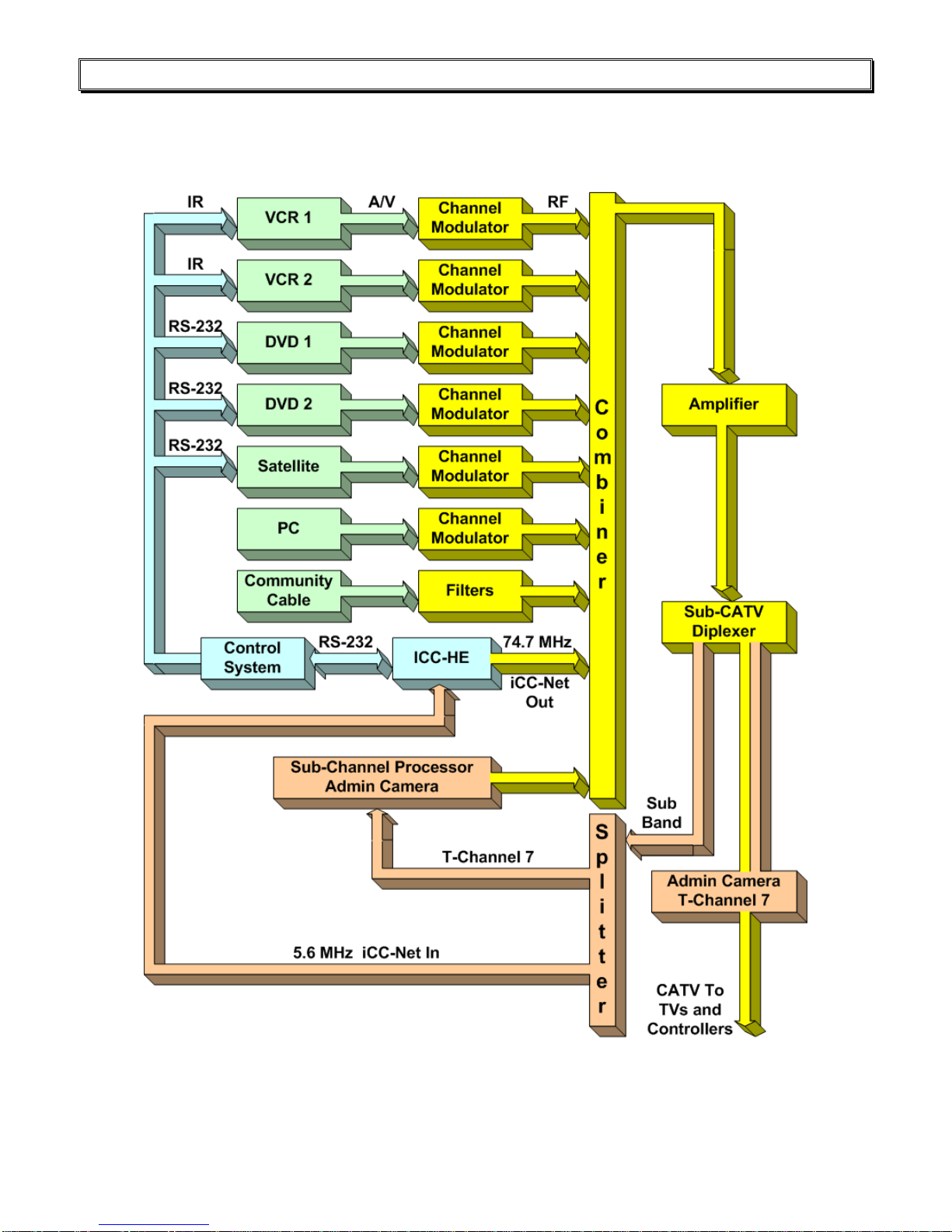

Typical RF and ICC-Net Signal Flow .................................................................................................12
Safety Instructions...........................................................................................................................13
Limited Warranty and Disclaimer.....................................................................................................14

Overview
The ICC1-232 RS-232 Display Controller delivers economical 1-way control for power, volume, channels, and
available control lockout commands, receiving iCC-Net network commands over the same broadband coax that
carries the CATV channels. Compact in size and price, the ICC1-232 features discrete power control and
intelligent tuning from a channel list stored in onboard non-volatile memory. Tuning options include analog- and
HDTV-format channels.
High-speed 1-way control is possible through the same RF cable that carries the TV channels, creating
networked operation of distributed media systems without adding control wiring. Compatible with the
Contemporary Research SignStream™, iC-Web, and iC Commander software, the ICC1-232 can be networked
with up to 4000 display controllers. For custom systems applications, the ICC1-232 and other CR display
controllers can be accessed from a single RS-232 or Telnet port on an ICE-HE Ethernet Head End.
Applications include signage and video distribution for retail stores, theme parks, museums, government
facilities, sports venues, worship spaces, convention centers, airports and corporate video networks..
•Controls most brands of RS-232-controlled displays
—Delivers absolute power control with discrete RS-232 commands
—Tunes analog or HDTV format channels
—Intelligent volume level and mute operation
—Enables available control lockout commands
•Networks with up to 4,000 TVs through the ICE-HE Ethernet Head End
•Receives 1-way individual and zone commands from a single RS-232/Telnet port on the ICE-HE Head
End
•Provides LED feedback for network and RS-232 control
•Restores all power and channel status after loss of power from data stored in non-volatile memory
•Mounts on the back of display for simplified control and RF installation
•Operates with SignStream, iC Commander, and iC-Web software, as well as from RS-232 protocol from
a custom-programmed PC or control system
•Includes RF loop cable, mounting Velcro, and 12VDC power supply
•Optional CC-232 RS-232 control cable (specify make, model, and cable length)
Contemporary Research 3 ICC1-232 Manual

Specifications
Physical
Size: 5.5" [140mm] wide x 1.1" [28mm] height x 3.4" [86mm] deep
Weight: 8 oz [226g]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Mounts rear of TV

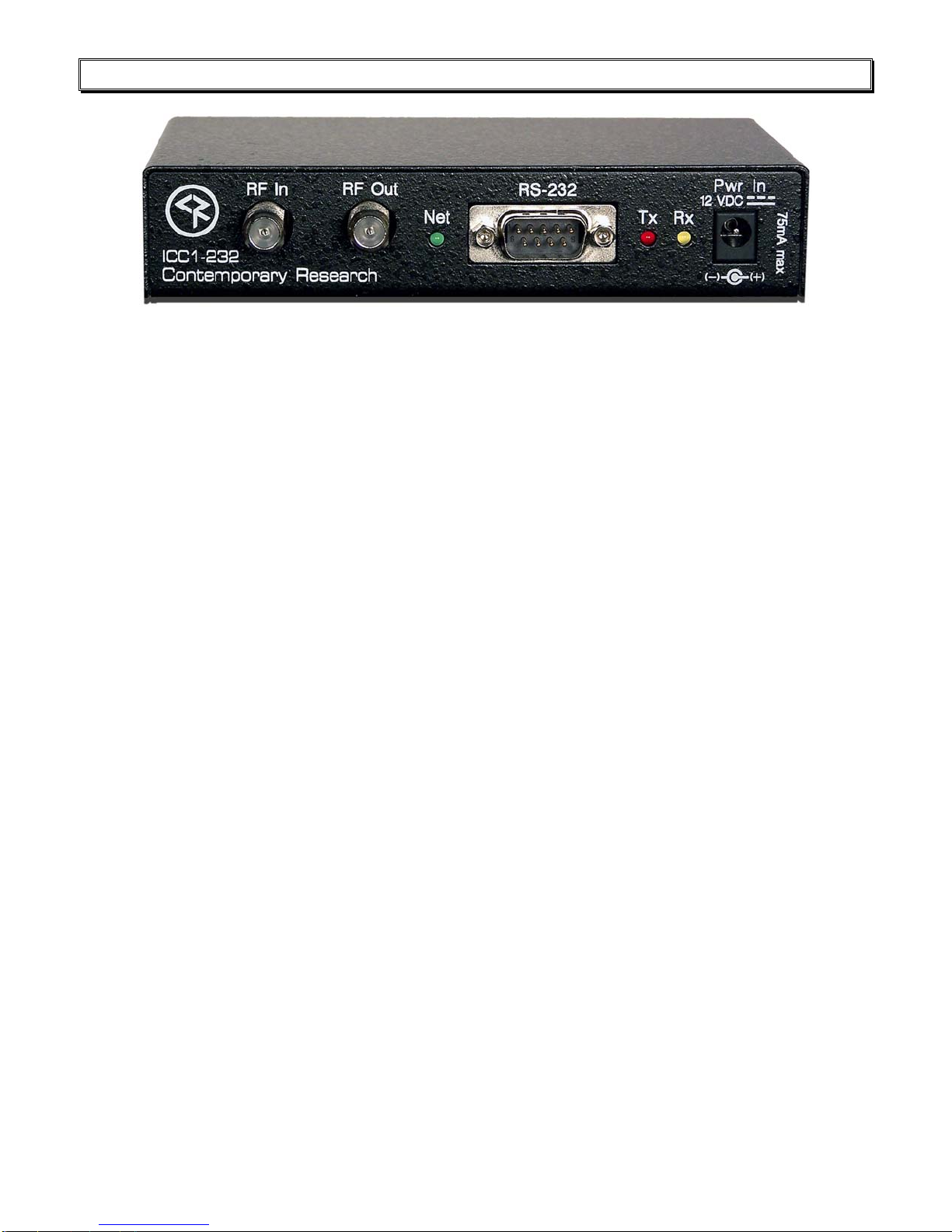

Rear Panel
RF In ‘F’, female, 75 ohm impedance, RF from CATV system, iCC-Net control
RF Out: ‘F’, female, 75 ohm impedance, RF to TV, less than -1.5 dbmV loss
Net LED: Green LED for iC-Net bus and DC power, flashes once per second if active
RS-232: DB-9 male connector, baud rates from 1200 to 115K baud
Optional CC-232 RS-232 available to match specific makes and models
Tx LED: Red LED lights when RS-232 information is sent
Rx LED: Yellow LED lights when RS-232 information is received
Power In: 2.1mm coaxial jack (inside center conductor positive), 75 mA maximum
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
DIP Switches: Located on bottom of unit, sets RS-232 code operation and device number
iCC-Net
Operation: 1-way control, carried over the same RF coax connection as TV channels
Data Receive: Mid-band VHF, 74.7MHz, sent from ICC-HE
-25 to +35 dBmV signal level
Includes
RF Loop cable, 18"
12 VDC power supply, 100 mA, (domestic US shipments only)
Mounting Velcro
Options
CC-232 RS-232 Control Cable (specify make, model, and length)
12 VDC power supply, 100 mA, (domestic US shipments only)
Mounting Brackets
Contemporary Research 2 ICC1-232 Manual

Installation
AC Power Test
1. Insert DC power supply plug into 12 VDC jack.
2. Plug power adaptor into AC wall outlet.
3. The Net LED should turn on and stay lit.
RS-232 Control Wiring
1. Attach the CC-RS-232 or custom RS-232 cable to the ICC1-232 control port.
2. Connect the cable to the display’s RS-232 control input.
RF Coax and iCC-Net Operation
1. Connect the TV to CATV and observe quality of RF broadcasting. A low-quality CATV system can also
affect performance of the iCC-Net commands. If needed, fix CATV problems before installing the system.
2. Connect the CATV RF Coax cable into the RF In input on the ICC1-232.
3. If the iCC-Net signal is operating, the Net LED will blink once per second.
4. Connect the RF loop cable from the RF Out jack to the TV’s RF connector (remember, you lose less than
1.5 dbmV by going through the ICC1-232’S internal RF tap).
Contemporary Research 3 ICC1-232 Manual

Installation
Setting RS-232 Control Codes
The DIP switches S1 and S1 at the bottom of the ICC1-232 serve in two modes, IR Type, Channel Entry and Device
Number, determined by S2 Switch 6 and S2 Switch 5. In this section, you’ll set up the manufacturer’s IR codes sent
from the IR Out port. These may have been set at the factory, or you’ll need to set them yourself.
1. Apply DC power to the ICC1-232.
2. If the unit’s device number has already been set, note the current settings for S1 switches 1-8 and S2 switches
1-4.
3. Set S2 Switch 6 to ON.
4. Look at the RS-232 Control Code chart on next page and select the desired value.
5. Set S1 Switches 1 – 6 to match the value. For example to select the Sharp HD codes (33),
turn on S1 switches 1 and 6, adding up to 5 to match the value in the RS-232 Chart on next page
6. If unit’s device number had been set before, return S1 switches 1-8 and S2 switches 1-4 to previous positions.
Contemporary Research 4 ICC1-232 Manual

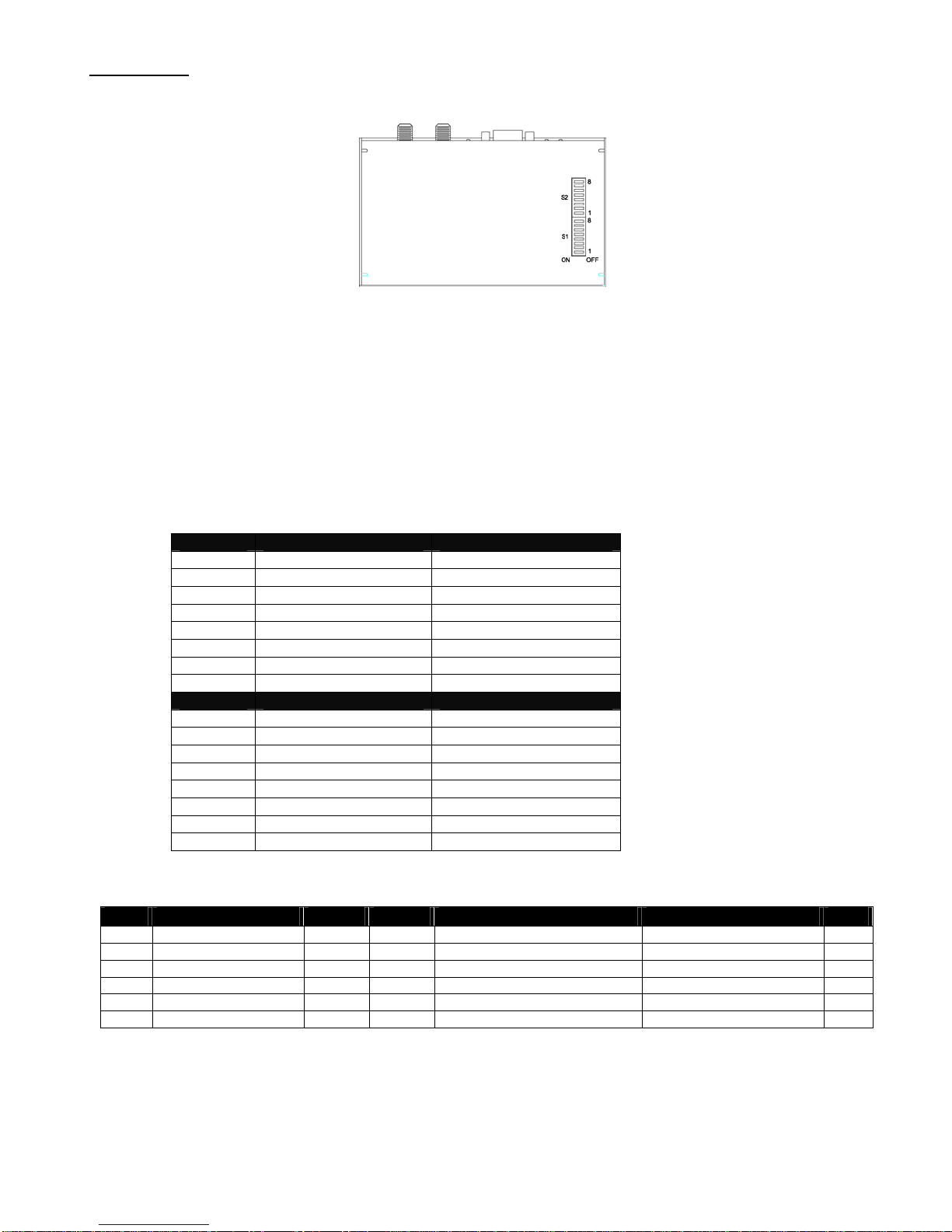

RS-232 Control Codes
Code MFG Type Baud Models
S1 Off Value On Value
1 0 1
2 0 2
3 0 4
4 0 8
5 0 16
6 0 32
7 0 64
8 0 128
S2
1
2
3
4
5
6 Device Number Mode RS-232 Type Mode
7
8
Notes Ver
29 LG HD LCD 9600 Digital CableCard Tuning 1.3
33 Sharp HD LCD 9600 Digital CableCard Tuning 1.2
34 Westinghouse ProAV LCD 9600 Digital Tuning 1.5
35 Sampo LCD Digital Tuning 2.0
36 Revolution HD LCD Digital Tuning 2.3
37 Enseo 115.2K HD tuner/Monitor 2.5

Installation
Setting Device Number and Parameters (Device Mode)
In the next step, you’ll need to set up the device number and operation parameters for the ICC1-232. Notice that
the functions of the S1 and S2 switches change when you set the unit in Device mode.
1. Make sure S2 Switch 6 is OFF (unit in Device mode).
2. Set the Device number by turning on the switches that add up to the desired device number. For
example, for Device #513 (1st device in Zone 2), S1 Switch 1 (1) and S2 Switch 2 (512) ON.
*Values in gray cells are the default settings.
Contemporary Research 5 ICC1-232 Manual
Zone Switch Settings
To define the controller’s Zone, use the following pattern of switches ON for the S2 DIP.
S1 Off Value On Value
1 0 1
2 0 2
3 0 4
4 0 8
5 0 16
6 0 32
7 0 64
8 0 128
S2
1 0 256
2 0 512
3 0 1024
4 0 2048
5
6 Device Mode RS-232 Mode
7
8
Zone Value 1 2 3 4
256 512 1024 2048
1 256 X
2 512 X
3 768 X X
4 1024 X
5 1280 X X
6 1536 X X
7 1792 X X X
8 2048 X
9 2304 X X
10 2560 X X
11 2816 X X X
12 3072 X X
13 3328 X X X
14 3584 X X X
15 3840 X X X X
Device Number Setting

Contemporary Research 6 ICC1-232 Manual
Unit Address Switch Settings
The unique address of the controller is the combination of the values of the Zone (S2) and Unit (S1) switches. For
example, the first controller in Zone 1 would be set to Zone 1 (256) in S2 and 1 (1) on S2, or 257. To control all
the displays in Zone one, Display Express sends a command to device 256. To control just the first unit, create a
Preset addressed to 257.
Installation Process and Documentation
Most dealers will pre-configure the controller’s address before hanging displays. After setting the address, use a
label that states the unit’s address and location. Some use this method:
Room 305 - 515 - 12/2
The first identifies the location/name of the display. The second shows the specific address. The last set shows
the switches in S1/S2 that are set to ON.
It’s a good idea to define all this first in a spreadsheet, with the columns defining the name, address, S1 and S2
ON settings. Then, one person can set up all the controllers and label them.
Once the controller is configured and labeled, it’s easier for less-trained installers to Velcro the controller on the
back of the display, provide power, and hang the displays.
It’s much easier to pre-configure ahead of time than perform the task once the displays are installed.
RS-232 Control Wiring
1. Connect the CC-232 cable from the ICC1-232 to the display.
2. Mount the ICC1-232 to the TV using included Velcro tape.
3. Connect DC power to unit.

Contemporary Research 7 ICC1-232 Manual
RS-232 Control Protocol
Overview
RS-232 control for up to 4000 TV Controllers is provided through an iC-series Head-End Network Controller. The
ICE-HE Ethernet Head End manages iC-Net communication over RF Coax to ICC1 (1-way) and ICC2 (2-Way) TV
Controllers.
Each TV Controller is assigned a unique device number from 1 to 4000 to which control commands are
addressed. The devices are organized into 16 zones of 255 devices. All the devices in each zone will respond to
a single “virtual device number” — one device number that represents all devices in each zone. There is also a
global device number, 4095, that will command all devices in the system. This feature dramatically speeds up
system operation and programming, because one command can affect an entire group of devices—or all. To
take advantages of this feature, review the section iC-Net SmartZones in this manual.
In ABC-Net, we reserve the first group of devices, 1-255, for components operating on a connected control
system. Zones 1-16 are used for CR TV Controllers, Video Display Controllers and Tuners. As it’s unlikely any
system will use all 4000 devices, this may be a good device standard for your system as well.
The Remote RS-232 port on the Head-End Network Controller can communicate from 1200 to 38.4K baud. The
factory default setting is 19.2K baud, 8 data bits, No parity, and 1 stop bit.
Command String Structure
Characters in command strings are expressed in a combination of hex and ASCII characters. For clarity, the
following protocol examples use the following conventions:
•Single-byte hex numbers are preceded by the ‘$’ symbol
•ASCII characters or strings are enclosed in single quotes
•Numbers not marked as hex or ASCII are a single decimal byte
•Parameters shown in < > brackets are single byte
•A series of multiple commands or parameters are set apart by [ ] brackets
•Commas separate the bytes, but are not part of the protocol
•Double quotes enclose the command string, but are not part of the protocol
Command format:
“$A5,<dh>,<dl>,<ncb>,<cmd1>,<parameter> [<cmdN>]"
$A5 Starts the command
<dh> The zone or high order byte of the device*
<dl> The unit or low order byte of the device (0 for global zone)
<ncb> The number of command bytes to follow
<cmd1> The first command byte
<parameter> Command parameters (not used by all commands)
[<cmdN>] Multiple commands can be concatenated, with byte count added to <ncb>
*
iC-Net devices are arranged with a zone mindset. For example, a command sent to Device 256, which
triggers all the units in Zone 1, would be expressed as $A5, 1, 0 (first zone, device zero). A command sent
to 257 would be $A5, 1, 1 (first zone, device 1 in the zone). See iC-Net SmartZones toward the end of this
manual.

Contemporary Research 8 ICC1-232 Manual
RS-232 Commands
Command Description
Power
Power Off P0 “$A5,<dh>,<dl>,2,’P0’ ” (6 bytes)
Power On P1 “$A5,<dh>,<dl>,2,’P1’ ” (6 bytes)
Power Toggle PT “$A5,<dh>,<dl>,2,’PT’ ” (6 bytes)
Volume
VL “$A5,<dh>,<dl>,3,’VL’,<vol level>” (7 bytes)
Sets TV volume level
0 = Mute
1 – 63 = Minimum level (1) to maximum volume (63)
RS-232 Control T0 “$A5,<dh>,<dl>,3,’T0’<type> ” (7 bytes) – Sets RS-232 control codes
Identical to on-screen menu 45700 command on Page 8. Specify value to match make
and model of video display
Tuning Format S0= “$A5,<dh>,<dl>,3,’S0’,<format>” (7 bytes)
0=CATV
1=Off-Air
2=IRC
3=HRC
4=Cable Auto
Not always used by modern displays – normally set by TV on-screen menus
Tuning Style H1= “$A5,<dh>,<dl>,3,’H1’,<style>” (7 bytes)
1 = 5-digit CableCard style tuning (1-9999)
2 = Virtual HD Major-Minor tuning (tunes to virtual channel ID in display)
3 = Physical HD Major-Minor tuning (physical channel, minor digital)
TC Response H2= “$A5,<dh>,<dl>,3,’H2’,<response>” (7 bytes)
This pre-sets how the ICC1-232 will respond to TC tuning commands.
0= Ignore, use current settings
1= Analog Only
2= Digital (For CableCard applications only)
Control String UX "$A5,<dh>,<dl>,2+string length>,'UX'<string>" (variable bytes)
Sends an RS-232 string (ASCII, decimal, or hex) directly to the TV display.
Ex: "$A5,1,2,6,'UX, 'PON', 13" Sends PON, followed by carriage return (device 258)

Contemporary Research 9 ICC1-232 Manual
RS-232 Commands
Command Description
Channel Up TU NA
Channel Dwn TD NA
T Channel Prev TP NA
Force Channel TC “$A5,<dh>,<dl>,3,’TC’, <channel>” (7 bytes) – Tunes to a specific channel 2-127
Select Channel TT “$A5,<dh>,<dl>,2,’TT’,<channel>” (7 bytes) – Same as TC
Tune HD TH
Ex:
“$A5,<dh>,<dl>,5,’TH’,<H1>,<Major>,<Minor>” (9 bytes) – Digital Tuning
Normally, the H1 parameter is 0, allowing the ICC1-232 to use the current H1
tuning format, but it could be used to force a different tuning option. When the
display is set to the H1=1 mode, the Major-Minor bytes will represent the high and
low bytes of the 5-digit number. In H1=2 or 3 modes, the bytes represent the
Major and Minor channel numbers. Values may be in hex or decimal.
“$A5,1,4,5,’TH’,1,2,3” Device 260, channel 515
“$A5,1,4,5,’TH’,2,2,3” Device 260, virtual channel 2-3
“$A5,1,4,5,’TH’,3,2,3” Device 260, physical channel 2, minor 3
Select Channel TT “$A5,<dh>,<dl>,2,’TT’,<channel>” (7 bytes) – Same as TC
Tune Ring TR “$A5,<dh>,<dl>,<ncb>,’TR’, [<chan 1>, <chan N>]” (variable bytes)
This command stores a Tune Ring, Analog channels only , a series of preset
channels accessed by channel up/down commands.
Ex1: “$A5,<dh>,<dl>,6,’TR’, 5,4,8,11” sets ring to channels 5, 4, 8 and 11
Tip: The ring follows the stored order, channels do not have to be in ascending
order
Ex2: “$A5,<dh>,<dl>,8,’TR’, $82,5,$87,11” sets channels 2-5 and 7-11. You can
specify a range using MSB bit for the first channel; the next byte is the last.
Control Lock LM “$A5,<dh>,<dl>,3,'LM',<control>” (7 bytes)
0 = Off (unlocked)
1 = On (locked)
Locks out display commands from an IR remote or front-panel buttons. Feature is
not available for all models of displays. Check with CR Tech Support if this function
is important to your application.

Contemporary Research 10 ICC1-232 Manual
iC-Net Zones
To simplify controlling groups of devices, iC-Net is divided into 15 Zones of 255 devices. All the devices within
each zone can be controlled simultaneously by sending a command to a single virtual device number.
For example, noting the zone chart below, if we send a Power On command to device #256, any TV controller
numbered between 257 and 511 will instantly turn on. If we send a Power Off command to device #4095, all
devices in the system will turn off.
The ICC1-IR and ICC1-232 controllers typical for many SignStream display control systems are designed to
follow a Zone address format. You can use the 4 top switches in the second DIP switch (S2) to define the
controller’s Zone. You could stop at that point, or use the upper switches (S1) to define the controller’s address
within the Zone. For example, setting S2/1 On and S1/2 On defines that the controller is part of Zone 1 (256),
and is the second unit in the Zone (2). The unique address of the controller would be 258 (256 + 2)
Zone Device # Unit Total Device #
1 256 1-255 257-511
2 512 1-255 512-767
3 768 1-255 769-1023
4 1024 1-255 1025-1279
5 1280 1-255 1281-1535
6 1536 1-255 1537-1791
7 1792 1-255 1793-2047
8 2048 1-255 2049-2303
9 2304 1-255 2305-2559
10 2560 1-255 2561-2815
11 2816 1-255 2817-3071
12 3072 1-255 3073-3327
13 3328 1-255 3329-3583
14 3584 1-255 3585-3839
15 3840 1-255 3841-4000
All Zones 4095
Tip:While many applications can use just the Zone number, it’s a good practice to assign a unique Unit
number to each controller in the zone. This allows the system software to address individual controllers if
necessary.

Contemporary Research 11 ICC1-232 Manual
System Map
One of the key tasks for iC-Net integrators is to create a logical System Map, assigning device numbers to TV
controllers so they fall into logical zones. The device mapping could be sorted by type or location; whichever
suits the application.
iC-Net Zone Zone Room Device S1 S2
1 W 1st Floor 256
W151 257 1 1
W152 258 2 1
W153 259 1+2 1
W154 260 3 1
2 W 2nd Floor 512
W251 513 1 2
W252 514 2 2
W253 515 1+2 2
W254 516 3 2
3 E 1st Floor 768
E151 769 1 1+2
E152 770 2 1+2
E153 771 1+2 1+2
E154 772 3 1+2
4 E 2nd Floor 1024
E251 1025 1 3
E252 1024 2 3
E253 1025 1+2 3
E254 1026 3 3
5 Coffee Areas 1280
G100 1281 1 1+3
G150 1282 2 1+3
G151 1283 3 1+3
6 Day Care 1536
TV 1 1537 1 2+3
TV 2 1538 2 2+3
7 Hallways 1792
W1 1793 1 3+3
W2 1794 2 3+3
E1 1795 1+2 3+3
E2 1796 3 3+3
8 Office 2048
Admin 2049 1 4
A/V Center 2050 2 4
All Zones All 4095

Typical RF and ICC-Net Signal Flow
The diagram below shows the structure of a typical Contemporary Research media retrieval system. One of the
key aspects for iCC-Net communication is to provide a forward and return (sub-channel) path for data if you’re
using ICC2 2-way TV Controllers.
Contemporary Research 12 ICC1-232 Manual

Contemporary Research 13 ICC1-232 Manual
Safety Instructions
Read before operating equipment.
1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer.
3. Outdoor Antenna Grounding - If you connect an outside antenna or cable system to the product, be
sure the antenna or cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides
information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode.
4. Lightning - Avoid installation or reconfiguration of wiring during lightning activity.
5. Power Lines - Do not locate an outside antenna system near overhead power lines or other electric light
or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna
system, refrain from touching such power lines or circuits, as contact with them might be fatal.
6. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
7. Object and Liquid Entry - Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short out parts, resulting in a fire or electric shock. Never spill
liquid of any kind on the product.
8. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
•When the power supply cord or plug is damaged.
•If liquid spills or objects fall into the product.
•If the product is exposed to rain or water.
•If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions. An improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation.
•If the video product is dropped or the cabinet is damaged.
•When the video product exhibits a distinct change in performance, this indicates a need for service.
*Note to CATV system installer: This reminder is provided to call CATV system installer's attention to
Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as possible.

Contemporary Research 14 ICC1-232 Manual
Limited Warranty and Disclaimer
Contemporary Research Corporation (CR) warrants this product to be free from defects in material
and workmanship under normal use for a period of two years from the date of purchase from CR.
Should such a defect occur CR will repair or replace, at their option, the defective product at no cost
for parts or labor.
This warranty extends to product purchased directly from CR or an Authorized CR Dealer. Consumers
should inquire from selling dealer as to the nature and extent of the dealer's warranty, if any.
All warranty claims must be shipped pre-paid to the factory. Call or fax to obtain a Return Material
Authorization (RMA) number.
CR is not liable for any damages caused by any of its products or for the failure of any products to
perform, including any lost profits, lost savings, incidental damages, or consequential damages. CR is
not responsible for any claim made by a third party or made for you by a third party. This limitation of
liability applies whether damages are sought, or a claim is made, under this warranty or as a tort
claim (including negligence and strict product liability), a contract claim, or any other claim. This
limitation of liability cannot be waived or amended by any person. This limitation of liability will be
effective even if CR or an authorized representative of CR has been advised of the possibility of any
such damages.
Some states do not allow a limitation of how long an implied warranty lasts. Some states do not allow
the limitation or exclusion of incidental or consequential damages for consumer products. In such
states, the limitation or exclusion of the Limited Warranty may not apply to you. This Limited
Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state. You are advised to consult applicable state laws for a full determination of your rights.
Except as expressly set forth in this Limited Warranty, CR makes no other warranties, expressed or
implied, including any implied warranties of merchantability or fitness for a particular purpose. CR
expressly disclaims all warranties not stated in this Limited Warranty. Any implied warranties that may
be imposed by law are limited to the terms of this Limited Warranty.
