Contemporary Research ICC-ZS2 User manual

17630 Davenport Road, Suite 113 • Dallas, TX 75252
Phone:[phone] • Toll-Free: 888-972-2728 • Fax: [phone]
E-Mail: [e-mail] • Website: www.crwww.com
Product Manual
ICC-ZS2
LG/Zenith SuperPort Controllers
Ver. 1.6 September 19, 2008

Contemporary Research 2 ICC-ZS2 Zenith SuperPort Card
Table of Contents
Overview.............................................................................................................................................3
Specifications......................................................................................................................................4
Models ..................................................................................................................................................4
Physical.................................................................................................................................................4
Front Panel Status..................................................................................................................................4
Connections – ICC1, ICC2.......................................................................................................................4
Options:................................................................................................................................................4
Installation .........................................................................................................................................5
SmartPort Installation.............................................................................................................................5
SmartPort – New Digital Displays...............................................................Error! Bookmark not defined.
RF Coax and iCC-Net Operation (ICC1-, ICC2-ZS2)....................................................................................5
Zenith ScanCard DIP Switch....................................................................................................................5
Using the IC-RC Remote for On-Screen Menus..........................................................................................6
On-Screen Setup Menus..........................................................................................................................6
RS-232 Control Protocol.....................................................................................................................7
Overview...............................................................................................................................................7
Command String Structure......................................................................................................................7
RS-232 Commands .............................................................................................................................8
RS-232 Responses............................................................................................................................11
Response String Structure.....................................................................................................................11
Command format:................................................................................................................................11
iC-Net SmartZones............................................................................................................................13
System Map ......................................................................................................................................14

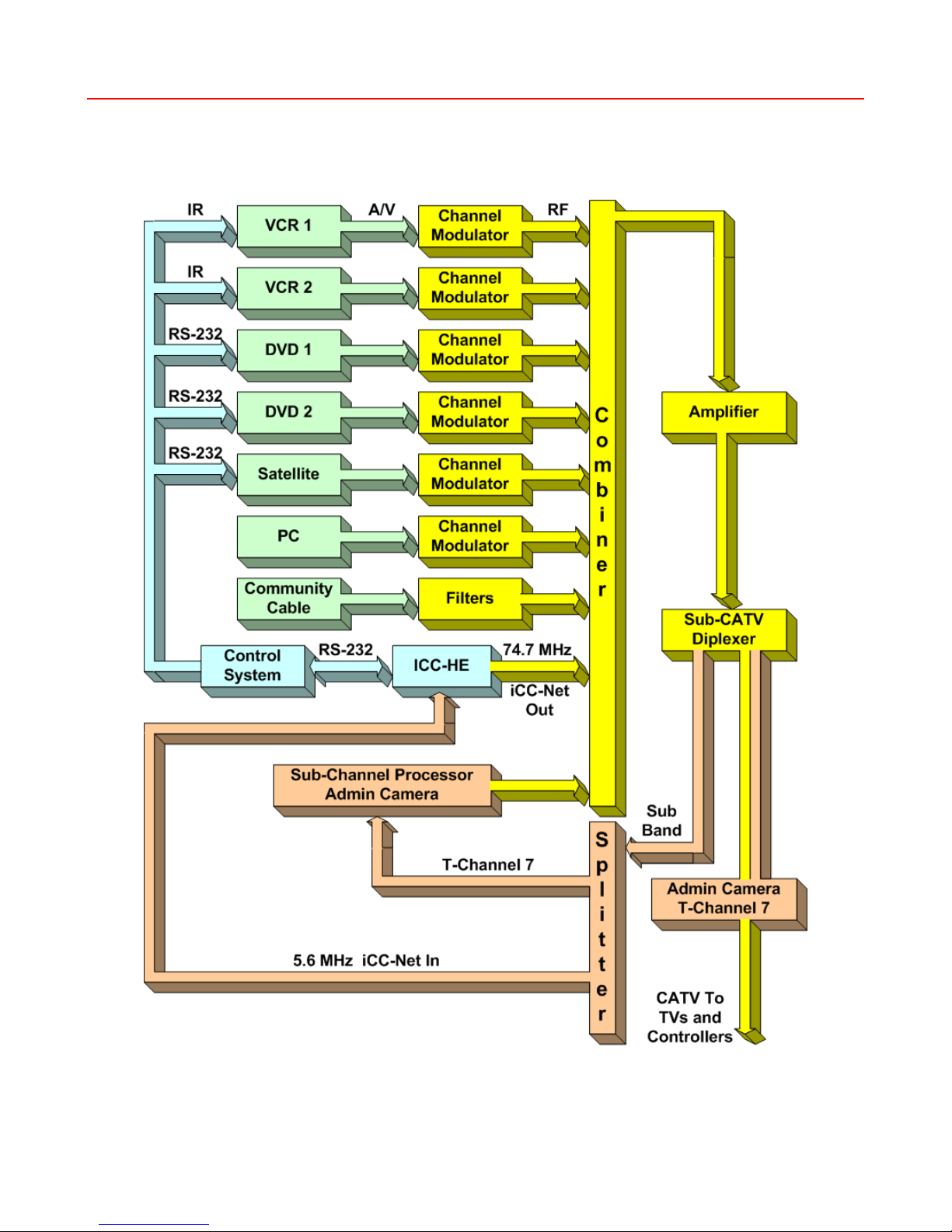

Typical RF and ICC-Net Signal Flow .................................................................................................15
Safety Instructions...........................................................................................................................16
Limited Warranty and Disclaimer.....................................................................................................17

Overview
Contemporary Research offers the perfect solution for intelligent television control and interactive distributed media
management, the ICC-series ZS2 LG/Zenith SuperPort Controllers. The ICC2-ZS2 communicates bi-directionally over the
same RF coax that carries the CATV channels, while the ICC1-ZS2 receives commands over RF.
LG/Zenith SuperPort Controllers take advantage of LG/Zenith SuperPort TV technology. Inserting into the SuperPort card
slot, the Controllers use the TV’s internal IR sensor, character generator, and tuner to deliver cost-effective network TV and
media management.
•Controls LG/Zenith SuperPort TVs for cost-effective operation
oCreates on-screen channel labels, messages interactive text menus, and system feedback using TV’s
onboard character generator
oReceives wireless commands from IC-RC IR remote using TV’s IR sensor
oDelivers absolute volume control for level and mute
oManages channel access using list of available channels (tuning ring) in controller memory
oDelivers absolute power control with on/off feedback from TV
•Interacts with Zenith SuperPort TV’s internal IR sensors, character generator, and tuner
•Networks with up to 4,000 TVs through the ICC-HE or ICW-HE Head-End Network Controller (HE)
oICC1 units receive commands over the same RF cable as CATV channels
oICC2 units provide 2-way command and control with feedback over RF
oICC2 units transmits key commands from IC-RC remote for 2-way control applications
oExclusive SmartZone architecture controls hundreds of controllers with a single command
•Responds to individual and zone commands from a single RS-232 port on the HE
•Provides LED feedback for network, control, and operation status
•Restores all operation status after loss of power from data stored in non-volatile memory
•Inserts into Zenith SuperPort card slot for simplified installation and ease of control
New changes to the ICC-ZS2 SuperPort Card:
•Firmware can be updated over the RF coax
•DIP switches have been added for compatibility with older Zenith models with ScanCards
•Compatible with new LG displays with digital tuners, analog channels (rev 1.6)
Contemporary Research 3 ICC-ZS2 Zenith SuperPort Card

Specifications
Models
ICC1-ZS2: 1-way RF coax iCC-Net control for Zenith models with SuperPort,
ICC2-ZS2: 2-way RF coax iCC-Net control for Zenith models with SuperPort
Physical
Size: 1.12" [29mm] wide x 3.73" [95mm] height x 5.95" [151mm] deep
Weight: 5 oz [143g]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Inserts into SuperPort slot of Zenith TVs, replaces card included with TV

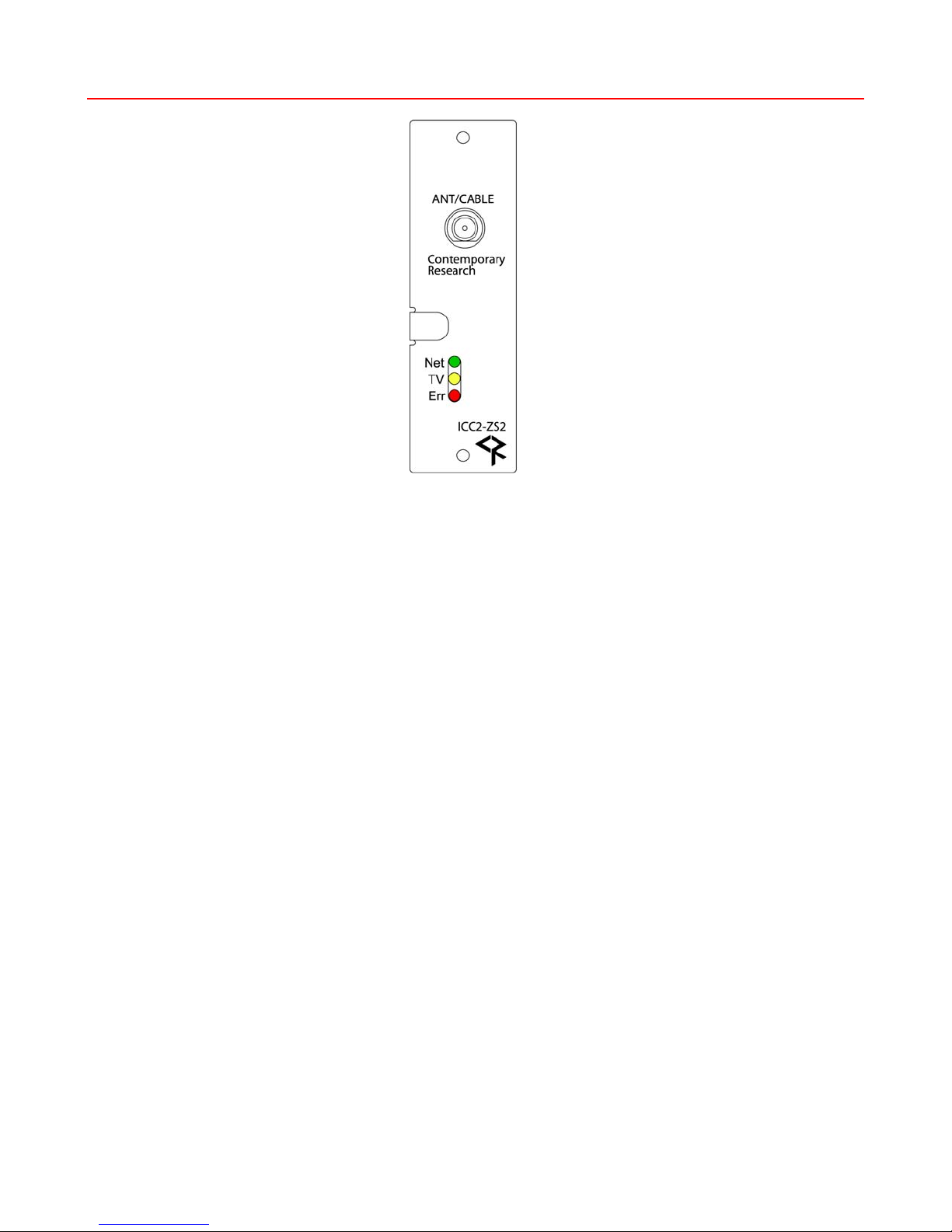

Front Panel Status
Net LED: Green LED for iC-Net bus, flashes once per second if receiving communication
TV LED: Yellow LED stays on, flashes when receiving IR data, off when no Smart data
ERR LED: Red LED indicates a problem within the unit
Connections – ICC1, ICC2
Ant/Cable: ‘F’, female, 75 ohm impedance, RF from CATV system
iCC-Net: Carried over the same RF coax connection as TV channels
Receive: (ICC1, ICC2) Mid-band VHF, 74.7MHz, sent from IC Head-End Network Controller
-25 to +35 dBmV signal level
Transmit: (ICC2 only) Sub-band, 5.6MHz sent to Head-End Network Controller
±80 KHz max carrier deviation
+49dBmV nominal
RF Out: Internal RCA female, 75 ohm impedance, RF to TV
Ground: Internal lug for TV GND wire
Power: Powered by TV
Options
Internal buzzer for system alerts, closure for camera power relay (factory-installed options)
IC-RC Wireless IR Remote for user control and system setup
Contemporary Research 4 ICC-ZS2 Zenith SuperPort Card

Installation

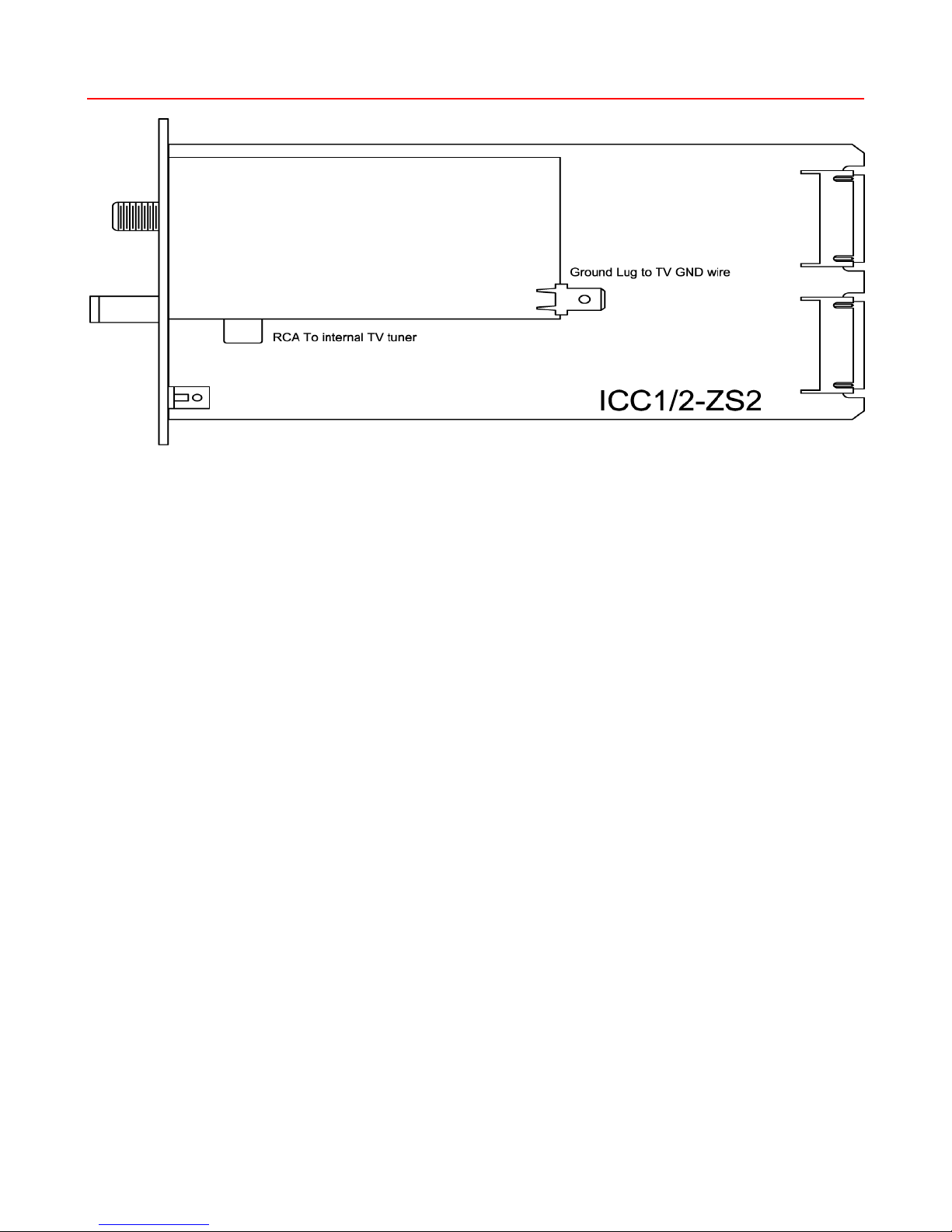

SmartPort Installation
1. Turn off TV.
2. Zenith CRT TVs have 2 card spaces. If there is a blank plate, don’t use that space for the iC-Net card. For
ATSC CRT TVs, place card in the Antenna/Cable slot – placing in the Digital/Antenna slot can damage the
TV. Replace the existing card that has the F connector with the SuperPort card. LCD units have one slot.
3. Remove existing card, removing internal Ground and RF wires if attached.
Pull out card partially, then disconnect wires before completely removing.
4. Connect internal Ground and RF wires to ZS2 card.
5. Insert ZS2 card into SuperPort.
6. Turn on TV.
7. The NET LED should light and stay on, indicating power, but not iC-Net communication.
8. COM LED turns on when data link with TV is established, blinks when data sent from IR remote, front-
panel buttons, or iC-Net commands.
RF Coax and iCC-Net Operation (ICC1-, ICC2-ZS2)
1. Connect the CATV RF Coax cable into the ANT/CABLE jack.
2. If the iCC-Net signal is operating, the Net LED will blink once per second
Zenith ScanCard DIP Switch
We have included a 4-position DIP switch that enables ScanCard compatibility with older Zenith TVs.
1. All four DIP switches are set to the OFF position from the factory – this is the normal setting for new TVs
and older models without ScanCards.
2. If you are installing the ICC-ZS2 in an existing TV that has a ScanCard, turn all four switches ON.
3. If the switches are set ON in a new TV, you will likely hear electronic noise in the audio.
Contemporary Research 5 ICC-ZS2 Zenith SuperPort Card

Contemporary Research 6 ICC-ZS2 Zenith SuperPort Card
Using the IC-RC Remote for On-Screen Menus
In order to complete the setup, you’ll need the IC-RC IR Remote to use the On-Screen Menus. Typically, the
remote is shipped ready to communicate to Smart TV. Just in case, here’s how to set the IR codes in the
remote:
1. Press and hold the Select button and a numeric key for the code # below.
2. Release the two keys at the same time.
3. The remote will now send the selected codes.
4. Remote will keep the codes, even if battery power is lost.
IR Code Format Code
Zenith Smart TV 1
LG/Zenith Smart LCD 5
On-Screen Setup Menus
The remaining installation steps use the IR remote and the TV’s built-in character generator.
1. Touch Menu, then 999, then Enter.
2. The text CR MENU> should appear on the screen.
3. Key in one of the commands shown below, then press Enter to activate.
4. Note that, in Menu mode, the Channel Down key acts as a backspace/delete key and Channel Up
can act as an Enter.
Command Function
All The following commands are used for all units
45677 Display firmware base data (variations for LG models)
45678 Display firmware version
45679 Display the unit’s Device #. At this point, you can use the Channel Down key as a
Delete key, enter a new device # with the remote’s numeric keypad, then hit Enter
to save the new number.
65478 Reset unit, similar to disconnecting power then restarting.
65479 Disable smart port communication. After about 5 seconds the TV will drop
communication with the TV controller and revert to stand alone TV mode. At this
point, the installer can switch to the TV Mode on the remote control, and then
adjust the TV setup parameters. To re-enable smart port, press Record on IC-RC.
65487 Initialize to factory default settings: Power on, unlocked, display channel 11,
channel ring set to 4, 5, and 11, Group 0. Note that this command works even if TV
power is off or control is locked out.
65482 Shows Net RX if receiving the iC-HE’s “heartbeat” pulse once per second, !NET RX
if not. Also displays receive signal strength in the ICC2.
ICC2 The following commands are used for the ICC2 only
65480 Enable constant Net transmit to the Head-End. This is used for measuring the signal
strength of the ICC2 unit’s RF output. Press Enter to stop transmitting, or the unit
will automatically stop after 50 seconds.
65481 Display ICC2 transmitter frequency control voltage – should be 2000 - 3150.
65483 Display DF transmitter frequency deviation – should be 245 - 300.

Contemporary Research 7 ICC-ZS2 Zenith SuperPort Card
RS-232 Control Protocol
Overview
RS-232 control for up to 4000 TV Controllers is provided through an iC-series Head-End Network Controller. The
ICC-HE Head-End manages iC-Net communication over RF Coax to ICC1 (1-way) and ICC2 (2-Way) TV
Controllers.
Each TV Controller is assigned a unique device number from 1 to 4000 to which control commands are
addressed. The devices are organized into 16 zones of 255 devices. All the devices in each zone will respond to
a single “virtual device number” — one device number that represents all devices in each zone. There is also a
global device number, 4095, that will command all devices in the system. This feature dramatically speeds up
system operation and programming, because one command can affect an entire group of devices—or all. To
take advantages of this feature, review the section iC-Net Zones in this manual.
In ABC Media Retrieval Systems, we reserve the first group of devices, 1-255, for components operating on a
connected control system. Zones 1-16 are used for CR TV Controllers, Video Display Controllers and Tuners. As
it’s unlikely any system will use all 4000 devices, this may be a good device standard for your system as well.
The Remote RS-232 port on the Head-End Network Controller can communicate from 1200 to 38.4K baud. The
factory default setting is 19.2K baud, 8 data bits, No parity, and 1 stop bit.
Command String Structure
Characters in command strings are expressed in a combination of hex and ASCII characters. For clarity, the
following protocol examples use the following conventions:
•Single-byte hex numbers are preceded by the ‘$’ symbol
•ASCII characters or strings are enclosed in single quotes
•Numbers not marked as hex or ASCII are a single decimal byte
•Parameters shown in < > brackets are single byte
•A series of multiple commands or parameters are set apart by [ ] brackets
•Commas separate the bytes, but are not part of the protocol
•Double quotes enclose the command string, but are not part of the protocol
Command format:
“$A5,<dh>,<dl>,<ncb>,<cmd1>,<parameter> [<cmdN>]"
$A5 Starts the command
<dh> The zone or high order byte of the device
<dl> The unit or low order byte of the device (0 for global zone)
<ncb> The number of command bytes to follow
<cmd1> The first command byte
<parameter> Command parameters (not used by all commands)
[<cmdN>] Multiple commands can be concatenated, with byte count added to <ncb>

Contemporary Research 8 ICC-ZS2 Zenith SuperPort Card
RS-232 Commands
Command Description
Power Off P0 “$A5,<dh>,<dl>,2,’P0’ ” (6 bytes) – checks TV data for true power control
Power On P1 “$A5,<dh>,<dl>,2,’P1’ ” (6 bytes) – checks TV data for true power control
Power Toggle PT “$A5,<dh>,<dl>,2,’PT’ ” (6 bytes) – checks TV data for true power control
Operating
Parameters TM “$A5,<dh>,<dl>,3,’TM’,<setting>” (7 bytes)
Sets up key functions in the unit
Bit 7 – 4 = 0
Bit 3 – Deletes Tune Ring in memory
Bit 2 – Channel up/down operation, 0=Tune Ring, 1=Send IR Keypad response
Bit 1 – Numeric channel labels, 0=num labels off, 1=num labels on)
Bit 0 – Alpha channel labels, 0=alpha labels off, 1=alpha labels on
Volume
VL “$A5,<dh>,<dl>,3,’VL’,<vol level>” (7 bytes)
Sets TV volume level
0 = Mute
1 – 63 = Minimum level (1) to maximum volume (63)
Ts & Qs T-series channel commands select a channel and display the channel label on the
TV, while Q-series commands don’t show the on-screen text.
T Channel Up TU “$A5,<dh>,<dl>,2,’TU’ ” (6 bytes) – Tunes to next channel up in Tune Ring
T Channel Dwn TD “$A5,<dh>,<dl>,2,’TD’ ” (6 bytes) – Tunes to next channel down in Tune Ring
T Channel Prev TP “$A5,<dh>,<dl>,2,’TP’ ” (6 bytes) – Tunes to previous channel in Tune Ring
Force T Channel TC “$A5,<dh>,<dl>,3,’TC’, <channel>” (7 bytes) – Tunes to a specific channel
124 = RGB 2 input on TV
125 = RGB input on TV
126 = Select TV composite A/V input
127 = Select S-Video Input
0 = Blank video output to TV
255 = Unblank TV video (restore to previous channel)
Tip: Not all inputs are available on every TV make and model
Select T Channel TT “$A5,<dh>,<dl>,2,’QT’,<channel>” (7 bytes) – Tunes channel if included in TR
Channel Query T? “$A5,<dh>,<dl>,2,’T?’ ” (6 bytes) – Request response for current channel
Q Channel Up QU “$A5,<dh>,<dl>,2,’QU’ ” (6 bytes) – Tunes to next channel up in Tune Ring
Q Channel Dwn QD “$A5,<dh>,<dl>,2,’QD’ ” (6 bytes) – Tunes to next channel down in Tune Ring
Q Channel Prev QP “$A5,<dh>,<dl>,2,’QP’ ” (6 bytes) – Tunes to previous channel in Tune Ring
Force Q Channel QC “$A5,<dh>,<dl>,3,’QC’, <channel>” (7 bytes) – Tunes to a specific channel
Same special-function channels as in the T Channel Select section above
Select Q Channel QT “$A5,<dh>,<dl>,2,’QT’,<channel>” (7 bytes) – Tunes channel if included in TR

Contemporary Research 9 ICC-ZS2 Zenith SuperPort Card
Command Description
Tune Ring TR “$A5,<dh>,<dl>,<ncb>,’TR’, [<chan 1>, <chan N>]” (variable bytes)
This command stores a Tune Ring, a series of preset channels accessed by channel
up/down commands.
Ex1: “$A5,<dh>,<dl>,6,’TR’, 5,4,8,11” sets ring to channels 5, 4, 8 and 11
Tip: The ring follows the stored order, channels do not have to be in ascending
order
x
Ex2: “$A5,<dh>,<dl>,2,’TR’ ” clears the Tune Ring, locks unit to current channel
Tip: In the above mode, the IR Keypad channel up/down response to the Head-
End, so the system will know the user is trying to change channels. In
response, the system could change channels on a media sources, like a VCR
or satellite. (Feature not provided in 1-way models).
Ex3: “$A5,<dh>,<dl>,8,’TR’, $82,5,$87,11” sets channels 2-5 and 7-11. You can
specify a range using MSB bit for the first channel; the next byte is the last.
Channel Labels TN “$A5,<dh>,<dl>,<ncb>,‘TN’,<channel>,<label>” (variable bytes)
Stores an ASCII string as the channel label. The text will appear briefly when the
channel is selected, if the feature has been activated by Setup command (TM).
Ex1: “$A5,<dh>,<dl>,6,‘TN’, ‘7’, ‘PBS’ ” TV displays PBS when 7 is selected
Ex2: “$A5,<dh>,<dl>,3,‘TN’, ‘7’ ” Clears alpha label for channel 7
Ex3: “$A5,<dh>,<dl>,4,‘TN’,0,0” Clears all alpha labels
Display Label TC “$A5,<dh>,<dl>,2,’TC’ ” (6 bytes) – Display current channel label for about 15 sec.
Closures Y- “$A5,<dh>,<dl>,3, ‘Y’ <I/0 Port>’ ” (7 bytes) Factory option only
Turns the two internal closures on and off. Closure 1 is typically used to control the
optional buzzer, Closure 2 typically used to control an external camera power relay.
“$A5,<dh>,<dl>,3, ‘Y10’” turns Closure 1 off
“$A5,<dh>,<dl>,3, ‘Y11’” turns Closure 1 on
“$A5,<dh>,<dl>,3, ‘Y20’” turns Closure 2 off
“$A5,<dh>,<dl>,3, ‘Y21’” turns Closure 2 on
Control Lock LM “$A5,<dh>,<dl>,3,'LM',<control>” (7 bytes)
Locks out front panel and IR remote control functions.
Bit 7 Selects IR remote and front panel control, except volume
(0=enabled, 1=disabled)
Bit 6 Selects volume control operation for IR and front panel
(0=enabled, 1=disabled)
Bit 5-1 Always 0
Bit 0 Always 0 – Zenith does not differentiate between front panel and IR
Device Status SP "$A5,0,0,3,'SP'" (6 bytes) ICC2 and ICW units only
Queries the Head-End for the number of devices present on the network and the
number of devices expected. (Not provided in 1-way units)

Contemporary Research 10 ICC-ZS2 Zenith SuperPort Card
Command Description
Write Text DM “$A5,<dh>,<dl>,<ncb>,‘DM’, <start line>,<text color>,<background color>,
<background>,<size and shadow>,<timeout>,<message bytes>” (variable bytes)
Clears current text, displays text message over video (normal) or blank
background. The built-in character generator can accept up to 40 characters of
text (including carriage returns), 28 characters per line. Use a hex $0D or decimal
13 in the text as a carriage return, which will advance CG to the next line, first
space on the right.
Start Line - 1-11
Text Color - 1-7= White
Text Background Color – 0-7=Transparent (no background)
Full screen background – 0=normal insert over video, 1=blank screen (blue)
Size and Shadow – 0-3=small text with drop shadow
Time-Out – 0=15-second display, 1=persistent
Persistent text stays on screen until the next DM command a new Menu or channel
is selected.
Ex1: “$A5,<dh>,<dl>,10,‘DM’, 2,7,0,0,1,0,’TEST’ ” displays the word TEST on the
second line, white text, inserted over video, small size with drop shadow, and
timing out after 15 seconds.
Ex2: “$A5,<dh>,<dl>,2,‘DM’ ” clears on-screen display, also clears persistent text

Contemporary Research 11 ICC-ZS2 Zenith SuperPort Card
RS-232 Responses
Two-way iC-Net devices will send a response over the network whenever there is there is a change in status or
command from an IR remote or front panel.
Response String Structure
Characters in response strings are expressed in a combination of hex and ASCII characters. For clarity, the
following protocol examples use the following conventions:
•ASCII characters or strings are shown enclosed in single quotes
•Numbers shown that are not in single quotes are a single decimal byte
•Parameters shown in < > brackets are single byte
•A series of multiple commands or parameters are set apart by [ ] brackets
•Commas separate the bytes, but are not part of the protocol
•Double quotes enclose the command string, but are not part of the protocol
Command format:
“ ‘<’,<dh>,<dl>,<nrb>,<rb1>, <para1> [<rbN>]"
‘>’ Starts the response
<dh> The zone or high order byte of the device
<dl> The unit or low order byte of the device (0 for global zone)
<nrb> The number of response bytes to follow
<rb1> The first response byte
<para1> Associated parameters, if any
[<rbN>] Multiple responses may be included
Response Description
New Channel T “ ‘<’,<dh>,<dl>,2,'T',<new channel>" (6 bytes)
Sends in response to T? command.
IR Function F “ ‘<’,<dh>,<dl>,2,'F',<IR Function>" (6 bytes)
Sent when unit receives a new function command is pressed (1-8) or released (0) from
the IR remote.
0 = Release
1 = Play
2 = Stop
3 = Pause
4 = Fast Forward
5 = Rewind
8 = Record

Contemporary Research 12 ICC-ZS2 Zenith SuperPort Card
Response Description
IR Key K “ ‘<’,<dh>,<dl>,2,'K',<IR Key>" (6 bytes)
Sent when unit receives a new key command is pressed (10-116) or released (0) from
the IR remote.
0 = Release 105 = Media Menu
10 - 19 = Numeric keypad entry 0 – 9 106 = Cursor Right
21 = Enter 107 = Cursor Left
22 = Channel Up 108 = Cursor Up
23 = Channel Down 109 = Cursor Down
29 = Menu 110 = Media Select
101 = Previous Channel 116 = Timer
The 0 – 9, Channel Up/Down functions are sent only if enabled in the TM command
(Bit 2 = 1). The Channel Up/Down responses will be sent if the Tune Ring contains no
channels – see Ex2 in the Tune Ring command section.
IR Menu M “ ‘<’,<dh>,<dl>,5,'M',<msh>, <msl>, <mph>, <mpl>" (9 bytes)
Sent when unit receives a new Menu command is pressed or released (0) from the IR
remote. Menu Selection high and low bytes are in <msh> and <msl>. Menu
Parameter high and low bytes are in <mph> and <mpl>.
A Menu command is initiated by pressing the Menu key, followed by a numeric entry,
then the Enter or Channel Up key. During the Menu process, the Channel Down key
acts as a backspace or delete key.
Some selections that need only a single numeric entry and will have a parameter value
of zero (0). Those keys are 0, 8, 9, 18, 20, 30, 900, 911, and 912.
Menu selections that will prompt the user to enter a second parameter entry are:
1 = Select Media
2 = Password
3 = Chapter Search
4 = Frame Search
11 = Channel
21 = Page Zone
22 = Page Room
25 = Go
21 = Attach Zone
32 = Attach Room
Tip: The Menu entries are active even if the TV power is off.
Device
Response SP " '<',0,0,4,'SP',<number devices present>,<number devices expected> (8 bytes)
Sent in response to HE status query.
Tip: If the number of present and expected devices match, the green Net LED on the
HE will blink once per second. If the two numbers do not agree, the LED blinks twice
per second.

Contemporary Research 13 ICC-ZS2 Zenith SuperPort Card
iC-Net SmartZones
To simplify controlling groups of devices, iC-Net is divided into 16 zones of 255 devices, called
SmartZones. All the devices within each zone can be controlled simultaneously by sending a command
to a single virtual device number.
For example, noting the zone chart below, if we send a Power On command to device #256, any TV
controller numbered between 257 and 511 will instantly turn on. If we send a Power Off command to
device #4095, all devices in the system will turn off.
This is an immensely powerful feature, because most systems can only address one device at time. So
if you need to turn off all 50 TV in a zone, you would need to send 50 commands. In addition to the
hassles of creating multiple commands, there would be a long delay between the first and last
command. One command, instant response is easier.
As we noted before, ABC Media Retrieval Systems reserve Zone 0 for devices used in the central
control system, 1 -15 for iC-Net devices. This structure may be useful for your application, or you
could use Zone 0 just like any other iC-Net zone.
Zone First Device Last Device Virtual Device
1 257 511 256
2 513 767 512
3 769 1023 768
4 1025 1279 1024
5 1281 1535 1280
6 1537 1791 1536
7 1793 2047 1792
8 2049 2303 2048
9 2305 2559 2304
10 2561 2815 2560
11 2817 3071 2816
12 3073 3327 3072
13 3329 3583 3328
14 3585 3839 3584
15 3841 4000 3840
All Zones 4095
Tip: You've probably figured out that you never want to assign a virtual device number to an
actual device in the system. If you assigned #1536 to a device, all the TV controllers in Zone
6 would respond every time you sent a command to that one device.

Contemporary Research 14 ICC-ZS2 Zenith SuperPort Card
System Map
One of the key tasks for iC-Net integrators is to create a logical System Map, assigning device
numbers to TV controllers so they fall into logical zones. The device mapping could be sorted by type
or location; whichever suits the application.
iC-Net Zone Zone Room Device
1 W 1st Floor 256
W151 257
W152 258
W153 259
W154 260
2 W 2nd Floor 512
W251 513
W252 514
W253 515
W254 516
3 E 1st Floor 768
E151 769
E152 770
E153 771
E154 772
4 E 2nd Floor 1024
E251 1025
E252 1024
E253 1025
E254 1026
5 Coffee Areas 1280
G100 1281
G150 1282
G151 1283
6 Day Care 1536
TV 1 1537
TV 2 1538
7 Hallways 1792
W1 1793
W2 1794
E1 1795
E2 1796
8 Office 2048
Admin 2049
A/V Center 2050
All Zones All 4095

Typical RF and ICC-Net Signal Flow
The diagram below shows the structure of a typical Contemporary Research media retrieval system.
One of the key aspects for iCC-Net communication is to provide a forward and return (sub-channel)
path for data if you’re using ICC2 2-way TV Controllers.
Contemporary Research 15 ICC-ZS2 Zenith SuperPort Card

Contemporary Research 16 ICC-ZS2 Zenith SuperPort Card
Safety Instructions
Read before operating equipment.
1. Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
2. Power Sources - Use supplied or equivalent UL/CSA approved low voltage DC plug-in transformer.
3. Outdoor Antenna Grounding - If you connect an outside antenna or cable system to the product, be
sure the antenna or cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides
information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode.
4. Lightning - Avoid installation or reconfiguration of wiring during lightning activity.
5. Power Lines - Do not locate an outside antenna system near overhead power lines or other electric light
or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna
system, refrain from touching such power lines or circuits, as contact with them might be fatal.
6. Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
7. Object and Liquid Entry - Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short out parts, resulting in a fire or electric shock. Never spill
liquid of any kind on the product.
8. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
9. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
•When the power supply cord or plug is damaged.
•If liquid spills or objects fall into the product.
•If the product is exposed to rain or water.
•If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions. An improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation.
•If the video product is dropped or the cabinet is damaged.
•When the video product exhibits a distinct change in performance, this indicates a need for service.
*Note to CATV system installer: This reminder is provided to call CATV system installer's attention to
Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as possible.

Contemporary Research 17 ICC-ZS2 Zenith SuperPort Card
Limited Warranty and Disclaimer
Contemporary Research Corporation (CR) warrants this product to be free from defects in material and
workmanship under normal use for a period of two years from the date of purchase from CR. Should such a
defect occur CR will repair or replace, at their option, the defective product at no cost for parts or labor.
This warranty extends to product purchased directly from CR or an Authorized CR Dealer. Consumers should
inquire from selling dealer as to the nature and extent of the dealer's warranty, if any.
All warranty claims must be shipped pre-paid to the factory. Call or fax to obtain a Return Material Authorization
(RMA) number.
CR is not liable for any damages caused by any of its products or for the failure of any products to perform,
including any lost profits, lost savings, incidental damages, or consequential damages. CR is not responsible for
any claim made by a third party or made for you by a third party. This limitation of liability applies whether
damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict
product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended
by any person. This limitation of liability will be effective even if CR or an authorized representative of CR has
been advised of the possibility of any such damages.
Some states do not allow a limitation of how long an implied warranty lasts. Some states do not allow the
limitation or exclusion of incidental or consequential damages for consumer products. In such states, the
limitation or exclusion of the Limited Warranty may not apply to you. This Limited Warranty gives you specific
legal rights. You may also have other rights that may vary from state to state. You are advised to consult
applicable state laws for a full determination of your rights.
Except as expressly set forth in this Limited Warranty, CR makes no other warranties, expressed or implied,
including any implied warranties of merchantability or fitness for a particular purpose. CR expressly disclaims all
warranties not stated in this Limited Warranty. Any implied warranties that may be imposed by law are limited
to the terms of this Limited Warranty.
