Continental Fireplaces CEFB26H User manual

FRENCHPG. 27W415-2971 / B / 08.19.21FIRE OR EXPLOSION HAZARD
If the information in these
instructions are not followed
exactly, a fi re or explosion may
result causing property damage,
personal injury, or loss of life.
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or
other fl ammable vapors and liquids
in the vicinity of this or any other
appliance.
WARNING
!
$10.00
FOR INDOOR USE ONLY
IF INSTALLATION + OPERATION,
ADD SERIAL NUMBER LABEL HERE.
IF SEPARATE MANUALS, ADD “PLACE BARCODE
LABEL ON THE OWNER’S MANUAL”
ADD MANUAL TITLE
Product Name / Code
(MUST use title from Price Book)
ADD ____ ILLUSTRATED
ADD PRODUCT CODE HERE
ENGLISH
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA C22.2 NO. 46 / UL 2021
INSTALLATION AND
OPERATION MANUAL
Insert Electric Appliance
(CEFB26H Illustrated)
CEFB26H / CEFB30H
This appliance has a remote that requires button batteries that are hazardous to young children.

W415-2971 / B / 08.19.21EN2 safety information• If equipped with a heater, this appliance can be hot when operated and can cause severe burns if contacted.• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury.• Do not install damaged, incomplete or substitute components.• Do not burn wood or other materials in this appliance.• All electric appliances have hot and arcing or sparking parts inside. Do not use it in areas where a gas line, paint or fl ammable liquids are present.• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.• It is imperative that the control compartments, circulating blower and its passageway in the appliance are kept clean. The appliance should be inspected before use and at least annually by a qualifi ed service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. The appliance area must be kept clear and free from combustible materials, gasoline and other fl ammable vapors and liquids.• Under no circumstances should this appliance be modifi ed.• Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician to inspect the appliance and to replace any part of the control system which has been under water.• If equipped with a glass door, do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a licensed or qualifi ed service person. Do not strike or slam shut the appliance glass door.• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags, these are not toys and should be kept away from children and infants.• Servicing should be done only while the appliance is disconnected from the power supply circuit.• Always unplug appliance when not in use.• Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been dropped or damaged in any manner. Return appliance to authorized service facility for examination, electrical or mechanical adjustment, or repair.• Do not use outdoors.• When installing this appliance in a room where water is present, the installation must comply with codes recognizing the increased hazard of electrical shock and electrocution.• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffi c area and where it will not be tripped over.• Connect to properly grounded outlets only.• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fi re, or damage the appliance.• It is normal for your electric appliance to produce noise, especially when installed in a quiet space such as a bedroom.Insert appropriate “Bathroom Warning (Electric)” (see 3-Warnings template folder).Never locate this electric appliance where it may fall into a bathtub or other water container.note:

ENW415-2971 / B / 08.19.213 safety information• To prevent a possible fi re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a carpet, where openings may become blocked.• Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or relocatable power tap (outlet/power strip).• These appliances are tested and listed for use only with the optional accessories listed in these instructions. Use of optional accessories not specifi cally tested for this appliance could void the warranty and/or result in a safety hazard.For appliances equipped with a heater:• Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before servicing. To disconnect power to the appliance, turn controls to off, then remove plug from outlet.• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.• Clothing or other fl ammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffi c and away from furniture and draperies.• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is off, the glass and/or screen will remain hot for an extended period of time.• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These screens and guards must be fastened to the fl oor. • Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a TV or other electronic components.

W415-2971 / B / 08.19.21EN4 table of contents1.0 general information 51.1 dimensions 51.2 hardware list 51.3 listing approvals 61.4 general instructions 61.5 unpacking and testing appliance 61.6 rating plate information 71.7 label location 72.0 locating appliance 82.1 grounding appliance 83.0 installation 93.1 minimum clearance to combustibles 93.2 minimum mantel clearances 93.3 rough framing 103.4 appliance installation and fi nishing 114.0 electrical information 144.1 120V cord plug installation 144.2 wiring diagram 144.3 hard-wiring installation 155.0 finishing 165.1 crystal installation 165.2 log, grate, and crystal installation 166.0 operating instructions 176.1 operating control panel 176.2 operating remote control 186.3 remote battery installation 207.0 maintenance 208.0 replacement parts 218.1 overview 229.0 troubleshooting 2310.0 warranty 25The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves the right to change or modify any information within this manual at any time without notice. Changes, other than editorial, are denoted by a vertical line in the margin.note:

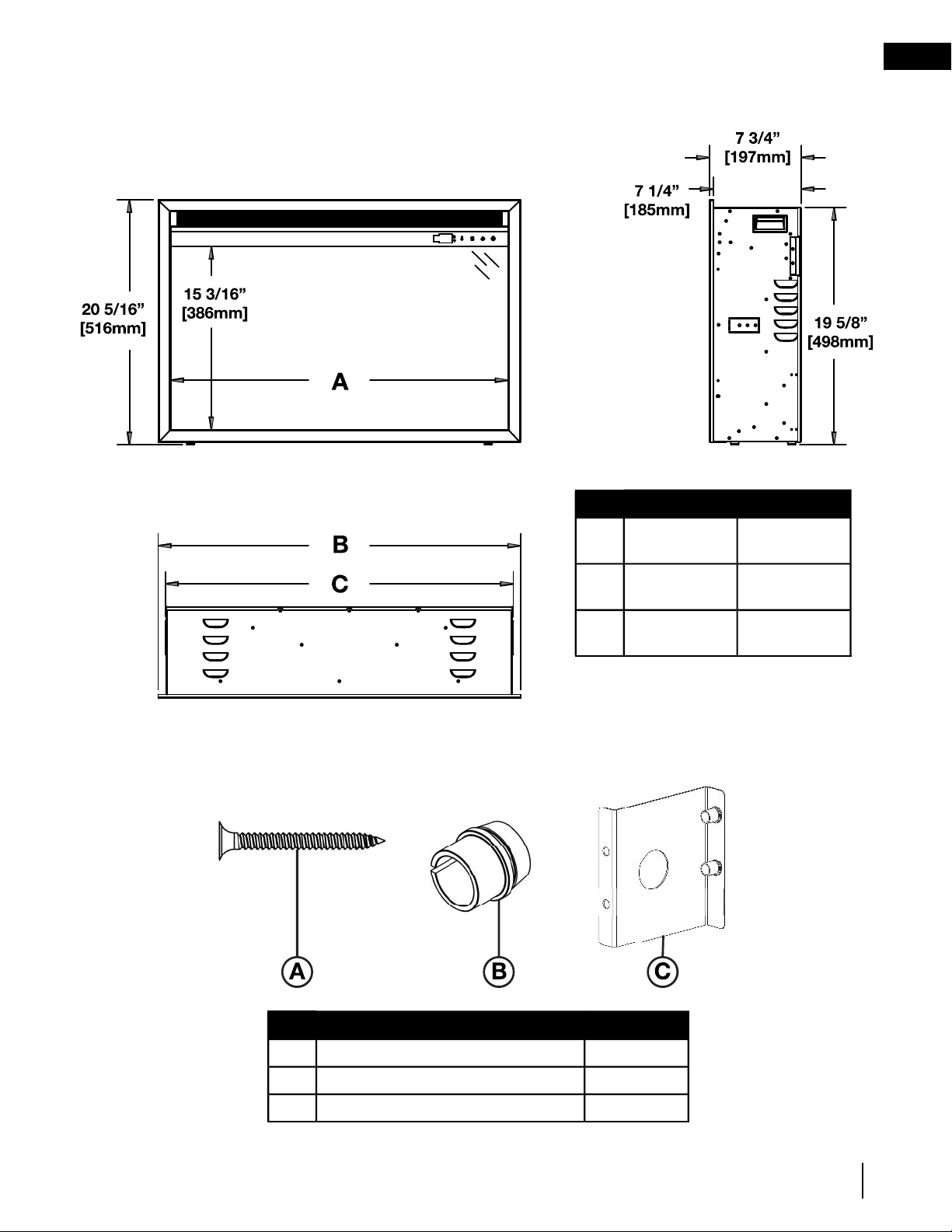

ENW415-2971 / B / 08.19.215 dimensions1.0 general information1.1 dimensions1.2 hardware listRef.DescriptionQuantityAWood Screws2BStrain Relief1CJunction Box Cover Plate1FRONT VIEWSIDE VIEWTOP VIEWRef.CEFB26HCEFB30HA23 15/16" (607mm)27 15/16" (709mm)B26" (660mm)30" (762mm)C24 3/4" (629mm)28 13/16" (732mm)

W415-2971 / B / 08.19.21EN6 general informationAs with most electronic devices, your new electric appliance has been designed to operate at temperatures between 5°C (41°F) and 35° C (95°F). During the colder winter months, allow the appliance to reach room temperature before turning it on.Carefully remove the appliance from the box. Prior to installing the appliance, remove all packaging material and test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120V, 15 Amp minimum grounded outlet.This appliance has been tested in accordance with the CSA Standards for fi xed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer.Model No.CEFB26HCEFB30HDescription26" Electric Appliance30" Electric ApplianceVoltage120VWatts1465WAmpsDedicated 15 AMP Grounded CircuitAppliance Width26" (660mm)30" (762mm)Appliance Height20 5/16" (516mm)Appliance Depth7 3/4" (197mm)Net Weight37.5 lbs (17.0 kg)41.9 lbs (19.0 kg)Gross Weight46.3 lbs (21.0 kg)51.4 lbs (23.3 kg)This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with the latest edition of the National Electrical Code ANSI/NFPA 70 in the United States or the Canadian Electrical Code CSA C22.1 in Canada.note:1.3 listing approvals1.4 general instructions• Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet are on.• The appliance may emit a slight, harmless odour when fi rst used. This odour is normal and it is caused by the initial heating of internal appliance elements and will not occur again.•
If your appliance does not emit heat when called for, consult the “operation” section of this manual for further
information.• Use with a CSA or UL certifi ed surge protector.• Do not route the power cord directly underneath the appliance.This electric appliance meets the construction and safety standards of H.U.D. for application in manufactured homes when installed according to these instructions.1.5 unpacking and testing appliancenote:Exact packaging locations may vary. Some packaging has been hidden for clarity.CrystalsGrate & LogsStyrofoamExterior BoxManual, Hardware Kits & Remote

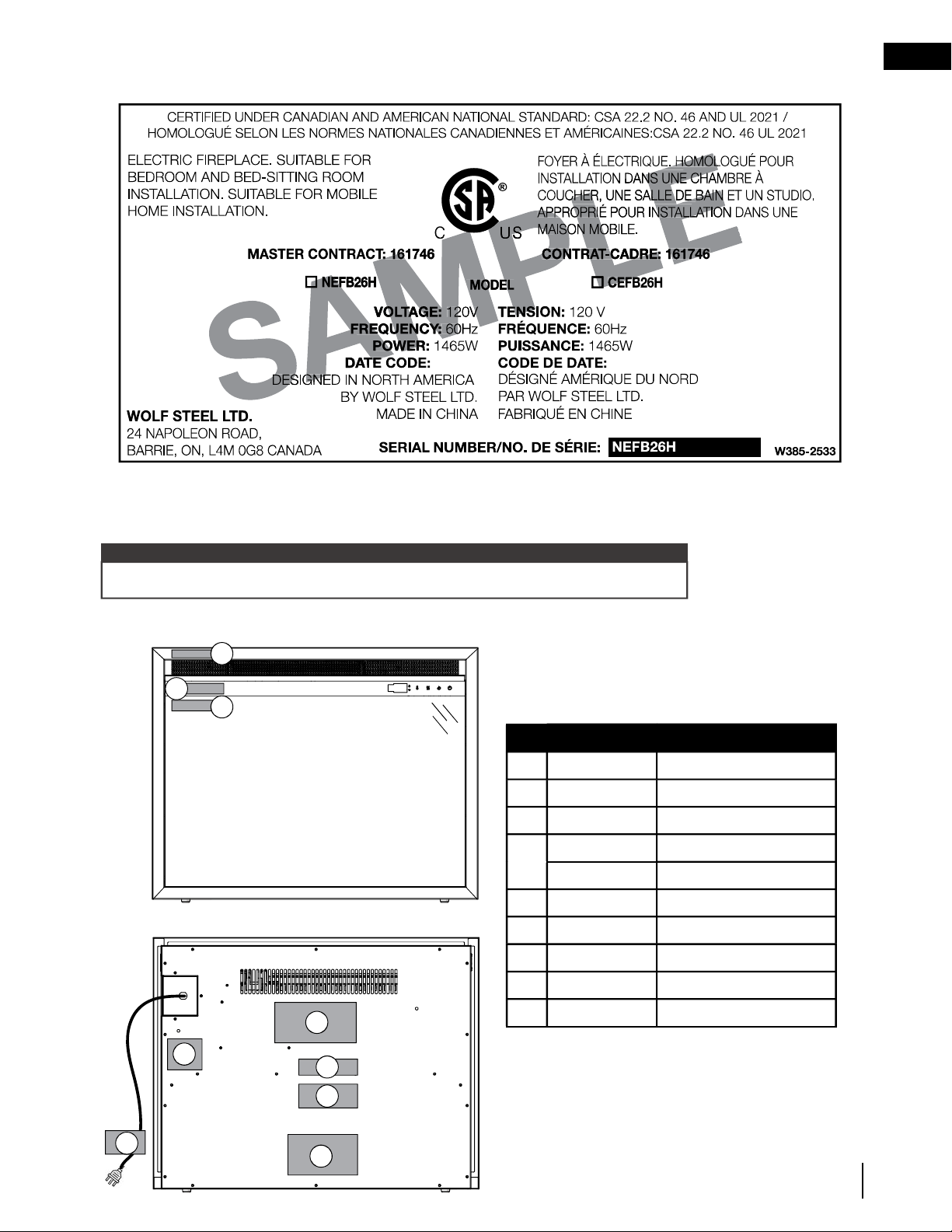

ENW415-2971 / B / 08.19.217 general information1.6 rating plate informationFor rating plate location, see “label location” section.This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.The rating plate must remain with the appliance at all times. It must not be removed.note:1.7 label location
Ref.
Part NumberLabel DescriptionAW385-2210"Do Not Cover"B *N/AModel & Serial NumberCW385-2017"Hot Surface"DW385-2533Rating Plate (CEFB26H)W385-2552Rating Plate (CEFB30H)EW385-1944"Warning"FW385-1945"Caution"GW385-2553Wiring DiagramHW385-2554Hard-Wiring DiagramIW385-1943"Warning"BCDEFG* Located behind front glass on sheet metal.Rear View of ApplianceFront View of ApplianceAHI

W415-2971 / B / 08.19.21EN8 2.0 locating appliance2.1 grounding appliance• Due to high temperatures, this electric appliance should be located out of traffi c. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 36” (91.4cm) from the front of the appliance.• Never locate this electric appliance where it may fall into a bathtub or other water container.• Wear safety gloves and safety glasses for protection during installation and maintenance.• To prevent contact with sagging or loose insulation, the electric appliance must not be installed against vapor barrier or exposed insulation. Localized overheating could occur and a fi re could result.• Do not expose the electric appliance to the elements (such as rain, etc.).!WARNINGThis appliance is for use on 120 volts. The cord has a plug as shown in (A). An adapter as shown in (C) is available for connecting three-blade grounding plugs to two-slot receptacles, as shown in (B).The green grounding plug extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptable is available.To disconnect the appliance, turn controls to off, then remove plug from outlet.note:This appliance must be connected to a dedicated 15 amp circuit. The use of an extension cord is NOT permitted.

ENW415-2971 / B / 08.19.219 3.0 installationYour CEFB26/30H is a recessed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffi c areas. 3.1 minimum clearance to combustiblesMeasurements are taken from the adjacent surface.Bottom 0"Top 0" to mantelSides 0"Top 0" to ceilingBack 0"3.2 minimum mantel clearances• Risk of fi re! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or snagging to reduce the risk of fi re, electric shock, or personal injury. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar items. Arrange cord away from traffi c areas and where it will not be tripped over.• Risk of fi re! To prevent a possible fi re, do not block air intake or exhaust in any manner. Do not use on soft surfaces where openings may become blocked.• Risk of fi re! Do not blow or place insulation against the appliance.• This electric appliance is tested and listed for use only with the approved optional accessories. Use of optional accessories not specifi cally tested for this electric appliance could void the warranty and/or result in a safety hazard.• If the information in these instructions is not followed exactly, a fi re or explosion may result causing property damage, personal injury, or death. Do not store or use gasoline or other fl ammable vapors in the vicinity of this or any other appliance. • This appliance is heavy. It is highly recommended that two people install this appliance.• If your appliance is equipped with a heater, ensure the heater vents cannot, in any way, be covered as it may create a fi re hazard.• Do not run the power cord horizontally, directly below the appliance.Follow all national and local electrical codes. note:• When using paint or lacquer to fi nish the mantel, the paint or lacquer must be heat resistant to prevent discolouration.!WARNING

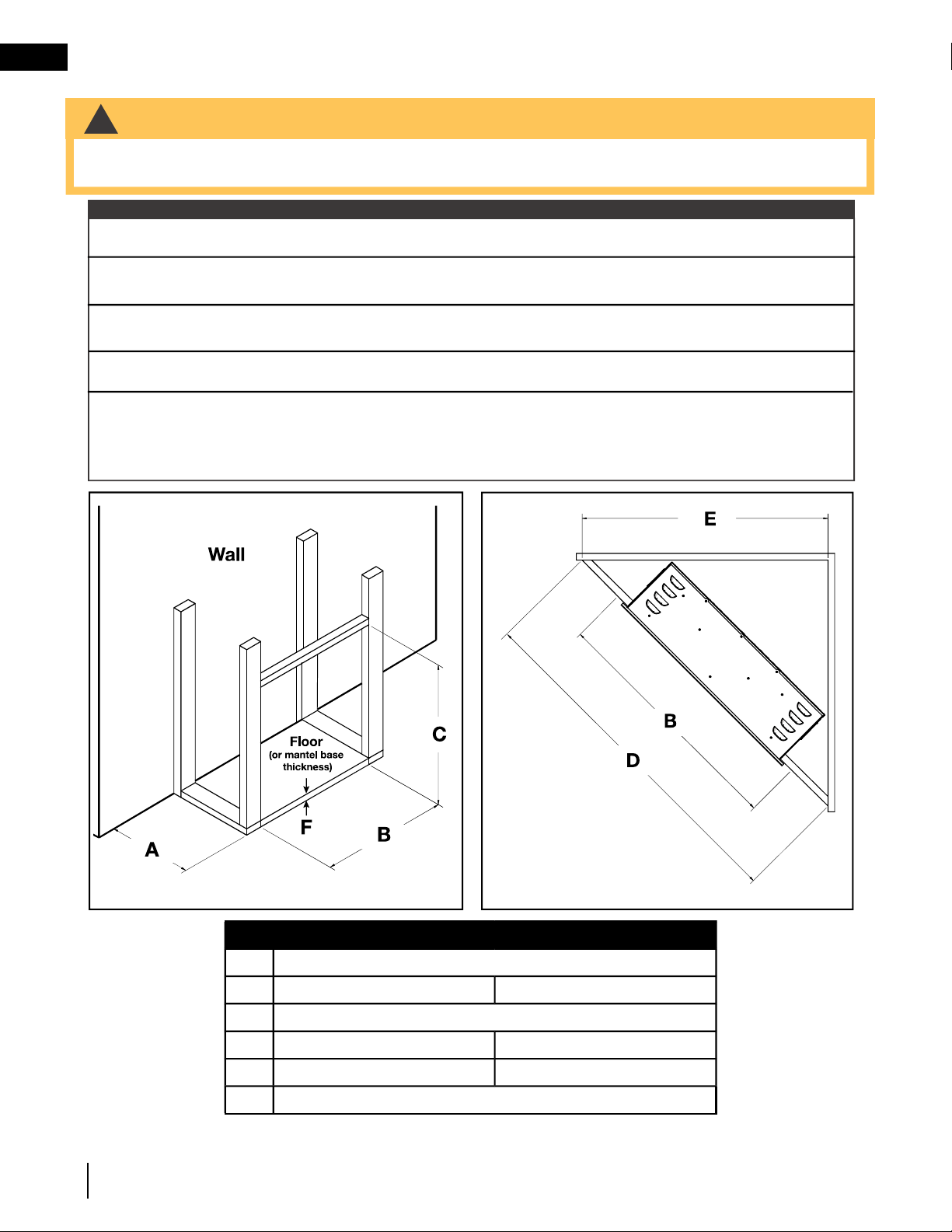

Rough FramingRough Framing in a CornerW415-2971 / B / 08.19.21EN10 installation3.3 rough framing• Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible materials such as curtains, drapes, furniture, bedding, paper, etc.!WARNINGOnce the rough framing and the fi nishing materials have been prepared and the power has been routed to the right side of the recess, the appliance may be installed.note:The electrical connection must be made prior to placing the appliance into position (see "electrical information" section). Have two people lift the appliance into position.In order to avoid the possibility of exposed insulation or vapour barrier coming in contact with the appliance body, it is recommended that the walls of the appliance enclosure be "fi nished" (i.e. drywall / sheet rock, etc.) as you would fi nish any other outside wall of a home. This will ensure that clearance to combustibles is main-tained within the enclosure.It is recommended to complete fi nishing of the wall before fully securing the appliance.Ref.CEFB26HCEFB30HA7 3/4" (197mm)B25 1/4" (641mm)29 1/4" (743mm)C19 7/8" (505mm) + FD39 3/4" (1010mm)43 3/4" (1111mm)E28" (710mm)30 13/16" (783mm)FWill vary with fl oor / mantel base thickness

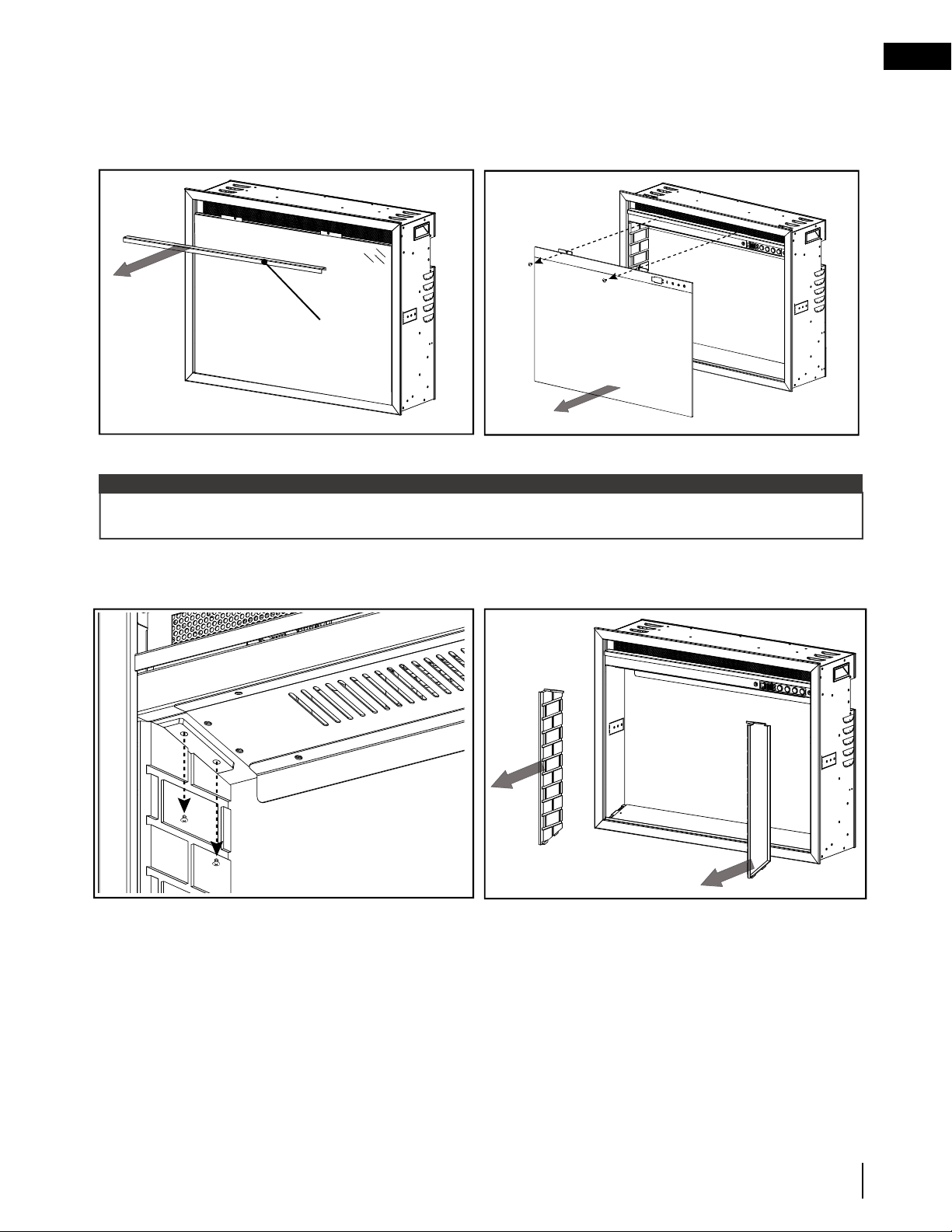

3. Remove all boxes packed inside the appliance (see "unpacking and testing appliance" section).1. Remove the front decorative cover held in place by 2 magnets (Fig. 3-1).2. With one hand on the glass door to prevent it from falling, remove the 2 screws holding the glass door in place (Fig. 3-2). Remove the glass door, and then place it face down on a soft, non-abrasive surface.Fig. 3-2Fig. 3-1Front Decorative Cover4. Remove side brick panels by removing 2 screws from each side (Fig. 3-3). Set the screws and panels aside (Fig. 3-4).Fig. 3-4Fig. 3-3Repeat on opposite side.5. Complete hard-wiring (see "electrical information" section).ENW415-2971 / B / 08.19.2111 installation3.4 appliance installation and fi nishingnote:If intending to recess the appliance into a wall or mantel and have it hard-wired, continue with steps 4-8. Other-wise, skip ahead to step 9.

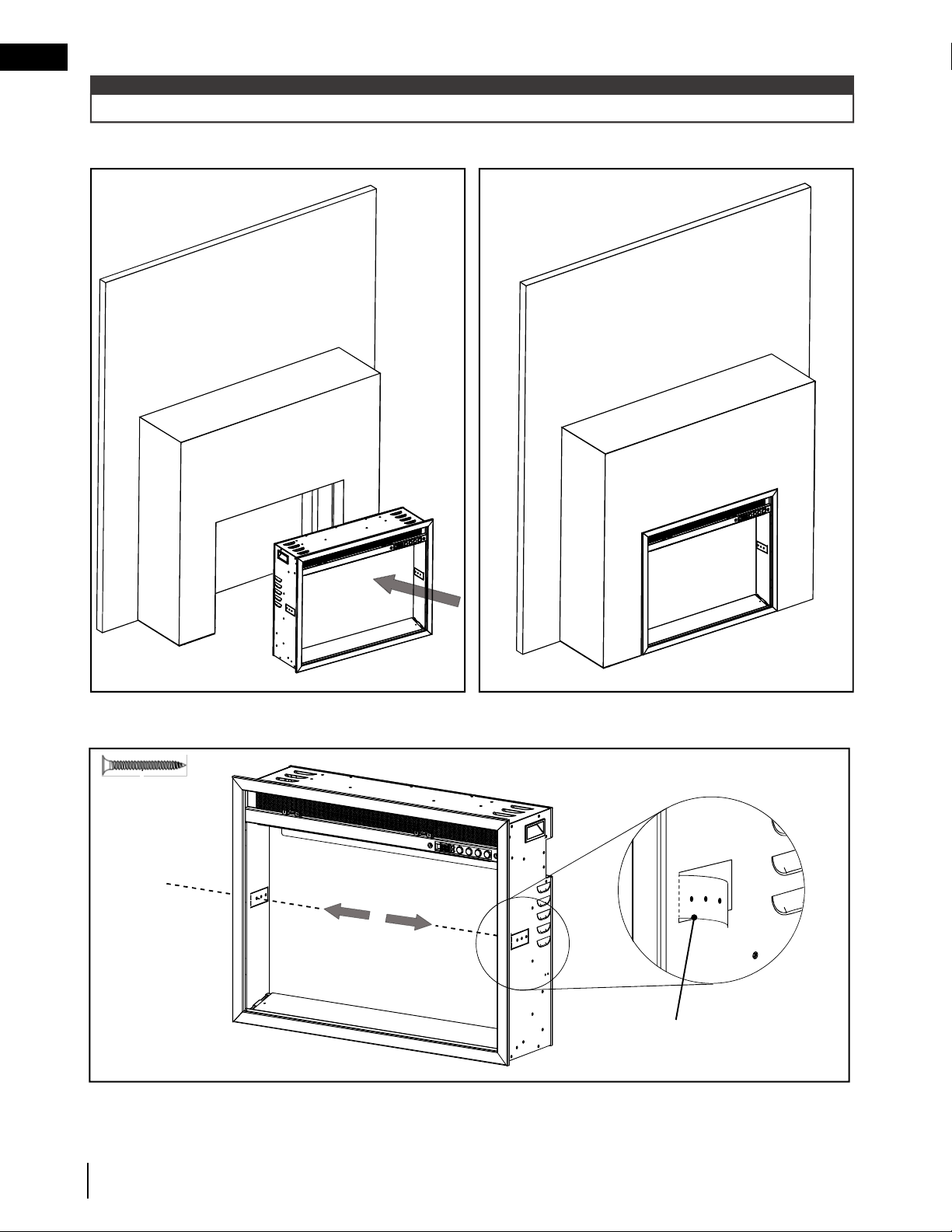

7. Secure the appliance into the opening by installing 1 screw (supplied) through the mounting tab into the fram-ing material, working from inside the appliance (Fig. 3-7). Repeat on the opposite side.Fig. 3-7Bend tabs as necessaryFraming hidden for clarityA x 26. Carefully lift the appliance into the fi nished framing (Fig. 3-6).Fig. 3-6Fig. 3-5W415-2971 / B / 08.19.21EN12 installationnote:It is recommended to complete fi nishing of the wall before fully securing the appliance (Fig. 3-5).

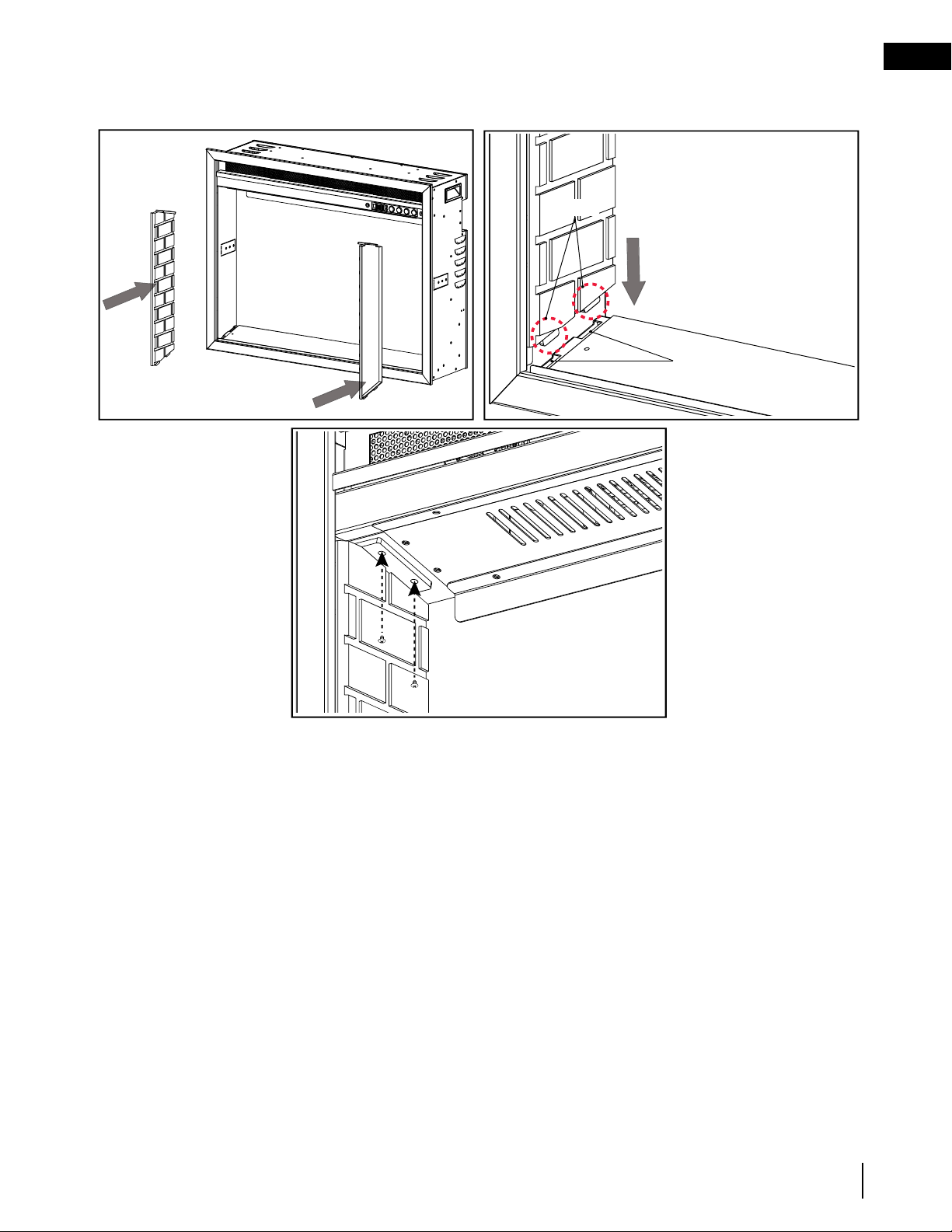

8. Reinstall brick panels if they have been removed (Fig. 3-8). Ensure the tabs fi t into the slots along the bottom of the fi rebox (Fig. 3-9) before securing the brick panels in place using the 2 screws previously removed in step 4 (Fig. 3-10).9. Install media (see "fi nishing" section).10. Reinstall the glass door.11. Reinstall the front decorative cover held in place by 2 magnets.Fig. 3-8Fig. 3-9SlotsTabsFig. 3-10Repeat on opposite side.Repeat on opposite side.Framing hidden for clarityFraming hidden for clarityENW415-2971 / B / 08.19.2113 installation

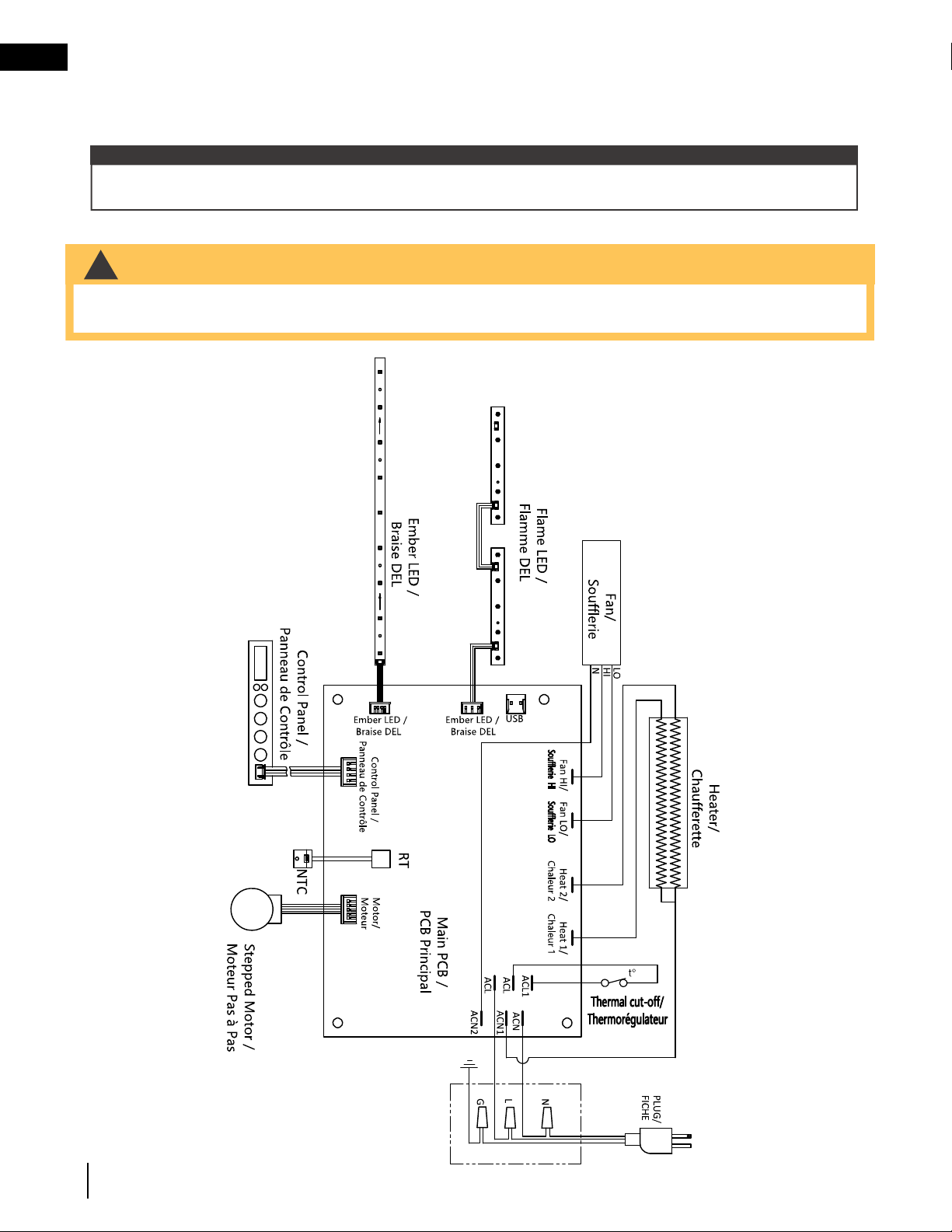

4.1 120V cord plug installation4.2 wiring diagramThe factory default setting is 120 volt cord plug installation confi guration. Simply plug the appliance to a grounded 120V, 15 amp outlet box.W415-2971 / B / 08.19.21EN14 4.0 electrical information• Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance.!WARNINGThis appliance must be connected to a dedicated 15 amp circuit. The use of an extension cord is NOT permitted.note:

HARD-WIRING CONNECTIONIf it is necessary to hard-wire this appliance, a qualifi ed electrician must remove the cord connection, and wire the appliance directly to the household wiring. The wire and power supply breaker must be rated for 120V, minimum 15 amps.This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with the latest edition of the National Electrical Code ANSI/NFPA 70 in the United States or the Canadian Electrical Code CSA C22.1 in Canada.4.3 hard-wiring installationB x 1Fig. 4-2Junction Box Cover PlateStrain ReliefInside ApplianceOutsideAppliance1. Remove the 4 screws securing the cord and cover plate to the side of the fi rebox (Fig. 4-1).2. Unscrew the wire nuts securing the power supply cord.3. Install the new strain relief (supplied) (Fig. 4-2) into the new cover plate (supplied) and feed the 14/2 conductor wire through the strain relief.4. Connect the ground/bond wires together.5. Connect the supply N wire to the N wire in the junction box.6. Connect L1 to L1 of the appliance.7. With wires secured, carefully feed the wires into the fi rebox and re-secure the cover plate.Fig. 4-1C x 1ENW415-2971 / B / 08.19.2115 electrical information• Turn off the appliance completely and let cool before servicing. Only a qualifi ed service person should service and repair this electric appliance.!WARNINGRear View of Appliance

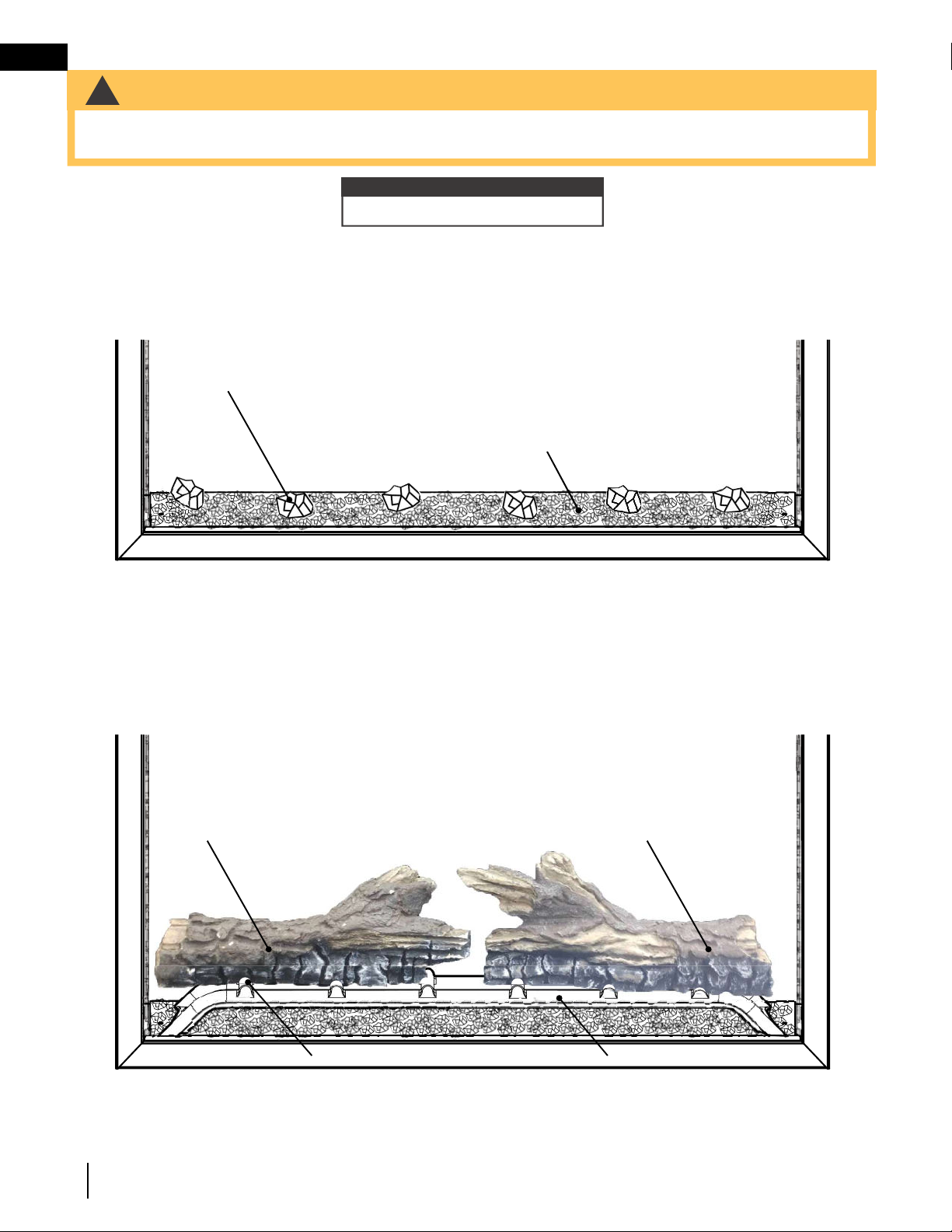

5.0 fi nishingMultiple media options are provided.note:• Power supply service must be completed prior to fi nishing to avoid reconstruction.• Heat vents and air openings cannot be covered in any circumstances.!WARNING5.1 crystal installation1. Remove the glass door (see "installation" section).2. Place the grate on the media tray. Ensure it is stable.3. Carefully place an even layer of small crystals on the media tray.4. Place the logs (left and right) on top of the grate, using the grooves along the bottom of the logs as guides (Fig. 5-2).5. Reinstall the glass door.5.2 log, grate, and crystal installation1. Remove glass door (see "installation" section).2. Carefully place an even layer of small crystals on the media tray.3. Randomly place the large crystals (Fig. 5-1).4. Reinstall the glass door.Fig. 5-1For illustrative purposes only.Large CrystalsSmall CrystalsFig. 5-2For illustrative purposes only.Left LogRight LogGrateLocating GrooveW415-2971 / B / 08.19.21EN16

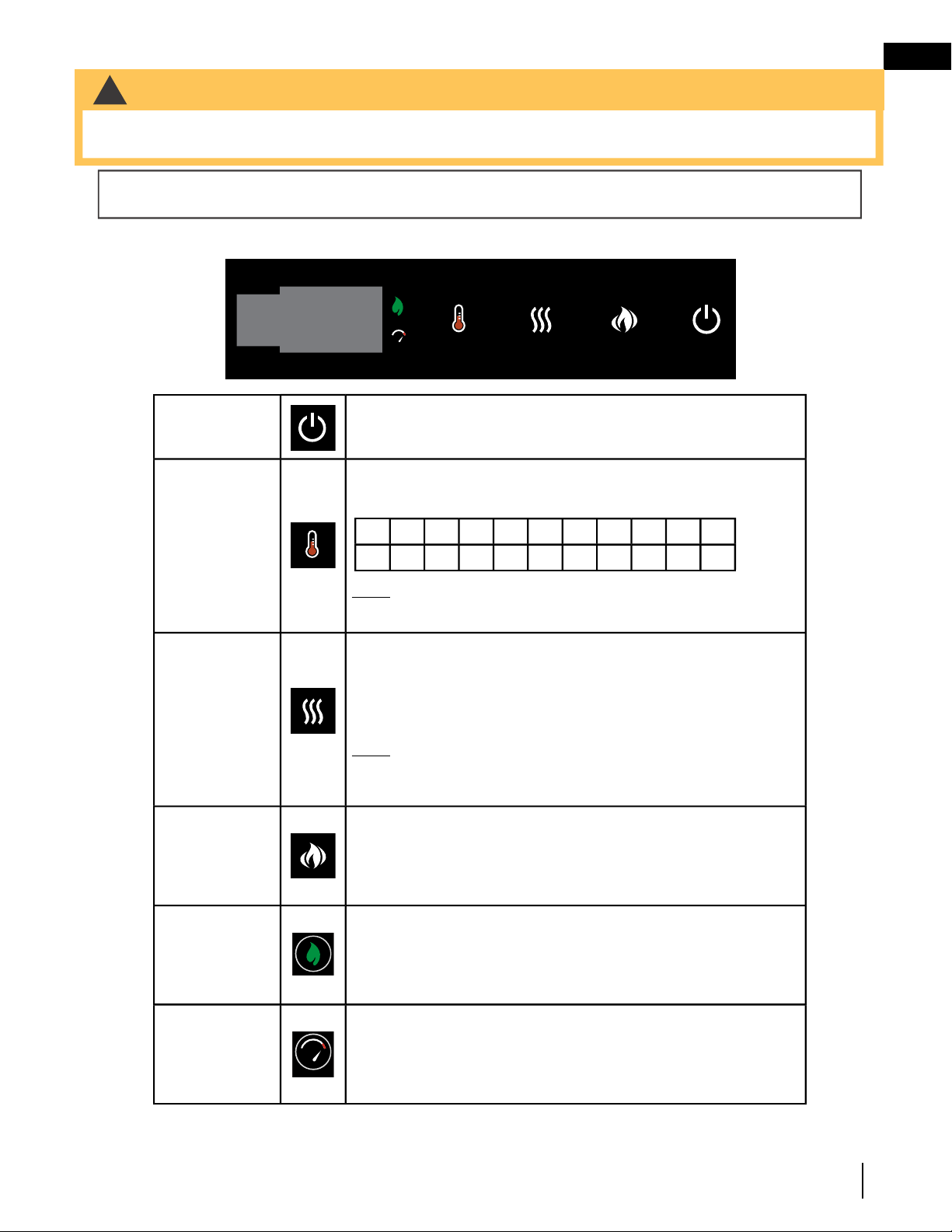

ENW415-2971 / B / 08.19.2117 6.0 operating instructions• Ensure the house circuit breakers for the circuit supply are turned on. When initially connecting the appliance to a power source, the appliance will make a beeping sound to indicate standby mode.!WARNINGOnce the appliance has been plugged into a grounded electrical outlet or hard-wired to a dedicated 120V power supply, it is ready to operate.6.1 operating control panelPowerTurns the appliance on / off.Temperature ControlControls the appliance temperature.11 Settings:NOTE: When setting is °C or °F, the temperature control is OFF. Holding the button for 5s will switch the temperature from °C to °F and vice versa.HeaterTurns the heater and blower on / off.3 Settings:H0 - Heater and blower offFAN - Blower onH-1 - Heater onNOTE: Heater function can be disabled / enabled by holding the button for 5s. When the heater function is disabled, "LOC" will be displayed. The blower has a 10 second delay after the heater is off to blow out the residual heat.FlameTurns the fl ame effect on / off.2 Settings:F-1 - Flame effect on (blue and orange, brightest fl ames)F-0 - Flame effect offECO Mode Indicating LightIndicates the appliance is working under ECO mode (energy saving).Boost Mode Indicating LightIndicates the appliance is working under Boost mode (heat boost).°C18192021222324252627°F64666870727476788082

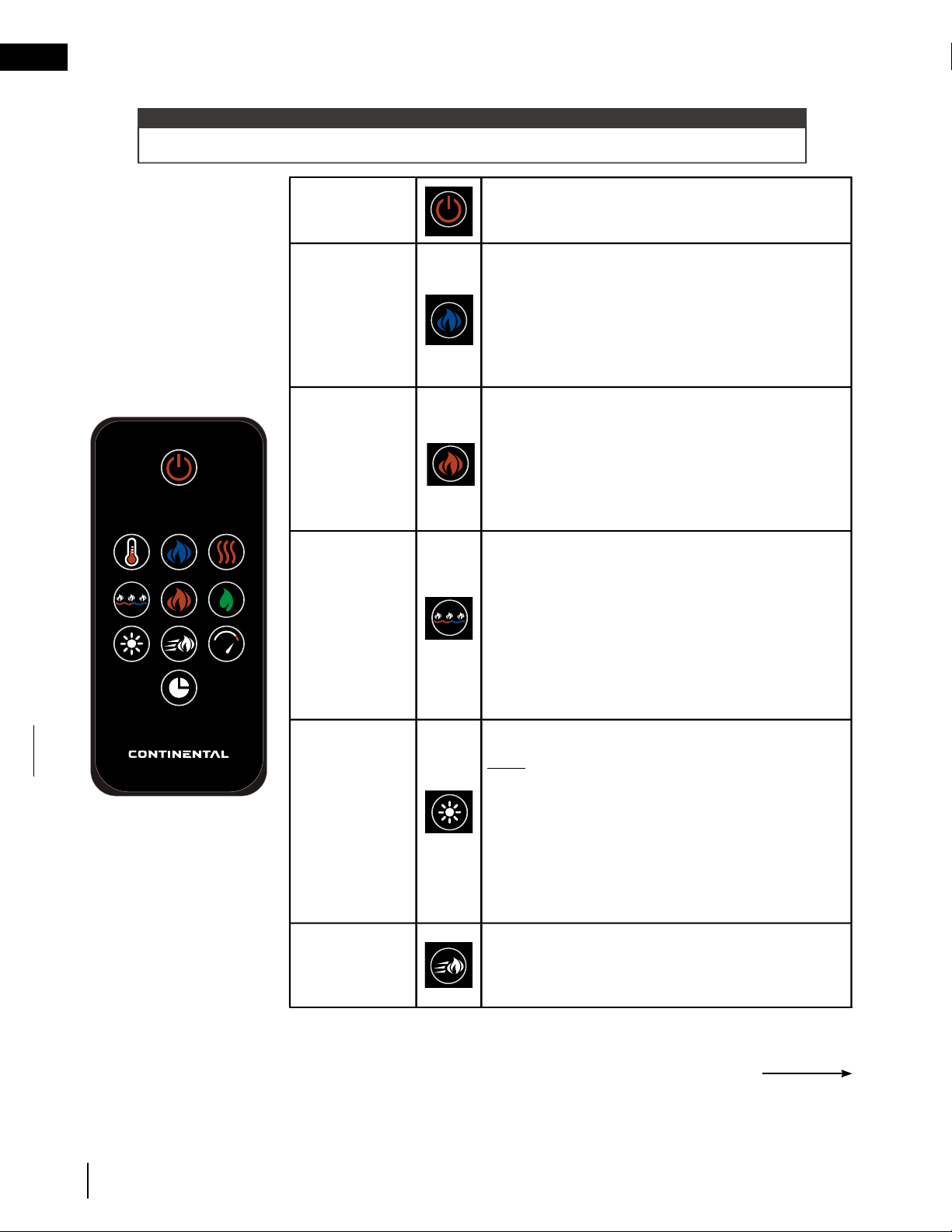

W415-2971 / B / 08.19.21EN18 operating instructions6.2 operating remote controlPowerTurns the appliance on / off.Blue FlameControls blue fl ame brightness.Settings:BF4 - Brightest fl ameBF3 - Bright fl ameBF2 - Dim fl ameBF1 - Dimmest fl ameBF0 - Flame offOrange FlameControls orange fl ame brightness.Settings:OF4 - Brightest fl ameOF3 - Bright fl ameOF2 - Dim fl ameOF1 - Dimmest fl ameOF0 - Flame offEmber BedColourControls ember bed light settings.Settings:L-1 - RedL-2 - BlueL-3 - GreenL-4 - Light greenL-5 - YellowL-6 - PurpleL-7 - AutocycleL-8 - Lock the desired colour during cycleEmber BedBrightnessControls the brightness of the ember bed light.NOTE: If the ember bed colour is set to L-7, the ember bed brightness setting cannot be changed.Settings:B-4 - BrightestB-3 - BrightB-2 - DimB-1 - DimmestB-0 - OffB-5 - Fade in and outFlame SpeedControls fl ame speed.Settings:S-3, S-4, S-5, S-1, S-2When operating the remote control, it must be directed towards the front of the control panel.note:Continued on next page

ENW415-2971 / B / 08.19.2119 operating instructionsHeaterTurns the heater and blower on/off.Settings:H-0 - Heater and blower offFAN - Blower onH-1 - Heater onNOTE: Heater function can be disabled / enabled by holding the button for 5s. When the heater function is disabled, "LOC" will be displayed. The blower has a 10 second delay after the heater is off to blow out the residual heat.TimerSets the timer.Settings:30M, 1Hr, 2Hr, 3Hr, 4Hr, 5Hr, 6Hr, 7Hr, 8HrNOTE: The display will read "---" after completing the 9 timer settings.TemperatureControlSets desired temperature.NOTE: When setting is °C or °F, the temperature control is OFF. Holding the button for 5s will switch the temperature from °C to °F and vice versa.NOTE: The appliance has been programmed with Smart Eco temperature control. When working under temperature control, the heater will work with a reduced output if the detected room tem-perature is close to the setting temperature in order to save energy. The ECO mode indicating light will turn on in the control panel.ECO ModeControlTurns on/off ECO mode manually. The appliance will work with a reduced heat output in order to save energy. When working under ECO mode, the ECO mode indicating light will turn on in the control panel.Settings:ECO - Turn on ECO mode manuallyOFF - Turn off ECO modeBoost ModeControlTurns on Boost mode manually. The appliance will work with full heat output and a faster fan speed in order to produce more heat quickly. When working under Boost mode, the Boost mode indi-cating light will turn on in the control panel.Settings:BST 10M - Run Boost mode for 10 minutesBST 20M - Run Boost mode for 20 minutesBST 30M - Run Boost mode for 30 minutesOFF - Turn off Boost mode

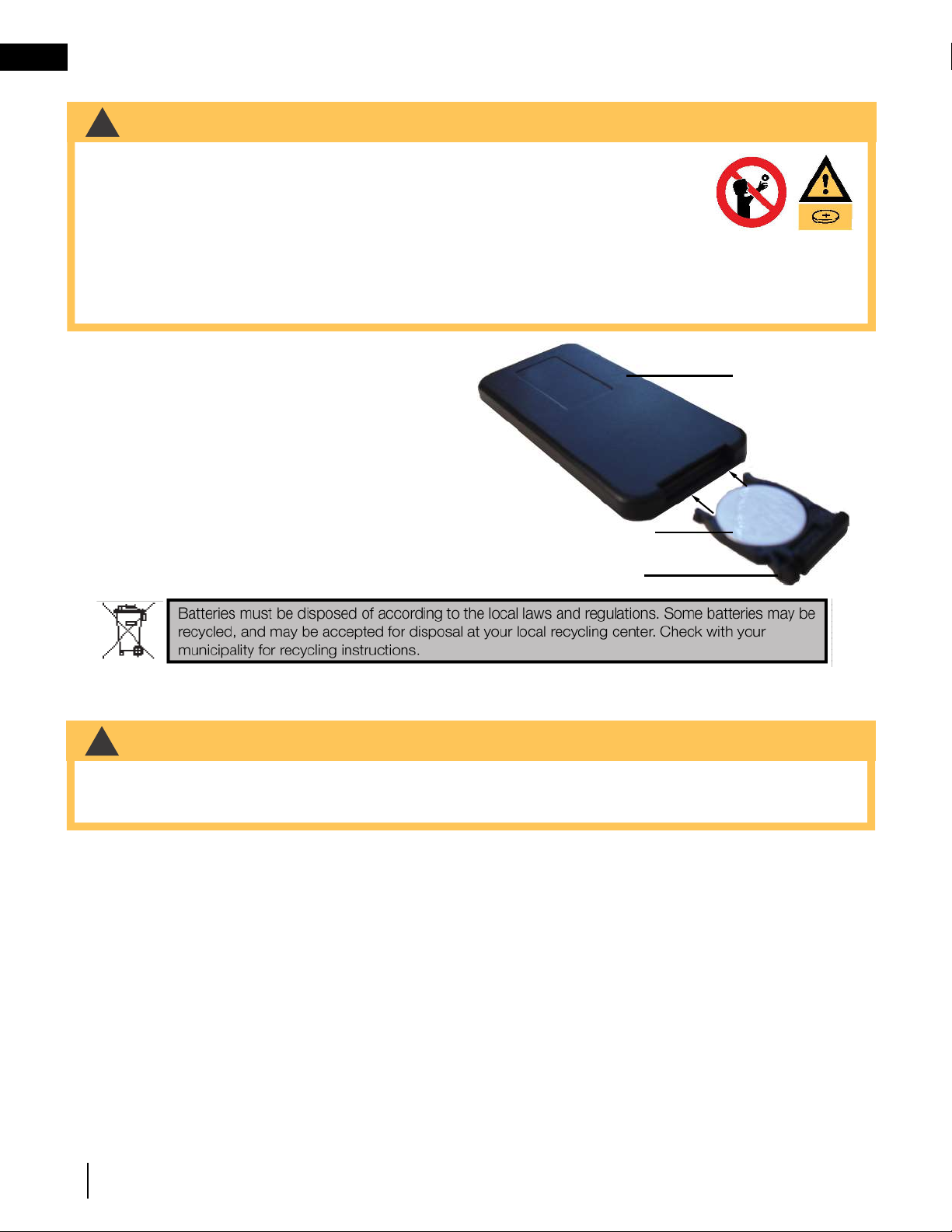

W415-2971 / B / 08.19.21EN20 operating instructionsRemote (Rear Side)Battery HolderBattery (CR 2025)A. To replace the existing battery, remove the battery holder.B. To remove the battery holder, turn remote onto front side and press the left side lever towards the center while pulling the battery holder out using the slot provided.C. Replace existing battery, type CR 2025, with a new battery and reinstall the battery holder into the remote by sliding it into position.D. Battery holder is secure into the remote control when a clicking noise is heard.• This remote control requires button batteries that are hazardous to young children.• WARNING! KEEP BATTERIES OUT OF REACH OF CHILDREN.• Swallowing may lead to serious injury or death in as little as 2 hours due to chemical burns and potential perforation of the oesophagus.• If you suspect your child has swallowed or inserted a button battery, immediately seek urgent medical assistance.• Examine devices and make sure the battery compartment is correctly secured (i.e. that the screw or other mechanical fastener is tightened). Do not use if compartment is not secure.• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.• Tell others about the risks associated with button batteries and how to keep their children safe.!WARNING6.3 remote battery installation7.0 maintenance• Always turn the heater off and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this appliance. Failure to do so could result in electric shock, fi re, or personal injury.• Never immerse in water or spray with water. Doing so could result in electric shock, fi re, or personal injury.!WARNINGMetal:• Buff using a soft cloth, slightly dampened with a citrus oil-based product.• Do not use brass polish or household cleaners as these products will damage the metal trim.Glass:• Use a good quality cleaner sprayed onto a cloth or towel. Dry thoroughly with a paper towel or lint-free cloth.• Never use abrasive cleaners, liquid sprays, or any cleaner that could scratch the surface.Vents:• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.Plastic:• Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.• Never use abrasive cleaners, liquid sprays, or any cleaner that could scratch the surface.
