CSA BG-36B User manual

Model# BG-36B
36"L WALL MOUNT/RECESSED ELECTRIC
FIREPLACE- FRONT VENT WITH REMOTE
CONTROL- ORANGE FLAME COLOR
Model# BG-50B
50”L WALL MOUNTED/RECESSED ELECTRIC
FIREPLACE-FRONT VENT WITH REMOTE
CONTROL - ORANGE FLAME COLOR
AC 120V 60Hz 1500W
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety , always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.

2
Table of Contents
Always use a qualified technician or
service agency to repair this fireplace
!NOTE: Procedures and
techniques that are considered
important enough to emphasize.
CAUTION: Procedures and
techniques which, if not carefully
followed, will result in damage to
the equipment.
WARNING: Procedures and
techniques which, if not carefully
followed, will expose the user to
the risk of fire, serious injury , or
death.
IMPORTANT INSTRUCTIONS ..............................
Quick Reference Guide..........................................
Fireplace Installation ...........................................
Wiring Diagram .......................................................................
Hard wire Installation................................................................
3-4
5
6
8
9
Wiring..................................................................................... 9
Front Glass Removal / Installation...................................................10
Wall Mount Installation ..........................................................11-12
Framing.......................................................................................
Fully Recessed Installation............................................................... 14
Partially recessed installation........................................................... 15
Media Installation................................................................................16
Operation............................................................... 17-18
Maintenance....................................................................
20

3
IMPORTANT INSTRUCTIONS
When using electrical appliances,
basic precautions should always
be followed to reduce the risk of
fire, electric shock, and injury to
persons, including the following:
①Read all instructions before
using this electric fireplace
②This fireplace has its heating
vent in the front. The glass area in
the middle slot will get hot when
the heating function is turned on.
To avoid burns, do not let bare
skin touch the hot surface. The
rest of the fireplace including the
tempered glass section will not
get hot.
Middle Slot
DANGER: High temperatures
may be generated under certain
abnormal conditions. Do not
partially or fully cover or obstruct
the front of this heater.
③Extreme caution is
necessary
when any heater is used by
or near children or invalids and
whenever the unit is left operating
and unattended.
④Young children should be
supervised to ensure that they do
not play with the appliance.
⑤The appliance is not intended
for use by young children or
infirm persons without
supervision.
⑥Do no operate any heater
after it malfunctions. Disconnect
power at service panel and
have heater inspected by a
reputable electrician before
reusing.
⑦If the supply cord is damaged
it must be replaced by the
manufacturer, or its service agent,
or a qualified person in order to
avoid a hazard.
⑧Do not use outdoors.
⑨Never locate fireplace where
it may fall into a bathtub or other
water container.
⑩Do not locate the heater
immediately below a fixed
socket outlet.
⑪To disconnect the fireplace
turn the controls off, and turn off
power to heater circuit at main
disconnect panel.
⑫Do not insert or allow foreign
objects to enter any ventilation
or exhaust opening as this may
cause an electric shock or fire,
or damage to the heater.

4
⑬To prevent a possible fire, do
not block air intakes or exhaust
in any manner.
⑭A heater can produce arc
flashes or sparks when electric
current flows. Do not use in
areas where gasoline, paint, or
flammable liquids are used or
stored.
⑮Use this heater only as
described in this manual. Any
other use not recommended by
the manufacturer may cause fire,
electric shock or injury to persons.
⑯To reduce the risk of electric
shock, this appliance has a
polarized plug (one blade is wider
than the other). This plug will fit in
a polarized outlet only one way. If
the plug does not fit fully in the
outlet, reverse the plug. If it still
does not fit, contact a qualified
electrician to install the proper
outlet. Do not change the plug in
any way. Always plug heaters
directly into a wall
outlet/receptacle. Never use with
an extension cord or relocatable
power tap (outlet/ power strip).
⑰Do not burn wood or other
materials in the electric
fireplace
⑱Do not strike the fireplace
glass.
⑲Always use a certified
electrician should new circuits or
outlets be required.
⑳Always use properly grounded,
fused and polarized outlets.
㉑Disconnect all power supply
before performing any cleaning,
maintenance or relocation of the
unit.
㉒When transporting or storing
the unit and cord, keep in a
dry place, free from excessive
vibration and store so as to avoid
damage.
WARNING: Remote control
contains small batteries. Keep away
from children. If swallowed, seek
medical attention immediately.
WARNING: Do not install battery
backwards, charge, put in fire or mix
with used or other battery types - may
explode or leak causing injury.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER SERVICABLE PARTS INSIDE
SAVE THESE INSTRUCTIONS

5
Quick Reference Guide
①The electrical information regarding your electric fireplace can be found on
the rating label located on the front of the unit, behind the glass.
②For dimensions of your fireplace, refer to below diagram
PRODUCT DIMENSIONS
Model Number
Description
A
B
C
D
BG-36B
36"L WALL MOUNT/RECESSED
ELECTRIC FIREPLACE- FRONT
VENT WITH REMOTE CONTROL-
ORANGE FLAME COLOR
36"
91.5cm
21.46"
54.4cm
5.51"
14cm
32.48"
82.5cm
BG-50B
50"L WALL MOUNT/RECESSED
ELECTRIC FIREPLACE- FRONT
VENT WITH REMOTE CONTROL-
ORANGE FLAME COLOR
50"
128cm
21.46"
54.4cm
5.51"
14cm
46.85"
119cm
PRODUCT DIMENSIONS
Model Number
Description
E
F
G
BG-36B
36"L WALL MOUNT/RECESSED
ELECTRIC FIREPLACE- FRONT VENT
WITH REMOTE CONTROL- ORANGE
FLAME COLOR
20.51"
52.1cm
12"
30.5cm
30.91"
78.5cm
BG-50B
50"L WALL MOUNT/RECESSED
ELECTRIC FIREPLACE- FRONT VENT
WITH REMOTE CONTROL- ORANGE
FLAME COLOR
20.51"
52.1cm
12"
30.5cm
38.31"
97.3cm

6
Fireplace Installation
Site Selection
Review and consider all of the fol-
lowing conditions for installation:
1.Unit requires a minimum of two
wall studs in order to ensure a
secure installation
2.Three installation method
options:
i. SURFACE WALL MOUNT
INSTALLATION (pg. 11)
ii. FULLY RECESSED WALL MOUNT
INSTALLATION (pg. 14)
iii. PARTIALLY WALL MOUNT
INSTALLATION (pg. 15)
3.Hardwired or plug-in method
CAUTION: Ensure installation
does not allow fireplace to be in
direct contact with building vapor
barrier or insulation and meets all
local building code.
!NOTE 1: A 15 Amp, 120 Volt
circuit is required. A dedicated
circuit is preferred but not
essential in all cases. A dedicated
circuit will be required if, after
installation, the circuit breaker
trips or fuse blows on a regular
basis when the heater is
operating. Additional appliances
on the same circuit may exceed
the current rating of the circuit
breaker.
WARNING: Ensure the power
cord is not installed so that it is
pinched or against a sharp edge
and ensure that the power cord
is stored or secured to avoid
tripping or snagging to reduce
the risk of fire, electric shock o
injury topersons.
Construction and electrical
outlet wiring must comply
with local building codes and
other applicable regulations to
reduce the risk of fire, electric
shock and injury to persons.
WARNING: To reduce the risk
of fire, do not store or use gas -
line or other flammable vapors or
liquids in the vicinity of the heater.
1.
Select a location that is not
susceptible to moisture and
is away from drapes, furniture
and high traffic
2. For ease of electrical hook up
you may wish to locate the
fireplace near an existing outlet
(for plug-in convenience) (refer
to pg.9).
3.
Remove fireplace, front glass
and hardware from box and
remove all packaging materials
before installation.
4. Store the fireplace in a safe
dry and dust free location until
you are ready to install the
fireplace.

7
Fireplace Installation
MINIMUM CLEARANCE
Measurements are taken from the glass front.
Bottom
0" (can be put on the floor)
Top
11.8" (300mm) to mantel
Sides
0" (can go to the edge of the wall)
Top
11.8" (300mm) to ceiling
Back
0"
Top
25" (635mm) to TV
MINIMUM MANTEL & TV CLEARANCES
WARNING
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST
BE HEAT RESISTANT TO PREVENT DISCOLOURATION.
11.8”
300mm
0”
0”
0”
Wall
Floor
25” (635mm)

8
Fireplace Installation
Wiring Diagram
Hard wire Installation
The fireplace is packaged with a three prong plug installed for plug-in
convenience. Hard wiring the fireplace is also an option for any
installation.
WARNING: Do not attempt to wire your own newoutlets or circuits.
To reduce the risk of fire, electric shock or injury persons, always usea
licensed electrician.
WARNING: Ensure that the power cut off at the service paneluntil
installation is complete.
BG-36/50B

9
Fireplace Installation
HARD WIRING CONNECTION
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and
wire the appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hard wired.
In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or
the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.
A. Remove the cover plate from the right side B. Remove the wire connectors from the power
bottom of the appliance by removing the three
screws, as shown above.
cord. The power cord may be discarded.
C. Take the new cover plate, supplied in the hardware bag. Punch out the 7/8" (22.2mm) hole and
install a box connector through, into the junction box. Snap the box connector clamp onto the supply
wires.
D. Using the wire connectors, connect the ground green wires (G), the common white wires
(N) together, then the hot black wires (L) and then the refer to Figure 3.
E. Re-install the cover plate using the three screws, as shown in Figure 1.

10
Fig. 4-1
Fig. 4-2
Fireplace Installation
Front glass removal / installation
A. With one hand on the front glass to prevent it from falling, remove the
two screws (1 per side) from the side of the appliance (Fig. 4-1). Set the
screws aside.
B. Carefully lift the front glass up and away from the appliance (Fig. 4-2
and 4-3). Place it face down on a soft, non-abrasive surface.
C. Reverse these steps to install the front glass.
1
2
Fig. 4-3

11
Fig.
5-1
Fireplace Installation
There are 3 OPTIONS TO INSTALL THE FIREPLACE:
i. SURFACE WALL MOUNT INSTALLATION
Due to the many different materials used on different walls, it is highly recommended
that you consult your local builder before you install this appliance on the wall.
A. Select a location that is not prone to moisture and is located at least
36" (91.4cm) away from combustible materials such as curtain
drapes,furniture, bedding, paper, etc.
B. Remove the front glass (see “front glass removal / installation” section).
C. Have two people hold the appliance against the wall to determine
the final location.
D. Place appliance face down on a soft, non abrasive surface. Remove
the bracket from the back of the appliance by removing the screws
(Fig.5-1). Set the bracket aside and discard the screws.
E. Mark out location, then mount the bracket onto the wall using screws
(supplied). This bracket MUST have the hooks facing upward and be
level (Fig. 5-2).
A x 6 for BG-36/50B
B x 6 for BG-36/50B
note:
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If
the wall studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to
the wall and the bracket is adequately secured.

12
Wall
Fig. 5-2
Wall
Fig. 5-3
Fireplace Installation
F. With the wall mounting bracket installed, have two people lift the
appliance up and insert the hooks on the bracket into the slots
on the back of the appliance (Fig. 5-3).
G. Check the appliance for stability ensuring that the bracket will not
pull free from the wall.
H. Install media (see “media installation” section).
You must complete this step before moving onto the next step.
I. Re-install the front glass.

13
B
A
Fireplace Installation
Due to the many different materials used on different walls, it is highly recommended that you
consult your local builder before you install this appliance on the wall.
note:
It is recommended the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
A. Select a location that is not prone to moisture and is located at least 36”
(94.1cm) away from combustible materials such as curtain drapes, furniture,
bedding, paper, etc.
B. Measure the appliance and create a rough-in frame with electrical (see
below “framing”).
C. Remove the front glass (see “front glass removal / installation” section).
D. Hold the appliance up to ensure it will fit into the framing.
Finishing Material
B
A
(Non-Load
Bearing)
Framing Size
Model Number
A
B
BG-36B
33” (83.82CM)
20.75” (52.71CM)
BG-50B
47.17” (119.80CM)
20.75” (52.71CM)

14
A x 6
Side
Flange
Side
Flange
Fig. 5-4
Fireplace Installation
ii. FULLY RECESSED WALL MOUNT INSTALLATION
A. Remove power cord and complete hard wiring (see “hard wiring
installation” section).
B. Insert the appliance into the rough-in frame, and then secure it by
installing 6 screws (supplied) through the side flanges (Fig. 5-4).
C. Install media (see “media installation” section). You must complete this
step before moving onto the next step.
D. Re-install the front glass.

15
Fig. 5-6
F x 4
C x 4
Fig. 5-5
A x 4
Fireplace Installation
iii. PARTIALLY RECESSED WALL MOUNT INSTALLATION
A. Install 4 metal brackets (2 per side) (supplied) onto the sides of the
appliance (Fig. 5-5).
B. Remove the power cord and complete hard wiring (see “hard wiring
installation” section).
C. Insert the appliance as far into the rough-in frame as possible/
desired, and then secure it by installing 4 screws (supplied) through
the metal brackets (Fig. 5-6).
D. Install media (see “media ember installation” section). You must
complete this step before moving onto the next step.
E. Re-install the front glass.

16
Fireplace Installation
Log-set / Crystal Media Installation
This fireplace style comes with 2 media options: log-set and crystals
A. Glass front must be removed and the appliance must be mounted in its
final location before the log-set / crystal embers are installed.
B. To use log-set, remove the log-set from the package and set on the
log-set designated space. Figure 6-1.
C. To use crystals: Crystals media may have a fine oil residue that needs to
be cleaned prior to installation. Clean the them with mild dish soap, drain,
rinse thoroughly and dry before placing into the tray.
D. Place the plastic tray to the fireplace designed place. then carefully place
crystal ember into the bottom tray on the front of the appliance as
illustrated. Apply an even layer from side to side. Figure 6-2, Figure 6-3.
Figure 6-1
Figure 6-2
(For crystal and pebble only)
Figure 6-3 (Crystal media)

17
Operation
Read and understand this entire owner’s manual, including all safety information,
before plugging in or using this product. Failure to do so could result in electric shock,
fire, serious injury, ordeath.
Power
Plug the power cord into a 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY
INFORMATION on Pages 3 and 4). Make sure the outlet is in good condition and that the plug is not
loose. NEVER exceed the maximum amperage for the circuit. DO NOT plug other appliances into the
same circuit.
Methods of Operation
This electric fireplace can be operated by the CONTROL PANEL, located on the upper front
right side glass panel, or by the battery-powered REMOTE CONTROL.
Control panel
Contro
Remote control
Control Panel / Remote Control Operation
BUTTON
FUNCTION
ACTION & INDICATION
POWER
ON: Enables control panel functions and
remote control. Turns on flame effect.
OFF: Disables control panel functions and
remote control. Turns off flame effect.
1. Press once. Indicator light turns on.
Power turns on. All functions enabled.
2. Press again. Flame effect turns off. Unit
goes to standby. All functions turn off.
TIMER
TIMER button: Controls timer settings to
turn off fireplace at selected time.
Settings range from 0.5 hours to 8hours.
1. Press once. Indicator light turns on.
Timer is set to 0.5 hours.
2. Press again until desired setting is
reached. Indicator lights show setting.
FLAME -
FLAME “-”: Makes flame effect dimmer.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be
on for heater to turn on.
1. Press once. Flame effect gets dimmer.
2. Press again until desired setting is
reached. Flame effect continues toget
dimmer each time button is pressed.

18
Operation
FLAME +
FLAME “+”: Makes flame effect brighter.
NOTE: Flame effect stays on until power
button is turned off. Flame effect must be
on for heater to turn on.
1. Press once. Flame effect gets brighter.
2. Press again until desired setting is
reached. Flame effect continues toget
brighter each time button ispressed.
HEATER
HEATER button: Turns heater on andoff.
NOTE: The heater only works when the
flame effect is on. If the flame effect is off,
the heater will not turn on.
NOTE: Heater button can be locked or
unlocked by holding the Heater button for
5 seconds.
1. Press once. Indicator lights up.
Fan blows cool air for 10 seconds.750W
heater turns on and blows warm air.
2. Press again. Indicator lights up.
1500W heater turns on and blows hot air.
3. Press again. Heaters turn off.
The fan blows cool air for 10 seconds to
allow heater to cool down, then turns off.
NOTICE
When the heater is first turned on, a slight odor may be present. This is normal and
should not occur again unless the heater is not used for a long period of time.
NOTICE
To improve operation, aim the remote control at the front of the fireplace. DO NOT
press the buttons too quickly. Give the unit time to respond to each command.

19
Operation
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF. Wait 5 minutes.
3. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or lint. If they are,
use a vacuum to clean the vent areas.
4. With the POWER switch in the OFF position, plug the power cord back into the outlet.
5. If the problem continues, have your outlet and wiring inspected by a professional.
Remote battery installation
The remote control comes with a pre-installed replaceable CR2025 lithium battery.
!WARNING
1. This remote control requires button batteries that are hazardous to young children.
1. WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN!
1.
Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical
burns and potential perforation of the esophagus.
2. If you suspect your child has swallowed or inserted a button battery, immediately
seek urgent medical assistance.
3. Examine devices and make sure the battery compartment is correctly secured, e.g.
that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
4. Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
5.
Tell others about the risk associated with button batteries and how to keep their children safe.
note:
The remote control has a removable plastic tab to prolong the battery life while shipping. Remove the tab for
the remote control to function.
1.
2.
3.

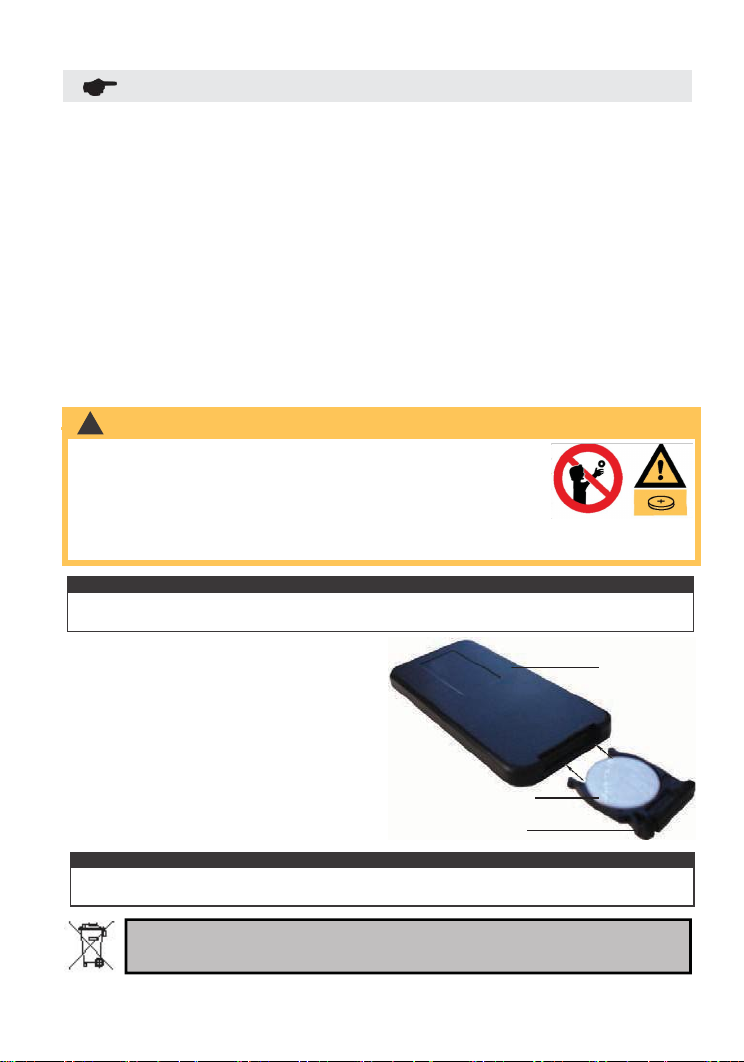

To replace the existing battery remove the
battery holder.
The battery holder is equipped with a child
lock system. To remove the battery holder turn
remote onto rear side and press the left side
lever towards the center while pulling the battery
holder out using the slot provided.
Replace existing battery, type CR 2025, with a
new battery and re-install the battery holder into
the remote by sliding it into position, as shown.
The battery holder is connected to the remote
when you hear a “CLICK”.
Remote
(Rear Side)
Battery (CR 2025)
4.
Battery Holder
note:
The remote control must remain within 5 meters or 17 feet of the appliance to be effective. This range may
be reduced when battery power is depleted.
Batteries must be disposed of according to the local laws and regulations. Some batteries may
be recycled, and may be accepted for disposal at your local recycling center. Check with your
municipality for recycling instructions.

20
Maintenance
Cleaning
ALWAYS turn the heater OFF and unplug the power cord from the outlet
before cleaning, performing maintenance, or moving this fireplace. Failure to do so
could result in electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in electric shock,
fire, or personal injury.
Metal:
• Buff using a soft microfiber cloth. Slightly dampen microfiber cloth with water to clean metal
surfaces.
• DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Glass:
• Use a good quality glass cleaner sprayed onto the cloth or towel. Dry thoroughly with a paper
towel or lint-free cloth.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Vents:
• Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Plastic:
• Wipe gently with a slightly damp cloth and a mild solution of dish soap and warm water.
• NEVER use abrasive cleansers, liquid sprays, or any cleaner that could scratch the surface.
Maintenance
Risk of electric shock!DO NOT OPEN any panels ! No user-serviceable parts
inside!
ALWAYS turn the heater OFF and unplug the power cord from the outlet before
cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in
electric shock, fire, or personal injury .
Electrical and Moving Parts:
• The fan motors are lubricated at the factory and will not require lubrication.
• Electrical components are integrated in the fireplace and are not serviceable by the
consumer.
• Energy-saving LED light strip is built into the product and is NOT replaceable by the
consumer.
Storage:
• Store heater in a clean dry place when not in use.
WARNING! NO SERVICING of the internal or electrical parts should be performed by the
consumer. Do not service the unit yourself.
Model#
LED strip quantity
LED lumens
Life span
LED power
BG-36B
2 PIECES
800lm
25000 hours
8W
BG-50B
2 PIECES 800lm
25000 hours
8W
