Continental Motors A Series User manual

Publication X30012
©CONTINENTAL MOTORS, INC. AUGUST 2011
A Series
C Series
O-200
CONTINENTAL® AIRCRAFT ENGINE
OPERATOR’S
MANUAL
FAA APPROVED

A A & C and O-200 Series Engines Operator’s Manual
31 August 2011
Supersedure Notice
This manual revision replaces the front cover and list of effective pages for Publication Part
No. X30012, dated December 1980. Previous editions are obsolete upon release of this manual.
Effective Changes for this Manual
0..............December 1980
1...............31 August 2011
Effective Changes for this Manual
Document Title:A & C and O-200 Series Engines Operator’s Manual
Publication Number: X30012 InitialPublicationDate:December1980
Page Change Page Change Page Change Page Change
Cover..............................1
A......................................1
i.......................................1
ii thru iv............................0
1 thru 66..........................0

NOTICE
THE ENGINE(S) DESCRIBED IN THIS
MANUAL MUST BE OPERATED IN
ACCORDANCE WITH THE INSTRUCTIONS
CONTAINED HEREIN. FAILURE TO SO
COMPLY WI LL BE DEEMED AS ENGINE
MISUSE, THUS RELIEVING THE ENGINE
MANUFACTURER OF ANY RESPONSIBILITY.
THIS MANUAL CONTAINS NO WARRANTIES,
EITHER EXPRESSED OR IMPLIED. THE
INFORMATION AND PROCEDURES
CONTAINED HEREIN PROVIDE THE
OPERATOR WITH TECHNICAL INFORMATION
AND INSTRUCTIONS APPLICABLE TO SAFE
OPERATION.

Introduction
Section I
Section II
Section III
Section IV
Section V
Section VI
Section VII
Section VIII
Section IX
Section X

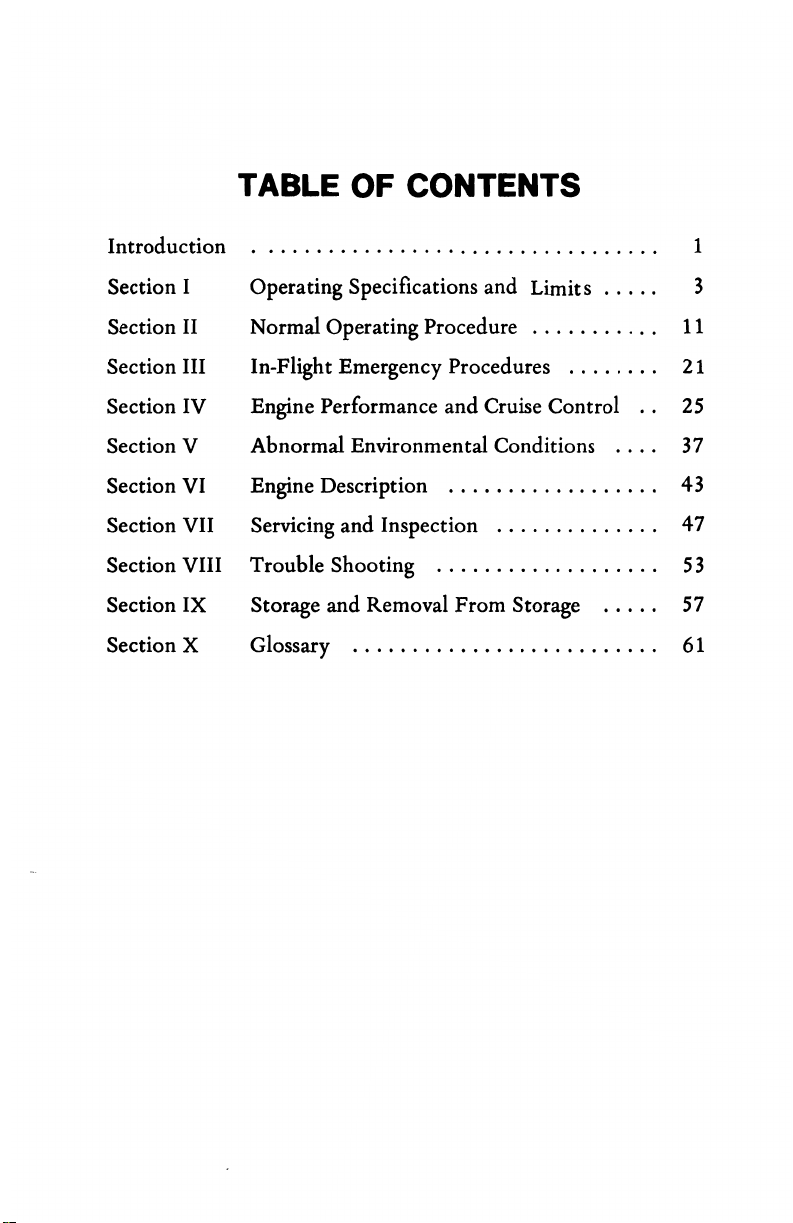

TABLE OF CONTENTS
Operating Specifications and Limits .... .
Normal Operating Procedure
.......... .
In-Flight Emergency Procedures
....... .
Engine Performance
and Cruise Control ..
Abnormal Environmental Conditions ... .
Engine Description
................. .
Servicing and Inspection
............. .
Trouble Shooting
.................. .
Storage and Removal
From Storage .... .
Glossary
......................... .
1
3
11
21
25
37
43
47
53
57
61

INTRODUCTION
The Operating instructions outlined in this manual have
been developed from comprehensive evaluation
of the engine
performance in relation to its installation in an aircraft.
Recommendations, cautions and warnings regarding operation
of
this engine are not intended to impose undue restrictions on
operation
of the aircraft, but are inserted to enable the pilot to
obtain maximum performance from the engine commensurate
with safety
and efficiency. Abuse, misuse, or neglect of any piece
of equipment can cause eventual failure. In the case of an aircraft
engine
it should be obvious that a failure may have disastrous
consequences. Failure to observe the instructions contained in this
manual constitutes unauthorized operation in areas unexplored
during development
of the engine, or in areas in which experience
has proved
to be undesirable or detrimental.
Notes, Cautions and Warnings are included throughout this
manual. Application
is as follows:
NOTE: Special interest information which may facilitate the
operation
of equipment.
CA UTION: Information issued to emphasize certain instructions
or to preventpossible damage to engine or accessories.
WARNING: Information which, if disregarded, may
result in severe damage
to the engines and! or personal
injury.
Users are advised
to keep up with the latest information by means
of service bulletins, which are available for study at any approved
Teledyne Continental Distributor or Dealer, and are obtainable on
an annual subscription basis. Subscription forms are available from
the Distributor or from Teledyne Continental Motors, P. O. Box
90, Mobile, Alabama 36601, Attention: Publications Department.
1

2
WARNING: This engine must be installed in accordance
with all requirements
and limitations listed in the Detail
Specification forTeledyne Continental Aircraft Engines.
Any deviations caused
by installation, or operation,
such as acrobatic maneuvers will be deemed as misuse
and Teledyne Continental Motors shall be relieved of
any further responsibility.

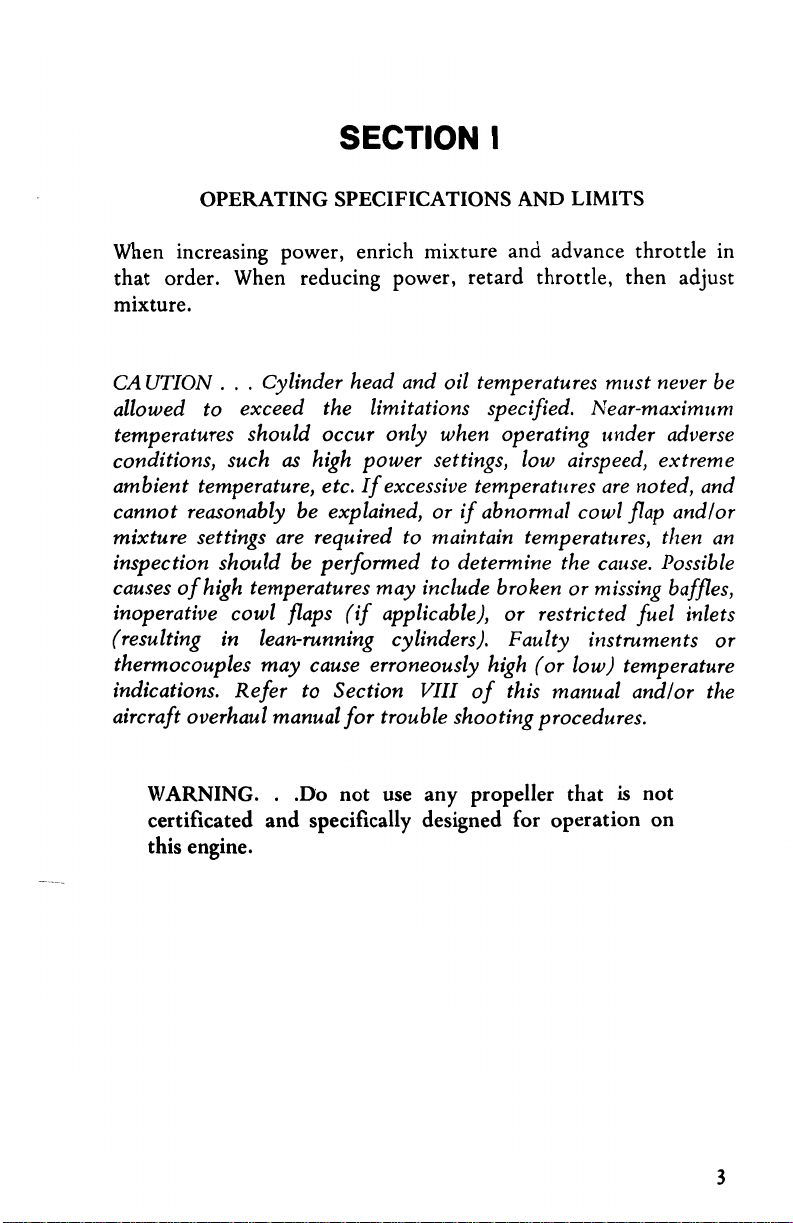

SECTION I
OPERATING SPECIFICATIONS AND LIMITS
When increasing power, enrich mixture and advance
throttle in
that order. When reducing power, retard throttle, then adjust
mixture.
CA UTION ... Cylinder head and oil temperatures must never be
allowed to exceed the limitations specified. Near-maximum
temperatures should occur only when operating under adverse
conditions, such
as high power settings, low airspeed, extreme
ambient temperature, etc.
If excessive temperatures are noted, and
cannot reasonably be explained, or
if abnormal cowl flap and/or
mixture settings
are required to maintain temperatures, then an
inspection should be performed to determine the cause. Possible
causes
of high temperatures may include broken or missing baffles,
inoperative cowl flaps
(if applicable), or restricted fuel inlets
(resulting in lean-running cylinders). Faulty instruments or
thermocouples may cause erroneously high (or low) temperature
indications.
Refer to Section VIII of this manual and/or the
aircraft overhaul manual
for trouble shooting procedures.
WARNING. . .Do not use any propeller that is not
certificated and specifically designed for operation on
this engine.
3

..f.>.
SPECIFICATIONS
11.65
11.75
C75 C85 C90 0-200
Tll!e
Certificate
No
..............
205 213 233
233 252
252
Bore (inches)
...................
3-
7l8 3-7/8 4-1/16
4.:..!L16
4-1ill
4-1/16
Stroke
linches)
.................
3-5/8 3-5l8 3-5l8 3-5/8
3-
7l8 3-7/8
Coml!.
Ratio
...........
_
.......
6.3:1
6.3:1
6.3:1 6.3:1 7.0:1 7.0:1
Piston Disl!. (cu. in.l
....
-
...
-
....
171 171 188 188 200.91 200.91
Rated
Power (Sea Levell _
.........
65 75 75 85
90"
100
Rated
R.P.M. .
.......
_
.........
2300
2600
2275 2575
2475"
2750
Max. Allowed
Press. (in. Hg.)
at
rated
R.P.M.
at
Sea Level
..
_
.........
29.4 29.3 29.2 29.0 29.3 29.3
Recommended
Cruisina R.P.M
...
_
..
2150
2350
2275
2400
2350 2500
Maximum
Recommended
Mani-
fold Press. (in. Hg.l
for
cruisillK
at
Sea
Ltvel'
. • . • . . . . . . . 26.8
26_0
24.0 24.5 24.5 24.0
Minimum
Fuel
Grade
............
80/87
80/87 80/87
80187
80/87 80/87
Oil Pressure
at
Cruising Il!.s.i.)
3CJ..35 3CJ..35 3CJ..35
3CJ..35
30-60
3CJ..60
Min. Idling Oil Pressure (p.s.i.)
.....
10
10 10 III
10
10
Minimum Oil
Temperature-oF
.•...
75 75 75 75 75 75
Maximum Oil
Temperature-oF.
. . • .
220 220
225 225
22.5
225
Max. Cylinder
H~
Temperature
( F.) . . . . . . . . . . . . .
550
525
550 540 525
525
Ap8:;0x.
Fuel
Consumption
in
ala.
l!!:r
Hr.
Cruising
......
....
4.4 4.8
Apl:;0x. Max. desirable Oil
onsuml!tion
in
gts. l!er
Hr_
.•..•
.37
.4
Oil Sum!! C!I!aci!I in gts. _
....
_
...
4 4
Tappet
Clearance:
~ating
_
.•.•.....•••...•..
0 0
LIfters Deflated
.••
_
•.•...•..••
.030-.110 .030-.110
Ignition
Timing
BTC
Right
........................
~Oo
30°
Left
.........................
30°
30°
NOTE: (0)
Take-off
rating is
95
H.P.
at
2625
R.P_M.
(1
minute
only.)
4_8
5.4
.37
.4
4-1/2 4-1/2
0 0
.030-.110 .030-.110
28°
28°
30° 30°
5.9
.5
5
0
.030-.110
26°
28°
6.3
.6
6
o
.030-.110
24°
24°

OPERATING LIMITS - A 65
MAX. MAX. MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN
UP
%NRP
100
75
75 65 55
BHP (SEA LEVEL) 65 49 49 42 36
RPM
2300 2100 2100 2000 1900 800
FUEL FLOW (PPH) SEE FUEL FLOW CURVE
CYLINDER HEAD
TEMPERATURE
(F)
MINIMUM 240 240 240 240 240 200
NORMAL 360·420 300·400 300·400 300·380 300·350 200·400
MAXIMUM
550 550 550 550 550 550
OIL TEMPERATURE (Fo)
MINIMUM
75
NORMAL 120·180 120·180 120·180 120·180 120·180 75-180
MAXIMUM
220 220 220 220 220 220
OIL PRESSURE (PSI)
MINIMUM
IDLE 10 10 10 10 10
NORMAL 30-35 30·35 30·35 30·35 30·35 30·35
MAXIMUM
35 35 35 35 35 100**
**With Cold Oil Only.
V\

0-
OPERATING LIMITS -A 75
--
..
_--
-------
-_._.
-._-"
----
-.
-
._.
-
---
--'-
'--"
-~
..
+.-
-'--~"-'------
-
~--,-.-,--
- -
..
_------_.
MAX. MAX. MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN UP
. -
--
-
"---
"_.
--------
--
-
----_
..
_---
-_
...
-
"-------
--
%NRP 100
75 75
65
55
BHP (SEA LEVEL)
75
56
56
49
41
RPM 2600 2350 2350 2060
2120
800
FUEL FLOW (PPH) SEE
FUEL
FLOW CURVE
CYLINDER HEAD
TEMPERATURE (Fo)
Minimum 240 240 240 240 240 200
NORMAL 360-420 300-400 300-400 300-380 300-350 200-400
MAXIMUM 525 525 525 525 525
525'
OIL
TEMPERATURE (Fo)
MINIMUM
75
100 100 100 100 180
NORMAL 120-180 120-180 120-180 120-180 120-180 75-180
MAXIMUM 220 220 220 220 220
22Q
OIL PRESSURE (PSI)
MINIMUM IDLE 10
10 10
10 10
10
NORMAL 30 30 30 30 30 30
MAXIMUM
35
35 35 35 35 100**
"*With Cold Oil
Only.

OPERATING LIMITS - C 75
MAX. MAX.
MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN UP
%NRP 100
75 75
65
55
BHP (SEA LEVEL)
75
56
56
49
41
RPM 2275 2085 2085 1990 1890 800 MANIFOW
PRESSURE 29.2
FUEL FLOW (PPH) SEE FUEL FLOW CURVE
CYLINDER HEAD
TEMPERATURE (Fo)
MINIMUM 240 240 240
240
240 200
NORMAL 360-420 300-400 300-400 300-380 300-350 200-400
MAXIMUM 550 550
OIL
TEMPERATURE (F 0)
MINIMUM 100 100 100 100 100
75
NORMAL 120-200 120-180 120-180 120-180 120-180 75·180
MAXIMUM
225 225 225 225
225
225
OIL
PRESSURE (PSI)
MINIMUM IDLE
10
10
10 10
10 10
NORMAL
30-35
30-35 30-35 30-35 30-35 30·35
MAXIMUM
35
35 35
35 35
100**
"-J
"With
Cold Oil Only.

00
OPERATING LIMITS -C 85
-'---
--
,--
--- .
..
-_
...
-.-.-
--
---
._
..
-
.-
-.-
.'"
MAX. MAX.
MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN
UP
-_._----
-----_
...
.-
---,
..
__
.
%NRP 100 75 75 65 55
BHP (SEA LEVEL) 85 64
64
55 47
RPM
2575 2340 2340 2230 2120
800
FUEL FLOW (PPH) SEE FUEL FLOW CURVE
CYLINDER HEAD
TEMPERATURE (Fo)
MINIMUM 240 240
240
240 240
200
NORMAL 360-420 300-400 300-400 300-380 300-350 200-400
MAXIMUM
540
540 540
540
540
540
OIL TEMPERATURE (Fo)
MINIMUM 100
100
100 100 100 75
NORMAL 150-200 150-180 150-180 150-180 150-180 75-180
MAXIMUM 225 225 225 225 225 225
OIL
PRESSURE (PSI)
MINIMUM -IDLE 10 10 10 10 10
10
NORMAL 30-35 30-35 30-35 30-35 30-35 30-35
MAXIMUM 35 35 35 35 35 100**
**With Cold Oil Only.

OPERATING LIMITS -C
90
MAX. MAX. MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN UP
%NRP 100
75
75
65
55
BHP (SEA LEVEL) 90 68 68
59
50
RPM 2475 2250 2250 2140 2020 1700
FUEL
FLOW (PPH) SEE
FUEL
FLOW CURVE
CYLINDER HEAD
TEMPERATURE (Fo)
MINIMUM
NORMAL 400-425
MAXIMUM 525 525 525 525 525 525
OIL
TEMPERATURE (F)
OIL
PRESSURE (PSI)
MINIMUM IDLE
10 10 10
10
10 10
NORMAL 30-60 30-60 30-60 30-60 30-60 30-60
MAXIMUM 60 60 60 60 60
100'
•
**With Cold Oil Only.
'0

.....
0
OPERATING
LIMITS
-
0-200
MAX. MAX. MAX.
CONTINUOUS RECM. RECM. RECM. ECONOMY
OPERATION HORSEPOWER CLIMB CRUISE CRUISE CRUISE RUN
UP
'Y"NRP
100 75 75 65 55
BHP (SEA LEVEL) 100 75 75 65 55
RPM
2750
2525
2525
2400
2260
1700
FUEL FLOW (PPH) SEE
FUEL
FLOW CUR
VE
CYLINDER HEAD
TEMPERATURE
(Fo)
MINIMUM
240
240 240 240
240
200
NORMAL
420
300-420 300-420
300-420
300-420
200-400
MAXIMUM
525 525 525
525 525 525
OIL
TEMPERATURE
(Fo)
MINIMUM 75 75 75 75 75 75
NORMAL 150-200 150-170 150-170 150-170
150-170
75-170
MAXIMUM
225
225 225 225 225 225
OIL
PRESSURE (PSI)
MINIMUM
IDLE
10 10 10
10
10 10
NORMAL 30-60 30-60 30-60 30-60 30-60 30"60
MAXIMUM
60 60 60 60 60
100**
**With Cold Oil Only_

SECTION II
NORMAL OPERATING PROCEDURE
CA UTI ON ... This section pertains to operatioll IIl1der aJ'erage
climatic conditions. The pilot sllOuld tllOrollghly familiari::e
himself with Section V, Abnormal Operatillg COlldirol1s. TI'hel1el'er
such abnormal conditions are ellCOIIII tered or ,111 ticipated, the
procedures and techniques for normal operatioll shollld be tailored
accordingly. For example, if the aircraft is to be temporarily
operated in extreme cold or hot weather, cOllsideratiOiI shollid be
given to an early oil change and/or a rou tine illspectioll sen'icillg.
GENERAL.
The life of your engine is determined by the care it receives.
Follow the instructions contained in this manual carefully.
The engine receives a run-in operation before leaving the factory.
Therefore, no break-in schedule need be followed. Straight mineral
oil (MIL-C-6529 Type II) should be used for the first oil change
period (25 hours).
The minimum grade aviation fuel for this engine is 80/87. In case
the grade required is not available, use a higher rating. Ne\"er use a
lower rated fuel.
WARNING ... The use of a lower octane rated fuel can
cause pre-ignition
and/or detonation which can damage
an engine the first time high power is applied. This
would most likely occur on takeoff. If the aircraft is
inadvertently serviced with the wrong grade of fuel,
then the fuel must be completely drained and the tank
properly serviced.
11

12

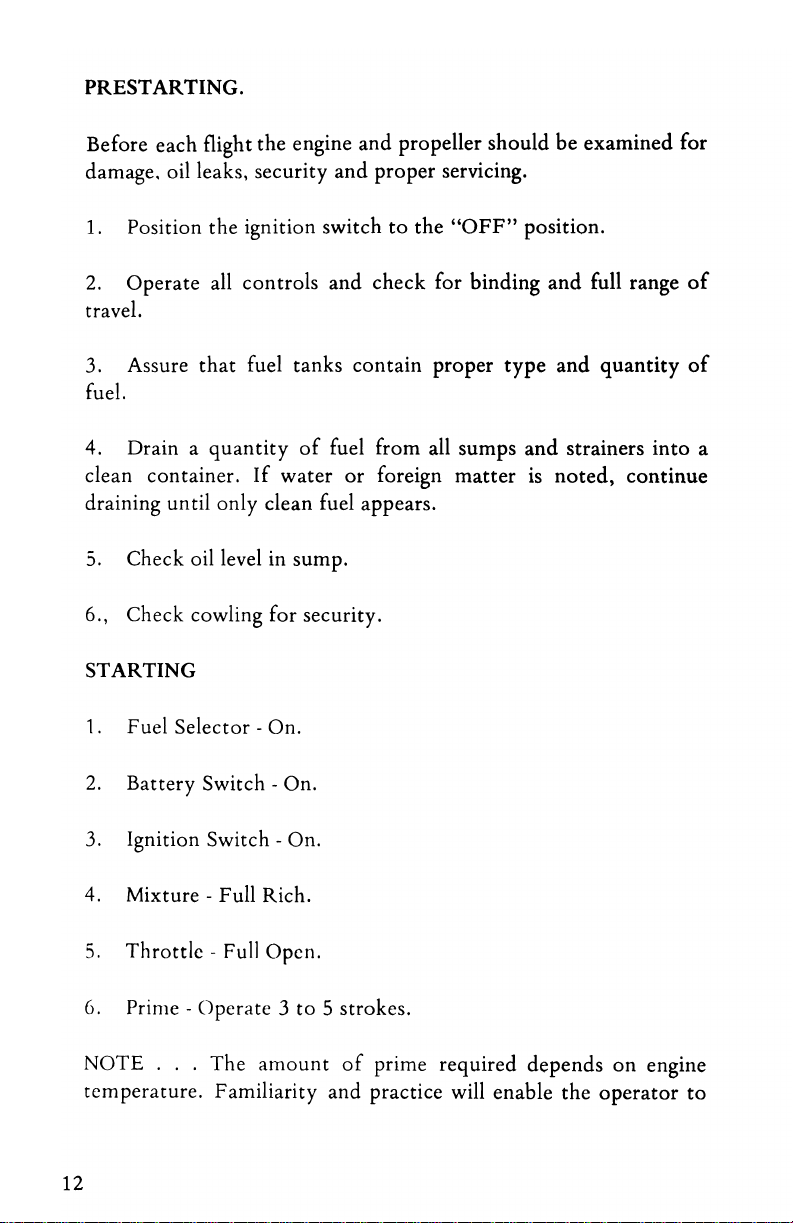

PRESTARTING.
Before each flight the engine and propeller should be examined for
damage, oil leaks, security
and proper servicing.
1. Position the ignition switch to the "OFF" position.
2. Operate all controls and check for binding and full range of
travel.
3. Assure
that fuel tanks contain proper type and quantity of
fuel.
4. Drain a
quantity of fuel from all sumps and strainers into a
clean container.
If water or foreign matter is noted, continue
draining until only clean fuel appears.
5. Check oil level in sump.
6., Check cowling for security.
STARTING
1. Fuel Selector -On.
2. Battery Switch -On.
3. Ignition Switch -On.
4. Mixture -Full Rich.
5. Throttle -Full Open.
6. Prime -Operate 3 to 5 strokes.
NOTE . . . The
amount of prime required depends on engine
temperature. Familiarity and practice will enable the
operator to
