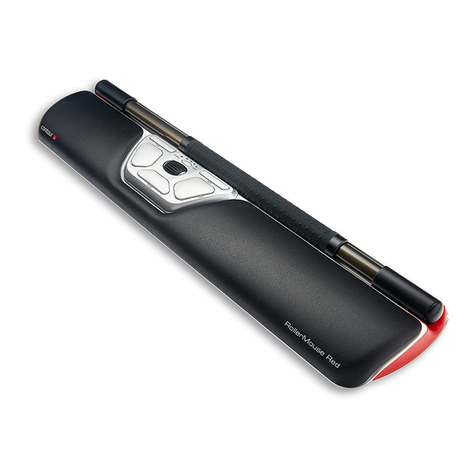

RollerMouse®Re:d
User Guide

What you are about to experience is the result of many years of
hard work from our amazing engineering team. Enjoy this fine
piece of precision engineering from Contour Design for many
years to come.
Please let us know what you think by visiting
www.rollermouse.com
Thank you for your support,
Steve Wang
CEO
Thank you for giving us an opportunity to help you work more
comfortably and efficiently. Contour Design has been striving
to build the best mouse since 1995. I’m proud to say that
RollerMouse Re:d is our finest accomplishment to date. Renowned
industry experts agree, and for the first time, awarded a central
pointing device the prestigious “red dot” award.
Over five years ago we set out to build the most versatile
RollerMouse. We wanted it to have the smoothest and most
precise cursor control, so we invented a new technology that
tracks the roller motion from inside a tube. We also wanted to
deliver the most effortless mouse click, so we eliminated the
traditional mechanical switch and invented a way for users to
independently adjust click force and click sound.
1

Box contents
1. RollerMouse Re:d
2. Wrist rest
3. Two short keyboard risers
4. Two long keyboard risers
5. User guide
6. Wrist rest removal key
2

3
RollerMouse functions
A. Rollerbar
B. Cursor speed adjustment
C. Copy
D. Paste
E. Left-click
F. Right-click
G. Scroll wheel
H. “One touch” double-click

Before plugging in the unit take a moment to check the height
and angle of your keyboard, and find the arrangement that’s most
comfortable for you. The package includes keyboard risers
that can help you to achieve the correct angle and height
regardless of the type of keyboard you are using. The spacebar on
your keyboard should come just above your Rollerbar. To achieve a
proper ergonomic position, the top of the keyboard should be level.
The following examples show three different ways of arranging the
keyboard. These are typical configurations. Your set-up may vary.
Keyboard positioning
Example 1 -
Thick keyboard
Example 2 -
Standard keyboard - top of long riser is level
Example 3 -
Thin keyboard - top of long riser tilts down
Short riser
4
Short riser Long riser
Long riser
Short riser

Fit the end of the short riser into the
slot on the back of the RollerMouse unit.
Press the end of the long riser over
the top of the short riser.
Inserting the keyboard risers
5
Adjust keyboard risers to preferred angle
and height.

6
Using the Rollerbar
The Rollerbar provides two functions:
• PressingdownontheRollerbarperformsaleft-click.
• MovingtheRollerbarsidetosideandupanddownperforms
cursor movement.
Plug the RollerMouse Re:d into your computer’s USB
port. Allow your computer a few seconds to automatically
install it.
Connecting to a computer

Click force refers to how hard or soft it is to click the Rollerbar.
To change the click force, press and hold both the and the
button for two seconds, the LED light will show current click
force setting. While continuing to hold button release button
and use scroll wheel to change click force setting. Let go of
to select click force setting.
Note: The Rollerbar click function can be turned off using the above
adjustment method, by moving the scroll wheel until all LEDs are lit.
7
Press button to change cursor speed. There are five speed
selections from slow to fast that are indicated by the LEDs.
Changing cursor speed Rollerbar click force adjustment

The Copy and Paste buttons on your RollerMouse can be adjusted
for use with Mac operating systems. To switch to Mac mode press
and hold and buttons for two seconds. The right-most LED
will flash to indicate RollerMouse is in Mac mode. Repeating this
process will revert back to Windows mode. The left-most LED will
flash to indicate Windows mode.
To change the click volume setting, press and hold both the
and the button for two seconds, the LED light will show
current click volume setting. While continuing to hold button
release button and use scroll wheel to change click
volume setting. Let go of to select click volume setting.
Click volume adjustment
Adjusting to Mac operating systems
To change button from double click function to a middle button
function, hold button and for two seconds until LEDs flashes
to confirm. Repeating this process will revert back to double click
function.
Changing the ‘Double’ Click button to Middle Button
Function
8

We recommend that you use the wrist rest , however, if for any
reason you would like to remove the wrist rest, lift the front edge
of the RollerMouse and rest it in your left hand. Fit the wrist rest
removal key into the slot at the right end of the unit and twist
the key counter-clockwise.
To install the wrist rest after removal, snap it into the slot on the
front edge of your RollerMouse Re:d.
Wrist rest
9

For more information,please visit:
www.rollermouse.com
Contour Design,Inc.
10 Industrial Drive
Windham, New Hampshire 03087,USA
Phone: [phone]
E-mail: [email protected]
Contour Design Europe A/S
International House
Center Boulevard 5
2300 Copenhagen S.,Denmark
Phone: [phone]
E-mail: [email protected]
Tested to comply with FCC standards
Patent pending
