Control Chief Summit Series User manual

Summit Series
SK1400 / SK2400
Control Chief Corporation
200 Williams Street, Bradford, PA 16701
814-362-6811 * 1-800-233-3016 * 814-368-4133
www.controlchief.com
Owners Manual
Failure to return the Warranty Registration document (enclosed) to
Control Chief within 30 days of purchase will void any warranty
responsibilities on behalf of Control Chief Corporation
95-00-0-091 Rev 004

Control Chief Corporation, a world leader in wireless radio and infrared remote control products,
has developed and expanded upon this powerful technology. More than three decades of
experience in designing, manufacturing, and installing state-of-the-art remote communication
systems emphasize Control Chief’s mission
Our systems are tailored to virtually any environment or application. Control Chief provides
training, technical support, and comprehensive system design to maximize performance. It is
our honor to uphold this reputation of innovative engineering and superior product performance.
Publication: 95-00-0-091 Rev 004
Copyright © 2008 Control Chief Corporation
All Rights Reserved.
200 Williams Street, Bradford, Pennsylvania, 16701
Web Page: www.controlchief.com
Telephone: [phone], FAX: [phone]

SUMMIT SERIES SK1400 / SK2400 OWNERS MANUAL
95-00-0-091, Rev 004 iControl Chief Corporation
1.0 Radio Warranty
1.1 Warranty
1.2 Warranty Period
1.3 Warranty Service
1.4 Excluded Parts
1.5 Remarks
2.0 Safety
2.1 Safety Considerations
2.2 Symbols
2.3 Warnings
3.0 Standard Components
3.1 Receiver (RX)
3.2 Transmitter (TX)
3.3 Accessories
3.3.1 Per Radio Kit
3.3.2 Per Radio Transmitter
4.0 Installation Procedure
4.1 General Precautions
4.2 Receiver Preparation
4.2.1 Installation Preparation
4.2.2 Installation Procedure
4.3 Radio Schematics
4.4 Transmitter Setup
5.0 Operation
5.1 General Precautions
5.2 Standard Operation
5.2.1 Default Power-On Procedure
5.2.2 Transmitter Power Indication
5.3 Emergency Shutdown Procedure
6.0 Basic Troubleshooting and Maintenance
6.1 General Precautions
6.2 Transmitter Malfunction Detection
6.3 Receiver Malfunction Detection
7.0 Function Settings
7.1 Pushbutton Customization
7.2 Aux1/Aux2 Settings
7.3 Other Functions of the Transmitter
7.4 Other Functions of the Receiver
7.5 Downloading New Configuration Settings to Transmitter and Receiver
7.6 Remote Pairing
7.7 Manual Channel Scan
8.0 Specifications
8.1 General
8.2 Transmitter
8.3 Receiver
9.0 Appendix

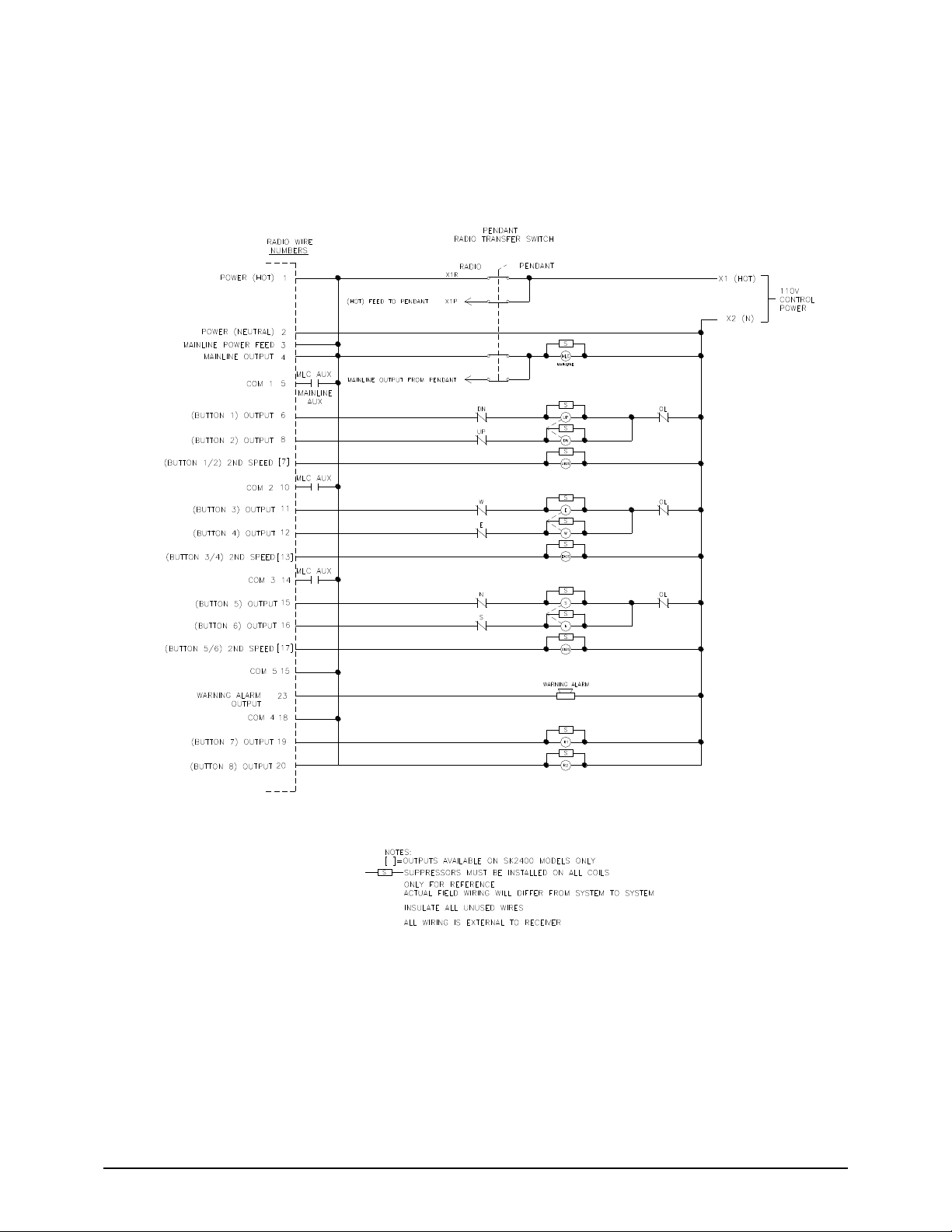

9.1 General Wiring Diagram (for Radio/Pendant Operation)
10.0 Mounting Template

95-00-0-091, Rev 004 1-1 Control Chief Corporation
1.0 Radio Warranty
1.1 Warranty. Control Chief Corporation guarantees that this equipment meets its published specifications at the
time of shipment from the factory. This equipment will perform as described if installed properly. However, Control
Chief cannot guarantee that operation of remote control system is absolutely error-free, or without interruption.
1.2 Warranty Period. This equipment is warranted against defects in materials and workmanship for a period of one
(1) year from the date of shipment. During the warranty period, Control Chief is responsible for necessary
repairs/replacement as long as the product can be proven defective.
1.3 Warranty Service. For warranty service or repair, this equipment must be returned to Control Chief Corporation.
Customer is responsible for shipping charges to Control Chief. Control Chief’s warranty covers only parts and factory
labor. No onsite in and out charges are covered under this warranty.
1.4 Excluded Parts. This warranty does not include consumable parts such as joysticks, batteries, fuses, buttons,
and relays. Also, this warranty does not cover defects caused by improper installation, improper/insufficient
maintenance, unauthorized modification, improper operation, ignorance of environmental specifications, and/or
improper software/interfacing.
1.5 Remarks. No other warranty is expressed or implied, except for the above mentioned. The remedies provided
herein are the buyers’ sole and exclusive remedies. Control Chief shall not be liable for any direct/indirect, special,
incidental, or consequential damage. Consult Control Chief’s general warranty for further information.

95-00-0-091, Rev 004 2-1 Control Chief Corporation
2.0 Safety
2.1 Safety Considerations
1. The safety guidelines in this manual are not intended to replace any rules or regulations or any applicable
local, state, or federal governing laws. The following information is intended to be used in conjunction with
other rules or regulations already in existence. It is important to read all safety information before operating
any wireless radio remote control system.
2. Only properly trained persons designated by management should be permitted to operate wireless radio
controlled equipment. Wireless radio controlled equipment should not be operated by any person who
cannot read or understand signs, notices and operating instructions that pertain to the equipment.
3. Wireless radio controlled equipment should not be operated by any person with insufficient eyesight or
hearing or by any person who may be suffering from a disorder or illness or is taking any medication that
may impair judgment or the ability to operate equipment.
4. Do not use this device during electrical storms or under conditions of electrical interference, due to the
potential for equipment communication issues. Ensure transmitter batteries are in good condition and power
for receiver is correct. Installation and maintenance should be done only while the controlled equipment
main power and receiver’s power are off and locked out to prevent electrical shock.
5. Any person operating wireless radio controlled equipment should possess the following knowledge
and/or skills:
• Knowledge of hazards particular to the equipment being operated
• Knowledge of safety rules for radio controlled equipment
• Knowledge of standard methods of hand and/or non-verbal signaling
• Knowledge of the radio transmitter
• Limit switch test procedure
• Proper clearance of all moving parts on the radio controlled equipment
• Proper storage space for radio control transmitter when not in use
• Transferring radio control transmitter to another person
• Reporting unsafe or unusual operating conditions
• Remote controlled equipment capacity and limitations
• Procedures for testing controlled equipment
6. Aisles between equipment, stock, etc., should be free of obstructions so the radio control operator can
move freely. These aisles should meet local regulations.
7. Radio controlled operators should always position themselves for the best view of the equipment they are
controlling. The equipment should never be operated blindly. The operator should always remain at a safe
distance, without losing line of sight with the equipment.
8. Transmitter switches should never be mechanically blocked ON or OFF for any equipment motion. When
not in use turn the transmitter OFF (RED MUSHROOM PUSHBUTTON) and remove the transmitter key.
9. After daily operation, shut off main power in crane/machine, the power to the receiver, and remove
transmitter key. A secure storage space should be designated for the transmitter unit especially when not in
use. This precaution is intended to prevent unauthorized use of the equipment.
10. The equipment operator should keep all body parts away from any moving parts and should never be
positioned under a lifted load. Do not make a lift or move a load if anyone is in a location where they could
be struck by the crane/equipment or the load.

95-00-0-091, Rev 004 2-2 Control Chief Corporation
11. If the equipment fails to respond properly, the crane/equipment operator should stop operation, turn the
transmitter OFF (RED MUSHROOM PUSHBUTTON) and remove the transmitter key. The operator should
immediately report the condition to his/her supervisor.
12. The crane/equipment operator should turn off the transmitter and take it with him/her when and if
boarding the equipment.
13. Remote control operation should NEVER be used for “people moving” applications. Never use remote
operation if there are people aboard the controlled equipment. The remote control operator should NEVER
“ride” on the controlled equipment.
WARNING
ALWAYS PLACE CRANE/EQUIPMENT IN MANUAL OPERATION AND SECURE THE WIRELESS
REMOTE CONTROL TRANSMITTER PRIOR TO PERFORMING ANY MAINTENANCE.
14. The equipment has been tested for correct operation before delivery from the factory. However, it must
not be used in critical or hazardous operation where incorrect operation may cause personal or equipment
damage. If the equipment fails to respond or behaves improperly, the equipment operator should NOT
operate the equipment AND should notify his/her supervisor immediately. When serious conditions are
noticed (conditions that make the crane/equipment unsafe to operate), the equipment should be shut down
immediately and the supervisor notified.
CAUTION
THE RECEIVER UNIT OR RELAYS ARE NOT RATED AS EXPLOSION PROOF. THE RECEIVER UNIT
MUST NOT BE INSTALLED OR OPERATED IN EXPLOSIVE ENVIRONMENTS UNLESS APPROPRIATE
SECONDARY ENCLOSURE MEASURES ARE TAKEN.
WARNING
THE UNIT MUST BE WIRED TO THE CORRECT VOLTAGE; FAILURE TO DO SO MAY DAMAGE THE
SYSTEM.
NOTE
IN AN EMERGENCY, PUSH THE “RED MUSHROOM PUSHBUTTON” TO STOP RADIO REMOTE
CONTROLLED EQUIPMENT.
2.2 Symbols
1. This product and related documentation must be reviewed for familiarization with safety markings and
instructions before operation. This product requires strict adherence to instructions in order to ensure
operational safety. The following symbols may be found on the remote control or throughout the remote
control documentation. Their purpose is to alert you to potentially dangerous situations.
Refer To Manual
When the product is marked with this symbol refer to the instruction manual for additional
information.
High Voltage
Indicates presence of hazardous voltage. Unsafe practice could result in severe personal injury.
Protective Earth Ground
Indicates protective earth terminal.
Warning
Denotes hazard. Included text will give proper instructions. Failure to follow instructions could
result in severe personal injury and/or property damage.
Caution
Denotes hazard. Included text will give proper instructions. Failure to follow instructions could
result in minor personal injury and/or property damage.

95-00-0-091, Rev 004 2-3 Control Chief Corporation
2.3 Warnings
1. Read this manual carefully before operating and installing this product.
2. Due to the complex nature of equipment, it is necessary to read the entire manual before installation.
3. Only authorized personnel should service this equipment. Unauthorized work on this unit will void the
warranty.
4. This manual is for reference only; please call your distributor or Control Chief if further assistance is
required.
5. The equipment has been tested for correct operation before delivery from the factory. However, it must
not be used in critical or hazardous operation where incorrect operation may cause personal or
equipment damage.
6. After daily operation, please shut off main power in crane/machine, the power to the receiver, and
remove transmitter key.
7. Transmitter should be placed in a safe place when not in use to avoid accidental pressing of buttons.
8. The crane/machine should be equipped with mainline contactor, limit switches, and other required
safety devices as dictated by CMAA, OSHA, or all other applicable governing regulations..
9. Do not use this device during electrical storms or under conditions of electrical interference.
10. Ensure transmitter batteries are in good condition and power for receiver is correct.
11. Installation and maintenance should be done only while the crane/machine’s main power and receiver’s
power are off and locked out to prevent electrical shock.
12. Contents of the manual may be amended by the manufacturer without notice.

SUMMIT SERIES SK1400 / SK2400 OWNERS MANUAL
95-00-0-091, Rev 004 3-1 Control Chief Corporation
3.0 Standard Components
A standard and full set of SK1400/SK2400 wireless pendant consists of:
700SK1 and 700SK2 Kits include a single (1) transmitter
700DK1 and 700DK2 Kits include two (2) transmitters.
NOTE: Upon receipt of the radio kit, please identify and verify the following components are included as listed.
3.1 Receiver
SK1400 Single Speed Receiver Part Number = 701K-52534
SK2400 Two Speed Receiver Part Number = 701K-52535
3.2 Transmitter
SK1400, Single Speed Transmitter, Part Number = 701K-52528
SK2400, Two Speed Transmitter, Part Number = 701K-52529
3.3 Accessories
3.3.1 Accessories Per Radio Kit
1. Owners Manual (1 pc.)
2. 701C0024 - Spare Key (1 pc.)
3.3.2 Accessories Per Radio Transmitter
1. 0100-0230- Alkaline batteries for transmitter (4 batteries required)
2. 701K-52510 - Strap for transmitter (1 pc.)
3. 701K-52513 - Battery Cover
4. 701C0025 - Button legend sheet for transmitter (1 pc.)

95-00-0-091, Rev 004 4-1 Control Chief Corporation
4.0 Installation Procedures
4.1 General Precautions
1. Observe all safety precautions when climbing or working on the machine.
2. Turn off the main power source of crane/machines before installation to avoid electric shock.
Lockout/tagout the main power source.
3. Receiver must be installed as to not touch any part of the crane/machine or structure during the operation,
except for mounting provisions.
4. The receiver must be fastened securely via shock-proof mount provided.
5. Before installation, inspect the crane/machine’s safety devices and make sure everything is in proper
working condition.
6. Make sure you understand the crane/machine circuits and power distribution as well as the function
setting of this remote controller, to avoid incorrect wiring.
7. To avoid any interference, the receiver must be located away from motors, frequency drives, and power
cables (shown below).
8. Coil suppressors are recommended on all contactor coils and relay coils. Control Chief
recommends RC type suppressors. (Control Chief part number 0700-8002)
9. The receiver should be installed on the exterior surface of the electrical control box. Mounting the
receiver inside the electrical control box is not correct. An external antenna kit must be used when the
receiver is installed in a metal enclosure.
4.2 Receiver Preparation
4.2.1 Installation Preparation
1. Read through the following steps and procure all proper tools to complete this installation.
2. Select a proper location.
a. Select a stable place free from electrical
noise, vibration, excessive heat, etc.
b. Select a place where you can see the
receiver or antenna from the operator’s
position.
c. Select a place where there is no
interference (e.g. keep away from motors,
relays, magnetic switch, and power
cables).
d. Keep away from high voltage wiring and
devices.
e. The Receiver’s box must be at least
1.5” (4cm) away from other
obstacles.
3. Receiver Power Supply
NOTE 1: The input power source for the receiver
can be 48VAC, 110VAC, 220VAC 50/60Hz
(For 12/24VDC please contact Control
Chief).
NOTE 2: The Factory Default is 110VAC
a. Measure your supply voltage, it must be within 10% of the selected nominal
voltages; failure to do so will void the warranty.
b. Modify Power Supply Connection: After the desired power supply is confirmed,
disconnect the transformer plug from the 110V connector, located in the lower left
corner of the relay module board, and insert it into the correct connector on the relay
module. Verify the plug is inserted correctly.

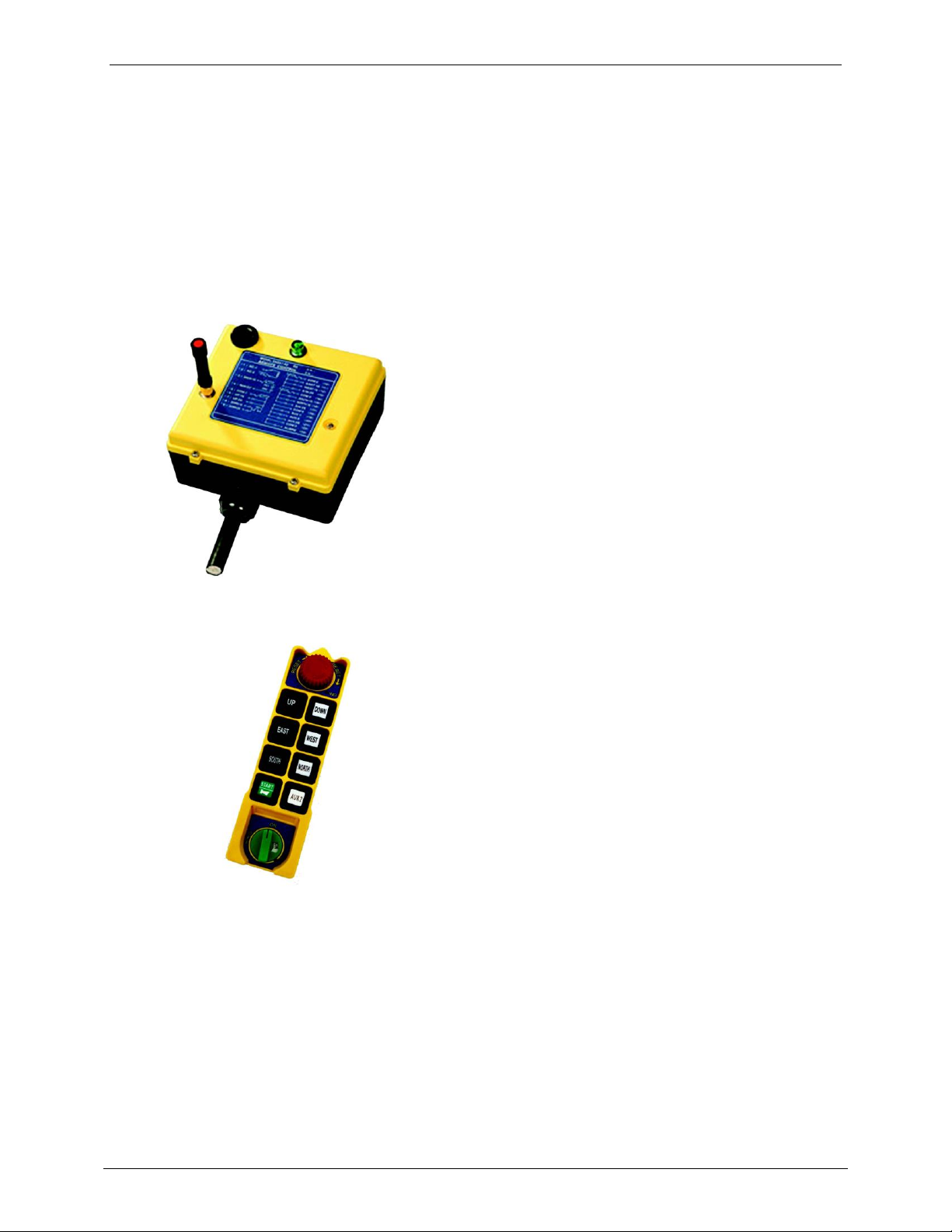

SK1400 / SK2400 Receiver
MOTOR
Frequency
Converter
Cable
Minimum of 3 feet separation
WARNING
All / any receiver generated magnet lifting functions will be momentary in nature and cannot be maintained
in the event of a power loss or fault condition. Customer MUST supply externally latching magnet circuit.
The primary supply and control voltage for any external latching magnet circuit should be derived from a
separately fused source. This supply should not be drawn from the receiver or any circuit controlled by
the MLC (Main Line Contactor).

95-00-0-091, Rev 004 4-2 Control Chief Corporation
(18)
(17)
(16)
(15)
(14)
(13)
(12)
(11)
(10)
COM 2
COM 3
COM 4
(21)
(20)
(19)
(23)
(22)
COM 5
ALARM
ON
O
F
F
BUTTON 1
BUTTON 3
BUTTON 5
BUTTON 7
(START)
BUTTON 6
BUTTON 8
BUTTON 2
BUTTON 4
RED MUSHROOM
PUSH BUTTON
ON/OFF KEY
SK1400/2400 WIRING DIAGRAM
AND
TRANSMITTER RECEIVER RELATIONSHIP MODEL:
SERIAL NO.:
MAIN IN
(3)
(2)
(1)
(4)
(5)
(6)
(7)
(8)
(9)
MAIN OUT
COM 1
BUTTON 1
1 SPD
AC-1
AC-2
6.3A (F3)
6.3A (F2)
DB1
DB2
0.5A (F1)
6.3A (F4)
6.3A (F5)
*
*
*
*
*
BUTTON 1
2 SPD
BUTTON 2
1 SPD
BUTTON 2
2 SPD
BUTTON 3
1 SPD
BUTTON 4
1 SPD
BUTTON 3/4
2 SPD
BUTTON 5
1 SPD
BUTTON 6
1 SPD
BUTTON 5/6
2 SPD
BUTTON 7
1 SPD
BUTTON 8
1 SPD
BUTTON 7/8
2 SPD
NUMBER IN ( ) IS THE
WIRE NUMBER ON THE
PIGTAIL WIRE LEADS
COMING FROM THE
RECEIVER
* THESE OUTPUTS ARE
ONLY AVAILABLE ON
SK2400 MODELS
4.2.2 Installation Procedure
1. Turn off the main power for crane or device.
2. Find a proper place for the receiver as detailed in the previous section.
3. Drill a hole for the 8mm stud; mount the receiver with 8mm diameter hex nut.
4. Connect wires to the control circuit of crane according to the receiver’s wiring diagram and
control circuit diagram. The best place to connect the receiver is usually where the manual
controls are connected to the machine controls.
5. Secure the cables between the receiver and crane so that the cable sheath will not wear out due
to vibration of the crane. Check all connections. Properly terminate unused wires.
6. Turn on the main power for crane.
7. Install transmitter batteries per section 4.4 and then operate the transmitter to test every function
and make sure all motions are correct (read by LED indicator).
8. This completes the installation of receiver.
4.3 Radio Schematics
Figure 4.3
4.4 Transmitter Setup
1. Place batteries into the transmitter in the proper direction.
NOTE:
It is necessary to provide
proper external fusing on
all required commons in
accordance with the
relay’s power handling to
avoid damage to the
receiver and voiding of the
warranty.
