CONVEY-ALL CST-1550 User manual

COMMERCIAL SEED TENDER
Model: CST-1550
OPERATOR’S MANUAL

LIMITED WARRANTY
Convey-All™ warrants to the buyer that the new machinery is free from defects in material and
workmanship.
This warranty is only effective as to any new machinery which has not been altered, changed,
repaired or treated since its delivery to the buyer, other than by Convey-All™ or its authorized
dealers or employees, and does not apply to accessories, attachments, tools or parts, sold or
operated with new machinery, if they have not been manufactured by Convey-All™.
Convey-All™ shall only be liable for defects in the materials or workmanship attributable to
faulty material or bad workmanship that can be proved by the buyer, and specifically excludes
liability for repairs arising as a result of normal wear and tear of the new machinery or in any other
manner whatsoever, and without limiting the generality of the foregoing, excludes application
or installation of parts not completed in accordance with Convey-All™ operator’s manual,
specifications, or printed instructions.
Written notice shall be given by registered mail, to Convey-All™ within seven (7) days
after the defect shall have become apparent or the repairs shall have become necessary,
addressed as follows:
Convey-All Industries Inc.
130 Canada Street
Winkler, Manitoba R6W 0J3
Canada
This warranty shall expire one (1) year after the date of delivery of the new machinery.
If these conditions are fulfilled, Convey-All™ shall at its own cost and at its own option either
repair or replace any defective parts provided that the buyer shall be responsible for all expenses
incurred as a result of repairs, labor, parts, transportation or any other work, unless Convey-All™
has authorized such expenses in advance.
The warranty shall not extend to any repairs, changes, alterations, or replacements made to the
new equipment other than by Convey-All™ or its authorized dealers or employees.
This warranty extents only to the original owner of the new equipment.
This warranty is limited to the terms stated herein and is in lieu of any other warranties whether
expressed or implied, and without limiting the generality of the foregoing, excluded all warranties,
expressed or implied or conditions whether statutory or otherwise as to quality and fitness for any
purpose of the new equipment. Convey-All™ disclaims all liability for incidental or consequential
damages.
This machine is subject to design changes and Convey-All™ shall not be required to retrofit or
exchange items on previously sold units except at its own option.
WARRANTY VOID IF NOT REGISTERED

WARRANTY REGISTRATION FORM
and INSPECTION REPORT
UNIT INSPECTION SAFETY INSPECTION
£All Fasteners Tight £All Guards, Shields Installed and Secured
£Drive Belts Aligned and Tensioned £All Safety Decals Installed and Legible
£Driveline Secured to Machine £
Reflectors, Slow Moving Vehicle (SMV) Clean
£Hydraulic Hoses Free and Fittings Tight £
All Lights Clean and Working
£Conveyor Belts Move Freely £
Reviewed Operating and Safety Instructions
£Conveyor Belts Aligned and Tensioned
£Rear Conveyor Swings and Moves Freely
£Checked Engine Fluid Levels
£Lubricated Machine
I have thoroughly instructed the buyer on the above described equipment. The review included the content
of the Operator’s Manual, equipment care, adjustments, safe operation and the applicable warranty policy.
Date _______________________ Dealer’s Signature ______________________________________________
The above equipment and Operator’s Manual have been received by me. I have been thoroughly instructed as
to care, adjustments, safe operation and applicable warranty policy.
Date _______________________ Buyer’s Signature _______________________________________________
The Dealer must fill out this form. It is to be signed by both the Dealer and Buyer at the time of delivery.
Scan or photograph the completed form (be sure it is legible). Email it to: r[email protected]
A copy of this form may also be mailed to Convey-All Industries Inc, at the above address.
Buyer’s Name ________________________________ Dealer’s Name ________________________________
Address ______________________________________ Address _____________________________________
City __________________________________________ City _________________________________________
Province/State ________________________________ Province/State _______________________________
Postal Code/Zip Code _________________________ Postal Code/Zip Code _________________________
Country ______________________________________ Country _____________________________________
Phone Number ________________________________ Phone Number________________________________
Unit’s Model Number __________________________ Unit’s Serial Number __________________________
Delivery Date _________________________________ General Purpose: £Private £Commercial
CONVEY-ALL INDUSTRIES INC.
130 CANADA STREET
WINKLER, MANITOBA R6W 0B3
TF: [phone] FX: [phone]
www.convey-all.com

This page intentionally left blank

Operator’s Manual: Commercial Seed Tender (CST-1550)
01.2019 i
TABLE OF CONTENTS
DESCRIPTION PAGE
Section 1: INTRODUCTION ............................1-1
1.1 Operator Orientation.............................1-1
1.2 Serial Number Location ..........................1-1
Section 2: SAFETY ...................................2-1
2.1 Safety Orientation...............................2-2
2.2 General Safety .................................2-2
2.3 Equipment Safety Guidelines ......................2-3
2.4 Safety Decals ..................................2-3
2.4.1 How to Install Safety Signs ....................2-3
2.5 Work Preparation ...............................2-4
2.6 Placement Safety ...............................2-4
2.7 Maintenance Safety .............................2-5
2.8 Tire Safety.....................................2-5

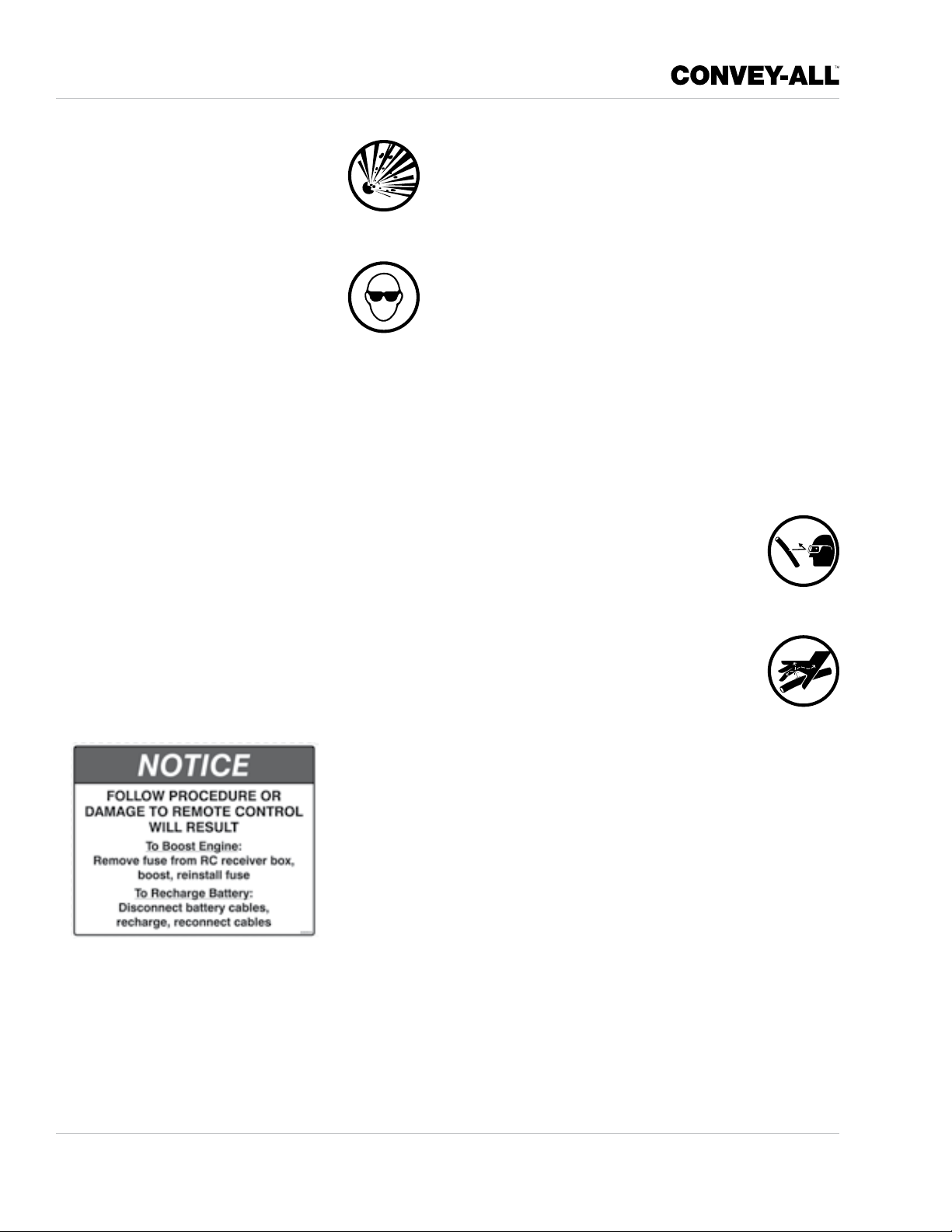

2.9 Battery Safety ..................................2-6
2.10 Hydraulic Safety ...............................2-6
2.11 Operating Safety...............................2-7
2.12 Lock-Out Tag-Out Safety ........................2-7
2.13 Workplace Hazard Area .........................2-8
2.14 Transport Safety ...............................2-9
2.15 Storage Safety ................................2-9

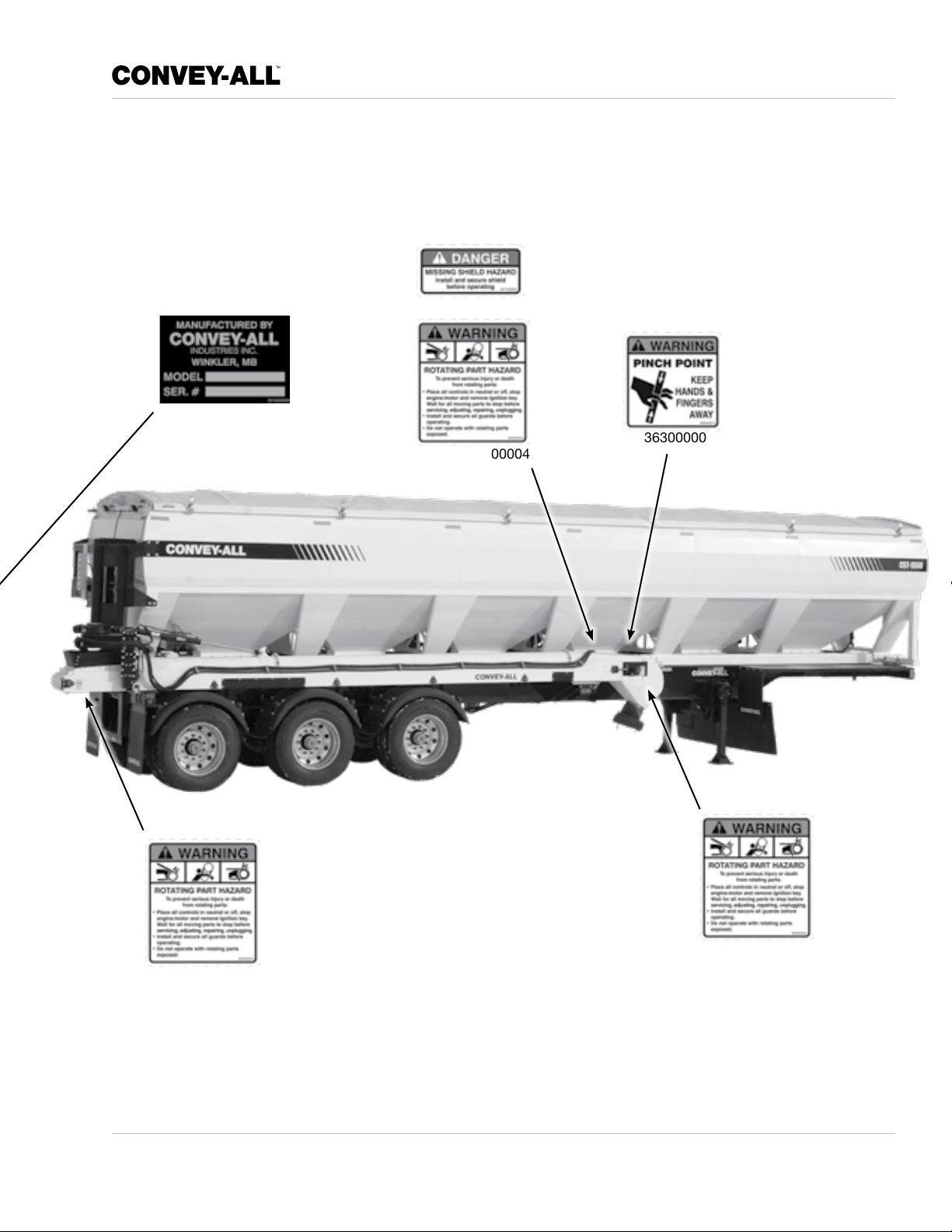

2.16 Safety Decal Location ......................... 2-10
Section 3: OPERATION................................3-1
3.1 Machine Components ...........................3-2
3.2 Components and Controls ........................3-3
3.3 Machine Break-In ...............................3-9
3.4 Pre-Trip Inspection ..............................3-9
3.5 Pre-Operation Checklist ..........................3-9
3.6 Remote Control Function ........................ 3-10
3.7 Rear Conveyor Operation........................ 3-11
3.7 Operating on Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
3.8 Storage ...................................... 3-16
3.9 Removing from Storage . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
continued on next page

Operator’s Manual: Commercial Seed Tender (CST-1550)
ii 01.2019
TABLE OF CONTENTS
DESCRIPTION PAGE
Section 4: SERVICE AND MAINTENANCE.................4-1
4.1 Fuels, Fluids and Lubricants.......................4-1
4.1.1 Greasing ...................................4-2
4.2 Servicing Intervals ..............................4-3
4.2.1 Every 10 Hours or Daily .......................4-3
4.2.2 Every 50 Hours or Weekly .....................4-3
4.2.3 Every 200 Hours or Annually ...................4-5
4.3 Maintenance Procedures .........................4-6
4.3.1 Conveyor Belt Tension ........................4-6
4.3.2 Conveyor Belt Alignment ......................4-7
4.3.3 Conveyor Belt Replacement ...................4-8
4.3.4 Changing Hydraulic Filter and Oil ...............4-9
4.4 Service Record ................................ 4-11
Section 5: TROUBLESHOOTING ........................5-1
Section 6: SIGN-OFF FORM ...........................6-1
Section 7: REFERENCE ...............................7-1
7.1 Specifications ..................................7-1
7.2 Bolt Torque ....................................7-2

Operator’s Manual: Commercial Seed Tender (CST-1550)
01.2019 1-1
Section 1: INTRODUCTION
Congratulations on your choice of a Convey-All™ Commercial Seed Tender (CST) to complement your seed
delivery system in your agricultural operation. This equipment has been designed and manufactured to exceed
the exacting standards for such equipment in the agricultural industry and will keep your seed delivery operation
working at optimum efficiency.
The tender is shown mounted onto a trailer. The CST and trailer are separate equipment. There is no information
referring to the trailer in this document.
Keep this manual handy for frequent reference. Pass it on to new operators or owners. Call your dealer, distributor
or Convey-All Industries Inc., for assistance, information, additional/replacement copies, or a digital copy.
Information provided herein is of a descriptive nature. Convey-All Industries Inc. reserves the right to modify the
machinery design and specifications provided herein without any preliminary notice.
Performance quality may depend on the material being handled, weather conditions and other factors.
1.1 OPERATOR ORIENTATION
The directions; left, right, front and rear, as mentioned
throughout this manual, are as seen from the truck
driver’s seat and facing the direction of travel.
1.2 SERIAL NUMBER LOCATION
Always give your dealer the serial number of your
bean tender when ordering parts or requesting
service or other information.
The tender’s serial number is located near the front
landing gear, and on the rear support.
Write the numbers in the below for easy reference.
CST Serial No: _____________________________
Engine Model No: _____________________________
Engine Serial No: _____________________________
Fig 1 - VIN plate next to front, left-side landing gear
Fig 2 - Serial # on rear, left-side, vertical beam

Operator’s Manual: Commercial Seed Tender (CST-1550)
1-2 01.2019
This page intentionally left blank

Operator’s Manual: Commercial Seed Tender (CST-1550)
01.2019 2-1
The following signal words are used in this manual to express
the degree of hazard for areas of personal safety.
When you see the symbol and/or the signal words described below,
obey the accompanying message to avoid possible injury or death.
DANGER - Indicates an imminently hazardous situation. If not avoided, it will
result in death or serious injury. This signal word is to be limited
to the most extreme situations typically for machine components
which, for functional purposes, cannot be guarded.
WARNING - Indicates a potentially hazardous situation. If not avoided, it could
result in death or serious injury. This word identifies hazards that
are exposed when guards are removed. It may be used to alert
against unsafe practices.
CAUTION - Indicates a potentially hazardous situation. If not avoided, it may
result in minor or moderate injury. It may be used to alert against
unsafe practices.
NOTICE - Indicates practices or situations which may result in the
malfunction of, or damage to equipment.
Section 2: SAFETY
The Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The Safety Alert Symbol identifies
important safety messages on
the Commercial Seed Tender and
in this manual.
3 Big Reasons why safety
is important to you:
• Accidents Disable and Kill
• Accidents Cost
• Accidents Can Be Avoided

Operator’s Manual: Commercial Seed Tender (CST-1550)
2-2 01.2019
2.2 GENERAL SAFETY
• Read and understand the Operator’s
Manual and all safety signs before
operating, maintaining, adjusting or
unplugging the CST.
• Only trained competent persons shall operate
the unit. An untrained operator is not qualified to
operate the machine.
• Have a first-aid kit available for use
should the need arise and know how to
use it.
• Provide a fire extinguisher for use in
case of an accident. Store in a highly
visible place.
• Do not allow riders.
• Do not allow children, spectators or bystanders
within hazard area of machine.
• Wear appropriate protective gear. This list includes
but is not limited to:
- Hard hat
- Protective shoes with
slip resistant soles
- Eye protection
- Heavy gloves
- Hearing protection
- Respirator or
filter mask
-Hi-Visibility safety vest
• Never use alcoholic beverages or drugs which can
hinder alertness or coordination while operating
this equipment.
Consult your doctor about operating this machine
while taking prescription medications.
• If the elderly are assisting with farm work, their
physical limitations need to be recognized and
accommodated.
• Review safety related items annually with all
personnel who will be operating or maintaining the
CST.
2.1 SAFETY ORIENTATION
YOU are responsible for the SAFE operation and
maintenance of your Convey-All™ Commercial Seed
Tender (CST). Be sure that you and anyone else who
will operate, maintain or work around the CST be
familiar with the safety, operating and maintenance
procedures.
This manual will take you step-by-step through
your working day and alerts you to all good safety
practices that should be adhered to while operating
the CST.
Remember, you are the key to safety. Good safety
practices not only protect you but also the people
around you. Make these practices a working part of
your workday. Be certain that all operators of this
equipment follow these procedures.
Most accidents can be prevented. Do not risk injury
or death by ignoring good safety practices.
• CST owners must give operating instructions to
operators or employees before allowing them to
operate the machine.
Procedures must be reviewed annually thereafter
per OSHA (Occupational Safety and Health
Administration) regulation 1928.57.
• The most important safety device on this equipment
is a SAFE operator. It is the operator’s responsibility
to understand all safety and operating instructions
in the document, and to follow them.
• An untrained operator exposes himself and
bystanders to possible serious injury and death.
• Think SAFETY! Work SAFELY!
