Cooey WBT1-357-B User manual

version:1.0
User Manual
Body Fat Analyzer WBT1-357-B
Please do read the user manual carefully and thoroughly so as to ensure
the safe usage of this product, and keep the manual well for further
reference in case you have problems.
Thank you very much for selecting the Cooey Body Fat Analyzer
WBT1-357-B.
COOEY
Cooey Technologies Pvt Ltd
#G506, Gopalan Grandeur, Hoodi Circle, Bangalore
www.cooey.co.in
email:[e-mail]

1
Table of Contents
Table of Contents
Safety Information
Safety and Usage Information
Tips
Overview
Device Components
List
LCD Display
Initial Start-Up
General Instructions
Insert the Batteries
Pair-up
Set Up Your Profile
Select Measurement Unit
Initialising Your Scale
Weight Only Operation
Start Measuring
First Measurement
Daily Measurement
Manage Your Health
Body Fat Indicator
Data Transmission
Troubleshooting
Error Prompt
When Measuring ...
When Data Transmitting...
Specifications
Maintenance
Warranty
Appendix
Health Tips – About Body Fat
Health Tips – About Body Water
Health Tips – About Muscle Mass
Health Tips – About Bone Mass
EMC Guidance
2
3
4
4
5
6
6
7
8-9
9
10
10
11
12
13
13
14
14-15
16
17
18
18
19
20
21
21
22
............................................................................................................................................
...............................................................................................
.................................................................................................................
..........................................................................................................................................
.................................................................................................................
.................................................................................................................
........................................................................................................
...................................................................................................................
.............................................................................................................................
....................................................................................................................
..................................................................................................................
..................................................................................................................
....................................................................................................................
........................................................................................................
............................................................................................................................
...............................................................................................................................
......................................................................................................................................
.....................................................................................................................................
............................................................................................
...........................................................................................................................
................................................................................................
..............................................................................................................................
...................................................................................................................
...............................................................................................
............................................................................................
...............................................................................................................
..............................................................................................................

2 3
Safety InformationSafety Information
Tips
To ensure the accuracy of measurement, please follow below instructions when
you start measurement.
Place the scale on a flat, hard surface. Soft surface such as carpet will affect the
performance of the scale.
Step onto the platform with bare feet. Stand still and keep full contact with the electrodes
until the measurement is complete.
Start measurement at least two hours after Getting up or Dinning.
Avoid measurement immediately after strenuous exercise, sauna or bath, drinking, and
dinning.
Always start measurement in the same time slot and on the same scale located on the
same flat, hard surface.
INDICATIONS FOR USE
The Cooey Body Fat Analyzer measures weight and uses bio-electrical impedance analysis
(BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle
mass in generally healthy children 10-17 years old and healthy adults.
It is intended for use in the domestic setting only.
For maximum accuracy and repeatability , it is recommended that you should use the
device in the same time of the day and on the same location.
Body fat percentage estimates will vary with the amount of water in the body, and can
be affected by dehydration or over-hydration due to such factors as alcohol consumption,
menstruation, illness, intense exercise, etc.
The condition of the skin on the bottom of your feet can affect the reading. The natural
effects of aging or activity can make this skin hard. Take the reading with clean, slightly
damp feet for best accuracy. If you are having a problem on operating this scale please
contact customer service.
The warning signs and symbols are essential to ensure your correct and safe use of
this product and protect you and others from injury. Please kindly find the meanings of the
warning signs and symbols, which you may encounter in the label and user manual, as
follows:
Safety and Usage Information
CAUTION
Symbol for “THE OPERATION
GUIDE MUST BE READ” Symbol for “MANUFACTURER”
Symbol for “ENVIRONMENT
PROTECTION – Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your local
authority or retailer for recycling advice”
The Bluetooth Combination Mark
Symbol for “SERIAL NUMBER”
Symbol for “MANUFACTURE
DATE”
Symbol for “DIRECT CURRENT”
Cooey’s Body Fat Analyzer WBT1-357-B offers you a seamless way to manage your health.
Please be aware that this device is designed for healthy population over 10 years old self-measuring
and self-monitoring body compositions. Any information provided by this device is in no way meant to
treat, cure or prevent any disease or illness from happening. If in doubt, contact your physician.
This device is contraindicated for any female subject who may be suspected of, or is pregnant.
Otherwise, the effects of this device on the fetus are unknown.
This device is contraindicated for any person who is connected to a wearable or implantable electronic
device or instrument such as a pacemaker or defibrillator.
This device should not be used for anyone who is acutely or chronically ill because of suffering from a
disease or taking medications that affect your water levels. The accuracy of readings for these patients
has not been verified. Specific medical advice should be obtained from a physician.
WBT1-357-B is equipped with data transmission function. It may emit electromagnetic energy so as
to perform its intended function. Nearby portable and mobile RF communications equipment can affect
the performance of WBT1-357-B. And the device can interfere vicinity electrical equipment.
Manufacturer will make available on request circuit diagrams, component parts list,etc.
WARNING:No modifications of this equipment is allowed. This may result in increased EMISSIONS
or decreased IMMUNITY of WBT1-357-B.
Please use the device according to the user manual. Any misuse can cause electric shock,burns, fire
and other unexpected hazards.
Please use and storage the device under the environment which was provided in the user manual.
Don’t expose the device to extreme temperatures, direct sunlight, moist or corrosive environment.
Do not step on the scale when your body or feet are wet, especially after bathing or showering to
prevent slipping.
Please keep the device out of reach of infants, children or pets, since inhalation or swallowing of small
parts is dangerous or even fatal.
Please don't use the device out of lifetime any more because degraded sensors and electrodes, or
loosened electrodes can degrade performance or cause other problems.
If you have an allergy to stainless steel，please avoid to contact to the electrodes of the device.
The patient is an intended operator. The patient can measure, transmit data and charge battery under
normal circumstances and maintain the device and its accessories according to the user manual.
Symbol for “COMPLIES WITH EU
REQUIREMENTS”

4 5

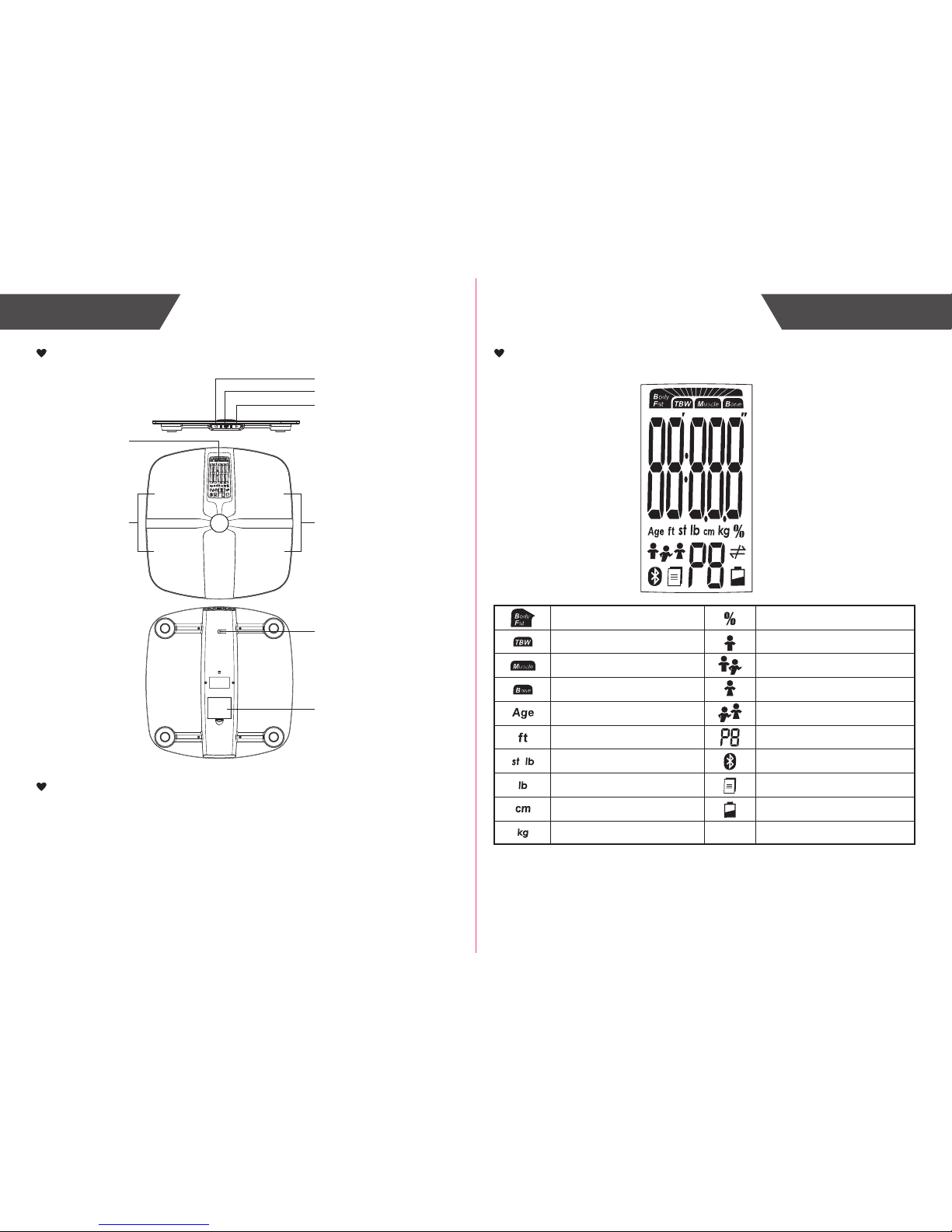

LCD Display
List
1. Body Fat Analyzer WBT1-357-B
2. Four AAA-size Batteries (1.5V each)
3. User Manual
OverviewOverview
Device Components
Body Fat Analysis Result
Total Body Water Analysis Result
Muscle Mass Analysis Result
Bone Mass Analysis Result
Stone
Pound
Kilogram
Percentage
Foot
Centimeter
Age
Male
Male Athlete
Female
Female Athlete
User ID
Successful Bluetooth Connection
Data transmitting / pending to
transmit to wireless wellness system
Low Battery
Up Key
Set Key
Down Key
LCD Display
Electrode
Battery Compartment
UNIT Button
Electrode

7
6
General Instructions
If SUCCEED, symbol will be shown on the LCD.
If FAIL, symbol “E1” will be shown on the LCD.
Initial Start-UpInitial Start-Up
Pair-Up
With the advanced Bluetooth 4.0 technology applied, the mobile or portable equipments,
which are equipped with Bluetooth function in line with BLE Technical Specifications
established by global organization Bluetooth SIG, are capable to receive your personal
health data.
Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding.
Press and hold “UNIT” button in the back of the scale to start pair-up.
Symbol and symbol will be shown on the
LCD alternatively, indicating pair-up is proceeding.
Insert the Batteries
Open the battery door in the back of the scale.
Insert the batteries (4 x 1.5V AAA) into the battery
compartment according to the polarity indications
marked inside the compartment.
* The digits “ ” will be shown on the LCD.
Close the battery door and wait until the digits “ ”
are shown on the LCD.
Cooey Body Fat Analyzer WBT1-357-B applies BIA (Bio-impedance Analysis)
technology. A small amount of weak current flows through the human body so as to detect
the bio-impedance and estimate body fat, body water, muscle mass and bone mass. The
electrical current is small and may not be felt.
This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also
possesses the characteristics of simple operation and abundant information.
The current mentioned above is less than 0.5mA. However, please be aware that anyone
with an wearable or implantable medical electronic instrument, such as a pacemaker, must
avoid using this device.
The intended use of this device is for healthy children 10-17 years old and healthy adults.
CAUTION
When the symbol appears, the device will power off. Then you shall replace with a new set of
batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new
one.
Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage.
Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries
and scrapped device.
If you do not intend to use this unit for a prolonged period of time, it is advisable to remove the batteries
before storing.

After confirming Stature, the system will divert to Age setting.
As pictured to the right, the digits “30” blinks. The operator may
press the function key or to increase or decrease the
numeral. (Age Setting Range for Normal Mode:Range:10 to 85
years old, Age Setting Range for Athlete Mode:15-85 years old)
You may press and hold the function key or for fast changing
the numeral.
Press “SET” key to confirm Age.
When the LCD displays “0.0”, you may start measuring.
9
8
The body fat analyzer WBT1-357-B supports multiple users (Up to 8). You may follow
below instructions to assign User ID and set up your own profile, including Gender,
Stature, and Age.
Initial Start-UpInitial Start-Up
Set Up Your Profile 4.Setting Age
Select Measurement Unit
After confirming Gender, the system will divert to Stature setting
automatically.
As pictured to the right, the digits “ 160 ” blinks. The operator may
press the function key or to increase or decrease the
numeral. (Range: 100 cm to 220 cm/ 3’3.5”~7’2.5” ft)
You may press and hold the function key or for fast changing
the numeral.
Press “SET” key to confirm Stature.
After confirming User ID, the system will divert to Gender setting
automatically.
As pictured to the right, the portrait blinks. The operator may
press the function key or to select Gender(Male/Female/Male
Athlete/Female Athlete).
Press “SET” key to confirm Gender.
With batteries correctly installed, press “SET” key to enter setting.
The system will request User ID selection first. As pictured to the
right, “P1” blinks. The operator may press the function key or
to select User ID among P1 to P8.
Press “SET” key to confirm User ID.
1.Assigning User ID
2.Setting Gender
3.Setting Stature
With batteries correctly installed, press “UNIT” button in the back of the scale to select
measurement unit. The default measurement unit is “kg”. You may press “UNIT” button to
choose among kilogram, stone and pound.
Athlete Mode:
An athlete is defined as an adult who is involved in intense physial activity of
approximate 12 hours per week and who has a resting heart rate of approximately
60 beats per minute or less.

11
10
Please process the user setting before your first measurement.
(Refer to Set Up Your Profile for more details)
Start Measuring
First Measurement
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
WBT1-357-B will process data transmission instead.
(Please refer to Data Transmission for more details.)
STEP 3: Then the measuring results
will be displayed sequentially
three times: Body Fat, Total
Body Water, Muscle Mass,
Bone Mass.
* If it fails to complete the analysis, the
LCD will only display the weight data.
(To find out the solutions, please refer to
Troubleshooting for more details.)
STEP 1: Step on the platform barefooted.
Weight Only Operation
Your Cooey Body Fat Analyzer will operate as a conventional
weight - reading scale. No special programming steps are required.
Once the scale is initialized, as previously described, you may simply step on
the scale to measure your current weight. For only weight reading.
1. Position the scale on a flat, hard surface. Carpeted or uneven floors may
affect accuracy.
2. Step onto the scale platform and remain still while the scale computes your weight.
3. The scale will display your weight value.
4. The scale will automatically turn off after a few seconds.
1. Press the platform centre and remove your foot.
2. “0.0” will be displayed.
3. The scale will switch off and is now ready for use.
This initialisation process must be repeated if the scale is moved.
At all other times step straight on the scale.
Initialising Your Scale

Initial Start-Up
STEP 2: Stand still and keep full contact with
the electrodes until the LCD stops
displaying moving “o”.

13
12
With original SENSE ON patent technology,
WBT1-357-B will switch on as you step on the platform
barefooted.
If it fails to identify the possible User ID, the LCD will only display the weight data.
(To find out the solutions, please refer to Troubleshooting for more details.)
When your scale is successfully paired with your smartphone and the Bluetooth is ON,
WBT1-357-B will process data transmission instead.
(Please refer to Data Transmission for more details.)
With WBT1-357-B successfully pair-up with your
smartphone, the measurement data will be
transmitted to your mobile via Bluetooth.
ONLY when the measuring results are attached to a
specific User ID will it be transmitted to your mobile
after measurement.
The symbol will disappear after successful data
transmission, and you may check your personal
health data stored in your smartphone.
If the data transmission fails, the symbol will
remain. The pending measurement data will be
temporarily kept in the scale and transmitted to your
smartphone when next measurement is complete.
Body Fat Indicator
Successful Bluetooth
Connection
Data transmitting to
wireless wellness system:
-If SUCCEED, the symbol
disappears;
-If FAIL, the symbol
remains.
Start Measuring
Daily Measurement
Manage Your Health
Data Transmission
The Progress Bar at the top of the LCD Display also
functions as the indicator of body fat level. When
the measuring result is displayed after analysis, the
varying length of the bar indicates different levels of
body fat.
(Please refer to Table of Body Fat Level for more
details.)
According to the analysis results, the
system will automatically identify the
possible User ID with most similar
history records. Then the measuring
results will be displayed sequentially
three times.
When the system finds out two or more users with
similar history records, it will notify you to choose
between, for example, P1 and P2. You may press
key for P1 and or key for P2. The measuring
results will then be sorted into the User ID you
selected and displayed sequentially three times.
Stand still and keep full contact with the
electrodes until the LCD stops displaying
moving “o”.
CAUTION
Interference may occur in the vicinity of equipment marked with the following symbol . And
the Analyzer may interfere vicinity electrical equipment.
To enable the data transmission function, this product should be paired to a Bluetooth 4.0 end.
How to mitigate possible interference?
1. The range between the Analyzer and the Bluetooth end should be reasonably close, from 1
meter to 10 meters. Please ensure no obstacles between the Analyzer and the Bluetooth end
so as to obtain quality connection.
2. To avoid interference, other electronic devices (particularly those with Bluetooth transmission
/ Transmitter) should be kept at least 1 meter away from the Analyzer.

15
14
Troubleshooting Troubleshooting
Error Prompt
Error Description Solution
Overload. The device will
power off.
Stop using this scale for
measurement.
Low Battery. The device
will power off.
Replace all four batteries in the
same time. Please purchase the
authorized batteries for
replacement.
Please check below items:
-Bluetooth is ON.
-App Collector is ON.
-Both devices are within the
transmission distance of Bluetooth.
Failure of pairing up your
scale with your
smartphone.
When Measuring ...
Problem Root Cause Solution
Incorrect posture
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
Please step on the platform
barefooted and stand still.
The device is located on
the soft ground such as a
carpet OR on a rugged
surface.
Please place the device on a
flat, hard surface.
Problem Root Cause Solution
Either your hands or your
feet are too dry.
Abnormal
measuring results:
- Too high; OR
- Too low; OR
- Huge difference
between two recent
measurement.
No display on
LCD when the
device powers on.
CANNOT proceed
to analyze body fat,
total body water,
muscle mass and
bone mass.
The device
powers off.
Wipe your feet with a damp
cloth, keeping them slightly damp
when starting measurement.
Batteries not yet installed.
Worn batteries.
Low battery.
Install the batteries.
(Please refer to Insert the
Batteries)
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
Step onto the platform
wearing socks or shoes.
Please keep barefooted during
the measurement, and keep full
contact with the electrodes as
well.
Replace all four batteries at the
same time. Please purchase the
authorized batteries for
replacement.
The system cannot
identify the possible User ID
with most similar data.
Please assign a User ID
following the instruction in Set Up
Your Profile.
The user fails to select
the User ID from what the
system found.
Please assign a User ID
following the instruction in Set Up
Your Profile.

17
16
Problem Root Cause Solution
Bluetooth is OFF.
Data transmission
failed.
Turn ON the Bluetooth via
Settings.
The App is OFF. Press the icon to run your app.
Place your smartphone closer to
the scale.
Please assign a User ID following
the instruction in Set Up Your
Profile.
Out of range of Bluetooth
transmission.
None of the user ID is
assigned.
Troubleshooting
When Data Transmitting ...
Specifications
Specifications
Product Name
Dimension
Body Fat Analyzer (WBT1-357-B)
Scale: 320x330x27.2mm (Approximately)
Net Weight Approximately 1.75kg ( Excluding the dry cells)
Display Digital LCD with White Backlight
Measurement Unit Kilogram / Stone/ Pound
Measurement Range 5kg to 180kg / 0st: 11lb to 28st: 5lb / 11lb to 397lb
Division 0.1kg / 0.2lb
Accuracy 5-50kg: ±0.3kg;
100-150kg: ±0.5kg;
Working Environment
Storage Environment
Power Source 6V (Four AAA-size Batteries)
Turn on Method SENSE ON technology
Auto-OFF
Accessories 1. Four AAA-size batteries
2. User Manual
50-100kg: ±0.4kg;
150-180kg: ±0.7kg
Mode of Operation Continuous Operation
The scale will turn off after about 10 seconds if there is
no operation
Temperature: 5℃to 40℃
Temperature: -20℃to 60℃Humidity: ≤93% RH
Humidity: 15% RH to 93%RH
Atmospheric pressure: 50kPa to 106kPa
Atmospheric pressure: 70kPa to 106kPa
About the Accuracy of This Product
This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer.
Please refer to the above table for the descriptions on accuracy.
This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by
anyone during the process of transaction for verification of goods’ weight.

19
18
Maintenance
When carrying out usual maintenance, please ensure practice of the following Do’s and
Don’ts:
Cooey warrants its products free of defects in materials and workmanship in normal use
for a period of TWO years from the date of retail purchase.
This warranty does NOT cover damages caused by misuse or abuse, including but not
limited to:
Failure caused by unauthorized repairs or modifications;
Damage caused by shock or drop during transportation;
Failure caused by improper operation inconsistent with the instructions stated in this user
manual;
Malfunction or damage from failure to provide the recommended maintenance;
Damage caused by improper use of power supply.
Should this device require maintenance (or replacement at our option) under warranty,
please deliver the original package to GUANGDONG COOEY MEDICAL
ELECTRONICS CO., LTD prepaid. Please return the store receipt (with the retail
purchase date) and a note with reasons to return on it as well.
Maintenance
Warranty
DO use a dry soft cloth to wipe the dust.
DO use a wet soft cloth, dipped into water and wrung out, to wipe the dirt. Then use a
dry soft cloth to dry up the device.
DON’T wash the device with water or immerse it in water.
DON’T use propellant, abrasive or other chemicals to wipe the dirt in avoidance of
discolor or malfunction.
DON’T disassemble this device. If you have any problems, please contact Cooey.
(Please refer to Warranty for contact information)
Do not dispose of batteries in fire. Batteries may explode or leak. Remove the batteries if
the scale will not be used for a long period.
Appendix
Table of Body Fat Level (Unit: %)
Standard for Men
Rating
low
Normal
Moderately High
High
Age
20-29
<13 <14 <16 <17 <18
14-20 15-21 17-23 18-24 19-25
21-23 22-24 24-26 25-27 26-28
>23 >24 >26 >27 >28
30-39 40-49 50-59 60+
Standard for Women
Rating
low
Normal
Moderately High
High
Age
20-29
<19 <20 <21 <22 <23
20-28 21-29 22-30 23-31 24-32
29-31 30-32 31-33 32-33 33-35
>31 >32 >33 >34 >35
30-39 40-49 50-59 60+
a) The body fat percentage (%): 5%-60%/0.1%
Health Tips - About Body Fat
Human body is made up of, amongst other things, a percentage of fat. Body fat is vital
for a healthy, functioning body, protects vital organs, helps regulate body temperature,
stores vitamins and helps the body sustain itself when food is scarce. However, too much
body fat or indeed too little body fat will damage to your health. It is difficult to gauge how
much body fat we have in our bodies simply by looking at ourselves in the mirror.
This is why it is important to measure and monitor your body fat percentage. Body fat
percentage gives you a better measure of fitness than weight alone–the composition of
your weight loss could mean you are losing muscle mass rather than fat-you could still
have a high percentage of fat even when a scale indicates‘normal weight’.
The table as follows may be used as a guide:
Cooey Technologies Pvt Ltd
#G506, Gopalan Grandeur, Hoodi Circle, Bangalore
www.cooey.co.in
email:[e-mail]

21
20
Appendix Appendix
Muscle Mass Percentage
Men
Women
Approximately 40% of total body weight
Approximately 30% of total body weight
Table of Body Water Level (Unit: %)
b) The body water percentage (%): 43%-73%/0.1%
Men
Women
BF % RANGE
4 to 14%
15 to 21%
22 to 24%
25 and over
4 to 20%
21 to 29%
30 to 32%
33 and over
70 to 63%
63 to 57%
57 to 55%
55 to 37%
70 to 58%
58 to 52%
52 to 49%
49 to 37%
OPTIMAL TBW % RANGE
Bone Mass Percentage
The average bone mass percentage for both men and women is between 4 to 5%.
Health Tips - About Body Water
Body water is the single most important component of body weight. It represents over
half of your total weight and almost two thirds of your lean body mass (predominantly
muscle). Water performs a number of important roles in the body:
All the cells in the body, whether in the skin, glands, muscles, brain or anywhere else,
can only function properly if they have enough water. Water also plays a vital part in
regulating the body’s temperature balance, particularly through perspiration.
The combination of your weight and fat measurement could appear to be ‘normal’ but
your body hydration level could be insufficient for healthy living.
Health Tips - About Muscle Mass
According to the American College of Sports Medicine (ACSM), lean muscle mass may
decrease by nearly 50 percent between the age of 20 and 90. If you do nothing with it
you’re losing muscle and increasing fat. It is also important to know your muscle mass %
during weight reduction. At rest, the body burns approximately 110 additional calories for
each kilo of muscle gained. Benifits of gaining muscle mass include:
• Reversing the decline in strength, bone density and muscle mass with aging
• Maintenance of flexible joints
• Guide weight reduction when combined with a healthy diet.
Health Tips - About Bone Mass
Regular exercise and a balanced diet can help maintain healthy bones. Like muscle,
bone is a living tissue that can respond to exercise by becoming stronger. For most
people, bone mass peaks in their thirties. Then people begin to lose bone. Regular
exercise can help prevent that loss.
Calcium and vitamin D, good sources of which are dairy products, green leafy
vegetables and fish, contribute to healthy bones.
The bone mass readings given by this product are anestimation of the amount of bone in
your body. Those with osteoporosis or low bone densities may not get accurate
estimations. If you have any concern regarding your bones please consult your doctor
timely.
The table as follows may be used as a guide:
The table as follows may be used as a guide:
The table as follows may be used as a guide:

Appendix
22
EMC Guidance
1. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC and
needs to be installed and put into service according to the EMC information provided in
the ACCOMPANYING DOCUMENTS.
2. Wireless communications equipment such as wireless home network devices, mobile
phones, cordless telephones and their base stations, walkie-talkies can affect this
equipment and should be kept at least a distance d = 3,3 m away from the equipment.
(Note. As indicated in Table 6 of IEC 60601-1-2:2007 for ME EQUIPMENT, a typical cell
phone with a maximum output power of 2 W yields d = 3,3 m at an IMMUNITY LEVEL of
3 V/m)
