Cooke & Lewis CLGCH60-CR1 User manual

Cooker hood
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 - Version: 08
GB IE Cooker hood - Barcode: 5052931055715 / 5052931268375 / 5052931055722
Hotte de cuisine
FR Hotte de cuisine - Code à barres: 5052931055715 / 5052931055722
WARNING: Read the instructions before using the appliance.
AVERTISSEMENT : Lisez ces instructions avant d’utiliser l’appareil.

[01] x 1 [02] x 1
[03] x 1 [04] x 1 [05] x 1
[06] x 1 [07] x 1 [08] x 4
[09] x 4 [10] x 1 [11] x 6
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
[13] x 6 (3.9 x 32mm)
[12] x 4
[14] x 4 (3.4 x 10mm)
1 : 1
/ Hotte de cuisine

3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 04
Before you start 04
Safety 05
In more detail… 10
Operation 10
Care and maintenance 11
Troubleshooting 14
Recycling and disposal 15
Technical and legal information 15
Guarantee 18
CE Declaration of conformity 20
Appendix...
GB
IE
Installation 40
ErP Information of the bulb provided 48
Information for EU66 49

4
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
Getting started...
GB
IE
Your product
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this cooker hood is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference
and pass it on to any future owners. After unpacking the cooker hood
please check that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0344 800 1128 (UK) and 01 4475261
(Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
prevent personal injury or damage to the product.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need
Your product
Before you start
Installation guide
located at the end of
the guidebook
Ø6mm

5
Getting started...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Safety
Before you start
Accessories not supplied
Recirculation Extraction
CARBFILT4 (UK & IE) Ø125mm or Ø150mm
VENT PACK 2 (UK & IE)
CARBON FILTER ORDERING
HOTLINE
0344 800 1128 (UK)
014475261 (IE)
SELF ADHESIVE
ALUMINIUM TAPE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
All installation work must be carried
electrician.
This appliance must be installed correctly
following the manufacturer’s instructions.

6
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
Getting started...
GB
IE Safety
This appliance complies with all current European
safetylegislation,however,theManufacturermust
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
during use and remaining hot during its operation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older
than 8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for disconnection must be incorporated
rules. An all-pole disconnection switch having a
contact separation of at least 3 mm in all poles

7
Getting started...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Safety
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
order to avoid a danger or injury.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
to the appliance.
Please dispose of the packing material
carefully.
to the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.

8
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
Getting started...
GB
IE Safety
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to
that room ventilation is appropriate with the
local authorities. Make sure the maximum air
room does not exceed 4 Pa (0.04 mbar). The
room must have adequate ventilation if an
extractor hood is used simultaneously with
appliances that run on gas or other fuels. The
used for exhausting fumes fromappliances
burning gas or other fuels. Regulations
regarding air extraction must be complied with.
Warning: Before connecting the hood: switch
off the electricity supply and check that the
supplied voltage and frequency coincide with
that indicated on the appliance nameplate.

9
Getting started...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Safety
Safety
Warning: The hood may stop working during
an electrostatic discharge (e.g. lightning). This
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect
after one minute.
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services.
Flambe cooking must not be carried out
underneath this appliance.
When installing the appliance, make sure
that the following distances between the top
of cooker or hob and the lowest part of the
cooker hood must be observed:
> Gas hobs: 750mm.
> Electric hobs: 650mm.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning
cleaning is not carried out in accordance with
the instructions.

10
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE Operation
Product functions
This appliance extracts the air of the kitchen to remove the odours and keep
an optimum level of air quality inside the room, it also allows you to illuminate
the cooking area.
Switching on/off
Switch on the appliance at the switched fused connection unit. The appliance
is ready for use.

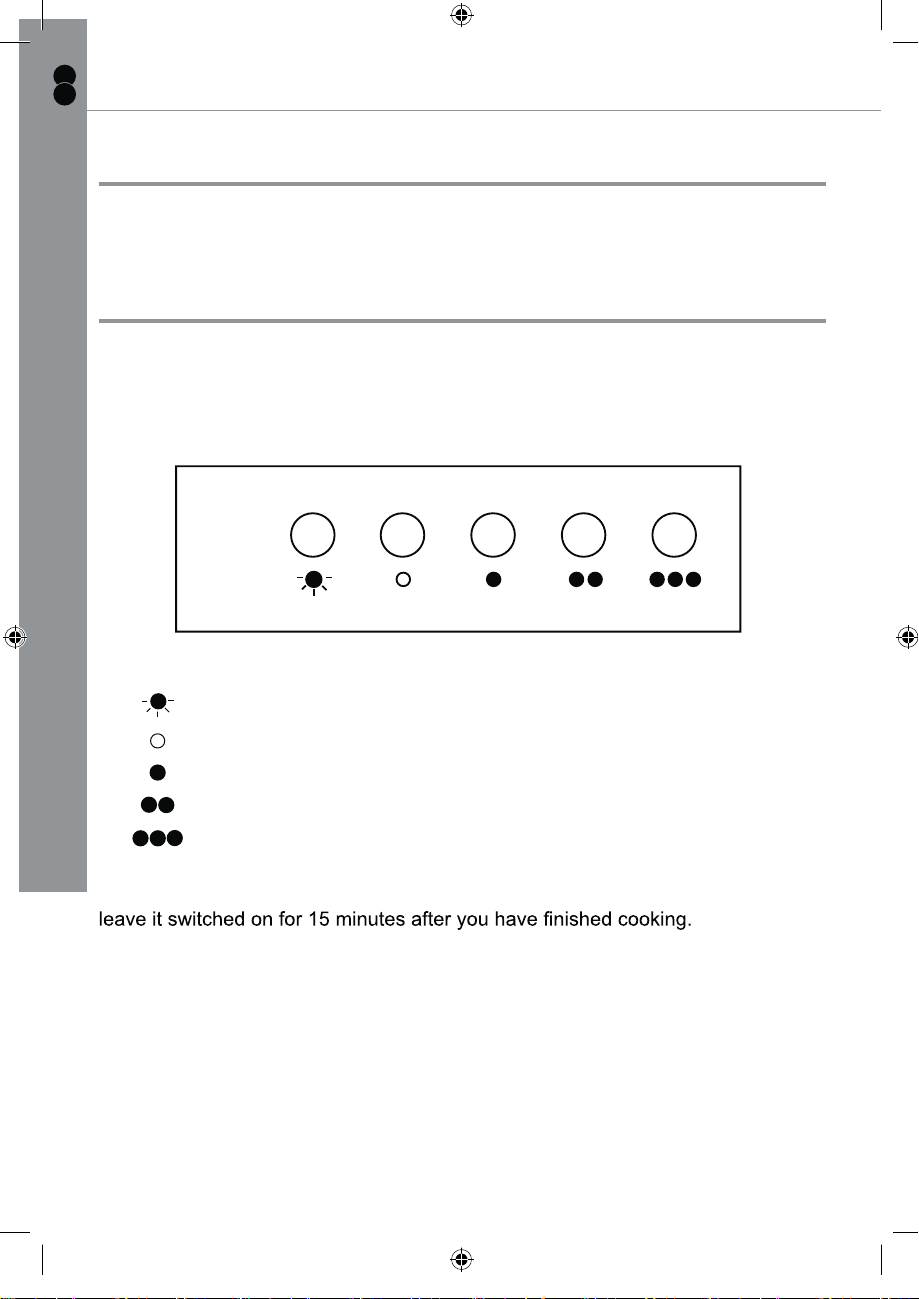

Five-button panel
On/off button for built-in light.
On/off button for extractor fan.
Extractor fan speed 1 button.
Extractor fan speed 2 button.
Extractor fan speed 3 button.
To obtain the best results from your cooker hood it is recommended that you

11
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Care and maintenance
Care and maintenance
OFF
Warning
Always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a
fault, contact customer services.
FUSE
Bulb replacement
The bulb may be hot, leave it 10 minutes before removing it.
FUSE
OFF
10’

12
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE Care and maintenance
CLICK

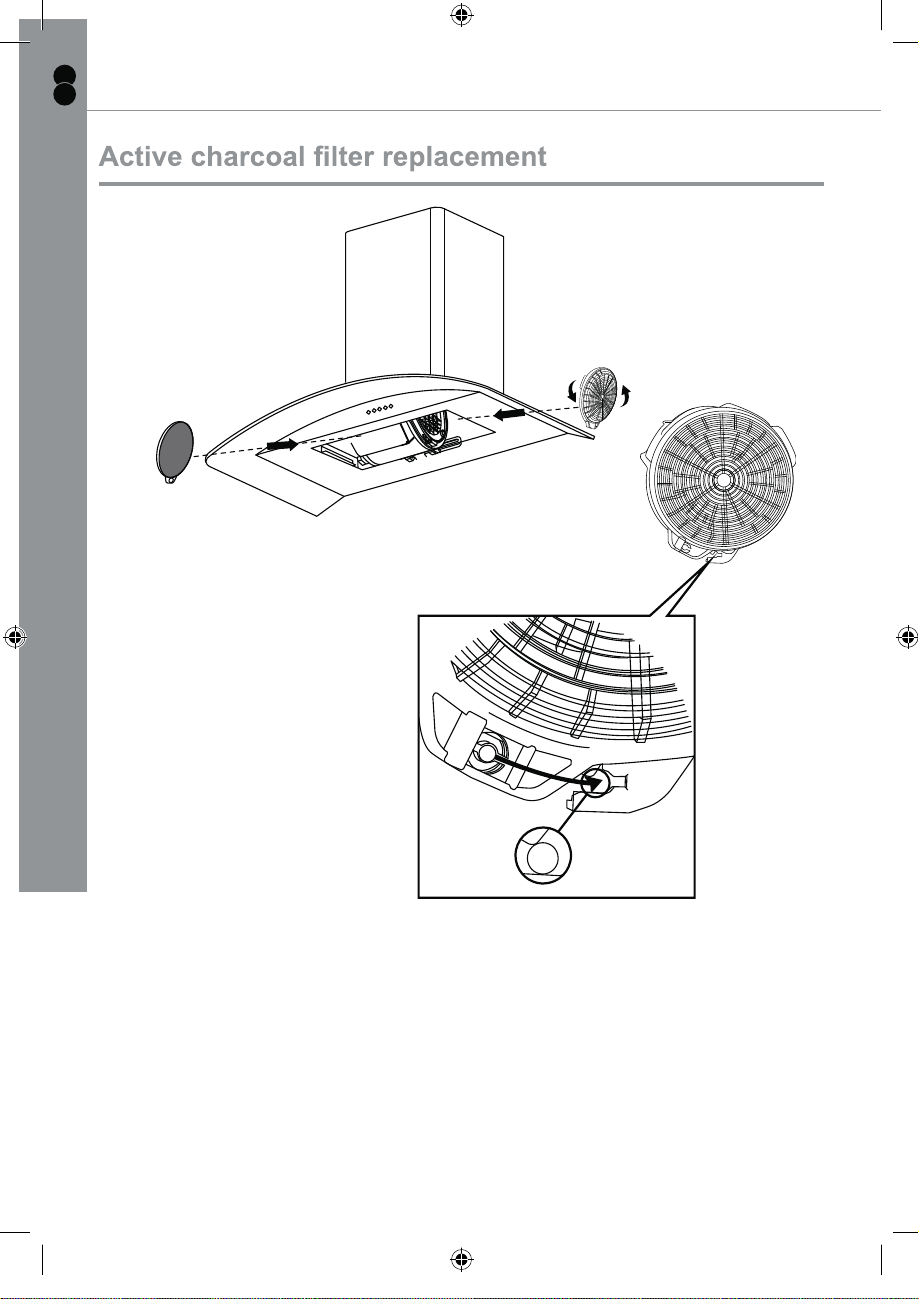

2x ACTIVE CHARCOAL FILTER (NOT SUPPLIED)
MODEL NUMBER CARBFILT4 (UK & IE)
CARBON FILTER ORDERING HOTLINE
0344 800 1128 (UK)
014475261 (IE)

13
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
MAX.65˚C
1 MONTH
vertically to improve the cleaning process.
Replace every 3 months.
3 MONTHS
Note:
the manufacturer.
Care and maintenance

14
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE Troubleshooting
Troubleshooting
Fault Cause Solution
Excessive
vibration. The appliance is not installed properly on the
brackets.
Take down the appliance and
The fan blade is
damaged. Switch off the appliance. Repair
service personnel only.
tightly.
Light on, but
motor does not
work.
The fan blade is jammed.
The motor is damaged.
Both light and
motor do not
work.
Light bulb blown. Replace with a bulb with correct
rating.
Power connection loose. Check power supply.
Suction
performance
reduced.
Speed may be too low. Select a higher speed.
Distance between the
cooker hood and the hob
is too great.
Readjust the distance to:
Gas hobs: 750mm
Electric hobs: 650mm
dirty. Care and maintenance section.
Top vent might be
obstructed. Clear any obstruction.
Optional vent kit might be
twisted. the manufacturers instructions.
Works normally
but cooking
smells linger. in recirculation mode or
grease.
Care and
maintenance section.

15
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Supply voltage 220-240V~, 50Hz
Power consumption - Fan 95W
Power consumption - Luminary 1 x 9W Max
Power consumption - Total 104W
Protection class II
Light bulb Max. 9 W (E-14)
Recycling and disposal
Technical and legal information

16
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE Technical and legal
information
Wiring
All installation work must be carried out by a competent
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
WARNING: THIS APPLIANCE MUST NOT BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
OFF
N (Blue) N (Blue)
L (Brown) L (Brown)
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.

17
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood GB
IE
Technical and legal information
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E. regulations
electrician or contractor who is on the roll of the National Inspection Council
for Electrical Installation Contracting (NICEIC) should undertake the electrical
installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to
the voltage on the rating plate inside the appliance.
WARNING: THIS APPLIANCE MUST NOT BE EARTHED
The appliance is supplied with a 2-core mains cable and must be connected to
the electricity supply via a double pole switch having a 3mm minimum contact gap
on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
The connection point must be placed in a position adjacent to the appliance so as
to be readily accessible for an engineer in the event of a breakdown.
Technical and legal
information

18
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE
Guarantee
This appliance is covered by a full manufacturer’s 24 month parts and labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferrable between EU countries.
This guarantee is non-transferrable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install , use or care of the products in accordance with the
manufacturer’s instructions - GAAwill not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Guarantee

19
In more detail...
GB
IE
Guarantee
Guarantee
Exclusions to the guarantee (continued)
Claims arising from non-domestic use or commercial environment.
If no fault is found then GAA reserves the right to charge for the call out at the going
rate of £55.00 plus VAT.
In the course of the service work carried out it may be necessary to remove the
glued, grouted or tiled
in such a manner that it cannot be removed, it is the responsibility of the customer/
installer to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAALtd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland
Phone: [phone]*
Email: [email protected]
Web: www.spareszone.co.uk
Republic of Ireland (Eire)
Phone: [phone]
Email: [email protected]
* Local call rates apply
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood

20
In more detail...
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1 Cooker Hood
GB
IE
CE Declaration of
Conformity
CE Declaration of Conformity
Decorative Cooker Hood
David Sala
Technical Manager
CLGCH60-CR1 / CLGCH70R1 / CLGCH90-CR1
APPLIED INTERNATIONAL TECHNICAL
STANDARDS AND SPECIFICATIONS: ISO9001.2008
PLACE: Torelló
MACHINE APPLICATION:
TYPE:
EC DIRECTIVES APPLIED:
APPLIED HARMONIZED
STANDARDS:
We hereby certify that the mentioned accessory complies with the essential requirements of the
European Directives applicable, including their modifications and the corresponding transpositions
from the national law.
Standard EN 60335-1 Safety of household and similar electrical appliances
Standard EN 60335 part 2-31, particular requirements for range hoods
Standard EN 55014 Limits and methods of measurement of radio disturbance
Standard EN 61000-3-2 Electromagnetic compatibility limits for harmonic.
Standard EN 61000-4-5 Electromagnetic compatibility (EMC)
Comply with the European Directives 2006/95/EC: LVD
and the 2004/108/EC: EMC
2011/65/EU: RoHS
MANUFACTURER: CATA
ADDRESS:
C/ Ter nº 2, Torelló 08570 - Barcelona (Spain)
This appliance respects laws of the suppression of radiointerference.
As the Manufacturer has a policy of continuous product improvement, it reserves
prior warning.
B&Q plc,
Chandlers Ford, Hants,
SO53 3LE United Kingdom
www.diy.com
