Cool Air ENERGY STAR CF User manual
OPTION -
To mount housing anywhere between ceiling framing:
Use optional Hanger Bar Kit (sold separately from local distributors or
website). Follow mounting instructions included with kit.
1. Remove blower and all packing material
from fan housing.
2. Remove wiring panel from fan housing.
3. Attach damper/duct connector to
fan housing.
4. Mount housing to ceiling structure.
ROOF CAP * (with built-in damper)
WALL CAP *
(with built-in
damper)
4-IN. ROUND
ELBOWS *
FAN
HOUSING
Seal gaps
around
housing.
Seal duct joints
with tape.
INSULATION
(Place around and
over fan housing.)
POWER
CABLE *
* Purchase separately.
OR
Keep duct
runs short.
4-IN. ROUND
DUCT *
TABS
5. Connect 4-in. round duct.
6. Connect wiring.
ALL INSTALLATIONS
Start here.
IMPORTANT - The ducting from this fan to the outside of the
building has a strong effect on the air flow, noise and energy use
of the fan. Use the shortest, straightest duct routing possible for
best performance, and avoid installing the fan with smaller ducts
than recommended. Insulation around the ducts can reduce
energy loss and inhibit mold growth. Fans installed with existing
ducts may not achieve their rated airflow.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a
GFCI (Ground Fault Circuit Interrupter) - protected branch circuit
(ceiling installation only).
8. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
3. Please read specification label on product for further information
and requirements.
CLEANING & MAINTENANCE
For quiet and efficient operation, long life, and attractive
appearance - lower or remove grille and vacuum interior of unit
with the dusting brush attachment.
The motor is permanently lubricated and never needs oiling. If
the motor bearings are making excessive or unusual noises,
replace the blower assembly (includes motor and impeller).
OPERATION
Use an on/off switch or speed control to operate this ventilator.
See “Connect Wiring” for details.
Installer: Leave this manual with the homeowner.
READ AND SAVE THESE INSTRUCTIONS
ENERGY STAR®certified Fan
Push connector through
opening from inside of
housing.
Engage tabs and secure
with screw from parts bag.
Make sure bottom of housing
will be flush with finished ceiling.
For proper location using ½”
ceiling material: Bend out
housing tabs to fit against
bottom of structure.
Secure housing through
mounting ears with
appropriate fasteners.
If mounting housing to I-joist,
use wood blocking as shown.
Bend tab to expose desired
access hole. Connect
power cable to housing with
appropriate UL approved
connector. Connect black
to black, white to white and
green to green or bare wire.
Re-install wiring panel and
secure with screw from parts
bag.

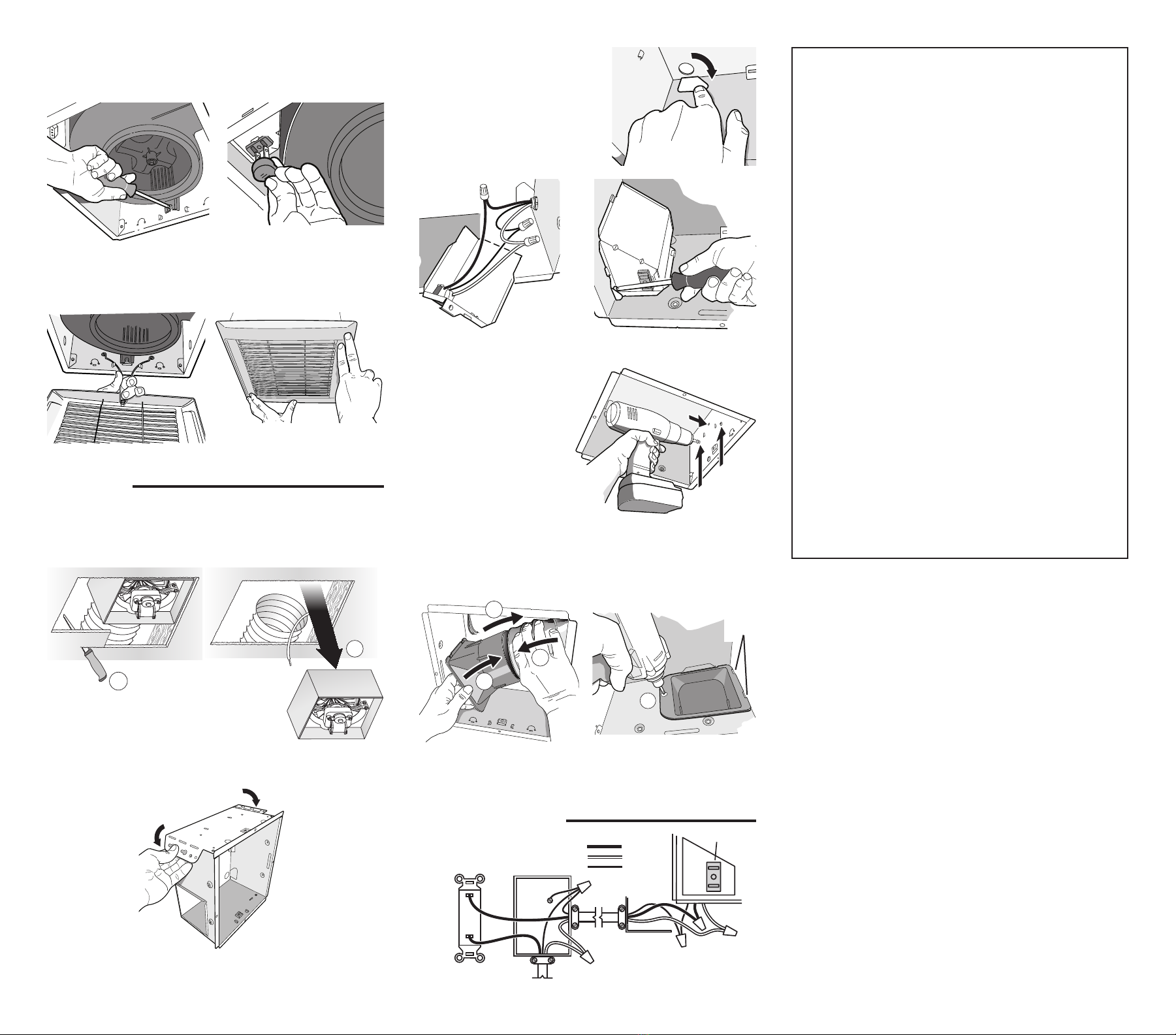

NEW CONSTRUCTION
For Retrofit Installation - Skip to back page.
HOUSING
TABS
Cooking
Equipment
Floor
COOKING AREA
Do not install above or
inside this area.
45o45o
NOT FOR USE IN
A COOKING AREA.
8. Finish ceiling, then install grille.
Squeeze grille springs and insert into slots in housing. Push
grille up against ceiling.
3. Remove old fan.
Enlarge ceiling opening (if necessary) to 9¾” parallel to joist) by
10½” (perpendicular to joist). Leave ductwork and wiring in place. 7. Connect 4-in. round duct.
Pull existing ducting through housing discharge opening and tape
ducting to duct connector. Push connector/ducting back through
opening. Engage tabs and secure with screw from parts bag.
6. Mount fan to ceiling structure.
SWITCH BOX
ON / OFF SWITCH
(purchase separately)
WHITE
BLACK
GROUND
(bare)
WIRING PLATE
120 VAC LINE IN
RECEPTACLE
1
2
3
4
TABS
1
2
*
4. Fold mounting ears flat against housing.
7. Install blower.
Re-install blower. Secure blower with 2 screws from parts bag
and plug blower into black receptacle.
RETROFIT
Limited Warranty
In the sale of its products, American Coolair Corporation
agrees to correct, by repairs or replacement, any defects in
workmanship or material that may develop under proper and
normal use during the period of one year from date of shipment
from factory. Any product or part proving, upon American
Coolair’s examination, to be defective during limited warranty
period will be repaired or replace, at American Coolair’s option,
f.o.b. factory, without charge.
Deterioration or wear caused by chemicals, abrasive action or
excessive heat shall not constitute defects.
Motors are guaranteed only to the extent of manufacturer’s
warranty.
American Coolair’s limited warranty does no apply to any of its
products or parts that have been subject to accidental damage,
misuse by the user, unauthorized alterations, improper
installation or electrical wiring, or lack of proper lubrication of
other service requirements established by American Coolair.
Repairs or replacements provided under the above terms shall
constitute fulfillment of all American Coolair’s obligations with
respect to limited warranty.
THE LIMITED WARRANTY STATED HEREIN IS IN LIEU
OF ALL OTHER WARRANTIES. EXPRESS, STATUTORY
OR IMPLIED, INCLUDING WITHOUT LIMITATION THAT OF
MERCHANTABILITY AND FITNESS.
NO LIABILITY FOR REINSTALLATION COST OF FOR ANY
SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE IS ASSUMED OR SHALL BE IMPOSED UPON
AMERICAN COOLAIR.
AMERICAN COOLAIR CORP. / ILG INDUSTRY
3604 MAYFLOWER ST.
JACKSONVILLE, FLORIDA 32205
TEL: 904-389-3646
5. Connect wiring.
Bend tab to expose desired
access hole. Connect power
cable to housing with appropriate
UL approved connector. Connect
black to black, white to white and
green to green or bare wire. Re-
install wiring panel and secure
with screw from parts bag.
Mount housing to ceiling
structure with standard
drywall or wood screws in
locations shown. *Center
hole optional.
Install blower. Finish ceiling, then install grille.
See Steps 7 & 8 at top of this page..
