CoolSpace Glacier CS5-18-VD User manual

Operation and Maintenance Manual
120V/60HZ
BLIZZARD
AVALANCHE
GLACIER
CS5-18-VD
CS5-18-VD-TB
CS6-36-1D
CS6-36-VD
CS6-50-VD

Due to continuous product innovations, we reserve the right to change product specification
without due notice.
Contents
1.0 INTRODUCTION ............................................................................................................................. 1
2.0 UNPACKING YOUR COOL-SPACE UNIT ...................................................................................... 1
3.0 SET-UP OF THE COOL-SPACE UNIT............................................................................................ 1
3.1 Connecting the water supply ............................................................................................................................1
3.2 Connecting the electrical supply ......................................................................................................................2
4.0 OPERATING PROCEDURES.......................................................................................................... 3
4.1 Filling the unit with water ..................................................................................................................................3
4.2 Starting the fan ...................................................................................................................................................3
4.3 Starting the pump and adjusting the water flow .............................................................................................3
4.4 Intuitive Control Panel Operation .....................................................................................................................4
5.0 MAINTENANCE AND STORAGE ................................................................................................... 4
5.1 Removing the cooling media to access the inside of the unit.......................................................................5
5.2 Daily maintenance ..............................................................................................................................................5
5.3 Periodic maintenance ........................................................................................................................................5
5.4 Storage ................................................................................................................................................................6
6.0 TROUBLESHOOTING/REPAIR ...................................................................................................... 6
6.1 Troubleshooting .................................................................................................................................................6
6.2 Repair procedures ........................................................................................................................................... 10
6.3 Technical support............................................................................................................................................ 11
7.0 WARRANTY.................................................................................................................................. 11
7.1 Warranty Form ................................................................................................................................................. 11
7.2 Warranty Parts ................................................................................................................................................. 11
7.3 Optional Accessories and Replacement Parts............................................................................................. 12

1
Signal Word Definitions
DANGER indicates an imminently hazardous situation which,
if not avoided, WILL result in death or serious injury.
WARNING indicates a potentially hazardous situation which,
if not avoided, COULD result in death or serious injury.
CAUTION indicates a potentially hazardous situation which,
if not avoided, MAY result in minor or moderate injury.
IMPORTANT indicates a potentially hazardous situation
which, if not avoided, MAY result in property damage.
1.0 Introduction
COOL-SPACE is a patented and registered Trademark of Hale Industries, Inc. and manufactured in
Indiana.
The COOL-SPACE unit is a compact, self-contained, high-efficiency portable evaporative cooler.
2.0 Unpacking your COOL-SPACE unit
Carefully examine the carton for damage before opening. If the carton is damaged notify the
shipping company immediately.
3.0 Set-up of the COOL-SPACE unit
The COOL-SPACE unit is factory tested and ready to use. The unit should be placed on a level surface,
and the casters locked to prevent inadvertent movement. Follow instructions below to connect water and
electrical supply.
3.1 Connecting the water supply
Do not connect the COOL-SPACE unit to any water source where water pressure exceeds
120 psi. This will cause permanent damage to the unit.
The COOL-SPACE unit comes equipped with a female garden hose water source connection. Attach the unit
to a standard garden hose outlet for a water source. It is not recommended that the unit be attached to any
water source with operating pressures above 120 psi. Use a standard garden hose (not provided) to connect
the tank to the cooler.

2
3.2 Connecting the electrical supply
The COOL-SPACE unit should be plugged into a fused or circuit breaker protected 15 amp, 120 volt,
and 60 Hz circuit.
All models utilize standard 120-volt power supply. The unit should be plugged into a fused or circuit breaker
protected 15 amp, 120 volt, 60 Hz circuit.
Table 1 shows the amperage requirements for the specific models. If an extension cord is required, refer to
Table 2 for the proper 3-conductor heavy-duty cord required.
Do not exceed the amperage ratings of the extension cord. Undersized extension cords result in
excessive drops in voltage, which cause the electric motors to generate excessive heat. This
condition results in inefficient motor operation and premature motor failure, WHICH WILL VOID THE
WARRANTY.
Table 1. Electrical requirements
CS Model Number
Volts ± 10%
Frequency (Hz)
Running Amps
16-VD
120
60
4.05
18-VD
120
60
4.05
36-1D
120
60
7.2
36-VD
120
60
7.2
50-VD
120
60
8.2
Table 2. Cord size requirement based on length and max amp draw
Length (Ft)
Cord Size
16 Ga
14 Ga
12 Ga
10 Ga
0-50
13 A
18 A
25 A
30 A
50-100
10 A
13 A
18 A
25 A
A: Amps at 120 volt (de-rate for lower voltage)
BLIZZARD-50 (CS6-50-VD) models cannot be connected to a GFCI outlet.

3
4.0 Operating procedures
There are 3 factors to consider when determining where to place the COOL-SPACE unit.
1. Fresh air supply: The inletside of the unit (pad side) requires a constant, uninterrupted supply
of fresh air for maximum performance.Adistance of 3 feet clear space to any obstructions at
the rear or inlet side of the unit is recommended.
2. Discharge air flow: The cool air discharged from the unit should be free of obstruction to allow
the air to circulate in order to maximize the cooling zone.
3. Ventilation: In order to operate at maximum effectiveness, it is helpful to have provisions to remove
the air discharged from the COOL-SPACE unit from the cooling area. This ensures that the COOL-
SPACE unit does not recirculate air that has already been through the evaporative cooling process.
The unit must be placed on a level surface to operate correctly. Units create an oval shaped air pattern.
Obstacles such as racks and workbenches may interfere with the air flow. An attempt should be made to
locate the unit in such a manner that interruption of the air pattern is held to a minimum. Multiple units may be
required to cover larger areas.
4.1 Filling the unit with water
Once the COOL-SPACE unit has been connected to a water source as described in 3.1, turn the water supply
valve on and the unit will fill with water. The float valve will shut off the water flow when the sump is full.
4.2 Starting the fan
Set the fan switch to the “ON” position
4.3 Starting the pump and adjusting the water flow
The cooling media in your new unit will take some time to become completely saturated. During this time an
odor may emanate from them. Flush the pads with the Flow Control Valve as far open as possible -without
spilling water onto the floor -for at least 12 hours. This will ensure the best efficiency of your COOL-SPACE
unit. During this time, the smell should also dissipate. For best results change the water in the reservoir
frequently.
Once your pads are fully flushed
1. Fill reservoir with water
2. Turn on fan
3. Adjust water flow with Flow Control Valve until water streams over pads
Do not flood the pads with water. You should see several dry streaks on the face of the pads 1-2 in. wide.
If dry streaks grow wider, adjust flow to allow more water.
Prolonged use of hard water without proper water treatment will create mineral deposit
build up causing the pump to fail which is NOT COVERED BY WARRANTY
Pump is equipped with a LOW WATER CUT OFF which may take up to 5 minutes to reset
each time.

4

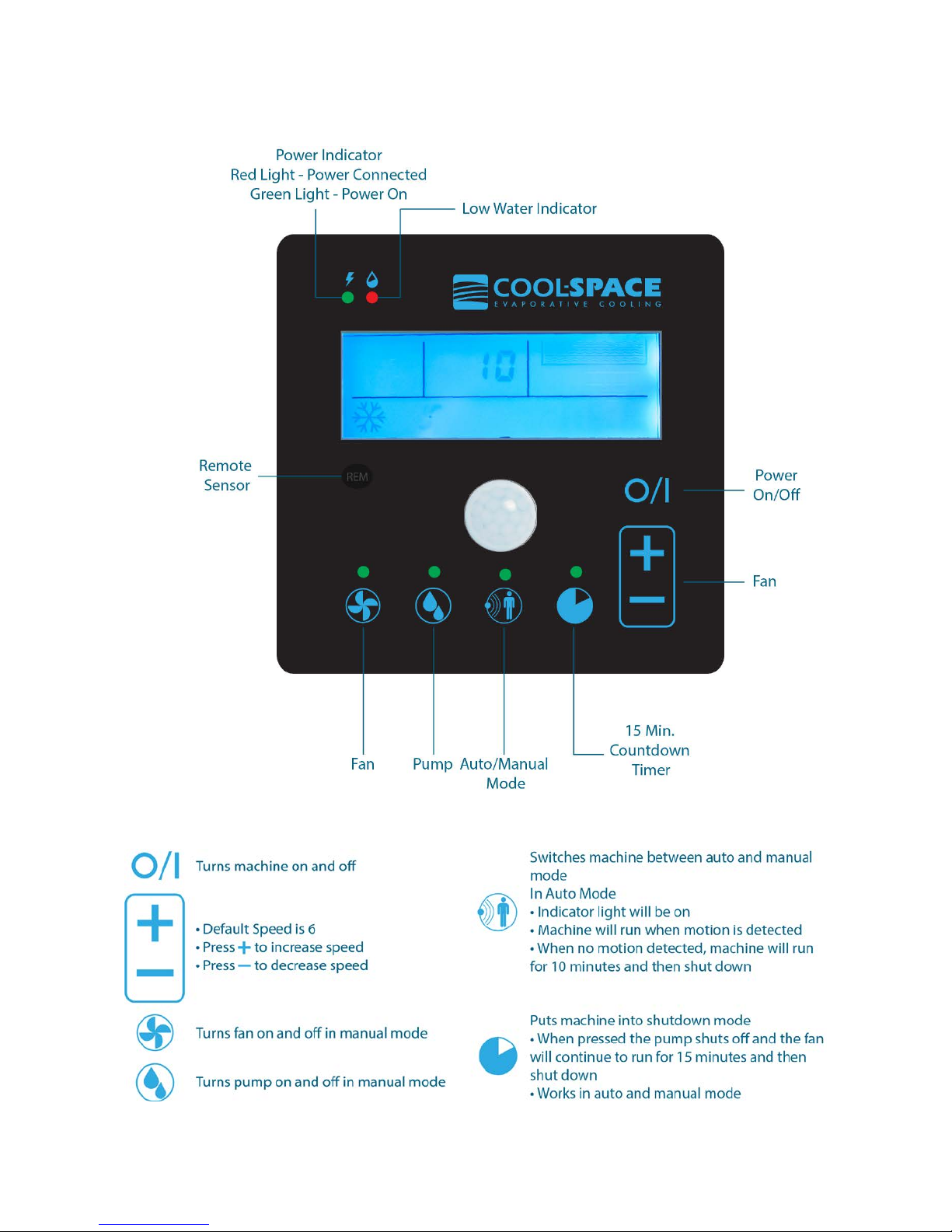

4.4 Intuitive Control Panel Operation
The BLIZZARD-50 comes equipped with an intuitive control panel.

5
5.0 Maintenance and storage
ELECTRICAL SHOCK HAZARD
Disconnect the power supply before performing any service or maintenance on the unit.
Failure to do so may result in serious injury or death.
5.1 Removing the cooling media to access the inside of the unit
In order to perform any maintenance on internal components, the cooling pads must be removed to access
the inside of the unit.
1. Remove the bolts connecting the pad retainer bar (pad-side) from the housing.
2. Remove top pads on CS6-36 and CS6-50 units.
3. Tilt pads from the top;lift out of the unit.
Note: Reinstall pads correctly according to the markings on the pads.
5.2 Daily maintenance
When shutting down the COOL-SPACE unit at the end of eachuse,the pump should be
turned off approximately 15 minutes before the fan is turned off. This will allow the pads to
drain and dry out. To avoid disfiguring the housing the unit should be drained after every
use. These simple guidelines will ensure long and efficient pad life as well as help to control
mildew and bacteria growth, and unit longevity.
5.3 Periodic maintenance
ELECTRICAL SHOCK HAZARD
Disconnect the power supply before performing any service or maintenance on the unit.
Failure to do so may result in serious injury or death.
Depending on how often the COOL-SPACE unit operates, this procedure should be performed anywhere
from every week for heavy use to monthly for light use. Shut down the unit and drain the water sump. The
cooling pads act as a filtering agent and remove dust and other particles from the incoming air stream. These
particles will flow into the sump and collect there. Water impurities in the water will also collect in the sump.
Maintenance tablets are available at www.cool-space.com.
Draining the Water Sump
1. Close the water flow valve and open the drain valve or remove drain plug located at bottom of
reservoir.
2. Run pump until sump is dry then immediately shut off pump.
3. Turn unit off and disconnect the power supply.
4. Remove cooling pads, refer to section 5.1.
5. Clean out reservoir with either a towel or wet/dry vacuum.
6. Remove the water spray bar and its plug. Insure holes are free of debris.
7. Reinstall pads and pad retainer.
To keep the COOL-SPACE unit operating at peak efficiency, ensure that the cooling pads are kept clean and
dust-free. Dust and other particles have an adverse effect on the media’s ability to introduce water into the air
stream. If the pad surface becomes dirty or dusty, clean with a soft brush and water.

6
5.4 Storage
1. Remove the pads, as described in section 5.1
2. Clean with a soft brush and water to remove dust and debris (never use bleach)
3. Drain sump usingprocedure described in section 5.3 and wipe dry
4. Store the COOL-SPACE unit in a dry area. Cover if possible to prevent dust build-up.
6.0 Troubleshooting/Repair
6.1 Troubleshooting
ELECTRICAL SHOCK HAZARD
Disconnect the power supply before performing any service or maintenance on the unit.
Failure to do so may result in serious injury or death.
The COOL-SPACE unit consists of three systems: the fan, water distribution and pump. It is important to
determine which system of the COOL-SPACE unit the problem is associated with. This may not always be
obvious, in that certain problems may be associated with more than one system.
When determining which system has a problem, you must define the associated problem, (e.g. the pump is not
running). Although this might seem a bit simplified, several things may cause this particular problem. So while
defining the problem, a careful check of all systems should be made to fully understand the extent of the
problem.
If you have a complete understanding of all of the systems of the COOL-SPACE unit and how they depend on
each other, it will be simple to define and solve any problem.
Necessary Tools:
Although the COOL-SPACE unit is designed to be simple to maintain, it will be necessary to have some basic
hand tools (screwdrivers, pliers, adjustable wrenches, etc.) as well as a volt/ohm meter when troubleshooting
the electrical system.
Please use caution when troubleshooting or repairing all electrical components. Be certain
that all power is disconnected from the COOL-SPACE unit before the cooling pads or fan
guard are removed to gain access to the fan.

7
6.1 Troubleshooting (continued)
Fan System
Problem
Check
Solution
Fan won't run and makes no
sound.
Power cord, extension cord, switches,
circuit breaker, GFI ground fault.
Reconnect power or
extension cord.
Reset breaker.
Fan motor won’t run and makes
a humming sound.
Blade in contact with shroud.
Motor stalled (will not turn by hand).
Re-center blade
hub.
Replace motor.
Breaker trips or fuse blows when
fan is started.
Motor stall.
Check power source for min. 120volt/15
amp. Extension cord.
Replace motor.
Upgrade power
supply. Replace
with heavier cord.
Motor overheating and shutting
off. Restarting several minutes
later.
Extension cord gauge too small.
Inlet air obstructed or too close to
wall.
Faulty motor.
Replace with
heavier cord.
Provide minimum
3 feet inlet
clearance.
Replace motor.
Fan motor won’t run and switch
makes soft clicking sound.
Switch making good contact. Replace switch.
Fan blade doesn’t turn and unit
makes squealing sound.
Motor stall (as above).
Replace motor.
Fan will not reach speed but
turns and makes humming
sound.
Capacitor (where visible) and motor
electrical connections. Extension cord to
small.
Replace capacitor or
motor.
Increase cord
gauge.
Intuitive Control Panel Error Codes
ERROR CODE
CAUSE
SOLUTION
E1 – Over Current
Protection
Current draw too high
Check extension cord size, Check motor
spins freely, Check airflow not obstructed,
Replace motor
E2 – Over Voltage
Protection
Supply voltage too high ≥132V
Try different circuit, Install voltage
regulator
E3 – Low Voltage
Protection
Supply voltage too low ≤108V
Try different circuit, Install voltage
regulator
E4 – Loss of Phase
Protection
Motor phase imbalance
Loose or disconnected motor wire, Replace
motor
E7 – Overload
Protection
Motor running too hot
Check extension cord size, Check motor
spins freely, Check airflow not obstructed,
Replace motor
F6 – Communication
Failure
Failure of communication between
control panel and control board
Check connection of control cable, Check
control cable not broken

8
6.1 Troubleshooting (continued)
Water System
The water distribution system consists of two (2) assemblies:
oThe Water Inlet Assembly
Brass bulkhead fitting
Float valve assembly
oThe Hose and Valve Assembly
Spray Bar Assembly
Valve Assembly
Connection Hose
Problem
Check
Solution
Floor at side of COOL-SPACE
unit is wet
Water inlet hose is loose at
supply hose or inlet hose is
loose at bulkhead fitting.
Tighten connections and/or
replace hose washers.
COOL-SPACE unit overflows
from reservoir or is spitting
water through fan.
Float valve is loose.
Water pressure is too high to
allow float valve to shutoff
(120psi max).
Float valve is not seating
properly.
Tighten connections and/or
replace hose washers.
Reduce water pressure by
adding an inline reducer.
Check all hoses for leaks.
Water spitting from the unit.
Flow control
Cracked Hose & Valve
Assembly.
Hose connection loose
Drip retainer on spray bar
Ensure pads were installed
correctly
Reduce flow
Replace Hose & Valve
Assembly.
Tighten hose
Adjust
Reinstall correctly
Water leaking from drain valve.
For worn washer, worn stem.
Make sure drain valve is closed
Replace washer.
Replace drain valve.
Water leaking from water flow
control valve.
Washer worn. Stem worn.
Jammed nut or lock nut loose.
Replace water flow control
valve. Tighten Jam nut.
Too many dry streaks in the
pads
Holes in spray bar blocked.
Adjust water flow.
Remove spray bar. Remove
plug and clean tube and
holes. Open water flow
control valve.

9
6.1 Troubleshooting (continued)
Pump
Problem
Check
Solution
Pump motor will not run when
switch is turned on.
Turn fan on to check for power.
Is water level high enough to
make the low- water cut-off
circuit?
If fan doesn’t start; check
breaker and cord plug-in. If
fan does start; check for
power to and through pump
switch (when turned on). Fill
water reservoir.
Pump motor hums when switch
is turned on, but does not pump
water.
Obstruction in impellor.
Pump motor failure.
Remove object(s).
Replace pump.
Pump makes loud noise while
running.
Object(s) in impellor, impellor
loose. Pump bearings bad.
Remove object(s).
Replace pump.
Breaker trips or fuse blows
when switch is turned on.
Check power cord length and
breaker rating.
Check for locked-up pump.
Refer to page 2 for unit
amperage draw and to
determine required cord
gauge. Replace pump.
Pump won’t run and power is
available. Pump is functional.
Make certain switch is working.
Is water level high enough to
make the low- water cut-off
circuit?
Replace switch if not
completing circuit. Fill water
reservoirenough to activate
Low Water Shut-off switch.
Pump runs but does not pump
water.
Air lock in outlet side of pump.
Make certain the impellor is
turning in pump.
Turn off and on to bleed.
If not, replace pump.

10
6.2 Repair procedures
Repairs should be performed by a qualified technician!
ELECTRICAL SHOCK HAZARD
Disconnect the power supply before performing any service or maintenance on the unit.
Failure to do so may result in serious injury or death.
Fan Motor Replacement
GLACIER-18 (CS5-16-VD, CS5-16-VD-TB, CS5-18-VD, CS5-18-VD-TB2)
1. Remove cooling pads (see section 5.1 for pad removal instructions)
2. Remove the black motor wiring plate and disconnect motor wires. (Mark each wire with a marker or
marker tape to allow for easy matching when installing new motor.
3. Remove the (4) nuts and bolts that mount the motor, fan,and support braces (complete fan assembly).
4. Replace new fan assembly.
5. Secure with 4 nuts and bolts.
6. Replace any wire ties that were removed when taking out the old fan assembly.
7. Replace the black motor wiring plate.
8. Reinstall pads and connect power
AVALANCHE-36 (CS6-36-1D, CS6-36-VD)
BLIZZARD-50 (CS6-50-VD)
1. Remove cap from bottom of motor. Disconnect wires. Clip wire ties.
2. Remove (4) fan mounting bolts from the front. (Support fan to ensure it doesn’t fall.)
3. Pull the fan out of the unit.
4. Remove blade mounting nut and blade.
5. Remove mounting arms by loosening (8) bolts holding the arms to the motor. (Make note of arms
positions for reinstallation.)
6. Install arms and blade on new motor.
7. Install fan in opening and secure with mounting bolts.
8. Reconnect wires and tie cord to motor arm to keep them out of fan.

11
6.2 Repair procedures (continued)
Pump Replacement
GLACIER-18 (CS5-16-VD-TB,CS5-18-VD-TB2)
1. Loosen PVC Union
2. Remove pump and PVC pipe
3. Unplug the cord from the top of the pump by removing 2 screws
4. Unscrew PVC pipe from the pump
5. Reverse steps 1-4 to reinstall the new pump
6. Reinstall cooling pads and guards, reconnect power, and test pump
GLACIER-18 (CS5-16-VD, CS5-18-VD) -AVALANCHE-36 (CS6-36-1D, CS6-36-VD) -BLIZZARD-50 (CS6-
50-VD)
1. Unscrew fitting from pump
2. Unplug the cord from the top of the pump by removing (2) screws
3. Remove pump from water sump and install new pump
4. Reverse the above procedures to reconnect the wiring, lift pump bracket and reconnect the hose.
Secure wires to fan frame with wire ties to clear the fan blades. Be sure to position the plug correctly.
5. Reinstall cooling pads and guards, reconnect power and test pump.
6.3 Technical support
Technical support and service are available directly from your distributor or the COOL-SPACE Technical
Support Line at 1-800-557-5716,[e-mail] or www.cool-space.com
7.0 Warranty
Under normal use, the warranty covers the unit and its components for sixty (60) months from date of
invoice. Refer to the manufacturer’s Warranty Policy for details. (Applies to units purchased after January 1,
2017)
7.1 Warranty Form
You must register your COOL-SPACE Portable Evaporative Cooler within fifteen (15) days of initial purchase to
validate your cooler’s warranty. You may fill out the warranty card supplied with your unit and mail or fax 317-
485-0118 or register online at www.cool-space.com.
7.2 Warranty Parts
Warranty replacement parts are available through your local distributor or supplier where you purchased your
COOL-SPACE unit. If you have any questions or concerns, please contact us direct at 1-800-557-5716 or at
[e-mail]. Please have your model number and serial number ready.
DO NOT DISCARD FAULTY PARTS Check with the Manufacturer as they may need to be
returned for warranty credit.

12
7.3 Optional Accessories and Replacement Parts
Accessories and replacement parts are available from your local distributor or supplier or they can be found
online at www.cool-space.com.
Common GLACIER Replacement Parts
CS-F16-VD
18'' Variable Drive Fan Assembly
CS-E110
On/Off Switch (Pump) – Toggle Switch
CS-E188-VD
Variable Drive Controller
CS-E163-2
Pump w/ Low Water Shut Off
CS-H610
GLACIER-18 Cooling Media (Pad) w/ Edge Coat (2 required)
CS-P143
½'' Compact Water Control Valve –Vertical
CS-P131
Boxed Float for units made between 2011-2017
CS-P142
GLACIER-18-TB ½ " Compact Water Control Valve -Horizontal
Common AVALANCHE Replacement Parts
CS-F36V-02
36" Fan Blade Assembly for AVALANCHE-36-VD (CS5 & CS6)
CS-E116
On/Off Switch for Pump/Fan –Toggle Switch
CS-E172
Control Knob for AVALANCHE-36
CS-E163-2
Pump w/ Low Water Shut Off
CS-H613
AVALANCHE-36 Cooling Media (Pad) w/ Edge Coat (5 required)
CS-P143
½'' Compact Water Control Valve -Vertical
CS-P131
Boxed Float for units made between 2011-2017
CS-E185
AVALANCHE-36-VD (CS5 & CS6) 120V Variable Speed Control
Common BLIZZARD Replacement Parts
CS-M50-VD-60HZ
BLIZZARD-50 Variable Speed Direct Drive Motor
CS-E163-2
Pump w/ Low Water Shut Off
CS-H48-140
BLIZZARD-50 Cooling Media (Pad) w/ Edge Coat (6 required)
CS-P143
½'' Compact Water Control Valve -Vertical
For exploded view drawings please go to www.cool-space.com

315 N Madison Street
Fortville, IN 46040
317-577-0417 · 800-557-5716
suppor[email protected]
www.COOL-SPACE.com
CS-MAN-ALL60HZ 07132018al
