Coolster challenger gk-6125 User manual

www.coolster.com
GK-6125
OWNER’S MANUAL
CHALLENGER

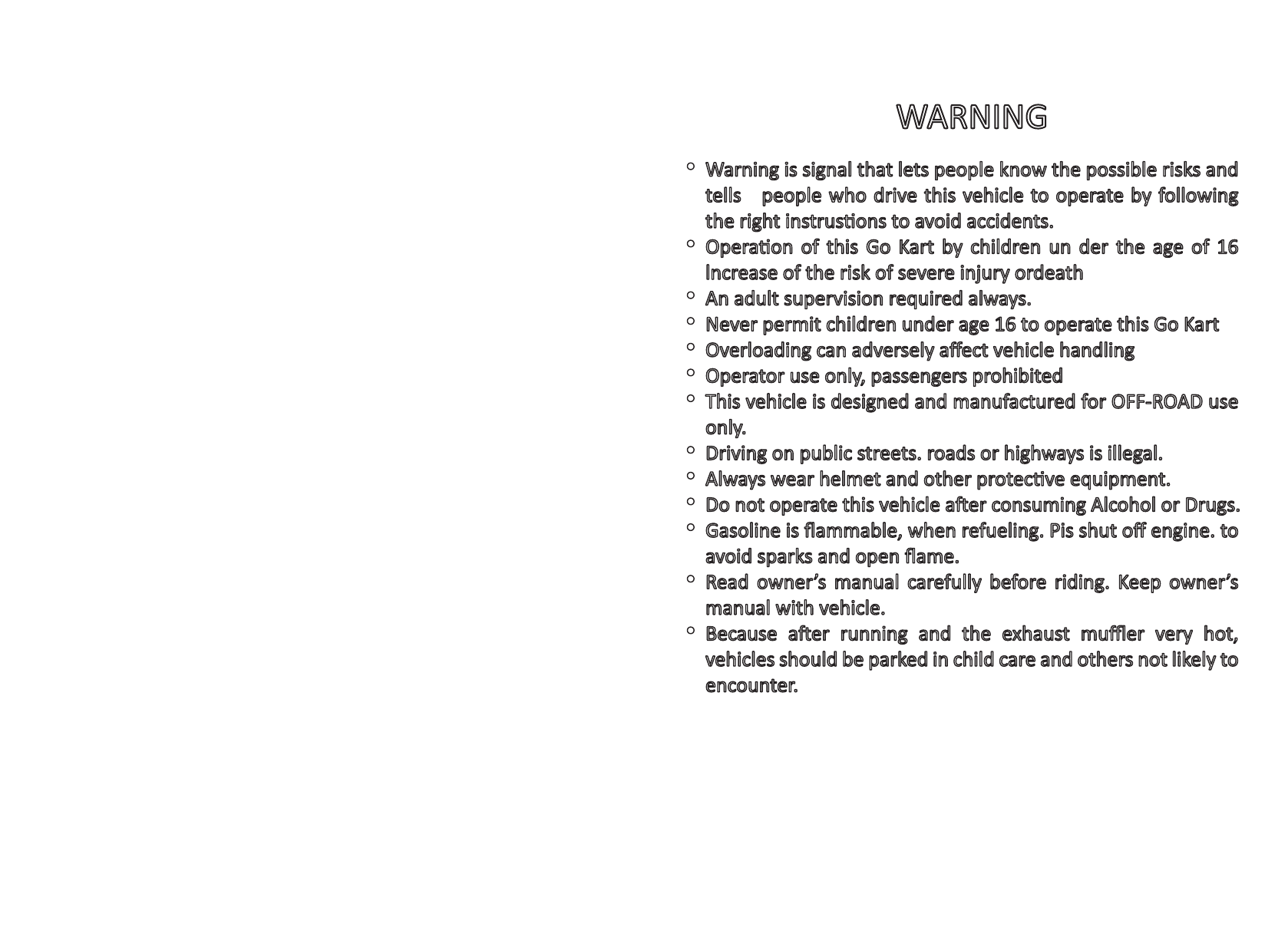

WARNING
Warning is signal that lets people know the possible risks and
tells people who drive this vehicle to operate by following
the right instrusons to avoid accidents.
Operaon of this Go Kart by children un der the age of 16
lncrease of the risk of severe injury ordeath
An adult supervision required always.
Never permit children under age 16 to operate this Go Kart
Overloading can adversely affect vehicle handling
Operator use only, passengers prohibited
This vehicle is designed and manufactured for OFF-ROAD use
only.
Driving on public streets. roads or highways is illegal.
Always wear helmet and other protecve equipment.
Do not operate this vehicle aer consuming Alcohol or Drugs.
Gasoline is flammable, when refueling. Pis shut off engine. to
avoid sparks and open flame.
Read owner’s manual carefully before riding. Keep owner’s
manual with vehicle.
Because aer running and the exhaust muffler very hot,
vehicles should be parked in child care and others not likely to
encounter.
•
•
•
•
•
•
•
•
•
•
•
•
•
P1

FOREWORD
Thank you choose this go kart
The go kart is based on market demand, porducon of a
comprehensive survey. We hope htat it will bring you driving
pleasure.
Please read Dian Aberdeen before driving the manual, because
it will help you understand it go kart on the structure, role,
operaon and maintenance of basic knowledge, while you
keep go kart are in good condion and safe driving will be very
useful.
P2 P3
Pay aenon to your security...................................................
GUIDELINES ON SAFE DRIVING.................................................
Descripon...............................................................................
WARNING.................................................................................
GK recognion..........................................................................
Control funcons......................................................................
Before the inspction operaon ................................................
Important elements operaonand rides..................................
Regular maintenance and minor repairs..................................
Cleaning and storage................................................................
Install process aer packaging..................................................
Main specs................................................................................
Electric diagram........................................................................
Table of Contents
P4
P7
P8
P9
P10
P11
P14
P17
P20
P29
P36
P41
P43

PAY ATTENTENTION TO YOUR SAFETY
Go Kart is not a toy, driving may cause danger. The operaon of
ATV is different from other motorcycles、automobiles and so on
vehicles. If don’t adopt right counter measures, even in right
usage(such as turning、mountain roads、obstacles),can be easily
rollover or collision.
Please drive according to the operaon rules, or will bring
serious damage or death:
1. Read carefully the instrucon and all the labels,drive
according to the procedure
2. Contact with the local agency, search the training courses
nearby, carry on training. Don’t drive unl right guidance.
3. Children below 16 years old can not drive this Go Kart, for
this Go Kart is not for children below 16 years old.
4. Can not carry people
5. Do not drive on paved roads, including sidewalk、lane、
packing and street
6. Do not drive on public streets、roads、highway(even
made of sand and stone)
7. When driving, please wear suitable cerficated helmet、
eye protecon device(goggle or face cover)、gloves、boots、
long-sleeved shirt and long sleeve pants
8. Do not drink wine or take medicine before or in driving
9. Do not speeding. To the allowing scope of the terrain,
visibility,operaonal experience, drive in uniform speed.
10. Do not use this vehicle for the balance of technology,
jumping and other stunts.
P4
11. Check Go Kart before using every me, make sure it is in
safe sitaon,operate the inspecon、maintenance method and
me table in the instrucons
12. When driving ,do not put one hand away with handle bar or
one leg away with seat
13. Slow down and pay more aenon when driving in
unfamiliar terrain. Pay aenon to the changes of terrain.
14. Do not drive on bumpy, wet, so places, unless they have
mastered driving skills and put into pracce in such places, always
alert in such terrain.
15. When turning, operate according to the relevant knowledge
in manuals. Try to high-speed turns, be sure to carry turning
training in the low-speed. Do not speed when turning.
16. Do not drive in the slope which is too steep, exceeding the
Go Kart and your allowed skills .First train in the flat slope before
trying to drive in more steep slope
17. In climbing, always use in proper procedures according to
the requirements in instrucons . Carefully observe the terrain
before climbing ,carefully climb in slippery or so terrain. Driving
on the way, keep the body center of gravity forward, do not
suddenly full-throle or shi. Do not speed when climbing the
peak.
18. When brake in declivity and ramp, always use according to
correct procedures required in instrucon .Carefully observe
terrain before downhill, keep center of gravity backwards. Do not
high-speed downhill. Avoid turning when downhill (may Go Kart
lead to a sharp lt to one side), walk straight as much as possible.
P5

P6
19. When drive to the hillside, always use properly according to
correct procedures required in instrucons. Avoid over-smooth or
so terrain, in accordance with the rules menoned in manuals.
Center of gravity to the high side. With the slope driving, do not spin
unl master turning skills on flat roads described in the manuals.
20. During climbing, if want to turn off or reverse, pay aenon to
use the correct method. When climbing, avoid the engine stall, use
correct gear and maintain a stable speed. If you want to turn off or
reverse, do as the brake programs required in the manuals. Get off
from the higher side. Start and get on the vehicle according to the
instrucons.
21. When driving in unfamiliar areas, pay aenon to obstacles.
Do not try to climb over large obstacles, such as large rocks or fallen
trees. When over obstacles,drive carefully according to the
instrucons.
22. Be careful when slide or brake. Learn to control braking or
sliding safely when on flat roads in low speed, such as ice
surface,keeping in slow speed,carefully driving,to prevent loss of
control
23. Do not drive in ripde or deep water. It is hard to brake when
the plate is wet. Check the brake devices when away form water. Try
to brake several mes as much as possible.
24. When reverse, please ensure that no one or obstacles, behind,
slow reverse.
25. Using the specified type and size of the res in the
instrucons, maintain the proper re pressure specified in the
operaon manuals
26. Do not reassemble the vehicle by increasing inappropriate
equipment or using accessories.
27. Do not overload.
28. Do not touch the vent pipe, it’s too hot aer driving.
GUIDELINES ON SAFE DRIVING
☆WARNING
You could be KILLED or SERIOUSLY INJURED if do not follow
instrucon.
1, when approaching corners or bends to reduce speed. Upon the
compleon of turn, may gradually increase the speed.
2, when crossing the vehicles parked in front of, to be very careful.
Because the driver of the vehicle may be invisible to you and the door
opened, the forward block in your way.
3, Brake Lining may Motorcycle rinsing weng lose their role, so
when cleaning End aer walking ago, should check all brake system.
4,Please put dry the oil inside carburetor and the oil tank before
transportaon,in order to avoid jamming.
5,Transit goods please vercal put,to avoid engine oil leak.
For training please call ASI at 1-800-887-2887
！DANGER
！NOTICE
！
CAUTION
！WARNING
NOTICE is used to address pracces not related to
personal injury.
DANGER indicates a hazardous situaon which,if not
avoided,will result in death or serious injury.
WARNING indicates a hazardous situaon which, if
not avoided, could result in death or serious injury.
CAUTION, uesd with the safety alert symbol,
indicates a hazardous situaon which, if not
avoided,could result in minor or moderate injury.
P7

P8
DESCRIPTION
(1)Oil tand
(2)connect a line box
(3)Seat
(4)Frame
(5)Steering
(6)Gearshi pole
(7)Front light
(13)Foot brake
(14)Greaser
(15)Lamp switch
(16)Starting switch
(17)Kill switch
(18)Keyset
(19)Throttle switch
WARNING
The warning signs with the word"WARNING" indicang the existence of the
potenal risks that may result in serious injury or death.
1、Seat Belt Must Be Wom At All Times
●THIS VEHICLE MANUFACTURED FOR OFF-ROAD USE ONLY.
●DO NOT OPERATE ON PUBLIC STREETS,ROADS OR HIGHWAYS.
2、1.Prohibit run at max speed. Or jumping run.
2.Please read owner s manual berore operate.and follow all instrucons
snd warnings.
3.This vehicle use unleaded fuel only,please switch off the engine when
filling to avoid fire or explosion.
3、●ALL HAIR MUST BE TIED UP AND SECURED AT OR ABOVE SHOULDER
LENGTH.
●ALL LOOSE CLOTHING MUST BE SECURED.
●ALL ALL NECKLACES AND SCARNES MUST BE SECURED.
4、do not dangerous behavior
5、Operaon of this Go Kart by children under the age of 16 in creases the
risk of sever injury or death.
NEVER permit children under age 16 to operate this Go Kart.
P9
(1)
(2)
(3)
(4)
(5) (6) (7)
(8)
(9)
(10) (11)
(12)
(13) (14) (15)
(16)(17)(18)
(19)
(8)Rear shock absorpti
(9)Front shock absorptine
(10)Front wheel
(11)Rear wheel
(12)Rear light
⑤
⑥
⑦
⑧
①
②
③
④
⑨

P10
6、THIS GO-KART CAN BE HAZARDOUS TO OPERATE if driven carelessly.
INJURIES can result if you do not follow these Instrucons:
●READ OWNER’S MANUAL NAD ALL LABELS BEFORE YOU OPERATE THIS
GO-KART.
●NEVER OPERATE THIS GO-KART WITHOUT PROPER INSTRUCTIONS.
Beginners require mature supervision.
●NEVER OPERATE THIS GO-KART ON PUBLIC ROADS It is intended off-road
use only.
●NEVER OPERATE THIS GO-KART AT EXCESSIVE SPEEDS.
●NEVER ATTEMPT WHEELIES,JUMPS,OR OTHER STUNTS.
●NEVER USE WITH DRUGS OR ALCOHOL.
●ALWAYS USE AN APPROVED HELME AND PROTECTIVE GEAR.
7、●Operaon of this Go Kart by children under the age of 16 lncrease of the
risk of severe injury or death.
●An adult supervision required always.
●Never permit children UNDER AGE 16 to operate this Go Kart
●Overloading can adversely affect vehicle handling
●Operator use only. Passengers prohibited.
●This vehicle is designed and manufactured for OFF-ROAD use only.
●Driving on public streels. Roads or highiays is illegal.
●Always wear helmet and other protecve equipment.
●Do not operate this vehicie aer consuming Alcohol or Drugs.
●Gasoline is flammable. When refueling. Pls shut off-engine. to avoid
sparks and open flame.
●Read owner’s maual carefully before riding.Keep owner’s manual with
vehcle.
8、●Moving parts can crush and cut.
●Keep hands clear.
●Do not operate with guard removed.
9、Transform the gear whatever you want to enter that when a gear, must
return to the “N”posion of the files to get into the you want in gear.
P11
Go Kart RECOGNITION
1、VIN plate number and product VIN (See left picture)
2、Engine model and serial number (See right picture)
12
1、The ignion switch
CONTROL FUNTIONS
Locaon Funcons Key state
All circuits wre disconnected Pull out
Circuit was connected
(brake light could work) Not pull out
2、Killer switch
When you press killer switch,engine would
stop
3、Headlight switch
Locaon Funcon
Open front lamp

P12 P13
4、Front& rear brake pedal
The front,rear brake pedal located
at front le foot pedal. Trample on
pedal to make front,rear brake
work. (Note: because braking
funcon of go kart is using a drag 3,
in four-wheel braking is almost at
the same me.
5、The fuel Cover
Note: the fuel Cover should be ghtened .
6、 The fuel valve
1
2
The fuel valve in the fuel filter will
supply fuel from the fuel tank to the
carburetor. Fuel valve has three locaons.
Disconnect: fuel will not flow. When
the engine is not running, always will be
back to handle the posion. (看1图)
Connected: fuel flow carburetor. Lane
will usually handle this posion at home.
(看2图)
Electric Start, please step on the pedal of rear brake, then press
the start switch.
7、Start
8、Gearshi control
The Bike is used automac centrifugal clutch, shi operaon is
relavely simple, as long as by pegging the throle to stall with
their hands on up. The car stalls non-circulang system; The
middle is neutral gear, move forward is forward gear, move back is
reverse gear.
When the green light is on behalf of gear in neutral,
the red light on behalf of reverse, if the two lamps are
lit on behalf of the stalls in forward gears

P14 P15
BEFORE THE INSPECTION OPERATION
Prior to the use of the car, should check the following
Warning: ● If the item prior to use in adverse condions,
should be repaired prior to use.
Normal checks
Brake
accelerator
Item
inspecon operaon, status and freedom
inerary.If necessary, should be adjusted.
Brake Performance confirmwhether the
good work can be checked out at low speed.
Check whether the smooth operaon of
the accelerator.If necessary, should be
conducted lubricaon / adjustment.
Chain - driven chain of lax inspecon and state.If
necessary, should be adjusted.
checks re pressure, wear, damage and the
rate of take-up of the round.
inspecon operaon is smooth and, if
necessary, should be conducted lubricaon.
operaon of inspecon, if necessary, should
be conducted lubricaon
check whether the smooth operaon, if
necessary, should be conducted lubricaon.
inspecon of all parts and fasteners. If
necessary, should be carried out Tightening /
adjustment.
inspecon of the fuel oil / if necessary, should
be enough fuel
Check liquid level. If necessary, dislled water
should be added
Tire / wheel
Brake and clutch manipulaon
of the handle sha
Braker manipulaon
sha
The stents and
stent-axis side
Parts / Fasteners
Fuel tank
baery
DRIVERS MUST
fuel compartment confirm the adequacy of fuel.
Warning:
● Do not add fuel tank drive. Otherwise, and in the subsequent
heang and fuel inflaon, the fuel will overflow.
Fuel spillage should be avoided in the hot engine
Recommended fuel: 90 "petrol
Fuel tank capacity:
Total: 3.1L
Fuel:
Oil:
1 2
Oil confirm whether oil at the designated place. (See left
picture)
1、 the maximum oil level.
2、 the lowest of oil. （See right picture）
Recommended oil
-20°-10°0°10° 20°30°C
SAE 20W40SF Engine oil
SAE 10W30SF Engine oil
SAE 5W30SF Engine oil
Oil:
Total: 0.9 L
Regular replacement of oil: 0.8 L
Oil Filters replacement: Does deformaon, damage.

P16 P17
1. Tire pressure
Before the cars in operaon, should always check and
adjust re pressure. (Tires Barometer)
2. Tire Inspecon
Before the cars in operaon, should check the res. If
excessive re wear, to be replaced.
Warning:
● use of the re wear is dangerous to travel
TIRES
Front re
Rear re
Size
16*8.00-7
17*7-8
Pressure
10~24 psi
10~24 psi
IMPORTANT ELEMENTS OPERATIONAND RIDES
Cold Start and engine preheang
Hot engine starter
When the engine has been
preheated, then you do not
need closure resistance
throle.
Note: This car has used to control the operaon of brake
motor starter switch. Only in pinch engine brake handle on when
to start. We had closed choke before delivery.
1, the ignion switch will turn to the "•" posion.
2, the fuel valve turn to:“see right picture”position.(If there is
oil switch,please click it.)
3, step on the rear brake pedal.(launched inorder to prevent
the car after forward)
4, the upward resistance throle arm closed, not to refuel the
door.
5, press the start switch.
6, the resistance aer heat engine throle arm downward
completely open.
Note: If the engine can not start, should be released starng
switch,
wait a few seconds, then try again. Each aempt, as far as
possible in
a short period of me in order to protect the baery. Each
starter not to exceed 5 seconds when the engine.
Note: In order to achieve maximum engine life, before moving
to engine

P18 P19
Brake
Braking: the road, when there are obstacles ahead (pedestrians,
vehicles, goods), in order to brake security measures must be
taken. Braking into braking deceleraon, parking brake and
emergency brake. (As the use of a vehicle brake in the form of three
trailers, in the other car with the braking different-shaped)
1), braking deceleraon
Braking deceleraon in the decrease throle alone can not meet
the requirements of deceleraon taken under braking, under
normal circumstances, only le point hit the brakes gently Block
can be.
2), parking brake
Parking brake in the arrival at the desnaon, in order to
accurately stop to stop in the posion taken by the brake. General,
when the speed is high, the focus slightly braze Block.
3), emergency brake
Emergency brake in a sudden emergency situaon, in order to
avoid the occurrence of accidents to brake. Then head to react
quickly and calmly. Followed by the accelerator, brake blocks to be
parked at. These order and spacing is also necessary to science.
These two moves very short interval of me is almost at the same
me. (Note: In the emergency brake, we should pay aenon to
control the car - and the focus of constant)
1
Hand brake
2
1、When the car is running is always placed on release status.
2、Parking must be closed when the switch away before leaving.
The acceleraon engine
Because the vehicles use automac centrifugal drive.
Therefore, accelerang and decelerang only need to control the
size of the throle up. Stamping on the right foot forward in the
light of the increase in speed, it is slow release
The commissioning Engine
0-1000 km from the go kart mileage during your life is very important
for the period. Because the engine is new and in the meanme we must
avoid prolonged Full Throle or any situaon that could be the
super-engine overheang.
1,0 ~ 150 km:
Operaon and avoid prolonged refueling over 1 / 4 throle posion. An
hour aer the operaon should cease engine to cool 5 to 10 minutes.
2,150 ~ 500 km:
Operaon to avoid refueling over 1 / 2 throle posion. At any me,
should not be used Full Throle operaon of this vehicle.
3500 ~ 1000 km:
To avoid refueling over 3 / 4 throle posion.
4,1000 km long and more:
Full throle operaon should be avoided. Avoid ultra-high-speed
engine work.
Note: When traveling to the 300 km ~ 500km, the oil must be replaced.
As the car had not been installed Odometer to esmate mileage can
only be calculated
Need parking, the cars parked in a safe-venlated places, locked, keys
removed. Should stop valve engine and the fuel transferred to the closed
state. Then press the buons in the car.
If there is me, it can conduct the inspecon parking, including lighng,
fuel quanty, lubricant level. If failure should be immediately ruled out.
Warning:
● because aer running and the exhaust muffler very hot, vehicles
should be parked in child care and others not likely to encounter places.
Parking

P20 P21
REGULAR MAINTENANCE AND MINOR REPAIRS
Periodic inspecon and emphasize peace and lubricaon and
the car will at the best and most effecve work state.
Note: If you are not familiar with this vehicle maintenance
services, the work should be COOLSTER maintenance staon.
Regular maintenance / lubricaon
*: We propose that these items should be COOLSTER repair staon for
maintenance services. **: Medium weight wheel bearing grease.
Item Notes
Running--
in1000km
or one
month
Inial
3000km
Or three
monthe
Every
3000km
Or three
monthe
Spark plug
Heck their state. When
necessary, should be
cleaned or replaced ☆ ☆ ☆
Air filter Cleaning. If necessary,
should be replaced
Carbutator
Dle checks starng
operaon. If necessary,
should be adjusted
Check whether the fuel for
cracks or damage there. If
necessary, should be replaced.
Fuel pipe*
Check the status. If
necessary, should be replaced.
☆☆
Oil filter*
300km and
1000km the
first
replacement
☆☆
The replacement. (In the
engine prior to release oil
preheang)
Engine oil
☆
Cleaning. If necessary,
adjust or replace
Engine oil
filter*
☆ ☆ ☆
☆ ☆ ☆
☆ ☆ ☆
Item Notes
Running--
in1000km
or one
month
Inial
3000km
Or three
monthe
Every
3000km
Or three
monthe
☆Tire/wheel
Check re pressure / balance /
Wear state / poor place, if
necessary, repair or replacement
☆
Front hub
bearing*
Bearing components check
whether loosening / damaged. If
damaged, and should be replaced **
Rear axle
bearing*
Bearing components check
whether loosening / damaged. If
damaged, and should be replaced。**
Chain-driven
Check chain relaxaon. If
necessary, should be adjusted.
Cleaning and lubricang
Parts/fastners
Check all the parts and
fasteners. Necessary
correcon should be carried
Baery*
Check proporon. If
necessary, the correcon
should be carried out
☆ ☆ ☆
☆ ☆
☆ ☆ ☆
☆ ☆ ☆
☆ ☆ ☆
Brake liquid
Once every two years
to replace
Brake liquid
pipe
Once every four years, the
replacement (if any breakage or
leakage an replace
Steering
Mechanism
Before each use should be
checked and, if necessary,
should be anchored.

P22 P23
Parts / Fasteners
Prior to the use of the car, should always check with
the parts and fasteners ght degrees. We suggest that
these projects should be carried out irregular
inspecons. (I asked, aer the demolion of the
self-locking nut Please replacement of the self-locking
nut, as will the use of safety.)
Correspondence tables fastening torque
M5 4.5 - 6.0
5M10 37 - 79 60
M6 8-12 9M12 73 - 115
99
M8 16- 26 23 M14 146- 205 180
Screw
size
Fightening
torque
N•M
Standard
torque
N•M
Screw
size
Fightening
torque
N•M
Standard
torque
N•M
Oil
1, the measurement of oil
A. Engine preheater minutes.
B. When the engine stopped operang, hold on a few minutes later, the oil
Cypriots will be removed aer the oil-observaon.
C. The oil should be located at the highest and the lowest among the
oil-marker. If the oil level low, should be enough oil to rise to the
oil-appropriate.
2, oil and oil filter replacement of the replacement. (Photo)
A. Engine preheater minutes.
B. engine will stop. In an engine oil was placed underneath.
C.discard release oil bolts, release oil. Put oil may moderate shaking
body to be inside the engine from impuries.
D. installed release oil bolts, and then full of engine oil. Tightening oil
Cypriots.
E. Starng engine and a few minutes to preheat. Preheat should check
whether there are oil spills. If it appears that an oil spill, should immediately
stop engine and check reasons.
3, the replacement of oil in the second about a month or so to clean oil filters
Warning:
● Do not join any chemical addives. Also lubricang oil clutch, clutch
slipping and addives will.
Note: In the replacement of oil, must be in accordance with the following
method to check oil pressure.
1, removed the cylinder covered with oil release bolts.
2, starter motors, and keep them idle unl the oil oulow from caving hole. If
no one minute aer the oil oulow or unusual phenomenon, should stop the
engine running to the nearest COOLSTER dealer or repair shop for repair.
3, aer the test should be ghtened release oil bolts.

P24 P25
Carburetor adjustment
Carburetor is a key part of the car, the need for fine adjustment.
Most adjustments should be entrusted with the experse and
experience COOLSTER dealers or repair shops
Idle adjustment
1. Connect speed LAU
2. Speed Fesval through idle screw on the carburetor, idling
provisions set to rotate within the raise into the engine speed, to
a decrease in engine speed from
Air Filters
Filters should carry out regular
checks, cleaning. If necessary,
replaced.
standard ldle:
1500 ±1 50 to / min
The throle cable adjustment
Note: In adjusng the throle cable free trip
before, we must adjust engine idling.
Through rotaonal regulator to adjust
throle cable, it can lead to throle the right
hand free Filed doors inerary.
Free trip:
2 to 5 mm
Spark Plug inspecon
The spark plug is an important engine parts, and easy to check.
The state can spark plug of the engine that state.
The normal riding in the car, in the center electrode white
ceramic insulators around the ideal color is appropriate. Brown.
Do not aempt to self-diagnosis of any fault, and should be sent
to COOLSTER the car dealer or repair shop. You must be regularly
removed and examined spark plugs, as heat and carbon
deposion will spark plugs slowly breakdown and ablaon. If the
electrode ablaon too seriously, we must use the provisions of its
spark plugs will be replaced.
Before installing the spark plug, the regulaon should be used
to measure the thickness electrode gap, if necessary, will be
adjusted to space requirements value.
Note: If you have not installed when the spark plug torque
wrench, torque correct esmaon method is ghtening its hand
to exceed 1 / 4 to 1 / 2 laps
0.6-0.7mm
Model: D7TC
Clearance: 0.6 ~ 0.7 mm
Torque: 12.5 N • M
1、loosen lock nut.
2、 Hin into a regulator or
unl aaining the free trip.
3、ghten the lock nut.
Gearshi cable adjustment
Handle stall for the free trip should be 2
to 5 mm
1, pinch-locking nut
2, rotaon length of cable regulaon, or screw fastening to the
appropriate date and up.
3, fastening the lock nut.
When can not use the stalls control stalls handle the work,

P26 P27
The adjustment of the front wheel
When travelling to the car aer a period
of me, if the two uneven changes in front
rows can be adjusted according to the
following methods.
1, the fight is the steering wheel.
2, pinch-locking nut.
3, under the direcon of drawbars on the
actual needs of a rotaon adjustment.
4 and get locked ght aer fastening nut.
Adjuster
Locked nut
Driving chain relaxaon of inspecon
Note: rotang wheel several mes to
idenfy the most compact locaon of the
chain. When the chain in the most compact
posion, check or adjust chain relaxaon.
The normal relaxaon of 5 to 15 mm. If
relaxaon beyond 15mm should be
adjusted
The drive chain adjustment
1, fastening the chain-the regulator, and the locking
nut adjustment nut.
2, For tensioning chain, and by rotang clockwise
direcon chain adjuster on the boom of the lock nut
clockwise direcon of rotaon and then adjusng nut.
If the chain needs to relax, according to the direcon
of the chain-clock regulator on the adjustment nut.
3, the adjustment must be ghtened, under lock
nut.
Note: chain relaxaon too small engines and other
key will zero overloading. Relaxaon should be made
to maintain the prescribed limit scope
Locked nut Adjuster
Baery
The drive chain lubricaon
Warning:
● use baeries to be recharged in 30 minutes and cooled to room
temperature to ensure the proper use of baeries. Baery electrolyte
toxic and therefore danger-ous, and so will cause serious burns. The
electrolyte contains sulfuric acid.Avoid contact with skin, eyes or
clothing.
● baery would have exploded gas. Should stay away from sparks,
flames, cigarees, and so on, in or rechargeable baery sealed in a
space, venlaon should be maintained. Near the baery should always
work to protect your eyes.
● should be placed in child care could not get places
The chain includes many mutual operaon of the parts. If the chain
would not carry out proper maintenance, the chain that will soon wear.
Therefore, we must carry out regular maintenance of the chain. In this
dusty region riding car, the more maintenance is necessary.
1, may use any brands of spray-chain lubricant. First, the use of brush
or cloth to remove all the dirt and mud masonry. Then two rows of siding
between the center and all spraying lubricant on the roller.
2, For cleaning chain, will be removed from the board, the Bapst in
soluon should as far as possible removal of masonry scale. The chain
removed from the soluon and make it dry. The chain lubricaon will be
carried out immediately to prevent corrosion.
Check the baeries baery electrolyte level,
and recognizing the terminal and the wiring of
the baery casing is not leakage. If the
electrolyte level low, add dislled water.
Note: The baery electrolyte checks at least
once a month.

P28 P29
The replacement fuse
1, fuse box in the wiring(图一)
2, need to be replaced, please wiring will be demolished to
injectors.(图二)
3, if the fuse fuse, customs breakpoint fire Switches and circuit
switching problem. With the correct installaon of the new
ampere fuse. Connect the switch and watch the work of electrical
installaons. Fusing immediately if the fuse again, please
COOLSTER dealer or repair shop contact.
Warning:
● Do not use the recommended ampere rang higher than the
fuse. Under the correct rang is the fuse will cause large-scale
damage to electrical system and will cause the fire.
Provides fuse: 10 amps
12
Common problem

P30 P31

P32 P33
CLEANING
1, in order to keep the car clean and protect the surface
appearance of the painng, electroplang, should regularly
or irregularly its cleansing. When cleaning, use of external
surface water irrigaon, rush soil. Use a so cloth or sponge
dip cleaning liquid bubble gently cleans the outer surface, to
avoid residual gravel surface and paint scratches
electroplang layer. Finally reuse water for irrigaon.
2, aenon:
● washing, to avoid using the high-pressure water erosion
under parts:
(1) ignion switch;
(2) mul-purpose switch;
(3) Below cushion;
(4) The exhaust pipe muffler exports;
(5) air filter inlet
Aer the car wash thoroughly dry, and then start engine,
running for a few minutes. Finally repeatedly braking
performance brake inspecon and adjustment unl braking
performance standards so far.
Special Note: in the hot engine, the first will not wash.
Engine room temperature with the same queson again
when cleaning. If water pressure caused the brake, the
former damping seals and electrical parts Loss

P34 P35
STORAGE
If the park does not need to use a long me, in order to
maintain a good state of the car, you please address the
following methods:
1), select the right parking place. The locaon should have
security, venlaon, moisture-proof, an-freezing
condions.
2), for engine lubricants.
3) in the fuel tank and the carburetor fuel release all net,
oil stored properly. Note: Do not overlook the release
carburetor net residual oil. Otherwise, no need for a long
me, the surface of the plasc fuel carburetor of holes to
plug, re-use of the car when trouble.
Warning: volale fuel in the fuel emissions, the engine
must be stopped operang in the venlaon good place to
prohibit smoking ban on the use of open flame and sparks
objects.
4) In order to prevent cylinder rust, we should adopt the
following measures:
Remove spark plugs, A Spoonful (15 ~ 20 m) from the clean
engine oil into the cylinder spark plug hole with a piece of
cloth spark plug holes starter motors, mobile number to
Detroit from top to boom so that the oil in the cylinder wall
are cloth. Finally, the spark plugs and spark plug cap
installed.
5) Baery demolion down, stored in anfreeze,
sunscreen, and other items collision difficult places. Every
two weeks an addional charge.
6) wash and dry your car, paint waxing to all, to all chrome
painted on the surface anrust oil.
7) to inflatable res, re pressure up to the required
standard air pressure. Aer stopping the car will be good,
with shelves or pieces of wood and other wheels will be
boosted so that the wheel does not contact with the ground.
8) will cover the car to prevent the dust down. Do not use
plasc sheeng to things such as gas-ght coverage, as there
are for the mechanical vapor corrosion.
1. Vehicles should be solidly fixed on the transporters, there
should be effective rain preventing measures, without bumps
and damaged phenomenon happen.
2. The packing carton shall not be tilted on the way of delivery.
AFTER THE RE-USE STORAGE
Transport
1) Remove the guards cover the car, clean the body. If
placed more than four months, the need for replacement of
engine oil.
2), the baery will be sufficient to re-installed on board.
3) add fuel to the fuel tank.
4) all of the pre-inspecon lane.
5) before traveling during the next regular session, a choice
open, pedestrian areas for less performance inspecon,
confirmed Properes normal traffic could resume normal.

P36 P37
3、Disassembled metal frame
2、Take out carton
1、Disassembled packaging belt
4、Install ball head bara
GK-6125 INSTALL PROCESS AFTER PACKAGING(1)
10.
GK-6125 INSTALL PROCESS AFTER PACKAGING(2)
5、Install front wheel 6、Install front fender
8、Install rear fander
7、Install rear wheel
9、Install battery 10、Install steering
11、Install seat 12、Install shelf
