USER MANUAL
VITA MOBILITY WERKS
964 Northpoint Blvd Waukegan, IL 60085
V15

www.vitamobilitywerks.com
2
CONTENTS
1. SAFETY INSTRUCTION……………………………..……...……………................................…3
2. ELECTOMAGNETIC INTERFERENCE (EMI)……..………….…………………………………7
3. SPECIFICATIONS………………………….…………...………..…………….…………………..9
4. BASIS OPERATION OF SCOOTER……......................................................................................11
5. OPERATION OF CONTROL PANEL…………………..………………………………………..14
6. CHARGING INSTRUCTION….……………………………..………….…………...…………..26
7. BATTERY INSTRUCTION & MAINTENANCE…………...………………………….……..…29
8. SCOOTER MAINTENANCE & REPAIR…..…………...………………….………..………..…31
9. CARE AND MAINTENANCE…………………….………..……………………………………32
10. CIRCUIT DIAGRAM…….………..…….……..………………………..…………………..……34
11. BOM LIST DRAWING………………............…………………….………….……….…………35
12. WARRANTY DECLARATION…………………………………………………………..………36
13. TROUBLESHOOTING & FAULT REPAIR……………………………………………………...37
!

www.vitamobilitywerks.com
3

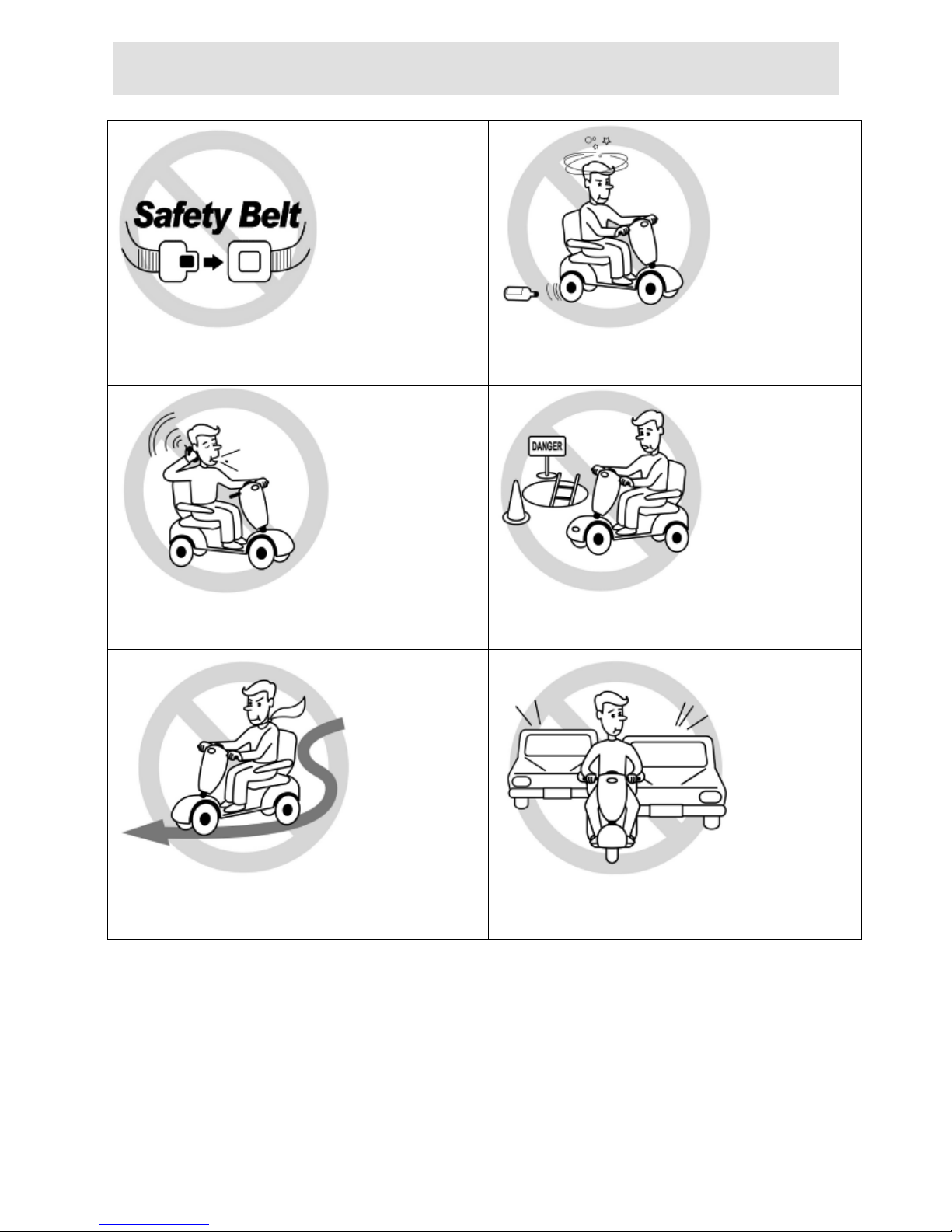

SAFETY INSTRUCTION
!General
Always use a seat belt, and keep your feet on the
scooter all the time.
Never operate the scooter while you are under the
influence of alcohol.
Never use electronic radio transmitters such as
walkie-talkies, or cellular phones.
Make sure that there are no obstacles behind you
while reversing your scooter.
Do not make a sharp turn or a sudden stop while
riding your scooter.
Do not ride your scooter in traffic.

www.vitamobilitywerks.com
4

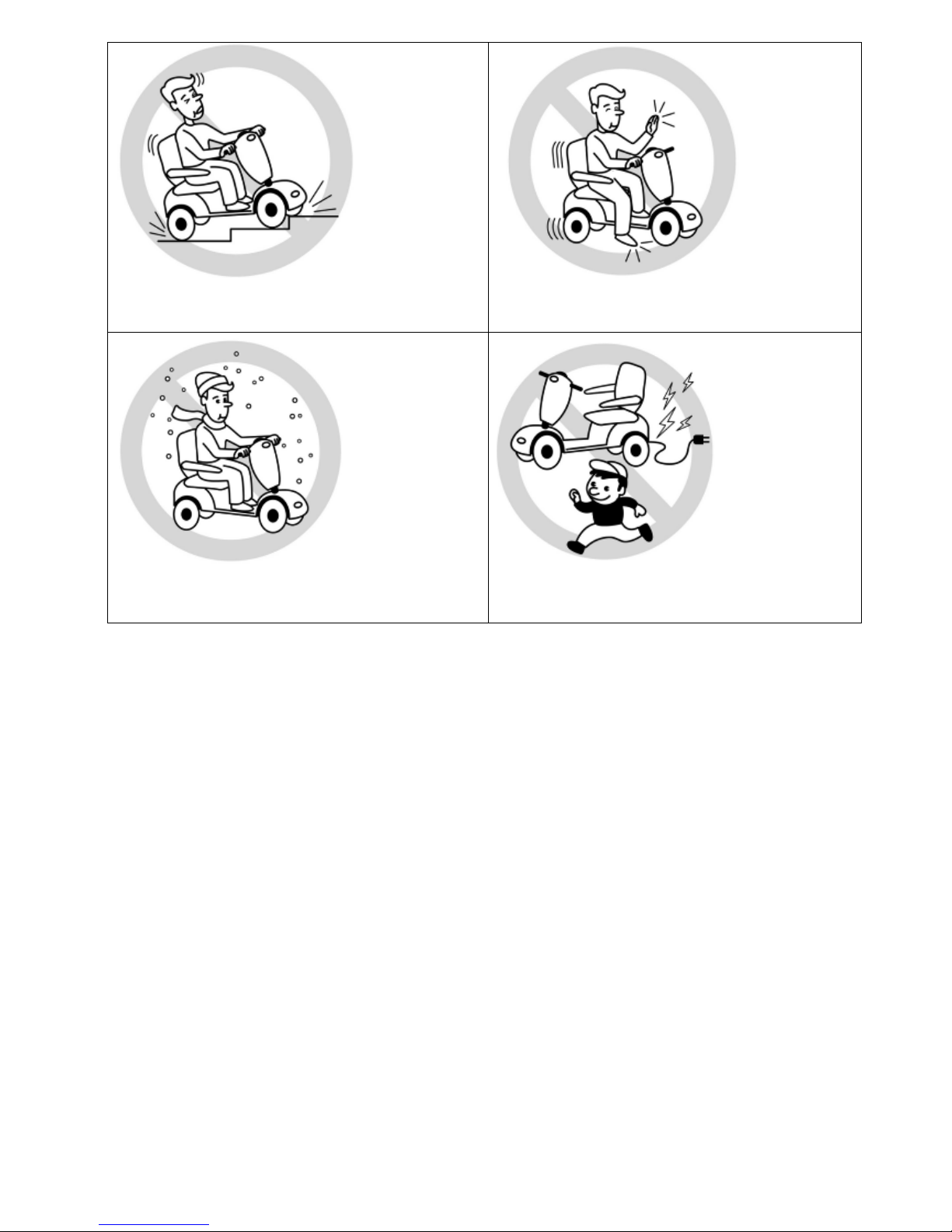

Do not attempt to climb curbs greater than
limitation show on Technical Specification
Do not leave your hands and legs off the scooter
when driving.
Do not ride your scooter during snow in order to
avoid accident on slippery road.
Do not allow unsupervised children to play near
this equipment while the batteries are charging.
!Warning – Don’t operate your scooter for the first time without completely reading and
understanding this user manual.
1. Don’t operate scooter on public streets and roadways. Be aware that it may be difficult for traffic
to see you when you are seated on the scooter. Obey all local pedestrian traffic rules. Wait until
your path is clear of traffic, and then proceed with extreme cautions.
2. To prevent injury to yourself or others, always ensure that the power is switched off when getting
on or off of the scooter.
3. Always check that the drive wheels are engaged (drive mode) before driving. Do not switch off
the power when the scooter is still moving forward. This will bring the chair to an extremely
abrupt stop.
4. Do not use this product or any available optional equipment without first completely reading and
understanding these instructions. If you are unable to understand the warnings, cautions or
instructions, contact a healthcare professional, the dealers or technical supports before attempting
to use this equipment, otherwise, injury or damage may occur.
5. There are certain situations, including some medical conditions, where the scooter user will need
to practice operating the scooter in the presence of a trained attendant. A trained attendant can be

www.vitamobilitywerks.com
5
defined as a family member or care professional especially trained in assisting a scooter user in
various daily living activities. Consult with your physician if you are taking any medication that
may affect your ability to operate your scooter safely.
6. Do not attempt to lift or move a power scooter by any of its removable parts including the
armrests, seats or shrouds. Personal injury and damage to the power chair may result.
7. Never try to use your scooter beyond its limitations as described in this manual.
8. Please do not sit on your scooter while it is in a moving vehicle.
9. Keep your hands away from the wheels (tires) while driving scooters. Be aware that loose fitting
clothing can become caught in the drive tires.
10. Consult your physician if you are taking prescribed medication or if you have any certain
physical limitations. Some medications and limitations may impair your ability to operate
scooters in a safe manner.
11. Be aware when the drive mode is unlocked or locked.
12. Don’t remove anti-tipper if there is any-tipper equipped with the scooter.
13. Contact with tools can cause electrical shock and do not connect an extension cord to the AC/DC
converter or the battery charger.
14. Do not attempt to lift or move your scooter by any of its removal parts, such as the armrests,
seats, or shroud.
15. When climbing an incline, don’t drive at an angle up the face of the incline. Drive your scooter
straight up the incline. This greatly reduces the possibility of a tip or a fall.
16. Don’t climb a slope steeper than the scooter’s limitation.
17. Don’t attempt to have your scooter proceed backward down any step, curb or other obstacle. This
may cause the scooter to fall or tip.
18. Always reduce your speed and maintain a stable center of gravity when cornering sharply. Don’t
corner sharply when driving scooters at higher speeds.
19. Operating in rain, snow, salt, mist conditions and on icy or slippery surfaces may have an adverse
affect on the electrical system.
20. Never sit on your scooter when it is being used in connection with any type of lift or elevation
product. Your scooter is not designed with such use in mind and any damage or injury incurred
from such use is not the responsibility of VMW.
21. Don’t touch the motor after driving. It is hot.

www.vitamobilitywerks.com
6
!Modifications
Vita Mobility Werks has designed and engineered power scooters to provide maximum utility.
However, under no circumstances should you modify, add, remove, or disable any part or function of
your power scooter. Personal injury and damage to the power chair may result.
1. Do not modify your power scooter in any way not authorized by VMW. Do not use accessories if
they have not been tested or approved for VMW products. Changing of controller parameter shall
be only performed by authorized technicians due to the safety concern.
2. Get to know the feel of your power scooter and its capabilities. VMW recommends that you
perform a safety check before each use to make sure your scooter operates safely.
!Inspections prior to using your power scooter:
1. If equipped with pneumatic tires, please check for proper tire inflations.
2. Please check all electrical connections and make sure they are tight and not corroded.
3. Please check all harness connections and make sure they are secured properly.
4. Please check the brakes.
!Weight limitation.
1. Please refer to the specifications table for weight capacity information. Power scooter is rated for a
maximum weight capacity.
2. Stay within the specified weight capacity for your scooter. Exceeding the weight capacity voids
your warranty. VMW will not be held responsible for injuries or property damage resulting from
failure to observe weight limitations.
3. Don’t carry passengers on scooters. Carrying passengers on scooter may affect the center of
gravity, resulting in a tip or a fall.
!Tire inflation
1. If your scooter is equipped with pneumatic tires, it is necessary to check the air pressure at least
one time a week.
2. Proper inflation pressures will prolong the life your tires and ensure the smooth operation while

www.vitamobilitywerks.com
7
riding.
3. Do not under-inflate or over-inflate your tires. It is critically important that 30-25 psi (2-2.4bar)
tire pressure be maintained in pneumatic tires at all times.
4. Inflating your tires from an unregulated air source could over-inflate them, resulting in a burs tire.
!Temperature
1. Some of the parts of the power scooter are susceptible to change in temperature. The controller
can only operate in temperature that ranges between -25 ~ 50.
2. At extreme low temperatures, the batteries may freeze, and your power scooter may not be able
to operate. In extreme high temperatures, it may operate at slower speeds due to a safety feature
of the controller that prevents damage to the motors and other electrical components.
ELECTROMAGNETIC INTERFERENCE (EMI)
The rapid development of electronics, especially in the area of communications, has saturated our
environment with electromagnetic (EM) radio waves that are emitted by television, radio and
communication signals. These EM wave are invisible and their strength increases as one approach the
source. All electrical conductors act as antennas to the EM signals and, to varying degrees, all power
wheelchairs and scooters are susceptible to electromagnetic interference (EMI). The interference
could result in abnormal, unintentional movement and/or erratic control of the vehicle. The United
States Food and drug Administration (FDA) suggests that the following statement be incorporated to
the user’s manual for all power scooter like the V15. Power scooters may as susceptible to
electromagnetic interference (EMI), which is interfering electromagnetic energy emitted from sources
such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios, cellular phones
and alarm systems of shops. The interference (from radio wave sources) can cause the power scooter
to release its brakes, move by itself or move in unintended directions. It can also permanently damage
the powered scooter’s control system. The intensity of the EM energy can be measured in volts per
meter (V/m). Each powered scooter can resist EMI up to certain intensity. This is called “immunity
level”. The higher the immunity level the greater the protection. At this time, current technology is
capable of providing at least 20 V/m of immunity level, which would provide useful protection
against common sources of radiated EMI.
Following the warnings listed below should reduce the chance of unintended brake release or powered
scooter movement that could result in serious injury:
1. Do not turn on hand-held personal communication devices such as citizens band (CB) radios and
cellular phones while the powered scooter is turned on.

www.vitamobilitywerks.com
8
2. Be aware of nearby transmitters such as radio or TV stations and try to avoid coming close to
them.
3. If unintended movement or brake release occurs, turn the powered scooter off as soon as it is
safe.
4. Be aware that adding accessories or components, or modifying the powered scooter, may make it
more susceptible to interference from radio wave sources (Note: It is difficult to evaluate the
effect on the overall immunity of the powered scooter).
5. Report all incidents of unintended movement or brake release to the powered scooter
manufacturer, and note whether there is a radio wave source nearby.
TURN OFF YOUR POWERED SCOOTER AS SOON AS POSSIBLE WHEN EXPERIENCING
THE FOLLOWING:
"Unintentional scooter movements
"Unintended or uncontrollable direction.
"Unexpected brake release
The FDA has written to the manufacturers of power scooters asking them to test new products to be
sure they provide a reasonable degree of immunity against EMI. The FDA requires that a powered
wheelchair should have an immunity level at least 20 V/m, which provides a reasonable degree of
protection against more common sources of EMI. The higher the immunity level the greater the
protection. Your powered scooter has an immunity level of 20 V/m which should protect against
common sources of EMI. Warning: The scooter itself can disturb the performance of the
electromagnetic fields such as emitted by alarm systems of shops.

www.vitamobilitywerks.com
9
V15 - TECHNICAL SPECIFICATIONS
MODEL
V15 (Class C scooter according to EN 12184)
WEIGHT CAPACITY
350 lbs
SEAT: TYPE/SIZE
20" A2
DRIVE WHEEL
13" x 5"
FRONT CASTER (WHEEL)
13" x 3.5"
REAR CASTER (ANTI-TIPPER)
None
MAX SPEED
8.4 MPH
BATTERY SPECIFICATIONS
12V 80 Ah x 2pcs
BATTERY RANGE
31miles
CHARGER TYPE
8Amp,Off Board, Volt: 120 or 240 (50/60Hz)
CONTROLLER TYPE
Dynamic Rhino2 120Amp / S-Drive 140 Amp
MOTOR TYPE
5100rpm,700W, Gear Ratio25:1 / Optional 20:1
WEIGHT: W/ BATTERY
303 lbs
WEIGHT: W/O BATTERY
215 lbs
TURNING RADIUS
50”
SUSPENSION
FULL
LENGTH
55.1”
WIDTH
27.6”
HEIGHT
53.5”
SEAT WIDTH
20”
SEAT HEIGHT
18.1”
SEAT DEPTH
19”
BACK HEIGHT
29.5”
WHEEL BASE
40.4”
GROUND CLEARANCE
3 ¼”
LEG ROOM
13.4”
Height of Kerb for descending
Same as 4”
Max Force For Controller Device
Engaging lever: 30 N
Disengaging lever: 35 N
Throttle lever: 3N
Push button: 1.5 N
Max Climbing Ability
12 Degree
Max Safe Slope
10 Degree

www.vitamobilitywerks.com
10
Disclosure information
min.
max.
min.
max.
Overall length
with leg rest
mm
1400 m
m
Seat plane angle
2°
°
Overall width
mm
700 mm
Effective seat depth
480 mm
480 mm
Folded length
mm
1400 m
m
Effective seat width
510 mm
510 mm
Folded height
mm
127 mm
Seat surface height at
front edge
mm
mm
Total mass
kg
138 kg
Backrest angle
0 °
12 °
Mass of the
heaviest part
kg
22.0 kg
seat
Backrest height
750 mm
mm
Static stability
downhill
15.1°
Footrest to seat
distance
460 mm
460 mm
Static stability
uphill
15.1°
°
Leg to seat angle
-
-
Static stability
sideways
15.3°
°
Armrest to seat
distance
230 mm
230 mm
Energy
consumption
km
40 km
Front location of
armrest structure
-
-
Dynamic
stability uphill
10°
°
Handrim diameter
mm
mm
Obstacle
climbing
mm
100 mm
Horizontal location of
axle I
- 150 mm
- 150 m
m
Maximum
speed forward
km/h
6.1 km/
h
Minimum turning radius
2015 mm
Minimum
horizontal
braking distance
from max speed
0.9 m
Minimum turn-around
Width
2500 mm
"#$!%&''($)!%$*(!+%!($%($,!*&&'),+-.!('!/01231!)$.*),+-.!)$%+%(*-&$!('!+.-+(+'-4!56(!+(!+%!
)$&'77$-,$,!('!*8'+,!6%$)%!'9!9:*7$!-$*)!(#$!%&''($)%!*-,!%7';+-.!,6)+-.!%+((+-.!'-!(#$!%&''($)<! !
"#$!$:$&()+&!%=%($7!'9!(#+%!%&''($)!+%!+-!&'7>:+*-&$!?+(#!@AB!C1CDE1FG322H! ! !

www.vitamobilitywerks.com
11
BASIC OPERATION OF SCOOTER
Driving and braking

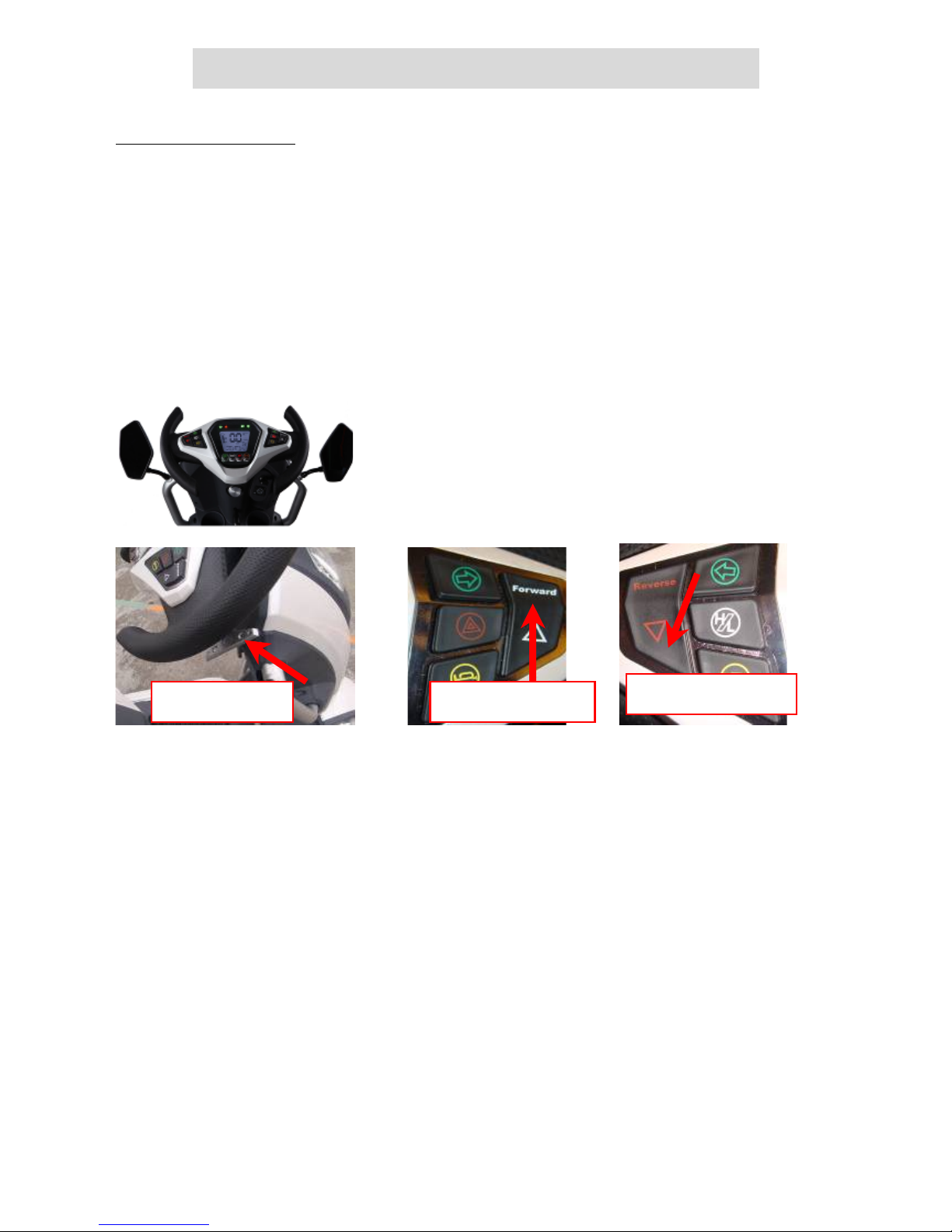

You can use the throttle lever to control the forward speed or the reverse speed of your scooter.
Please refer to the following instruction to move forward/backward your scooter.
"Switch to forward mode by clicking the FORWARD BUTTON
"If you re-press the FORWARD BUTTON again, then the scooter will become backward mode.
"Switch to backward mode by clicking the REVERSE BUTTON
"If you re-press the BACKWARD BUTTON again, then the scooter will become forward mode.
"Use your right finger to press on the right side of the throttle lever in order to move forward or
move backward
#Please release the throttle lever and then allow your scooter to come to a complete stop.
#The automatic brake will become activated if the transferring speed is more than 30% of the
maximum speed while the scooter is driving down-slope at free-wheel mode.
Throttle Level
Switch to Forward
Switch to Backward

www.vitamobilitywerks.com
12
WARNING !
Tiller Positioning
"Press down the lever and adjust it into your preferred position.
"Never attempt to adjust the tiller while the scooter is in motion.
"Make sure the tiller is at a comfortable setting and located securely.
I*)-+-.G!
"#$!($7>$)*(6)$!'9!%&''($)!%6)9*&$!&*-!+-&)$*%$!?#$-!(#$!%&''($)!+%!$J>'%$,!('!$J($)-*:!
%'6)&$!'9!#$*(!K$<.<!%6-:+.#(L!
!
M')!*-=!7$&#*-+&*:!*,N6%(7$-(!'-!(#$!(+::$)!')!'-!(#$!%$*(4!5$!*?*)$!'9!()*>>+-.!*-,!%O6$$P+-.!'9!
='6)!9+-.$)%<! !
!
!
!
Disengaged
(Free Wheel)
Engaged
$Please be noted that the scooter will be at free-wheel
mode, when the motor is disengaged.
$To use the parking brake, you must move and lock
the lever into the engaged position!
$When your power scooter is in freewheel mode, the
braking system is disengaged!
$Use the free-wheel mode only with an assistant!
$The assistant may operate the engaging lever to apply
the parking brake.

www.vitamobilitywerks.com
13

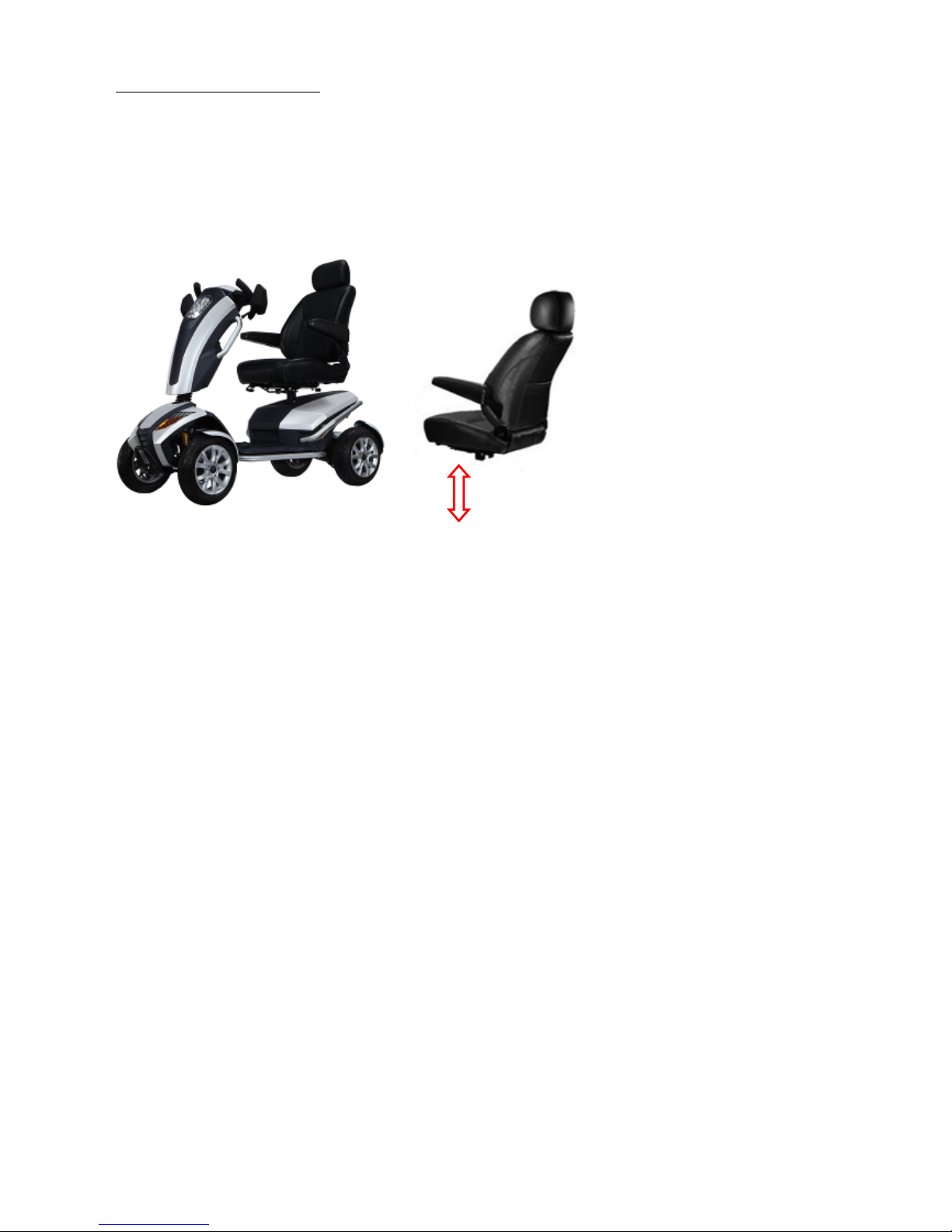

How to remove the seat
Please refer to the following instructions.
1) Press the swivel lever
2) Swivel the seat
3) Pull the seat upward (Two persons are required to remove the seat)
4) Removing the battery and seat from the scooter is allowed before transporting.

www.vitamobilitywerks.com
14
OPERATION OF CONTROL PANEL

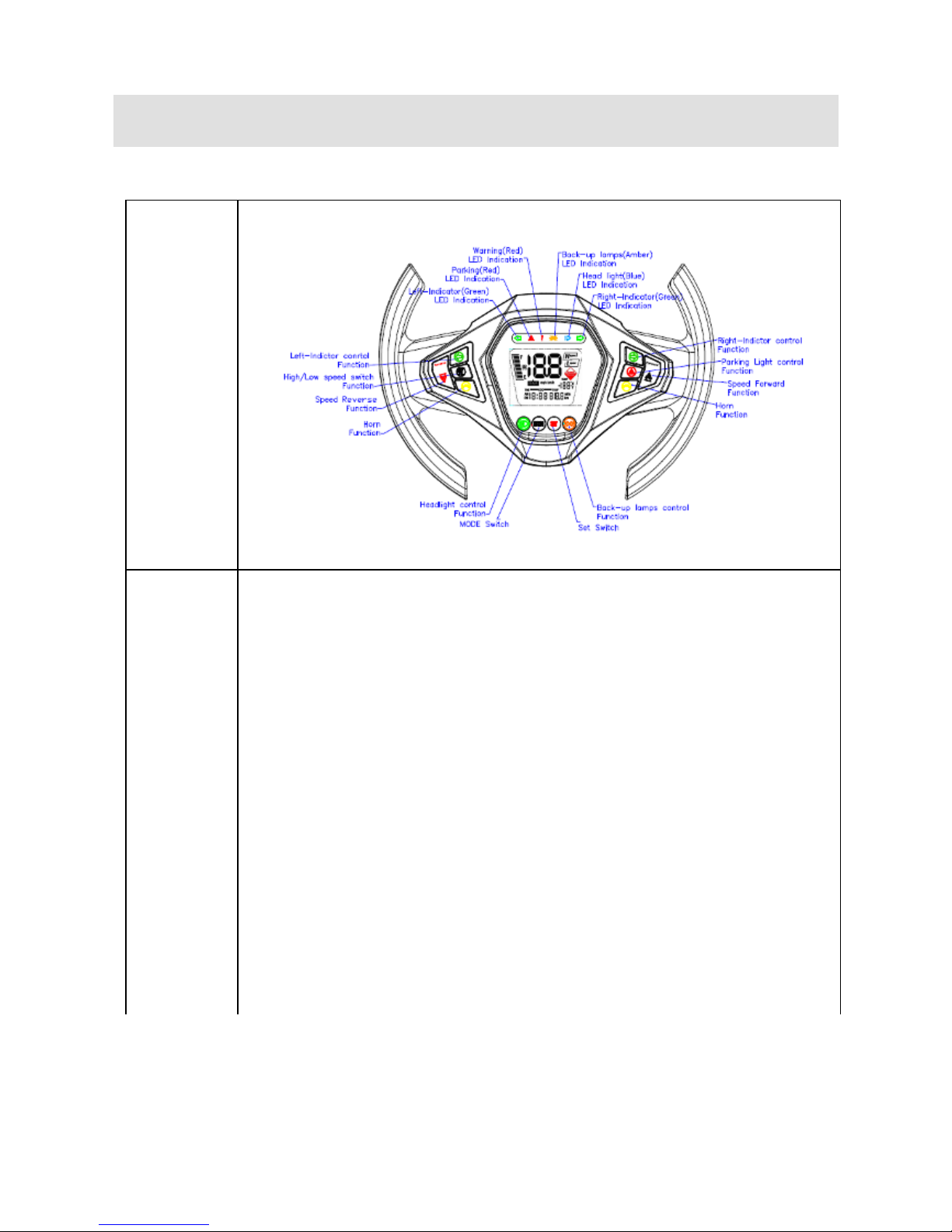

LCD（Liquid Crystal Display）Power Scooter Control Panel, TN Type
Model
LCD (Liquid Crystal Display)
Functions
1. Power Indicator：Battery remaining capacity and charging indicator (6 squares + Battery Icon)
2. Clock：Hour / Minute / Second display and setting.
3. Speed Sensor：7 Segment display (2.5 digits +1 decimal) + “km/h / mph” symbol
4. High/Low/ Turn Speed：Indicated as “H” and “L” symbols
5. Odometer：ODO(99999km max)、TRIP(99.9 max)
6. Headlight：“Power-saving” mode, Blue LED
7. Back-up Lamps：“Brake / Reverse” modes, Orange LED
8. Forward control: Forward mode. Signal is always on.
9. Backward control: Backward mode. Signal keeps flashing.
10. Right-Indicator：Flash mode, Green LED
11. Left-Indicator：Flash mode, Green LED
12. Parking Lamp：Including “Reverse Mode”, left- indicator and right-indicator flashing
simultaneously, Red LED
13. Malfunction Code：7 Segment display (1digit ) + Warning symbol + Red LED
14. Power-on Scan：All LED turn on. 5-second backlit flash. Button light on.
15. TEMP Gauge：ºC and ºF modes

www.vitamobilitywerks.com
15
Buttons
Forward control Backward control
：Left-Indicator control ：Right-Indicator control
：High/low speed switch ：Parking
Buttons
：Horn ：Horn
：Headlight :MODE ：SET ：Back-up Light
LED Indicators
Right & Left indicator (Green) ，Parking light (Red)，Warning light (Red)，Back-up lamps
(Yellow)，Headlight (Blue)
LCD Backlight
LED (White)
Connector
20PIN AMP
Usage Condition
1.Voltage & Temperature
ITEM
SPECIFICATION
Voltage
DC24 V
Operation Voltage
DC 16 ~32 V
Storage TEMP.
-40 ~ 65
Operation TEMP.
-25 ~ 50
Meter Angle at
Handle Cover
30°of elevation while scooter assembly (LCD orientate to six o’clock)
2、General Characteristic Performance Test (20 ±5 )
2.1、Hardware Circuit:
ITEM
SPECIFICATION
RESULT
Lowest Operation VOLT
16 V max
V
Consuming Current
(VB = 24.0V)
Dynamic: 200 mA max
-- Backlight and LED light status
Static: 5 mA max
-- Key OFF status
mA
mA

www.vitamobilitywerks.com
16
Operating Instruction
1.Speed Sensor and Display
ITEM
SPECIFICATION
Operation Features
Speed detection by speed hall sensor from transaxle with conversion at 1821 rpm equal to
37 mph.
Tolerance
5~15% (±2%)
Digital Range
0~199 km/0~124 mile
Display Switch Button
Initial setting at km/h, switch to MPH by MODE and SET buttons

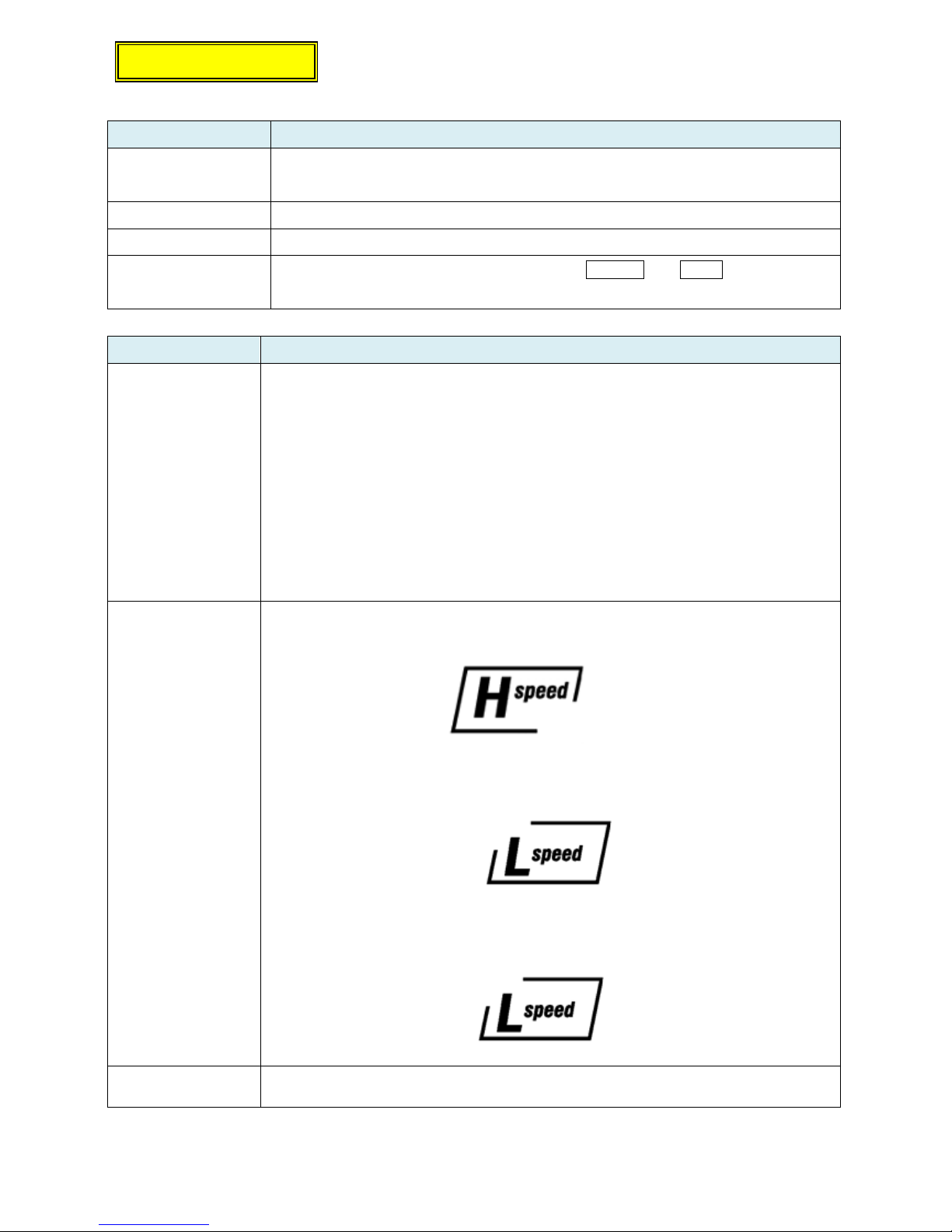

2.High /Low Speed Setting
ITEM
SPECIFICATION
Operation Features
(1) Trigger buttons to switch from high-speed to low-speed (also from low-speed to
high-speed), then set the number of segments from 1 to 5 .The setting time will take 5
seconds for each segment.
(2) L will flash while turning at corner.
(3) As a constant speed detector to determine the signal, the speed light will flash while
travelling at constant speed.
Symbols on LCD
＂H＂symbol means “High Speed” –Corresponding from 1-5
＂L＂symbol means “Low Speed” – Corresponding from 1-5
＂L＂symbol flashing means “Turning at the corner”
Flicker Frequency
1 sec

www.vitamobilitywerks.com
17

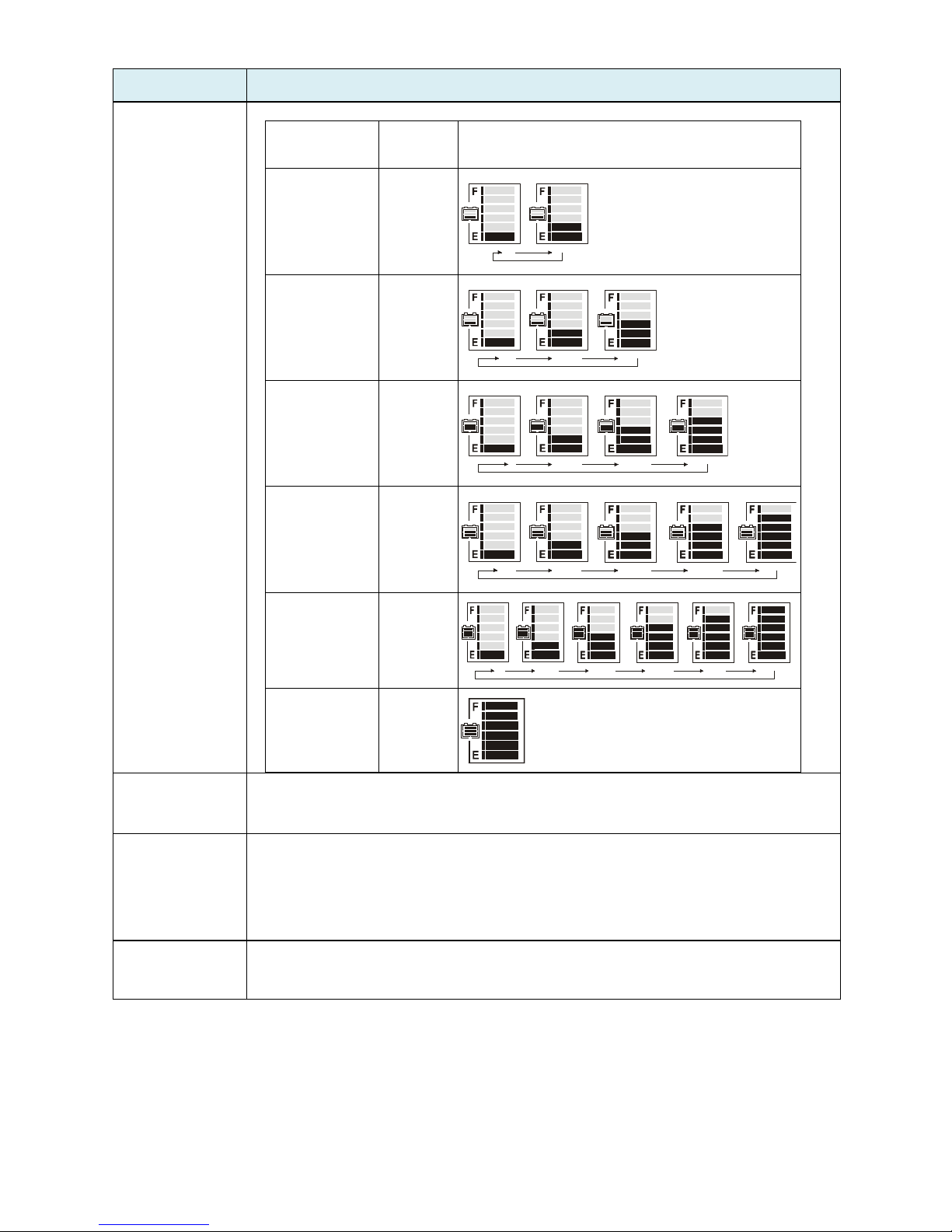

3.Power Indication
ITEM
SPECIFICATION
Battery Remaining
Capacity
Remaining Capacity
(%)
Voltage (V)
Scale Bar
100
(6)
＞25.42
85
(5)
25.42
70
(4)
25.12
55
(3)
24.78
40
(2)
24.42
30
(1)
23.88
and Flashing
20
Low-power
Warning
Warning LED Flashing
Flicker Frequency
Every 2 sec.
Operation Characters
(1) Scale status only decrease, won’t increase.
(2) When the remaining capacity was less than 30%, warning sound (“Be-Be” two short sounds)
act at 5 seconds intervals.
While (a) Key Off (b) Charging Mode (c) Sleep Mode, warning sound released.

www.vitamobilitywerks.com
18
ITEM
SPECIFICATION
Charge Indication
Remaining
Capacity (%)
Voltage (V)
Scale Bar
40
(2)
＜25.44
55
(3)
＞25.44
70
(4)
＞26.18
80
(5)
＞26.92
90
(6)
＞28.5
100
(7)
Increase
Frequency
0.5 sec.
Operation
Character
(1) Scale status only decrease, won’t increase.
(2) Take the PIN3(CH3) of charger as determinant signal, enter「Charging Mode」when CH3
grounding (L), not only “KEY ON” or “KEY OFF”.
Remarks
Above scale bar status only for reference, must take the indicator of charger as the precise
diagnosis.

www.vitamobilitywerks.com
19
4.Clock Meter
ITEM
SPECIFICATION
Tolerance (per day)
± 2 sec
Initial Setting Value
『Hour：Min』mode :『AM 12:00』
『Hour : Min』
Setting
(12-Hour format)
Display range : AM12:00 ~ PM11:59
When『Hour』is between 1 and 9 o’clock, displayed at 1~9.
5.Odometer
ITEM
SPECIFICATION
Operation Features
Odometer detected by the signal of Opto Coupler then converts into distance.
Display Switch Button
「km/h」means the odometer displayed as kilometer.
「mph」means the odometer displayed as mile.
Accumulative Display
[ODO]
(1) Display Range:00000~99999
(2) Once the total mileage up to 99999km or 62149mile (99999÷1.609mile), the counter will
restart from “00000”.
TRIP Counter
(1) Display Range：00.0~99.9
(2) When over 99.9km, display stop counting
(won’t restart from “00.0”).
Operation status
(1) Odometer indication display on ODO mode when Power On, then switch to TRIP mode
after 5 seconds.
(2) TRIP can be reset to “00.0”.

www.vitamobilitywerks.com
20
6.Headlight Control
ITEM
SPECIFICATION
Operation Feature
Take exterior headlight switch as determinant signal.
(1) Switch on/off the head light by pressing button once, then LED will turn
on/off simultaneously.
(2) LCD backlights turn on / turn off with headlight.
Power Saving Mode
When motor stops, the modulation down to 30% (Headlight)
When motor acts, 100% output power (Headlight)
Usage Condition
While (a) KEY OFF (b) Power-Saving mode (c) Sleep mode, all functions closed.
Determinant
Condition
(1) 2.2V＞WIP＞2.8V ( 100% Full-power )
(2) 2.2V＜WIP＞2.8V ( 100% Full-power )
(3) Power saving mode /Full power output: instant reaction
Full power output/ Power saving mode: 5 seconds delay
Remarks
(1) Loop Load: 24V/50W max
(2) With “short circuit” and “overload” protection
7.Back-up Lamp control
ITEM
SPECIFICATION
Operation Feature
Take exterior back-up lamp switch as determinant signal.
(1) Switch on/off the head light by pressing button once, then LED will
turn on/off simultaneously.
(2) LCD backlights turn on / turn off with headlight.
(Control Mode)
Brake-lamp Mode
Reversing-lamp Mode
When motor changes from act (go forward) to stop, the lamp reinstated after flashing
for 5 sec.
Determine as “Reversing Mode”, back-up lamp keep flashing.
Reverse warning sound can be set by panel (Turn on / Turn off)
Usage Condition
While (a) KEY OFF (b) Charging Mode (c) Sleep Mode, all functions closed.
* Brake-lamp & Reversing-lamp Mode won’t be limited by Back-up lamp switch on or
off.
