Coolzone CZ51156 User manual

Drinks chiller
CZ51156
UUSSEERRIINNSSTTRRUUCCTTIIOONNSS
Please read these instructions carefully before using this product
and keep them safe for future reference.

Page 2
Before use
Packaging
The packaging is recyclable so dispose of it according to local regulations. Keep the packaging materials
out of reach of young children.
Warning

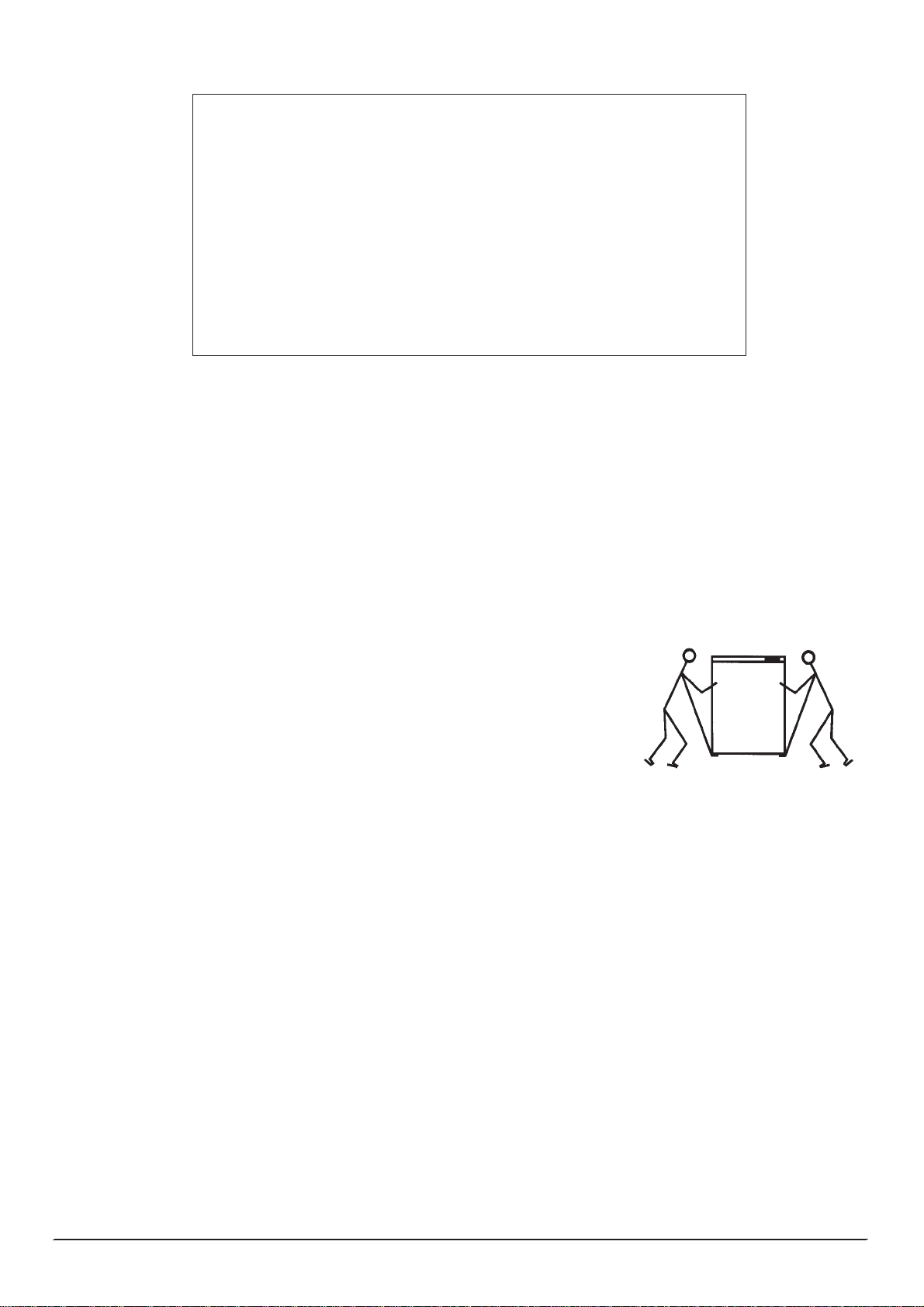

The chiller is heavy and care is needed when unpacking and moving it.
Get extra help and only hold it by the casing – not the door or trim.
After unpacking, wipe the casing with a dry cloth and clean the inside
with a damp cloth ready for use.
Page contents
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Do and Don’t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Parts identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Fuse and mains plug replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ODo read these instructions thoroughly before
using this appliance.
ODo install the appliance only in the vertical
position.
ODo stand for 12 hours to allow the cooling
gases to stabilise before connecting to power
supply.
ODo install to allow for adequate ventilation
around the appliance (see Figure 5).
ODo not install near heaters or other heat
sources.
ODo unplug before cleaning and maintenance.
ODon’t install the appliance in humid or extreme
conditions.
ODon’t attempt to repair the appliance yourself
(see Helpline information – page 7).
OOnly use it in accordance with the
manufacturer’s instructions.
ODon’t use any other electrical device inside the
appliance to defrost.
ODon’t store goods containing inflammable or
other explosive gases.
ODon’t leave door closed if appliance is left
switched off for long periods.
Do and Don’t

Page 3
Parts identification
1. Thermostat control
2. Adjustable foot
3. Slide-out shelf
Check the following contents are included with the
product and inspect the casing for any damage. If
there is any damage, contact the retailer from
whom you purchased the product.
Door reversal
This appliance has the facility to hang the door on
the opposite side.
Depending where you plan to locate the chiller,
reversing the door may make access more
convenient.
1. Remove the top hinge cover (Figure 3).
2. Support the door and unscrew the two screws to
remove the top hinge bracket and spacer (if fitted).
3. Lift away the door.
4. Unscrew the foot (Figure 4).
5. Remove two screws and take off the bottom
hinge plate (Figure 5).
6. Screw the foot into one of the holes uncovered
when the hinge plate was removed.
7. Screw the bottom hinge plate to the opposite
corner of the cabinet.
8. Replace the door on the lower hinge pin.
9. Support the door and fit the top hinge.
10. Replace the top hinge cover.
FIGURE 3 HINGE
COVER
TOP
HINGE
PLATE
BOTTOM
HINGE PLATE
ADJUSTABLE
FOOT
SCREWS
BUSH
SCREW
FIGURE 1
1
32
FIGURE 4
FIGURE 5
FOOT

Page 4
The appliance is designed to operate at normal
room temperatures. Position it away from any heat
source such as a boiler, ovens and heaters which
will reduce the cooling efficiency of the chiller. It is
also not advisable to install the appliance in
unheated locations, such as garages or
outbuildings, as these will impair the operation of
the chiller in winter.
The chiller requires space around the casing for
efficient cooling and operation.The minimum
clearances are shown in Figure 6.
The chiller must be installed on a firm, flat and level
surface for it to work quietly and efficiently.
An adjustable foot under the hinge plate can be
turned by hand to make fine adjustments to level
the appliance.
Ensure the shelves are correctly located in the
runners and that the collecting tray above the
compressor is in position (rear of the casing).
Switching on
Plug the chiller into a nearby power socket and
switch on. Turn the thermostat control to the
NORMAL position on the dial and leave the chiller
running with the door closed for approximately 2
hours.This will allow the inside temperature to
stabilise.
Temperature control
The temperature of the chiller is best maintained at
around 0°C to +5°C, depending upon the season of
the year and room temperature.
It is recommended to use (not supplied) a fridge
thermometer to accurately monitor the internal
temperature in the chiller.
Never put hot items in the chiller.
Important
Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your
home.
This quality product has been tested and certified to meet all applicable UK electrical and safety standards.
50mm
50mm
50mm
Installation
FIGURE 6
Notes on operation
During normal operation the following noises may be heard:
OStifled murmur from compressor when it is working.
OSoft gurgling from the coolant flowing through the cooling system.
OClick from the thermostat switching on and off.
The diagram shows the correct air flow
allowance that should be left around the
appliance.

Page 5
Maintenance and cleaning
It is recommended to clean and wipe out the chiller
after any spillage inside or outside the appliance.
Use a teaspoonful of bicarbonate of soda diluted in
a pint of warm water. Wipe the internal surfaces
and shelving to remove residues. Leave to dry
before reloading.
Keep water away from the thermostat housing.
Finally, wipe the door seal.
The chiller automatically keeps a constant
temperature dependent upon the thermostat
setting. Beware of the back wall as this may be cold
to the touch.
Wipe the outside casing from time to time in order
to remove dirt and dust.
Drainage channel
Water collects in the drainage channel on the back
wall.The drainage needs to be cleaned regularly to
avoid the build up of impurities.Wipe the channel
with a damp cloth and clean out any residue from
the drainage hole.
Clean the collecting tray from above the
compressor motor (rear of the casing) ensuring that
the drainage pipe is also clear.
External cleaning
Keep the compressor motor (located at rear of
casing) free from dust to maintain optimum
efficiency. Use a soft brush or vacuum cleaner to
remove the dust, taking care not to damage the
pipes and wiring.
When not in use
If the appliance is to be emptied and turned off for
a long period it is advisable to:
ODisconnect the unit from the mains supply.
OEmpty the chiller.
OClean and dry the interior.
OLeave the door open – do not close.
Important
The chiller must be turned off at the mains before maintaining or cleaning.
FIGURE 7 DRAINAGE
HOLE
DRAINAGE
CHANNEL

Fuse and mains plug replacement
This product is supplied with a moulded plug which contains a 13A
fuse. If you are simply replacing the fuse, you must use a 13A fuse
which has been approved by ASTA to BS1362 (Figure 8).
Do not use without the fuse cover being in position.
If the plug does not fit the socket or becomes damaged, a new plug
must be fitted. Replace the original plug with the correct plug for
your socket. If this is a 3-pin (square pin) 13A (BS1363) plug, you
must make sure that it is fitted with an ASTA approved 13A fuse.
If another type of plug is used, it must be protected by a 15A fuse,
either in the plug or at the distribution board.
1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this appliance are
coloured in accordance with the following code (Figure 9):
GREEN/YELLOW = EARTH (E) BLUE = NEUTRAL (N)
BROWN = LIVE (L)
This product must be earthed.
As the colours of the wires in the mains lead may not correspond
with the colour markings identifying the terminals in your new plug,
proceed as follows.
The wire which is coloured GREEN or YELLOW/GREEN must be
connected to the terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be connected to the terminal
in the plug which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
3. Ensure that the connections are tight and that no loose strands
are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
If the mains lead becomes damaged consult a qualified
electrician.
FIGURE 8
FIGURE 9
FUSE
FUSE
COVER
Page 6
Troubleshooting
Problem Possible cause Remedy
Appliance does not run No power Check power is switched ON
Faulty fuse Check fuse in plug
Thermostat setting too low Set the thermostat setting higher
Chiller is not cold enough Door is open for too long Do not open door needlessly
Located too near a heat source Relocate appliance
Inadequate airflow around appliance See Figure 4
Abnormal noise and vibration Appliance not level Choose a level surface
Cooling tubes touching cabinet or other parts Carefully ease away tubes from other parts

Page 7
Specification
Capacity (litres) 50
Dimensions: HxWxD mm 510x450x450
Consumption (watts) 68
Power supply 220/240V, 50Hz
Nominal daily consumption (kWh) 0.54
Climate class N
Product specifications may vary without prior notice.
After sales service
This appliance is guaranteed for a period of two years from date of purchase against defects in materials
and workmanship only, and provided that all these user instructions have been strictly complied with.The
guarantee does not cover incidental or consequential loss, such as loss of food.
Where this guarantee applies, the appliance will be repaired or replaced at the manufacturer's option
without charge. If the guarantee does not apply or has expired, you will be given a quotation for cost of
repairs and any parts required.
Keep your purchase receipt with these instructions, and in the event of breakdown contact the HELPLINE
on 0844 871 0011.
Safety measures
Never try to repair the appliance or the electrical parts yourself.
Disposal of old chiller
Disposal of the appliance must conform with EU environmental regulations.
Cut off the mains lead and remove any door locks to ensure the appliance is beyond further use.
The appliance must be delivered to an authorised collection centre.
This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin symbol, indicates
that this appliance/fitting may not be treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local
environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this
product, please contact your local authority, your household waste disposal service or the retailer where you purchased the
product.

CZ26535/270208
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without notice.
