Cooper & Hunter Victoria CH09VCT115VI User manual

VICTORIA
HIGH-WALL DUCTLESS
AIR CONDITIONING &
HEATING SYSTEM
INSTALLATION MANUAL
Models:
CH09VCT115VI/CH09VCT115VO
CH12VCT115VI/CH12VCT115VO
CH09VCT230VI/CH09VCT230VO
CH12VCT230VI/CH12VCT230VO
CH18VCT230VI/CH18VCT230VO
CH24VCT230VI/CH24VCT230VO

CH09VCT115VI/CH09VCT115VO (115V)
System Includes: CH09VCT115VI, CH09VCT115VO
CH12VCT115VI/CH12VCT115VO (115V)
System Includes: CH12VCT115VI, CH12VCT115VO
CH09VCT230VI/CH09VCT230VO (230V)
System Includes: CH09VCT230VI, CH09VCT230VO
CH12VCT230VI/CH12VCT230VO (230V)
System Includes: CH12VCT230VI, CH12VCT230VO
CH18VCT230VI/CH18VCT230VO (230V)
System Includes: CH18VCT230VI, CH18VCT230VO
CH24VCT230VI/CH24VCT230VO (230V)
System Includes: CH24VCT230VI, CH24VCT230VO

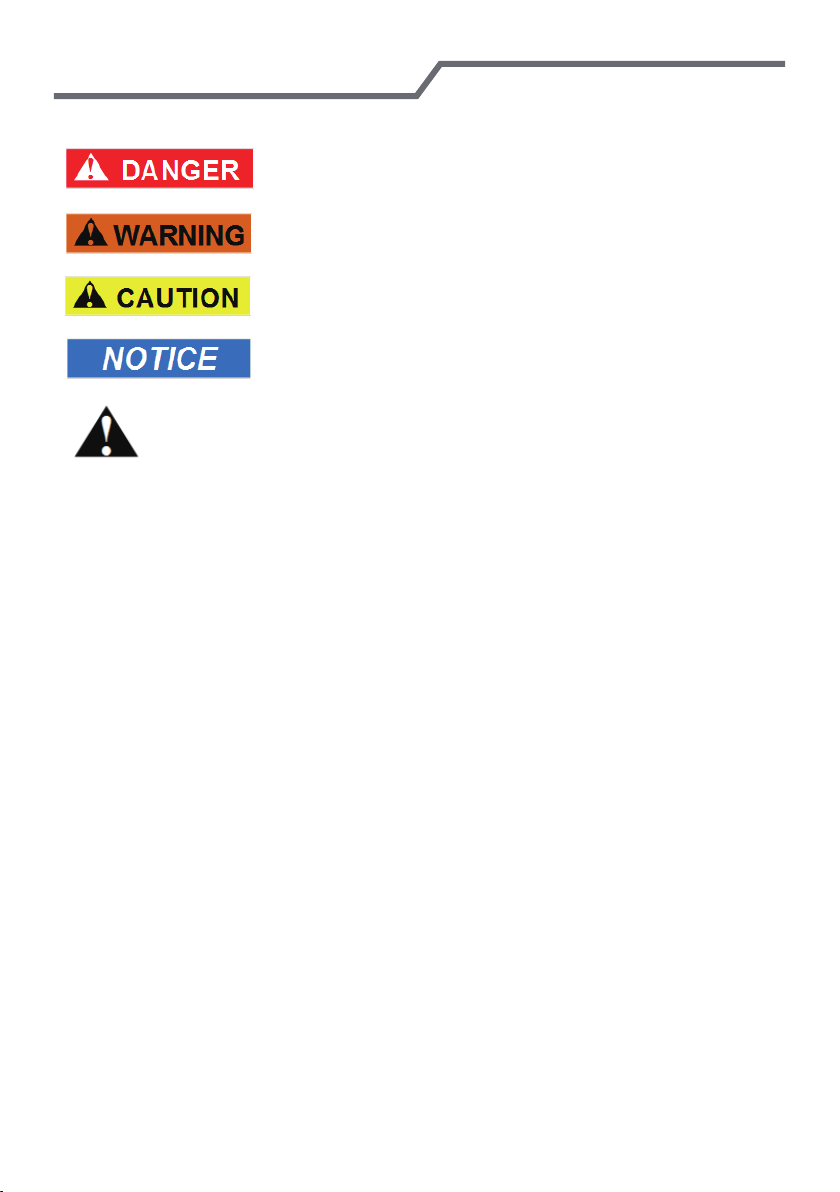

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.

Content
Installation Notice
Precautions . .........................................................................................................1
System Requirements Piping Requirements . .........................................................6
Installation dimension diagram. ...........................................................................7
Installation of outdoor unit. ................................................................................15
Vacuum pumping ...............................................................................................19
Leakage detection..............................................................................................19
Check after installation.......................................................................................20
Test and operation
Test operation . ..................................................................................................20
Attachment
Configuration of connection pipe ......................................................................21
Pipe expanding method. ....................................................................................23
Start-Up and troubleshooting. ...........................................................................24
Tools for installation. .............................................................................................8
Selection of installation location . .........................................................................8
Requirements for electric connection ....................................................................9
Installation
Installation of indoor unit. .................................................................................10

1
Precautions
WARNING
Do not connect air conditioner to multi-purpose socket.
This appliance is not intended for use by persons (incl-
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
uding children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.

Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
●Power cord is overheating or damaged.
●There’s abnormal sound during operation.
●Circuit break trips off frequently.
●Air conditioner gives off burning smell.
●Indoor unit is leaking.
contact the dealer or qualified professionals for service.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
2
Precautions
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
WARNING

Do install the circuit break. If not, it may cause malfunction.
of at least 1/8in (3mm) in all poles should be connected
in fixed wiring.
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
power supply circuit and circuit break.
3
Precautions
note the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
WARNING

Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of National Electrical Codes (NEC) and
local electrical codes by authorized personnel only.
4
Precautions
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
WARNING

The indoor unit should be installed close to the wall.
reachable after finishing installation.
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Precautions
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug, the plug should be
5
WARNING
Working temperature range
Indoor side DB/WB(°C/°F) Outdoor side DB/WB(°C/°F)
Maximum cooling 26.7/19.4(80/66.9) 46.1/23.9(115/75)
Maximum heating 26.7/-(80/-) 23.9/18.3(75/64.9)
󱕰 The operating temperature range (outdoor temperature) for cooling only unit is
-0.4°F(-18°C )~115°F(46.1°C ); for heat pump unit is -4°F(-20°C )~115°F(46.1°C ).
NOTICE:

REFRIGERANT CHARGE
ELECTRICAL REQUIREMENTS
PIPE SIZE in (mm)
Notes: Insulate both refrigerant lines, separately.
Notes: 1) System must be on a single dedicated circuit.
2) Main power is supplied to the outdoor unit.
3) Use table above to size over current protection.
4) Follow all local building codes and NEC (National Electrical Code) regulations.
Interconnecting Cable:
Recommended cable -16/4 AWG stranded bare copper conductors THHN 600V unshielded wire
Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices.
Condensate Drain Size: 5/8-in OD 7/16-in ID Note: Insulate condensate drain hose to
prevent sweating and possible water damage.
Unit Size Voltage Liquid Line Suction/Gas Line
(BtuH)
9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 115v - 1ph 60hz 1/4 (6)
1 / 2 ( 12 )
9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 208/230v - 1ph 60hz 1/4 (6)
1 / 2 ( 12 )
18,000 208/230v - 1ph 60hz 1/4 (6) 5 / 8 (1 5.8 )
24,000 208/230v - 1ph 60hz 1/4 (6) 5 / 8 ( 15.8 )
Unit Size Voltage Min Line Max Line Max Elevation
(BtuH) Length Length (ID over OD)
9,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
12,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
9,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
12,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
18,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)
24,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)
**Main power wire from electrical panel to outdoor unit.
*Precharge amount for up to 25-ft of refrigerant pipe.
REFRIGERANT LINE LENGTHS ft (m)
Unit Size Voltage Refrigerant Factory System Additional
(BtuH) Type Charge oz (kg)* Charge oz/ft (g/m)
9,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
12,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
9,000 208/230v - 1ph 60hz R410A 26.1 (0.74) 0.2 (20)
12,000 208/230v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
18,000 208/230v - 1ph 60hz R410A 45.9 (1.3) 0.2 (20)
24,000 208/230v - 1ph 60hz R410A 54.7 (1.6) 0.2 (20)
Unit Size Voltage Min Circuit Max Overcurrent Main Power
(BtuH) Amps (MCA) Protection (MOP) Wire Size (AWG)**
9,000 115v - 1ph 60hz 13 20 12
12,000 115v - 1ph 60hz 15 25 1
2
9,000 208/230v - 1ph 60hz 10 15 1
6
12,000 208/230v - 1ph 60hz 10 15 1
6
18,000 208/230v - 1ph 60hz 1
6
25 1
4
24,000 208/230v - 1ph 60hz 2
0
3 0
1 2
System Requirements
Piping Requirements
6

7
Installation dimension diagram
8ft (2,4m)
6in (0,15m)
115in (3m)
Space to the ceiling
Space to the obstruction
6in (0,15m)
Space to the wall
Space to the wall
6in (0,15m)
Drainage pipe
20in (0,5m)
20in (0,
5m
)
12in
(0,3m)
Space to the obstruction
Space to the
obstruction
Space to the
obstruction
Space to the obstruction
Space to the wall
80in (2,03m)
12in (0,3m)

8
1. There should be no obstruction near air inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and
won't affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the
power socket.
4. Select a location which is out of reach for children.
5. The location should be able to withstand the weight of indoor unit and won't
increase noise and vibration.
6. The appliance must be installed 8,2ft (2.5m) above oor.
7. Don't install the indoor unit right above the electric appliance.
8. Please try your best to keep way from uorescent lamp.
Tools for installation
Selection of installation location
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Note: ● Please contact the local agent for installation.
● Don't use unqualied power cord.
Basic requirement
Indoor unit
Installing the unit in the following places maycause malfunction. If it is unavoidable,
please consult the local dealer:
1. The place with strong heat sources, vapors, ammable or explosive gas , or
volatile objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical
equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. Do not use the unit in the immediate surroundings of a laundry a bath a
shower or a swimming pool.

9
Requirements for electric connection
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualied power supply circuit and circuit break.
3. Make sure the power supply matches with the requirement of air conditioner.Unstable power
supply or incorrect wiring or malfunction. Please install proper power supply cables before
using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.
6. Do not put through the power before nishing installation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
8. The temperature of refrigerant circuit will be high, please keep the interconnection cable
away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
10.Installation must be performed in accordance with the requirement of NEC by
authorized personnel only
Grounding requirement
1. The air conditioners is the first class electric appliance. It must be properly grounding with
specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used for other
purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 1/8in (3mm) in
all poles should be connected in fixed wiring.
6. Including an circuit break with suitable capacity,
please note the following table. Air switch should be
included magnet buckle and heating buckle function,
it can protect the circuit-short and overload. (Caution:
please do not use the fuse only for protect the circuit)
Air-conditioner Circuit break capacity
24K
18K
30A
25A
12K(115V) 25A
09K(115V) 20A
09、12K 15A
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit
won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation
dimension diagram.
5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.
Outdoor unit

10
Installation of indoor unit
Step one: choosing installation location
Step two: install wall-mounting frame
rm it with the client.
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the
plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and
.
1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.
Step three: open piping hole
2. Open a piping hole with the diameter of Φ2 ¼ / 2 ¾ on the selected outlet pipe
position. In order to drain smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.
09、12K: 18K:
24K:
Left
Wall
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
5,9in
(0,15m)
Space
to the
wall
above
5,9in
(0,15m)
Rear piping hole
Left
Wall
Φ2 (55mm)
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
5,9in
(0,15m)
Space
to the
wall
above
5,9in
(0,15m)
Rear piping hole
Left
Wall
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
5,9in
(0,15m)
Space
to the
wall
above
5,9in
(0,15m)
Rear piping hole
14
Φ2 (55mm)
14
Φ2 (55mm)
14
Φ2 (55mm)
14
Φ2 (70mm)
34
Φ2 (70mm)
34

11

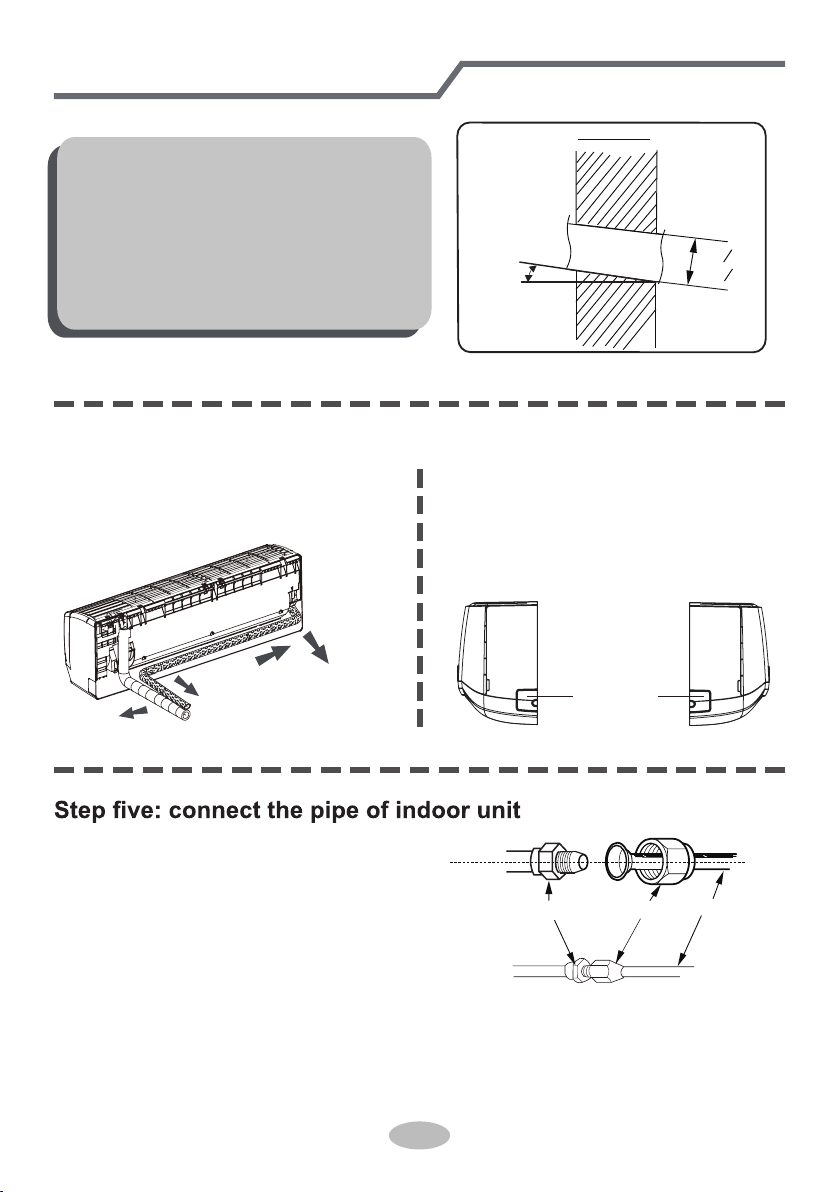

1. Aim the pipe joint at the corresponding
bellmouth.
2. Pretightening the union nut with hand.
3. Adjust the torque force by referring to the following sheet. Place the open-end
wrench on the pipe joint and place the torque wrench on the union nut. Tighten
the union nut with torque wrench.
2. When select leading out the pipe
from left or right, please cut off the
corresponding hole on the bottom
case.
cut off
the hole
left right
1. The pipe can be led out in the
direction of right, rear right, left or
rear left.
left
rear left
right
rear right
Step four: outlet pipe
Installation of indoor unit
Indoor
5-10°
outdoor
Φ2 (55)/
Φ2 (70)
Note:
● Pay attention to dust prevention and
take relevant safety measures when
opening the hole.
●The plastic expansion particles are
not provided and should be bought
locally.
union nutpipe joint pipe
14
34

12
4. Wrap the indoor pipe and joint of con-
nection pipe with insulating pipe, and
then wrap it with tape.
Step six: install drain hose
Installation of indoor unit
torque wrench
open-end
wrench
indoor pipe
pipe
union nut
Hex nut diameter Tightening torque (N.m)
Φ
Φ
Φ
Φ
Φ
30~40
45~55
60~65
70~75
15~20
insulating pipe
1. Connect the drain hose to the outlet pipe of
indoor unit.
2. Bind the joint with tape.
outlet
pipe
drain hose
drain hose
tape
outlet pipe
drain hose
insulating pipe
Note:
●Add insulating pipe in the indoor
drain hose in order to prevent
condensation.
●The plastic expansion particles are
not provided.
1. Open the panel, remove the screw
on the wiring cover and then take
down the cover.
wiring cover
screw
panel
Step seven: connect wire of indoor unit
14
38
12
58
34

13
4.Put wiring cover back and then tighten the screw.
5.Close the panel.
Installation of indoor unit
Note:
●All wires of indoor unit and outdoor unit should be connected by a professional.
Connect main power wires and conduit to unit disconnect switch box per
manufacturer’s instructions, National Electrical Code (NEC) and local electrical
codes.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an circuit break must be installed in the line.
The circuit break should be all-pole parting and the contact parting distance
should be more than 1/8in.

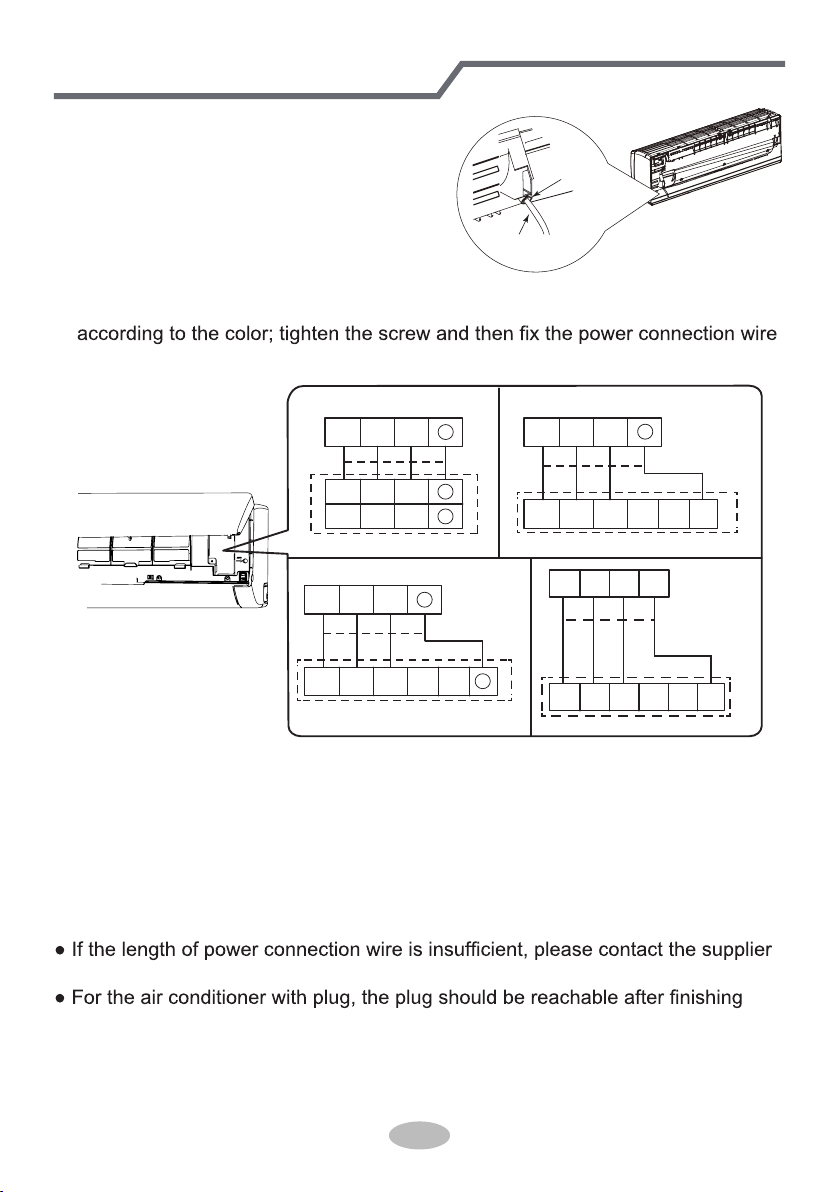

3. Remove the wire clip; connect the power connection wire to the wiring terminal
with wire clip.
power connection
wire
cable-cross
hole
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
2 3N(1)
2 3N(1) L1 L2 G
Outdoor unit connection
18、24K: (230V)
2 3N(1)
2 3N(1) L N
Outdoor unit connection
09、12K: (230V)
09、12K(115V):
2 3
GND
N(1)
Outdoor unit connection
L2
L1
23
N(1)
GND
GND
GND
Outdoor unit connection
GND
GND
2 3 L1 L2N(1) G
S L2 ’ L1 ’
G
For some units
18K(230V):

14
Installation of indoor unit

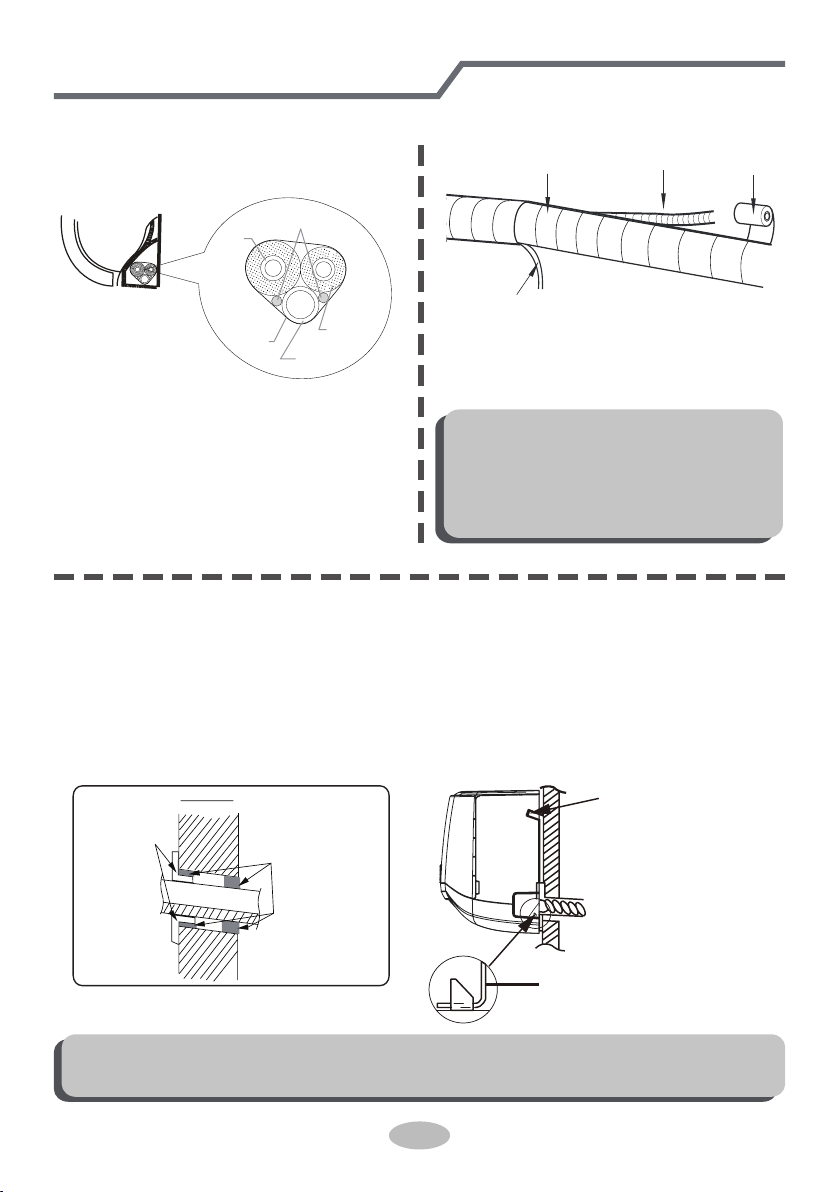

Step eight: bind up pipe
1. Bind up the connection pipe, power
cord and drain hose with the band.
indoor unit gas
pipe
indoor and
outdoor power cord
liquid pipe
drain hose
band
2. Reserve a certain length of drain
hose and power cord for installation
when binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.
3. Bind them evenly.
4. The liquid pipe and gas pipe should
be bound separately at the end.
Note:
● The power cord and control wire
can't be crossed or winding.
● The drain hose should be bound
at the bottom.
drain hose band
connection pipe
indoor power cord
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed rmly and closed to the wall.
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.
indoor outdoor
wall pipe sealing gum
upper hook
lower hook of
wall-mounting frame

Installation of outdoor unit
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
at least 1 / in above the floor
Note:
installing the outdoor unit.
● Make sure the support can withstand at least
four times of the unit weight.
●The outdoor unit should be installed at least
joint.
● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W
~16000W, 10 expansion screws are needed.
Step two: install drain joint gni taehd nagni loocrofylnO(
unit)
1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.
2. Connect the drain hose into the drain
vent.
chassis
outdoor drain joint
Drain hose
drain vent
1. Place the outdoor unit on the
support.
2. Fix the foot holes of outdoor unit
with bolts.
foot holes
foot holes
15
16

yellow-
green
Installation of outdoor unit
Step four: connect indoor and outdoor pipes
1. Remove the screw on the right han-
dle of outdoor unit and then remove
the handle.
2. Remove the screw cap of valve and
aim the pipe joint at the bellmouth of
pipe.
3. Pretightening the union nut with
hand.
4. Tighten the union nut with torque
wrench by referring to the sheet
below.
gas pipe
liquid pipe
liquid
valve
gas valve
union nut
pipe joint
Hex nut diameter Tightening torque
(N.m)
30~40
45~55
60~65
70~75
15~20
1. Remove the wire clip; connect the power connection wire and signal control
wire (only for cooling and heating unit) to the wiring terminal according to the
color; fix them with screws.
16
screw
handle
Indoor unit connection
2 3 L1
L1
L2
L2N(1)
23N(1)
18、24K: (230V) For some units 18K (230V):
Indoor unit connection
2 3 L
L
N
NN(1)
2 3N(1)
09、12K: (115V)
Indoor unit connection
09、12K: (230V)
2 3N(1)
L2L1
2 3N(1)
L1
L2
Indoor unit connection
L2
L1 GND
GND
L1
(blue)
white
(blue)
whitered
black
(brown)
(brown)
black
(yellow-
green
green)
(yellow-
green
green)
Φ
Φ
Φ
Φ
Φ
14
38
12
58
34
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
POWER SUPPLY
POWER SUPPLY
POWER SUPPLY
POWER SUPPLY
GND
GND
L1’ S L2’
G
N(1) 23
L 2
