Cooper Lighting Combo Edge User manual

recessed multi-lamp fixtures
with a deep regressed
splayed trim
available in low voltage halogen
line voltage incandescent
metal halide and
compact fluorescent
lamp sources
COMBO EDGE

Wall Washer
with Transverse Configuration

COMBO EDGE
COMBO EDGE ACCENT / DOWNLIGHTS
page 4 - 17
The Accent/Downlight fixtures offer the widest range of application pos-
sibilities. The Combo Edge trim insert has a 2” depth (2.5” on PAR38 mod-
els) with 77º taper which offers greatly reduced lamp glare. The fixture
housing includes an adjustable plaster frame which can accommodate
ceiling thicknesses from 1/2” to 1-3/8”. The height of the lamp holders
adjust to the position of the reflector to always allow optimal lamp placement.
COMBO EDGE WALL WASHERS
page 20 - 32
The Wall Washer fixtures enable clean and even illumination across ver-
tical surfaces. The upper aperture of the trim insert is cut at an angle to
allow the lamp beam greater access for illumination. Combo Edge Wall
Washers are available with trim inserts configured for lateral installa-
tions or transverse installations. These fixtures utilize the same highly
adjustable lamp holder as the accent downlights. Included with every
wall washer is a linear spread lens which increases the spread of light
and helps to even out the lamp beam for a smooth wash of light.

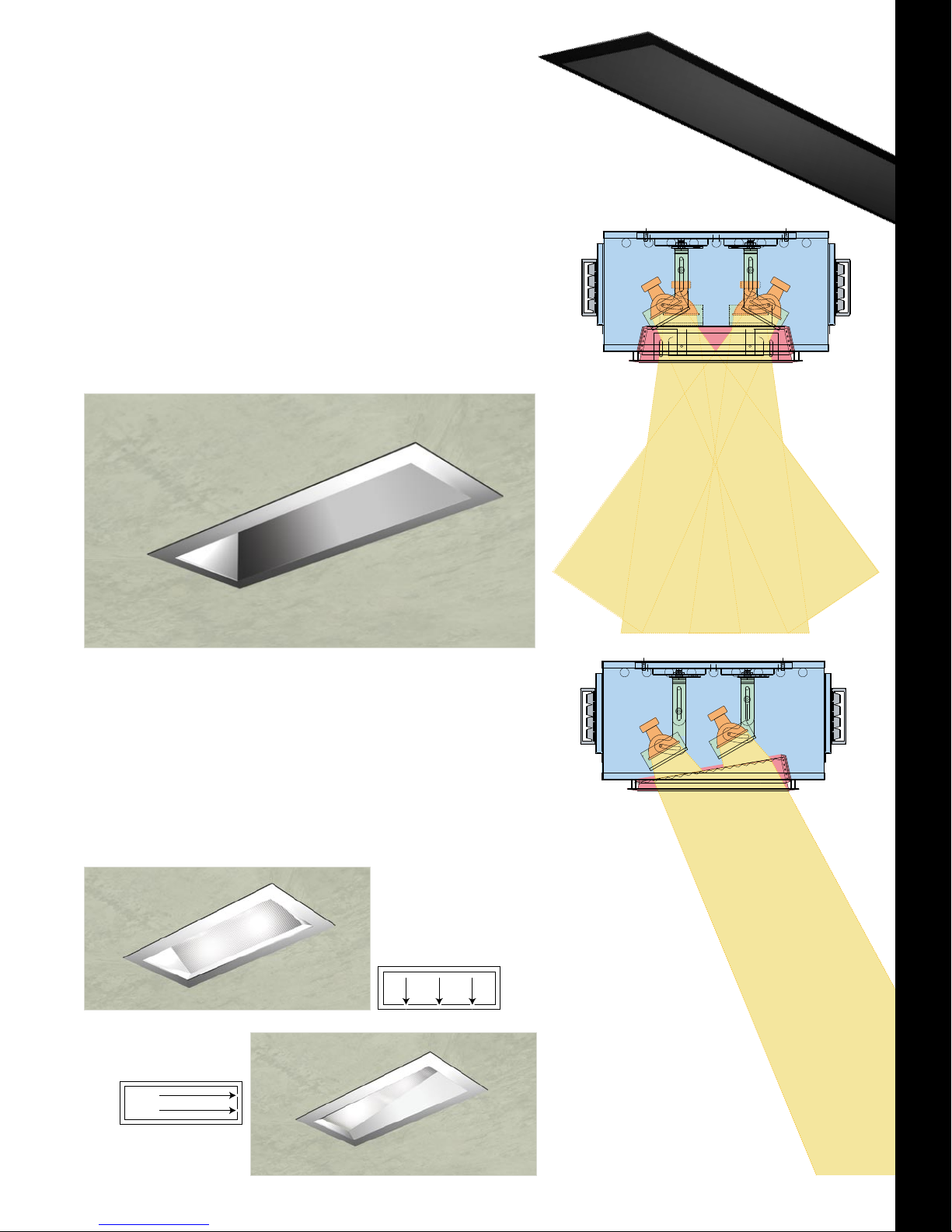

Combo Edge is an all new multi-lamp luminaire which combines all
of the adjustable features of RSA’s Combolight with a new deep regressed
trim. These splayed trims offer increased cut-off due to the deep position of the
lamp source. With independently adjustable locking lamp holders that allow a full

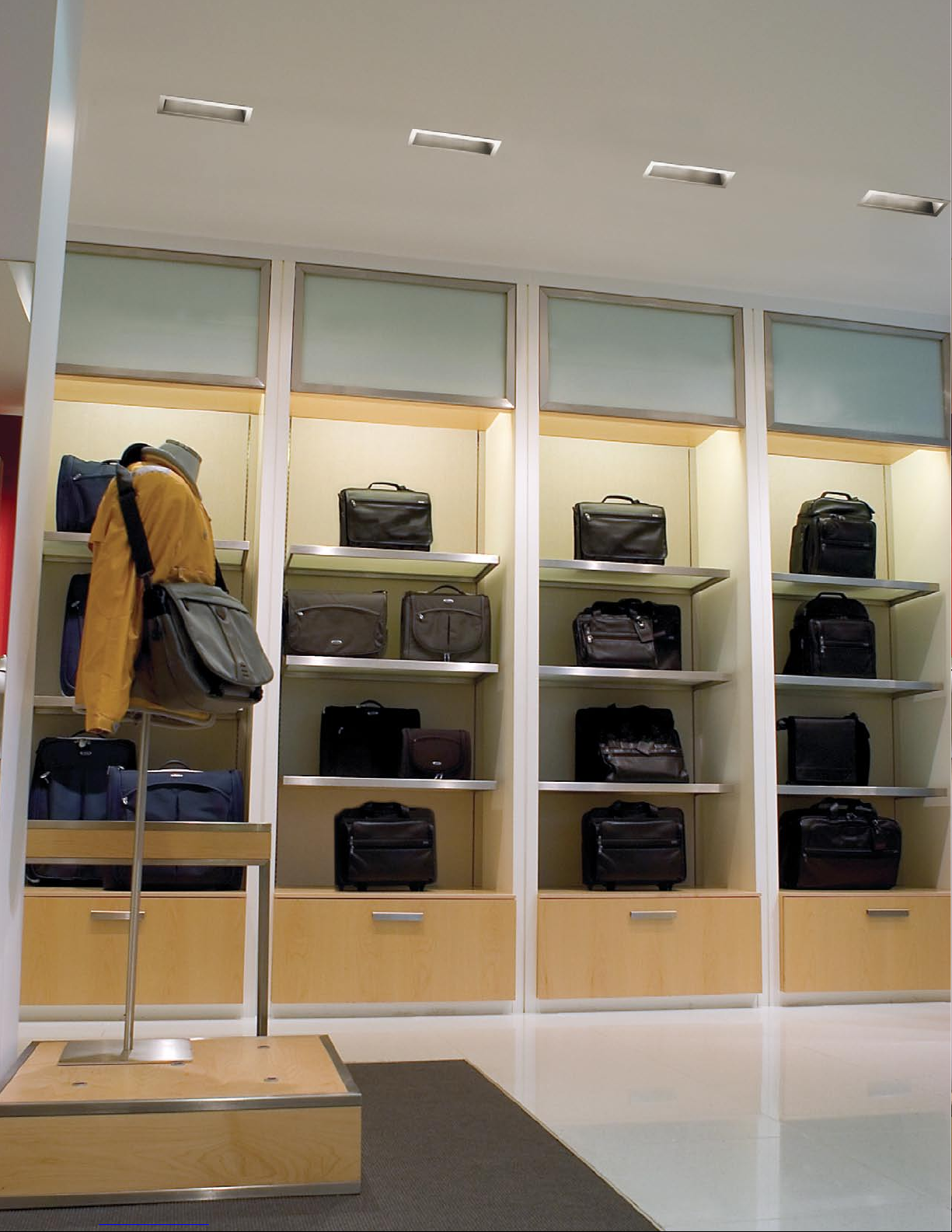

368º x 45º of range, Combo Edge is ideal for retail and museum display applications. Combo
Edge is available with low voltage halogen, line voltage incandescent, metal halide (including the
new BriteSpot ES16 lamp) and compact fluorescent triple tube lamps.
Wall Washer
with Lateral Configuration
Wall Washer
with Transverse Configuration

4
Adjustable frame and special retaining
clips accommodate ceiling thickness
from 1/2” to 1-3/8”
Deep regress offers unparalleled
cut-off without obstructing the lamp beam.
Adjustable lamp holders enable the use of one housing type with three different trim
inserts - Accent/Downlight, Lateral Wall Washer & Transverse Wall Washer

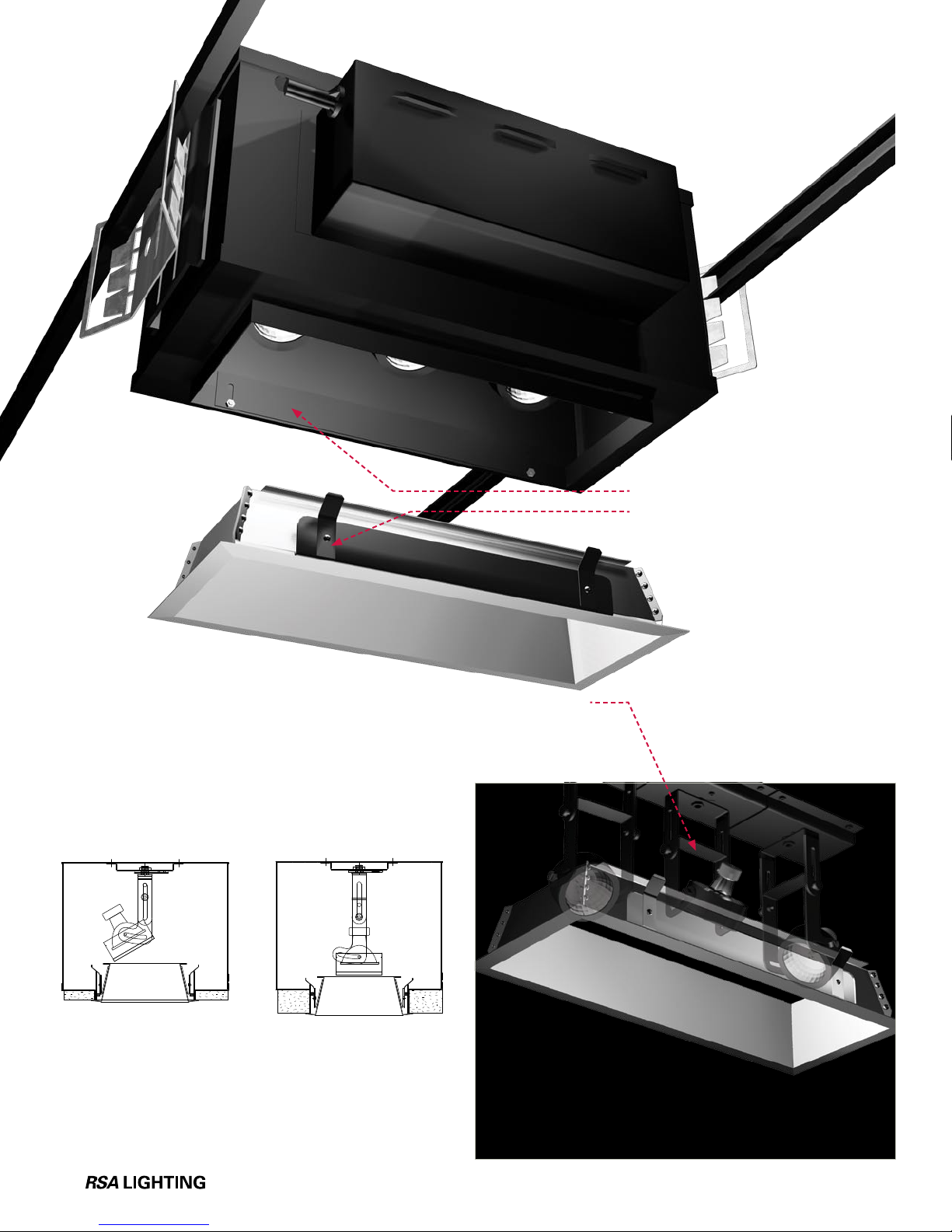

New construction recessed multi-lamp housing with
integral transformers/ballasts, thermal protection and
butterfly brackets for commercial installation.
Can accommodate ceiling thicknesses from 1/2” to 1-3/8”.
Lamp holder height adjusts to accommodate the position of the
reflector to always allow optimal lamp placement.
1/2” Ceiling 1-3/8” Ceiling

COMBO EDGE - ACCENT/DOWNLIGHT
Accent/Downlight Fixture Lamp Types
MR16 12 Volt Halogen page 6
AR70 12 Volt Halogen page 7
AR111 12 Volt Halogen page 8
PAR16 120 Volt Incandescent page 9
PAR20 120 Volt Incandescent page 10
PAR30 120 Volt Incandescent page 11
PAR38 120 Volt Incandescent page 12
ES16 BriteSpot Metal Halide page 13
PAR20 Metal Halide page 14
PAR30 Metal Halide page 15
PAR38 Metal Halide page 16
Triple Tube Fluorescent page 17

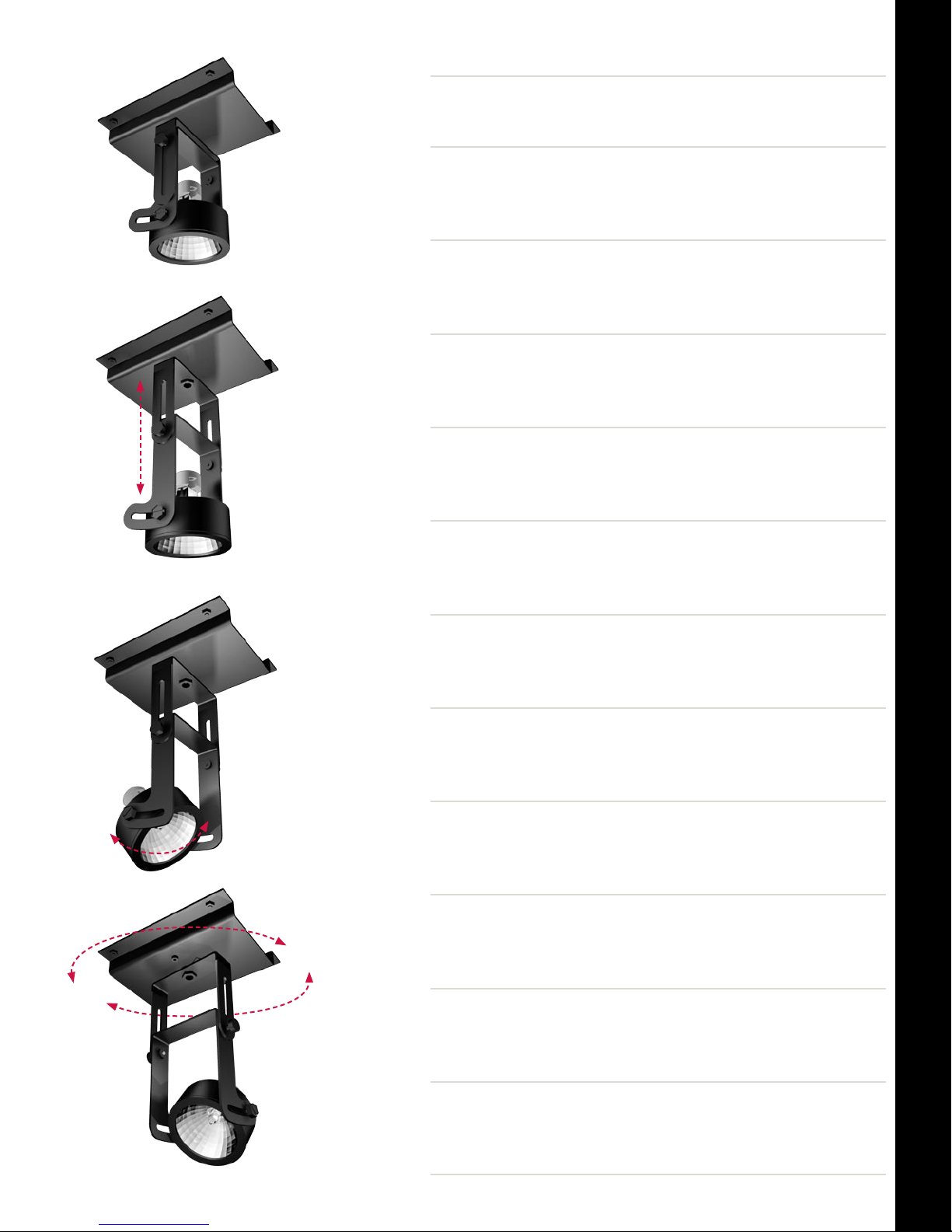

368º Rotation
Swing-back
adjustment and 45º tilt
for greater aiming
Extendable
for thicker
ceilings
Retractable
for thinner
ceilings

6
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic transformers
• Electrical J-Box and transformers easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
• Optional Relay Emergency Module allows the conversion
of one of the fixture’s lamps to function as a remote emergency
unit when supplied by a 12V DC emergency power source.
Module does not contain batteries. Will operate with 85W
lamp maximum. Wattage consumed in emergency mode is
lamp wattage + 0.9W. (See page 33 for details.)
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1M16 (1) One Light 12V MR16
CED2M16 (2) Two Light 12V MR16
CED3M16 (3) Three Light 12V MR16
Wattage
20 20 Watt 12V MR16
37 37 Watt 12V MR16
42 42 Watt 12V MR16
50 50 Watt 12V MR16
71 71 Watt 12V MR16
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Emergency Lighting
EM Relay Emergency Module
Ordering Example
CED3M16-37-CA-120
3 Light Combo Edge Accent/Downlight for MR16 lamp, 37 watt,
Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.

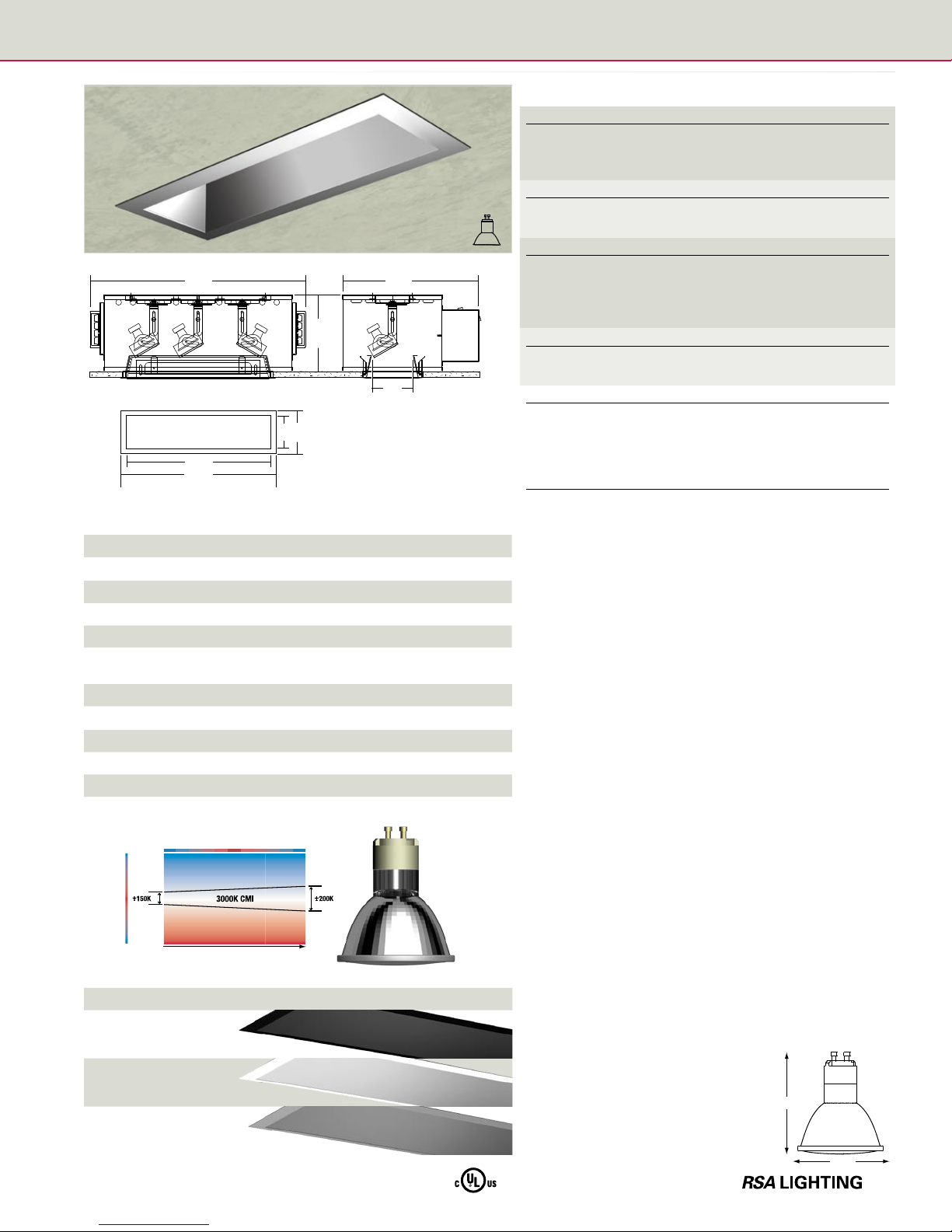

COMBO EDGE - ACCENT/DOWNLIGHT - 12V MR16
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 11.66” 6.66” 11.84” 5.27” x 5.30”
2 Light 15.51” 6.66” 11.84” 9.30” x 5.30”
3 Light 19.36” 6.66” 11.84” 13.15” x 5.30”
COMBO EDGE - ACCENT/DOWNLIGHT - 12V MR16
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 4.50” 5.60” 4.50” 5.60”
2 Light 8.52” 9.62” 4.50” 5.60”
3 Light 12.37” 13.47” 4.50” 5.60”

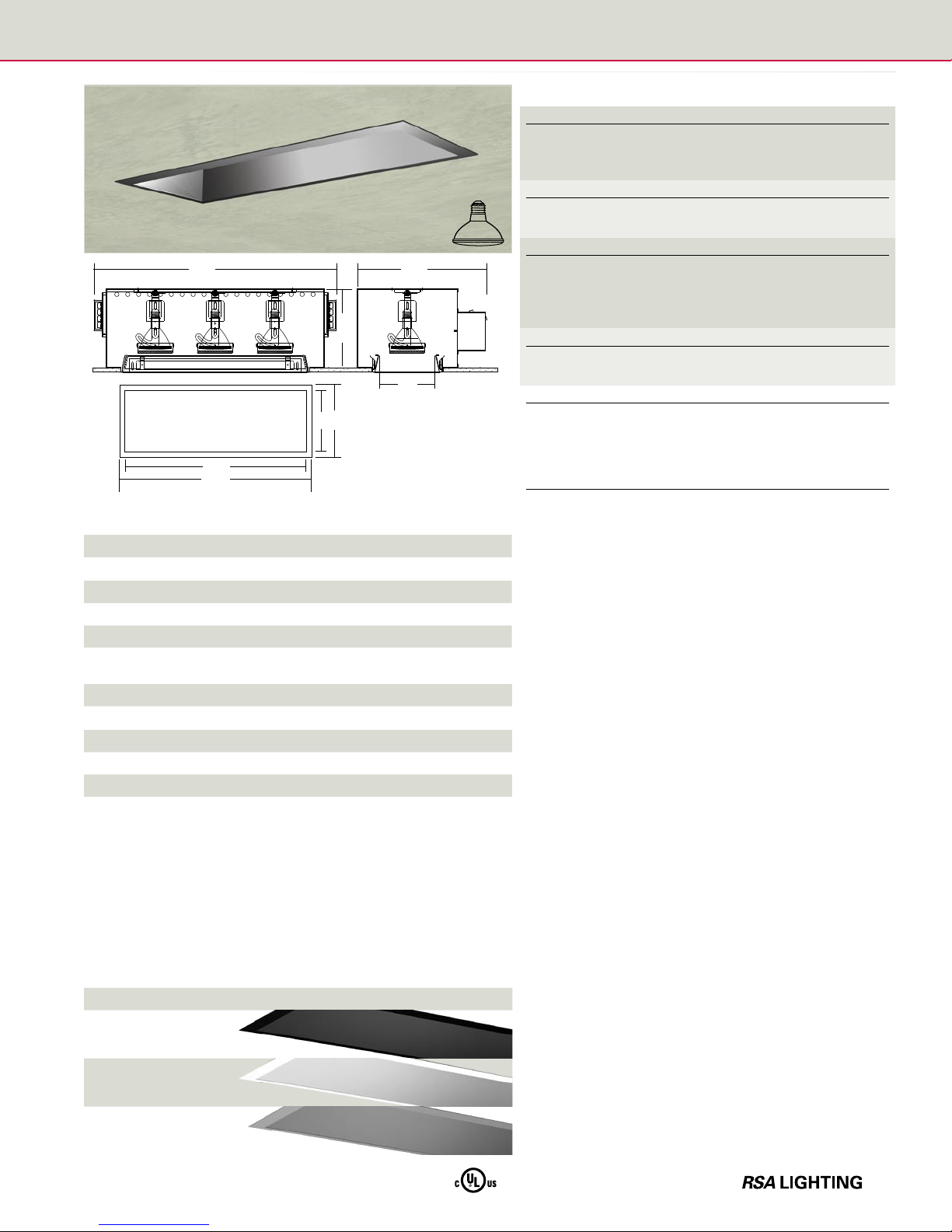

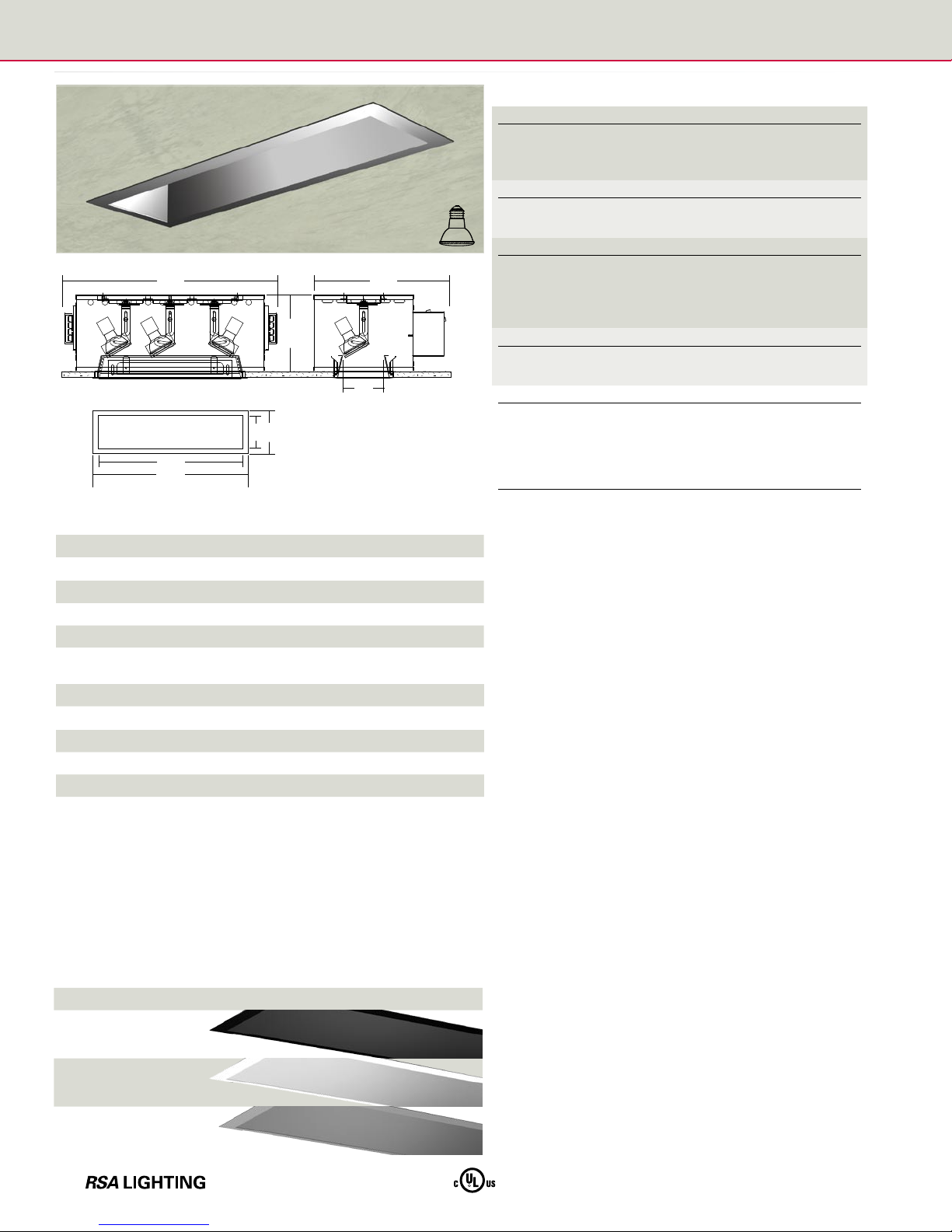

3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak



#ONNECTS
TO*BOX
Optional Relay Emergency
Module - add “-EM” to the end
of the catalog number

7

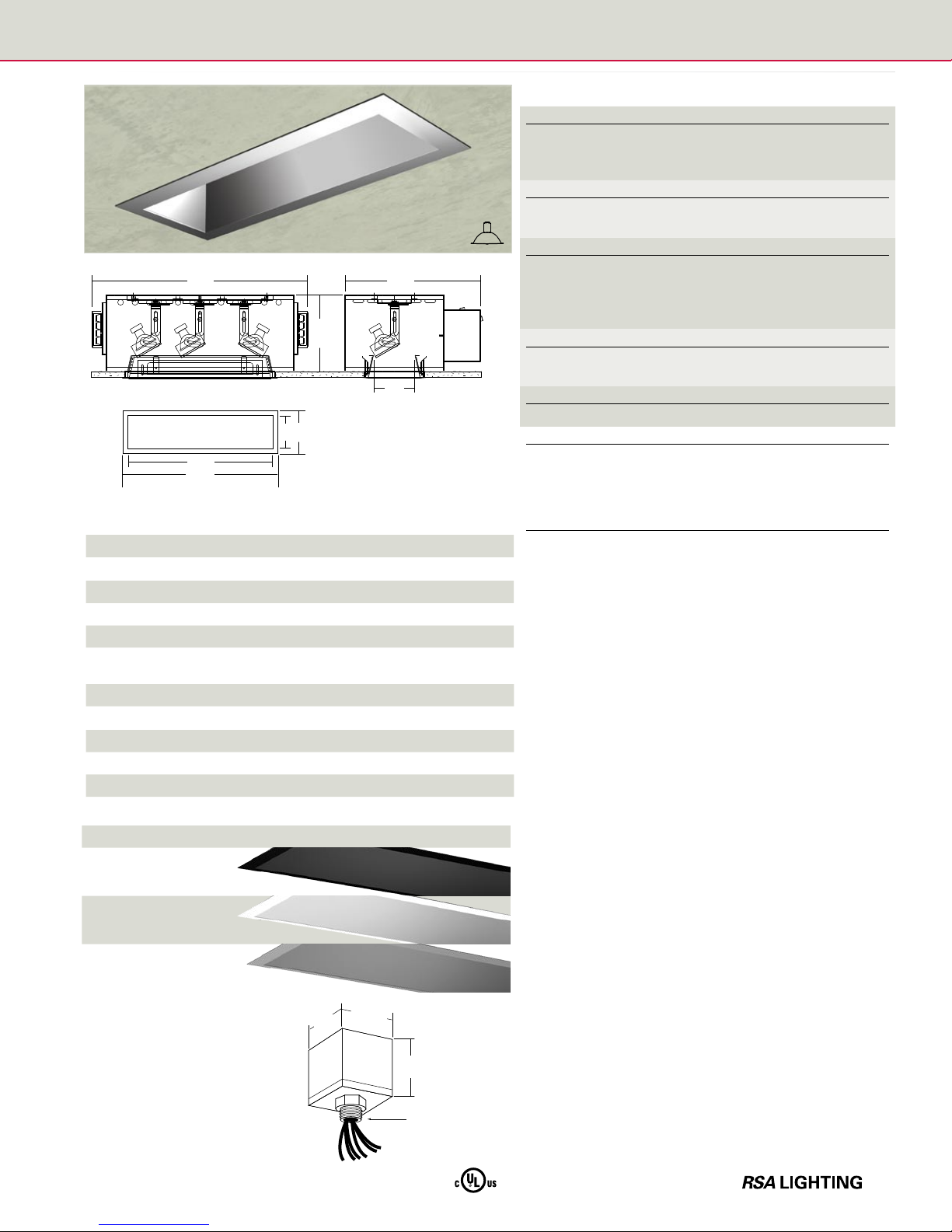

COMBO EDGE - ACCENT/DOWNLIGHT - 12V AR70
COMBO EDGE - ACCENT/DOWNLIGHT - 12V AR70
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic transformers
• Electrical J-Box and transformers easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
• Optional Relay Emergency Module allows the conversion
of one of the fixture’s lamps to function as a remote emergency
unit when supplied by a 12V DC emergency power source.
Module does not contain batteries. Will operate with 85W
lamp maximum. Wattage consumed in emergency mode is
lamp wattage + 0.9W. (See page 33 for details.)
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1A70 (1) One Light 12V AR70
CED2A70 (2) Two Light 12V AR70
CED3A70 (3) Three Light 12V AR70
Wattage
20 20 Watt 12V AR70
50 50 Watt 12V AR70
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Emergency Lighting
EM Relay Emergency Module
Ordering Example
CED3A70-50-CA-120
3 Light Combo Edge Accent/Downlight for AR70 lamp, 50 watt,
Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 11.66” 6.66” 11.84” 5.27” x 5.30”
2 Light 15.51” 6.66” 11.84” 9.30” x 5.30”
3 Light 19.36” 6.66” 11.84” 13.15” x 5.30”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 4.50” 5.60” 4.50” 5.60”
2 Light 8.52” 9.62” 4.50” 5.60”
3 Light 12.37” 13.47” 4.50” 5.60”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
Optional Relay Emergency
Module - add “-EM” to the end
of the catalog number



#ONNECTS
TO*BOX

8
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic transformers
• Electrical J-Box and transformers easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
• Optional Relay Emergency Module allows the conversion
of one of the fixture’s lamps to function as a remote emergency
unit when supplied by a 12V DC emergency power source.
Module does not contain batteries. Will operate with 85W
lamp maximum. Wattage consumed in emergency mode is
lamp wattage + 0.9W. (See page 33 for details.)
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1A111 (1) One Light 12V AR111
CED2A111 (2) Two Light 12V AR111
CED3A111 (3) Three Light 12V AR111
Wattage
35 35 Watt 12V AR111
50 50 Watt 12V AR111
75 75 Watt 12V AR111
100 100 Watt 12V AR111
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Emergency Lighting
EM Relay Emergency Module
Ordering Example
CED3A111-35-CA-120
3 Light Combo Edge Accent/Downlight for AR111 lamp, 35 watt,
Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
COMBO EDGE - ACCENT/DOWNLIGHT - 12V AR111
COMBO EDGE - ACCENT/DOWNLIGHT - 12V AR111
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 14.36” 9.00” 14.72” 8.074” x 8.18”
2 Light 21.21” 9.00” 14.72” 14.92” x 8.18”
3 Light 28.06” 9.00” 14.72” 21.72” x 8.18”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 7.37” 8.47” 7.37” 8.47”
2 Light 14.22” 15.32” 7.37” 8.47”
3 Light 21.07” 22.17” 7.37” 8.47”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
Optional Relay Emergency
Module - add “-EM” to the end
of the catalog number



#ONNECTS
TO*BOX

9
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR16
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR16
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P16 (1) One Light 120V PAR16
CED2P16 (2) Two Light 120V PAR16
CED3P16 (3) Three Light 120V PAR16
Wattage
75 75 watts max. 120V PAR16
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Ordering Example
CED3P16-75-CA
3 Light Combo Edge Accent/Downlight for PAR16 lamp, 75 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 12.51” 8.25” 12.44” 6.10” x 5.97
2 Light 19.36” 8.25” 12.44” 12.97” x 5.97”
3 Light 26.21” 8.25” 12.44” 19.82” x 5.97”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 5.35” 6.45” 5.16” 6.26”
2 Light 12.20” 13.30” 5.16” 6.26”
3 Light 19.05” 20.15” 5.16” 6.26”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak

10
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P20 (1) One Light 120V PAR20
CED2P20 (2) Two Light 120V PAR20
CED3P20 (3) Three Light 120V PAR20
Wattage
50 50 watts max. 120V PAR20
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Ordering Example
CED3P20-50-CA
3 Light Combo Edge Accent/Downlight for PAR20 lamp, 50 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 12.51” 8.25” 12.44” 6.10” x 5.97
2 Light 19.36” 8.25” 12.44” 12.97” x 5.97”
3 Light 26.21” 8.25” 12.44” 19.82” x 5.97”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 5.35” 6.45” 5.16” 6.26”
2 Light 12.20” 13.30” 5.16” 6.26”
3 Light 19.05” 20.15” 5.16” 6.26”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR20
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR20

11
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR30
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR30
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P30 (1) One Light 120V PAR30
CED2P30 (2) Two Light 120V PAR30
CED3P30 (3) Three Light 120V PAR30
Wattage
75 75 watts max. 120V PAR30
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Ordering Example
CED3P30-75-CA
3 Light Combo Edge Accent/Downlight for PAR30 lamp, 75 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 14.36” 9.00” 14.72” 8.074” x 8.18”
2 Light 21.21” 9.00” 14.72” 14.92” x 8.18”
3 Light 28.06” 9.00” 14.72” 21.72” x 8.18”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 7.37” 8.47” 7.37” 8.47”
2 Light 14.22” 15.32” 7.37” 8.47”
3 Light 21.07” 22.17” 7.37” 8.47”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak

12
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured for line voltage connection
• Electrical J-Box easily accessed from below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P38 (1) One Light 120V PAR38
CED2P38 (2) Two Light 120V PAR38
CED3P38 (3) Three Light 120V PAR38
Wattage
150 150 watts max. 120V PAR38
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Ordering Example
CED3P38-150-CA
3 Light Combo Edge Accent/Downlight for PAR38 lamp, 150 watts
max., Clear Alzak trim
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 16.54” 10.86” 16.72” 10.18” x 10.18”
2 Light 25.29” 10.86” 16.72” 18.93” x 10.18”
3 Light 34.04” 10.86” 16.72” 27.68” x 10.18”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 9.48” 10.58” 9.37” 10.47”
2 Light 18.23” 19.33” 9.37” 10.47”
3 Light 26.98” 28.08” 9.37” 10.47”
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR38
COMBO EDGE - ACCENT/DOWNLIGHT - 120V PAR38

13
COMBO EDGE - ACCENT/DOWNLIGHT - ES16 METAL HALIDE
COMBO EDGE - ACCENT/DOWNLIGHT - ES16MH
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1E16MH (1) One Light ES16 Metal Halide
CED2E16MH (2) Two Light ES16 Metal Halide
CED3E16MH (3) Three Light ES16 Metal Halide
Wattage
20 20 Watt ES16 Metal Halide
39 39 Watt ES16 Metal Halide
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Ordering Example
CED3E16MH-39-CA-120
3 Light Combo Edge Accent/Downlight for ES16MH lamp, 39 watt,
Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic ballasts
• Electrical J-Box and ballasts easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
3 light fixture shown above
Also available in 1 light and 2 light fixtures
#
!
"
%
$
& '
v
BRITESPOT LAMP
BRITESPOT LAMP
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 11.66” 6.66” 11.84” 5.27” x 5.30”
2 Light 15.51” 6.66” 11.84” 9.30” x 5.30”
3 Light 19.36” 6.66” 11.84” 13.15” x 5.30”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 4.50” 5.60” 4.50” 5.60”
2 Light 8.52” 9.62” 4.50” 5.60”
3 Light 12.37” 13.47” 4.50” 5.60”
v
v
Lamp Life: 6000 hours
Correlated Color Temp: 3000K
Color Rendering Index: 90
Reflector: Aluminum
Lens: Stippled
Ring: Anodized Aluminum
BriteSpot™ ES16 - the first metal halide lamp to bring together
high-output, excellent light quality and superb energy-efficiency in
one compact, highly distinctive package. The improved discharge
arc of the BriteSpot™ ES16 offers excellent color stability and superb
color rendering all within the footprint of an MR16.
#OLORVARIATION
#OLORMAINTENANCE
,IFE

14
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic ballasts
• Electrical J-Box and ballasts easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P20MH (1) One Light PAR20 Metal Halide
CED2P20MH (2) Two Light PAR20 Metal Halide
CED3P20MH (3) Three Light PAR20 Metal Halide
Wattage
20 20 Watt PAR20 Metal Halide
39 39 Watt PAR20 Metal Halide
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Ordering Example
CED3P20MH-39-CA-120
3 Light Combo Edge Accent/Downlight for PAR20MH lamp, 39
watt, Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 12.51” 8.25” 12.44” 6.10” x 5.97
2 Light 19.36” 8.25” 12.44” 12.97” x 5.97”
3 Light 26.21” 8.25” 12.44” 19.82” x 5.97”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 5.35” 6.45” 5.16” 6.26”
2 Light 12.20” 13.30” 5.16” 6.26”
3 Light 19.05” 20.15” 5.16” 6.26”
COMBO EDGE - ACCENT/DOWNLIGHT - PAR20 METAL HALIDE
COMBO EDGE - ACCENT/DOWNLIGHT - PAR20MH

15
COMBO EDGE - ACCENT/DOWNLIGHT - PAR30 METAL HALIDE
COMBO EDGE - ACCENT/DOWNLIGHT - PAR30MH
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic ballasts
• Electrical J-Box and ballasts easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P30MH (1) One Light PAR30 Metal Halide
CED2P30MH (2) Two Light PAR30 Metal Halide
CED3P30MH (3) Three Light PAR30 Metal Halide
Wattage
39 39 watt PAR30 Metal Halide
70 70 watt PAR30 Metal Halide
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Ordering Example
CED3P30MH-70-CA-120
3 Light Combo Edge Accent/Downlight for PAR30MH lamp, 70
watt lamps., Clear Alzak trim, 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 14.36” 9.00” 14.72” 8.074” x 8.18”
2 Light 21.21” 9.00” 14.72” 14.92” x 8.18”
3 Light 28.06” 9.00” 14.72” 21.72” x 8.18”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 7.37” 8.47” 7.37” 8.47”
2 Light 14.22” 15.32” 7.37” 8.47”
3 Light 21.07” 22.17” 7.37” 8.47”

16
Features
• Available in 1, 2 or 3 light fixtures
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Independently adjustable locking lamp holders with
368º x 45º adjustability
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Configured with integral electronic ballasts
• Electrical J-Box and ballasts easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - ACCENT/DOWNLIGHT
Fixture Type
CED1P38MH (1) One Light PAR38 Metal Halide
CED2P38MH (2) Two Light PAR38 Metal Halide
CED3P38MH (3) Three Light PAR38 Metal Halide
Wattage
70 70 watt PAR38 Metal Halide
100 100 watt PAR38 Metal Halide
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Ordering Example
CED3P38MH-100-CA-120
3 Light Combo Edge Accent/Downlight for PAR38MH lamp, 100
watt lamps, Clear Alzak trim. 120V
Options
Optical accessories include: Baffles, Snoots, Louvers and
Lenses. See page 33 for details.
#
!
"
%
$
& '
v
3 light fixture shown above
Also available in 1 light and 2 light fixtures
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 16.54” 10.86” 16.72” 10.18” x 10.18”
2 Light 25.29” 10.86” 16.72” 18.93” x 10.18”
3 Light 34.04” 10.86” 16.72” 27.68” x 10.18”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 9.48” 10.58” 9.37” 10.47”
2 Light 18.23” 19.33” 9.37” 10.47”
3 Light 26.98” 28.08” 9.37” 10.47”
COMBO EDGE - ACCENT/DOWNLIGHT - PAR38 METAL HALIDE
COMBO EDGE - ACCENT/DOWNLIGHT - PAR38MH

17

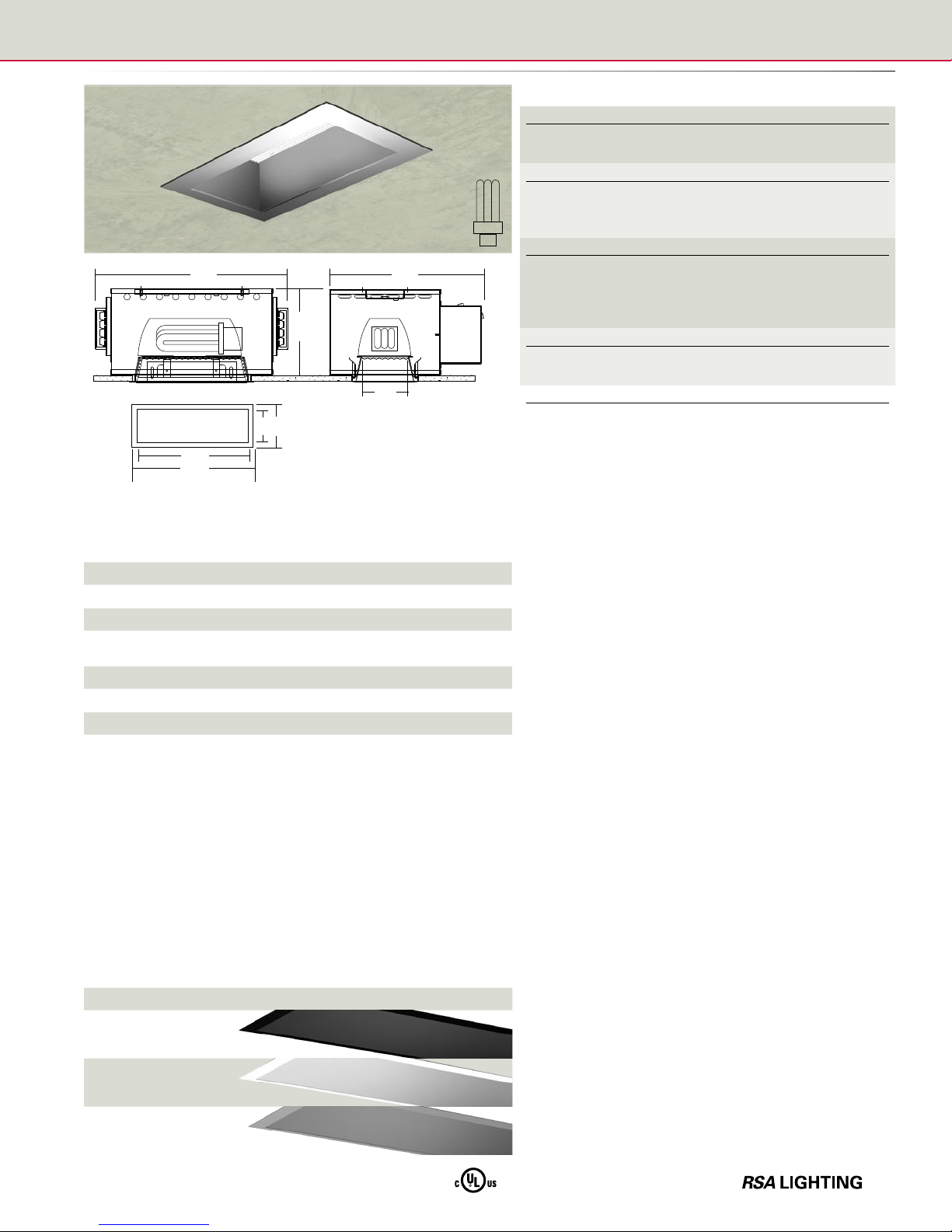

COMBO EDGE - DOWNLIGHT - TRIPLE TUBE
COMBO EDGE - DOWNLIGHT - TRIPLE TUBE
Features
• Available in 1 or 2 light fixtures
• Compact fluorescent triple tube lamp source
• Includes internal reflector and prismatic spread lens for
even illumination
• Splayed trim inserts have a 1/2” flange
• Architectural deep regress rectangular trim with 77º
tapered aperture provides excellent cut-off
• Adjustable Plaster Frame can accommodate 1/2” to
1-3/8” ceiling thickness
• Electrical J-Box and ballasts easily accessed from
below the ceiling
• Includes butterfly brackets for black iron installations
COMBO EDGE - DOWNLIGHT
Fixture Type
CED1TTB (1) One Light Triple Tube Fluorescent
CED2TTB (2) Two Light Triple Tube Fluorescent
Wattage
26 26 Watt Triple Tube Fluorescent
32 32 Watt Triple Tube Fluorescent
42 42 Watt Triple Tube Fluorescent
Trim Finish
BK Black Alzak
WH White Powder Coat
CA Clear Alzak
PT Custom Color (Specify)
Voltage
120 120V (Standard)
277 277V
Ordering Example
CED1TTB-32-CA-120
1 Light Combo Edge Downlight for Triple Tube Compact Fluores-
cent lamp, 32 watt, Clear Alzak trim, 120V
#
!
"
%
$
& '
v
COMPACT FLUORESCENT
TRIM INSERT FINISHES
Black Powder Coat
White Powder Coat
Clear Alzak
HOUSING DIMENSIONS
FIXTURE TYPE A B C CEILING CUT-OUT
1 Light 15.51” 6.66” 11.84” 9.30” x 5.30”
2 Light 19.36” 6.66” 11.84” 13.15” x 5.30”
TRIM DIMENSIONS
FIXTURE TYPE D E F G
1 Light 8.52” 9.62” 4.50” 5.60”
2 Light 12.37” 13.47” 4.50” 5.60”
1 light fixture shown above
Also available in 2 light fixtures

18

COMBO EDGE provides a wealth of
lighting design possibilities. In this
application, PAR38 Metal Halide
accent / downlights are used for
generalillumination andtask lighting.
ES16 Britespot Metal Halide wall
wash fixtures provide a smooth and
even light across the back and side
walls. All of this is achieved without
harsh glare from the fixtures them-
selves due to the deep regress of
the trim insert.

20
Lateral Wall Washer
Spreads light over a wider area
with even illumination. Available
in 1, 2 or 3 light fixtures.
Transverse Wall Washer
More narrow horizontal illumination
compared to lateral wall washer but
provides a larger vertical spread.
Available in 2 light fixtures only.
