Cooper Lighting MSL180 User manual

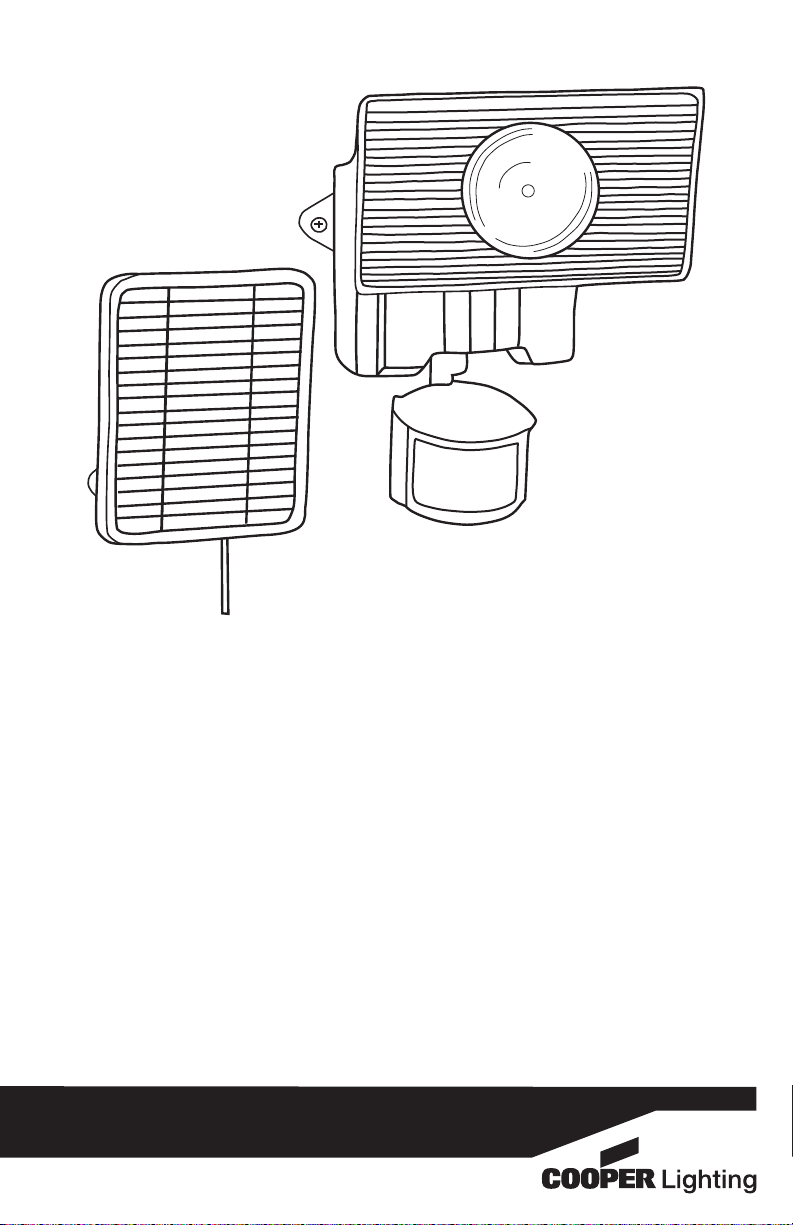

SL180
SL180W
Instruction anual
Instrucciones
Directives

English
SL180 (Bronze)
SL180W (White)
2
Congratulations. You have purchased a motion activated solar floodlight.
This light is constructed of durable plastic and will provide years of trouble free
and weatherproof service.

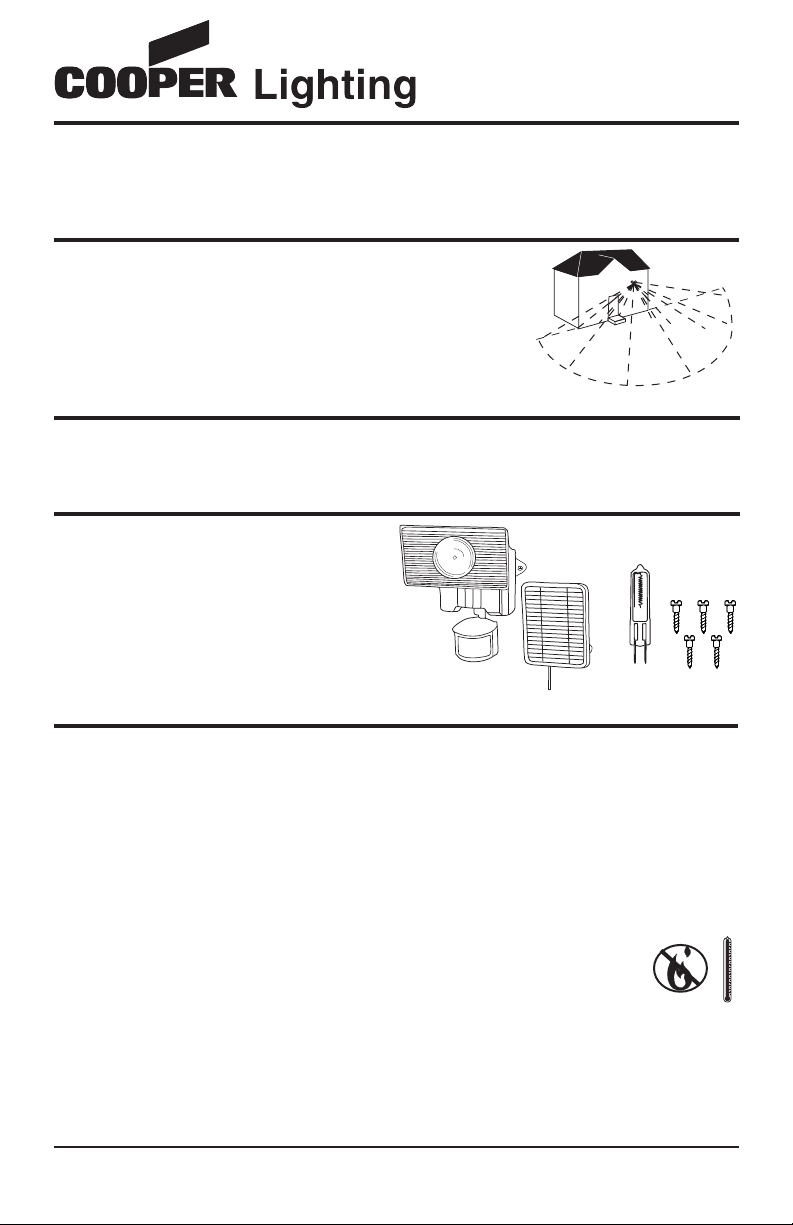

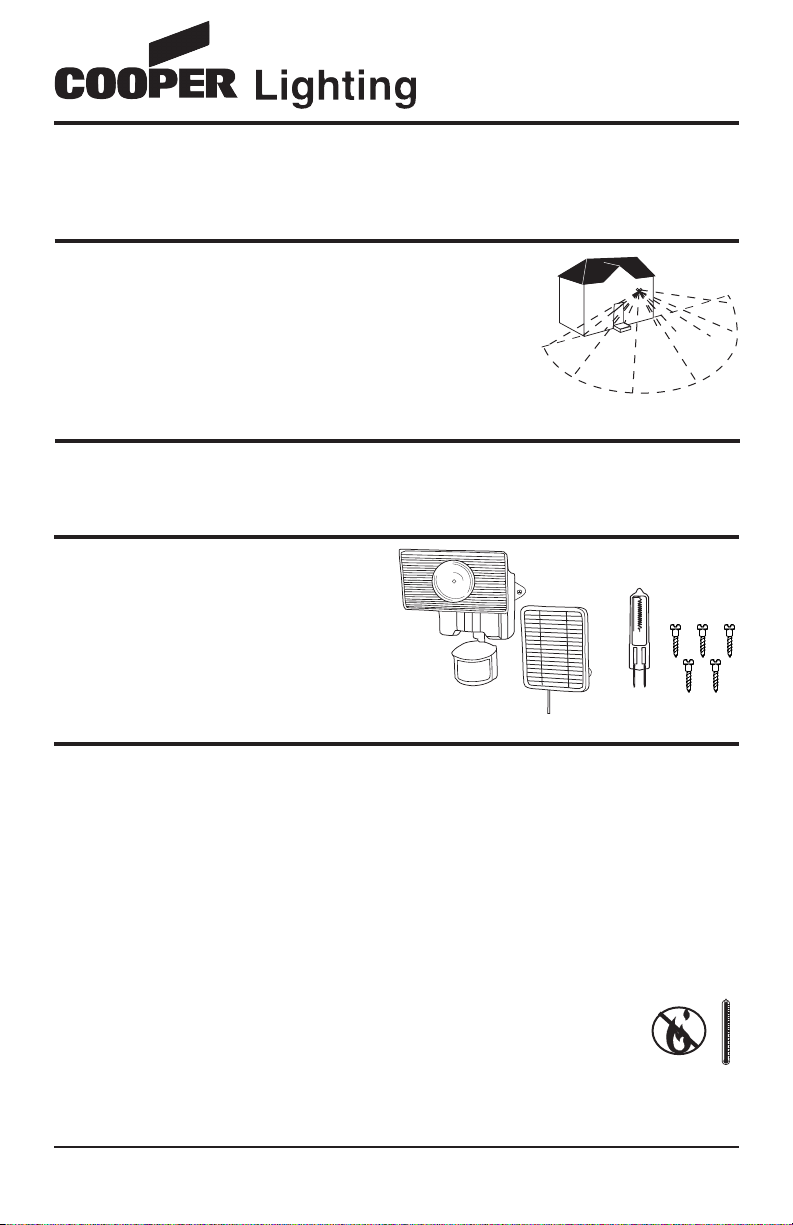

HOW IT WORKS
During the daylight hours, the solar panel turns the sunlight
into energy that is stored in the rechargeable battery. Your
light features a motion sensor that turns the light ON at
night when motion is detected. This light is equipped with
a photocell, which only allows the fixture to turn ON during
the nighttime hours.

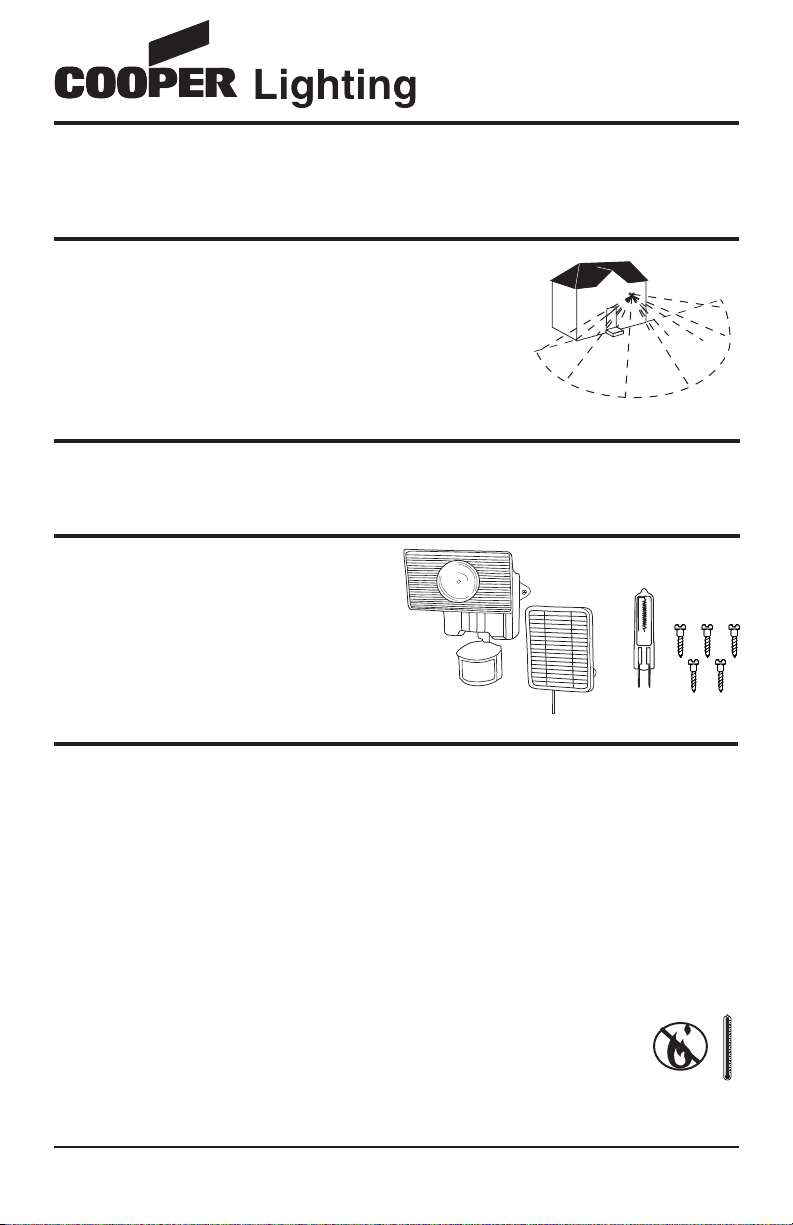

WHAT YOU NEED
• Phillips screwdriver
• Flat head screwdriver
WHATʼS INCLUDED
• Light fixture (A)
• Solar Panel (B)
• 15 Watt, 6 Volt G4 bi-pin
Halogen bulb (C)
• (5) Mounting Screws (D)
WHAT TO KNOW
PLEASE READ THESE I PORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY
TO PERSONS:
Lighted lamp is HOT!
To Reduce Risk of Fires or Injury to Persons, Read and Follow
these Instructions:
• For outdoor use only.
• Turn off and allow to cool before replacing bulb.
• Bulb gets HOT quickly! Contact switch only when turning on.
• Do not touch hot lens, guard, or enclosure.
• Keep away from flammable objects. Do not position fixture
within one inch of any combustible materials.
• Never touch the bulb with your bare hands, as oil from your skin can cause
premature failure. Always handle the bulb with gloves or a soft cloth.
• Do not operate the luminaire fitting with a missing or damaged shield.
180 degrees
D
C
AB
70 Feet

3
• Fixture is suitable for wall mount only. NOT suitable for ground
mount installation.
• Use only the following type and size batteries: Sealed Lead Acid 6 volt
battery. Make sure that replacement battery is same size as current battery.
Replacement batteries are available at most hardware home center stores.
• Do not dispose of the battery in a fire. The cell may explode. Check with local
codes for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and
may cause damage to the eyes or skin. t may be toxic if swallowed.
• Exercise care in handling the batteries in order not to short the battery with
conducting materials such as rings, bracelets and keys. The battery or
conductor may overheat and cause burns.
• Charge the battery provided with or identified for use with this product only
in accordance with the instructions and limitations specified in this manual.
• Observe proper polarity orientation between the batteries and battery
charger/compartment.
• Disassembly of your fixture will void the warranty.
• Do not cut the solar panel wire. Discontinue use if the wire becomes frayed
or broken.
SAVE THESE INSTRUCTIONS.
FOR BEST RESULTS
• Locate solar panel in an area that will receive the maximum amount of
sunlight during the daylight hours.
• Allow fixture to receive four full days of sunlight before turning fixture ON.
• nstall your fixture 8-12 feet above ground (motion detector is less sensitive
above 12 feet.

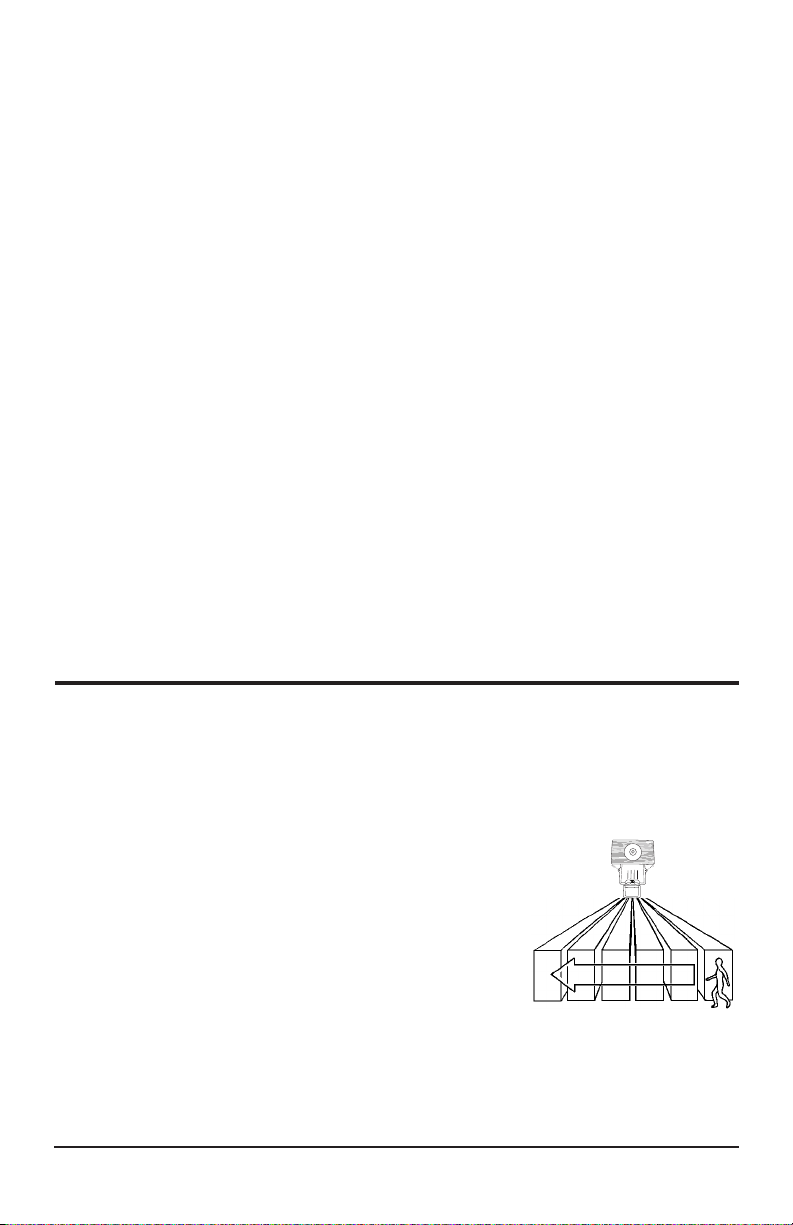

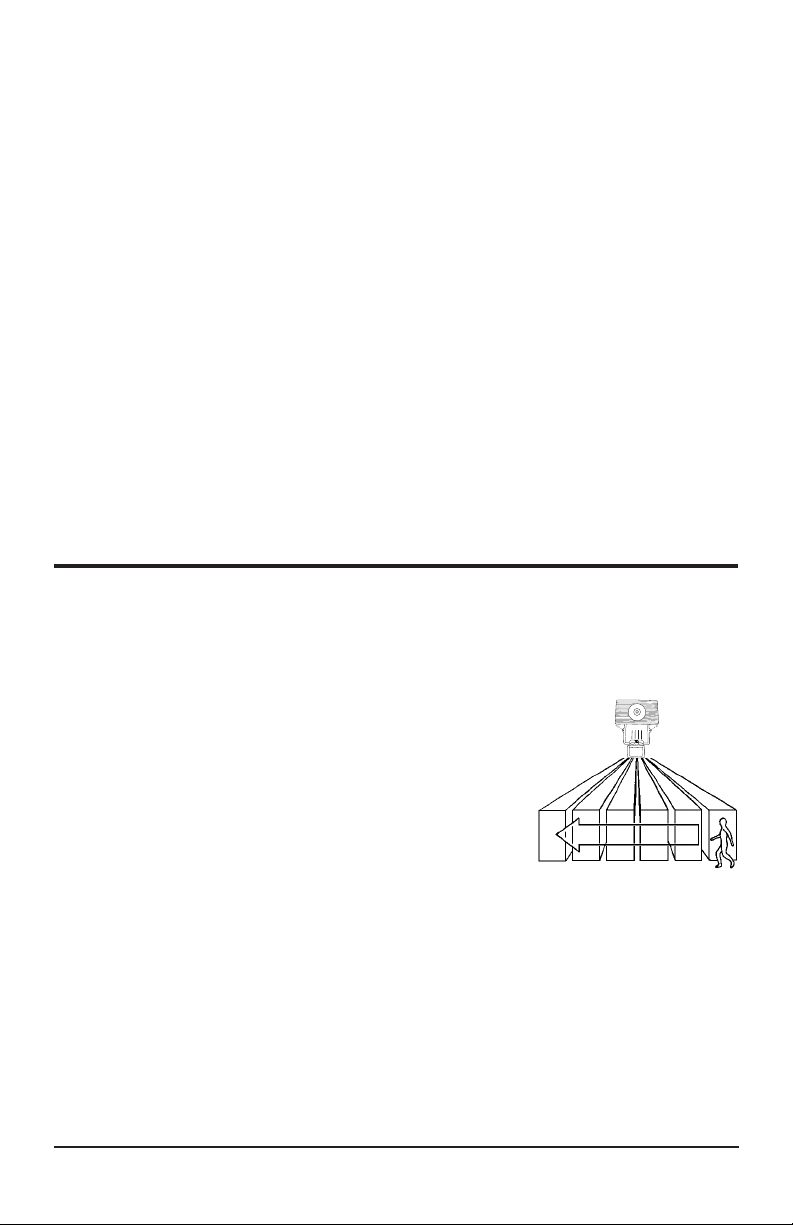

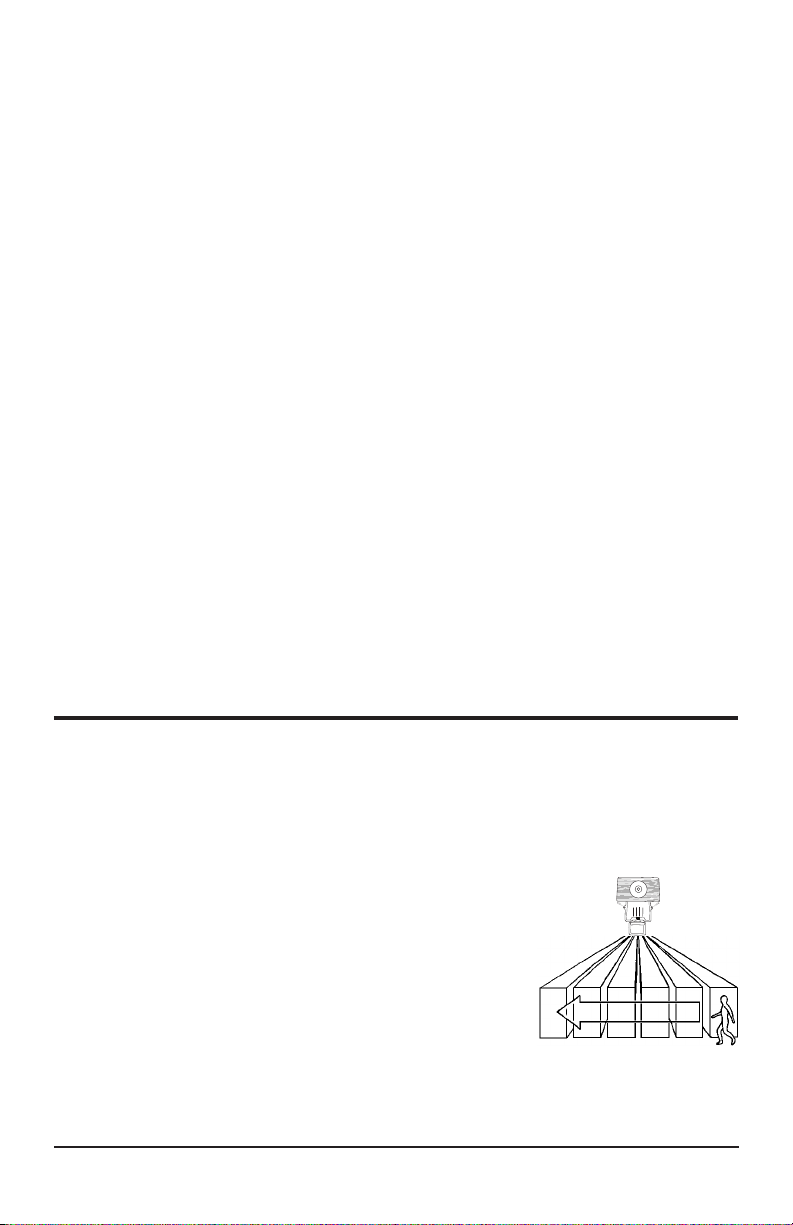

• Locate fixture so motion moves across detection zone (Fig. 1).
• Locate fixture away from heat producing sources
to prevent false triggering. Also be very careful
not to include objects such as windows, white walls
and water in the detection zone whenever possible.
• Locate fixture away from moving objects such as
trees and street traffic.
• You will need to adjust the angle of the solar panel
throughout the year as seasons change in order to keep it at the best
possible angle to the sun.
• Keep solar panel clear of any objects that will block the sunlight. t will be
necessary to periodically clean the solar panel with soft wet cloth.
• During periods of several cloudy days, the battery will become discharged
and will need to be recharged with sunlight.
Note: When battery is low, light may cycle on and off repeatedly. Turn off
fixture until fully recharged.
ON
OFF
Fig. 1

4

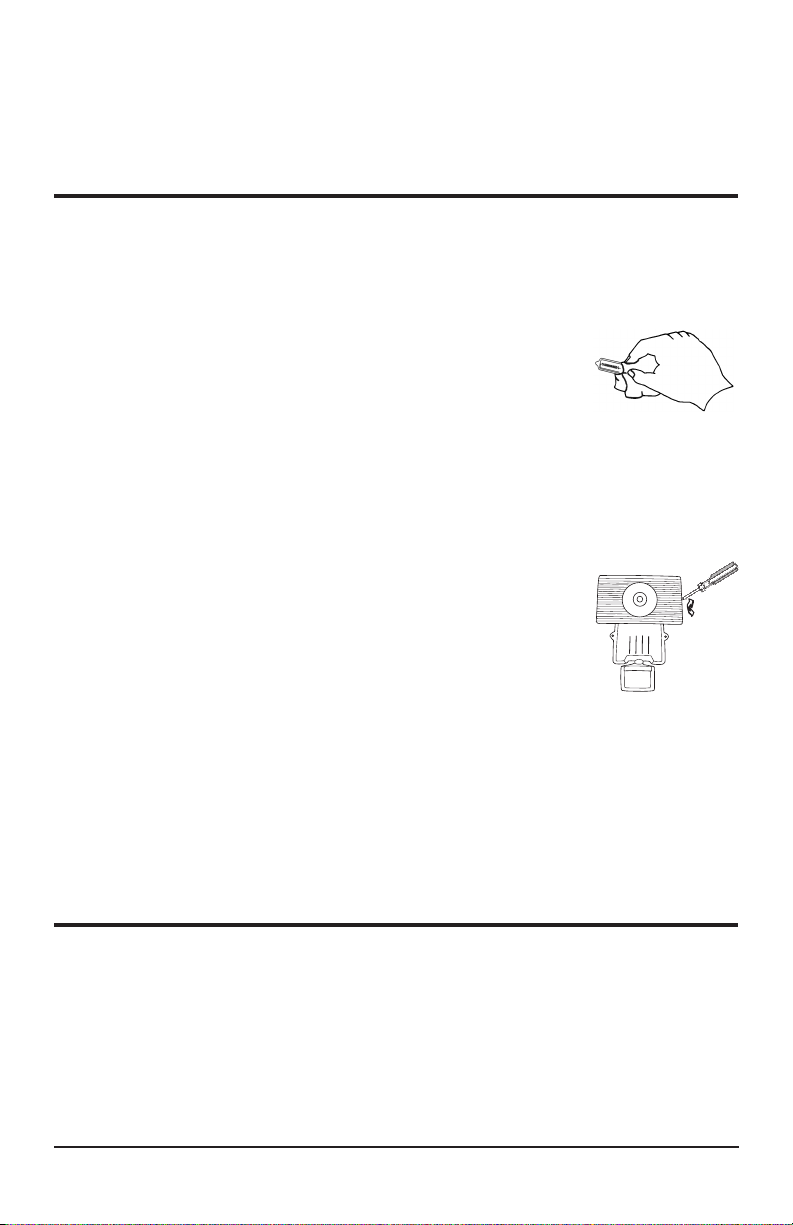

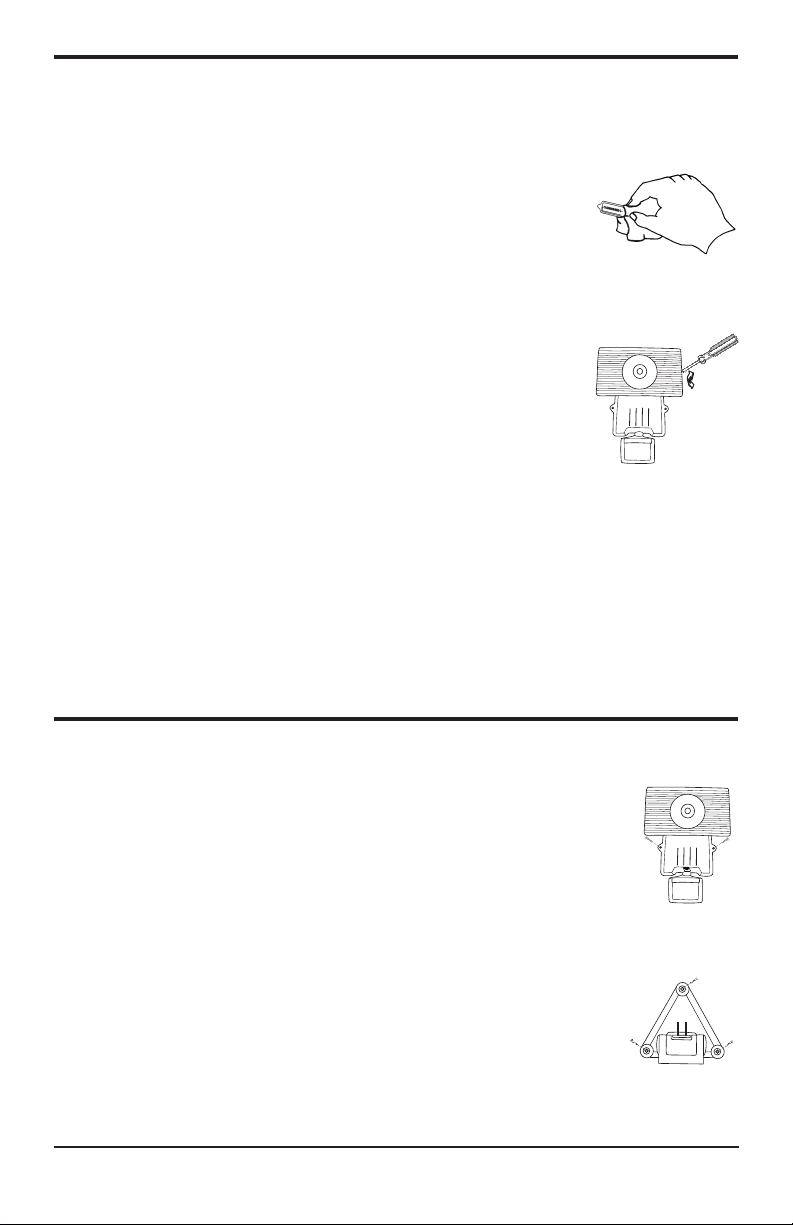

INSTALLING OR REPLACING THE BULBS
Note: Disconnect power and allow fixture to cool before removing burned-out bulbs.
Note: Your fixture is supplied with a 15 Watt, 6 Volt G4 bi-pin halogen bulb.
Always replace with the same or lower wattage bulb. Replacing with a higher
wattage bulb will reduce battery life.

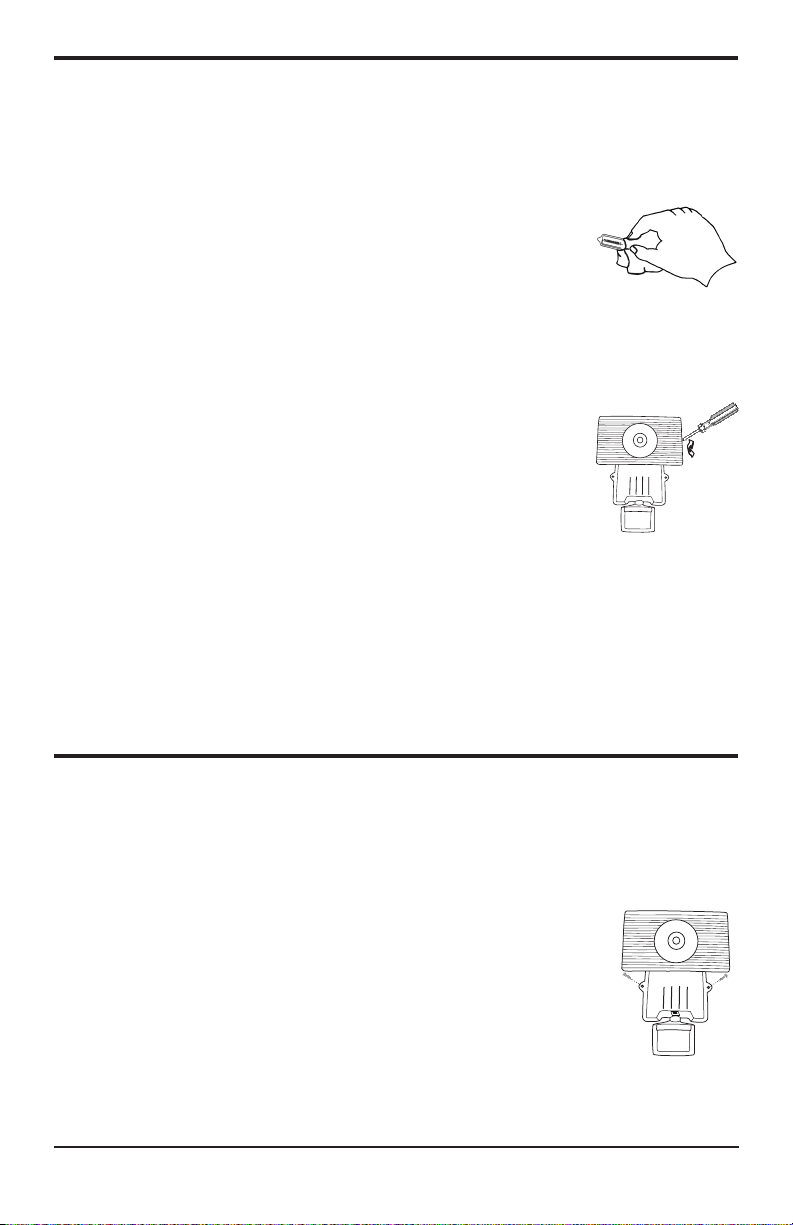

Note: Never touch bulb with bare hands as oil from your skin
can cause premature failure (Fig. 2).
CAUTION: When replacing bulb in fixture, always
replace with the same wattage bulb or a lower wattage
bulb. DO NOT replace with a bulb of greater wattage
than specified on the fixture. To do so could create a
fire hazard and / or shorten the life of the bulb.
1. Before replacing bulb, turn fixture to the OFF position.
2. nsert flat head screwdriver in slot at end of lamp
compartment and carefully pry lens out (Fig. 3).
3. Bulb will be extremely hot if touched while bulb is burning
or immediately after bulb is off.
4. Allow bulb to cool before touching. DO NOT touch bulb
with bare hands.
5. Grasp bulb and gently pull out of socket.
6. Replace bulb by lining up the pins of the bulb to the holes in the socket and
gently pressing down.
7. Replace lens by lining up the notches at the bottom of the lens with the notches
on the bottom of the lamp compartment and then gently pressing in at the top
until it snaps into place.
8. Turn fixture back to the ON position.
INSTALLATION INSTRUCTIONS
Note: Your fixture is supplied with a 15 watt halogen bulb, which is shipped in the
lamp compartment of the fixture. The lamp must be installed before use. Please
see “Installing or Replacing the Bulbs”
section of the instruction sheet for installation instructions.
1. Locate area in which you would like to install your light fixture.
Note: For fixture to operate properly, the solar panel must be
located in an area that will receive the maximum amount of sunlight
and is free from obstructions.

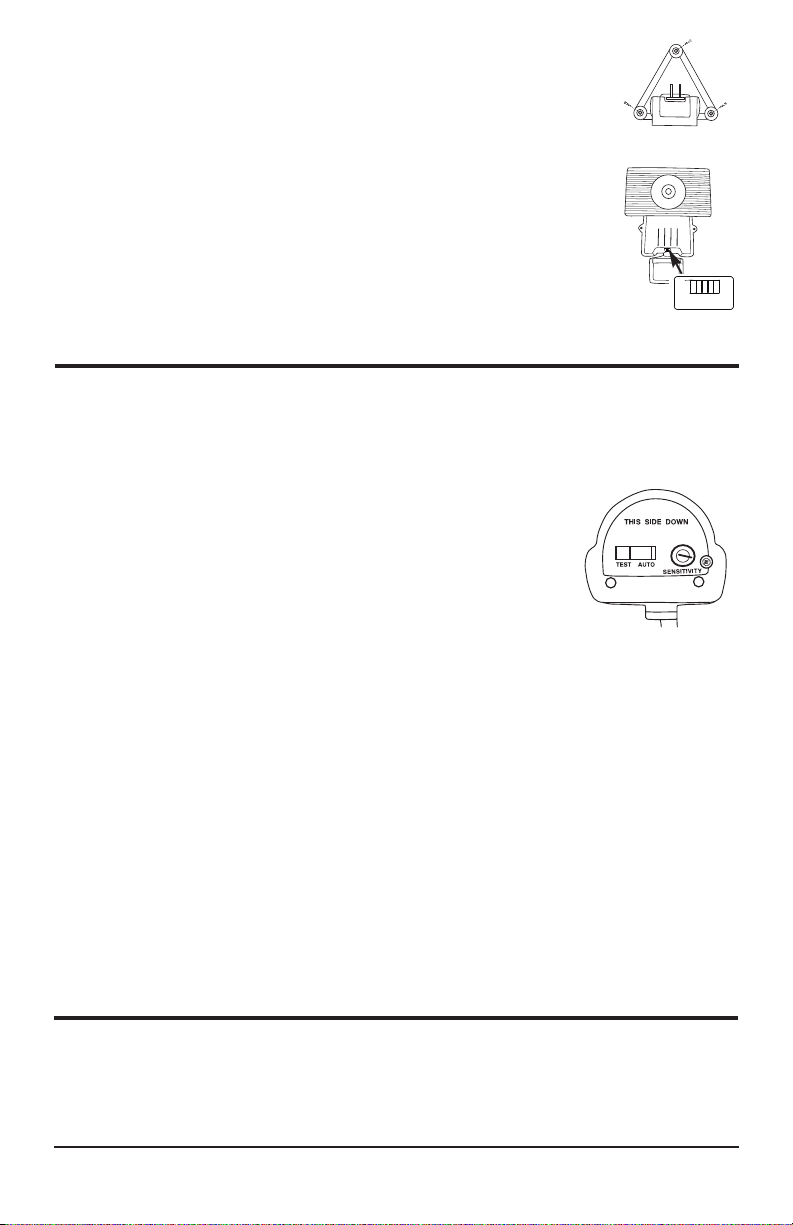

2. Using two of the mounting screws provided, mount fixture to a
solid surface 8-12 feet above the ground, by placing the
screws through the holes on either side of the fixture (Fig. 4).
Adjust sensor head so that control switches are facing the
ground. Remove label from the front of the sensor head.
3. Using three of the mounting screws provided, mount solar
panel to a solid surface (Fig. 5). Adjust the angle of the solar
panel so that it will receive the maximum amount of direct
sunlight possible during the daylight hours.
Fig. 2
Fig. 3
Fig. 5
ON
OFF
Fig. 4

5
The solar panel can be mounted up to 16 feet away from
the light fixture.
4. Carefully route the wire from the solar panel to the fixture
and plug it into the connector extending from the bottom
of the fixture housing. (For now, keep fixture in the
OFF position) (Fig. 6).
5. Allow fixture to receive four full days of sunlight
before turning fixture to the ON position.

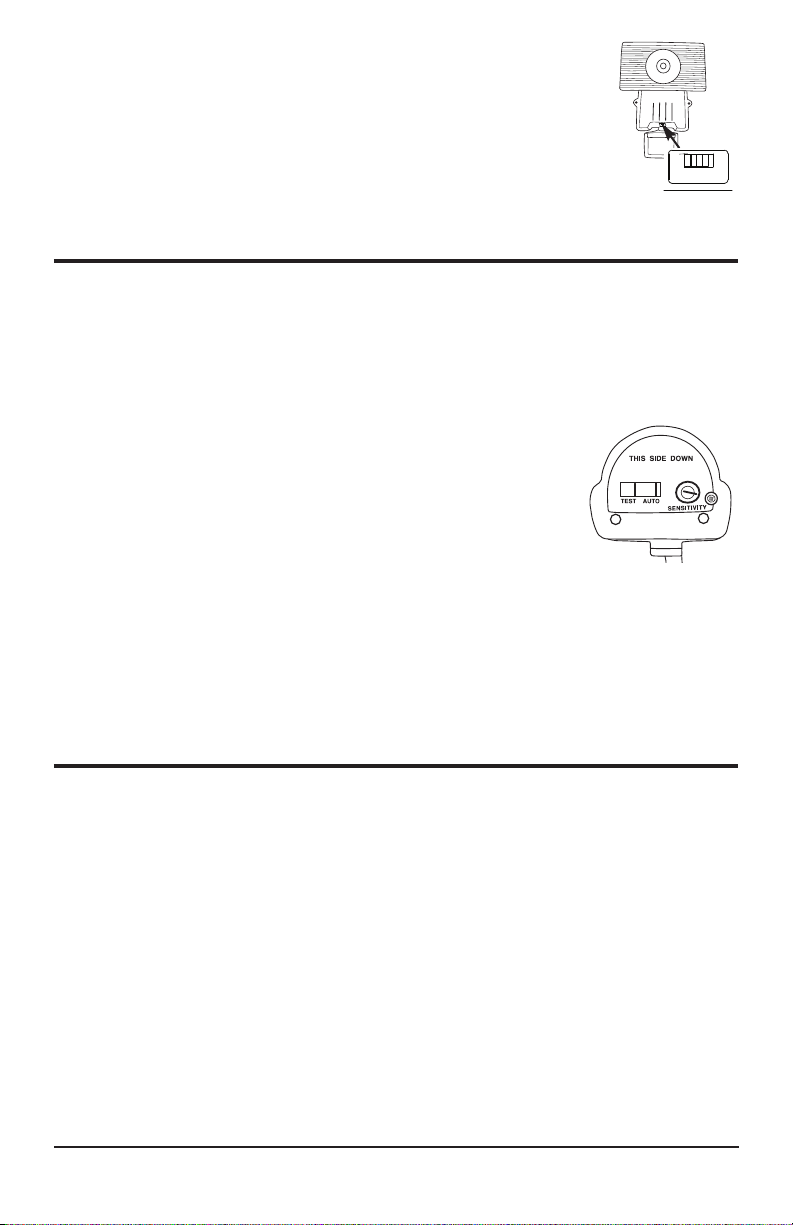

HOW TO OPERATE YOUR FIXTURE
1. After fixture has received four full days of, sunlight, slide the ON/OFF switch on
the bottom of the housing to the ON position (Fig. 6).
Note: Fixture has a warm up period of about one minute. Light may turn on during
this period. Once the light turns off, you are ready to test.
2. Move slide switch on the bottom of the sensor to “TEST”.
Set sensitivity knob to medium (halfway) (Fig. 7).
3. Aim sensor toward the general direction that motion will be
coming from. Maintain at least 1˝ of clearance between
sensor head and lamps. Always position the sensor head
with control switches facing toward the ground.
4. Walk through the detection zone at the farthest
distance you want your detector to detect motion.
5. Adjust the SENS T V TY knob until you get desired results.
For more range, aim sensor slightly upward. For less range, aim
sensor head slightly downward. Lights will turn off 4 seconds after
motion stops.
Note: Allow five seconds after light turns off before your next test.
6. Move slide switch to “AUTO”. Light will turn on at night when motion
is detected and turn off 30 seconds after motion stops.
PROPER BATTERY CARE
Note: Under normal conditions, the included battery should work for two years.
Proper care should ensure the longest possible life for your battery.
• Make sure that your solar panel is located in a sunny location.
• Allow the solar panel to collect sunlight (charge the battery) for four days
before switching the fixture ON.
• Any of the following behaviors are an indication of low charge on your battery.
Switch the fixture OFF and allow the battery four sunny days to recharge the
battery before turning the fixture back ON. A series of cloudy days may
drain your battery. Proper recharging will prolong battery life.
• When motion is detected (in AUTO mode), fixture turns on but then off after
1-3 seconds.
• When motion is detected (in AUTO mode), fixture turns on but then
flashes periodically.
• When the length of the lighting time (30 seconds) becomes noticeably shorter.
• When the fixture's brightness is noticeably dimmer.
Fig. 7
ON
OFF
ON/OFF
Switch
ON
OFF
Fig. 6
This is the bottom
side of the motion
detector

HOW TO REPLACE BATTERY
Note: Use only the following type and size battery: Sealed Rechargeable Lead Acid
6 Volt 4 ampere hour battery. Make sure that replacement battery is same size
(2-3/4˝ x 3-7/8˝ x 1-13/16˝) as the current battery.
1. Turn the fixture to the OFF position and unplug the solar panel from the
connector extending from the bottom of the fixture housing.

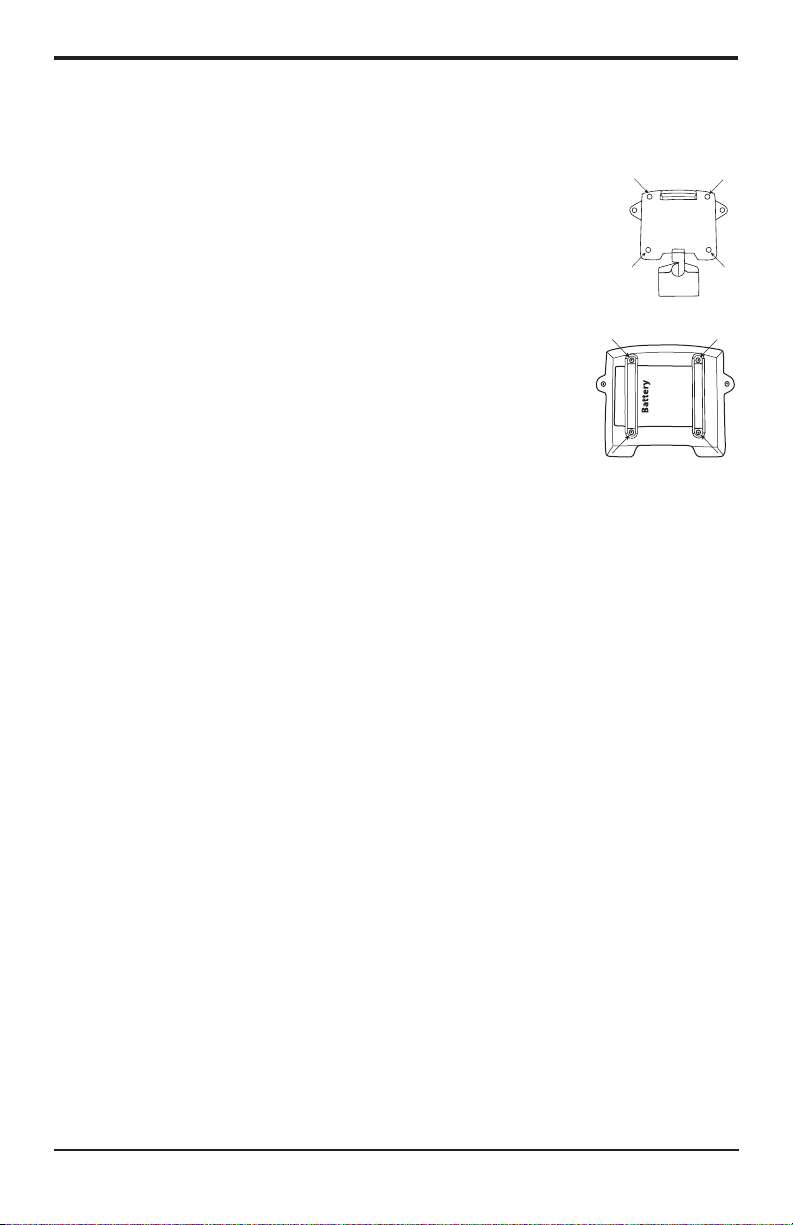

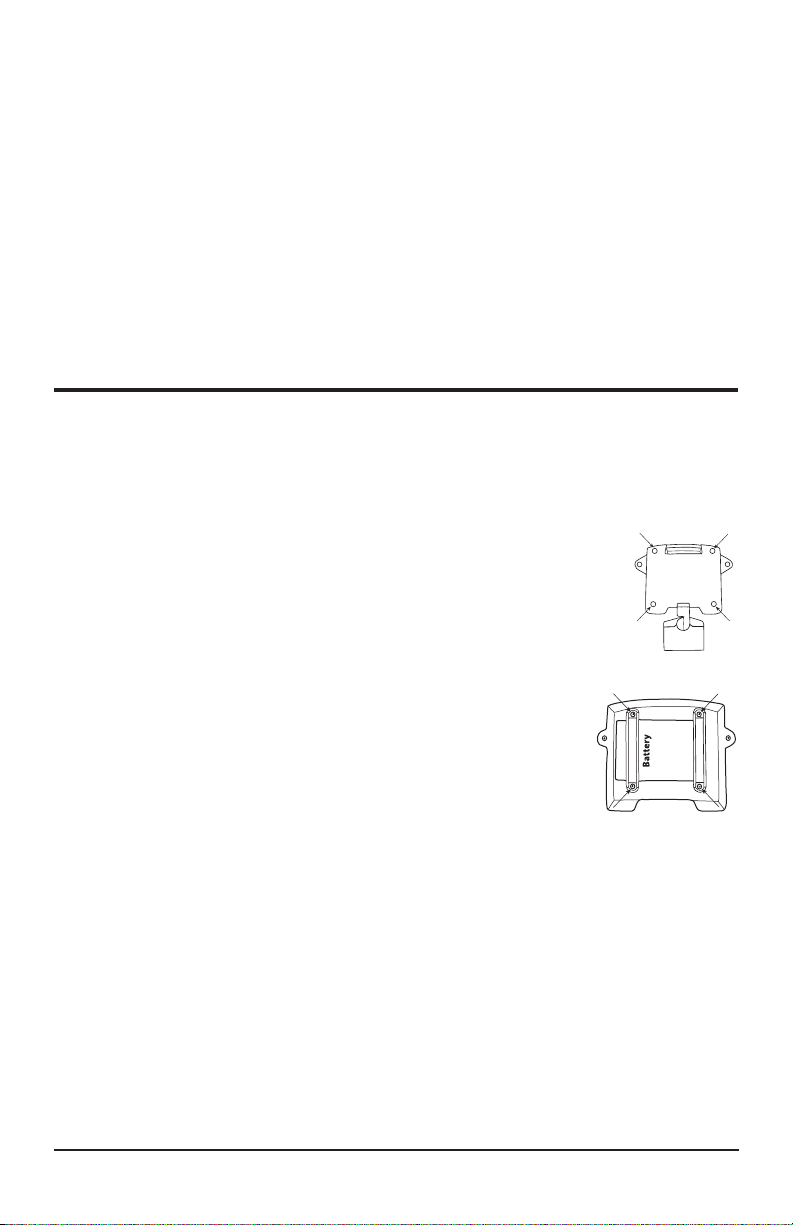

2. Remove fixture from itʼs mounting surface by removing the two
screws on each side of the fixture. Remove the four screws on
the back (Fig. 8).
3. Carefully turn the fixture over and lay it on its back. Slowly lift
the front cover to the side making sure that you do not stress
the wiring.
4. Locate the two brackets that hold the battery into place and
remove the four screws (Fig. 9).
5. Lift battery and unplug the positive and negative leads.
Attach the leads from the fixture to the terminals of the
new battery, making sure to connect the positive lead to
the positive terminal and the negative lead to the
negative terminal.
6. Place the battery into the fixture and replace the two
brackets that hold the battery in place, make sure that none of the wiring is
trapped under the brackets before installing any of the screws.
7. Carefully replace fixture cover, making sure to properly seat the groove of the
top cover into the channel of the bottom cover and that none of the wiring has
been pinched.
8. Replace the four screws in the back of the fixture.
9. Mount fixture back to the mounting surface and plug in solar panel.
10. Allow fixture to receive four full days of sunlight before turning fixture ON.
6
Fig. 9
Fig. 8

7
FLOODLIGHT DOES NOT
CO E ON WITH OTION AT
NIGHT
s the surrounding external ambient light too bright? ( f so, the
unit may think itʼs daytime.)
• Re-aim the head.
•Relocate or reposition the unit away from the light.
s the fixture being charged during the day?
•Solar panel must be connected to the connector extending
from the bottom of the fixture housing when charging.
•Solar panel must be receiving sunlight to charge
during day (reposition if shadowed).
•Solar panel must be clean and free from debris.
• Check batteries, replace if necssary
* Make sure batteries have been charged for 4 full days of
sunlight prior to turning the fixure on.
FLOODLIGHT CO ES ON FOR
NO APPARENT REASON AT
NIGHT
s there motion in the detection zone?
• Make sure the sensor is not picking up moving objects
such as trees, traffic, etc.
TEST FOR YOURSELF
• Cover the sensor lens with cardboard to prevent
sensor from detecting motion. f the lights stay off,
something in the detection zone is triggering the sensor.
• f this is the case, reduce the sensitivity.
• Reposition motion sensor.
* f the lights stay on with sensor lens covered, contact
customer service.
FLOODLIGHT STAYS ON AT
NIGHT AND DOES NOT TURN
OFF
s there motion in the detection zone?
• Make sure the sensor is not picking up moving objects such
as trees, traffic, etc.
• f this is the case, reduce the sensitivity.
• Reposition motion sensor.
* f the lights continue to stay on, contact customer service.
WHAT TO DO IF...
FLOODLIGHT IS ON
DURING THE DAY
s the switch on the bottom of the motion sensor in the
TEST mode?
• Move the switch to the AUTO position.
s the motion detector shadowed?
• Reposition motion sensor.

8
Two Year Limited Warranty
Cooper Lighting, LLC (“the Company”) warrants this product (“the product”)
against defects in material or workmanship for a period of two years from date of
original purchase, and agrees to repair or, at the Companyʼs option, replace
a defective product without charge for either replacement parts or labor during such
time. This does not include labor to remove or install fixtures.
This warranty is extended only to the original purchaser of the product.
A purchasers receipt or other proof of date of original purchase acceptable to the
Company is required before warranty performance shall be rendered.
This warranty only covers product failure due to defects in materials or
workmanship which occurs in normal use. t does not cover the bulb or failure of the
product caused by accident, misuse, abuse, lack of reasonable care, alteration, or
faulty installation, subjecting the product to any but the specified electrical service or
any other failure not resulting from defects in materials or workmanship.
There are no express warranties except as described above.
THE COMPANY SHALL NOT BE L ABLE FOR NC DENTAL, SPEC AL OR
CONSEQUENT AL DAMAGES RESULT NG FROM THE USE OF THE
PRODUCT OR AR S NG OUT OF ANY BREACH OF TH S WARRANTY. ALL
MPL ED WARRANT ES, F ANY, NCLUD NG MPL ED WARRANT ES OF
MERCHANTAB L TY AND F TNESS FOR A PART CULAR PURPOSE, ARE
L M TED N DURAT ON TO THE DURAT ON OF TH S EXPRESS WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
No other warranty, written or verbal, is authorized by the Company. This warranty
gives you specific legal rights, and you may also have other rights which vary from
state to state.
To obtain warranty service, please write to Cooper Lighting, LLC, 1121 Highway
74 South, Peachtree City, GA 30269. Enclose product model number and
problems you are experiencing, along with your address and telephone
number. You will then be contacted with a solution, or a Return Goods Authorization
number and full instructions for returning the product. All returned products must be
accompanied by a Return Goods Authorization Number issued by the Company and
must be returned freight prepaid. Any product received without a Return Goods
Authorization Number from the Company will be refused.
Cooper Lighting, LLC is not responsible for merchandise damaged in transit.
Repaired or replaced products shall be subject to the terms of this warranty and are
inspected when packed. Evident or concealed damage that is made in transit should
be reported at once to the carrier making the delivery and a claim filed with them.

Customer First Center
1121 Highway 74 South, Peachtree City, GA 30269
www.cooperlighting.com
This product may be covered by one or more of the following patents
and additional patents pending:
D428,352
© 2009 Cooper Lighting, LLC
Reproductions of this document without prior written approval of Cooper Lighting, LLC
are strictly prohibited.
Printed in China
9

Español
SL180 (Bronze)
SL180W (White)
10
Felicitaciones. Usted ha adquirido un proyector luminoso solar activado por
movimiento. Esta luminaria está construída con plástico durable, y le brindará
años de servicio sin problemas y a prueba de intemperie.
CÓ O FUNCIONA
Durante las horas de luz diurna, el panel solar convierte
la luz solar en energía, que se almacena en la batería
recargable. Su luminaria cuenta con un sensor de
movimiento, que enciende la luz cuando es de noche y se
detecta algún movimiento. Esta luminaria está equipada
con una fotocélula, que sólo permite que el artefacto se
encienda durante las horas de la noche.
QUÉ SE REQUIERE
• Destornillador Phillips
• Destornillador Plano
QUÉ SE INCLUYE
• Artefacto de luz (A)
• Panel solar (B)
• Bombilla halógena G4 de 15 vatios
con clavija doble de 6 voltios (C)
• 5 tornillos de montaje (D)
QUÉ SE NECESITA SABER
POR FAVOR, LEA ESTAS INSTRUCCIONES I PORTANTES DE
SEGURIDAD.
INSTRUCCIONES CONCERNIENTES AL RIESGO DE INCENDIO O
LESIONES A LAS PERSONAS:
¡La lampara encendida está CALIENTE!
Para reducir el riesgo de incendio o lesiones a las personas, lea y
siga todas las instrucciones de seguridad.
• Se debe utilizar en exteriores solamente.
• Apáguelo y permita que enfríe antes de cambiarlo.
• ¡El foco se CAL ENTA rápidamente! Toque el interruptor solamente al encenderlo
• No toque el lente, protector o recinto caliente.
• Manténgalo alejado de objetos inflamables. No coloque el artefacto
en posición dentro de 1 pulgada (2,5 cm) de cualquier material
combustible.
180 grados
D
C
AB
21 m
(70 pies)
