coov Winbox P1 Pro User manual

Winbox P1 Pro Instruction Manual
Table of Contents：
I Device Connection
II Application Method of PS4 Console
III Application Method of Switch Console
IV Application Method of X1 Console
V Statement of Function Keys
VI PC COOV Assistant
VII COOV Manager of IOS / Android Side
VIII Automatic On-hook Function
IX More Functions (DPI / Multi group mapping /Reduce Recoil /
Burst Rate)
X Default Key and Mouse Configuration
XI Firmware/Script Update

I Device Connection

①: Home key is equal to the Home key of Joypad
②: H1: The Mapping Key
③: H2: Burst Key Setting
④: H3: Combo Setting Key/Combination Setting Key
⑤: Two-in-one Headset Interface
⑥: Micro USB Interface (Connecting Console/power)
⑦: USB Interface (Connecting mouse/Joypad and so forth)
⑧: USB Interface (Connecting mouse/Joypad and so forth)
⑨: USB Interface (Connecting mouse/Joypad and so forth)
⑩: USB Interface (Connecting mouse/Joypad and so forth)
II Application Method of PS4 Console
1.Keyboard and Mouse Connection
A.Disconnecting PS4 original Joypad bluetooth, the method is: “Settings-Devices
- Bluetooth Devices - Choose the dual shock 4 and Disconnect ” (or applying
different PS4 account)
B.Inserting keyboard and mouse into the USB interface of Winbox P1 Pro.
C.Connecting the Winbox P1 Pro to PS4 Console USB interface by the presented
special cable.
D.After the indicator shining by circulation, waiting 3 to 5 seconds, you shall press
the Home key on Winbox P1 Pro (some PS4 machines shall be held for 1 second).
After the Home key LED lighting constantly, you could operate and control the PS4
Console by mouse and keyboard.

2.Joypad Connection
The connection method is the same with the keyboard and mouse connections’.
Note: if you need to apply the third-party Joypad, please inserting the Joypad to
the Winbox P1 Pro’s USB interface by the USB Joypad cable.

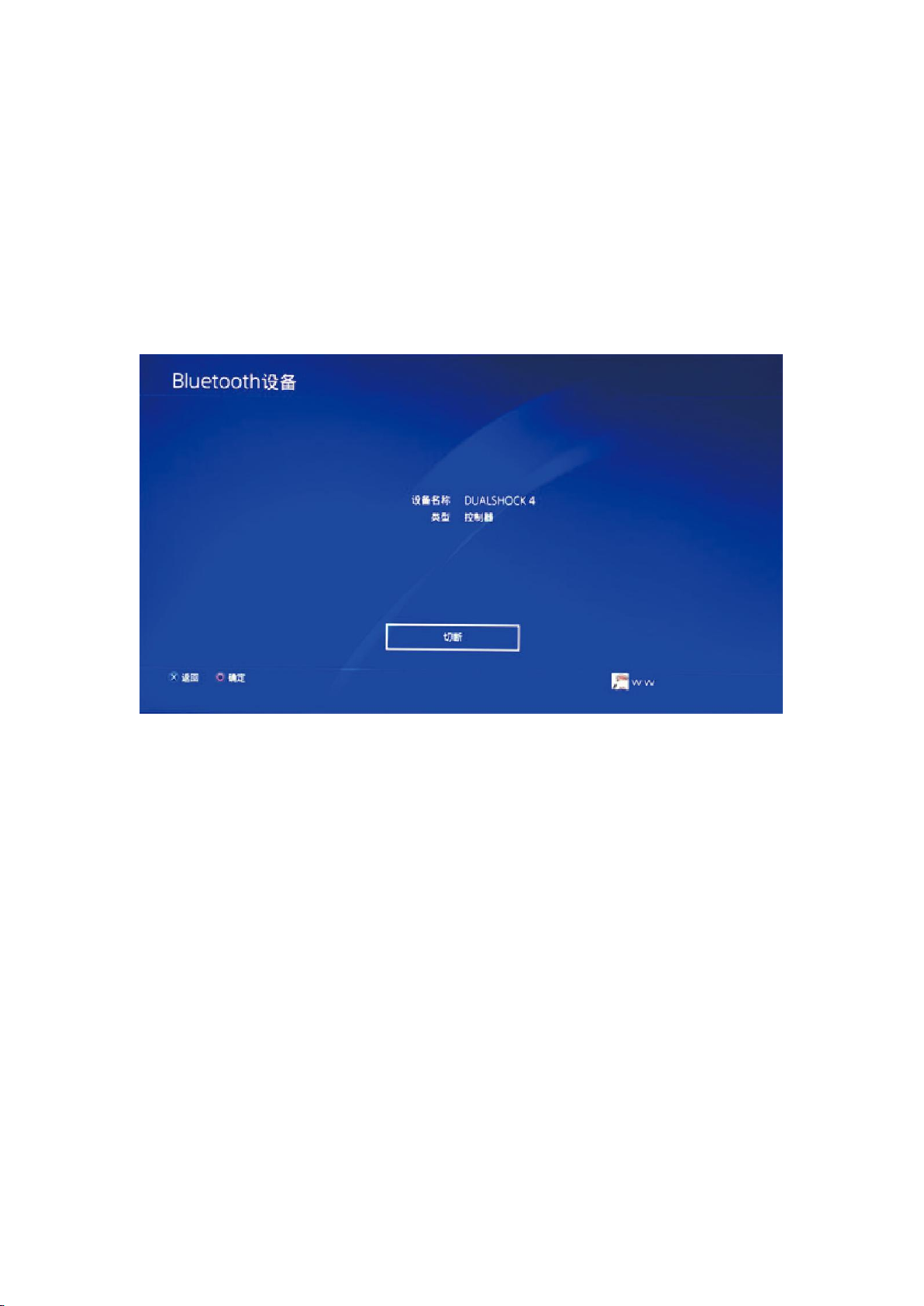

PS4 Joypad Bluetooth Disconnect Interface.
III Application Method of Switch Console
1.Keyboard and Mouse Connection
A.Disconnecting PS4 original Joypad bluetooth, the method is: "Pro Controller
Wired Communication" as ON。
B 、 Entering into setting “ System Settings-Controllers and Sensors-Disconnect
Controllers”Bto disconnect the original Joypad bluetooth connection.
C.Inserting the keyboard and mouse to the USB interface of Winbox P1 Pro.
D.Connecting Winbox P1 Pro to Switch Console’s USB interface (or OTG wire USB
interface) by presented special wire.

E.After the indicator shining circularly, waiting for 3 to 5 seconds, you shall press the
Home key on Winbox P1 Pro. After the Home key LED lighting constantly, you could
operate and manage the Switch Console by mouse and keyboard.
2.Joypad Connection
The connection method is the same as the keyboard and mouse connections’.
Note: if needing to use the third-party Joypad, please insert Joypad to the USB
interface of Winbox P1 Pro by USB Joypad cable.
A Step Operation Interface
B Step Operation Interface

IV Application Method of X1 Console
1.Keyboard and Mouse Connection
A.Connecting the original X1 Joypad with Winbox P1 Pro USB interface by USB
Joypad cable. (as the guiding Joypad)
B.Inserting keyboard and mouse to the USB interface of Winbox P1 Pro.
C.Connecting Winbox P1 Pro with the Xbox one Console USB interface by the
presented special cable.
D.After the indicator shining circularly, waiting for 3 to 5 seconds, you could press
the Home key of Winbox P1 Pro. After the Home key LED lighting constantly, you
could control and manage the Xbox one Console by keyboard and mouse.
2.Joypad Connection
The connection is the same with the keyboard and mouse connections’.
Note: if needing to use the third-party Joypad, please inserting the USB Joypad
cable into the USB interface of Winbox P1 Pro.

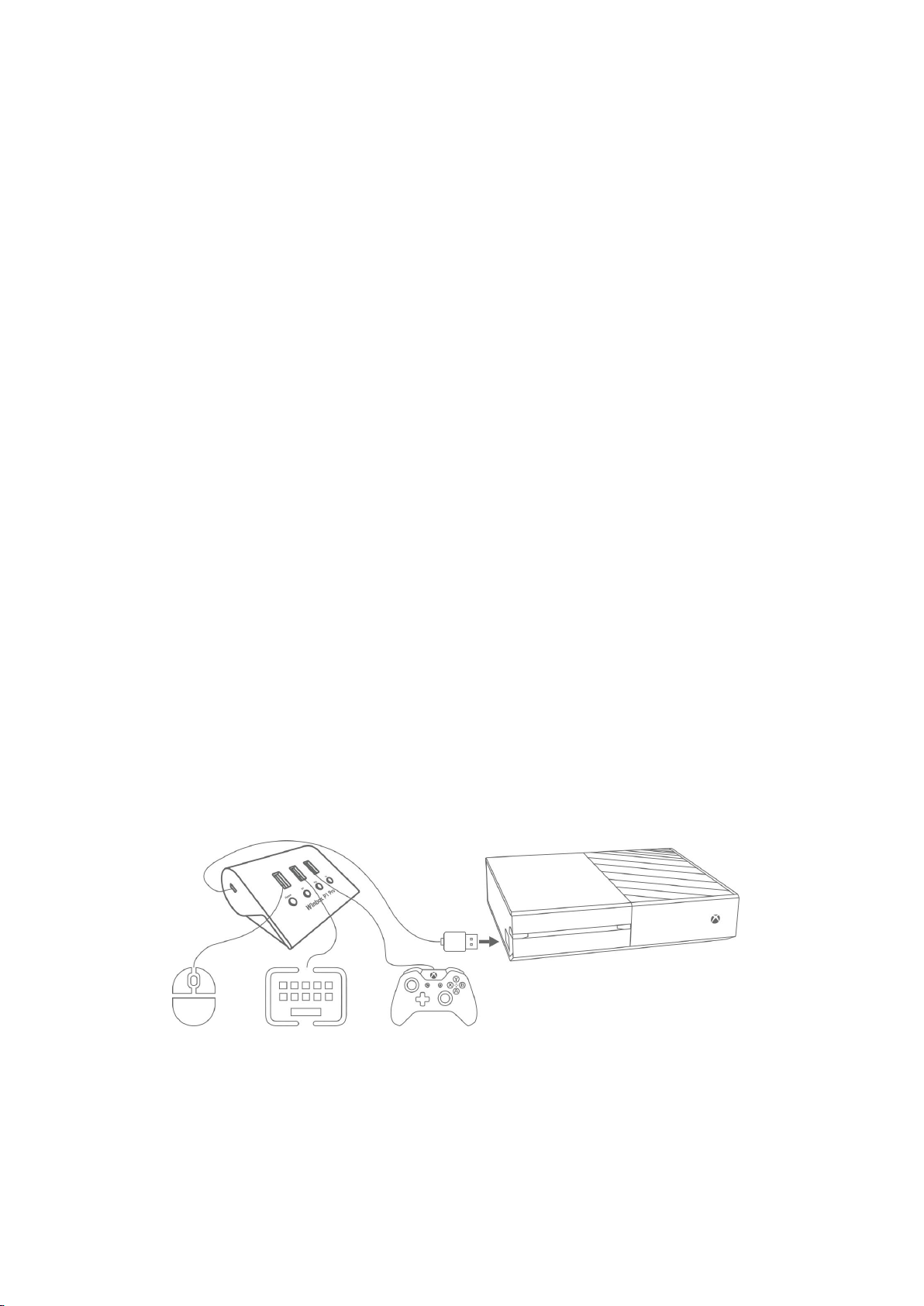

Connecting keyboard and mouseConnecting keyboard and mouse

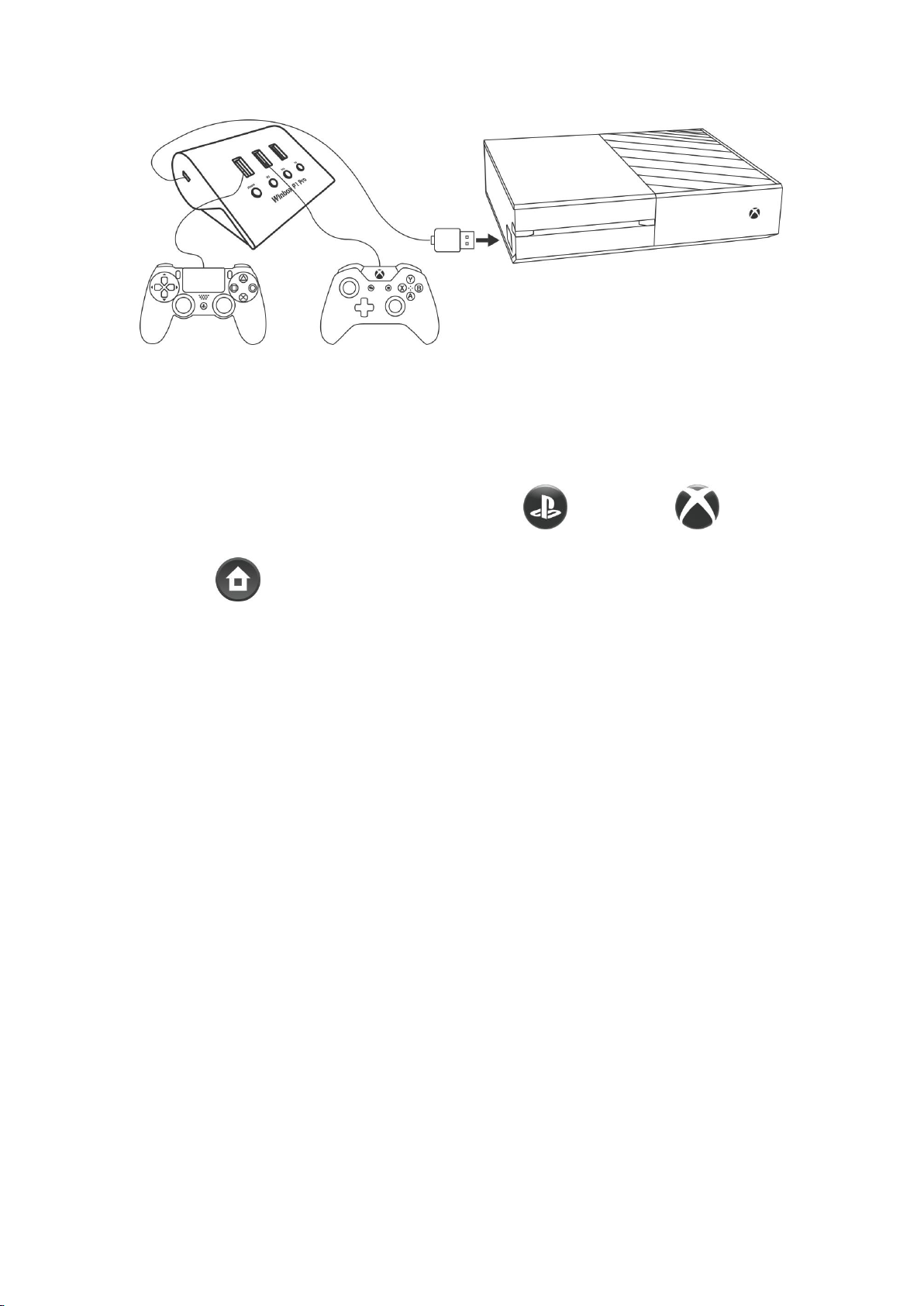

Connect third party Joypad

V Statement of Function Keys
Home Key:
The Home Key function equals to PS4 Joypad / X1 Joypad / Switch
Joypad . After working normally, the red LED of Home key is lighting
constantly.
H1: Mapping Setting Key
The mapping key function is the keyboard shield function. The users could modify
the keyboard / mouse key mapping in line with the requirements.Please connect
the Joypad, mouse and keyboard by wire with the P1 Pro.
1. Pressing H1 key once and loosing (H1 blue LED lamp is lighting constantly)
2. Pressing keyboard / mouse key once
3. Pressing Joypad key once (the Joypad is connected with P1 Pro by cable)
4. After finishing the setting, pressing H1 key once to quit from the setting model
(H1 blue LED lamp is extinguished)(you also could exist the setting model by
pressing H1 after setting all)
Clear All: pressing H1 key(H1 blue LED lamp is lighting constantly);then holding(3

seconds)H1 key to clear all mappings and to quit from setting model (H1 blue LED
light extinguished)
For example:
Keyboard and Joypad Key:after pressing H1 key, please firstly press the K key of
keyboard, the Joypad A key and then press the H1 key to quit from the setting
model. Hence, the K key would be equipped with the functions of A key.
Keyboard and Joypad Left Rocker:after pressing H1 key, please firstly press
keyboard W key, push the Joypad rocker upward and then press the H1 key to quit
from setting model. Hence, the keyboard W key is armed with the function of
Joypad left rocker pushing upward.
Mouse Camera Movement and Joypad Right Rocker:after pressing H1 key, please
move the mouse, and then rotate Joypad right rocker. Hence, the mouse movement
could be with the movement functions of Joypad rocker.
Mouse Key and Joypad Key:after pressing H1 key, please firstly press the mouse left
key, Joypad L2 key and finally press H1 key to quit from the setting model. Hence,
the mouse left key is with the functions of Joypad L2 key.
H2: Burst Key Setting
The Burst key is used to select the keyboard / mouse / Joypad keys as Burst.
1. Pressing H2 key and loosing to enter into the Burst setting model (H2 yellow
lamp is lighting constantly)
2. Pressing the required key to run out
3. Pressing H2 key to quit from the setting model (H2 yellow lamp is extinguished)

(you could press H2 to quit from the setting model after setting all)
4. Clear All: pressing H2 key (H2 yellow LED lamp is lighting constantly), and then
holding(3 seconds)H2 key could clear all and then quit from the setting model (H2
yellow lamp is extinguished)
H3: Combo Setting Key / Combination Setting Key
The Combo Setting Key could record a series of actions so as to realize the combo
attack and combination function as well as to carry out the combo attack by
designed key.
1.Pressing H3 key and loosing to enter into the Combo Setting Key setting model
(H2 green LED lamp is lighting constantly)
2.Implementing the combo attack operation, and the equipment would record the
operation automatically.
3.After finishing recording, re-pressing H3 key (H3 green LED lamp would light
constantly) and then setting the key for this combo attack / combination. After
setting successfully, it will carry forward the combo attack and the quit from the
setting model(H3 green LED lamp extinguishes)
4.Clear All: pressing H3 key (H3 green LED lamp is lighting constantly), and the
pressing (3 seconds) H3 key to clear all and quit from the setting model (H3 green
LED lamp extinguishes)
For example: after pressing H3 key, then pressing A, B, C, D four keys , H3 key in
succession and finally pressing E key to end the recording. E key is the execute key

for launching A, B, C, D combo attack.
Supporting Key:
a.All keys could be used to trigger except from HOME key and rocker.
All keys could record except from HOME key.
VI PC COOV Assistant
This software could provide the fast and convenient setting for COOV USB Device,
including changing keys, upgrading, recovering, sharing and mouse setting
functions. The users could enter into the official website www.mycoov.come - the
COOV Assistant download page to utilize this software. You could use it by the
related statement.
VII COOV Manager of IOS / Android Side
This software could provide the mobile side setting for Winbox P1 Pro Bluetooth
and other COOV Bluetooth Device including changing keys, upgrading, recovering,
sharing and mouse senior setting functions. All processes are real-time online
debugging application. The users’ experience would be more convenient and
faster. You could enter into official website www.mycoov.com - COOV Manager
page to download and install this software. Then you could use it in line with the
related statements.

VIII Automatic On-hook Function
This function is recording users’ practical operation as well as realizing the infinite
circulation function. Applying this function could realize the automatic on-hook
operation by one key.
Entering into official website www.mycoov.com - Winbox P1 Pro page to download
and utilize the “automatic on-hook special firmware”. According to the related
statements, you could apply for 6 to 60 min recording on-hook function.
IX More Functions
1.Mouse DPI Setting
Winbox P1 Pro is equipped with eight different mouse DPI selection which even
could be adjusted to 8000 DPI at most. The keyboard “Page Up” is to improve the
mouse sensitivity and“Page Down”is to reduce the mouse sensitivity. Please press

the keyboard “pause / break” key to save after modification. Or you also could set
it through PC COOV assistant.
2.Quadruplet Key Mapping
The default of Winbox P1 Pro is general keyboard and mouse key setting.At the
same time, P1 Pro has quadruplet key mapping setting which are respectively key
“F1, F2, F3, F4”. The default is F1 key. Before selecting the key mapping, please
select F1/F2/F3/F4 firstly and then pressing H1 to map. The keyboard F1-F4 could
shift different keyboard setting and all functions are independent.
For example, pressing F2 key and then pressing H1 make the key mapping. Or
you also could press F3 and then H1 to make key mapping and so on.
3. Reduce Recoil Function
Winbox P1 Pro could adjust the ballistic trajectory by pressing effects to realize
Reduce Recoil. You could shift among three groups’ of Reduce Recoil.

Turn off Reduce Recoil: F5
Turn on / Shifting Reduce Recoil: F6-F8
The ballistic trajectory migrating downward (greatly): “-” key
The ballistic trajectory migrating upward (greatly): “+” key
The ballistic trajectory migrating downward (slightly): “【”key
The ballistic trajectory migrating upward (slightly):“】”key
For example, pressing F6 once to turn on Reduce Recoil, you could repeatedly turn
on and adjust the trajectory migrating effects by the four keys “-”, “+”, “【”,
“ 】” so as to realize Reduce Recoil. It will reserve automatically Reduce Recoil
operating after setting. By the same mean, it also suits to F7 and F8. During the
application process, the users could shift different Reduce Recoil setting by
pressing F6/7/8.
4.Adjusting the Burst Rate
P1 Pro supports to adjust the Burst Rate by F11/F12 keys: F11 is used to reduce
Rate and F12 is used to increase Rate. After setting, you could press the
“Pause/Break” key to reserve the setting results.

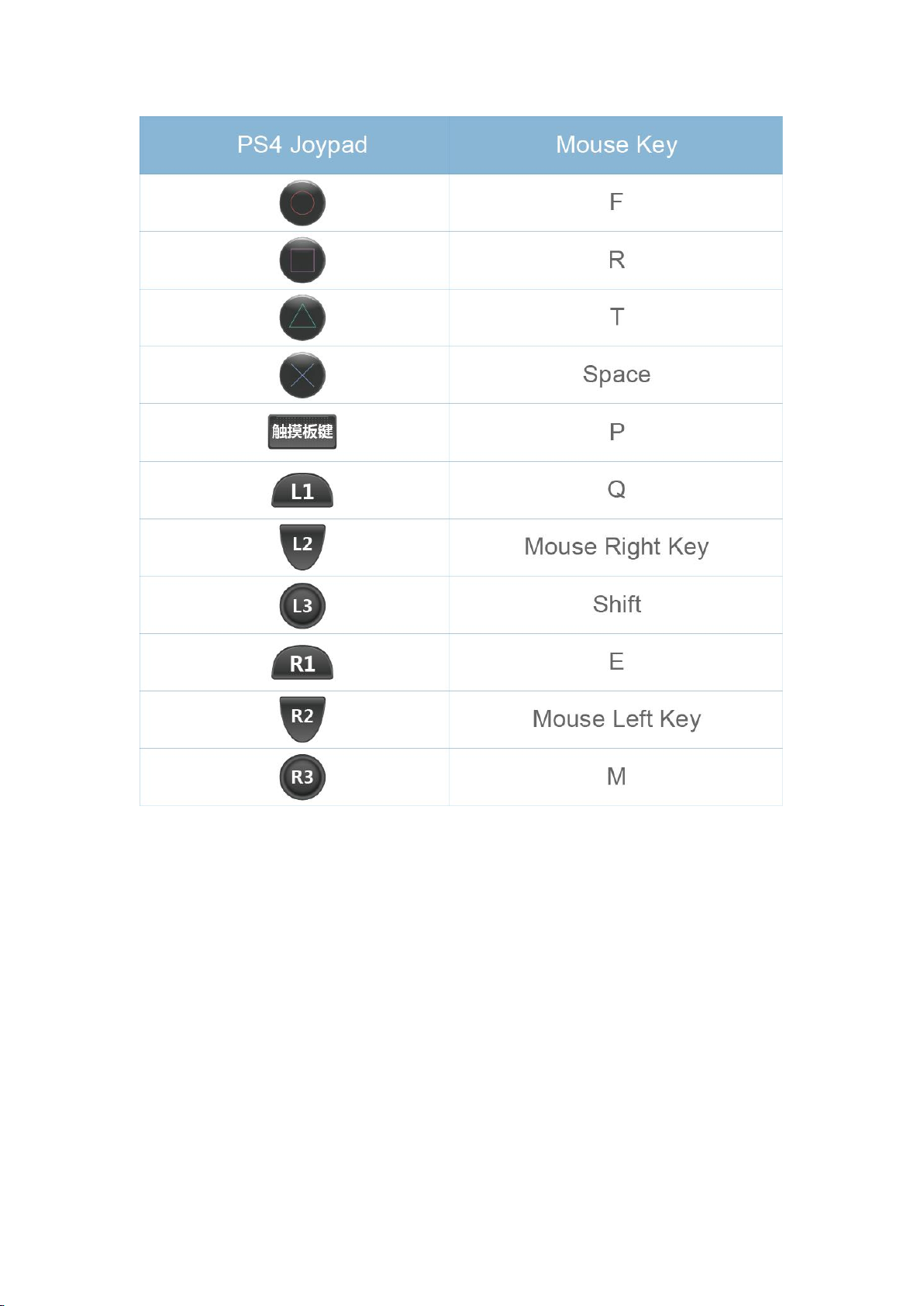

X Default Key and Mouse Configuration

XI Firmware/Script Update
Firmware Upgrade:
1.Entering into the official website (www.mycoov.com) to download and then
decompress the newest firmware package to the computer desktop.
2.Holding H3 and then inserting Winbox P1 Pro by the special cable simultaneously.
After loosing H3, “copy and replace” the file “firmware.bin” in the folder to enter
into Windox P1 Pro magnetic disk.

3.When the Winbox P1 Pro pops up automatically, it means the firmware upgrading
successfully.
Alternating Macro Function:
1. Entering into official website (www.mycoov.com) to download and depress the
required macro function to the desktop of the computer.
2.Holding H3 and inserting Winox P1 Pro into the computer by special cable
simultaneously. After losing H3 key, “copy and paste” the file “data.bin” in the
folder into Winbox P1 Pro.
Attachment: More functions related to third-party controllers, such as linear
control on and off, handle button combination function, please refer to other
COOV product manuals, such as N100 PRO.
connection:
http://www.mycoov.com/upload/2018-05/16/COOVN100Progongnengmiji.pd
f
