Copernicus iRover2 IFP550 User manual

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
1
Assembly Guide
IFP550 2020 A
Check out our other products online at
www.copernicused.com
ŸThis product is meant to be assembled by an adult.
ŸIn its unassembled state, small parts present a hazard.
ŸTo be used under direct supervision of an adult.
WARNING
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
TM
iRover2 Base Model for Interactive Flat Panels
IFP550
Shown with SMART MX265 Flat Panel (sold separately)
Please Recycle

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
2
5
Frame
Warranty
Year To validate your warranty, submit the ON-LINE form at www.copernicused.com
Enter a drawing to win a Copernicus Product for your classroom at the same time!
Validate Your Warranty
Component
Warranty
1
Year
Kaylyn Belcourt-McCabe
President
For assistance, please contact us:
1-800-267-8494
Email [email protected]om
Have your packing slip ready for reference
Dear Educator,
Thank you for purchasing the iRover2™ Base Model for Interactive Flat Panels. We hope it meets all your
expectations and you and your students enjoy using it at your school.
If you have any questions, concerns or ideas on how we can improve please let us know by contacting our
Customer Solutions Ninjas at 1-800-267-8494 or [e-mail].
Happy teaching,
We do not inherit the
earth from our ancestors,
we borrow it from our
children.
NORTH AMERICAN
PROVERB
Change is the end result
of all true learning.
LEO BUSCAGLIA
What you leave behind is
not what is engraved in
stone monuments, but
what is woven into the
lives of others.
PERICLES
Education is the most
powerful weapon which
you can use to change the
world.
NELSON MANDELA
IFP550
Assembly Guide
IFP550 2020 A
Check out our other products online at
www.copernicused.com
TM
iRover2 Base Model for Interactive Flat Panels

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
3
Warning! Hazard Risks!
This product is to be used under the supervision of an adult.
Indoor Use
Only
This product is intended for indoor use only. To reduce the risk of fire or electric shock, do not expose
this product to rain or moisture. The internal components are not sealed from the environment.
Read your power strip electrical specifications. Only plug in devices that are approved for use with this
power strip. Connect the supplied power strip directly to a wall outlet. Do not connect to another
power strip or use an extension cord. Unplug when not in use. Do not leave this product plugged in
for more than 72 consecutive hours. Turn off power strip before unplugging.
Power Strip
Specifications
Do not install or use the electrical components of this unit during a lightning storm.
Electrical Shock
In its unassembled state, this product contains parts that can be hazardous to small children. This
product should be assembled by an adult.
Small
Parts
Ensure that any cables extending across the floor to your product are properly bundled and marked to
avoid tripping or falling which may lead to personal injury.
Cable Trip
Hazard
Climb Hazard
Do not climb on, hang from or suspend objects from any components of your product unless otherwise
specified.
Read the electrical specifications of any electronic equipment you are using with your Copernicus
products. Failure to read these specifications and follow their instructions could result in damage to your
equipment or personal injury.
Electronic
Equipment
Adult
Supervision
Please read the warnings below for important safety information regarding your product. Failure to
read these warnings or to follow the instructions below could result in personal injury or damage to
your product that could void your warranty.

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
4
Contents IFP550-0
Before beginning, you should have:
Additional tools required:
Adjustable wrench (2x) OR
IFP550
+Screwdriver
Phillips #2 or #3
Base Foot Left
1x
(33136L)
Base Foot Right
1x
(33136R)

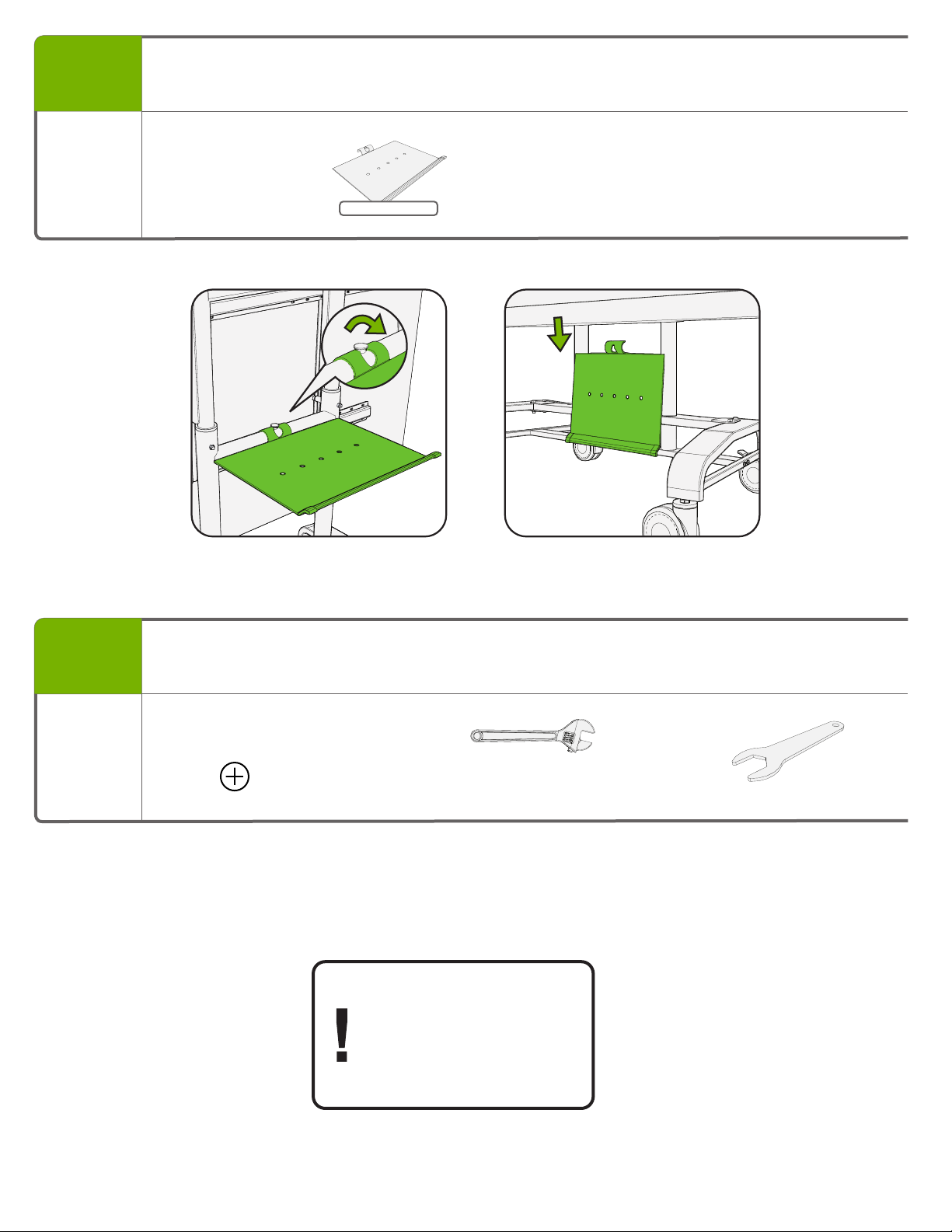

Laptop Tray
1x
(320831)
5” Caster
2x
(410066)
5” Locking
Caster
2x
(410065)
Mounting Frame
1x
(33157)
Contents IFP550-1
20 lbs Weight Limit
Base Frame
1x
(51102)
Flat Panel Mount Riser
2x
(33149)
Flat Panel Mount Stretcher
2x
(33148)
3/8” x 1-3/4” Bolt
4x
(430204)
A
1/4” x 1-1/2” Screw
4x
(43006)
B
C
3/8” Lock Nut
4x
(430122)
I
1/4” x ” Screw3/4
4x
(430039)
D
J
1/4” Lock Washer
14x
(43010)
L
1/2” Lock Washer
4x
(43010211)
K
5 16/ ” Lock Washer
4x
(43025)
M6 x 80mm Bolt
2x
(432210)
MM x 15mm8
4x
(432764)
G
M6 x mm15
4x
(432151)
F
M6 x 20mm
4x
(43222)
Hardware
7/16” Wrench (2x)
9/16” Wrench (2x)
M8 x 25mm
4x
(432765)
H
In Box 0
#10-24 x 1/2” Self Tapping Screw
8x
(4302012)
#10-24” Lock Washer
8x
(4301002)
Metric hardware for VESA Mounting
N O
Caster Wrench (not to scale)
1x
(320955)
TM
iRover2 Base Model for Interactive Flat Panels
Allen Key 5mm (not to scale)
1x
(432811)

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
5
For missing parts and other issues regarding the frame:
Please call Copernicus Customer Service, where we will be happy to help.
1-800-267-8494. Monday - Friday 8:00am - 4:30 pm EST.
OR
Email our Tech Support Service at [e-mail]
My Flat Panel isn’t working, who should I call?
Please call the reseller that you bought the product from first
(reseller information can be found on your packing slip).
This symbol denotes a 2- Person Task. For safety, please ensure that there are the
suggested number of people working on steps displaying this symbol.
Watch for this symbol throughout the Assembly Guide. Wherever you see it, pay
close attention. The symbol denotes a step needing extra attention to ensure it is
done correctly.
The star symbol highlights an advisory note.
Watch for These Helpful Symbols
Before You Begin
As You Assemble the Unit
Lay out and identify all of the included parts.
Read the assembly guide over once to familiarize yourself with them.
Please note that in its unassembled state, this product contains parts that can be
hazardous to small children. This product should be assembled by an adult.
Follow the steps in sequence.
Before beginning each step, find the part(s) that you need for that step.
Pay attention to the labels on the parts; they are there to help direct you at certain stages.
The title of each step states what you will be doing. Review the text and the pictures as you build
the unit.
?
?
?
2-Person Task
Tips for Assembly
Customer Service - FAQ’s
Need Tech Support?
Have a Question?
Email our Tech Support Service
www.copernicused.com
Check out some of our
other great products!

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
6

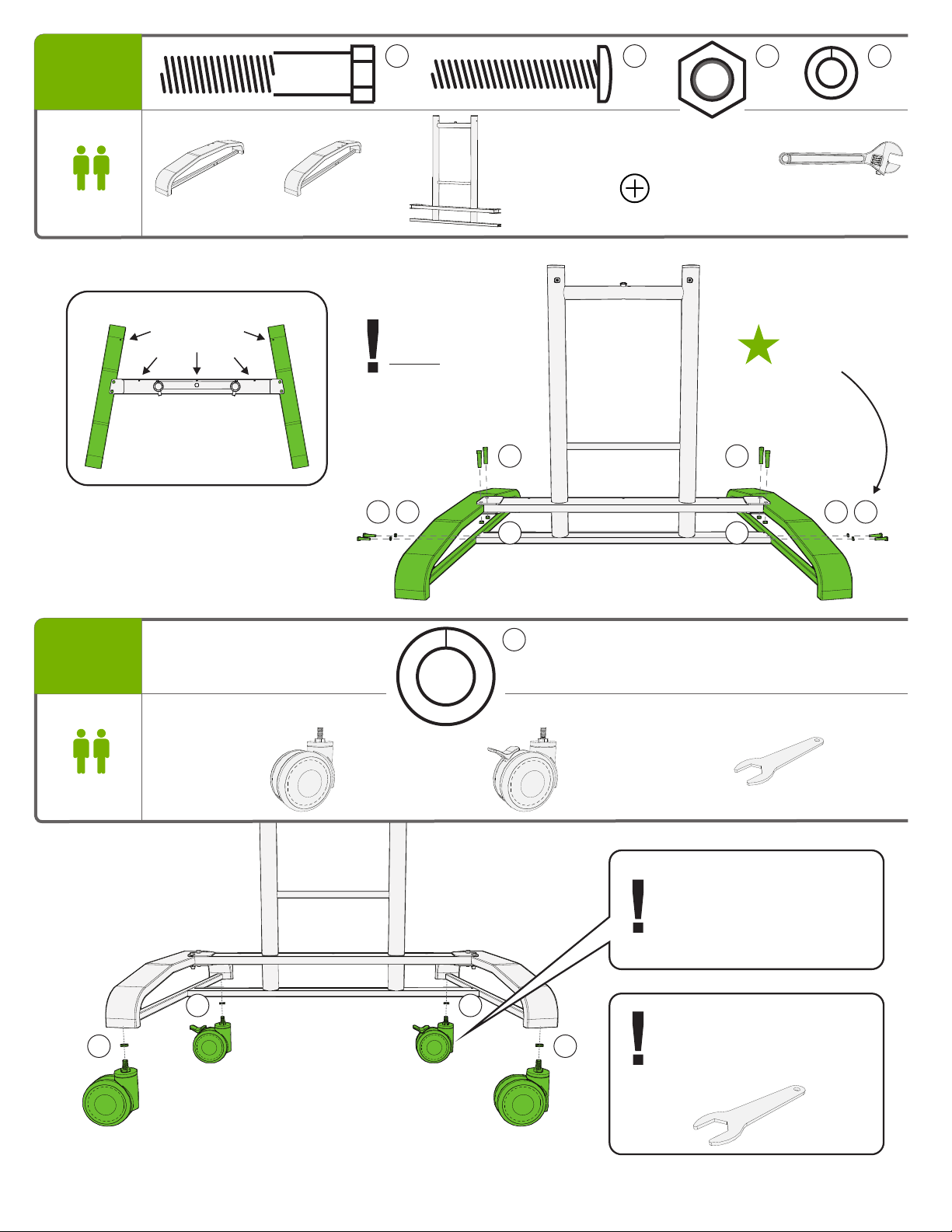

2
Install Casters
You will need: (Not to Scale)
Actual Size:
1
Assemble Base Frame
You will need: (Not to Scale)
Actual Size:
5” Caster
2x
Base Frame
1x
Base Foot Left
1x
Base Foot Right
1x
4x
B C
4x 4x 4x
5” Locking Caster
2x
2-Person Task
4x
2-Person Task
Install locking casters
on back of unit.
Tighten using supplied
Caster Wrench.
(Front)
(Back)
Caster Wrench
1x
Adjustable wrench (2x)
OR
9/16” Wrench (2x)
Install all bolts
before tightening
Tip: Tighten
side bolts first
Keep wrench with unit.
Casters must be tightened
every 6 months for proper
maintenance.
GI
K
K
K K
K
Screwdriver
Phillips #2 or #3
Holes on
this side
I
B
C
B
C
I
GG
(Front)

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
7
Installing Mounting Frame
3
You will need: (Not to Scale)
Actual Size:
Mounting Frame
1x
A
2x 2x
23”
33”
10”
Shown with SMART MX265 Flat Panel installed.
Measurements are approximate and will vary depending on your flat panel.
Remove appliance
tape from bushings
before installing
Mounting Frame
A
Choose Flat Panel Height
A
Secure Mounting Frame
B
Lowest Position
Highest Position
I
I
AI
10” of height
adjustment
upon assembly
Do NOT use these
bottom holes
Allen Key 5mm
1x

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
8
4
Actual Size:
Attaching Your Flat Panel Vertical Mounting Stretchers
You will need: (Not to Scale)
Compatible flat panel
(sold separately)
1x
Flat Panel Mount Riser
2x
4x 4x
4x 4x 4x 4x
M6x15mm M8x25mmM8x15mm M6x20mm
Screwdriver
Phillips #2 or #3
Check your flat panel owners manual for
correct torque specifications when tightening
VESA screws.
Check your flat panel owners manual to
determine correct screw size to avoid causing
damage to your flat panel.
(Showing SMART MX265 Flat Panel)
IJ
L M N O
(4x)
ororor
L M N O
or
IJ
(4x)

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
9

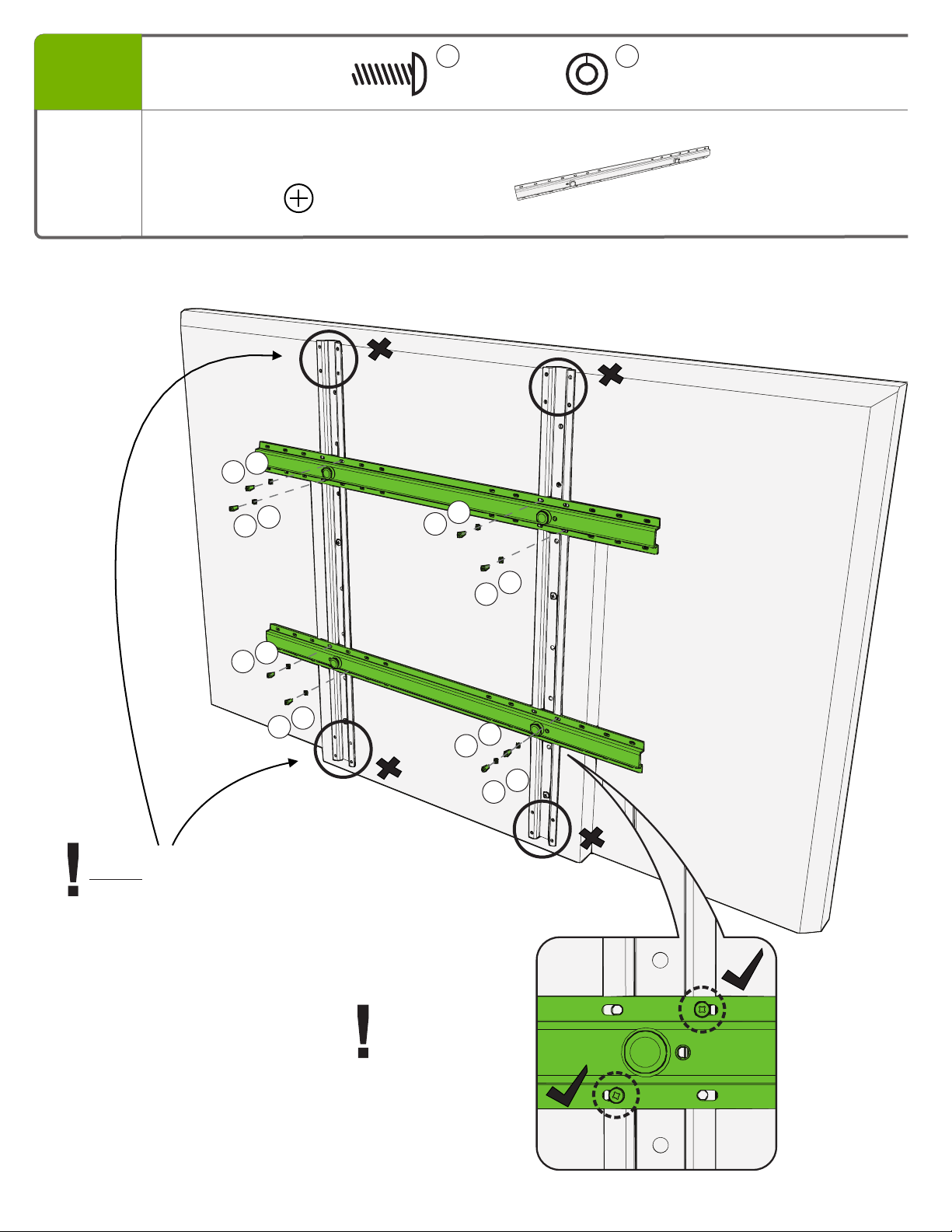

5
You will need: (Not to Scale)
Actual Size:
Install Flat Panel Mount Stretchers
Flat Panel Mount Stretcher
2x
Screwdriver
Phillips #2 or #3
Do not secure in these
holes, they are used
for attaching an optional
soundbar mount
FH
8x 8x
H
F
H
F
H
F
H
F
H
F
H
F
H
F
H
F
Install screws in
holes with threads,
only 2 of 4 holes
will have threads
(Showing SMART MX265 Flat Panel)

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
10
6
You will need: (Not to Scale)
Actual Size:
Secure Flat Panel To Cart
4x4x
D
Screwdriver
Phillips #2 or #3
I
2-Person Task
Lock all casters
before attaching
flat panel to cart
D
I
Insert all 4 adapters
into keyholes.
A
BInsert all 4 Safety Screws

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
11
Laptop Tray
1x
In-use Position On
Back of Cart
Stored Position On
Front of Cart
7
Attaching Laptop Tray
You will need: (Not to Scale)
Actual Size:
20 lbs Weight Limit
8
Final Assembly Checks
You will need: (Not to Scale)
Actual Size:
Check entire assembly for loose parts; tighten all casters, bolts, screws and nuts
Caster Wrench
1x
++
Adjustable wrench (2x)
OR
7/16” Wrench (2x)
9/16” Wrench (2x)
Screwdriver
Phillips #2 or #3
Tighten all casters using
supplied Caster Wrench.
Keep wrench with unit.
Casters must be tightened
every 6 months for proper
maintenance.

IFP550 - Version A - Released Feb 19, 2020 - Copernicus Educational Products Inc.
12

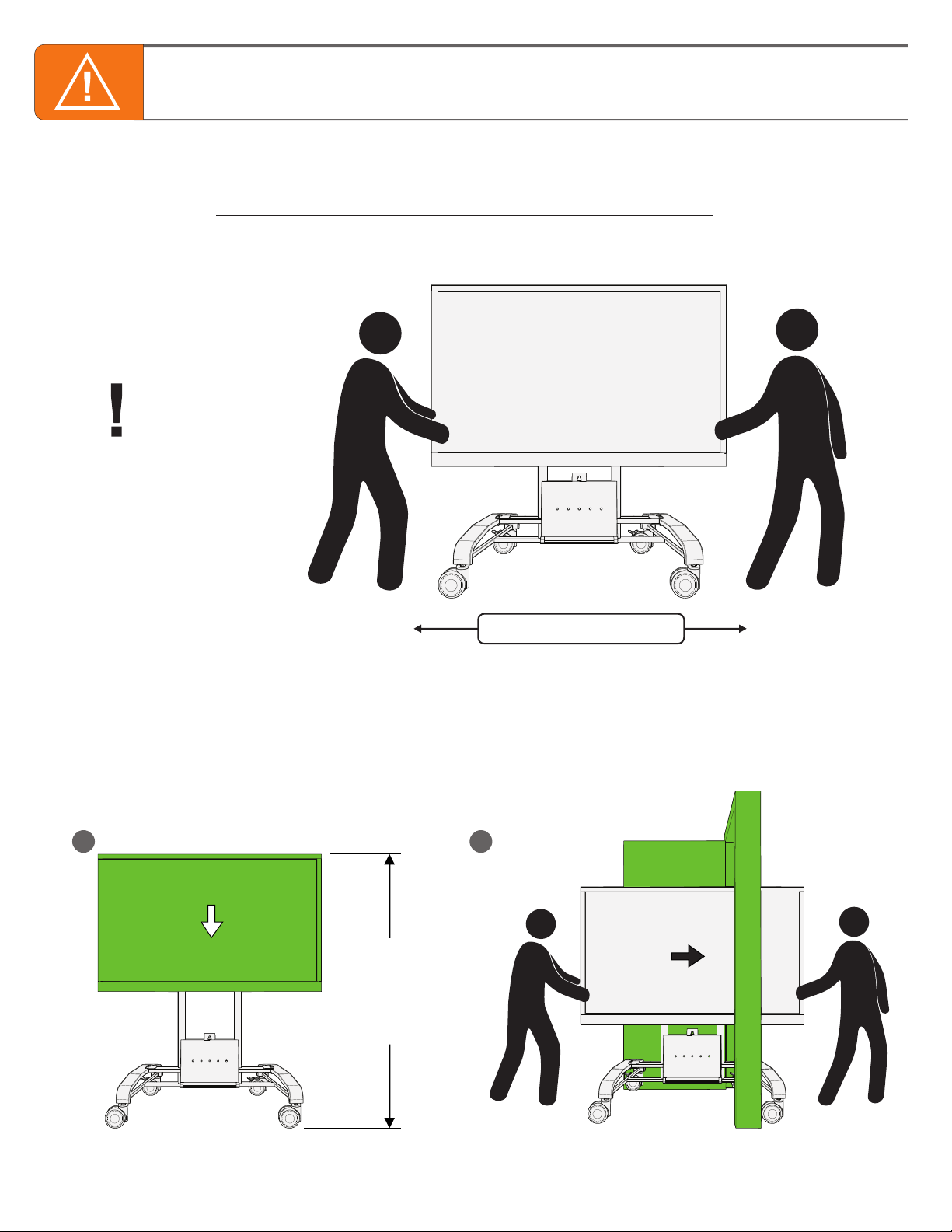

Moving Your Flat Panel Cart
IWB100
IWB102
Moving Through Door
2
When moving your iRover Interactive Flat Panel Cart Fixed Height through a door ensure that the unit is
shorter than the height of the door.
1 2
Always move with two people.
Move unit lengthwise
Secure laptop tray
before moving
To transport unit: Always turn off and unplug the flat panel screen before moving.
Must be
lower than
doorway
