Please read these instructions in
their entirety before attempting
to use this product.
Instructions
for Models 75G,
150G and 300G
The pumps used with the Coralife 75G, 150G and 300G
Cone Skimmers are listed by Underwriters Laboratories
to ensure that they meet the stringent U.S. and Canadian
safety requirements.

IMPORTANT SAFETY
INSTRUCTIONS
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
CAUTION
To guard against injury, the following basic safety precautions should be
observed when operating the unit.
1. Never connect the Coralife Cone Skimmer to any power source while
hands are wet.
2. Always unplug the unit from outlet or power source before installing,
replacing parts or doing product maintenance.
3. Never allow pump to run dry. Always keep pump submerged during
operation. Failure to keep pump submerged while in use may damage
the unit and/or cause unit failure.
4. Always leave a drip-loop in the pump cord to prevent water from running
down the length of the cord and reaching the power source or outlet.
5. For added safety, the pump should be plugged into a grounded
three-prong receptacle controlled by a GFI (Ground Fault Interrupter)
circuit breaker.
6. Make sure that the Cone Skimmer is securely installed before operating.
PRE-INSTALLATION SETUP
NOTE: Prepare at least 5 gallons of “make-up water” to replace water
used by the Cone Skimmer.
SUMP HOOK-UP PLACEMENT
1. Verify that there is adequate space for the Cone Skimmer in the sump.
2. Confirm that sump is large enough to hold additional water from skimmer
and aquarium drainage in the event power is lost.
3. Allow a minimum 1" clearance between the underside of the stand
and the top of the skimmer. Make sure there is enough head space to
remove the collection cup from skimmer.
2
POWER
SUPPLY
CORD
DRIP
LOOP
AQUARIUM
TANK

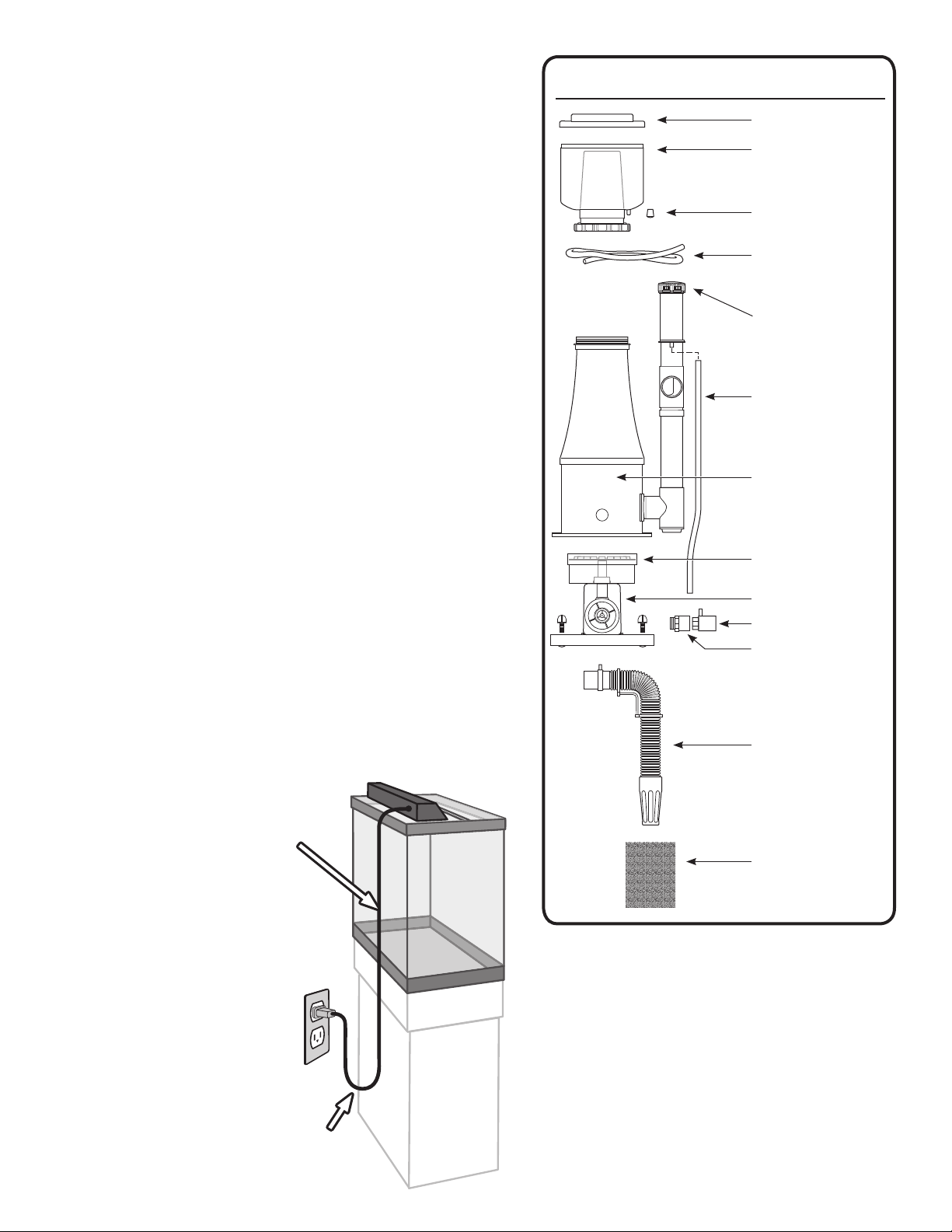

PARTS DIAGRAM 1.0
Collection Cup Lid
Collection Cup
Main Chamber
Bubble Diffusion
Plate
Output Tubing
Air-inlet Silencer
with Tubing
(0.25" I.D. clear)
Venturi Air Inlet
Skimmer Intake
Round Diffuser
Sponge
Collection Cup
Drain Plug
Collection Cup
Drain Tubing
(0.25" I.D.)
Water-Level
Adjustment Dial
Water Pump
(650 - 750 gph)

3

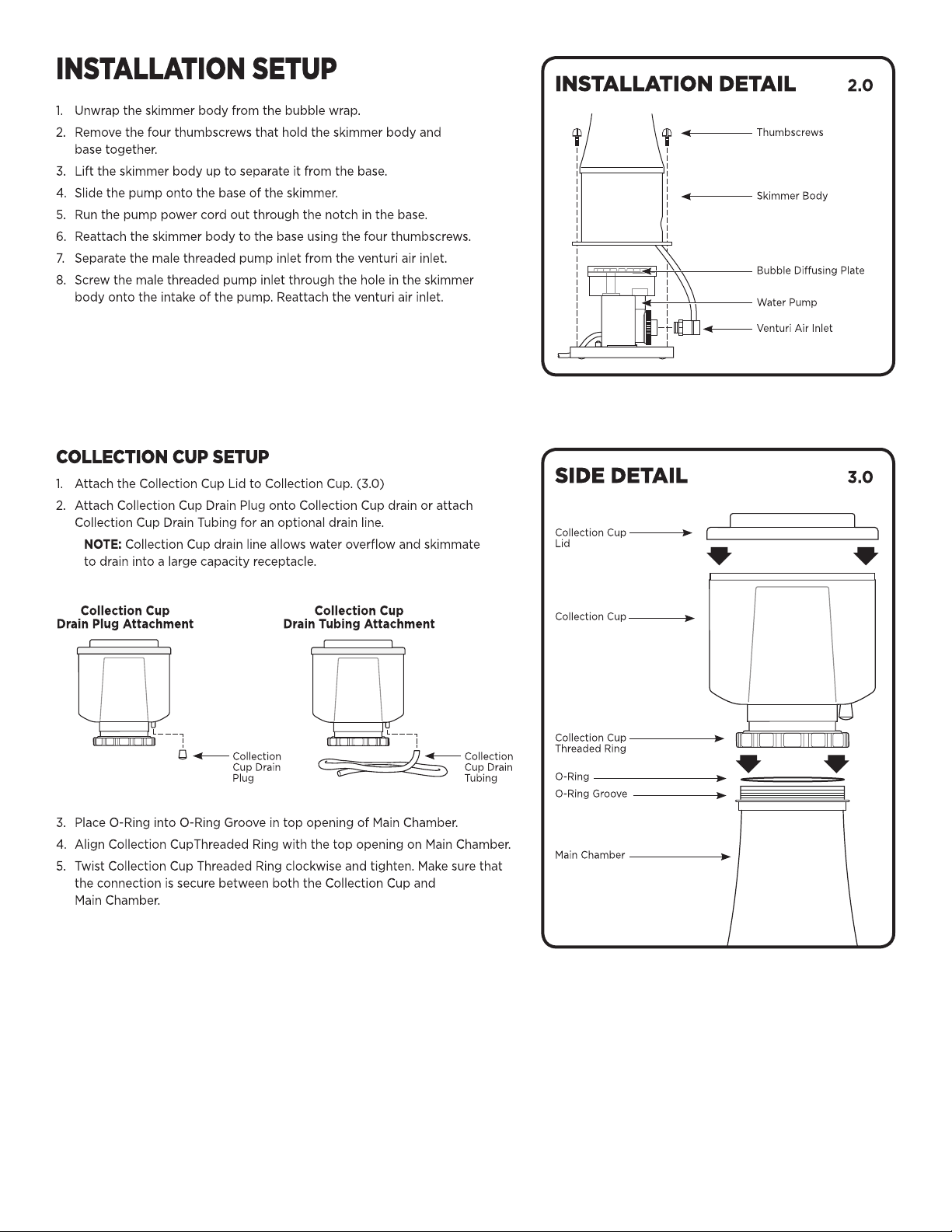

INSTALLATION SETUP
IN-SUMP INSTALLATION SETUP
NOTE: Saltwater may need to be added to the aquarium
to replace water used by the Cone Skimmer.
1. Locate desired area to place Skimmer.
2. Attach Venturi Air Inlet to Skimmer Intake. (4.0)
3. Place Cone Skimmer inside Sump at desired location. (4.1)
NOTE: Add saltwater to Skimmer to prevent from floating
in the Sump.
WARNING: Do not submerse in water or obstruct airway
passage through Air Inlet Silencer.
4. Attach Output Tubing onto Water Output with vent hole
facing up. (4.1)
5. Place Round Diffuser Sponge into Sump. (4.2)
4
Collection Cup
Assembly
Water
Output
Main
Chamber
Water-level
Adjustment Dial
Air Inlet Silencer
Venturi Air Inlet
Outlet Standpipe
Output Tubing
Siphon Break
Air Vent Hole
Water Output
Water Line
Output Tubing
Bubble Diffuser
Plate
Round Diffuser
Sponge
Water Line
Water In
Skimmer Intake
Recommended
Sump location for
3 chambered system
Water Out
FRONT VIEW 4.0
SIDE DETAIL 4.1
FRONT DETAIL 4.2
4.1
4.2

OPERATION
PRE-OPERATION
1. Make sure that all tubing connections are tightly secured.
2. Verify that Collection Cup and Lid are tightly fastened and sealed
to the Main Chamber.
3. Unscrew Air Silencer Control Valves fully.
4. Check Water-Level Adjustment Dial and make sure it is in the open
position. (5.0)
INITIAL OPERATION
1. Plug water pump into an outlet or power source.
2. Adjust Water-Level Adjustment Dial so that the micro-bubbles are
below the Collection Cup Cone. (5.1) Let the pump run for 24 - 72
hours to “break-in” the unit. Use Water-Level Adjustment Dial for
fine adjustment.
NOTE: Initial operation of protein skimmer may produce excess
bubbles and waste. Allow Collection Cup to fill-up and discard
waste-water until production decreases.
If unable to raise bubble height sufficiently using only the Water-
Level Adjustment Dial, screw both Air Silencer Control Valves to
the closed position to increase water velocity OR raise water level
in sump.
OPERATION
1. Turn Water-Level Adjustment Dial to raise water level within the
Main Chamber and Cone to desired skimming operation.
DRY SKIMMING OPERATION (5.2)
1. Adjust micro-bubbles to .25" - .75" high inside Collection Cup Cone.
NOTE: Dry skimming will produce a dense foam layer which
rises to the top of the Cone where it collects until the dry foam
overflows into the Collection Cup.
RESULTS:
1. Dry foam (froth)
2. Dark, concentrated waste material (Less Volume)
WET SKIMMING OPERATION (5.3)
1. Adjust micro-bubbles to .75" - 3" high inside Collection Cup Cone.
NOTE: Wet skimming will produce a thin bubble layer which
rises to the Collection Cup Lid where it bursts and slides down the
Collection C up as wet wastewater.
RESULTS:
1. Wet foam
2. Light, diluted waste material (More Volume)
5
Turn Water-Level Adjustment Dial
to adjust water level
Air Silencer
Control Valves
Collection Cup
Dry Foam
(Froth)
Collection Cup Cone
Micro Bubbles
Micro Bubbles
Waste Materials
TOP VIEW 5.0
SIDE VIEW 5.1
DRY SKIMMING 5.2
WET SKIMMING 5.3

MAINTENANCE
MAINTENANCE
SAFETY: Always disconnect needle-wheel pump from power
supply before removing collection cup or cleaning unit.
WARNING: Only clean with warm fresh water. Do not use any
type of chemical cleaning agent to clean the skimmer. These
include, but not limited to, soap, detergents, alcohol, glass
cleaners, polishers, ammonia, etc.
1. To operate efficiently, the Cone Skimmer must be in use
24 hours a day.
DAILY MAINTENANCE
1. Make sure all connections are secure.
2. Observe to see if skimmer is functioning properly and producing
waste material.
NOTE: Skimmer may need to be adjusted accordingly due
to variables in water quality and fluctuations.
3. Check to see if the collection cup is full and empty waste
material.
4. Check water outlet vent hole to make sure it is clear of dirt
and debris.
5. Check air-inlet silencer and make sure it is clean and free of dirt
and debris.
WEEKLY MAINTENANCE
1. Clean the collection cup and neck of organic build up.
2. Clean or replace the round bubble diffuser sponge .
MONTHLY MAINTENANCE (6.0)
1. Remove venturi air inlet from water inlet.
2. Unscrew water inlet from pump.
3. Remove four thumbscrews from main body.
4. Separate skimmer body from base.
5. Clean pump and bubble diffusing plate.
6. Replace components.
TROUBLESHOOTING
NOTE: Variables that affect skimming to produce dry
or wet foam are:
a. New Fish or Invertebrates
b. Frequent Feeding
c. Change in Water Chemistry
d. Supplements and Medication
e. Water Quality
f. Water Fluctuations/Evaporation
g. Addition of “Make-up” Water
h. Water Changes
i. Maintenance
j. Inserting hands in the tank
1. No microbubbles produced inside the skimmer.
a. The Air-Inlet Silencer, Air Intake Tubing or Venturi Air Inlet
Hole are clogged.
b. Pump is not plugged in.
2. No foam produced inside Collection Cup.
a. Adjust water level inside the skimmer.
b. New skimmer may take up to 72 hours to adjust properly
to aquarium system.
3. Water pump is not working.
a. Check to make sure power is supplied.
NOTE: Make sure to follow manufacturer instructions for
component’s proper installation, operation and maintenance.
4. Skimmer water level fluctuates (pulses).
a. The Output Tubing Air Vent Hole is clogged causing the
skimmer to create a siphon.
5. Water is rapidly overflowing into Collection Cup.
a. Reduce water level in the skimmer. Water level may be
too high.
b. Make sure water is flowing through output tubing. Bubble
production diffuser may be clogged, blocking water flow.
c. Changes in water chemistry. Readjust Water-Level Adjustment
Dial to lower water level in skimmer.
d. Open Air Inlet Valves. Airflow may be restricted.
MAINTENANCE DETAIL 6.0
6
Venturi Air Inlet
Thumbscrews
Skimmer Body
Water Pump
Bubble Diffusing Plate
