CONTENTS
TABLE OF CONTENTS
Important Safety Instructions 3-4
Parts—Exploded View & Identification
Micro 30 5
Mini 38 6
Introduction
Micro 30 7-8
Mini 38 9-10
Getting Started 11
Maintenance Procedures 12-13
Optional Equipment
Micro 30 Cabinet Stand 14
Mini 38 Cabinet Stand 15
Skkye Light Tablet LED 16-17
Warranty Information 18-19

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To guard against injury, basic safety precautions should be observed
including the following:
READ ALL SAFETY INSTRUCTIONS BEFORE USE.
WARNING
To avoid electric shock, special care should be taken since water is
employed in the use of aquarium equipment. For each of the follow-
ing situations, do not attempt to repair yourself. Return the appliance
to an authorized service facility for service or discard the appliance.
• If the appliance falls into water, DO NOT reach for it! First unplug
it an then retrieve it. If the electrical components of the appliance
get wet, unplug the appliance immediately
• Carefully examine the appliance after installation. It should not
be plugged in if there is water on parts not intended to be wet.
• Do not operate any appliance if it has a damaged cord or plug, or
if it is malfunctioning or if it is dropped or damaged in any man-
ner.
• To avoid the possibility of the appli-
ance plug or receptacle getting
wet, position aquarium to one side
of a wall mounted receptacle to
prevent water from dripping onto
the receptacle plug. A “Drip Loop”
should be arranged by the user for
EACH cord connecting an aquar-
ium appliance to a receptacle. The
“Drip Loop” is that part of the cord
below the level of the receptacle or
the connector if an extension cord
is used. This “Drip Loop” prevents
water travelling along the cord and
coming in contact with the receptacle. If the plug or the recepta-
cle do get wet DO NOT unplug the cord. Disconnect the fuse to
the circuit breaker that supplies power to the appliance. Then
unplug and examine for the presence of water in the receptacle.
• Close supervision is necessary when any appliance is used by or
near children.
• To avoid injury, do not contact moving parts or hot parts such as
heaters, reflectors, lamps bulbs and etc.
• Always unplug an appliance from the outlet when not in use, be-
fore putting on or taking off parts, and before cleaning. Never
yank the cord to pull plug from outlet. Grasp the plug and pull to
disconnect.
Drip Loop

4
IMPORTANT SAFETY
INSTRUCTIONS
• Do not use an appliance for other than intended use. The use
of attachments not recommended or sold by the appliance
manufacturer may case an unsafe condition.
• Do not install or store the appliance where it will be exposed to
the weather or to temperatures below freezing.
• Make sure an appliance mounted on a tank is securely installed
before operating it.
• Read and observe all the important notices on the appliance.
• This appliance has a polarized plug (one blade is wider than
the other). As a safety feature, this plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electri-
cian. Never use with an extension cord unless plug can be fully
inserted. Do not attempt to defeat this safety feature.
• This appliance is intended FOR HOUSEHOLD USE ONLY.
• Make sure that the appliance is set on a level surface to pre-
vent undue stress on the aquarium tank from stress and leaks.
It is not recommended that this appliance is set upon coffee
tables, end tables, TV stands, or night stands unless the struc-
ture has been properly tested to within the weight limits of the
aquarium.

5
PARTS Exploded View
Micro 30
# Description Black Color White Color
Item Code Item Code
1 Glass Tank 30g 040102 040101
2 30g Return Pump 030001
3 30g Pump Impeller & Shaft 040002
4 30g Return Hose & Elbow 040003
5 Return Nozzle 000012
6 Micro 30g Glass Lid 040004
7 Micro 30g Glass Holder Clips 000009
8 Phosphate Filter Sponge
Filter Media Pack—000010
9 Activated Carbon Filter Sponge
10 Mechanical Filter Sponge
11 30g Filter Basket 000008
1
2
3
4
5
6 7 7
8
9
10
11

6
PARTS
Exploded View
Mini 38
1
2
3
4
5
6 7
7
8
9
10
11
5
# Description Black Color White Color
Item Code Item Code
1 Glass Tank 38g 050102 050101
2 38g Return Pump 040001
3 38g Pump Impeller & Shaft 050002
4 38g Return Hose & Elbow 050003
5 Return Nozzle 000012
6 Mini 38g Glass Lid 050004
7 Mini 38g Glass Holder Clips 000009
8 Phosphate Filter Sponge
Filter Media Pack—000010
9 Activated Carbon Filter Sponge
10 Mechanical Filter Sponge
11 38g Filter Basket 000008

7
INTRODUCTION
• ITEM # 0401 & 0402
• DIMS—19.69”x 19.02”x 19.02”
• TANK VOLUME—30 gallon
• GLASS THICKNESS—8mm
Micro 30
TANK SPECS—Micro 30
Shown with:
Micro 30 Cabinet Stand—Not Included
SkkyeLight Tablet—Not Included
NuvoAquarium is a new, advanced rimless All-In One aquarium
experience. It offers ultra-modern style that compliments any décor
with the high performance of larger aquariums, and simple turn-key
maintenance. NuvoAquarium is constructed from beautiful bent
glass for dramatic viewing.

8
INTRODUCTION
Includes flexible hose and return elbow.
Directional Flow Nozzle
Micro 30 Pump
Flow Rate—317 GPH
1. 2—REMOVAL 3 STAGE FILTER
-Mechanical Sponge
-Activated Carbon Sponge
-Phosphate Sponge
2. 3 STAGE FILTER COLUMN
3. HEATER COLUMN
(Heater not included)
4. PROTEIN SKIMMER COLUMN
(Protein Skimmer not included)
5. RETURN PUMP COLUMN
FILTRATION—Micro 30
Dual Built-in Overflows
2—Removable 3 Stage Filter Basket
• Mechanical Filter Sponge—traps free floating particulate
matter and debris
• Activated Carbon Sponge—removes dissolved organics and
odor
• Phosphate Sponges—-keeps the phosphates levels low.
Features:
FILTER LAYOUT
2
3
4
1
1
2
5

9
INTRODUCTION

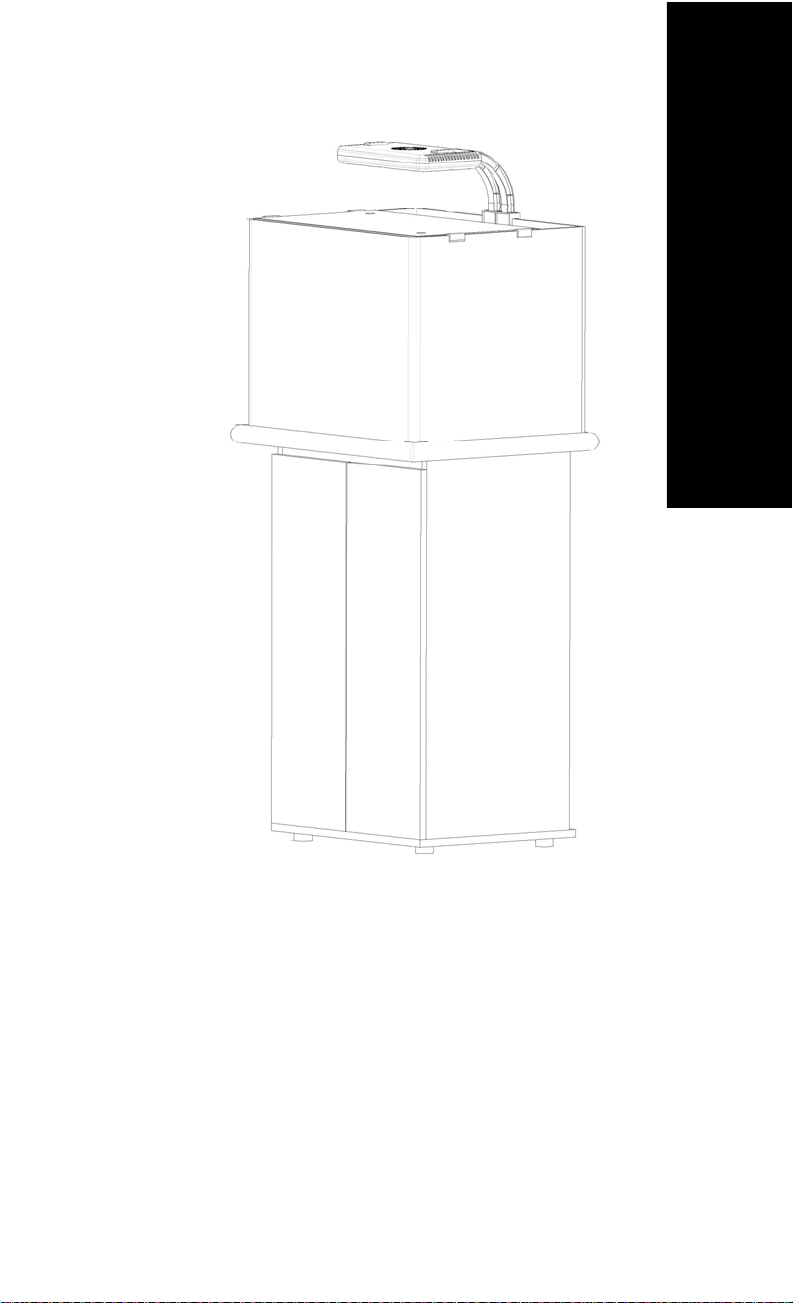

Mini 38
TANK SPECS—Mini 38
Shown with:
Mini 38 Cabinet Stand—Not Included
SkkyeLight Tablet—Not Included
• ITEM # 0501 & 0502
• DIMS—23.62”x 19.02”x 19.02”
• TANK VOLUME—38 gallon
• GLASS THICKNESS—8mm

10
INTRODUCTION
FILTRATION—Mini 38
Dual Built-in Overflow
2—Removable 3 Stage Filter Basket
Mechanical Filter Sponge—traps free floating particulate matter
and debris
Activated Carbon Sponge—removes dissolved organics and
odor
Phosphate Sponges—-keeps the phosphates levels low.
Features:
FILTER LAYOUT
2
3
4
1
1
2
5 1. 2—REMOVAL 3 STAGE FILTER
-Mechanical Sponge
-Activated Carbon Sponge
-Phosphate Sponge
2. 3 STAGE FILTER COLUMN
3. HEATER COLUMN
(Heater not included)
4. PROTEIN SKIMMER COLUMN
(Protein Skimmer not included)
5. RETURN PUMP COLUMN
Includes flexible hose and 2 return elbows
2—Directional Flow Nozzle
Mini 38 Pump
Flow Rate—476 GPH

11
GETTING STARTED
HANDLING PRECAUTIONS
FILLING THE TANK
• Do not attempt to move a full or partially full Aquarium
• Do not use cleaners that contain ammonia to clean the glass
surface.
• Always lift and carry the aquarium from underneath, not the
sides.
CHOOSING A LOCATION
With use of Micro 30 & Mini 38 Cabinet Stand.
(Stand Sold Separately)
• It is recommended to use the Micro 30 or Mini 38 Cabinet
Stand, depending on the model tank you have.
• Please refer to Micro 30 & Mini 38 Stand Owners Manual for
Stand Assembly Instructions.
• Place Tank Stand on a leveled flat surface.
• Make sure that no part of the tank is overhanging the edge of
the stand.
Without use of Stand
• Place Tank on a leveled flat surface.
• Make sure the surface can support the weight of the tank, water
and livestock. Keep in mind the averag weight of water is 10lbs
per gallon, plus the weight of rock, gravel and other accesso-
ries.
• Do not place in direct sunlight.
• Use DECHLORINATED tap water
• Always fill with room temperature water
• Rinse sponges located in the removable filter basket in sink for
30 seconds, until water runs clear.
• Fill main body of tank until water flows through the overflow grill
into the rear filter chamber.
• Once rear filter compartment is full plug your pump (s) into a
approved electrical outlet with a fuse or circuit breaker.
• Water will flow from the directional return nozzle(s) to the main
body of the aquarium. Adjust the return nozzle to desired posi-
tion.

12
MAINTENANCE
WATER CHANGES
REPLACING FILTER MEDIA
Water changes should be performed once every 2 to 4 weeks
depending on the bio-load.
25% water changes with gravel vacuuming is essential to keep
dissolved organic carbons to a minimum.
Filter Sponges should be replaced once a month to remove
trapped debris and free floating particulate matter.
Regular maintenance is necessary to keep successful aquar-
ium. Changing Filter media is fast and easy with the Remov-
able Filter Basket.
NOTE: Unplug pump(s) before water changes or replacing
filter media.

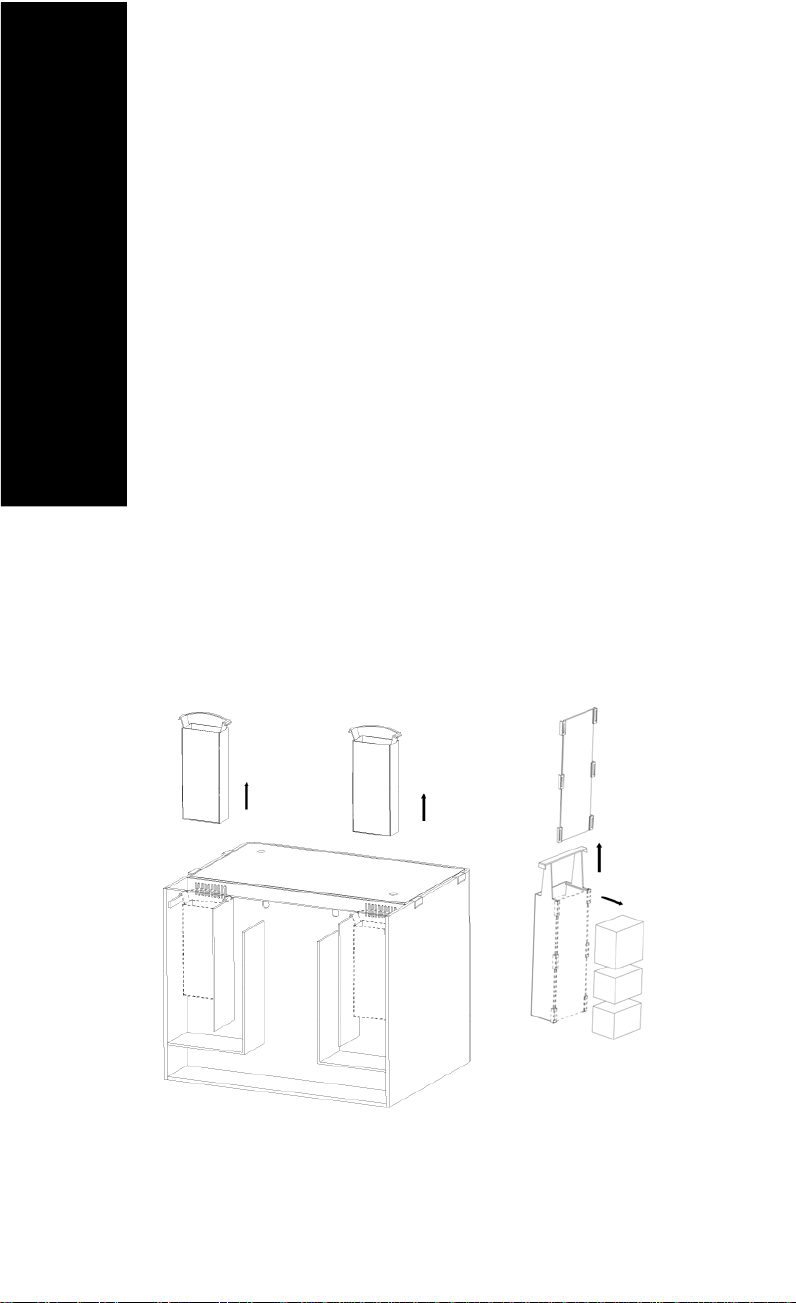

• Raise the Filter Basket out from the Filter Column.
• Slide the cover off of the main filter basket
• Replace with the NuvoAquarium Filter Media Pack.

13
MAINTENANCE
REMOVING PUMP
MICRO 30
• Unplug pump from power strip
• Unplug return elbow out from the return hole on filter wall
• Lift return elbow upward and remove pump from filter
chamber.
Micro 30 Return Pump Show Below
Micro 38 Return Pump Show Below
MINI 38
• Unplug pump from power strip
• Unplug both return elbows out from the return hole on filter
wall
• Raise each return elbow upward and remove pump from
filter chamber.
MICRO 30 & MINI 38
• Unplug pump from power strip
• Turn the outlet coupling from lock position to open position
shown below.
• Disassemble the outlet coupling from pump motor
• Pull out the impeller & shaft from pump motor
REPLACING PUMP IMPELLER

14
OPTIONAL EQUIPMENT
Micro 30 Cabinet Stand
• ITEM # 0403 & 0404
• DIMS STAND ONLY: 20.08”L x 19.29”W x 34.64”H
• DIMS TANK & STAND: 20.08”L x 19.29”W x 53.66”H
• SINGLE CABINET STORAGE
NOTE: Cabinet Stand
Not Included with the Tank
Sold Separately

15
OPTIONAL EQUIPMENT
Micro 38 Cabinet Stand
• ITEM # 0503 & 0504
• DIMS STAND ONLY: 20.08”L x 24.02”W x 34.64”H
• DIMS TANK & STAND: 20.08”L x 24.02”W x 53.66”H
• DOUBLE CABINET STORAGE
NOTE: Cabinet Stand
Not Included with the Tank
Sold Separately

16
OPTIONAL EQUIPMENT
Skkye Light Tablet LED
• 4 DIFFERENT MODELS
-Item # 6201—30W/ 10K—White Color
-Item # 6202—30W/ 14K—Black Color
-Item # 6203—92W/ 10K—White Color
-Item # 6204—92W/ 14K—Black Color
NOTE: SkkyeLight & Cabinet Stand
Not Included with the Tank
Sold Separately

17
OPTIONAL EQUIPMENT
Skkye Light Tablet LED
• Perfect for Live Aquatic Plants and Marine Corals
• Fan Cooled
• Aluminum Alloy Arm
• Easy Installation on Micro 30 or Mini 38
-Please refer to Tablet Owner’s Manual for installation
instructions

18
LIMITED WARRANTY
This warranty is limited to the repair or replacement of the prod-
uct at the discretion of the manufacturer. This warranty does
not cover personal injury, property loss, including livestock or
damage (direct, incidental, or consequential) arising out of use
of this product. This warranty gives you specific rights and you
may also have other rights, which may vary from state to state.
The Product Registration Card must be filled out completely
and returned within (14) days from the date of purchase. Fail-
ure to do so will void this warranty. A proof of purchase from
an authorized dealer must be provided when making a war-
ranty claim.
This MCRO 30 & MINI 38 has a 1 YEAR limited warranty..
The MICRO 30 & MINI 38 warranted to the original purchaser
against defective material and workmanship for 1 YEAR from
the date of original purchase. This warranty is valid only under
the following conditions: additions, modifications, or changes
made to the product by the purchaser and not by the manufac-
turer shall void this warranty. Damages brought on by abuse,
misapplication, or mishandling also voids this warranty.
WARRANTY INFORMATION
LIMITED 1 YEAR WARRANTY—
MICRO 30 & MINI 38
For Warranty Claims please contact our Customer Care De-
partment.
A RMA # must be issued before sending any product back to
Innovative Marine. Products sent back to Innovative Marine
without RMA# will be not be accepted. Service on products
will not extend the original warranty period.
Email: [email protected]

19
OWNER’S PRODUCT INFORMATION
PRODUCT INFORMATION
MODEL #
AQUARIUM
SERIAL #
DATE OF
PURCHASE
Please keep your receipt in a safe place to ensure you have this in-
formation.

20
WWW.INNOVATIVE-MARINE.COM
A Division of
