Core RC Speedstar User manual

1:12 Scale 2wd
Instructions
+ Spare Parts Listing

Instructions

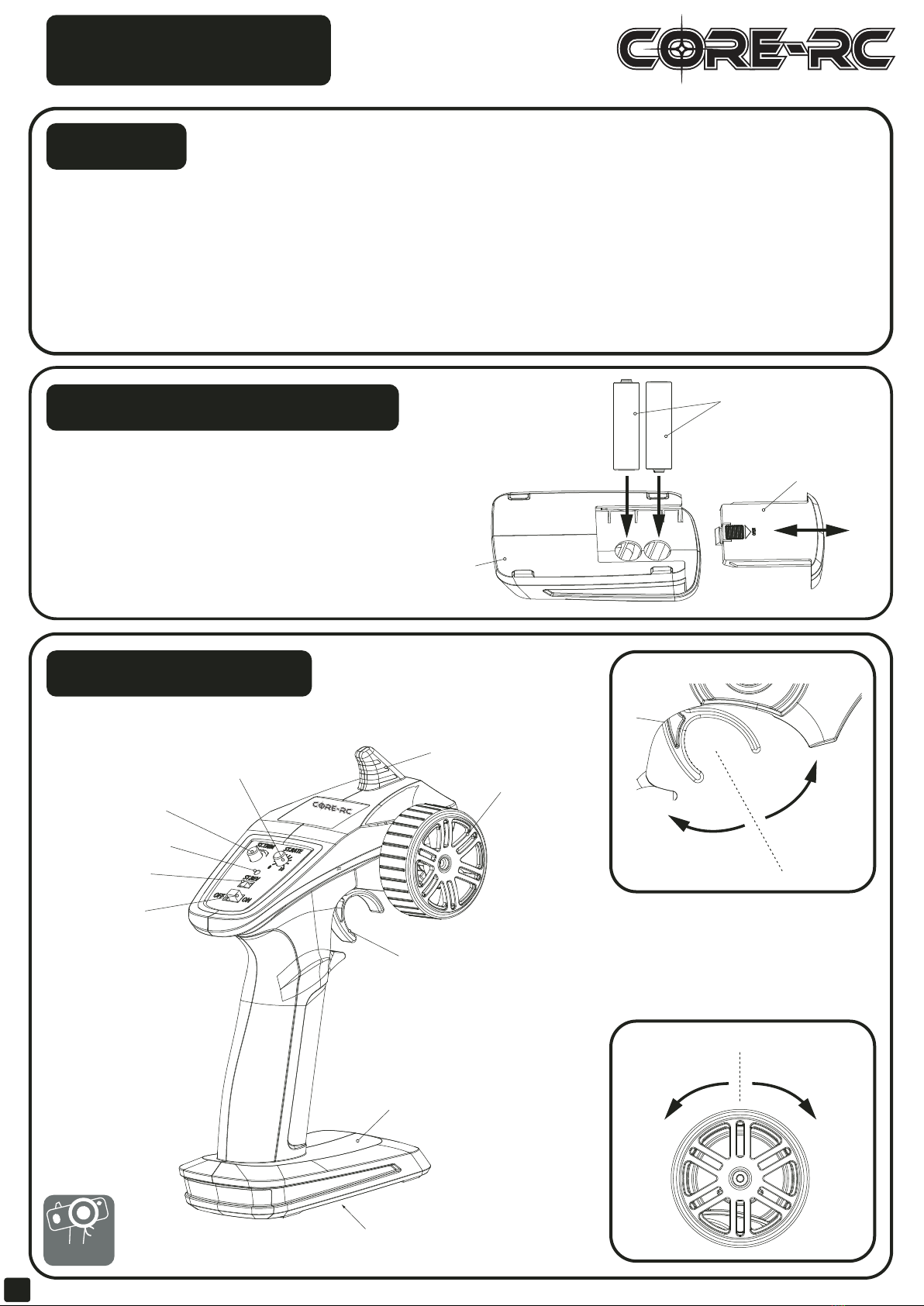

Transmitter Battery Installation
Important
2
+
+
-
-
1. Slide battery cover back on base of transmitter.
2. Insert 2x ‘AA’ batteries. Pay attention to the battery polarity.
3. Replace battery cover.
Note:
Always use the same battery type.
Remove batteries when not in use.
Dispose of used batteries correctly.
Transmitter Operation
Steering Rate
Steering Trim
Power Indicator
Steering Reverse
On/Off Switch
Steering Wheel
Battery Cover
Transmitter Base
‘AA’ Batteries x 2
(Not Included)
Throttle & Brake Trigger
Transmitter Base
Battery Cover
Aerial
Throttle Trigger Operation
Steering Wheel Operation
Brake/Reverse
Forward
Left Right
Pulling the Throttle Trigger will make
the car move forward. Pushing the
trigger away will apply brakes, if held
in position reverse will engage. Rotate
the Steering Wheel left and right to
operate the steering.
Congratulations on the purchase of your CORE RC 1/12th scale racer!
Please read the following information and safety notes, before attempting to use the vehicle.
• This product is not suitable for children under the age of 14, without the direct supervision of an adult.
• Always use your vehicle in an open area away from traffic, animals and people. You are responsible for the safe use of this vehicle.
• Never attempt to use your vehicle with low transmitter batteries.
• Always switch on your transmitter before your cars speed control unit.
• NEVER leave a battery pack unattended when charging and ALWAYS disconnect the battery once you have finished using the car.
• Beware that certain components could be hot after use. Do not touch the motor, battery or speed controller after use.
• Although splashproof this product is not designed to be submerged or used in prolonged wet conditions.
2.4GHz
radio equipment

Spare Parts List
CRA100
Chassis
CRA101
Front Chassis
CRA102
Front Chassis Plate
CRA103
Front Shock Tower
Mounting
CRA104
Front Shock Absorbers (pair)
CRA105
Rear Shock Absorbers (pair)
CRA106
Knuckle Arms
CRA107
Front Wheel Axles (pair)
CRA108
C-Hubs (pair)
CRA109
Rear Hubs (pair)
CRA110
Front Lower Suspension Arms
(pair)
CRA111
Rear Lower Suspension Arms
(pair)
CRA112
Plastic Drive Shaft - Standard
CRA113
Rear Wheel Axle - Standard
CRA114
Differential Outdrive Plastic
- Standard
CRA115
Wheel Hexes
CRA116
Differential Case
CRA117
Differential Gear Set 10/13T
CRA118
Differential Assembly
CRA119
Main Centre Gear
CRA120
Layshaft
CRA121
Pinion Gear Plastic 13/14T
Standard
CRA122
Pinion Gear Metal 13/14T
Option
CRA123
Gear 13/18T
5

CRA124
Gear Box
CRA125
Front Shock Tower
CRA126
Rear Shock Tower
CRA127
Servo Saver Arms
CRA128
Servo Saver Spring & Shaft
CRA129
Battery Box Cover
CRA130
Steering Links
CRA131
Servo Mount
CRA132
Ball Head Screw 2.5mm (6pcs)
CRA133
Pin Set
CRA134
Lower Shock End Balls
CRA135
Ball Bearing 10 x 15 x 4
CRA136
Ball Bearing 8 x 12 x 3.5
CRA137
Ball Bearing 5 x 10 x 4
CRA138
Bushing 5 x 10 x 4
CRA139
Button Head Screws
2.6mm x 8mm (6pcs)
CRA140
Button Head Screws
2.6mm x 10mm (6pcs)
CRA141
Button Head Screws
2.6mm x 12mm (6pcs)
CRA142
Button Head Screws
2.6mm x 18mm (6pcs)
CRA143
Button Head Screws
2.6mm x 22mm (6pcs)
CRA144
Button Head Screws
2.6mm x 6mm (6pcs)
CRA145
Flat Head Screws
2.6mm x 10mm (6pcs)
CRA146
Flat Head Screws
2.6mm x 14mm (6pcs)
CRA147
E-Clips (6pcs)
(2pcs)
(2pcs)
(6pcs)
(1pc)
(2pcs)
Spare Parts List
6

CRA148
M3 Nyloc Nuts (6pcs)
CRA149
M4 Nyloc Nuts (6pcs)
CRA150
Button Head Screws
3mm x 10mm (6pcs)
CRA151
Body Clip (6pcs)
CRA152
Speedstar Buggy Front Tyre &
Foam (pr)
CRA153
Speedstar Buggy Rear Tyre &
Foam (pr)
CRA154
Speedstar Buggy Front Tyre
& Wheel Set - Neon Yellow (pr)
CRA155
Speedstar Buggy Rear Tyre
& Wheel Set - Neon Yellow (pr)
CRA156
Spider Desert Racer Tyre &
Foam (pr)
CRA157
Spider Desert Racer Rear Tyre
& Wheel Set - Red (pr)
CRA158
Spider Desert Racer Front Tyre
& Wheel Set - Red (pr)
CRA159
Mauler Stadium Truck Tyre &
Foam (pr)
CRA160
Mauler Stadium Truck Rear Tyre
& Wheel Set - White(pr)
CRA161
Mauler Stadium Truck Front Tyre
& Wheel Set - White(pr)
CRA162
Spider Desert Racer Rear Tyre
& Wheel Set - Neon Yellow (pr)
CRA163
Spider Desert Racer Front Tyre
& Wheel Set - Neon Yellow (pr)
CRA165
Mauler Stadium Truck Rear
Wheel - White (pr)
CRA166
Mauler Stadium Truck Front
Wheel - White (pr)
CRA167
Spider Desert Racer Rear
Wheel - Red (pr)
CRA168
Spider Desert Racer Front
Wheel - Red (pr)
CRA169
Speedstar Buggy Rear
Wheel - Neon Yellow (pr)
CRA170
Speedstar Buggy Front
Wheel - Neon Yellow (pr)
CRA171
Mauler Stadium Truck Rear
Bumper Set
CRA172
Mauler Stadium Truck Body
Post Set
Spare Parts List
7

CRA173
Mauler Stadium Truck
Bodyshell - Blue
CRA174
Mauler Stadium Truck
Bodyshell - Red
CRA175
Spider Desert Racer Rear
Wheel - Neon Yellow (pr)
CRA176
Spider Desert Racer Front
Wheel - Neon Yellow (pr)
CRA177
Spider & Speedstar Rear Wing
- Black
CRA178
Speedstar Buggy Bumper &
Brace Set
CRA179
Speedstar Buggy Bodyshell -
White
CRA180
Spider Desert Racer Bodyshell
Red
CRA181
Spider Desert Racer
Rear Bumper
CRA182
Spider & Mauler Front
Bumper Set
CRA183
Spider Desert Buggy Roll Cage
CRA184
Brushed RC390 Motor
CRA185
2.4 GHz Transmitter
CRA186
Combi 2.4 GHz ESC/RX Unit
- Brushed Motor
CRA187
2.4 GHz Transmitter & Combi
ESC/RX Unit - Brushed Motor
CRA188
LiFe (LiFePo4)Battery 6.4v -
1000mAh (Female Micro Tamiya)
CRA192
Speedstar Buggy Bodyshell -
Black
CRA189
Steering Servo, 5 Wire - 3Kg
CRA190
USB Battery Charge Lead
1000 mAh
CRA191
Metal Upgrade Driveshafts (pr)
CRA193
Spider Desert Racer Bodyshell
Lime
CRA194
Fast Charge Battery
(Female Micro Tamiya)
SK-100107-04
SKY E430 Fast Charger A/C
CRA195
4mm Banana to Micro Tamiya
Charge Lead
