Corinex Powerline Ethernet Wall Mount Manual

Content
Copyright ................................................................................... 1
Content ..................................................................................... 2
1. Introduction ............................................................................ 3
1.1 Overview ...................................................................................... 3
1.2 About this Manual ..................................................................... 3
2 Installation Guide ................................................................... 4
2.1 What this Package Contains ........................................................ 4
2.2 System Requirements .................................................................. 4
2.3 Installing the Powerline Ethernet Wall Mount .............................4
2.4 Installing the Setup Tool ............................................................. 5
2.5 Testing the Setup ........................................................................ 7
2.6 Running the Setup Tool ........................................................... 8
3 User Guide .............................................................................. 9
3.1 Setup Tool User Guide .................................................................. 9
3.2 Powerline Ethernet Wall Mount ................................................11
3.3 FAQ ........................................................................................... 13
3.4 Powerline Ethernet Wall Mount Specifications .......................... 14
4 Troubleshooting Guide .......................................................... 16
Content
2
Corinex Powerline Ethernet Wall Mount Manual

Introduction
1.1 Overview
The Corinex Powerline Ethernet Wall Mount is a network interface adapter, using the
110/120 or 220/240 V electrical wires in premises as a medium for communications.
After successful installation, the indoor PowerNet network behaves like a traditional LAN
for computers. The Corinex Powerline Ethernet Wall Mount supports up to 14 Mbps
network speed.
The product keeps network maintenance cost low and eliminates usage barriers while
there is no need for additional wiring.
The Product is highly integrated and requires no other external electronic components.
1.2 About this Manual
This Owner‘s Manual is intended to provide sufficient information to help you
understand how to successfully install Corinex Powerline Ethernet Wall Mounts to meet
your networking needs. With the information in this guide, you should be able to:
• Analyze your network efficiency
• Plan the configuration of Corinex Powerline Ethernet Wall Mount options
• Install and configure your Corinex Powerline Ethernet Wall Mount according
to your plan
• Verify and optimize your Corinex Powerline Ethernet Wall Mounts’
performance
1
Introduction
3
Corinex Powerline Ethernet Wall Mount Manual

Installation Guide
2.1 What this Package Contains
When you receive your Corinex Powerline Ethernet Wall Mount, check to be sure that
your package contains:
• Corinex Powerline Ethernet Wall Mount with the right AC plug
• Ethernet cable
• This manual
• Application CD
2.2 System Requirements
• A computer with a pre-installed Ethernet Network Interface Slot or an
Ethernet Network Interface Card
• CD-ROM drive
• Windows 98/ME/2000/NT/XP, MacOsX or Linux operating system
2.3 Installing the Powerline Ethernet Wall Mount
To connect the Corinex Powerline Ethernet Wall Mount to your computer, follow the
steps listed below:
1. Plug the Corinex Powerline Ethernet Wall Mount into an AC outlet.
2. Plug the Ethernet cable into the Corinex Powerline Ethernet Wall Mount and
the Ethernet slot or card on your PC.
2
Installation Guide
4
Corinex Powerline Ethernet Wall Mount Manual

The Corinex Powerline Ethernet Wall Mount is equipped with an automatic switch
enabling an Ethernet slot or card on the PC to be connected to the Adapter via a standard
cable or to connect a cable modem or DSL modem via a “cross cable” to the Adapter.
2.4 Installing the Setup Tool
1. Insert the installation CD. The CD should automatically start the installation
process. If the installation program does not start automatically, start the
application by selecting „My Computer“, usually found on the desktop or
Laptop start up screen. Navigate to the CD drive, and double click on the

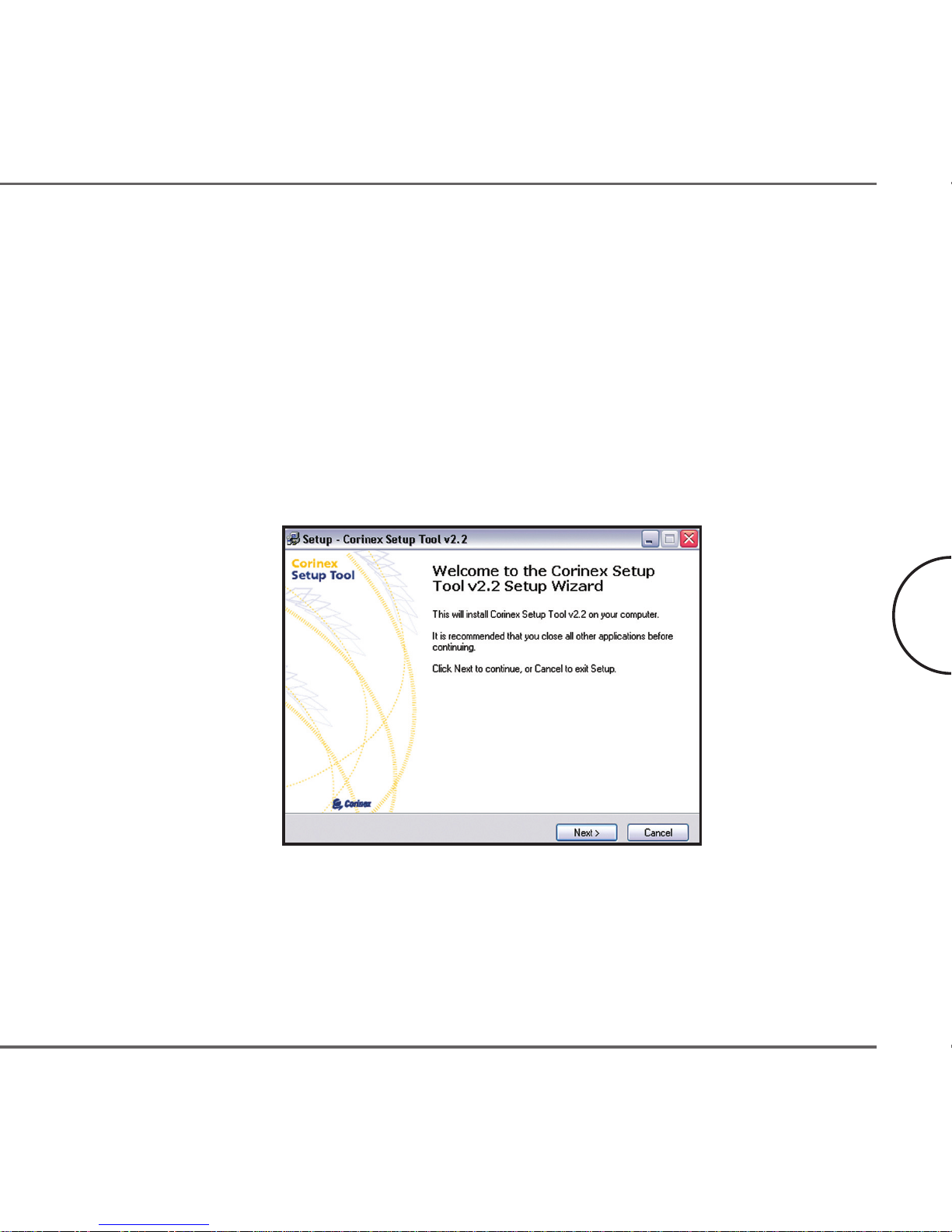

drive. The following screen should be displayed:
This is the welcome screen. Click “Next“ to continue.
Installation Guide
5
Corinex Powerline Ethernet Wall Mount Manual

2. The next screen will ask where the Setup Tool should be installed. Click „Next“
to continue.
3. This screen will ask where Setup program should place the program’s shortcuts.
Select the Start Menu Folder or simply click “Next“.
Installation Guide
6
Corinex Powerline Ethernet Wall Mount Manual

4. The following screen will appear to inform you that Setup is ready to begin
installing the Setup Tool on your computer. Click “Install“.
2.5 Testing the Setup
To verify that the connection is working correctly, use the standard Ping utility. (in
Windows, click on menu Start ->Run, then write command “ping IPADDRESS -t”, where
IPADDRESS is the IP address of the computer to which the Powerline Ethernet Wall Mount
is connected to, e.g. ping 192.168.4.1 -t . (This command will be stopped by pressing
keys CTRL+C).
• Ping the IP address of the computer to which the Powerline Ethernet Wall Mount
is connected to. If this fails, there is a problem with the Ethernet network card.
• Repeat the same process with the other powerline device on the network.
• If all nodes can ping themselves, try pinging another powerline device on the
network. If this fails, there is a problem with connections on the powerline. Try
to check the connection to the AC outlet, or use a different AC outlet.
Installation Guide
7
Corinex Powerline Ethernet Wall Mount Manual

• If the setup does not work, refer to the troubleshooting guide, but first, try
unplugging the powerline device and reboot the computer as this sometimes
fixes the problem.
2.6 Running the Setup Tool
The setup so far allows transmission of data encrypted with a universal key. To set your
private and personal encryption keys for the network, run the Corinex Setup Tool provided
on the CD (refer to section 3.1 for details). This prevents anyone from intercepting your
transmitted data.
Installation Guide
8
Corinex Powerline Ethernet Wall Mount Manual

User Guide
3.1 Setup Tool User Guide
The Setup Tool allows the user to setup a private and secure powerline network. Follow
the steps on the screen of this guide and your secure network will be setup correctly.
1. Make sure that your Corinex Powerline Ethernet Wall Mount is connected
to the computer and start the Setup Tool from the Start menu by selecting
the software folder and select ‘Setup tool’. Detecting the device takes a few
seconds.
2. Click ‘Next’.
3. Now the following screen should be displayed. This is the screen where your
network password is selected. Choose a password between 4 and 24 characters,
the password is case sensitive so remember exactly how it was typed as it will
be needed for the next device being set up. Type your password in the ‘Network
Password’ box and click “Next”. If you don’t want to use encryption, uncheck
the box “Encrypt frames”.
3
User Guide
9
Corinex Powerline Ethernet Wall Mount Manual

4. Click “Next” again to program the Corinex Powerline Ethernet Wall Mount
with the new encryption key. This will take a few seconds. The next screen
will look similar to the following screen. The white box will list the MAC
addresses of all other installed powerline devices on the network that are
programmed with your chosen network password. If no other devices have
been programmed, the list will be empty. If you use also other than Corinex
HomePlug certified devices in the network, these devices may be set at
the default status. This default setting makes sure that HomePlug devices
find each other in a network and connect and communicate automatically
with each other. In order to generate your private and secure network, all
HomePlug certified devices in the network must be set to the same network
encryption key, either at the default key “HomePlug” or your own selection.
10
User Guide
Corinex Powerline Ethernet Wall Mount Manual

The adapter with the MAC address 00:50:C2:14:EB:C1 acts as local device in the
network and identifies the devices shown under “Devices Address” in the window
as belonging to the network. The function and performance of the devices
between the local device / adapter 00:50:C2:14:EB:C1 and the devices identified
in the network is displayed in the window under “Connection Quality”.
5. All devices in your network must be programmed with the same network
encryption key. Run this utility on all computers with a powerline networking
device attached. If you have a powerline device that is not normally connected
to a computer, it must first be connected to a computer and set up with a
network encryption key.
3.2 Powerline Ethernet Wall Mount
The Corinex Powerline Ethernet Wall Mount introduces a new and innovative solution
for high speed communications, using the electric wires within premises. This unique
technology offers users a wide range of networking options by using digital powerline
technology enabling up to 14 Mbps of “traffic” between nodes within the network.
11
User Guide
Corinex Powerline Ethernet Wall Mount Manual

• Enables users to connect individual PC’s or other devices with Ethernet
communications links into a local area network through 110/120 V or 220/
240V electric wires (powerline) network
• Enables PC file and application sharing
• Enables peripheral and printer sharing through the powerline network
• Enables shared broadband Internet access
• Enables sharing the bandwidth for multimedia payloads including voice, data,
audio and video
• Enables gaming competition within the reach of the electric wires network
• Eliminates the requirement for special data cable wiring
• A real cost-effective and reliable solution for high speed communications in
any home or small office
You can combine this type of adapters with the Corinex full line of powerline products
and add to the powerline devices a Wireless to Powerline Access Point from Corinex, to
cover all networking options. This User Guide has been prepared for Corinex Powerline
Ethernet Wall Mounts for use in combination with PC’s or Laptop computers.
Example
The connection of two computers over the powerline by using two Corinex
Powerline Ethernet Wall Mounts:
1. Install Corinex Powerline Ethernet Wall Mount on each one of the two
computers (see Installation Guide).
2. For connectivity enter the properties for this connection (see to user guide
of operating system) and set up an IP address manually. For example:
192.168.4.1 mask: 255.255.255.0 and another PC set up 192.168.4.2 mask:
255.255.255.0.
3. You can check the connection by a simple ping procedure addressing the IP
address of the second PC.
12
User Guide
Corinex Powerline Ethernet Wall Mount Manual

3.3 FAQ
1. Is the Corinex Powerline Ethernet Wall Mount still working if there is an electricity
blackout? And will it resume the transmission automatically after the power
comes back?
Corinex Powerline Ethernet Wall Mounts are operational, when the connected
computers are rebooted and the power is back on.
2. Once the electricity is on after blackout, is the Powerline Ethernet Wall Mount put
into operation “automatically”?
Yes, as soon as the computers are running again. If there is a problem, unplug the
adapter and plug it back into the connection slot.
3. As the recommended transmission range of powerline devices is around 200
meters, what happens when the distance is over say 400 meters?
We recommend to try the line for functionality and performance, before starting
operations.
4. Is there any cross talk or interference issue when using Corinex Powerline
Ethernet Wall Mounts?
Within a PC or Laptop we don’t see any interference with any other card and/or
system. OFDM is a technology, which reduces any influence coming from another
device, which is connected to the electric power network. The Corinex powerline
devices have also been FCC and CE approved.
5. In case the PCs are at different floors of the same building, can they use the
powerline device for data transmission? And how does it work?
Powerline device works on the same physical line. If the electric wires between the two
outlets used for communications in this case are connected with each other and the
maximum distance is about 200m, it works fine.
13
User Guide
Corinex Powerline Ethernet Wall Mount Manual

6. Can we use a Corinex Powerline Ethernet Wall Mount for both 110V and 220V
power networks or are there two versions of Corinex Powerline Ethernet Wall
Mounts?
Yes, there are two versions, 110/120V and 220/240V to support the various market
requirements. There are even more AC plug versions available and delivered in
different packages to reflect the outlet requirements of the consumer.
3.4 Powerline Ethernet Wall Mount Specifications
The following table lists the product specifications for the Corinex Powerline Ethernet
Wall Mount.
Standard compliance
HomePlug v 1.0.1 Certified
Windows 98/Me/2000/XP Compatible or Mac OS X for
the PowerNet Setup Tool
IEEE 802.3
UL and /or international standards approved
FCC and / or CE approved
Protocol TCP/IP
Port RJ 45 (Ethernet 8 pin port)
Speed Up to 14 Mbps
Cabling type Ethernet cable
AC Plug type US, UK and Euro
14
User Guide
Corinex Powerline Ethernet Wall Mount Manual

LED status Lights Link and Activity on powerline, Link/Activity on Ethernet
Unit Dimensions US Plug 52mm L x 65mm W x 100mm H
Unit Dimensions UK Plug 52mm L x 85mm W x 100mm H
Unit Dimensions Euro Plug 52mm L x 80mm W x 100mm H
Weight 0.192kg
Interface Standard Ethernet port RJ 45
Power input 110/120 or 220/240 V AC, 0.5A
Safety & EMI USA: UL/FCC part 15 / Europe: CB/CE
Operating Temperature 32°F to 131°F (0° to 55°C)
Storage Temperature -4°F to 158°F (-20° to 70°C)
Operating Humidity 10% to 85% non-condensing
Storage Humidity 5% to 90% non-condensing
15
User Guide
Corinex Powerline Ethernet Wall Mount Manual

Troubleshooting Guide
16
Troubleshooting Guide
Computer networking can sometimes be “tricky” when many components must work
together for the ultimate network system to function properly. With the right tools the
problems are usually easy to fix. The following tools, available on your computer or the
Corinex CD, will get you started.
• Setup Tool (from the Corinex Powerline Ethernet Wall Mount Installation CD)
• Ping (from the command prompt, see section 2.5)
• ipconfig (WinNT/2000/XP), winipcfg (Win9x/Me) (from the command
prompt)
If it just doesn’t work...
1. Check that the power LED on all devices are on, if not:
• Check if the Corinex Powerline Ethernet Wall Mount is plugged in to the AC
outlet.
• Make sure the AC outlet is working by plugging something else into it. If this
works, try another outlet. If this fails as well, try 2. – 4.
2. Check the Ethernet cables:
The Corinex Powerline Ethernet Wall Mount has a LED located on the Ethernet
socket labeled ‘L’. If it is not on:
• Check if the device at the other end of the Ethernet cable is switched on.
• Try a different Ethernet cable.
3. Check that the devices exist on the network:
Start the Setup Tool Program, click ‘Next’ and see if all devices on your network
are found. If all devices are listed, skip this section. If a device is missing:
4
Corinex Powerline Ethernet Wall Mount Manual

• Make sure all computers have only one active network slot.
• Make sure the Corinex Powerline Ethernet Wall Mounts are plugged straight
into the wall and not through a power strip or extension cord.
• Unplug all Corinex Powerline Ethernet Wall Mounts and plug them back in
again, one by one. Run the Setup Tool Program again.
• The devices may be programmed with different passwords. Setup all devices
with a new password as described in the Setup Tool Manual.
• The chosen outlet pair may have poor electrical connection, try a different pair
of outlets.
4. Check that the Corinex Ethernet Wall Mount devices are detected by TCP/IP:
Check that the powerline devices are detected by TCP/IP. From the command
prompt, run ping and type the computer name or IP address of the computer you
are working on [ping your computer name]. This should return 4 good packets.
Now try to ping another computer on the network. If a timeout occurs:
• Go into the TCP/IP properties and check that the buttons for automatically
obtaining IP addresses and gateway are checked. If not, make sure that both
computers are on the same subnet.
• Run ipconfig/all from the command prompt on all computers to verify that all
computers have valid IP addresses on the same subnet.
• The IP tables may be corrupted, reboot all computers and try again. If these
tests work, you have basic connectivity and can use all network services. If this
does not work, you may have a faulty device. Please contact your reseller or
local distributor.
I cannot share my internet access…
To share broadband internet access, you need a router connected to your Cable/
DSL modem. This will provide a firewall with a single IP address that all computers
will use as a gateway. Connect a Corinex Powerline Ethernet Wall Mount to your
cable/DSL router.
Troubleshooting Guide
17
Corinex Powerline Ethernet Wall Mount Manual
