CORNING LSE User manual
Corning®LSE™
Nutating Mixer
Instruction Manual
Catalog Numbers:
6720
6721
6722
2CORNING LSE NUTATING MIXER
Table of Contents
1.0 Introduction ....................................................... 3
2.0 Installation......................................................... 3
3.0 Operation. ......................................................... 3
4.0 Maintenance. ...................................................... 3
5.0 Technical Specifications. ............................................ 4
6.0 Symbols and Conventions........................................... 4
7.0 Limited Warranty. .................................................. 5
8.0 Equipment Disposal. ............................................... 6
3
Instruction Manual
1.0 Introduction

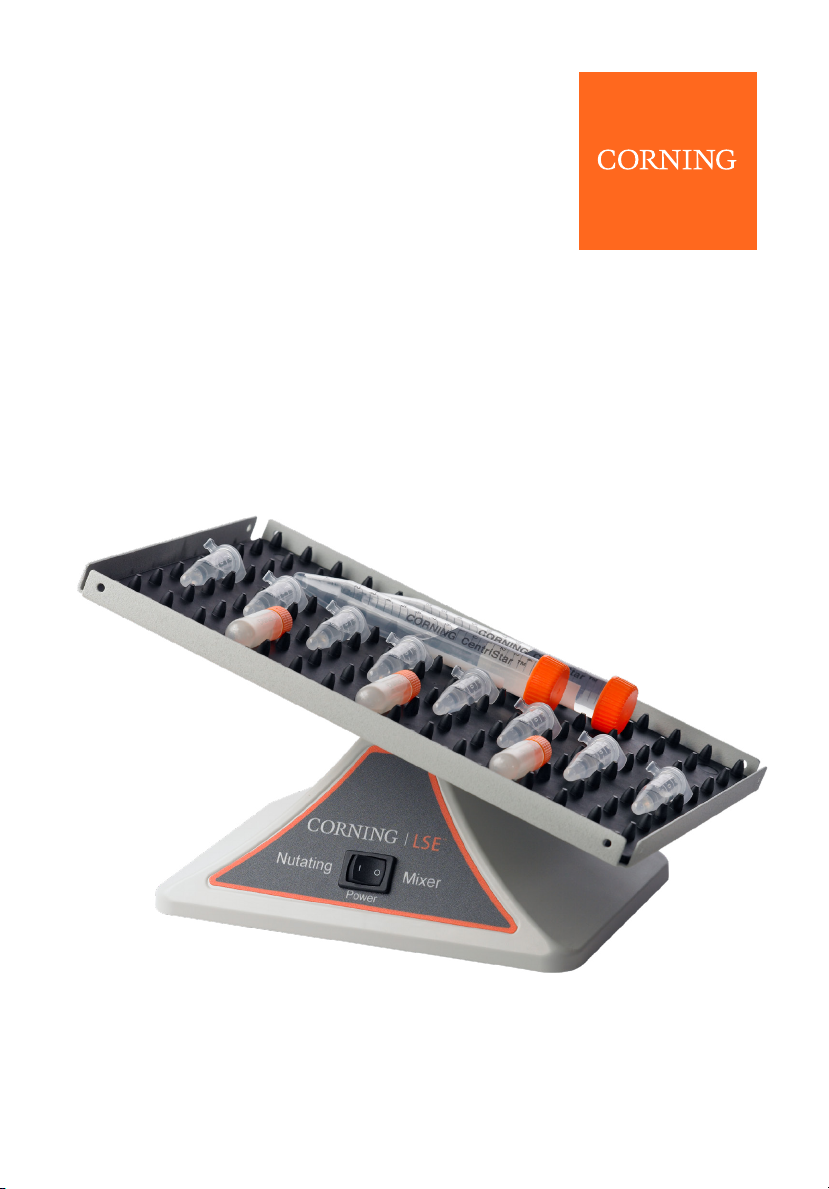

The Corning® LSE™ Nutating Mixer is a 3-dimensional shaker typically
used for maintaining the uniform suspension of blood components in
blood collection tubes without foaming. This Nutating Mixer is also ideal
for mixing large strands of DNA into solution in microcentrifuge tubes or
mixing blood into a buffer in large centrifuge tubes. The Nutating Mixer
achieves its 3-dimensional mixing by combining the rotating motion of an
orbital shaker with the rocking motion of a platform rocker.
2.0 Installation
The Corning LSE Nutating Mixer can be used on a bench, in a cold room, or
in an incubator up to 40°C. Place the unit on a flat stable surface and be
sure to leave sufficient room around the unit to allow the platform to run
freely. A minimum of 4 inches (10 cm) clearance on all sides of the mixer is
advised.
Plug the unit into a properly grounded outlet of the appropriate voltage as
shown on the unit’s data plate label.
3.0 Operation
Tubes may be placed directly on to the dimpled mat. The dimple pattern is
configured to allow blood tubes and centrifuge tubes to be securely placed
on the mat without additional strapping in most cases. If tubes are to be
stacked, they should be secured with rubber bands or bungie cords. Holes in
the corners of the platform edges are provided for this purpose.
NOTE: Always load the platform in a uniform and balanced fashion.
Use the power switch to turn the unit on. The direction of rotation in
which the unit starts is random and does not affect mixing. If desired, the
rotational direction can be reversed by holding the unit’s base and very
briefly touching the rotating platform on the bottom at one corner. This
technique can also be used to select the quietest direction of rotation.
4.0 Maintenance
NOTE: Always disconnect the cord from the power source before
maintaining or servicing.
The Corning LSE Nutating Mixer requires no maintenance other than
occasional cleaning with a damp cloth with mild detergent. The dimpled
mat may be washed with soap and water. Do not immerse the unit in water
or spill liquids over the unit. Be sure the unit is dry before reconnecting to
power.
4CORNING LSE NUTATING MIXER
5.0 Technical Specifications
Mixing Action 3-dimensional rocking motion
Mixing Speed 24 rpm fixed (120V)
20 rpm fixed (230V)
Platform Tilt Angle 20 degrees fixed
Platform Dimensions 9.5 x 6.75 in. (24 x 17 cm)
Mixer Dimensions 9.5 x 5.75 x 6.75 in. (24 x 14.6 x 17 cm)
(L x W x H)
Mixer Weight 1.88 lbs. (0.85 kg)
Platform Load Capacity 1.75 lbs. (0.8 kg) balanced
Platform Capacity 60 x 1.5 mL microcentrifuge tubes;
without Stacking 30 x 3 L pediatric blood tubes;
17 x 15 mL centrifuge tubes;
21 x 7 mL standard blood tubes;
9 x 50 mL centrifuge tubes
Ambient Operating Range 4°C to 40°C, up to 80% humidity, non-condensing
Electrical 120V, 50/60Hz, 0.03 amps
230V, 50/60Hz, 0.015 amps
6.0 Symbols and Conventions
The following chart is an illustrated glossary of the symbols that may be
used in this manual or on the product.
The electrical warning indicates the presence of a potential
hazard which could result in electrical shock.
CAUTION This symbol refers you to important operating and
maintenance (servicing) instructions within the product
Instruction Manual. Failure to follow this information may
present a risk of damage or injury to persons or equipment.
This symbol identifies a Protective Earth (PE) terminal, which is
provided for connection of the supply system’s protective earth
(green or green/yellow) conductor.
5
Instruction Manual
7.0 Limited Warranty
Corning Incorporated (Corning) warrants that this product will be free from defects in
material and workmanship for a period of two (2) years from date of purchase. CORNING
DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.
Corning’s sole obligation shall be to repair or replace, at its option, any product or part
thereof that proves defective in material or workmanship within the warranty period,
provided the purchaser notifies Corning of any such defect. Corning is not liable for any
incidental or consequential damages, commercial loss, or any other damages from the use of
this product.
This warranty is valid only if the product is used for its intended purpose and within the
guidelines specified in the supplied instruction manual. This warranty does not cover
damage caused by accident, neglect, misuse, improper service, natural forces, or other
causes not arising from defects in original material or workmanship. This warranty does not
cover motor brushes, fuses, light bulbs, batteries, or damage to paint or finish. Claims for
transit damage should be filed with the transportation carrier.
In the event this product fails within the specified period of time because of a defect in
material or workmanship, contact Corning’s Customer Service at 800.492.1110. Outside the
United States, call +1.978.442.2200 or contact your local Corning sales office..
Corning Customer Service will help arrange local service where available or coordinate a
return authorization number and shipping instructions. Products received without proper
authorization will be returned. All items returned for service should be sent postage prepaid
in the original packaging or other suitable carton, padded to avoid damage. Corning will not
be responsible for damage incurred by improper packaging. Corning may elect for onsite
service for larger equipment.
Some states do not allow limitation on the length of implied warranties or the exclusion
or limitation of incidental or consequential damages. This warranty gives you specific legal
rights. You may have other rights which vary from state to state.
No individual may accept for, or on behalf of Corning, any other obligation of liability, or
extend the period of this warranty.
For your reference, make a note of the serial and model number, date of purchase, and
supplier here.
Serial No. ___________________________________ Date Purchased ______________________________
Model No. _______________________________________________________________________________
Supplier _________________________________________________________________________________
6CORNING LSE NUTATING MIXER
8.0 Equipment Disposal
According to Directive 2012/19/EU of the European Parliament and Council
of 4 July 2012 on waste electrical and electronic equipment (WEEE), the
Corning® LSE™ Nutating Mixer is marked with the crossed-out wheeled bin
and must not be disposed of with domestic waste.
Consequently, the buyer shall follow the instructions for reuse and recycling
of waste electronic and electrical equipment (WEEE) provided with the
products and available at www.corning.com/weee.
Register your product warranty online at
www.corning.com/lifesciences/warranty.
For more specific information on claims, visit the Certificates page at www.corning.com/lifesciences.
Warranty/Disclaimer: Unless otherwise specified, all products are for research use only. Not intended
for use in diagnostic or therapeutic procedures. Corning Life Sciences makes no claims regarding the
performance of these products for clinical or diagnostic applications.
For a listing of trademarks, visit www.corning.com/clstrademarks. All other trademarks are the property of their respective owners.
For additional product or technical information, visit www.corning.com/lifesciences or
call 800.492.1110. Outside the United States, call +1.978.442.2200 or contact your local
Corning sales office.
