Cornwell Tools CAT190 User manual

CAT190 8/9/18
CAT190
Pistol Grip
Needle Scaler
Operating Instructions • Warning Information
• Parts Breakdown
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
Stroke Length .................................2-5/8"
Number of Needles ................................19
Needle Diameter ................................3mm
Rec. Air Pressure ..............................90 PSIG
Blows Per Minute ...........................3000 BPM
Air Inlet Thread ..............................1/4" NPT
Rec. Hose ID.................................... 3/8"
Overall Length ................................14-1/2"
Weight .......................................6.2 Lb.
SPECIFICATIONS
Copyright © Professional Tool Products, 2018
All rights reserved
READ THIS MANUAL BEFORE
OPERATING TOOL.
ALWAYS WEAR EYE PROTECTION.
BREATHING APPARATUS WHEN
OPERATING OR PERFORMING
MAINTENANCE ON THIS TOOL.
ALWAYS WEAR HEARING PROTECTION
WHEN OPERATING THIS TOOL.
AVOID PROLONGED EXPOSURE
TO VIBRATION
RPM OF THE ACCESSORY MUST
EXCEED TOOL RPM.
WARNING
RPMRPMRPM

CAT190 2 8/9/18
THIS INSTRUCTION MANUAL CONTAINS
IMPORTANT SAFETY INFORMATION.
READ THIS INSTRUCTION MANUAL CAREFULLY
AND UNDERSTAND ALL INFORMATION BEFORE
OPERATING THI S TOOL.
It is the responsibility of the owner to make sure all
personnel read this manual prior to using the device. It is
also the responsibility of the device owner to keep
this manual intact and labels are lost or not legible, contact
Cornwell for replacements. If the operator is not fluent i
English, the product and safety instructions shall be read and
discussed with the operator in the operator's native language
by the purchaser/owner or his designee, making sure that the
operator comprehends its contents.
• Always operate, inspect and maintain this tool in accordance
with American National Standards Institute Safety Code of
Portable Air Tools (ANSI B186.1) and any other applicable
safety codes and regulations.
• For safety, top performance and maximum durability of parts,
operate this tool at 90 psig; 6.2 bar max air pressure with
3/8"diameter air supply hose.
• Always wear safety goggles and breathing apparatus
(users and bystanders).
• High sound levels can cause permanent hearing loss. Always
use hearing protection (users and bystanders) as recommended
by your employer and OSHA regulations while using this tool.
• Operation can cause impacts, cuts, abrasions and heat. Wear
gloves to protect hands
• Keep the tool in efficient operating condition.
• Operators and maintenance personnel must be physically able
to handle the bulk, weight and power of this tool.
• Air powered tools can vibrate during use. Extended exposure
to vibration, repetitive motions, or uncomfortable positions
during use may be harmful to your hands and arms.
Discontinue use of tool if discomfort, tingling, or pain occurs.
Seek medical advice before resuming use.
• Compressed air can cause severe injury. Never direct air at
yourself or others. Always turn off the air supply, drain hose
of air pressure and detach tool from air supply
before installing, removing or adjusting any part or accessory
on this tool, or before performing any maintenance on this tool
Failure to do so could result in injury. Whip hoses can cause
serious injury. Always check for and replace any damaged,
frayed or loose hoses and fittings. Do not operate a damaged
or worn tool. Do not use quick-detach couplings at tool. See
instructions for correct set-up.
• Slipping, tripping and/or falling while operating air tools can
be a major cause of serious injury or death. Be aware of
excess hose left on the walking or work surface.
• Keep body working stance balanced and firm. Do not
overreach when operating the tool.
• Anticipate and be alert for sudden changes in motion during
use of any power tool.
• Do not point or indulge in any horseplay with this tool.
• Keep tool out of reach of children.
• Do not carry tool by the hose. Protect the hose from sharp
objects and heat.
• Tool shaft may continue to reciprocate briefly after throttle
is released. Avoid direct contact with accessories during and
after use. Gloves will reduce the risk of cuts or burns.
• Keep away from reciprocating end of tool. Do not wear
jewelry or loose clothing. Secure long hair. Scalping can occur
if hair is not kept away from tool and accessories. Choking
can occur if neckwear is not kept away from tool and
accessories.
• Do not force tool beyond its rated capacity.
• RPM of the accessory must exceed tool RPM. Use
accessories rated at 4,500 RPM or higher.
• This tool is not insulated against electric shock.
• This tool must not be used in explosive atmospheres.
• Do not lubricate tools with flammable or volatile liquids
such as kerosene, diesel or jet fuel.
• Do not remove any labels. Replace damaged labels.
• Use replacement parts and accessories recommended by
Cornwell.
• Servicing and repairs should only be made by an authorized
service center.
• Do not use (or modify) the tool for any other purpose than
that for which it was designed without consulting the
manufacturer's authorized representative.
• Never operate tool until inspected and confirmed needles are
properly secured in the tool.
• Ensure the work piece is securely fixed.
• Never use dull, chipped or damaged accessories. Never cool
a hot accessory in water as brittleness and early failure
can result. Accessory breakage or tool damage may result
from prying. Take smaller bites to avoid getting stuck.
• Failure to heed these warnings may result in serious or fatal
personal injury and/or property damage.
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY
WARNING
RPMRPMRPM
WARNING: This product can expose you to
chemicals including lead, which is known to the
State of California to cause cancer and birth
defects or other reproductive harm.
For more information go to
www.P65Warnings.ca.gov.

CAT190 3 8/9/18

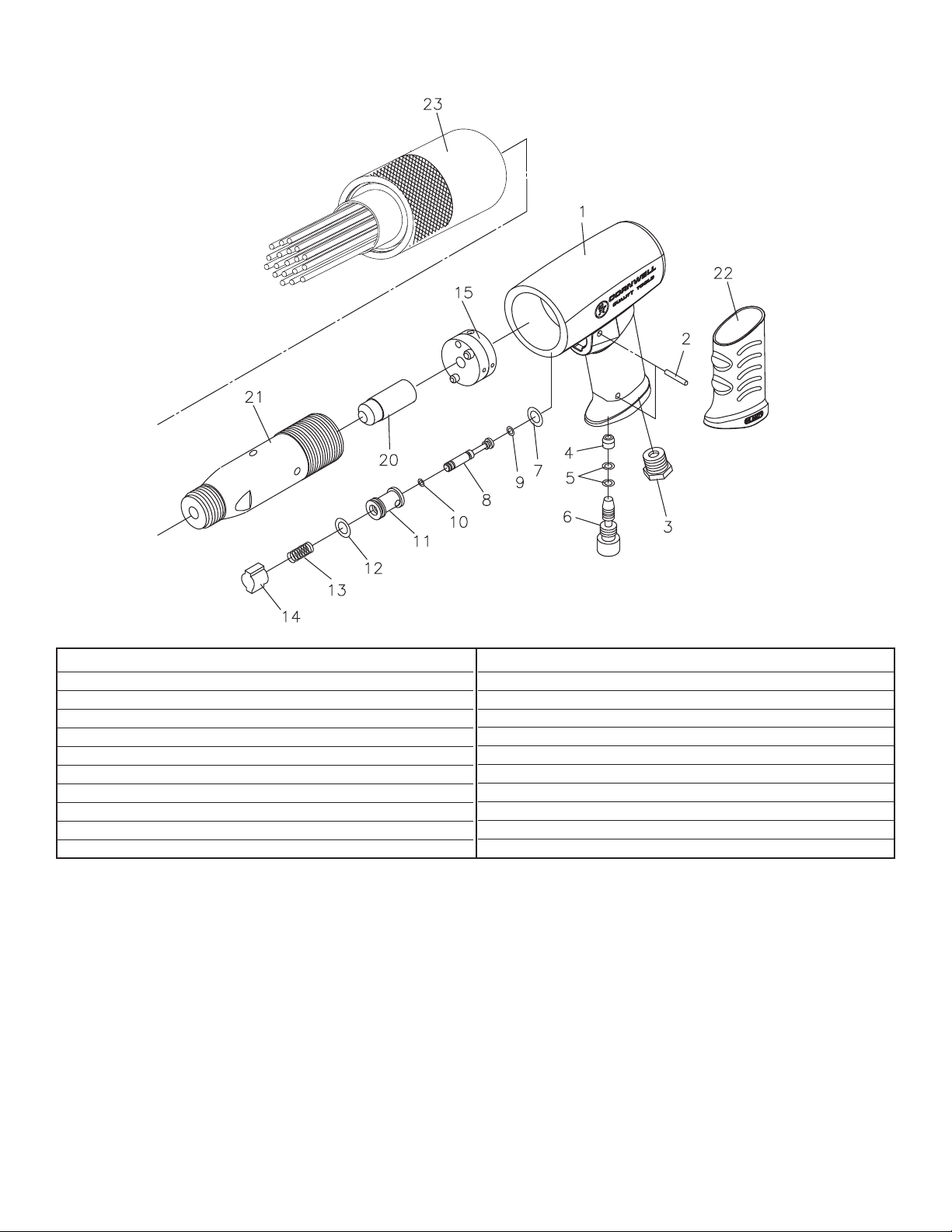

PARTS BREAKDOWN - CAT190
Only parts identified by part number above are available for purchase.
Ref. # Item # DESCRIPTION QTY
1 RS248001CWL HOUSING 1
2 RS848002 PIN (3x22) 2
3 RS848003 AIR INLET 1
4 RS848004 CAP 1
5 RS848005 O-RING (4.9x2.2) 2
6 RS848006 REGULATOR 1
7 RS848007 O-RING (11x2.4) 1
8 RS848008V VALVE STEM 1
9 RS848009 O-RING (3.8x1.9) 1
10 RS305A05 O-RING (4.5x1.7) 1
Ref. # Item # DESCRIPTION QTY
11 RS848011 VALVE BUSHING 1
12 RS848012 O-RING (12x2) 1
13 RS848013 SPRING 1
14 RS848014 TRIGGER BUTTON 1
15 RS171815 METAL VALVE BLOCK ASSEMBLY 1
20 RS648019 PISTON FOR MEDIUM AIR HAMMER 1
21 RS648220 CYLINDER FOR MEDIUM AIR HAMMER 1
22 RS248022CWL COMFORT GRIP 1
23 CAT190NS NEEDLE SCALER ATTACHMENT 1
RSCAT190WL PRODUCT WARNING LABEL (NOT SHOWN)

CAT190 4 8/9/18

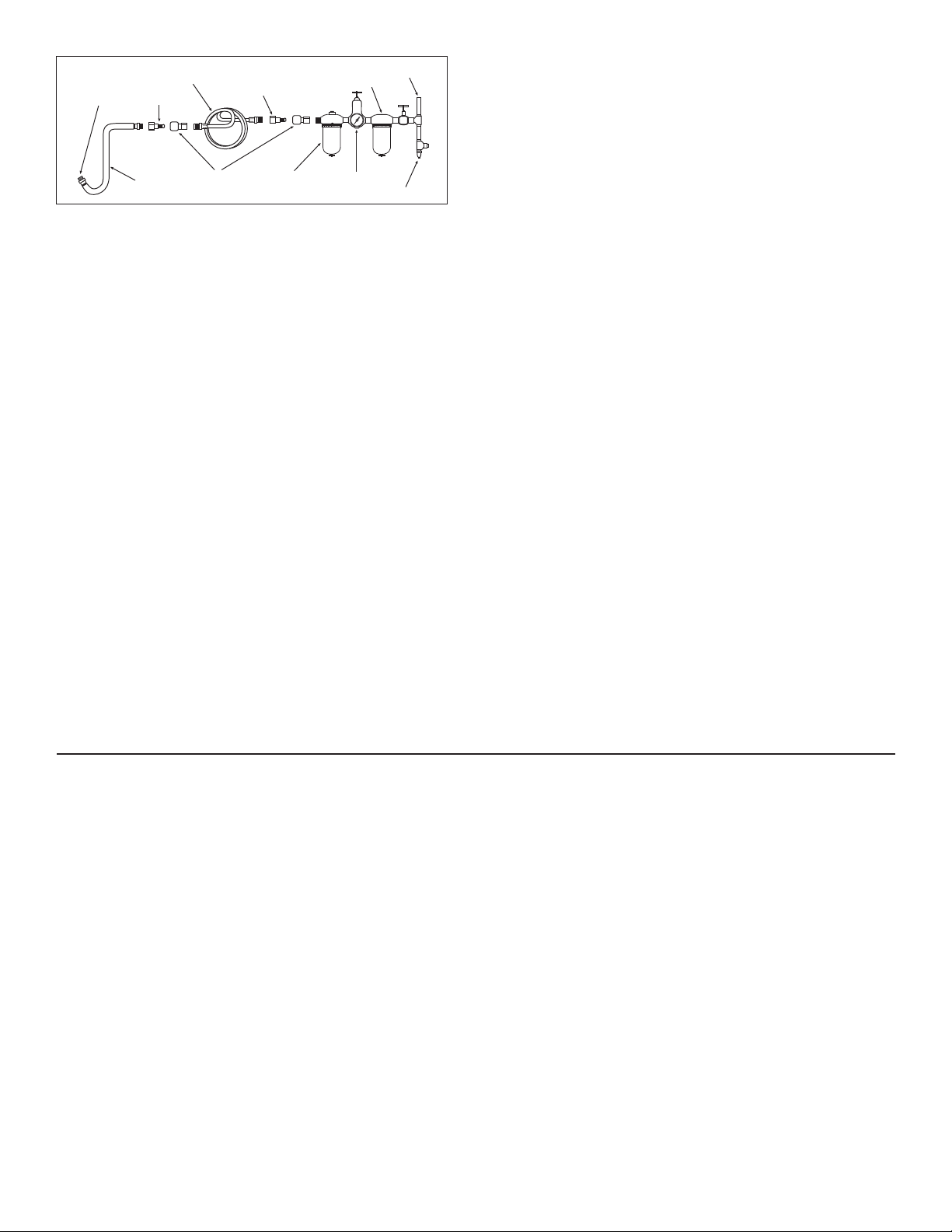

Drain Daily
RegulatorOilerQuick CouplerLeader
Hose
Nipple
Do Not Install
Quick Coupling
Here
Nipple
Filter
Air Supply
Whip Hose
AIR SUPPLY
Tools operate on a wide range of air pressures. It is recommended
that air pressure of these tools measures 90 psig at the tool with
the trigger fully depressed and no load applied to the tool. Higher
pressure (over 90 psig; 6.2 bar) raises performance beyond the
rated capacity of the tool, which will shorten tool life and could
cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or water in the
air line will cause damage to the tool. Drain water from air lines
and compressor prior to running tool. Clean the air inlet filter screen
weekly. The recommended hookup procedure can be viewed in the
above figure.
The air inlet used for connecting air supply has standard 1/2" NPT.
Line pressure should be increased to compensate for unusually long
air hoses (over 25 feet). Minimum hose diameter should be 3/4" I.D.
and fittings should have the same inside dimensions and be tightly
secured.
Ensure an accessible emergency shut off valve has been installed in
the air supply line and make others aware of its location.
LUBRICATION
Lubricate the air motor daily with high quality air tool oil. If no air
line oiler is used, run 1/2 oz. of oil through the tool. The oil can
be squirted into the tool air inlet or into the hose at the nearest
connection to the air supply, then run the tool. A rust inhibitive oil is
acceptable for air tools.
WARNING: After an air tool has been lubricated, oil will discharge
through the exhaust port during the first few seconds of operation.
The exhaust port must be covered with a towel before applying air
pressure to prevent serious injury.
OPERATION
Always turn off the air supply, drain hose of air pressure and detach
tool from air supply before installing, removing or adjusting any part
or accessory on this tool, or before performing any maintenance on
this tool.
Needle Scalers are used for removal of rust, old paint, concrete
and slag from new welds on many uneven metal surfaces. Needles
adapt themselves to flat, curved and uneven surfaces.
Excessive speed reduction indicates too much force being applied
to the work surface.
Apply moderate hand pressure to the tool and allow the tools acces-
sories to do the work.
NOTE: During operation, safety goggles must always be worn
to guard against flying debris (users and bystanders).
TROUBLESHOOTING
Other factors outside the tool may cause loss of power or erratic
action. Reduced compressor output, excessive drain on the air line,
moisture or restrictions in air pipes or the use of hose connections
of improper size or poor conditions may reduce air supply. Grit or
gum deposits in the tool may cut power and may be corrected
by cleaning the air strainer and flushing out the tool with gum
solvent oil or an equal mixture of SAE #10 and kerosene. If outside
conditions are in order, disconnect tool from hose and take tool to
your nearest authorized service center.
WARRANTY
Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase.
Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper
workmanship or materials.
This warranty does not cover any damage to this product that results from accident, abuse, misuse, natural or personal disaster, or any unauthorized disassembly, repair, or
modification. Repairs, disassembly and modification are only authorized to be made by Cornwell or a Cornwell Authorized Warranty Center.
WARRANTY SERVICE
In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid. Please include a copy of your proof of purchase and a brief description
of the problem. The tool will be inspected and if any part or parts are found to be defective in material or workmanship, they will be repaired free of charge, and the repaired tool will
be returned to you freight prepaid.
EXCLUSIONS AND LIMITATIONS
THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN,
EXPRESS OR IMPLIED. CORNWELL SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, TO THE EXTENT PERMITTED BY APPLICABLE LAW, ANY WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF CORNWELL CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY, ALL SUCH
IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
IN NO EVENT SHALL CORNWELL BE LIABLE TO THE PURCHASER OR TO THE USER OF A CORNWELL PRODUCT FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED
UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST
REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL
PRODUCT.
Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above
limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state.
Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan.
