CORRECT CRAFT Ski Nautique User manual

i
Dear Correct Craft Owner:
Congratulations on your purchase of a Ski Nautique. You have chosen a boat
that is unequaled “on the waters of the world” for water-skiing.
Since 1925, we have manufactured some of the finest products boat builders
can produce.
Your boat was manufactured with the latest marine technology and materials.
You have bought into a legacy handed down by W. C. Meloon over 76 years
ago. His dedication to building boats to the glory of God remains true today as
the cornerstone of our commitment in bringing to you the finest in water sports
boats. We continue to lead this industry in technology and design innovation.
Our heritage is a source of pride. Years of experience, including that of four
generations of Meloons have gone into the building of your boat. We hope
that you will enjoy it to the fullest.
Take a moment to review this owners manual for your boat. We have
assembled this manual to inform you about your boat and educate you further
on boating. There are many tips and tricks on care and maintenance sprinkled
throughout the manual, along with some cautions that will apply to your boat.
Boating is very important to us and we would like you to enjoy many years of
boating in your boat.
Welcome into the Nautique family.
Sincerely,
Walter N. Meloon
President/Chief Executive Officer
Trust in the Lord with all thine heart;
and lean not unto thine own understanding.
In all thy ways acknowledge him,
and he shall direct thy paths.
Proverbs 3: 5-6
Ski 10.qxd 9/1/00 2:41 PM Page i

ii
TABLE OF CONTENTS
Chapter 1. Overview ................................................Chapter . Page
Dash Pod and Console Layout....................................1.1
Specifications..............................................................1.1
Keyless Ignition and Serial Switching .......................1.2
Multiple Keyless Ignition Codes................................1.3
Primary User Code......................................................1.4
Erasing the User Codes ..............................................1.5
Key Functions.............................................................1.5

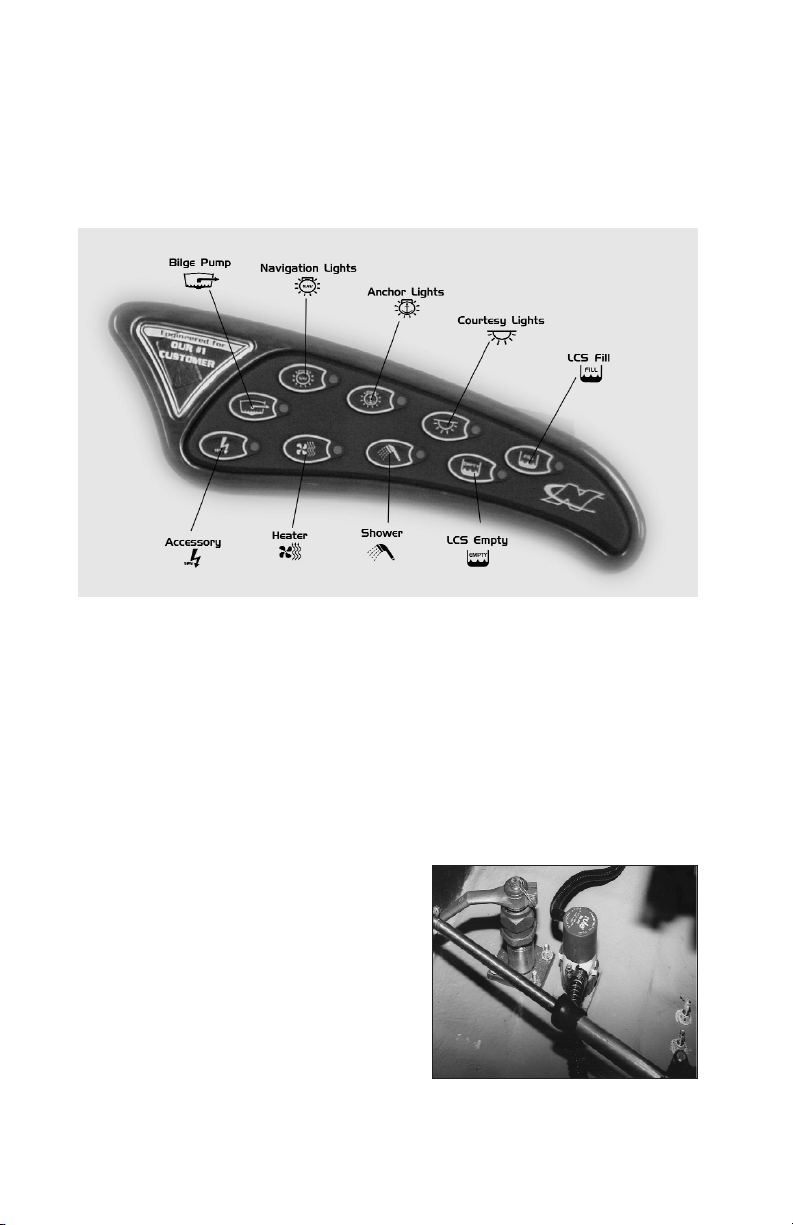

Dash Pod Switches .....................................................1.6
Bilge Pump .................................................................1.6
Bilge Pump Only Mode..............................................1.7
Navigation Lights ......................................................1.7
Anchor ........................................................................1.7
Ventilation Blower......................................................1.8
12 Volt Plug ...............................................................1.8
Engine Warning Light ...............................................1.8
Gauges ........................................................................1.8
Emergency Cut-off Switch ........................................1.8

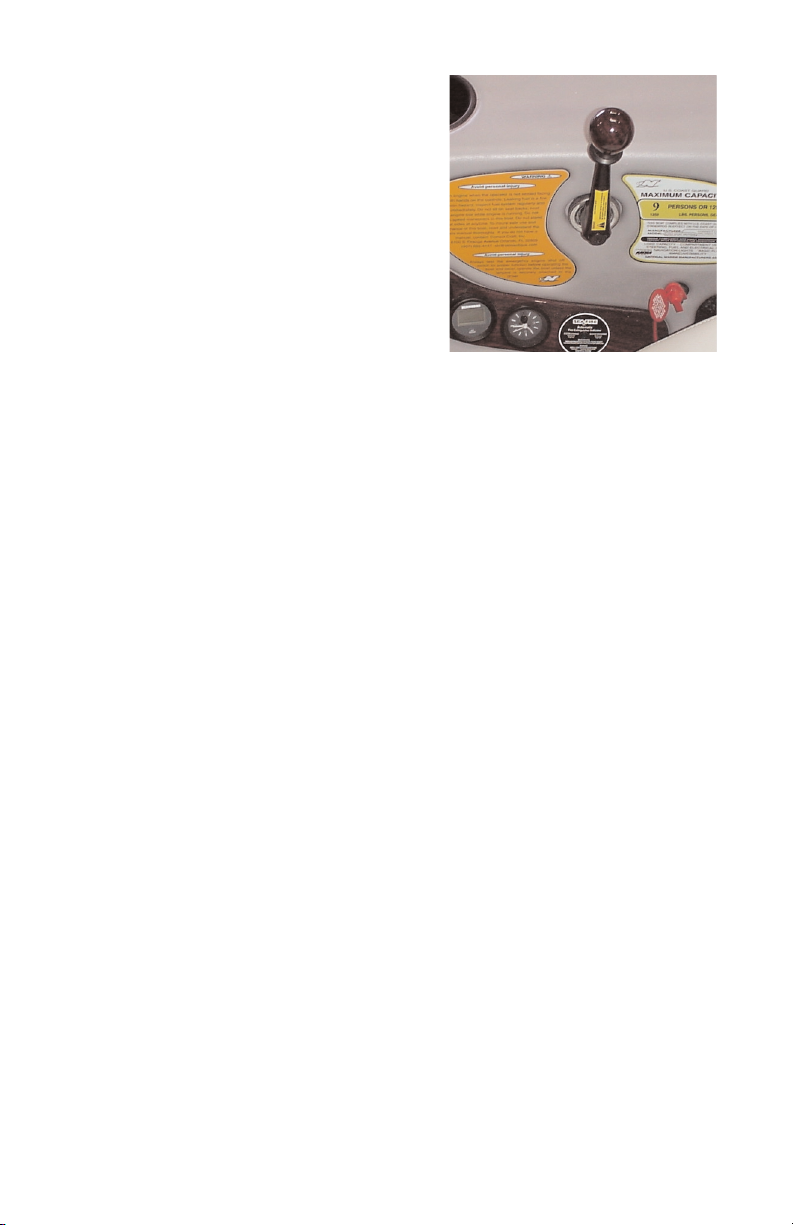

Throttle .......................................................................1.9
Pylon...........................................................................1.9
Lifting rings ...............................................................1.10
Capacity Plate ...........................................................1.10
Hull Identification Number .......................................1.11
Driver’s Seat Adjustment ..........................................1.12
Love Seat ...................................................................1.12
Fueling .......................................................................1.12
Walk Through Windshield (optional).........................1.12
Engine Box Latching/Lifting ....................................1.12
Dash Cooler ...............................................................1.13
Stern Seat Center Cushion .......................................1.13
Fuel Tank Location ....................................................1.13
Boarding Platform Removal ......................................1.13
Battery Location ........................................................1.13
Optional Electric Sensor in Drainplug.......................1.13
Correct Craft Cruise ..................................................1.14
Speedometer...............................................................1.14
Tachometer ................................................................1.17
Ski 10.qxd 9/1/00 2:41 PM Page ii

iii
Chapter 2. Engine Overview
Engine Checklist.........................................................2.1
Fuel Injected Engine Does Not Start..........................2.3
Break In Procedure.....................................................2.4
General Notes .............................................................2.4
Chapter 3. Cautions and Warning Labels................3.1
Chapter 4. Boat Handling / Safety Regulations......4.1
Chapter 5. Boat Care
Bilge Pump ................................................................5.1
Propeller ....................................................................5.2
Stuffing Box ...............................................................5.4
Quick Drain Oil ..........................................................5.5
Salt Water Boating......................................................5.6
Battery Maintenance...................................................5.6
Winterizing Your Boat................................................5.7
Gelcoat Care ...............................................................5.8
Teak Care....................................................................5.9
Glass Care...................................................................5.9
Metal Care ..................................................................5.9
Vinyl Care...................................................................5.10
Tunable Rudder...........................................................5.11
Chapter 6. Trailering
Hitch ...........................................................................6.1
Security.......................................................................6.1
Towing Your Boat.......................................................6.1
Wiring .........................................................................6.1
Long Trips ..................................................................6.2
Chapter 7. Warranty and Owner Responsibility........7.1
Chapter 8. Engine Maintenance
PCM Delivery Inspection ..........................................8.1
Changing the Engine Oil ..........................................8.3
Engine Crankcase Capacity/Level .............................8.4
Raw Water Strainer ...................................................8.5
Transmission Cooler ..................................................8.5
Replacing Fuel Filter ..................................................8.5
Prolonged Storage .....................................................8.6
Exhaust System .........................................................8.6
PCM Transmissions....................................................8.6
Ski 10.qxd 9/1/00 2:41 PM Page iii

iv
Maintaining Transmission Fluid Level ......................8.7
Alternator Drive Belt Tension ....................................8.7
Adjusting the Water Pump Belt (Ford Only) .............8.7
Fuel Pumps .................................................................8.8
Fuel Control Cell ........................................................8.8
Battery .......................................................................8.9
Fuel ............................................................................8.10
Engine Circuit Breakers on EFI Engines ...................8.11
Cooling System ........................................................8.11
Fresh Water Cooling ..................................................8.12
Checking Coolant Level ............................................8.13
Winterization Instructions ..........................................8.13
Winter Storage of Batteries ........................................8.16
Recommissioning .......................................................8.17
Flushing Instruction....................................................8.17
Engine Maintenance Schedule ...................................8.19
Engine Troubleshooting..............................................8.20
Engine Specifications..................................................8.22
Chapter 9. Service Records & Order Forms
Change of Ownership.................................................9.1
Problem Notification Form ........................................9.2
Warranty Transfer .......................................................9.4
Request for Warranty Transfer....................................9.5
Warranty Transfer Application ...................................9.6
Supplemental PCM Protection Addendum ................9.8
NOA Membership Application...................................9.10
Warehouse locations...................................................9.12
Nautique Friend Program ...........................................9.13
Plaque Order Form......................................................9.14
.
Ski 10.qxd 9/1/00 2:41 PM Page iv

v
Ski 10.qxd 9/1/00 2:41 PM Page v

1
1

Chapter 1
OVERVIEW
Specifications for Ski Nautique®
Length without Platform . . . . . . . . . . . 19' 6" (5.94 m)
Length with Platform. . . . . . . . . . . . . . 21'2.5" (6.46 m)
Beam. . . . . . . . . . . . . . . . . . . . . . . . . . 91" (2.31 m)
Draft . . . . . . . . . . . . . . . . . . . . . . . . . . 24" (0.61 m)
Fuel Tank Capacity . . . . . . . . . . . . . . . 35 Gallons (132 ltr)
Approx. Weight . . . . . . . . . . . . . . . . . . 2570 lbs. (1,165 kg)
Lifting Rings (dist between centers). . . 17'2.5" (5.24 m)
Welcome to the Ski Nautique family.
We realize you may be anxious to get your boat in
the water. This manual has been written to
familiarize and educate you about your boat so you
will be more comfortable out on the water. Your
boat is built to provide you with the finest watersports boat in the world.
Whether you are slalom skiing or riding a wakeboard, we trust you and your
family will enjoy this boat for many years.
Let’s start by taking a look at the dash pod to familiarize yourself with the
locations of the gauges and switches.
Dash Pod and Console Layout
Standard equipment on your
boat are the following
gauges: oil pressure, engine
coolant temperature,
speedometer, tachometer/
hour meter, fuel level,
voltage.Optional equipment
gauges available include:
air/water temp gauge, clock,
depthfinder, remote stereo
control and Correct Craft
Cruise or Perfect Pass Pro speed control. The optional gauges are positioned
on the console located to the right of the drivers knee.
1.1
Ski 10.qxd 9/1/00 2:41 PM Page 1.1

CAUTION: The keypad and switch control box will be damaged beyond repair
if the boat battery cables or the main power leads to the keypad and switch control
box are reversed. Be sure to use caution and avoid reversing these connections.

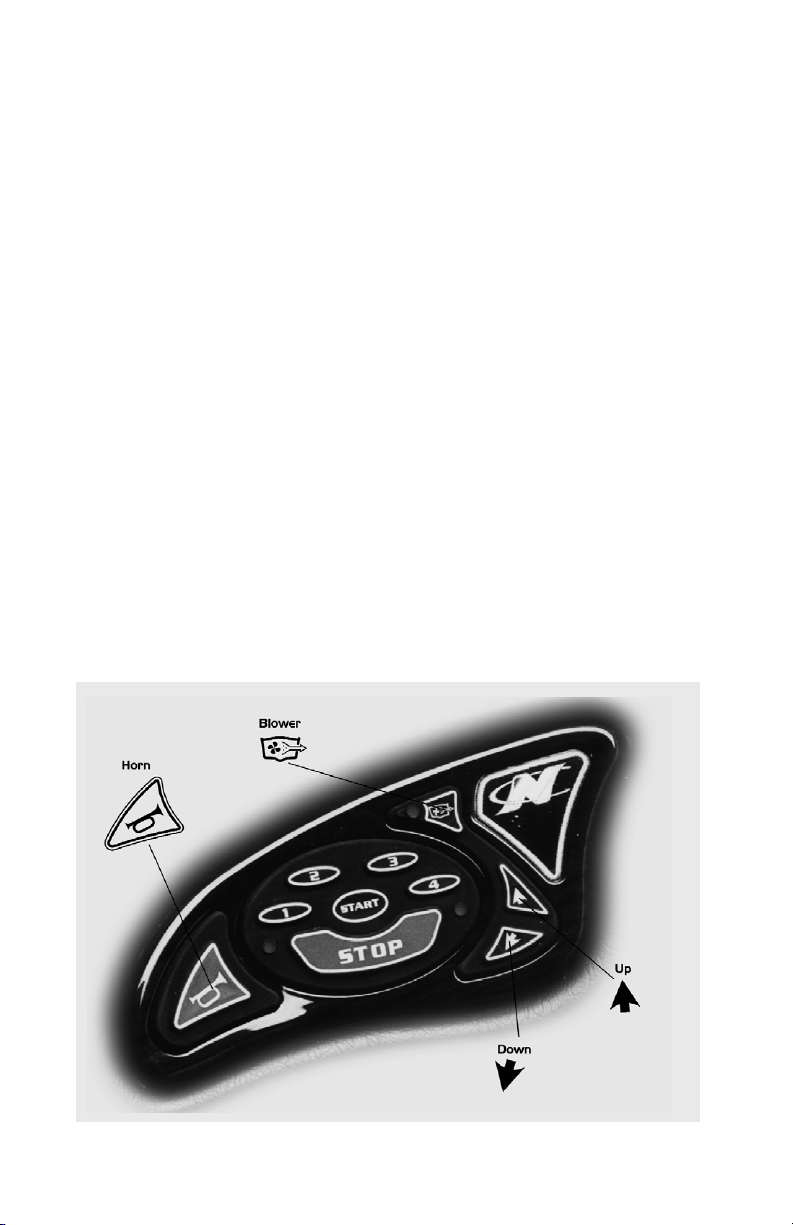

Keyless Ignition and Serial Switching
The ignition switch system is keyless and has three modes of operation.
Locked Mode
When the boat battery is first connected, the unit is in locked mode. In this
mode, the horn, bilge pump, bilge blower, and code buttons are operational.
Unlocked Mode
Unlocked mode is entered after the user successfully enters the user code,
presses, and releases the start button. When the code keys are pressed, the
system indicator light to the right of the start button will turn on while the key
is pressed down. This indicates the button has actually been pushed. When
the system is unlocked, power is supplied to the boat and the system indicator
light will turn on. At this point all keypad buttons are operational and
actuating these buttons will control the corresponding boat functions. To put
the unit back in locked mode, the user must successfully enter the user code
then press the stop button. When the code keys are pressed, the system
indicator light to the right of the start button will turn off while the keys are
pressed down. Power will be cut to all of the accessories with the exception
of the horn, bilge pump, bilge blower and code buttons.
1.2
Ski 10.qxd 9/1/00 2:41 PM Page 1.2

Run Mode
First enter the unlocked mode.
Pressing and releasing the start button quickly will put the unit in run mode.
When this is done, power is supplied to the engine ignition,but the engine will
not crank and the ignition indicator light just left of the start button is turned
on. If the start button is not pressed again within 15 minutes the unit will exit
run mode by shutting off power to the ignition and re-enter unlocked mode. If
the user presses and holds the start button, power is supplied to the ignition and
starter for as long as the user holds the start button down. All accessory
buttons are operational in this mode as well. Pressing the stop button will shut
off the engine and the unit is then put back in unlocked mode.
After the engine starts, release the start button.
Automatic Reversion to Locked Mode
If no keypad activity takes place for ten hours after unlocking, the system will
automatically revert to the locked mode. This helps to minimize battery drain.
Automatic Back-lighting
Pressing any keypad button will automatically turn the keypad back-lighting
on for ten seconds. This feature is useful for those that use their boat after dark
to find the appropriate keypad buttons.
Multiple Keyless Ignition Codes
The keyless ignition system has provision for three different ignition codes.
Any of the three codes may be used to unlock or lock the system.
The “Master Embedded Code” is programmed into the system at Correct Craft
Inc. and is not changeable, remaining with the boat for it’s life. This code can
be used to unlock the system, to lock the system and to erase the two user
codes.
The “Primary User Code” is programmed into the system by the owner with
the dealers help at the time of boat delivery. This code is used to unlock the
system, to lock the system, and to add or change the “Secondary User Code”
The “Secondary User Code” is programmed into the system by the owner
when necessary. This code is only used to unlock or lock the system. The
“Secondary User Code” is excellent to use for limited access to the boat.
Programming and/or Changing Primary or Secondary User Code
Note: To help prevent battery drain, when you are finished using the boat
make sure you STOP the engine and LOCK the PME ignition system.(two
steps) Note: The “System Indicator Light” is on the ignition keypad below
the number four (4). The “Ignition Indicator Light” is also on the keypad
below the number one (1)
1.3
Ski 10.qxd 9/1/00 2:41 PM Page 1.3

Programming the Primary User Code
Make sure that the system indicator light is off and the "Master Embedded
Code" has been entered. Until a primary user code is set, the keyless ignition
will behave as follows. Pressing start once will unlock the system while
pressing it a second time will start the engine. Pressing stop once will turn off
the engine while pressing it a second time will lock the system.
To program the primary user code, press buttons one and four at the same time,
putting the system in code programming mode. The system indicator light will
be flashing.
Enter a code from two to eight characters long and press start. For verification,
re-enter the code and press start again. The system indicator light should stop
flashing and stay on. If the light does not stop flashing, press stop and begin
again.
To lock the system re-enter either the primary user code or the master
embedded code and press stop.
Changing the Primary User Code
NOTE: The current primary code must be used to change to another primary
code.
Make sure that the system indicator light is off. Enter the primary user code
then press buttons one and four at the same time. This puts the system in code
programming mode. The system indicator light will be flashing.
Enter a code from two to eight characters long and press start. For verification,
re-enter the code and press start again. The system indicator light should stop
flashing and stay on. If the light does not stop flashing, press stop and begin
again.
To lock the system re-enter either the new primary user code or the master
embedded code and press stop. Please note, changing the primary code will
erase the secondary user code. The secondary code will need to be re-entered.
Programming or Changing the Secondary User Code
NOTE: The secondary code will only lock or unlock the system & can not be
used for any reprogramming
Make sure that the system indicator light is off. Enter the primary user code
and press buttons one and three at the same time putting the system in code
programming mode. The system indicator light will be flashing.
Enter a code from two to eight characters long and press start. Re-enter the
code and press start again. The system indicator light should stop flashing and
stay on. If the light does not stop flashing, press stop and begin again.
To lock the system re-enter any of the three codes and press stop.
1.4
Ski 10.qxd 9/1/00 2:41 PM Page 1.4

Erasing the User Codes
Make sure the system indicator light is off. Enter the master embedded code
and press buttons one and three at the same time. This will erase the system
user codes.
The keyless ignition will now behave as if there are no codes in memory.
Pressing the start button will unlock the system and pressing the stop button
will lock it without entering a code. To program a primary user code, make
sure the system indicator light is off and press buttons one and four at the same
time. This puts the system in code programming mode. The system indicator
light will be flashing. Follow the last two steps above to complete
programming the primary user code.
Key Functions
All keys with the exception of the bilge blower, bilge pump, horn, and the code
keys operate in unlocked or run mode. The horn, up, down, and start buttons,
(when starting the engine), are momentary buttons. All others require a press
to turn on and another press to turn off.
Exceptions
Pressing the heater button will actuate the heater in the following sequence:
Heater off (low(medium(high(back to off)
Pressing the LCS fill or drain will toggle the power to the corresponding
function. Turning either the fill or the drain on will automatically turn the
other off.
The navigation light button always controls the anchor light and if the
navigation lights are on, the anchor light button will have no affect. If the
navigation lights are off, the anchor light button will turn only the anchor light
on and off. One special feature works when the anchor lights are on. If the
user desires to turn the navigation lights on, it is unnecessary to turn the anchor
lights off. Simply pressing the navigation light button will leave the anchor
light on and turn on the bow light.
1.5
Ski 10.qxd 9/1/00 2:41 PM Page 1.5

Dash Pod Switches
There are function key switches to the right of the helm and surrounding the
keyless ignition keypad. These are waterproof momentary switches. By
pressing a function key, you activate the function indicated.
All of these switches interface with a sealed circuit breaker box located under
the bow. The circuit breaker box consists of sixteen soft opaque flexible vinyl
tubular shields which cover sixteen circuit switches. When the circuits are
functioning, the tubular shield is somewhat flexible. A tripped circuit breaker
will extend and fill the tubular shield, causing it to be inflexible. To locate a
tripped circuit breaker, run your fingers over the two rows of switches and
locate the switch shield that has become inflexible. To re-set, simply press in
the extended circuit switch shield.
Bilge Pump
The bilge pump switch turns on the bilge
pump. There is a bilge pump down by the
pylon. When you push the bilge pump
key on the keypad, the pump will come on
and run for several moments to “sense” of
there is water in the bilge. If there is water
in the bilge, it will remain on until the
water is pumped out. If there is no water in
the bilge, it will turn off. If you want
immediate pump action, turn the switch off
and then back on again. The pump will
turn on periodically to determine if there is
water in the bilge. If so, it will remain on
1.61.6
Bilge Pump
Ski 10.qxd 9/1/00 2:41 PM Page 1.6

until the water is pumped out.
Note: The “Bilge” switch must be turned on for this feature to operate.
This will not drain significant power from the battery unless the bilge
pump is required to run frequently because of a leak or excessive
rainwater. This pumping system should not be relied on over an extended
period of time. We suggest you frequently inspect your boat.
Bilge Pump Only Mode
This feature is activated by a switch located near the drivers feet on the
kickboard. The switch has three positions, on, off
and bilge. If the boat is going to sit for more
than a few days with the bilge pump on, it
is important that the switch is set in the
“bilge” position to minimize battery
drain. This will activate the bilge
pump and shut off power to the Serial
Switching and Keyless Ignition
System. It is important to remember
that the engine or other accessories
can not be used unless the switch is in
the “on” position.
Located with the switch is a circuit breaker and
indicator light for the bilge pump. The circuit breaker is
only active when the switch is in the “bilge” position. The indicator light will
come on anytime the bilge pump is activated.
Navigation Lights
This switch controls the navigation lights. The law requires the bow light and
the 360 degree light (located at the transom) be turned on while running the
boat after sunset or before dawn.
Anchor
This switch turns on the 360 degree light. Insert this light pole into the
receptacle located on the transom and push the anchor switch on the pod to
turn this light on. This light is required by law to be on after sunset and before
dawn when the boat is not moving.
Accessories
There is an accessory button provided that controls power to a yellow wire
coiled up near the control box. Power to this wire is protected by a 10-amp
circuit breaker. Attaching an accessory to this wire should be done by
someone knowledgeable in DC electrical wiring.
1.7
Ski 10.qxd 9/1/00 2:41 PM Page 1.7

Ventilation Blower
This switch turns on the blower in the bilge. This blower must be turned on
for four (4) minutes prior to engine ignition and also at anytime when the boat
is operated at slow speeds.
12 Volt Plug
This plug can be utilized to power cellular phones, video cameras or various
other electronics. This plug is powered through a ten (10) amp breaker.
Engine Warning Light
This light is in the center of the dash pod between the speedometer and the
tachometer and indicates high engine temperature.
Horn This is a momentary switch.
Gauges
• Volt This gauge tells you how many volts the alternator is producing. During
normal running, it should read 13-14 volts. Running a heater, shower or
stereo amplifier will draw power from the alternator and possibly drop
voltage below normal. If this occurs, the battery will not charge correctly.
• Temp This tells you the temperature of the coolant in the engine.
• Oil Pressure This gauge tells you the engine oil pressure.
• Tachometer / Hour Meter This gauge indicates the revolutions per minute the
engine is turning, and the total accumulated engine hours. The tachometer /
hour meter has a digital and analog readout. Mode selection is made by
pressing the mode keypad.
• Speedometer Your Nautique is equipped with an electronic speedometer by
Teleflex. This instrument is different in many ways. It is capable of being
programmed for multiple functions. This speedometer can be calibrated. To
access the various functions, press and scroll through the Mode Key. To
change the mode, press the INCREASE or DECREASE key. For a detailed
analysis of your speedometer, refer to the Teleflex speedometer section at the
end of this chapter.
• Emergency Cut-off Switch There is an emergency cut-off switch for the
protection of you and your passengers. The clip at the end of the cord must
be attached securely to the driver. Check the system by attaching the clip to
the switch, start the boat and then pull the clip off the switch. The engine
should stop. UNDER NO CIRCUMSTANCES SHOULD YOU OPERATE
THE BOAT IF THIS SYSTEM DOES NOT FUNCTION PROPERLY. If it
does not function correctly, contact your Correct Craft dealer to have the
problem corrected.
1.8
Ski 10.qxd 9/1/00 2:41 PM Page 1.8

• Throttle The throttle control consists of
the throttle lever, a lock out ring and a
neutral button. The neutral button is a
push-button at the bottom of the throttle
lever which allows the throttle to be
advanced without the transmission being
engaged. The throttle lever must be in the
neutral position to start the engine.
The throttle arm has three detent positions.
Note: When in a detent position the
throttle arm will resist movement, but can
be moved with sufficient pressure. Neutral
detent is straight up. Forward detent is approximately 30 degrees toward the
bow, and reverse detent is approximately 30 degrees toward the stern. Moving
the throttle from neutral detent to either forward or reverse detent will shift the
boat into that gear. The engine will remain at idle speed. To increase (forward
or reverse) engine speed and therefore boat speed, continue to rotate the
throttle arm past the detent.
Note: When shifting out of neutral, it is best to pause in the appropriate detent
before applying additional throttle.
The lockout ring mechanism prevents unintentional shifting into forward or
reverse. To operate the throttle lever, you must lift the lockout ring. DO NOT
shift quickly from forward into reverse. Stay in the neutral position until
the boat has lost speed before shifting into reverse. Shifting should not be
attempted above 1200 RPM except in emergency situations.
CAUTION: LOADING AND UNLOADING OF PASSENGERS FROM
A DOCK OR FROM THE WATER SHOULD ONLY BE DONE AFTER
THE ENGINE HAS BEEN TURNED OFF.
Pylon
The ski pylon is manufactured from high strength aluminum alloy that is
engineered for durability. It is hard coat anodized and impregnated with a
PTFE (teflon) material. If the pylon becomes loose, stop using the pylon and
take the boat to your Correct Craft dealer for service.
PYLON--WARNING/CAUTION--AVOID PERSONAL INJURY. THIS WATER
SKI PYLON WAS DESIGNED FOR WATER SKIING ONLY. ANY OTHER
USES, SUCH AS PARASAILING, KITE FLYING, TOWING OTHER BOATS
AND/OR USING AN EXTENDED PYLON, ECT., MAY OVERSTRESS THE
PYLON POSSIBLY CAUSING PERSONAL INJURY AND/OR EQUIPMENT
DAMAGE. DO NOT SIT BEHIND (AFT) THE TOW PYLON WHEN TOWING
SKIERS.
CAUTION: ALTHOUGH THE EXTENDED PYLON AND BAREFOOT
BOOMS HAVE BECOME POPULAR ADDITIONS TO MANY TOURNAMENT
1.9
Ski 10.qxd 9/1/00 2:42 PM Page 1.9

INBOARDS, CORRECT CRAFT STRONGLY OBJECTS AND OPPOSES THE
USE OF ANY PYLON EXTENSION WHETHER UP OR TO THE SIDE OF
ANY OF IT’S PRODUCTS. THE USE OF PYLON EXTENSIONS CAN ALTER
THE HANDLING CHARACTERISTICS OF THE BOAT, POSSIBLY
RESULTING IN DANGEROUS INSTABILITY, WHICH COULD THEN LEAD
TO LOSS OF CONTROL; A SITUATION WHICH COULD CAUSE SERIOUS
OR FATAL INJURY TO THE BOAT DRIVER, PASSENGER(S), PERSON(S)
BEING TOWED, AND ANYONE ELSE WHO MIGHT BE IN THE VICINITY
OF SUCH A MISHAP.
CAUTION: CORRECT CRAFT DOES NOT APPROVE OF ANY
STRUCTURAL CHANGES, ADDITIONS OR MODIFICATIONS TO OUR
PRODUCTS. ANY TIME A DEALER OR CONSUMER MAKES A
CHANGE(S) TO OUR PRODUCT, THEY DO SO AT THEIR OWN RISK AND
SOLE LIABILITY. CORRECT CRAFT, INC. WILL NOT BE HELD LIABLE
FOR UNAUTHORIZED CHANGES, WHETHER DELETIONS OR
ADDITIONS, TO THE ORIGINAL EQUIPMENT / PRODUCT
MANUFACTURED AND SOLD BY CORRECT CRAFT, INC., EVEN IF SUCH
CHANGES, ADDITIONS, ECT. ARE MADE BY AN “AUTHORIZED”
DEALER, CUSTOMER, PROMOTIONAL REPRESENTATIVE OR ANY
OTHER PERSON, KNOWN OR UNKNOWN TO CORRECT CRAFT, INC.
Lifting rings
Your boat has lifting rings at the bow and at the stern. These are designed to
lift your boat in a steady and secure manner. Be certain to use a winch that has
a lifting capacity sufficient for your boat. See boat weight specs in the front of
this manual. These weights are dry weight. You must add the weight of the
battery, fuel, and gear to the dry weight.
CAUTION: DRAIN THE BILGE AND/OR AFTERMARKET WATER
BLADDERS(S) TO ELIMINATE EXCESS WATER BEFORE YOU
LIFT THE BOAT.
Note: Only use a hook that will pass easily through the lifting ring without
binding. This is very important. A hook that is too large or off-center could
break the lifting ring.
Capacity Plate
The capacity plate is used by boat
manufacturers participating in the
National Marine Manufacturers
Association certification program.
Correct Craft has submitted your
model for inspection and compliance
with their guidelines.
The capacity plate has the following
information permanently printed on it.
It is attached to the boat by the throttle
for the operator to read before they
1.10
Ski 10.qxd 9/1/00 2:42 PM Page 1.10

drive the boat.
• The total weight of persons, gear and other items which the boat is capable
of carrying under normal conditions. This weight must include any water
added to the Launch Control System or other added ballast.
• The maximum number of persons allowed on the boat.
This information on the capacity plate applies under normal conditions and
special care must be used in any other than normal conditions.
Check the capacity plate on your boat and abide by these limits.
NOTE: THE USE OF ANY BALLAST SYSTEM REQUIRES THE
REDUCTION OF THE MAXIMUM LOAD CAPACITY LISTED ON
YOUR NAUTIQUE’S CAPACITY PLATE. (I.E.IF THE MAXIMUM
CAPACITY IS LISTED AS 1250 LBS AND YOU ADD 400 LBS OF
BALLAST, THEN THE TOTAL WEIGHT OF PERSONS AND
GEAR THAT YOU CAN CARRY IS REDUCED TO 850 LBS.
CAUTION: A FULLY LOADED NAUTIQUE WILL HANDLE
DIFFERENTLY THAN A LIGHTLY LOADED ONE. DRIVE AND
TURN YOUR NAUTIQUE WITH THIS IN MIND. AS
WAKEBOARDING HAS DEVELOPED, WE HAVE WITNESSED
THE ADVENT OF BALLAST SYSTEMS WHICH ADD WEIGHT
AND INCREASE THE SIZE OF THE WAKE. THE SIMPLEST
BALLAST SYSTEM ON THE MARKET IS THE WATER BALLAST
TYPE, SUCH AS THE ‘LAUNCH PAD”. IT IS NOT UNCOMMON
TO SEE OPERATORS USE SUCH SYSTEMS AND THEN PUT
ADDITIONAL PEOPLE IN THEIR BOAT. PLEASE BE ADVISED
THAT THIS PRACTICE CAN LEAD TO OVERLOADING OF
YOUR BOAT. EACH CORRECT CRAFT, INC. BOAT HAS A
REQUIRED CAPACITY LABEL THAT MEETS THE MAXIMUM
WEIGHT OF PEOPLE, GEAR, AND BALLAST THAT CAN BE
PLACED IN THE BOAT. ALWAYS BE AWARE OF THE LOAD IN
YOUR BOAT AND DO NOT LOAD THE BOAT IN EXCESS OF
THE LISTED CAPACITY. THE QUEST FOR THE
“PHATTEST”WAKE HAS CAUSED SOME TO EXCESSIVELY
OVERLOAD THEIR BOATS. THIS MAY ADVERSELY AFFECT
THE OPERATION OF THE BOAT, POSSIBLY RESULTING IN
INJURY TO PERSONS INSIDE AND/OR OUTSIDE OF THE BOAT.
AVOID PERSONAL INJURY. DO NOT OVERLOAD YOUR
NAUTIQUE.
Hull Identification Number
The hull identification number is a requirement of the U.S. Coast Guard for
boat manufacturers. It is a standardized numbering system that assigns a
specific sequence of numbers and letters to a specific boat. This number is
molded into the hull. You will find it on the right-hand side of the transom just
below the rubrail. Write this number down in your records and keep it in a safe
place away from the boat.
1.11
Ski 10.qxd 9/1/00 2:42 PM Page 1.11

Here is a brief explanation to help you understand the hull number:
The first three digits represent Correct Craft, Inc.(CTC). The next five digits
are the boat’s serial number. The following digit is a letter from “A” through
“L” designating the month the boat was made.
There are three remaining numbers. The first of these represent the last digit of
the year the boat was built. The final two
numbers state the MODEL year. A boat built in
August of 2000 is actually a 2001 model boat.
Driver’s Seat Adjustment
There is a lever under the driver’s seat on the left
side that allows the seat to slide.
Love Seat
Access storage under the bow area by lifting up
on the bottom of the love seat cushion. The entire
love seat will hinge upward to allow access. You
can leave this seat in the “up” position to help dry
the carpet .
Fueling
Remove the slotted fuel fill cap to put gas in the
boat. There is a special “key” for this cap. Use
caution when fueling your boat. Never fuel your
boat unattended. Use care to avoid being
splashed by fuel, or spilling fuel.
Walk Through Windshield (optional)
There are two latches on the inside starboard edge of the walk-through
windshield. Rotate both of these latches until the door can be opened. Always
have this closed and latched when towing the
boat.
Engine Box Latching/Lifting
There are two rubber latches that hold the top of
the engine box to the base. Pull on the top of
these latches and the upper part or the engine box
will be released. Lift up on the engine box handle
and the gas shocks will help you lift the engine
1.12
Drivers Seat Adjustment
Engine Box Latch
Fuel Fill and Vent
Ski 10.qxd 9/1/00 2:42 PM Page 1.12
